Electric Grease Pump Automatic Oil Lubrication Pump Lubrication Distributor For Machinery Environmental Protect

Share on (1600911917267):


Price:

Quantity:


Product Overview

Description

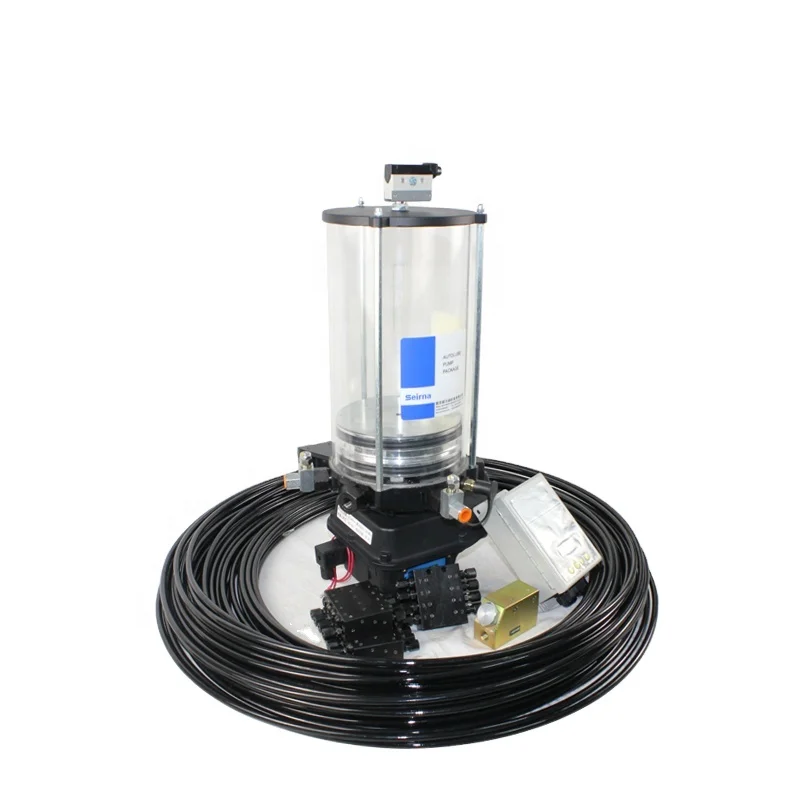

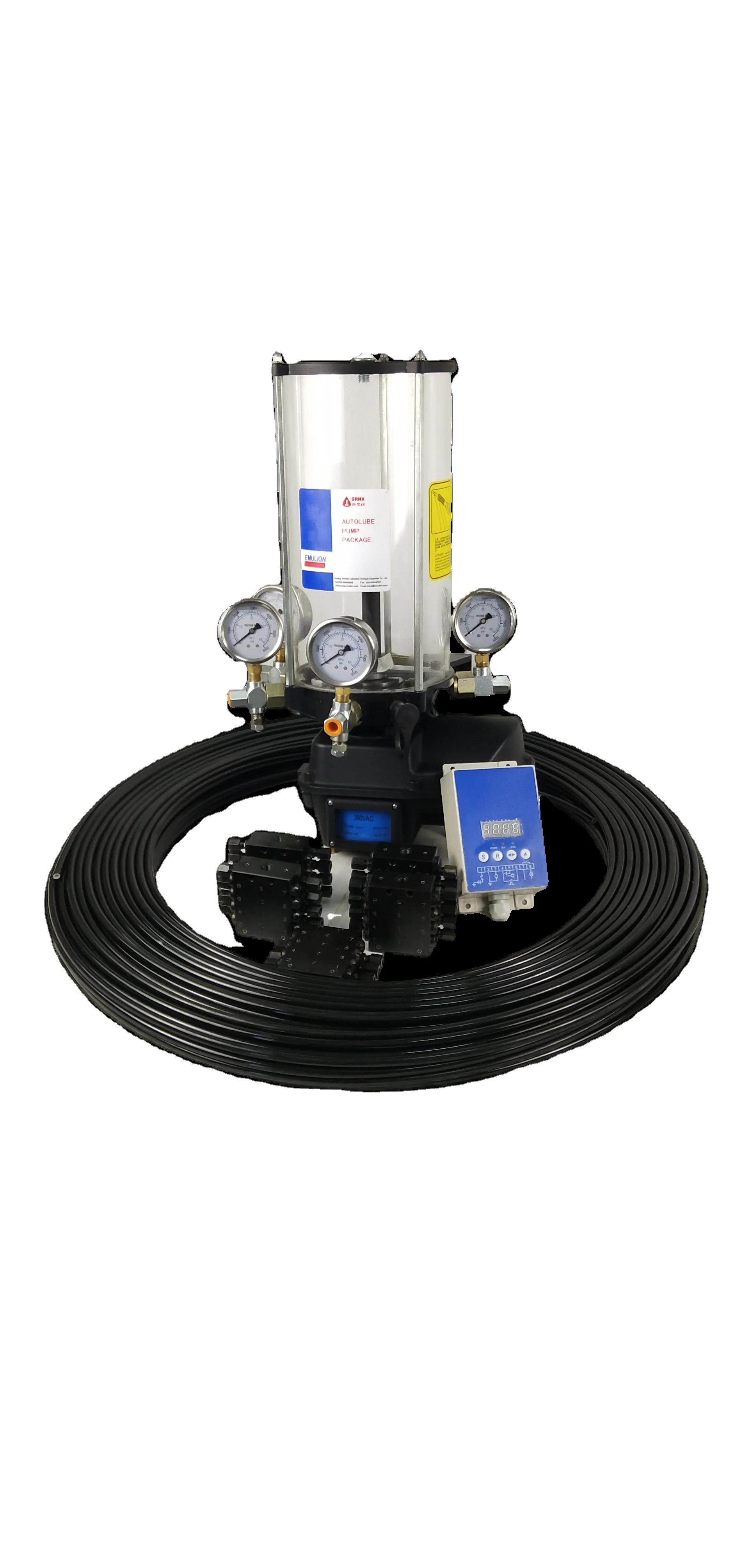

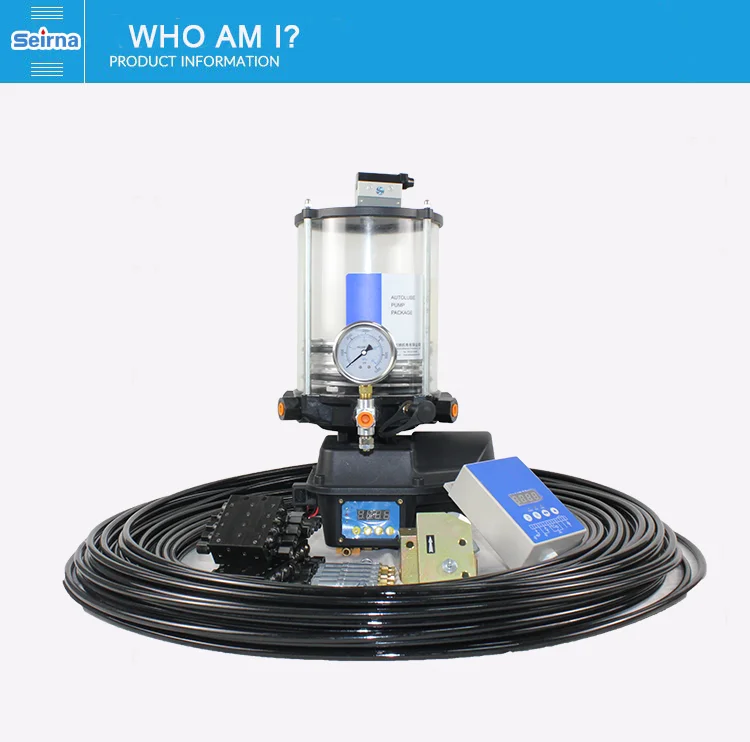

12V / 24V / 110V / 220V / 380V Electric Grease Pump Oil / Grease Lubrication System





Widely for cranes, forging machines, mining machinery, cement machinery, construction machinery, transportation vehicles, rubber machinery, light industry, environmental protection and other machinery.





Performance and features:
1.The motor is driven by a reducer that drives the eccentric to make the plunger in the pump.
2.The body reciprocates in a straight line, and the oil absorption and oil discharge processes are sequentially realized.
3.5 independent pump units (1 to 5 outlets)  can be arbitrarily selected
4.The pressure is up to 25MPa, and each outlet is provided with a safety valve to prevent the pump unit from being overloaded.

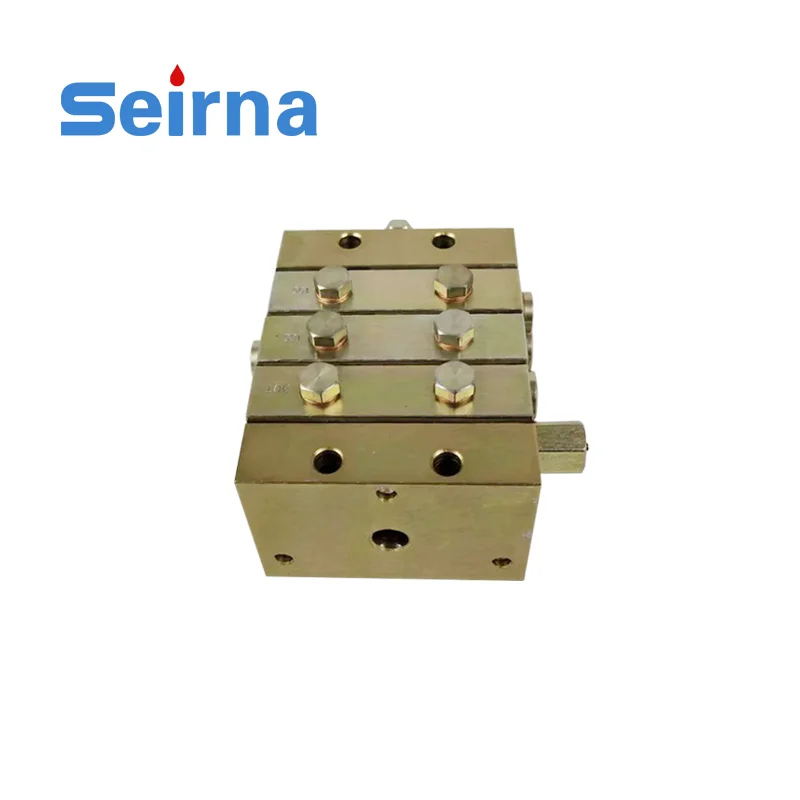

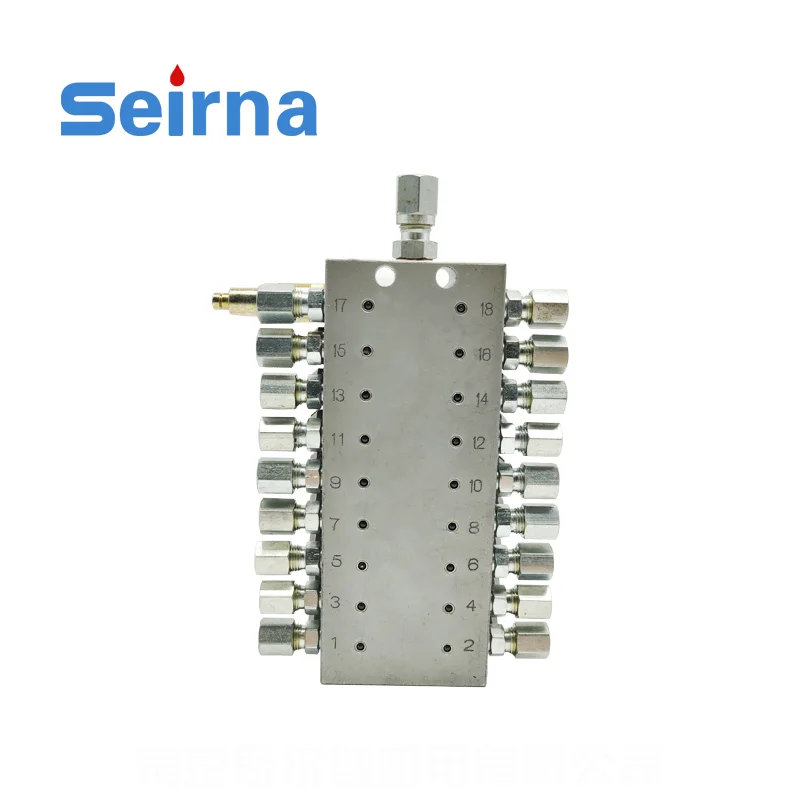

5.A progressive grease lubrication system can be constructed with the progressive distributor as needed.
6.Low level switch is available for low level alarms.
7.A variety of volume tanks are available, and the tanks are available in metal and plastic tanks.
8.The pump has its own controller, which can set the pump to run and stop as needed.


grease lubrication system


grease lubrication system



























Power supply


Voltage



Motor


Power(W)



Outlet


Thread



Number of


Outlets



Single outlet


Discharge


amount


(ml/min)



Max working


pressure


(MPa)



Using


Grease


(NLGI)



12/24VDC



   50






NPT1/4



  1~3



5.5






25



000#-2#



110 /220/380VAC






grease lubrication systemgrease lubrication system





 grease lubrication systemgrease lubrication systemgrease lubrication system
