Cheap price customized 16M HOWO single cab folded aerial working platform truck new truck moutned aerial bucket truck hydraulic
- Category: >>>
- Supplier: Hubei Shengda Automobile Co. Ltd.
Share on (1600912150591):
Product Overview
Description
Products Description

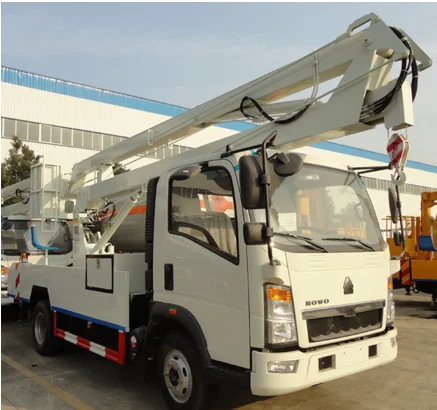

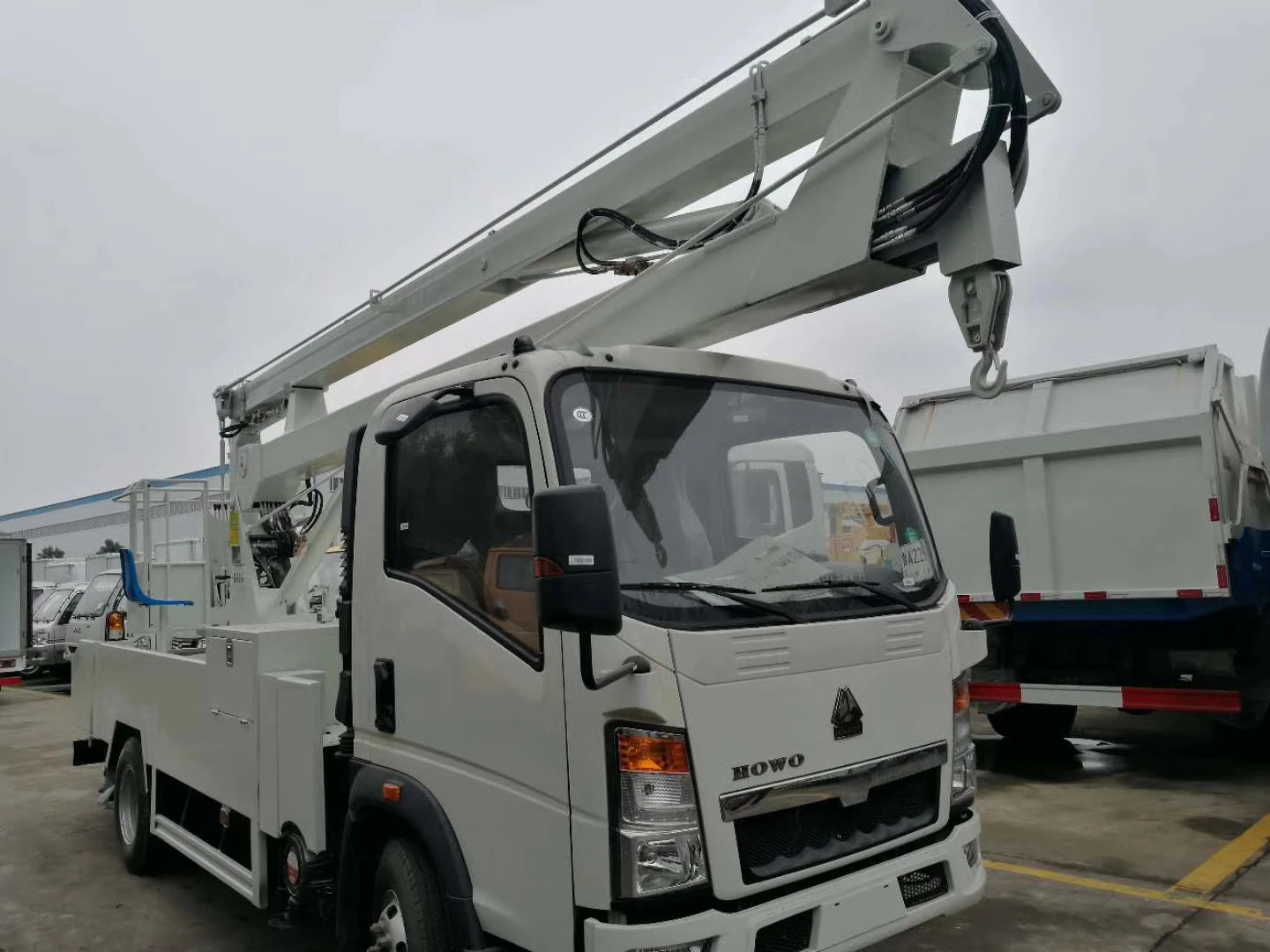

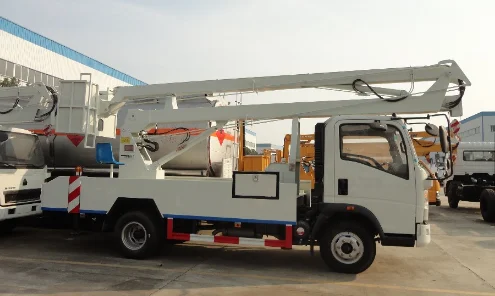

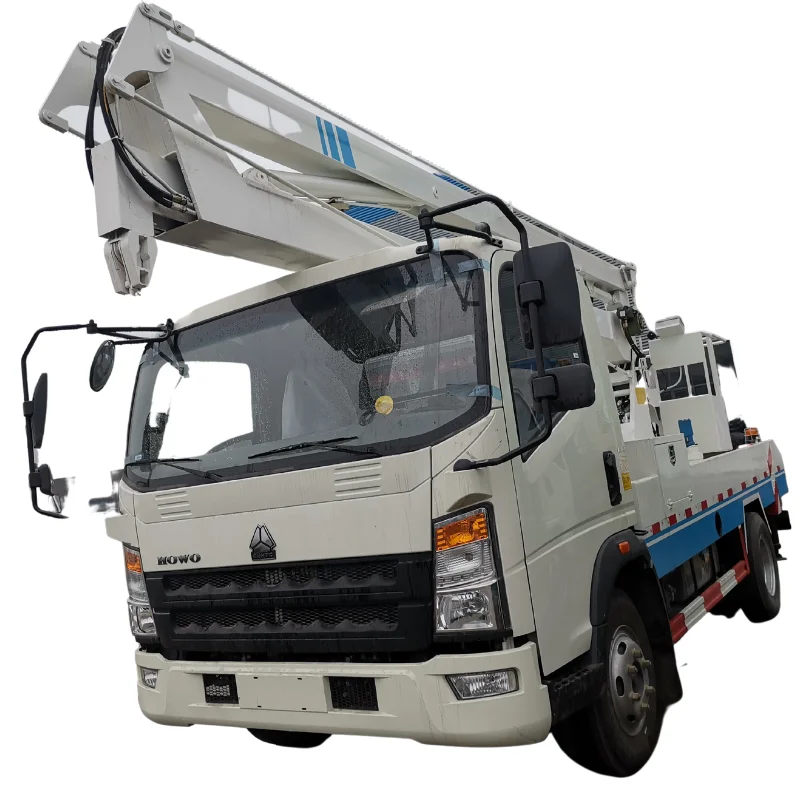

customized SINOTRUK HOWO 4*2 RHD 16m working height aerial working operation vehicle for Maldives
HOWO 4*2 RHD 16-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.''
The technical advantages of the truck mounted aerial working platform truck is as below.

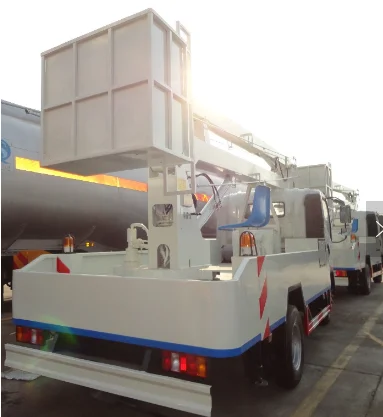

1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.
2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.
4. The working bucket is equipped with night operation lights to make night operation safer.
5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.
7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.
2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.
4. The working bucket is equipped with night operation lights to make night operation safer.
5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.
7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat/Mob.: 0086 13329899995.
Item | Name | Model/type |
1 | Product brand | HOWO aerial working platform truck for sale RHD 16m |
2 | Product name | knuckle high altitude operation truck |
3 | Chassis model | zz |
4 | Max working height | 16m(person height 1.7m included) |
5 | Main technical parameters for working | Distance between ground to the working platform ≥14.3m Max working range of the working platform≥6.92m Working range at the max working height of the working platform≥2.26m Working height at the max working range of the working platform ≥9.2m Max loading capacity of the working bucket: 200kgs |
Outriggers | type：H type outriggers Nos.：4 Operating way：Independently adjustable and can also be linked Horizontal span：2680mm Longitudinal span：3050mm | |
Hook | Max lifting mass ≤1000kg，Safety value: 900kg。 Max lifting height: 7.2m | |
Main operation | Operation position: turntable and working bucket- double working position operation Operation mode: Manual hydraulic or electronic control operation | |
6 | Hoarding and platform board | Steel toolbox and hoarding, Pattern non-slip walking board, Stainless steel railing |
7 | Boom structure | 3 sections folded crane boom |
8 | Slewing device | Two-way 360° continuous rotation |
9 | Engine model | KH1CN6LB ISUZU/120hp diesel Euro 6 engine |
10 | Overall dimension(L*W*H) | 7400×2000×3100 |
11 | Total mass | 5600kg |
12 | Curb mass | 5275kg |
13 | wheelbase | 3360mm |
Product Paramenters
16m dongfeng aerial working platform truck for sale

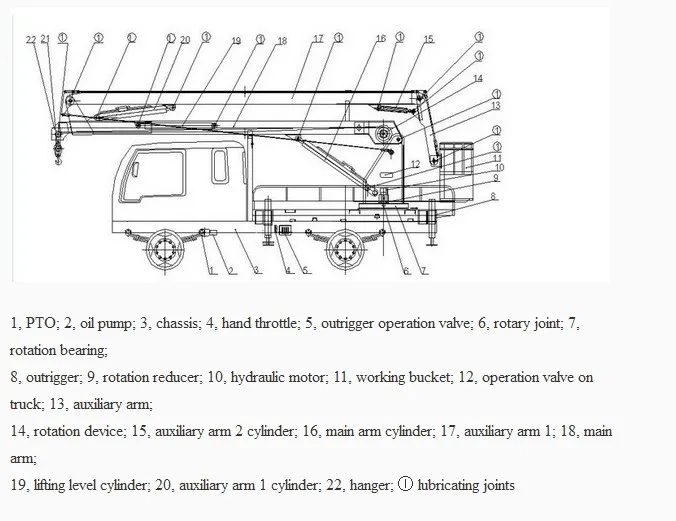

The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
As a professional truck lifting nacelle manufacturer in China, besides veritical aerial platform truck, we also have 360 degree rotate aerial working truck, which include knuckle boom platform truck and telescopic aerial truck.
The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
Details Images
Why Choose Us
Why choose our knuckle boom aerial working platform truck?
1, Aerial working height 12m,14m,16m,18m,20m,22m,24m(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,JAC, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial
work.
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
