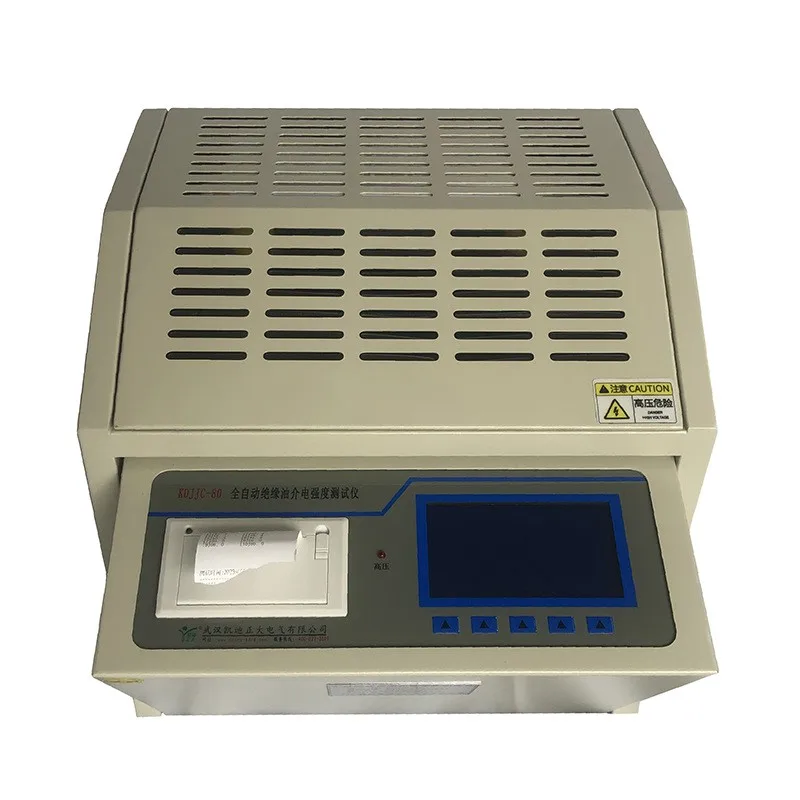

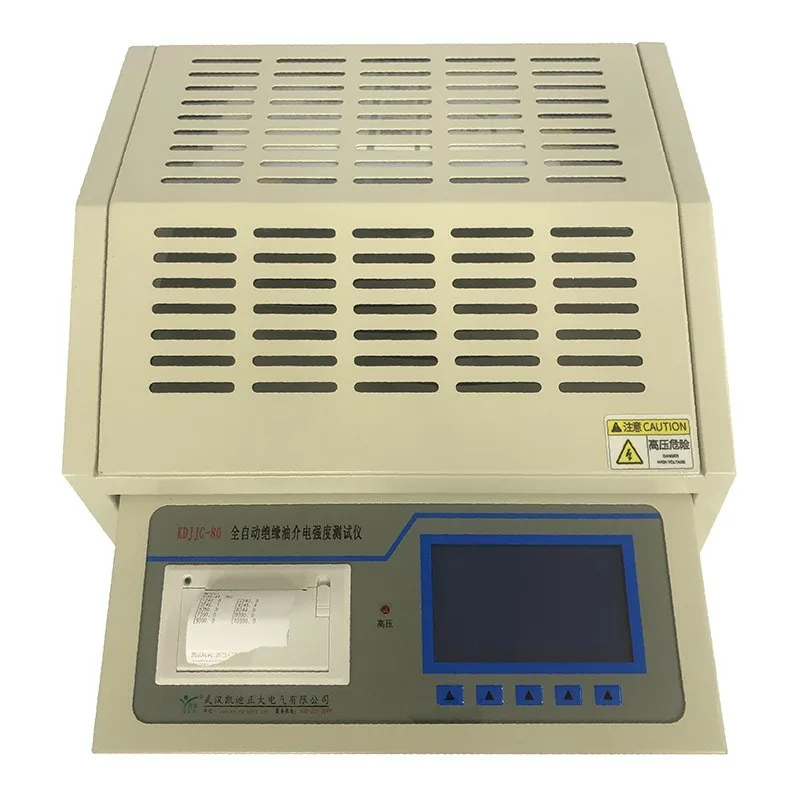

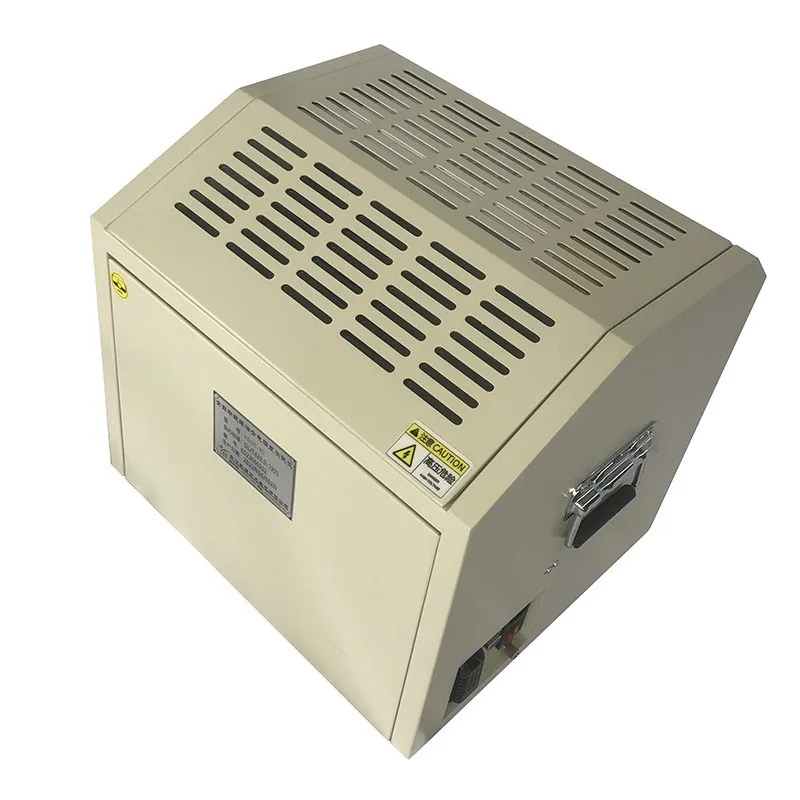

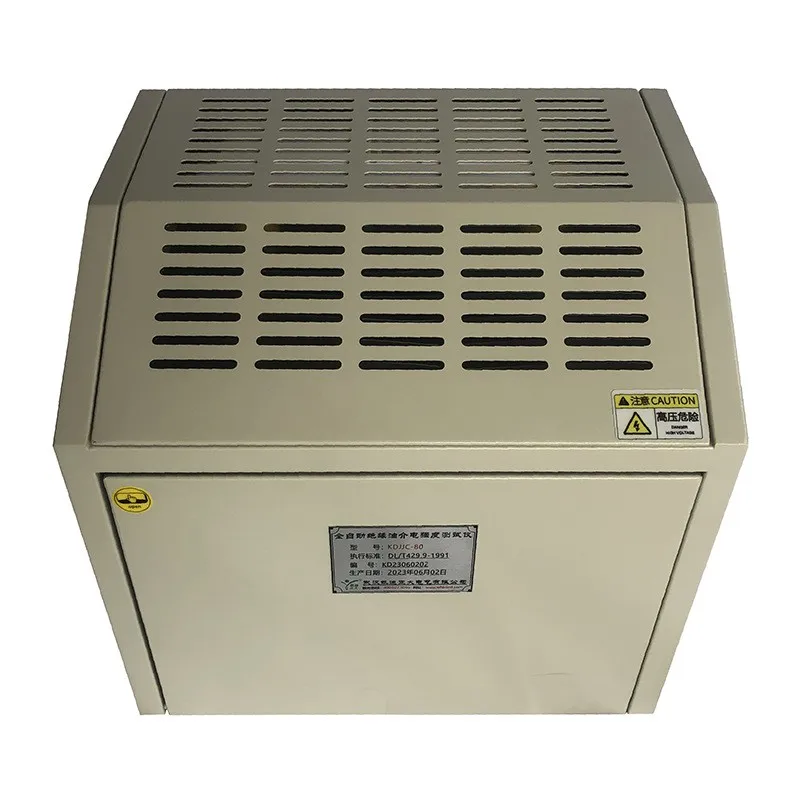

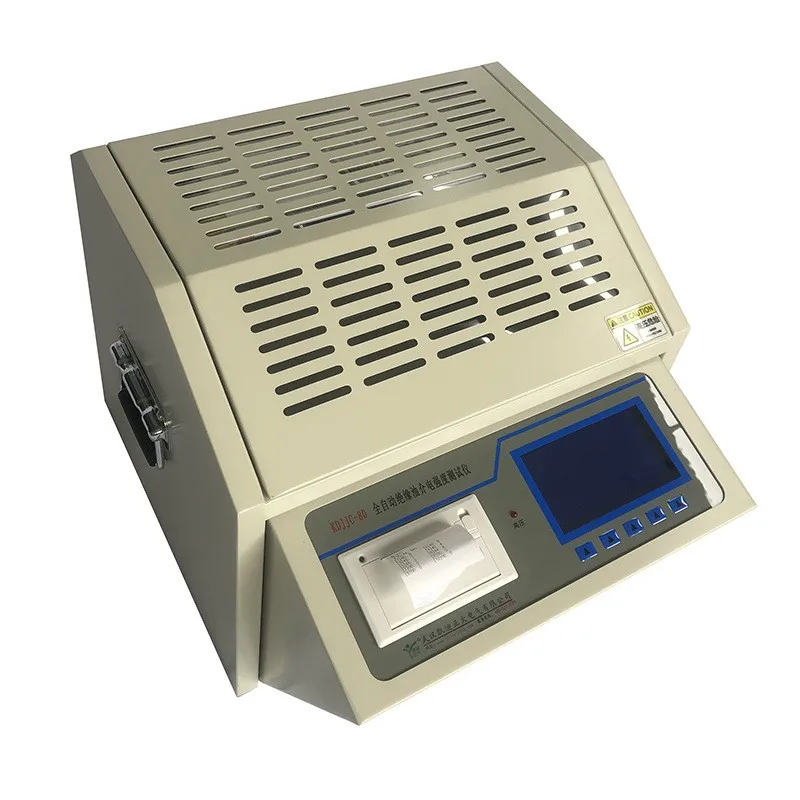

Automatic insulating oil dielectric strength tester 80kV Transformer Oil Breakdown Voltage BDV Testeing Product
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1600912209660):
Product Overview
Description
Product Description
To meet the needs of different users, this series of instruments can be divided into single cup three cup and multi cup models. The instrument is easy to operate and has a beautiful and elegant appearance. Due to the use of automatic digital microcomputer control, the measurement accuracy is high, the anti-interference ability is strong, and it is safe and reliable.
Technical indicators | ||
Booster capacity | 1.5kVA | |
Boost speed | 0.5kV/s-5.0kV/s (every 0.5 increments), ten levels can be selected, with an error of 0.2kV/s | |
Output voltage | 0-80 kV，0-100kV (optional) | |
Voltage accuracy | (2% reading+2 words) | |
Power distortion rate | ＜ 1% | |
Electrode gap | standard 2.5 mm | |
Test frequency | 6 times (1-10 times optional) | |
Quiet time | 900S (0-5900 S optional) | |
Interval rest time | 300S (0-5900S optional) | |
Mixing time | 15S (0-250S optional) | |
Display method | Large screen LCD Chinese character display | |
Communication interface | Standard 232 communication interface | |

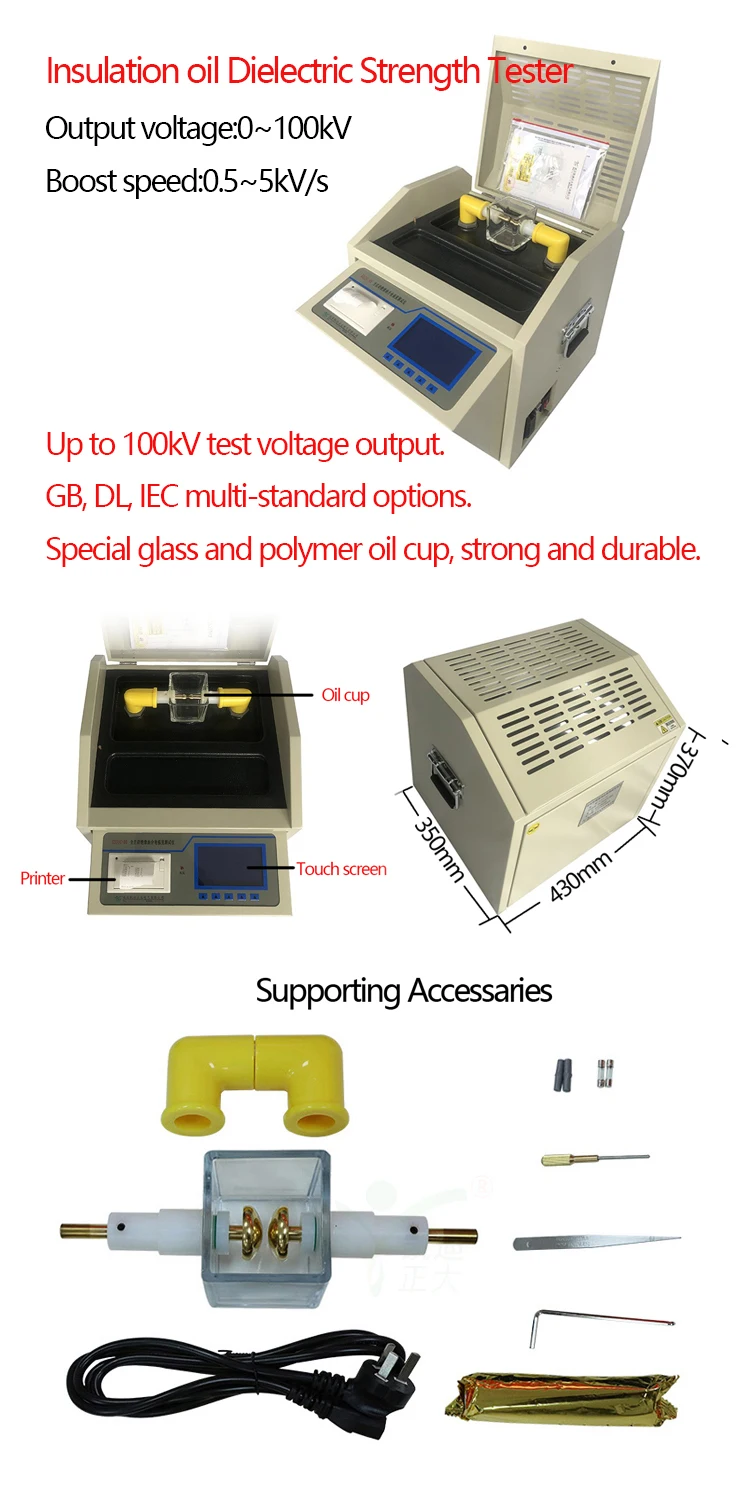

Overall dimensions | 430 mm long; 350 mm wide; 370 mm high | |
Instrument weight | 36 kg | |
Usage conditions | ||
Environmental temperature | 0-40 ℃ | |
Relative humidity | ≤ 85% | |
Working power supply | AC 220V ± 20% | |
Power frequency | 50 Hz ± 5 Hz | |
Power consumption | ＜ 200 W | |
Instrument characteristics
1. The instrument is controlled by a large capacity microcontroller, ensuring stable and reliable operation;
2. The instrument is equipped with a wide range watchdog circuit to prevent crashes;
3. Multiple operation options, the instrument program has two national standard methods, GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156, and custom operations, which can adapt to various choices of different users;
4. The instrument oil cup is cast with special glass in one go to prevent interference such as oil leakage;
5. The high-voltage sampling design of the instrument allows the test values to directly enter the A/D converter, avoiding errors caused in analog circuits and making the measurement results more accurate;
6. The instrument has the functions of overcurrent, overvoltage, short circuit and other protection, and has anti-interference capability and good Electromagnetic compatibility;
7. Portable structure, easy to move, and convenient for both indoor and outdoor use.
1. The instrument is controlled by a large capacity microcontroller, ensuring stable and reliable operation;
2. The instrument is equipped with a wide range watchdog circuit to prevent crashes;
3. Multiple operation options, the instrument program has two national standard methods, GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156, and custom operations, which can adapt to various choices of different users;
4. The instrument oil cup is cast with special glass in one go to prevent interference such as oil leakage;
5. The high-voltage sampling design of the instrument allows the test values to directly enter the A/D converter, avoiding errors caused in analog circuits and making the measurement results more accurate;
6. The instrument has the functions of overcurrent, overvoltage, short circuit and other protection, and has anti-interference capability and good Electromagnetic compatibility;
7. Portable structure, easy to move, and convenient for both indoor and outdoor use.
