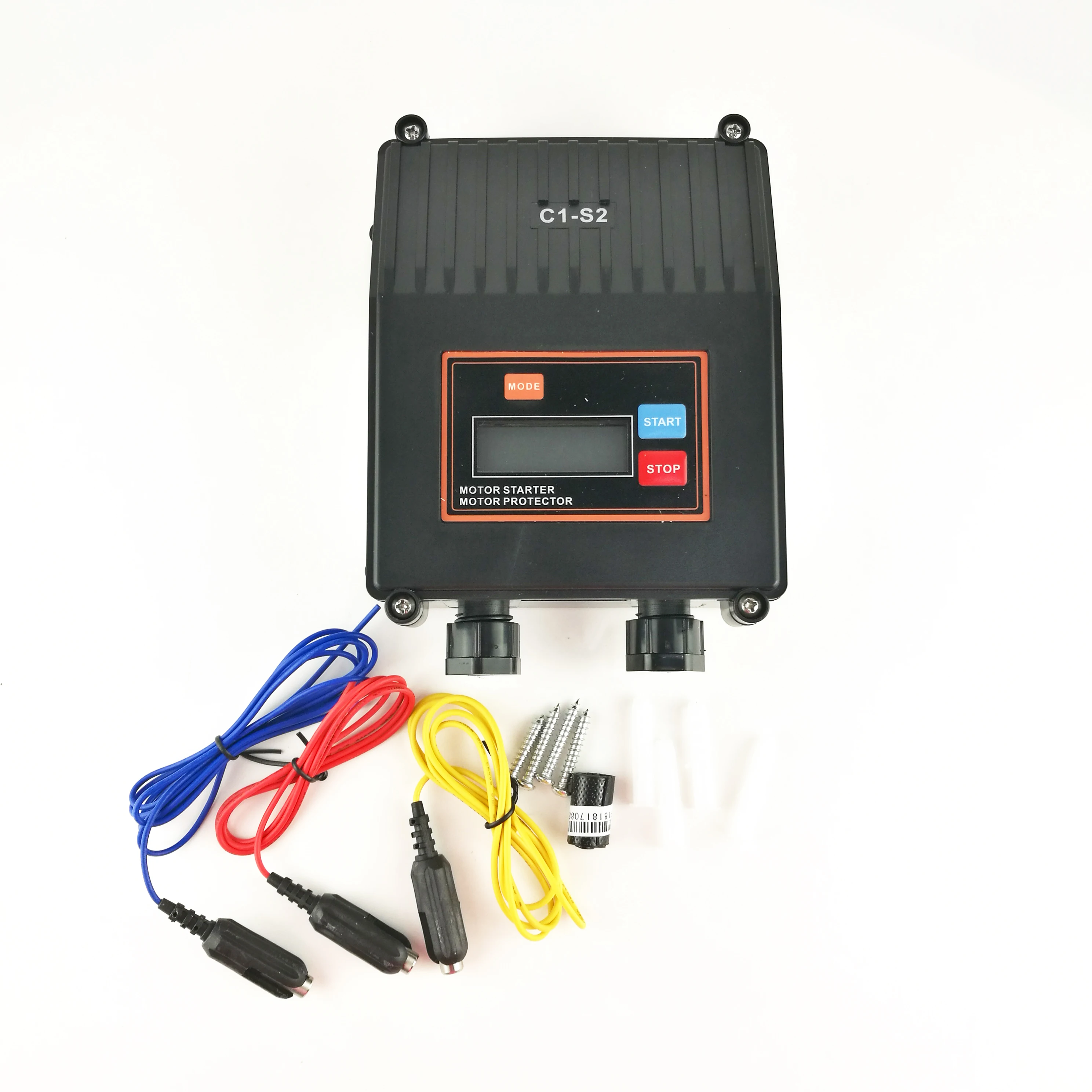

LCD Dynamic Display 370w Automatic Pump Control Water Level Sensor Pump Controller Automatic Inverter Water Pump Controller

Product Overview

Description





TYPE	MOTOR POWER (kW)	UNIT PACKAGE SIZE (cm)	G.W (KG)	PACKING QUANTITY (PCS)	PACKING SIZE (cm)	PACKING G.W (KG)
C1-S2-WITHOUT CAP	0.37-2.2	22*15.3*7.8	0.66	18	34*36*53	12.7
C1-S2-25uf	0.37		0.8	18		15.22
C1-S2-30uf	0.55		0.8	18		15.22
C1-S2-40uf	0.75		0.81	18		15.4
C1-S2-45uf	1.1		0.84	18		15.94
C1-S2-50uf	1.5		0.84	18		15.94
C1-S2-70uf	2.2		0.85	18		16.12

Main Specifications:
Rated Input Voltage:AC220V/50Hz,60Hz
Single Phase Rated Output Power:0.37KW-2.2KW(0.5hp-3hp)

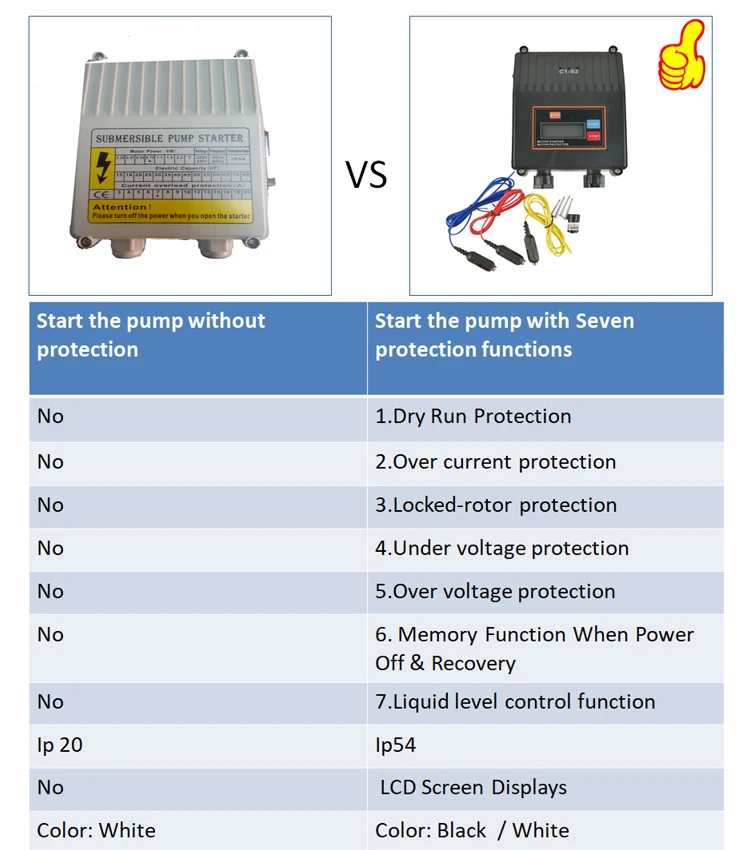

Protection function:
♦    Overload protection
♦    Under/overvoltage protection
♦    Motor stalled protection
♦    Dry run protection with sensor free

Main Features:
♦    Control characteristic: Pulse electrode probe/Float switch
      /Electric contact Pressure Gauge/Pressure switch
♦    Display features: Hd LCD dynamic English language display
♦    Control mode: Manual/Auto
♦    Have complete protection function in manual/automatic state
♦    Pump last five fault record displaying
♦    Pump accumulative running time displaying
♦    Pump shaft rust protection
♦    Push button calibration
♦    Flashing instruction when probe link reverses
♦    Failure alarm
♦    Rapid filling water when power cut or back
♦    Button calibration state indication
♦    Level sensor transmitting distance≤200m

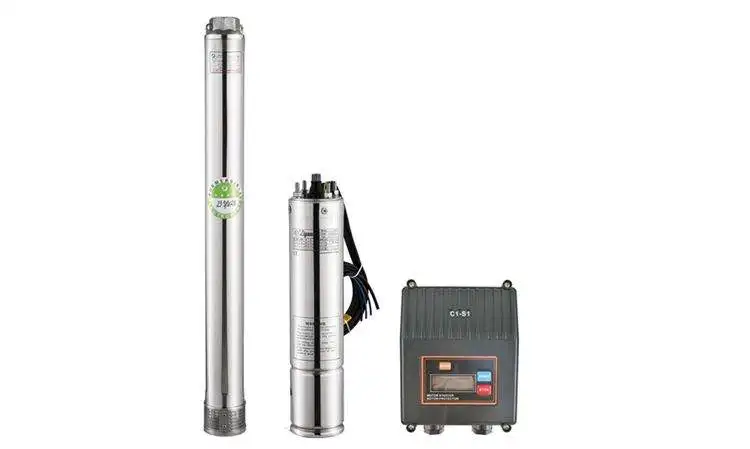

 Submersible Water Pump Digital Intelligent Controller Pump Control Box
