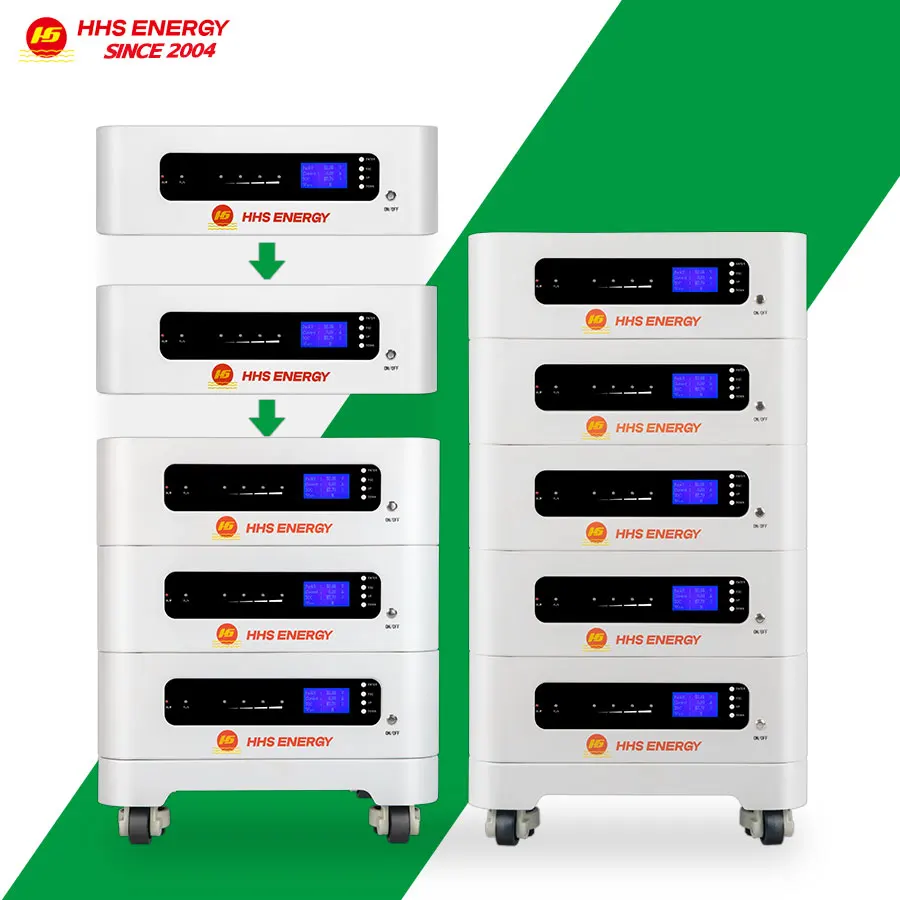

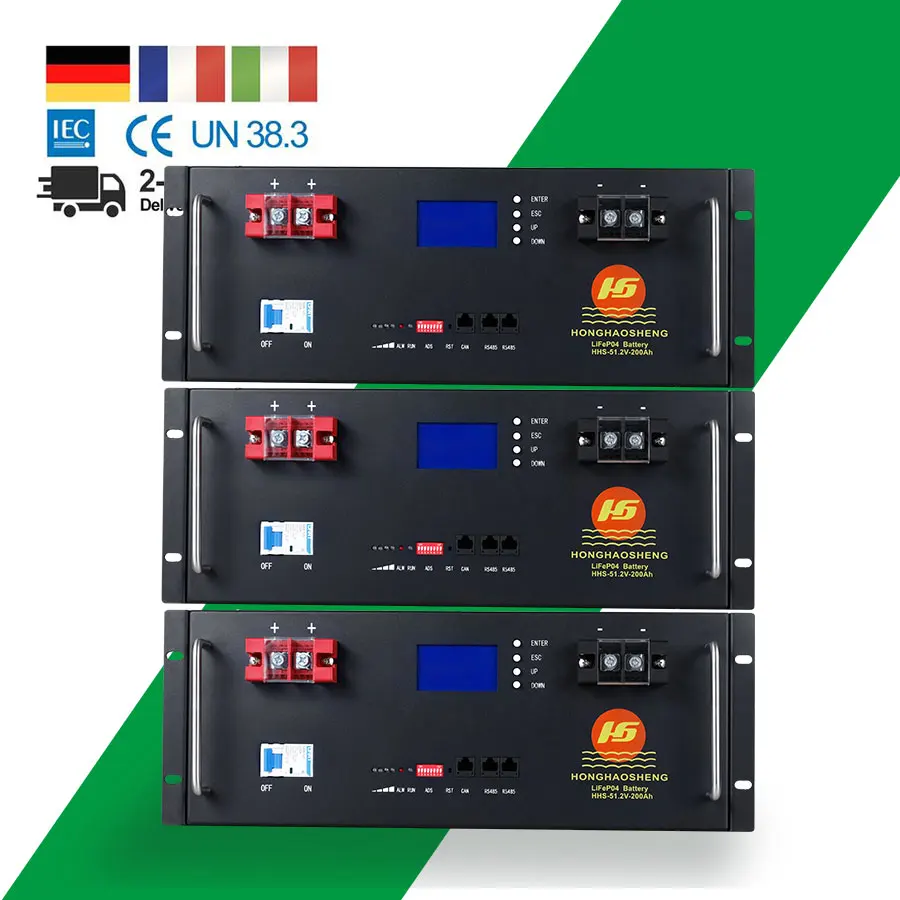

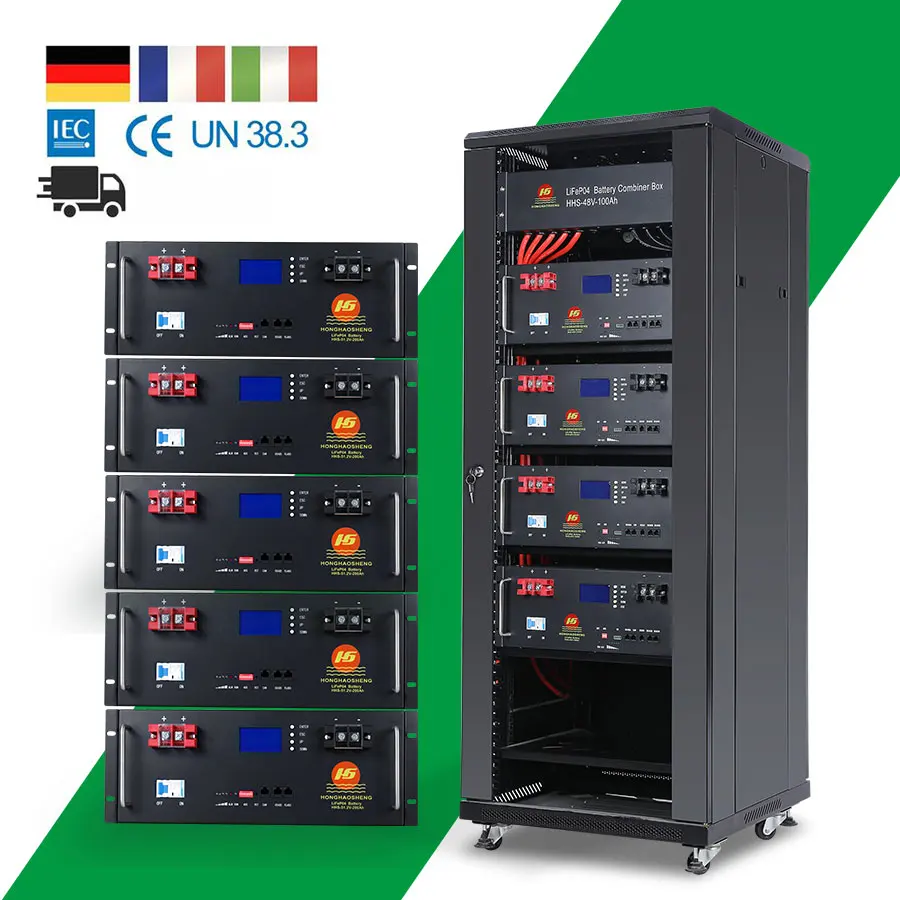

Renewable Residentian 5kwh 10kwh 15kwh 20kwh rack mount battery 48v 51.2v server rack battery
- Category: >>>
- Supplier: Shenzhen Honghaosheng Electronics Co. Ltd.
Share on (1600912290609):
Product Overview
Description
Model | HHS-SR512100/512200 | HHS-SR512500/5121000 | |
Nominal Voltage | 51.2V | 51.2V | |
Nominal Capacity | 100Ah/200Ah | 500Ah/1000Ah | |
Energy | 5.12KWh/10.24KWh | 25.6KWh/51.2KWh | |
Cycle Life | ≥6000cycles@80%DOD,25℃，0.5C | ||
Design Life | ≥10 years | ||
Dimensions | 450*442*133 / 515*442*221 mm | 600*600*1600 mm | |
Weight | 44.5Kg/80Kg | 300Kg/478Kg | |
Protocol (optional) | RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter | ||

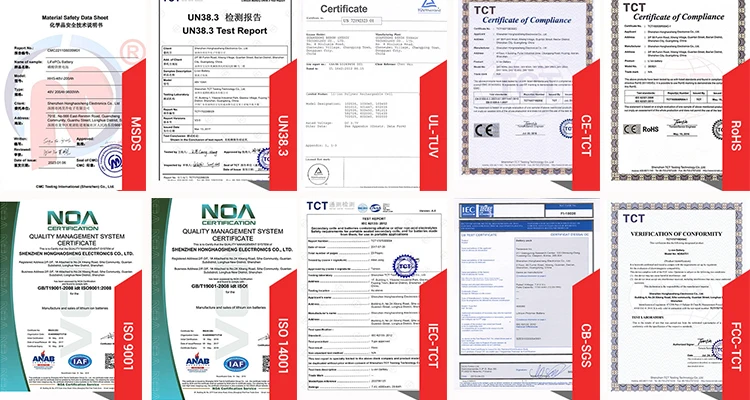

Certification | CE, UN38.3, MSDS, DGM Report | ||
Charge Cut-off Voltage | 58.4V | 58.4V | |
Max. Continuous Work Current | 100A/200A | 500A/1000A | |
Discharge Cut-off Voltage | 40V | 40V | |
Internal Resistance | ≤40mΩ | ||
Charge Temperature | 0℃~55℃ | ||
Discharge Temperature | -20℃~60℃ | ||
Storage Temperature | -40℃~55℃ @ 60%±25% relative humidity | ||
Customized Service
Custom Brands & Outlooks
Customized service : logo/size/color/etc.
Custom Function: WIFI , Blue tooth , Communication Protocol etc.
If you want to customize your own battery design, let us know your ideas and produce for you!
OEM/ODM: Customized Your Batteries | ||||||||||||||
Customized Projects: Customized Appearance, colors and Logo... | ||||||||||||||
Outlook | Function | Size | Logo | Color | Voltage | Capacity | ||||||||
Solar System Installers | √ | √ | √ | √ | √ | √ | √ | |||||||
Distributors and Wholesalers | √ | √ | √ | √ | √ | √ | √ | |||||||
Personal users | × | × | × | × | × | × | × | |||||||

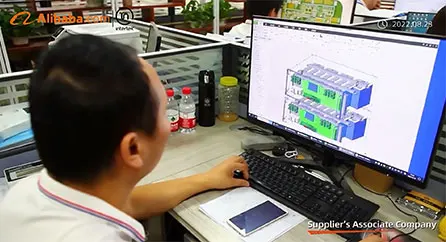

Professional R&D team
A team of structural engineers, electrical engineers, and circuit engineers
Covering technologies such as battery exterior structure, electrical circuitry, and protection board development
Covering technologies such as battery exterior structure, electrical circuitry, and protection board development
Customizable appearance & funcionality

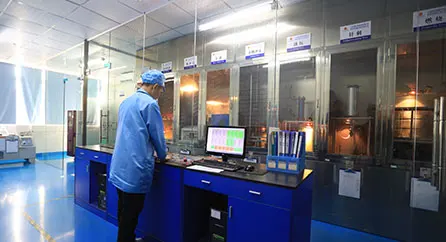

20+ Battery Safety Tests
Battery Testing Lab: Simulation of high altitude and low pressure, free fall, thermal shock, short circuit, heavy impact, extrusion,puncture, burning, salt spray test, high and low temperature test, vibration test, cycle test, etc.
Quality Control Assurance

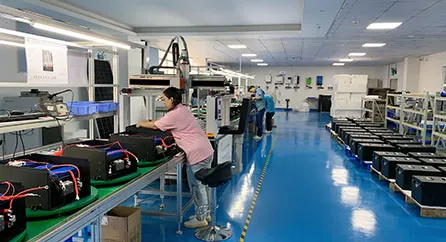

Laser Spot Welding Line
Provide customers with first-class customized battery packs by controlling every detail in the production process
Higher Consistency
+ More Reliable Production Processes
+ More Reliable Production Processes
Automotive Grade Battery Production Processes

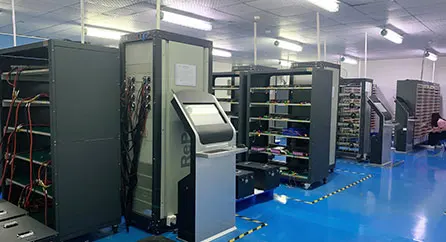

Aging Test Workshop
We conduct full testing of your battery pack before shipment.
And we have set up a traceability system where the data from every test session of the battery is traced back.
Better and more complete aging test equipment

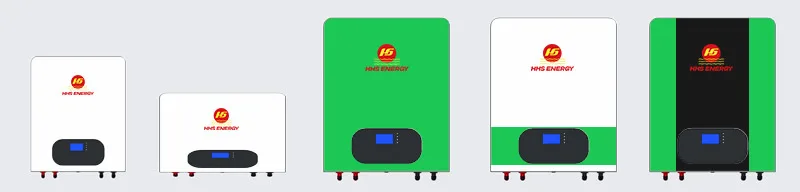

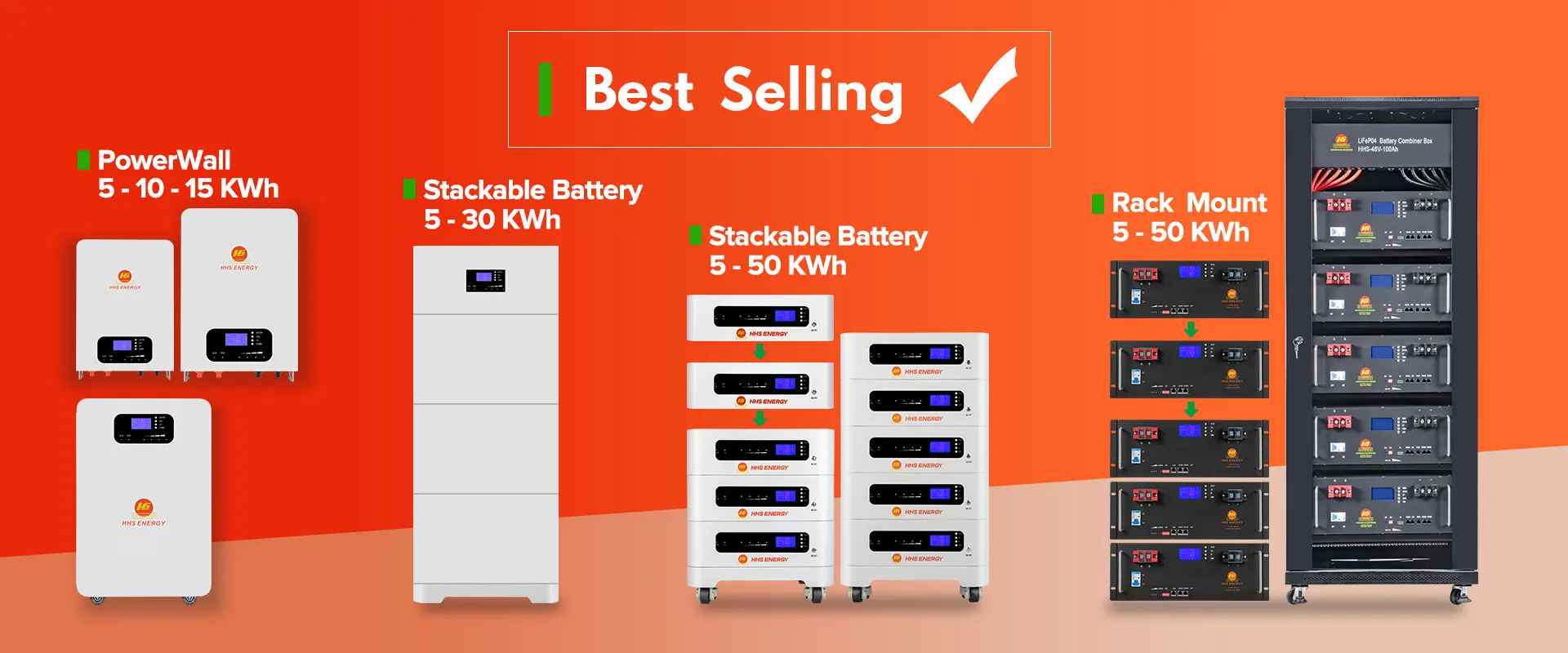

All Product Models: Wall Mounted(Powerwall) & Rack Mounted(Server Rack) Lifepo4 Battery | ||||||||||||
Model | Nominal Voltage | Nominal Capacity | Energy | Dimension (L×W×H)mm | Weight | |||||||
Wall Mounted | Rack Mounted | |||||||||||
HHS-25100 | 25.6V | 100Ah | 2.56 KWH | 500*360*193 | 450*442*133 | 26.5Kg | ||||||
HHS-25200 | 25.6V | 200Ah | 5.12 KWH | 500*360*193 | 450*442*133 | 52.5Kg | ||||||
HHS-25300 | 25.6V | 300Ah | 7.68 KWH | 500*360*193 | 450*442*156 | 68Kg | ||||||
HHS-4850 | 51.2V | 50Ah | 2.56 KWH | 500*360*193 | 450*442*133 | 32Kg | ||||||
HHS-48100 | 51.2V | 100Ah | 5.12 KWH | 500*360*193 | 450*442*177 | 46Kg | ||||||
HHS-48150 | 51.2V | 150Ah | 7.68 KWH | 570*468*245 | 680*442*177 | 65Kg | ||||||
HHS-48200 | 51.2V | 200Ah | 10.24 KWH | 570*468*245 | 680*442*177 | 89.5Kg | ||||||
HHS-48250 | 51.2V | 250Ah | 12.8 KWH | 620*670*256 | - | 112Kg | ||||||
HHS-48300 | 51.2V | 300Ah | 15.36 KWH | 780*520*210 | - | 128Kg | ||||||
Multiple Overseas Warehouses
+ In Stock + Fast Delivery + 1-3 Days Direct
Battery Cells Partner Factory
Use only high quality battery brands
Solar Energy System Inverter Partners
Compatible with over 90% of inverter brands

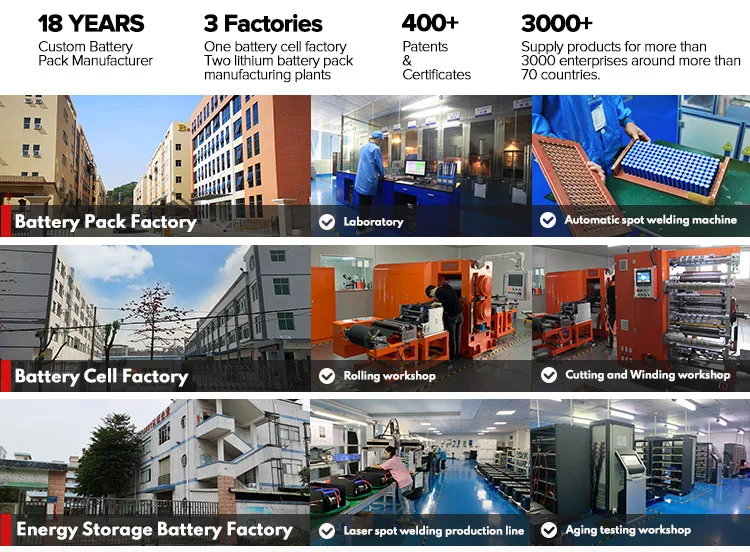

Company Profile
Customer reviews

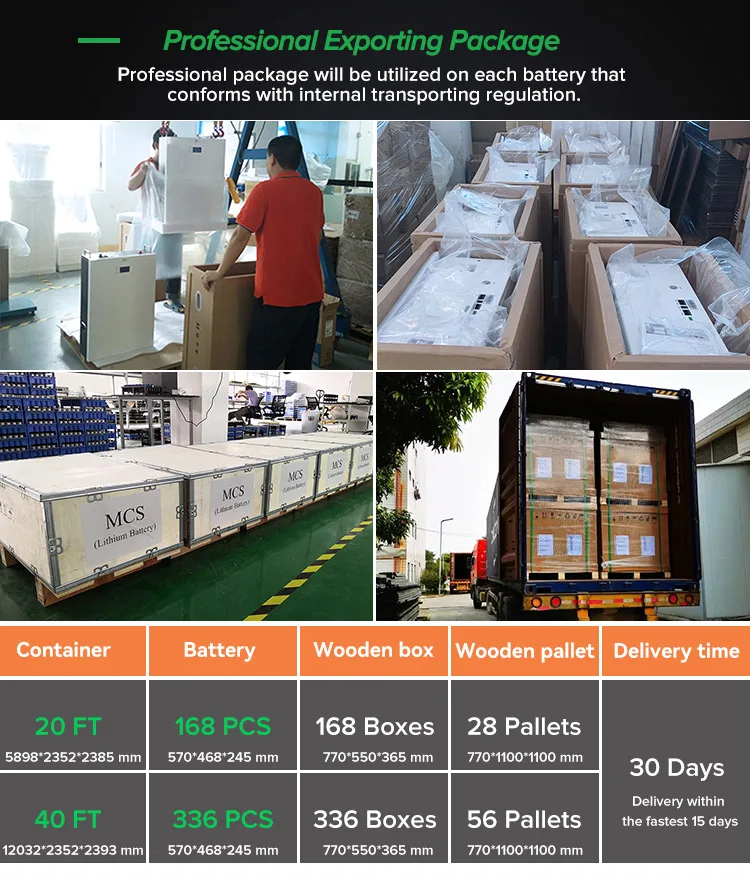

Packing & Delivery
