Factory Custom Brake Disc Cutting Tools Lathe Cutting Turning Tools Cbn Pcbn Turning Inserts
- Category: >>>
- Supplier: Henan Wegcl New Materials Co. Ltd.
Share on (1600912290830):
Product Overview
Description
Factory Custom Brake Disc Cutting Tools Lathe Cutting Turning Tools Cbn Pcbn Turning Inserts
Product Introduction
Carbide Inserts + Ceramic Inserts
Processing procedures: Rough machining, Semi-finishing and finishing are completed on two machine tools respectively.
Disadvantages: Double clamping, low processing efficiency, difficult to guarantee processing accuracy, low cutting efficiency of carbide coated blades, poor surface finish of brake disc, large cutting resistance, stress on the surface of castings, and large dimensional fluctuations.
Disadvantages: Double clamping, low processing efficiency, difficult to guarantee processing accuracy, low cutting efficiency of carbide coated blades, poor surface finish of brake disc, large cutting resistance, stress on the surface of castings, and large dimensional fluctuations.
PCBN Brazed Inserts
Processing procedures: Rough machining and finishing machining are completed on two machine tools respectively.
Disadvantages: Double clamping, low processing efficiency, difficult to guarantee processing accuracy, PCBN welding blade, complex installation and adjustment of the tool tip, multiple adjustments to the tool, difficult to guarantee the processing accuracy of the brake surface.
Disadvantages: Double clamping, low processing efficiency, difficult to guarantee processing accuracy, PCBN welding blade, complex installation and adjustment of the tool tip, multiple adjustments to the tool, difficult to guarantee the processing accuracy of the brake surface.

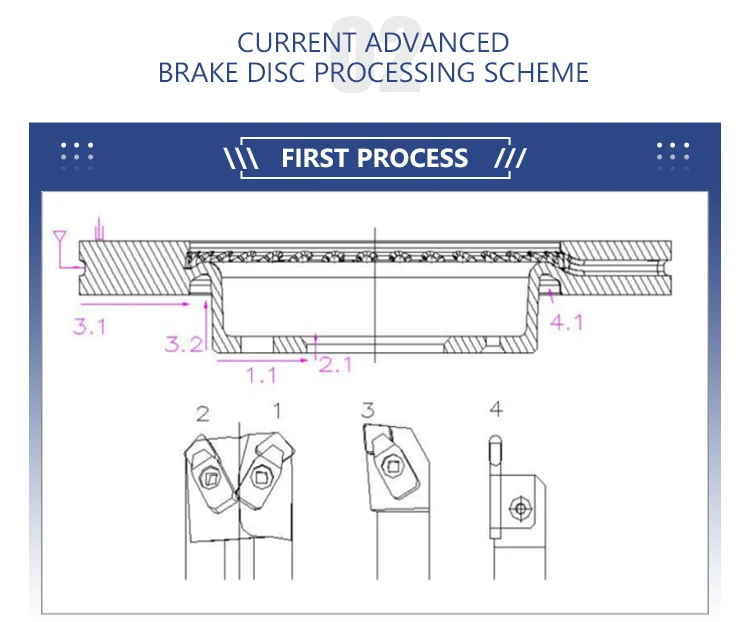

Processing No. | Processing Part | CBN Inserts Models and Grade | Suitable Tool Holder | Cutting Speed Vc (m/min) | Feed Rate Fr（mm/r） | Depth of Cut ap（mm） |
1.1 | (Wheel face facing Roughing) | SBN850 CNGN120412 S02020 | F27R-CCSN-D50*150-CN1204 | 400-500 | 0.3~0.5 | 1.5~2 |
2.1 | (Internal roughing | SBN850 CNGN120412 S02020 | S40-260-CCLNL1204 | 400~750 | 0.3~0.5 | 1.5~2 |
3.1 | (Pad face roughing) | SBN850 CNGN120412 S02020 | CCLNL2525M1204 | 400-500 | 0.3~0.5 | 1.5~2 |
3.2 | (Wheel external roughing) | SBN850 CNGN120412 S02020 | CCLNL2525M1204 | 400~750 | 0.3~0.5 | 1.5~2 |
4.1 | (Groove roughing) | SBN850 RCMX060500 S02020 | CRDCN2525M0605 | 550~700 | 0.1~0.3 | 0.2~0.5 |
Processing No. | Processing Part | CBN Inserts Models and Grade | Suitable Tool Holder | Cutting Speed Vc (m/min) | Feed Rate Fr（mm/r） | Depth of Cut ap（mm） |
1.1 | (Wheel face facing Roughing) | SBN850 CNGN120412 S02020 | F27R-CCSN-D50*150-CN1204 | 400-500 | 0.3~0.5 | 1.5~2 |
2.1 | (Internal roughing | SBN850 CNGN120412 S02020 | S40-260-CCLNL1204 | 400~750 | 0.3~0.5 | 1.5~2 |
3.1 | (Pad face roughing) | SBN850 CNGN120412 S02020 | CCLNL2525M1204 | 400-500 | 0.3~0.5 | 1.5~2 |
3.2 | (Wheel external roughing) | SBN850 CNGN120412 S02020 | CCLNL2525M1204 | 400~750 | 0.3~0.5 | 1.5~2 |
4.1 | (Groove roughing) | SBN850 RCMX060500 S02020 | CRDCN2525M0605 | 550~700 | 0.1~0.3 | 0.2~0.5 |

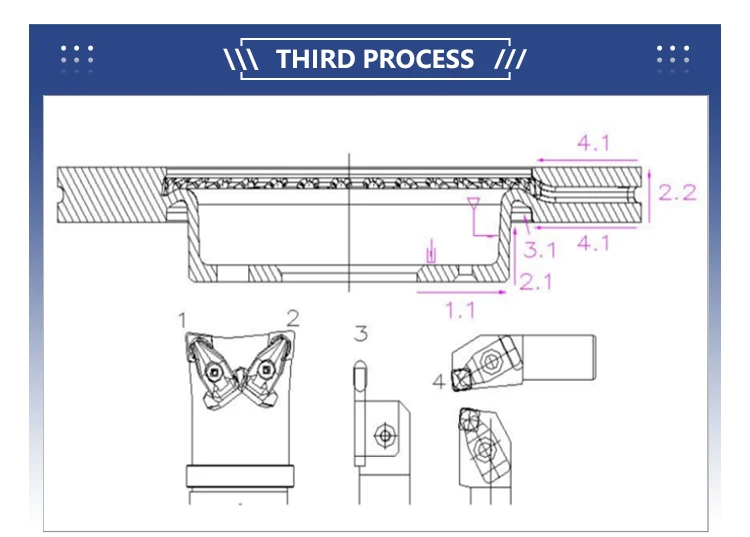

Processing No. | Processing Part | CBN Inserts Models and Grade | Suitable Tool Holder | Cutting Speed Vc (m/min) | Feed Rate Fr（mm/r） | Depth of Cut ap（mm） |
1.1 | (wheel face finishing) | SBN850 CNGN120412 S02020 | F27L-D50*150-CCLN1207-1 | 650~750 | 0.2~0.3 | 0.2~0.5 |
2.1 | (wheel external finishig) | SBN850 CNGN120412 S02020 | F27L-D50*150-CCLN1207-1 | 650~750 | 0.2~0.3 | 0.2~0.5 |
2.2 | (external finishing) | SBN850 CNGN120412 S02020 | F27L-D50*150-CCLN1207-1 | 650~750 | 0.2~0.3 | 0.2~0.5 |
3.1 | （Groove finishing） | SBN850 RCMX060500 S02020 | CRDCN2525M0605 | 550-700 | 0.1~0.2 | 0.2~0.5 |
4.1 | (pad face semi-finishing) | SBN850 SCGN090408W | CSLCR2020K0904 | 650~750 | 0.2~0.3 | 0.2~0.5 |

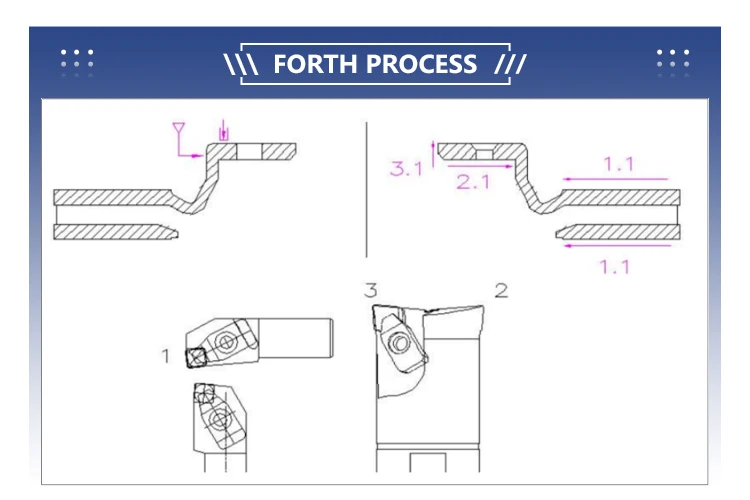

Processing No. | Processing Part | CBN Inserts Models and Grade | Suitable Tool Holder | Cutting Speed Vc (m/min) | Feed Rate Fr（mm/r） | Depth of Cut ap（mm） |
1.1 | (pad face finishing) | SBN850 SCGN090408W | CSLCR2020K0904 | 650~750 | 0.2~0.3 | 0.2~0.5 |
2.1 | (starting point finishing)) | SBN850 CNGN120412 S02020 | F27L-D50*150-CCLN1204 | 650~750 | 0.2~0.3 | 0.2~0.5 |
3.1 | (internal finishing) | SBN850 CNGN120412 S02020 | F27L-D50*150-CCLN1204 | 650~750 | 0.2~0.3 | 0.2~0.5 |

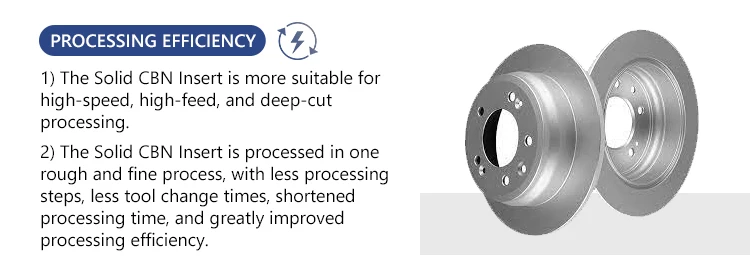

1) The Solid CBN Insert is more suitable for high-speed, high-feed, and deep-cut processing.
2) The Solid CBN Insert is processed in one rough and fine process, with less processing steps, less tool change times, shortened processing time, and greatly improved processing efficiency.
2) The Solid CBN Insert is processed in one rough and fine process, with less processing steps, less tool change times, shortened processing time, and greatly improved processing efficiency.
