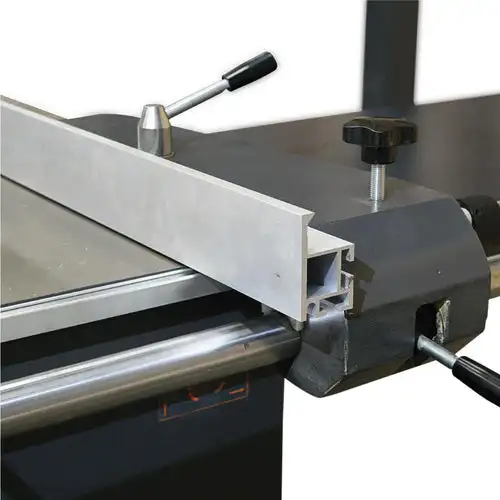

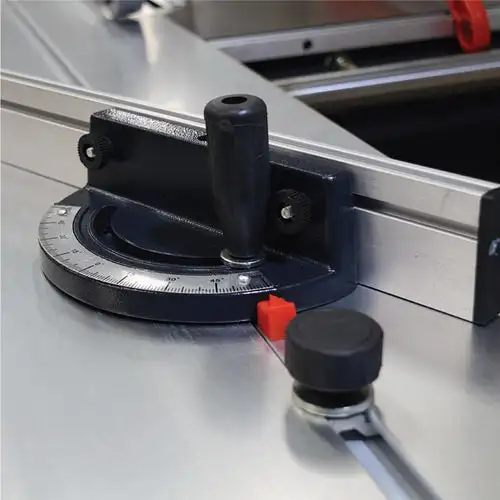

Hot Selling Sawing Machine Ply Chipboard Bench Saw Machine Sliding Table Saw with Scoring Blade
Specification
Content | Value |
Table Size | 3200*385mm(optional) |
Main Blade Diameter | 300*30mm |
Scoring Blade Diameter | 120*20mm |
Rip Cut Capacity | 1300mm |
Cross Cut Capacity | 3200mm |
Max. Cutting Depth | 80mm@90°, 57mm@45° |
Saw Body Length | 2000mm |
Main Blade Speed | 4000/6000rpm |
Scoring Blade Speed | 8500rpm |
Motor Power | 5.5+1.1kw |
Net Weight | 1100kgs |

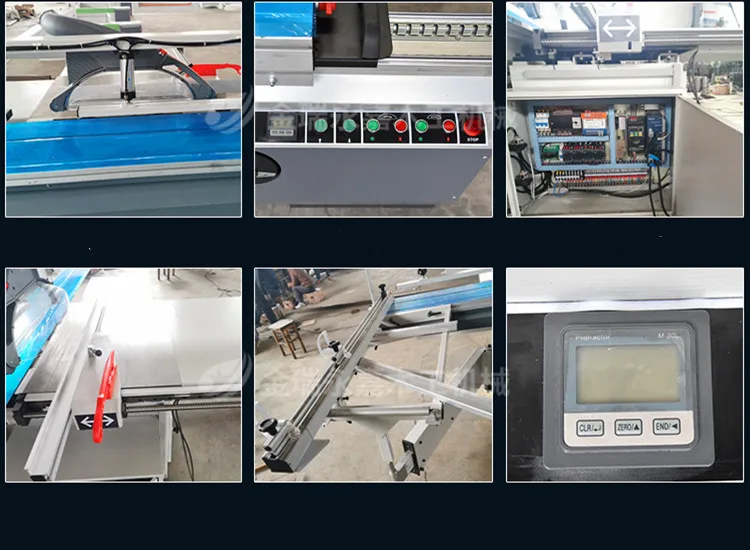

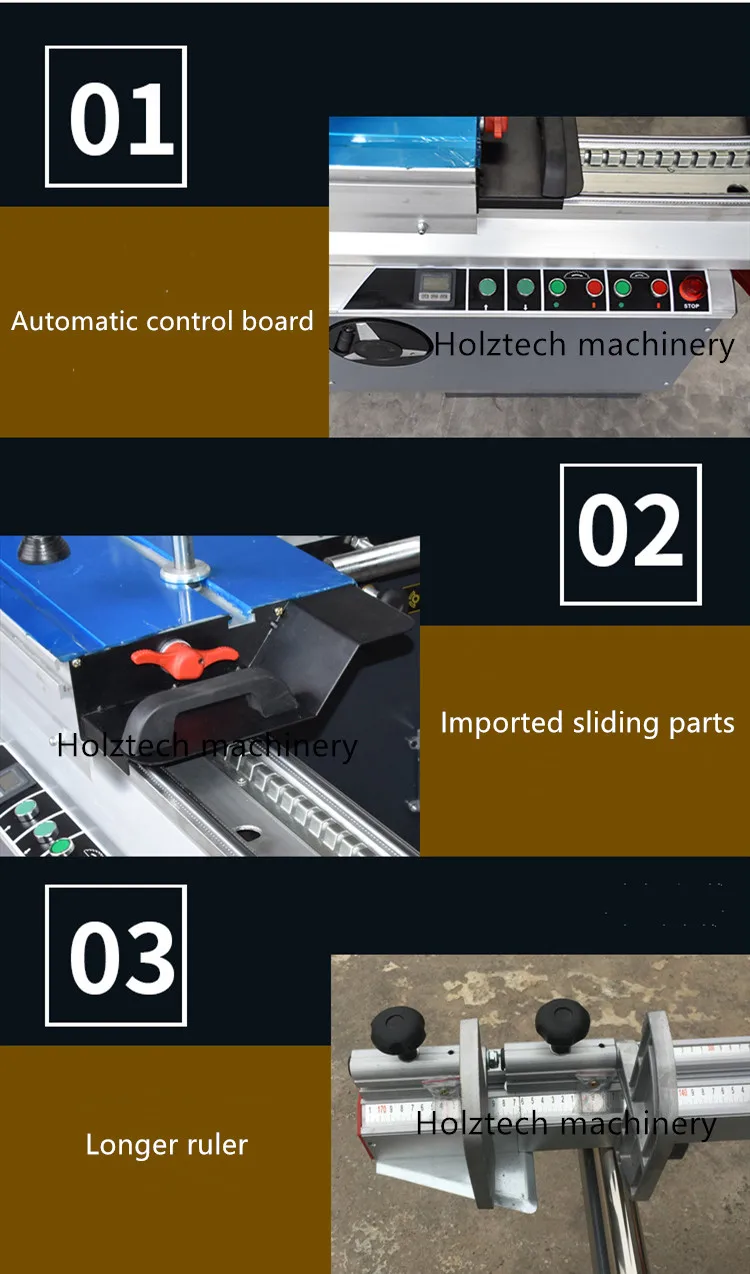

Details Images
Parts with Good Quality
SKF bearings

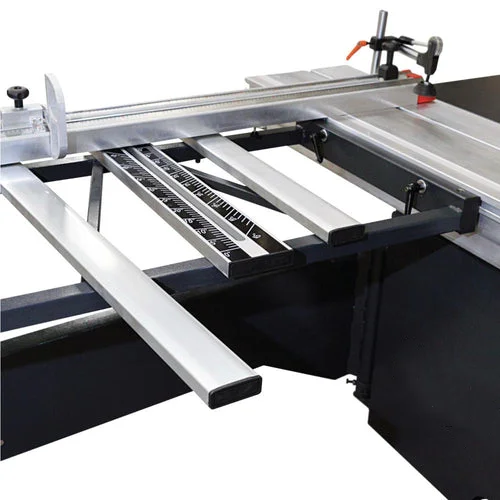

Altendorf carriage with double layers

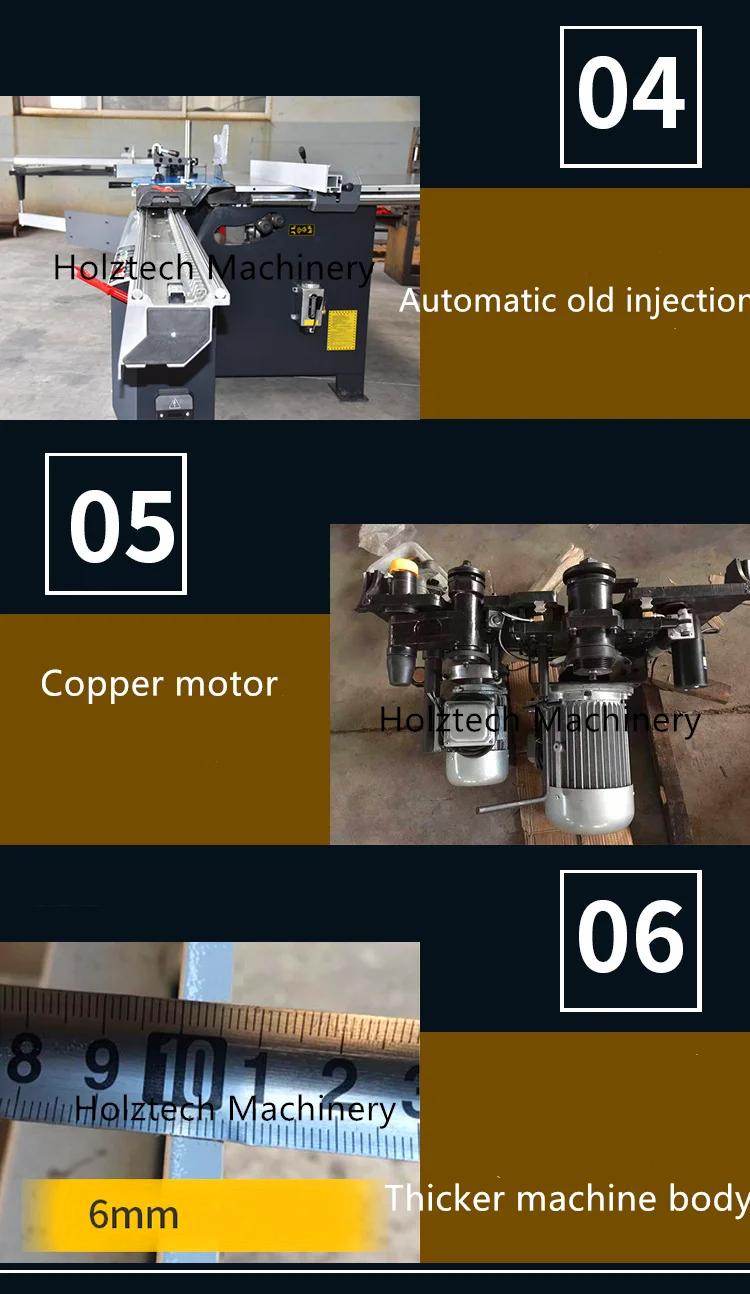

Copper wire motor with standard power 5.5kw and 1.1kw
Chrome-plating treatment on all steel parts to avoid rust
Special riving knife which can move together with the saw blade
Multi groove belt pulleys instead of V-belt pulleys, to run smoothly with low noise.
Pulleys after correcting to reduce running vibration.
Microcomputer Measuring System to correct the pulley accuracy less than 0.3 g.mm/kg.
Electrostatic powder spraying to improve coating corrosion resistant capacity higher and smoother.
Cutting material

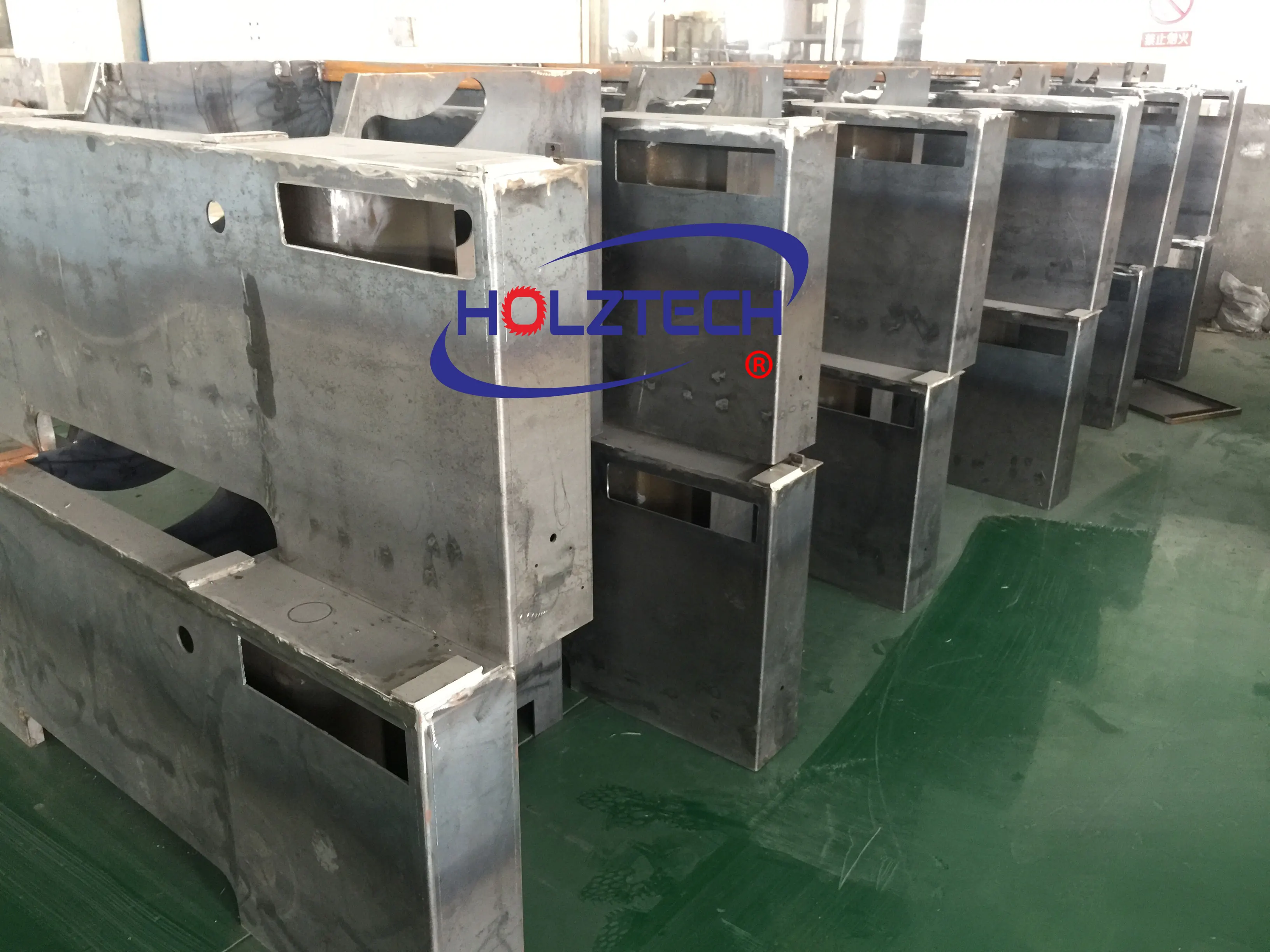

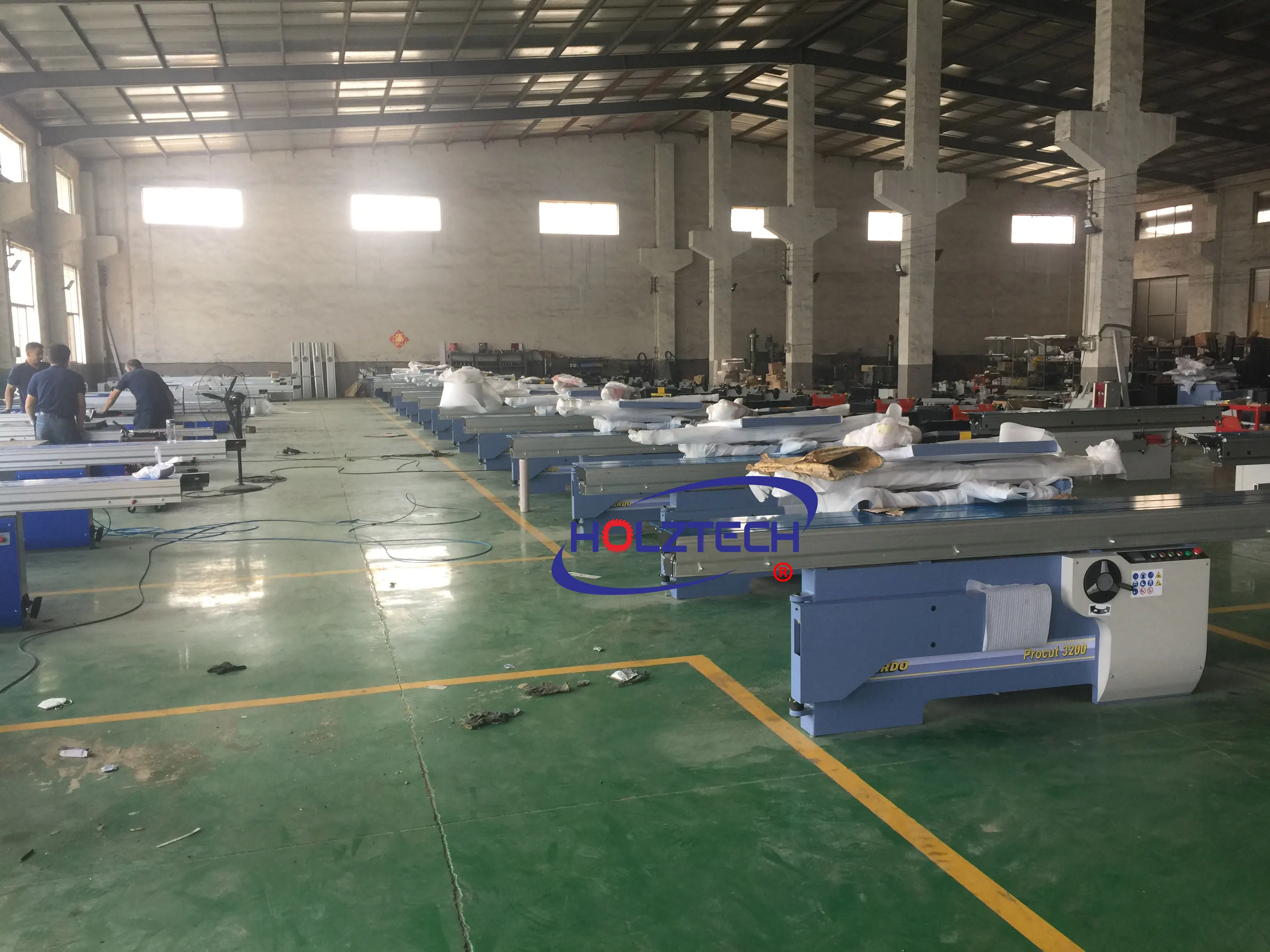

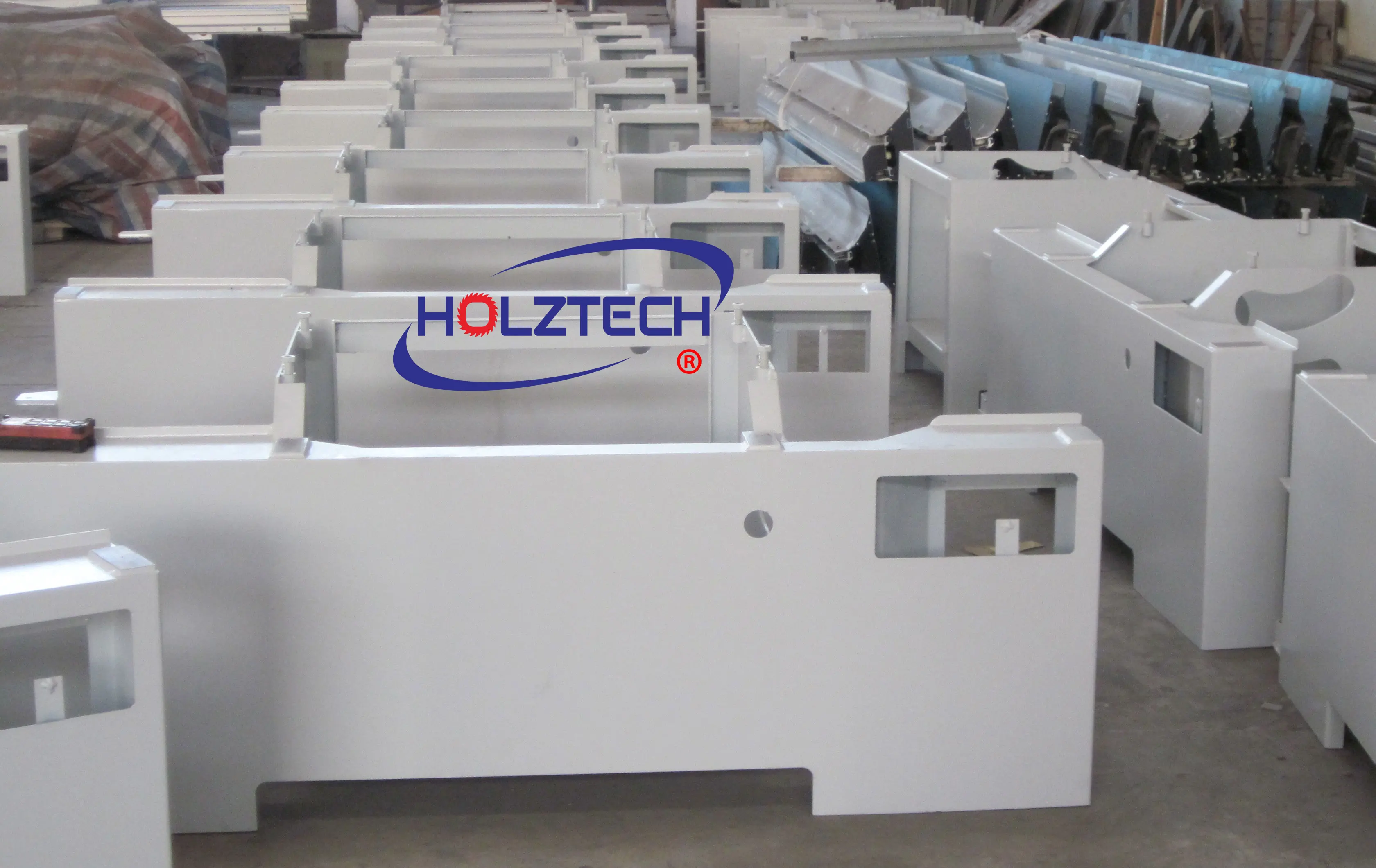

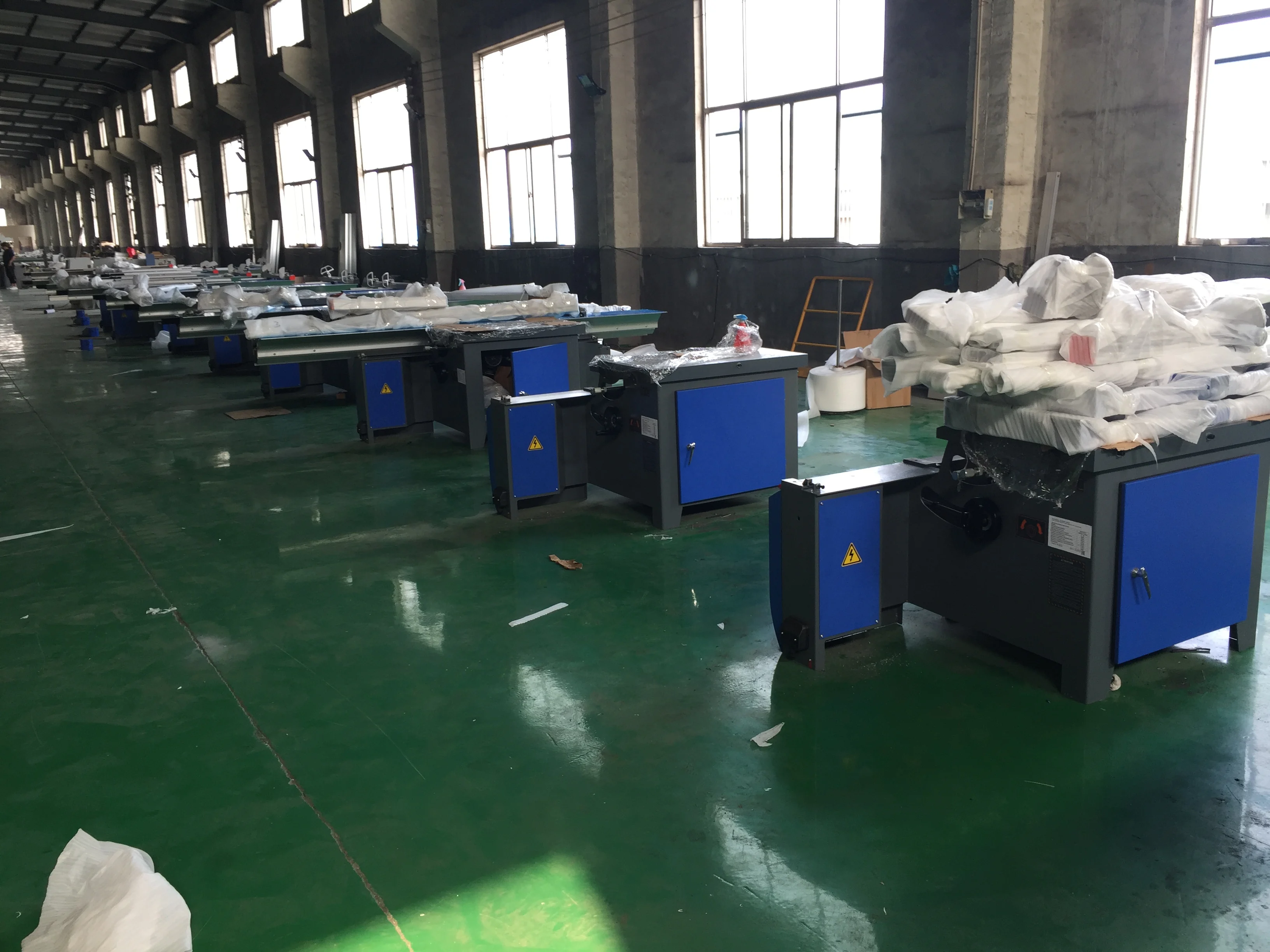

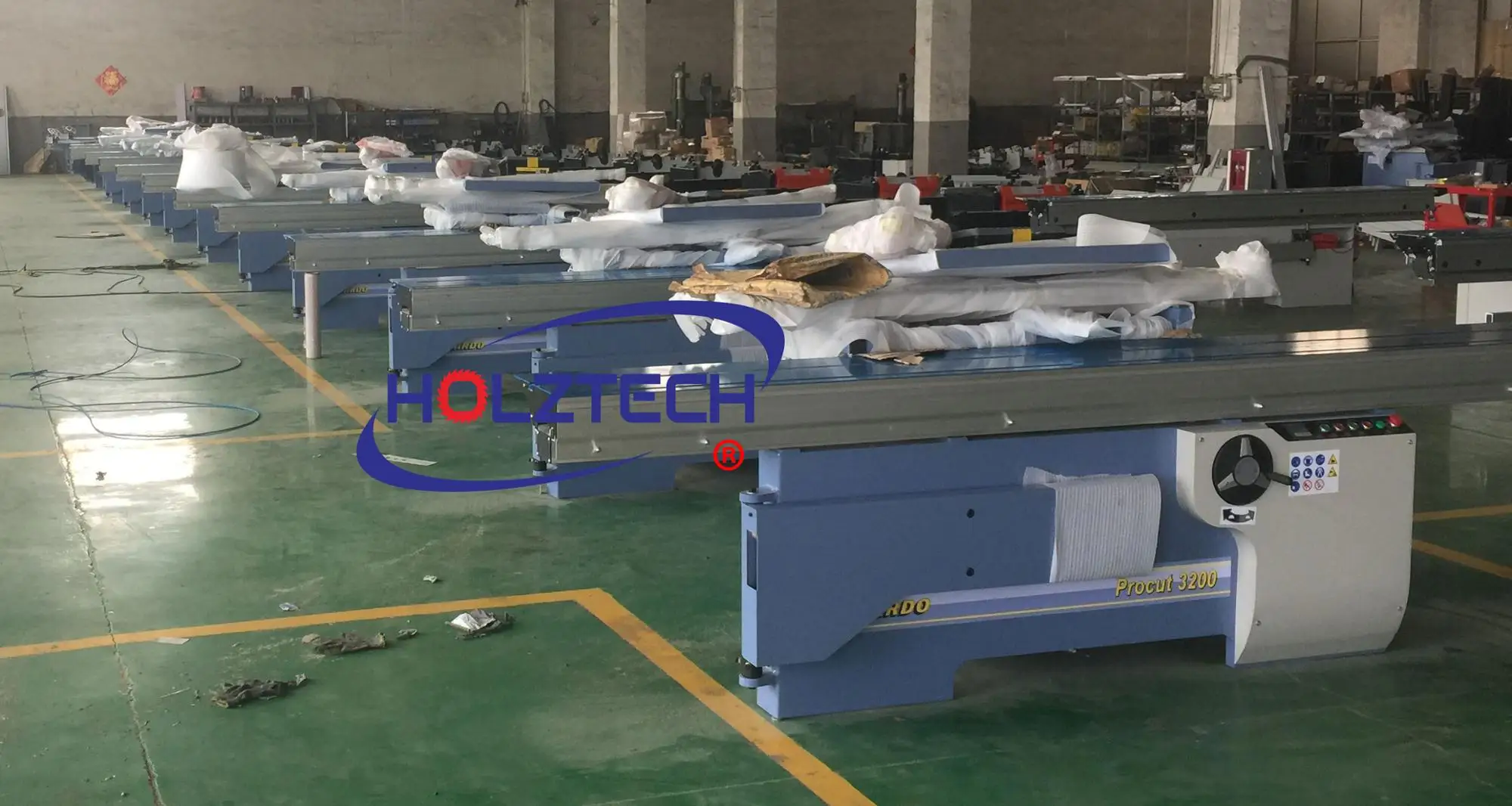

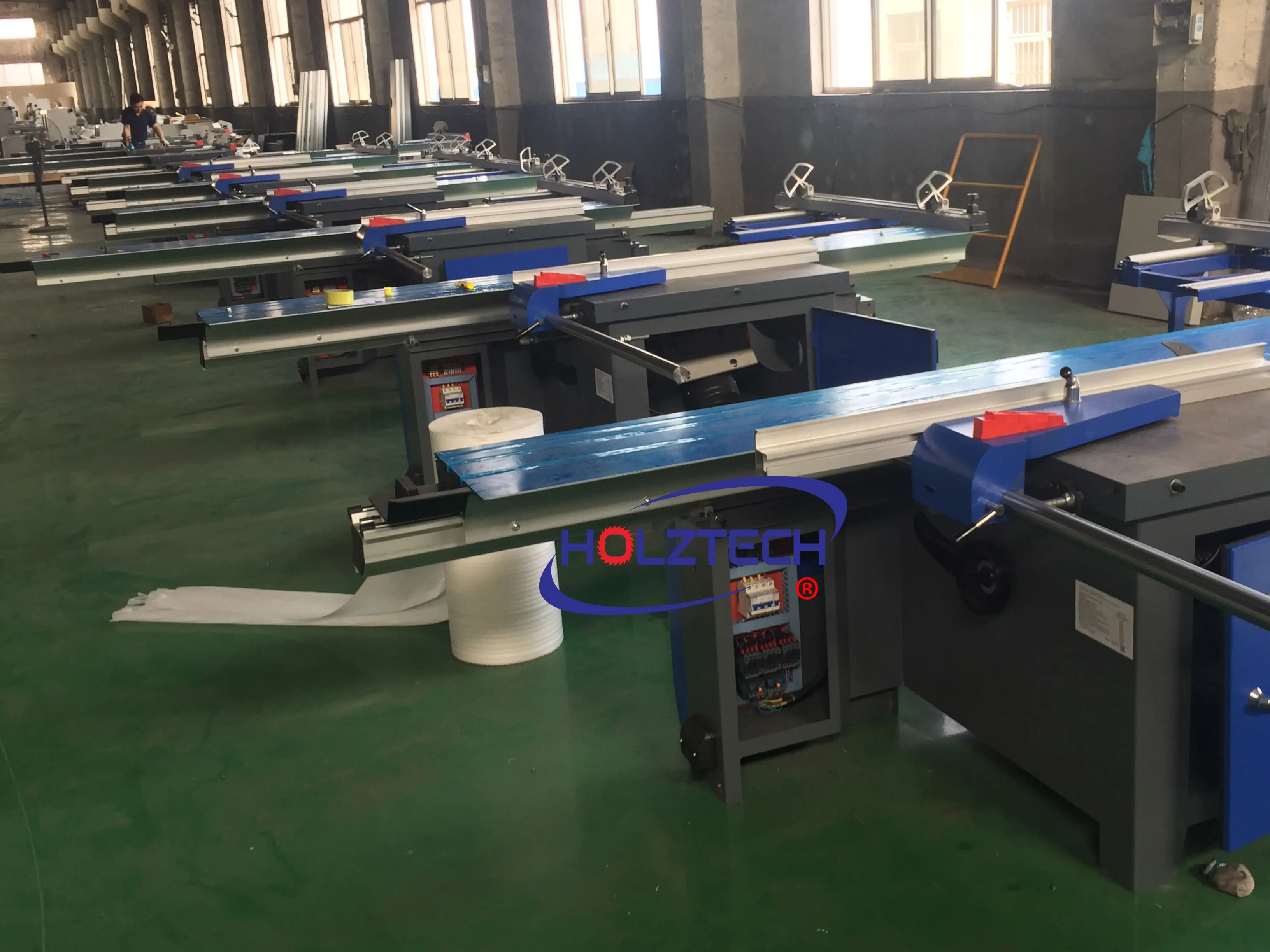

Company Profile

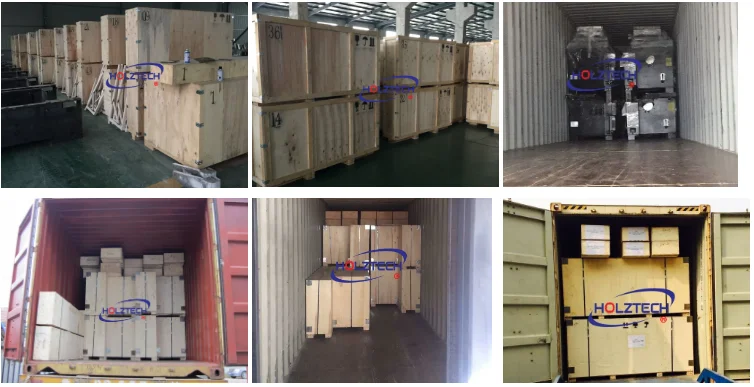

Packing & Delivery
