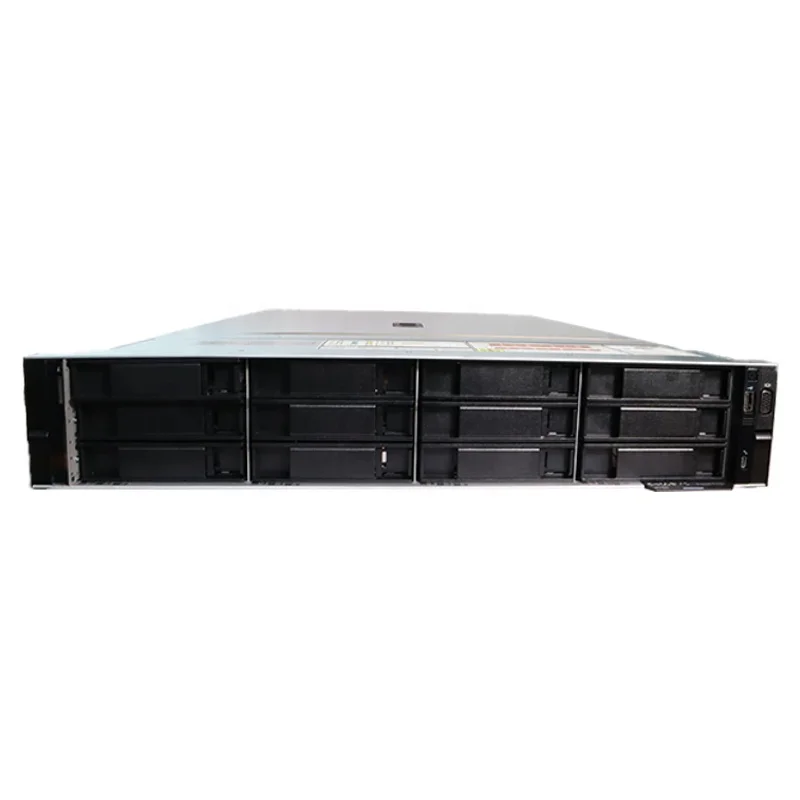

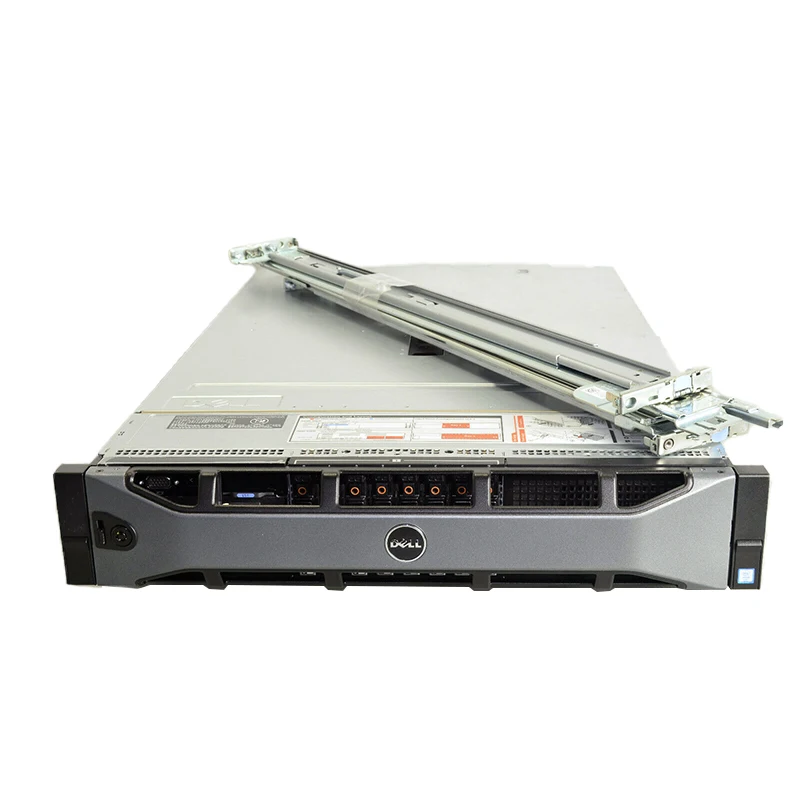

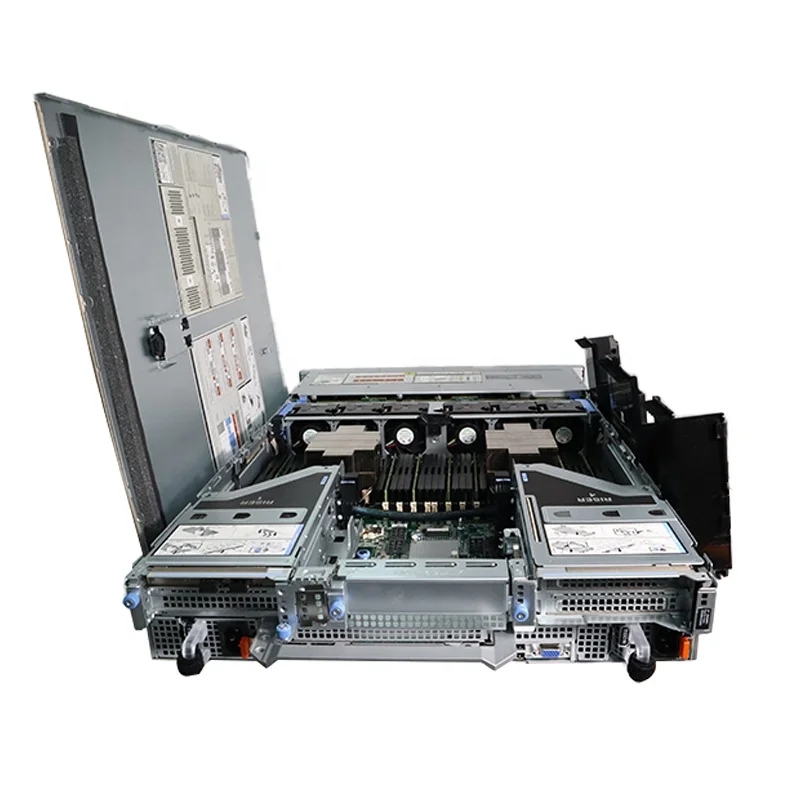

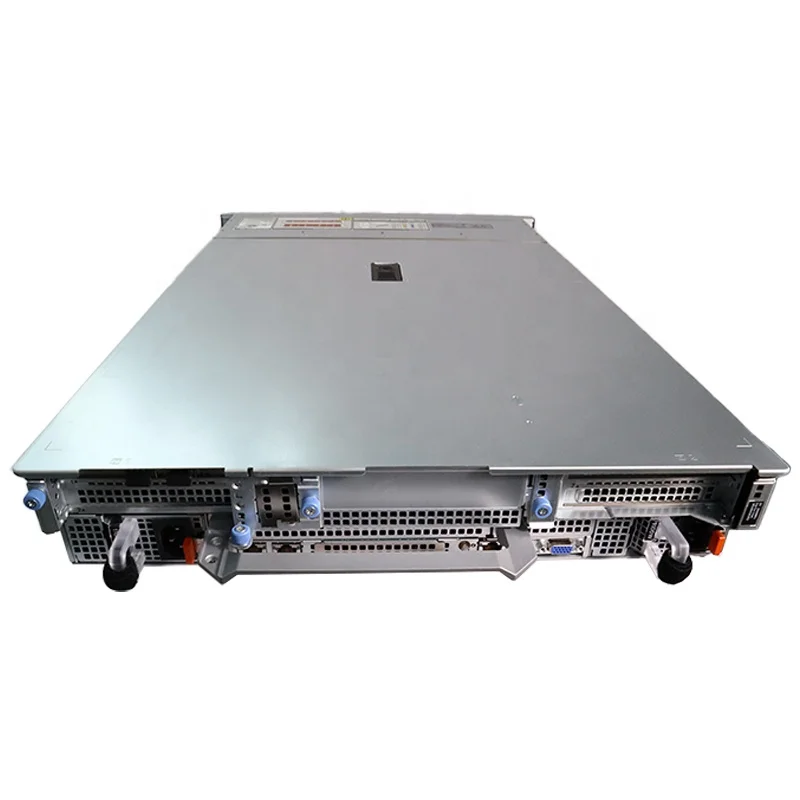

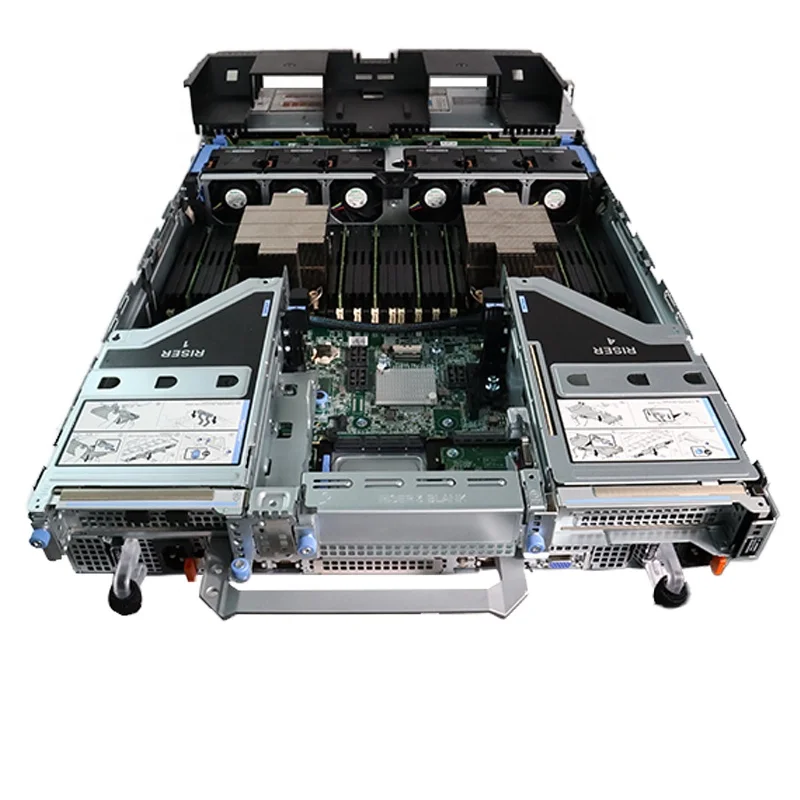

DELL Server PowerEdge R450 R650 R650XA R750 R750xa R350

Model

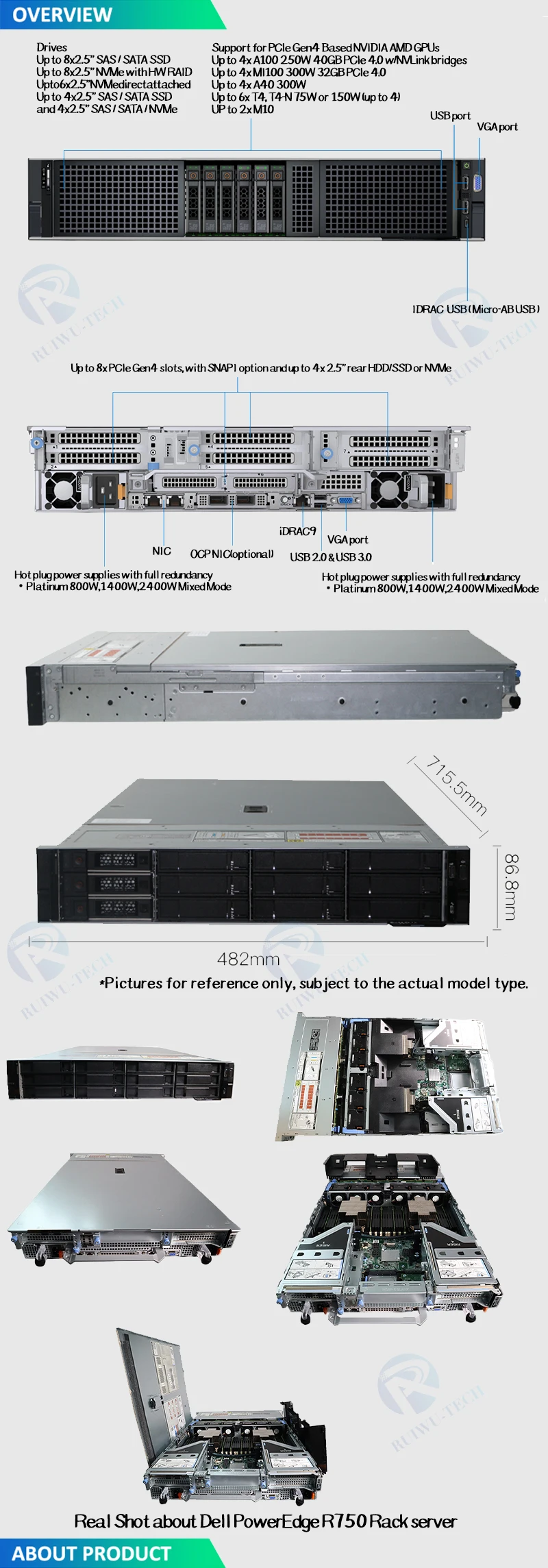

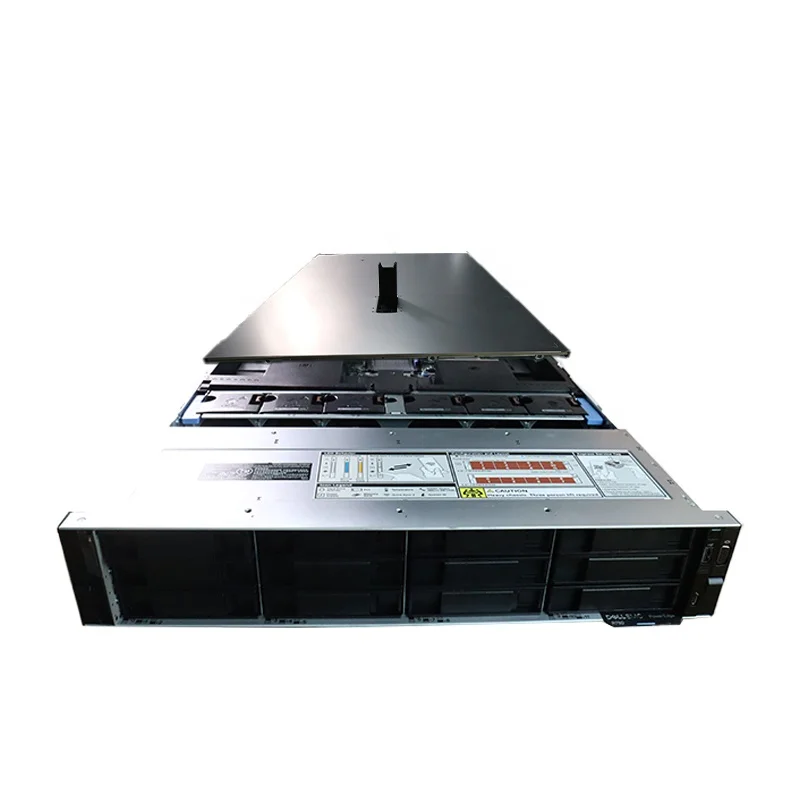

Dell EMC PowerEdge R750

Processor Name

Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

Memory

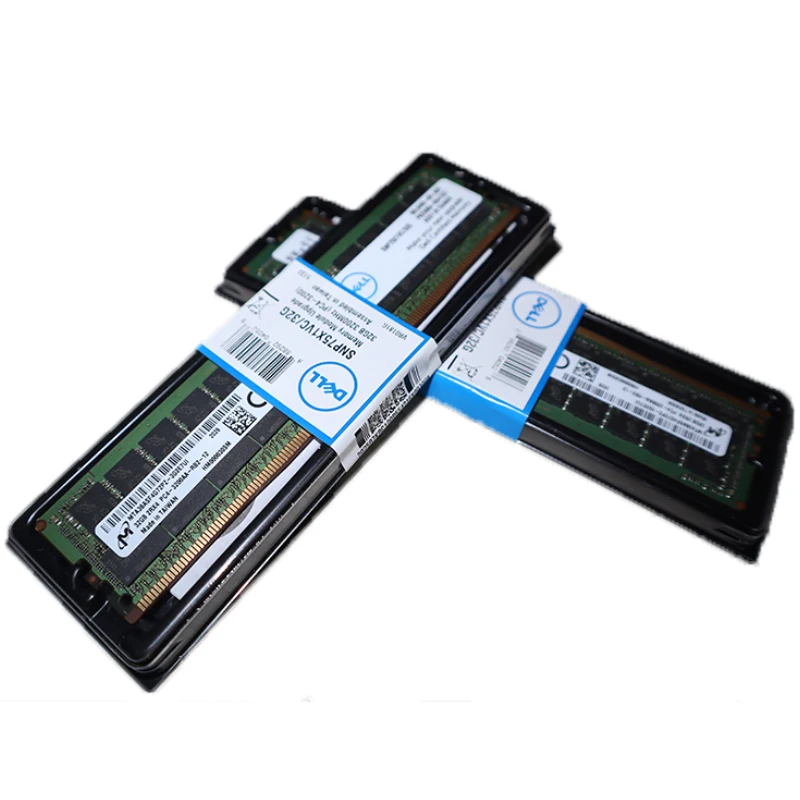

32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s

Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max

Supports registered ECC DDR4 DIMMs only

Storage controllers

Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N

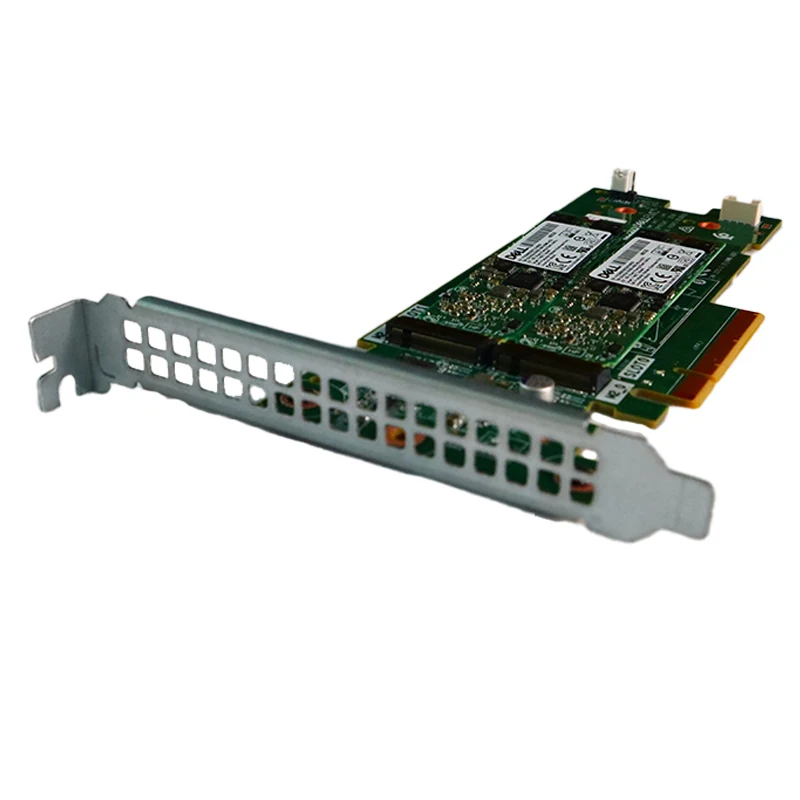

Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB

Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB

External PERC (RAID): PERC H840, HBA355E

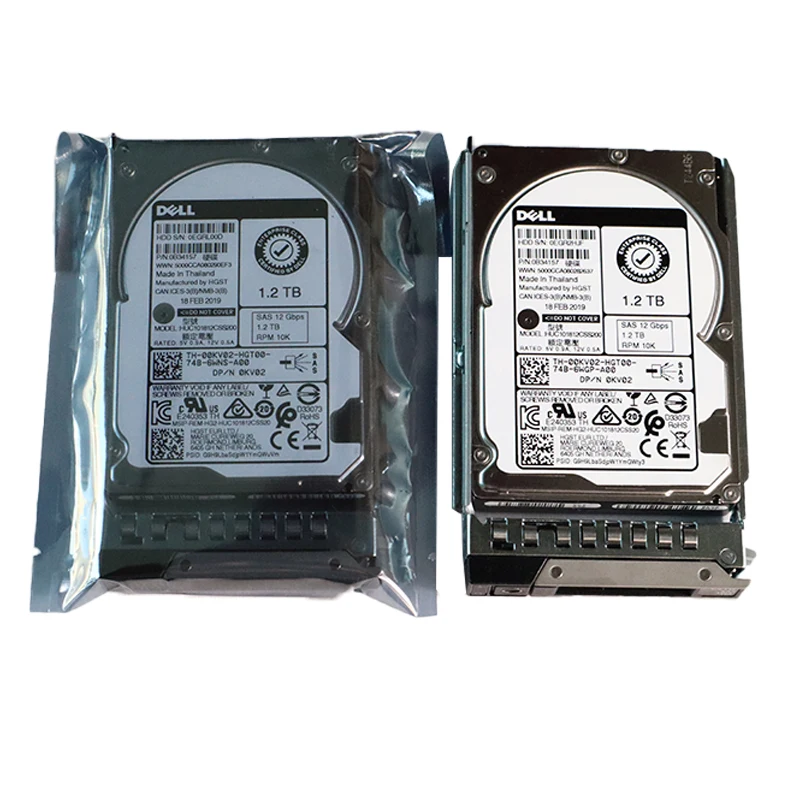

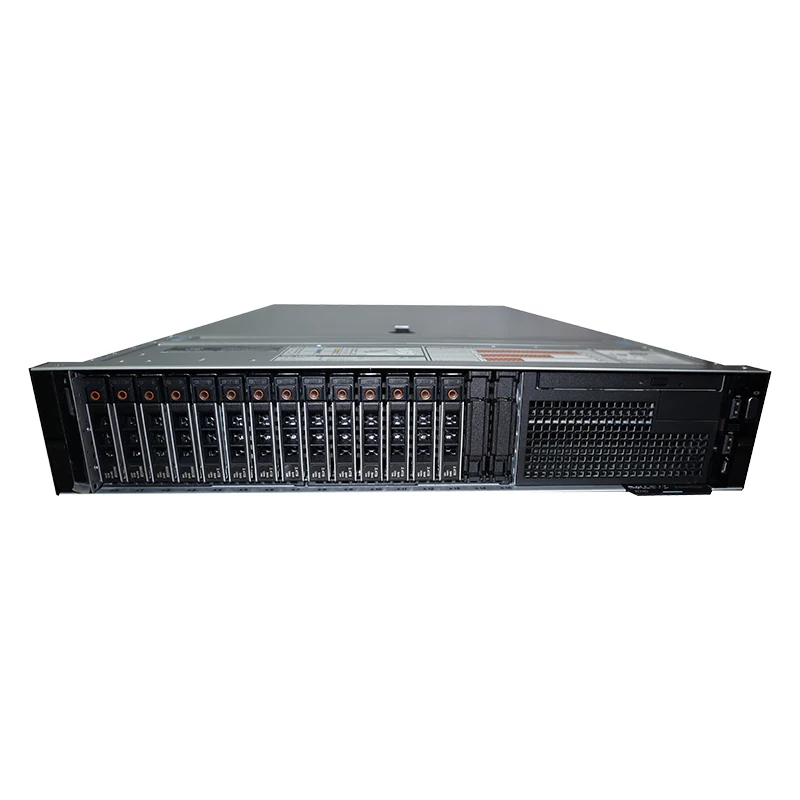

Drive Bays

Front bays:

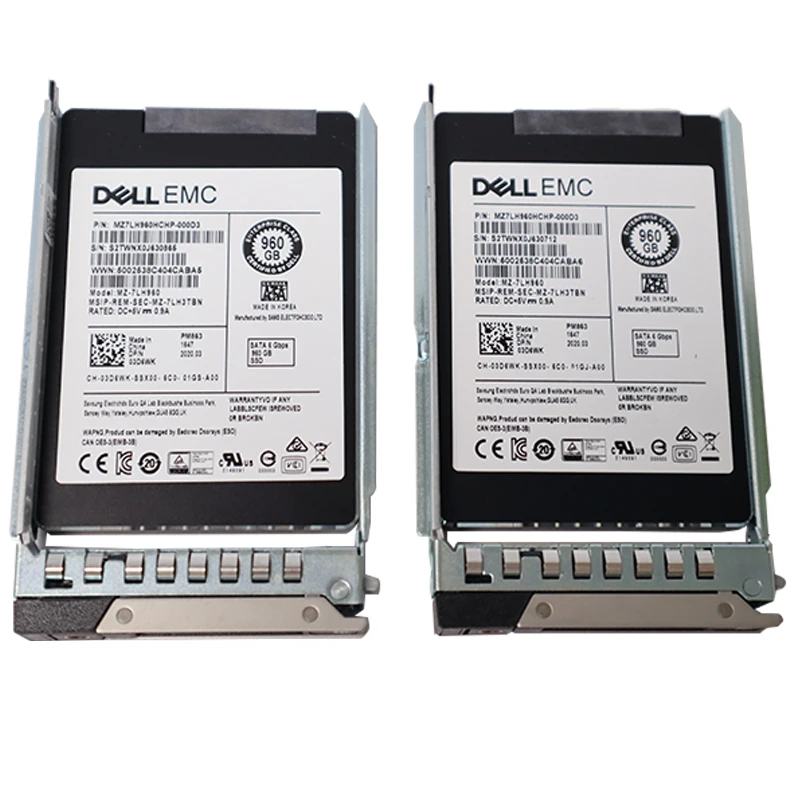

Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TBUp to 8 x 2.5-inch NVMe (SSD) max 122.88 TB

Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays:

Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Power Supplies

800 W Platinum AC/240 mixed mode

1100 W Titanium AC/240 mixed mode

1400 W Platinum AC/240 mixed mode

2400 W Platinum AC/240 mixed mode

Dimensions

Height-86.8 mm (3.41 inches)

Width-482 mm (18.97 inches)

Depth-758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel

GPU support

Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators

PCIe

Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules

Operating System and Hypervisors

Canonical Ubuntu Server LTS

Citrix Hypervisor

Microsoft Windows Server with Hyper-V

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

VMware ESXi
