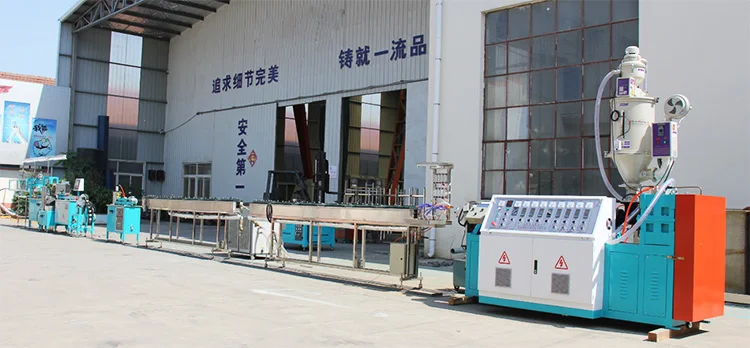

Automatic Refrigerator Door Gasket Production Line
Refrigerator gasket is widely used in refrigerator, ice chest, drinking machine, beverage box, sanitizing cabinet, kitchen appliances and some kinds of household and other industry applications. As the continuous development of gasket technology in China, domestic gasket machines are replacing imported foreign expensive machines.
We are doing reach in this industry for a long time. On the basis of foreign gasket machine, we developed our production line. We succeed as the supplier of Haier, Hisense, AUCMA, Meiling and other big company in China. We supply some kinds of refrigeration industry special used production line and some kinds of auxiliary equipments such as single/double angle welding machine, automatic/ semi-automatic welding machine, gasket machine and so on.
 |  |
Main specification of Automatic refrigerator door gasket production line:
NO. | NAME | QTY |
1 | 1 SET | |
2 | 1 SET | |
3 | 1 SET | |
4 | 2 SETS | |
5 | 1 SET | |
6 | 1 SET | |
7 | 1 SET | |
8 | 1 SET | |
9 | DOOR GASKET WELDING MACHINE WITH A SET OF WELDING MOLD AND AN (5.5 KW) AIR COMPRESSOR | 1 SET |

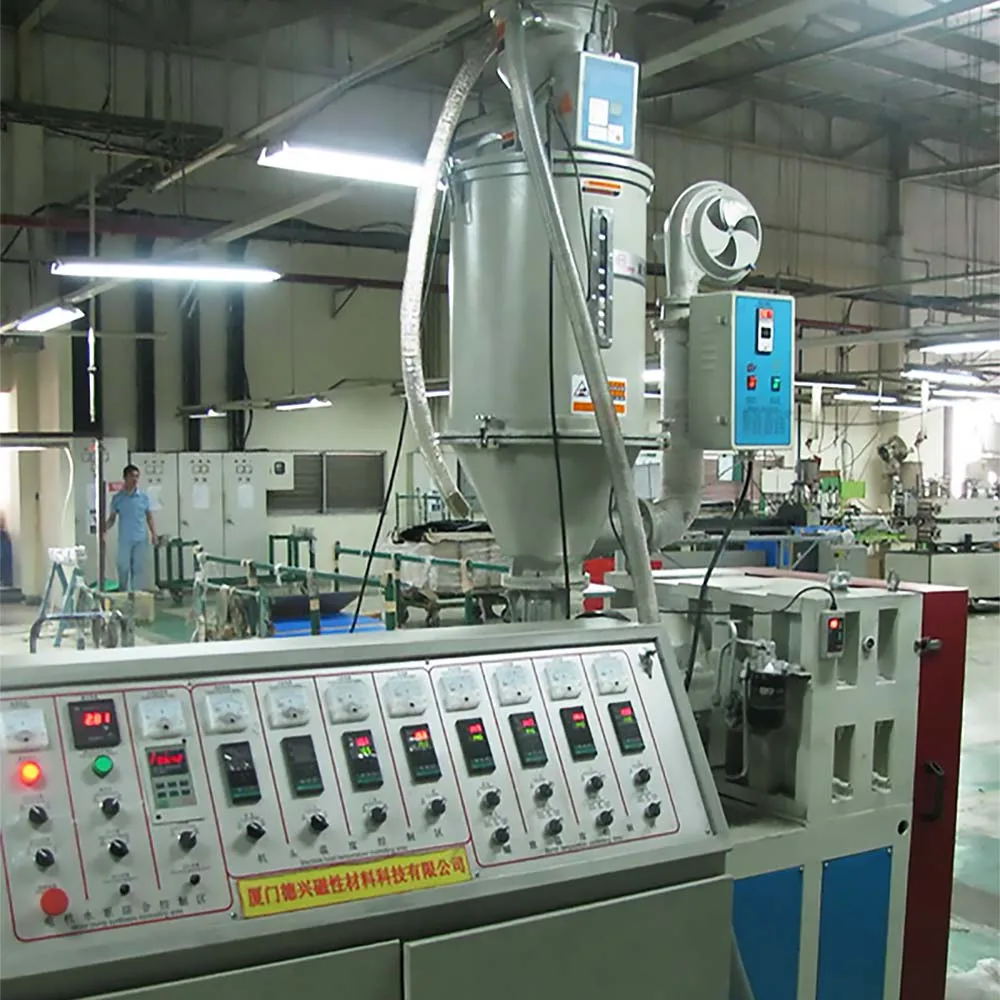

1. DXG75 Door Gaske Extruder, 1 Set
Parts | Main items | Model | Explanation |
Screw and barrel | Screw diameter | Φ75mm | Zhoushan, Zhejiang |
Screw valid length | 2100mm | ||
Screw length/ diameter (L/D) | 28:1 | ||
Screw number | 1 | ||
Barrel heating power | 15KW | ||
Barrel wind-cooling power | 180W ×5 | ||
Die power |
| ||
Nitriding depth | 0.40-0.70mm | ||
Nitriding rigidity (HV) | 890-980 | ||
surface roughness (mm) | Ra0.8-Ra1.6 | ||
Linearity | ≤0.015 | ||
Output | 40-80kg/h | ||
Heating type and material | Electric | Heating by Aluminum ring | |
Reduction driver | Reduction gear | Hard teeth | QingDao, China |
Main motor | Power | 22KW | Special using frequency converter |
Main machine | Feeding type | Automatic feeding | Center height 1000mm |
Drier | 50kg | ||
hydraulic pressure screen-changing machine | 38CrMoAL | ||
Contact type of Die and mould | Contact by bolts in the type of flange | ||
Total power | ≈40KW |
2.Main Electrical Elements
Item | Brand | Number | Origin |
Frequency converter | Fuji | 1 | Japan |
Digital frequency meter |
| 2 | Qingdao China |
Contactor | SIEMENS | 13 | Germany |
Temperature controller | OMRON | 8 | Japan |
Current meter | CHINT | 6 | Zhejiang China |
Volt meter | CHINT | 1 | Zhejiang China |
overload circuit breaker | CHINT | 1 | Zhejiang China |

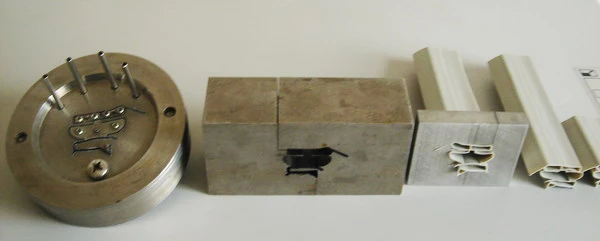

3. Die And Mould, 1 Set
Material: 2Cr13

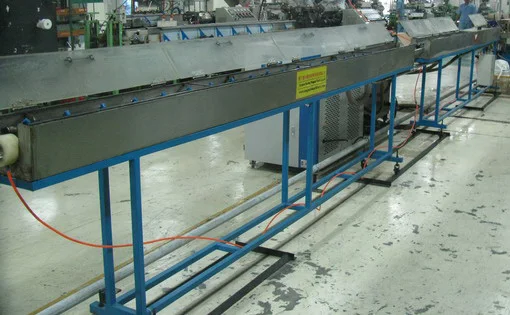

4. Cooling Flume, 2 Sets
Material | Stainless steel |
Cooling form | Spraying cooling, number of spraying mouth:20/set×3sets=60 |
Length | 4m/set ×2 sets=8m |
Water supply form | Automatic recycling water supply |
Chilling plant (1 set) | Air or water compressor ,designed by customer’s requirement |

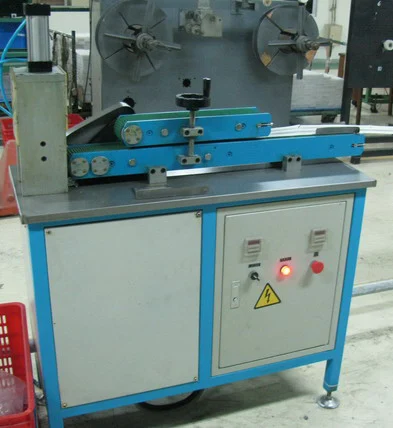

5. Flat-Band Traction Machine, 1 Set
Special-use frequency converter | Power: 1.5KW |
Frequency converter (Fuji, Japan) | Power: 1.5KW |
Time delayer cutoff machine |
|

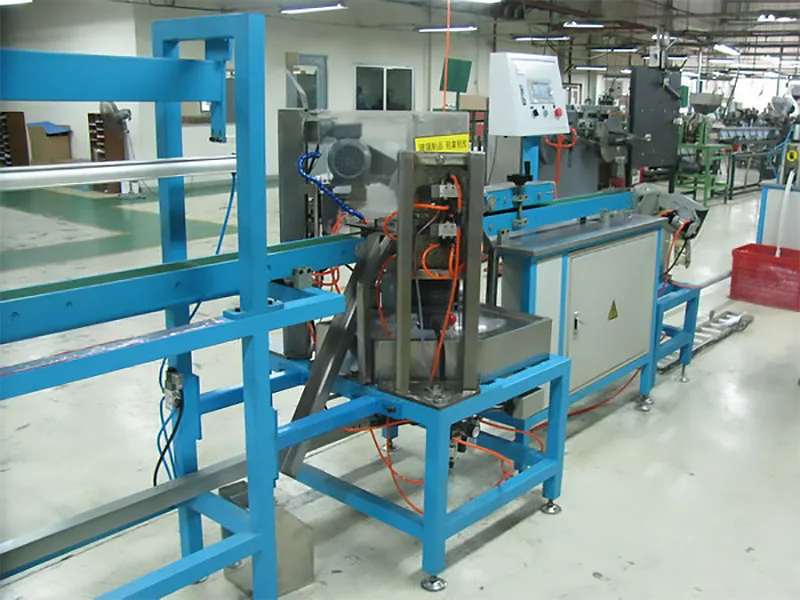

6. Automatic 45-Degree Cutting Machine (PLC Control System), 1 Set
Motor | AIRTAC |
Gas move | AIRTAC |
Blades | import material |
Servo system | OMRON |
Control tank | touch screen style |
Cutting mold 1 set | 2Cr13 |

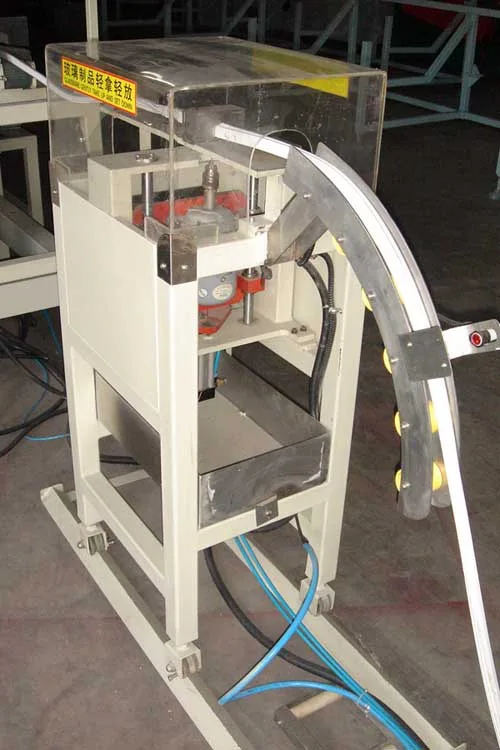

7. Auxiliary Puncher/Holes Drilling Machine, 1 Set

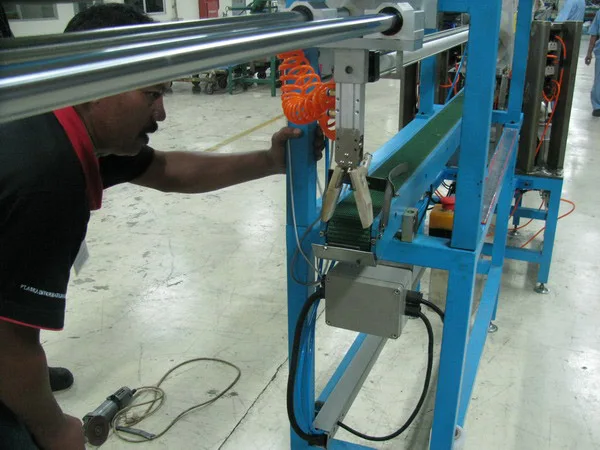

8. Mechanical Hands, 1 Set
photoelectrical switch | Made in Taiwan |
Motor | China top brand |
pneumatic component | Made in Taiwan |
9. Refrigerator Door Gasket Welding Machine, 1 Set
1) Main Parameter
| No. | Item | Value |
1 | External Dimension | 1840×1300×1220mm |
2 | Transverse Mold Space | 50mm |
3 | Longitudinal Mold Space | 98mm |
4 | Total System Power | 2.11KW |
5 | Electrothermal Power | 1.95KW |
6 | Working Efficiency | 500-600 sets/shift |
2) Details of Electrical Components
| No. | Item | Description | Qty | Remark |
1 | Programmer |
| 1 | OMRON |
2 | Time Relay | SJ1/SJ2/SJ3 | 3 | OMRON |
3 | Photoelectric Switch |
| 1 | UTRCK |
4 | Middle Relay | KM1 | 1 | OMRON |
5 | Relay Base |
| 1 | OMRON |
6 | Contactor | KM2 | 1 | Schneider |
7 | Contactor | KM3 | 1 | Schneider |
8 | Air Switch | Total power supply | 1 | Schneider |
9 | Electromagnetic Valve |
| 8 | AIRTAC |
10 | Electromagnetic Valve |
| 1 | AIRTAC |
11 | Solenoid Coil |
| 9 | AIRTAC |
12 | Gas Passage Board |
| 1 | AIRTAC |
The puncher, automatic 45 degree cutting machine and mechanical is designed as an integration and controlled by a set of PLC control system. Which has the feature of convenient operation, precise cutting, and stable performance.
