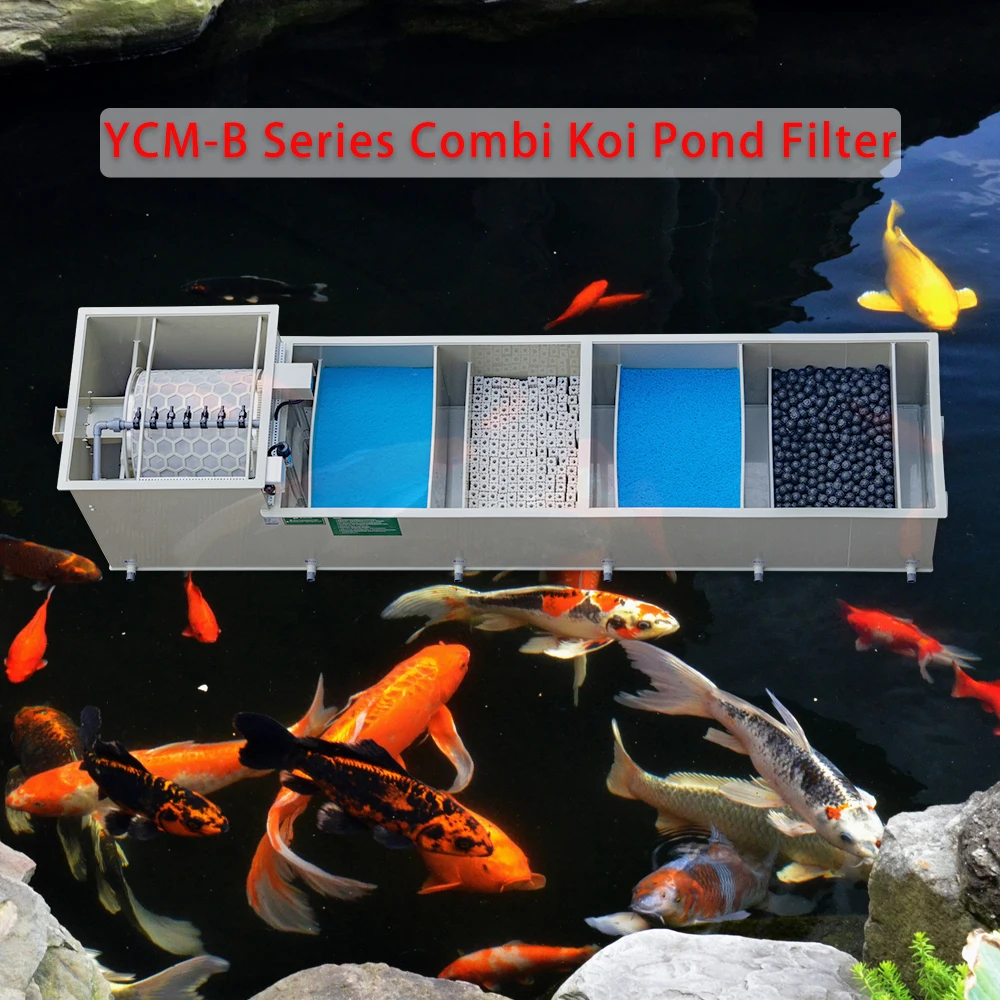

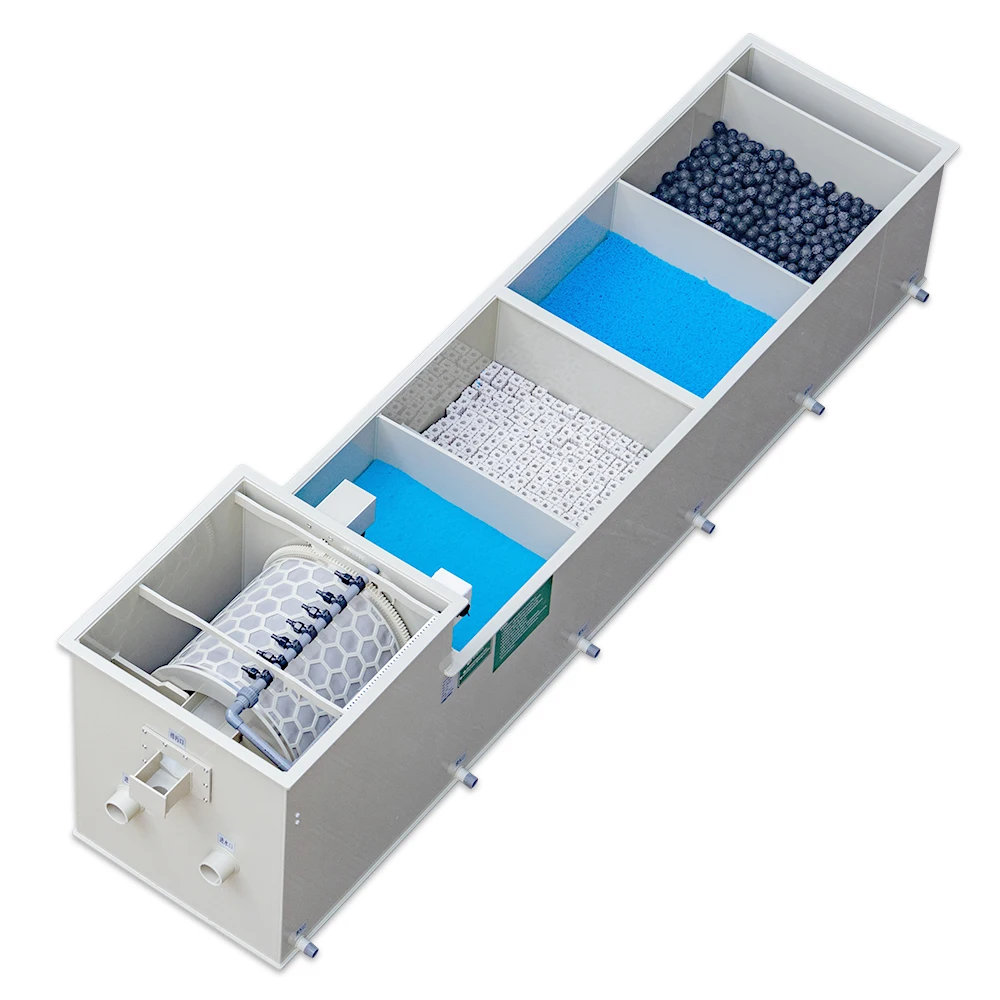

QihangRAS Garden Pond Filter Aquaculture Fish Farm Filtration System Bio Filtration 50m3/H Combi Rotary Drum Filter For Koi Pond
Model: | QL-YCM-B1C | QL-YCM-B2C | QL-YCM-B3C | QL-YCM-B4C |
Size: | 1000*396*524mm | 1520*430*584mm | 2220*610*714mm | 2800*680*804mm |
Water flow: | 5 m3/h 1320 GPH | 10 m3/h 2650 GPH | 30 m3/h 7950 GPH | 50 m3/h 13208 GPH |
UV light(220V): | 2 x 30W | 2 x 30W | 2 x 40W | 2 x 60W |
UV light(110V): | 3 x 11W | 3 x 11W | 2 x 40W | 3 x 40W |
Water Pump: | 24V 80W | 24V 80W | 48V 370W | 48V 370W |
Drum Motor: | 25W | 25W | 40W | 40W |
Inlet Size: | 50mm x2 | 50mm x2 | 63mm x2 | 75mm x2 |
Outlet Size | 63mm x2 | 63mm x2 | 75mm x2 | 90mm x2 |
Sewage outlet | 50mm | 50mm | 63mm | 63mm |

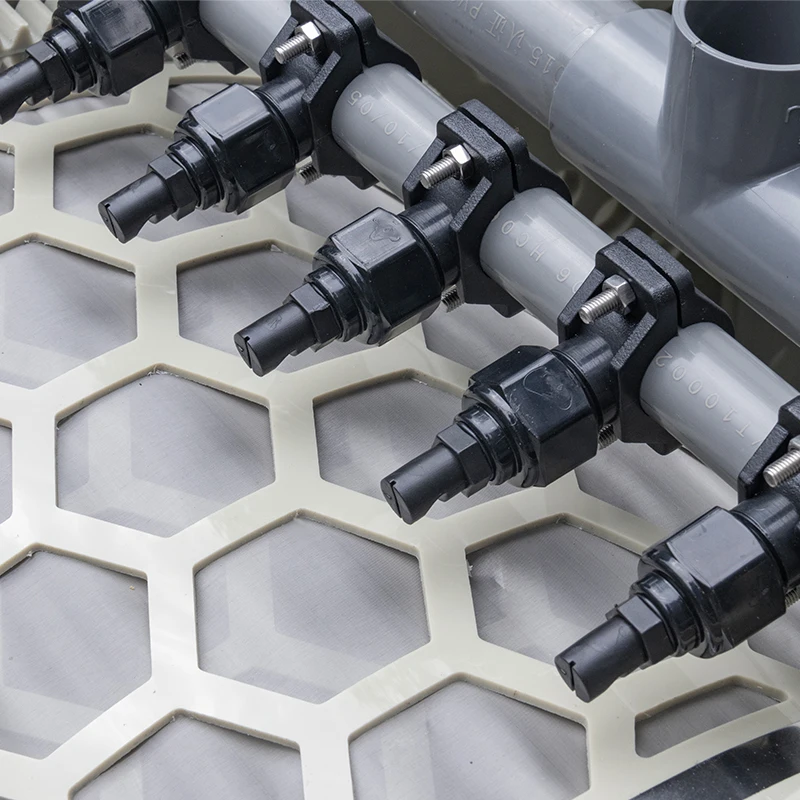

HIGH PRESSURE NOZZLE
Timed high-pressure nozzle not only saves energy, but also has stronger cleaning ability

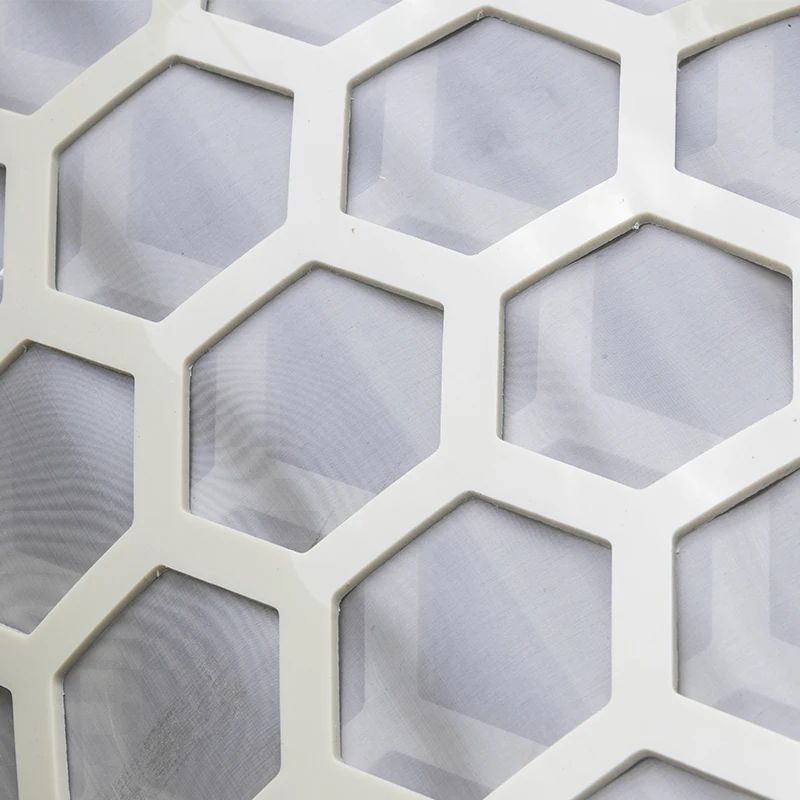

75um 316L Stainless Steel Precision Sieve Mesh
316L stainless steel screen drum that filters contaminants largelthan 75 micron impurities (e.g., fish, bait, algae, pellets,etc.) fromthe water stream.

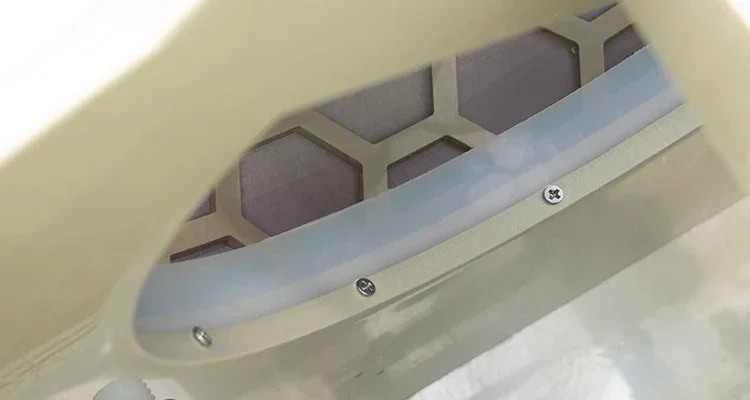

Upgraded andimproved seals
Upgraded sealing performance to effectively eliminate overflow areas

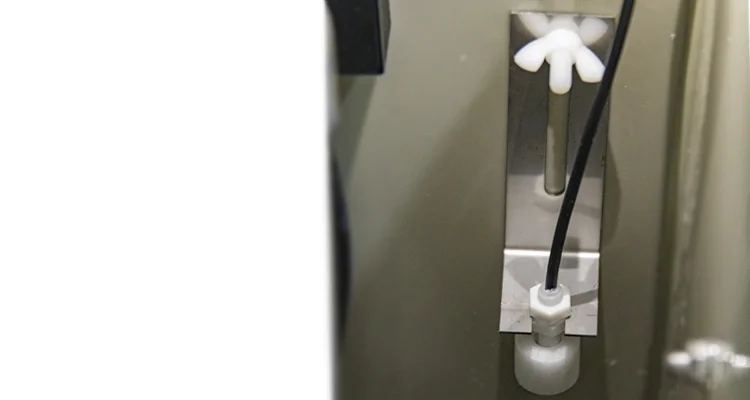

Automatically sensesclogging and flushes
Save Time - Save Effort - Save Heart As soon as a clogged cartridge is detected, thelevel sensor is activated and the
backwashprogram is carried out automatically.
backwashprogram is carried out automatically.

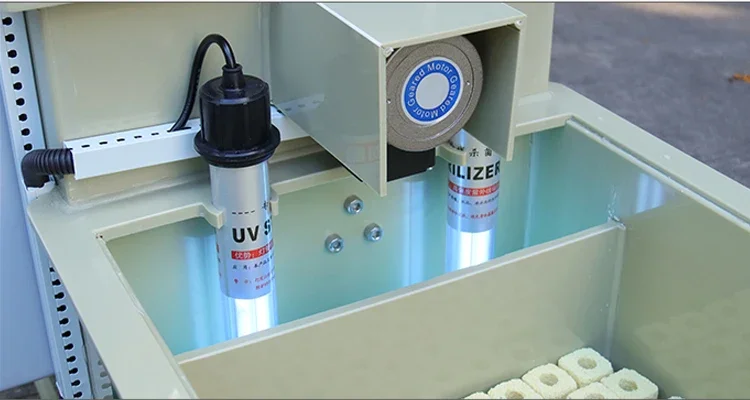

UV germicidal lamp
Inhibit algae growth, sterilize and disinfect

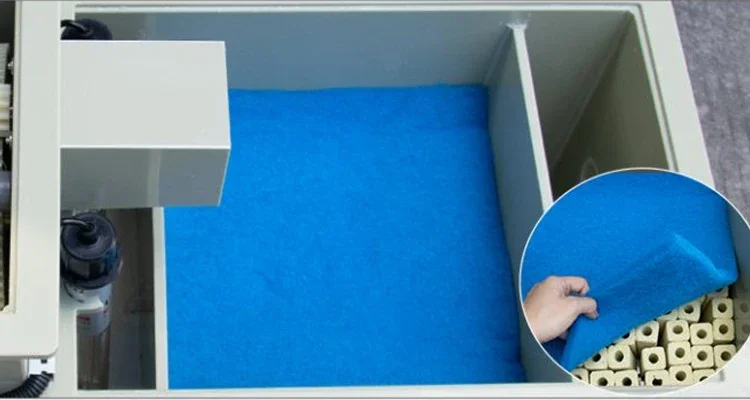

Bacteria House + Multi-density Combined Filter Biochemical Wool
Biological filtration. effectively cultivate nitrifving bacteria and otherbeneficial bacteria, adsorb impurities and harmful substances in the water.increase the amount of dissolved oxygen in the water, improve the filtrationeffect, so as to achieve the effect of living water and water.

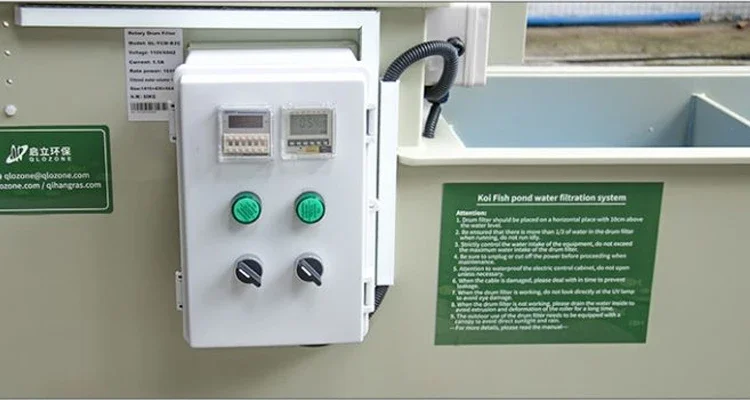

Integrated control panel box
Controlling each part through the panel box, and with microcomputertimer switch, reasonable and efficient cleaning of the fish pool.
YCM-B1C
YCM-B2C
YCM-B3C
YCM-B4C
