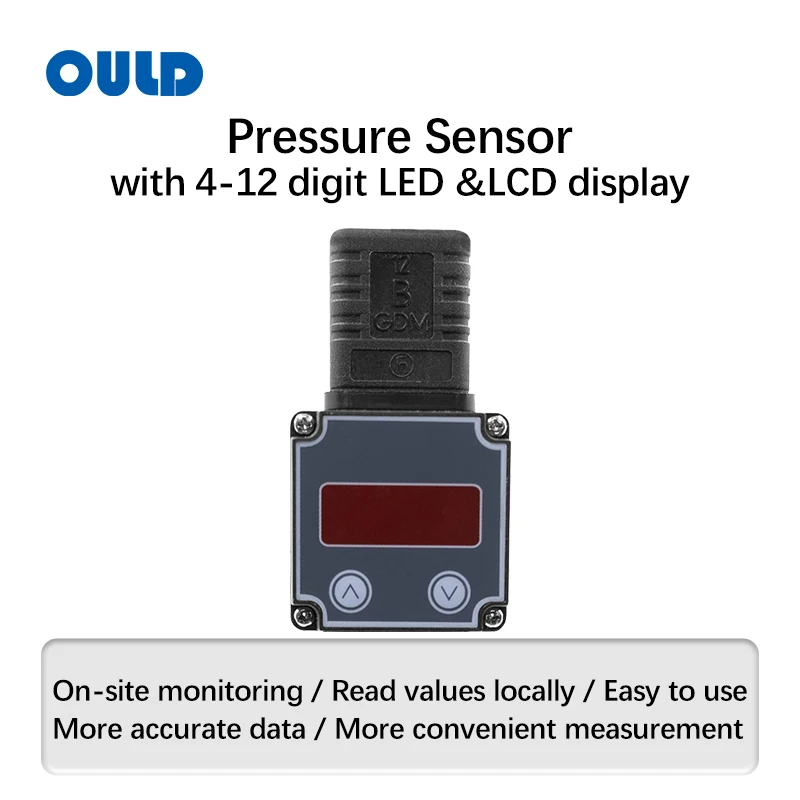

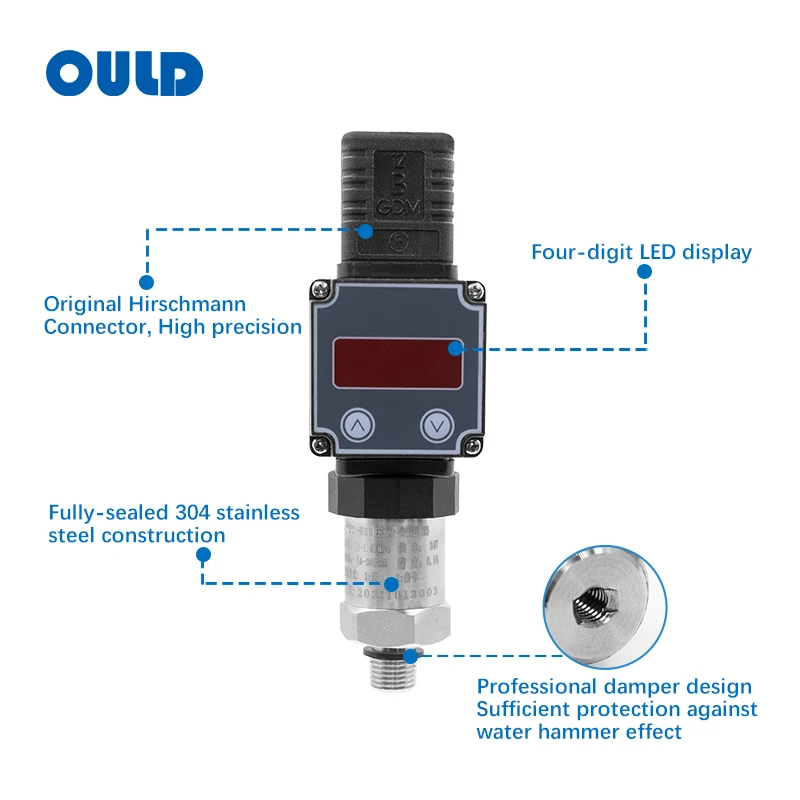

Ould PT 511 Water Pump 10Bar 4 20Ma G1/4 R1/4 Connector Absolute Differential Pressure Transducer Transmitter
- Category: >>>
- Supplier: Shenzhen Ould Instrument Co. Ltd.
Share on (1600912534817):
Product Overview
Description
Model | PT-511 |
Pressure range | 0MPa～0.1MPa~10MPa |
Accuracy | ± 0.5%FS |
Output signal | 4-20mA；0-10V |
Overload pressure | 200%FS |
Working temprature | -40～85℃ |
Temperature drfit | ±0.03%FS/℃ |
Material | stainless steel 304 |
Process connection | G1/4, G1/2, M20*1.5, can be customized |
Ingress protection | IP65 |

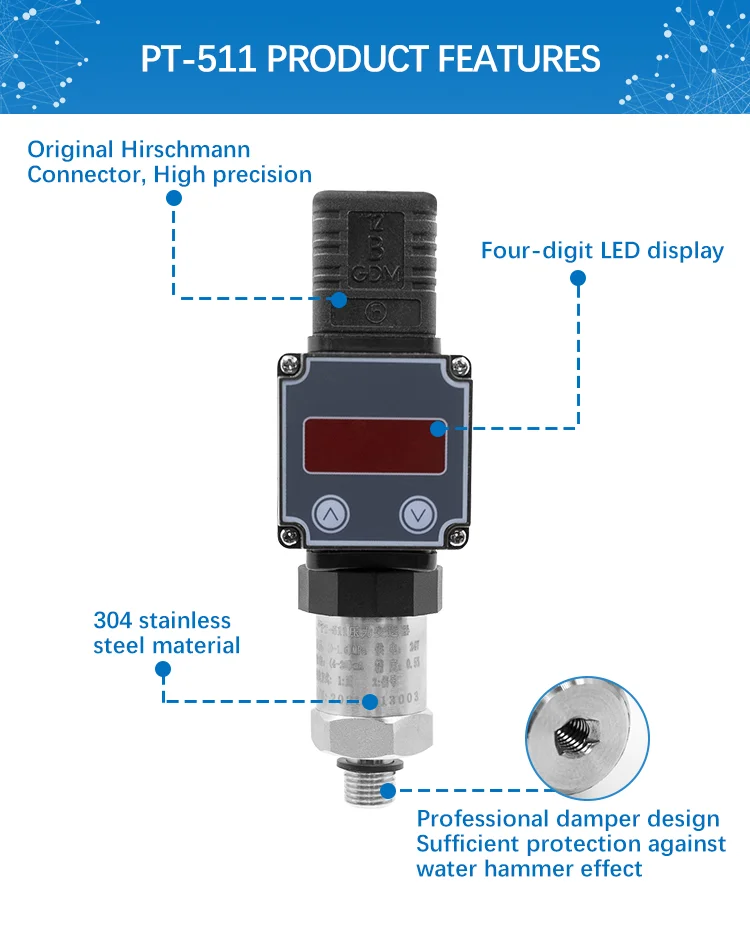

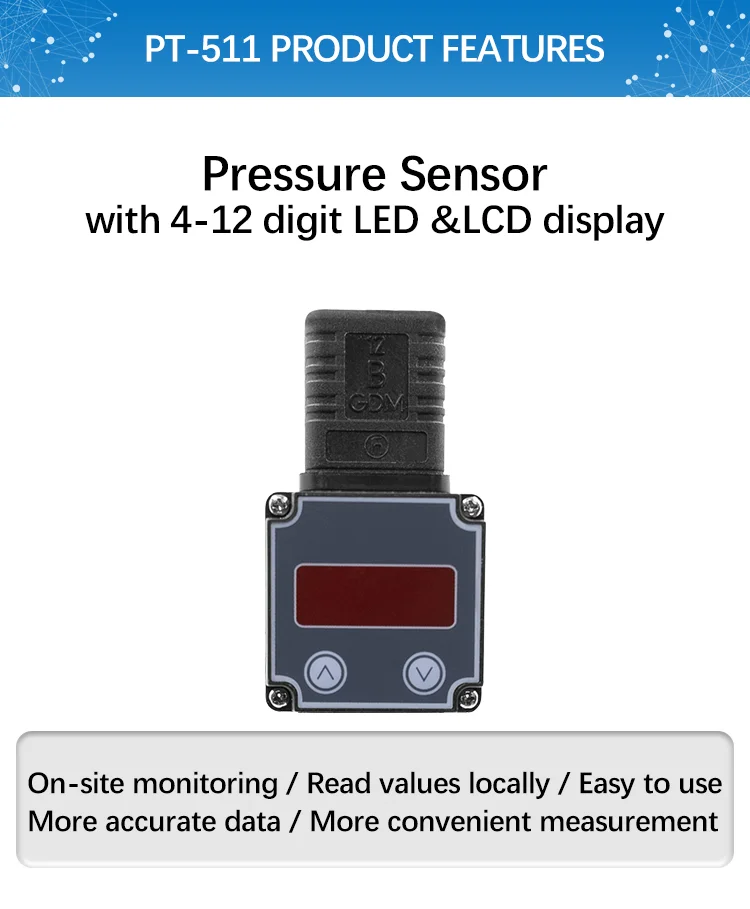

Product Features

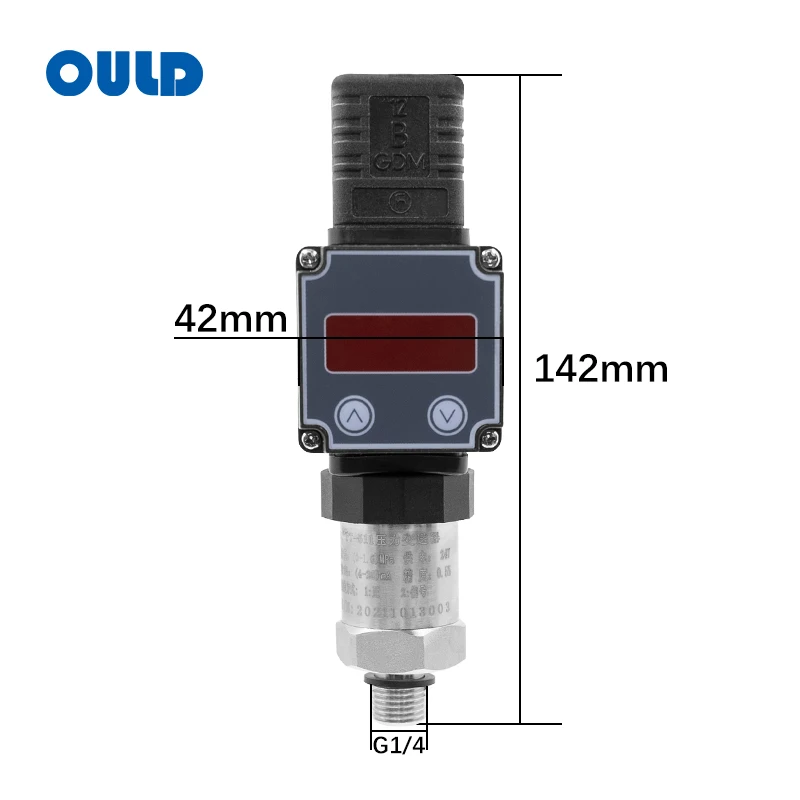

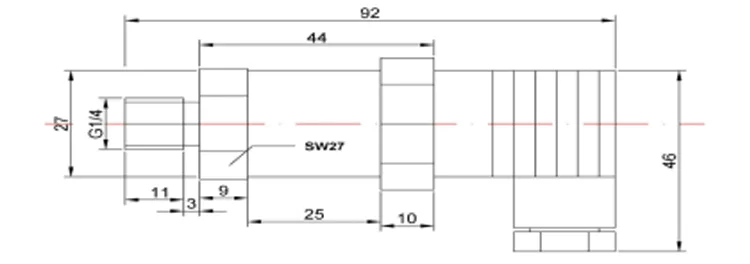

Dimensions: (mm)

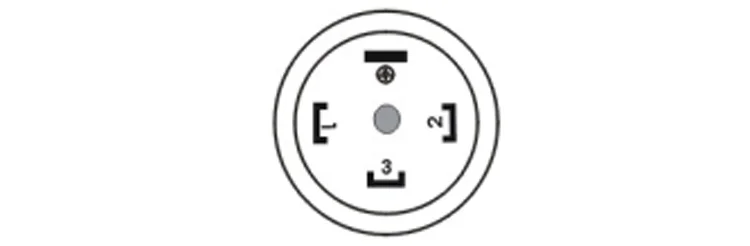

Electrical connection:
Output | 4～20mA | 0～10V | 4～20mA （with alarm） |
Power supply+ | (1) Red | (1) Red | (1) Red |
Current output /power supply- | (2) Black | (2) Black | (4) Black |
Voltage output | (3) White | ||
High report | (2) Yellow | ||
Low report | (3) Green |
