China 2D Cmos Usb/Rs232 0mni Directional Wireless Or Scanner Auto Scan Desktop Barcode Scanner
- Category: >>>
- Supplier: Foshan Xincode Electronics Technology Co. Ltd.
Share on (1600912570646):
Product Overview
Description
HOT SELLING
| GT-9900B Technical Parameters | |||||||
| Model | GT-9900B | ||||||
| Item | Omnidirectional 2d barcode scanning platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V 500mA±5% | ||||||
| electric current | 230mA(working);200mA(standby);250mA(maxium) | ||||||
| Weight | 480.0g±5g(without cable) | ||||||

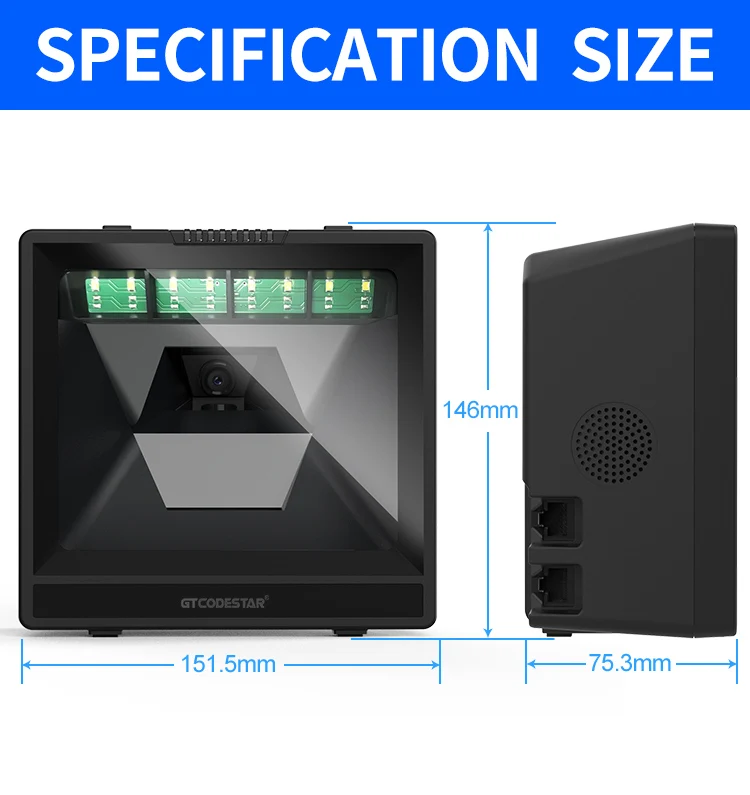

| Size | L*W*H:151.5 * 146 * 75.3(unit:mm) | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||

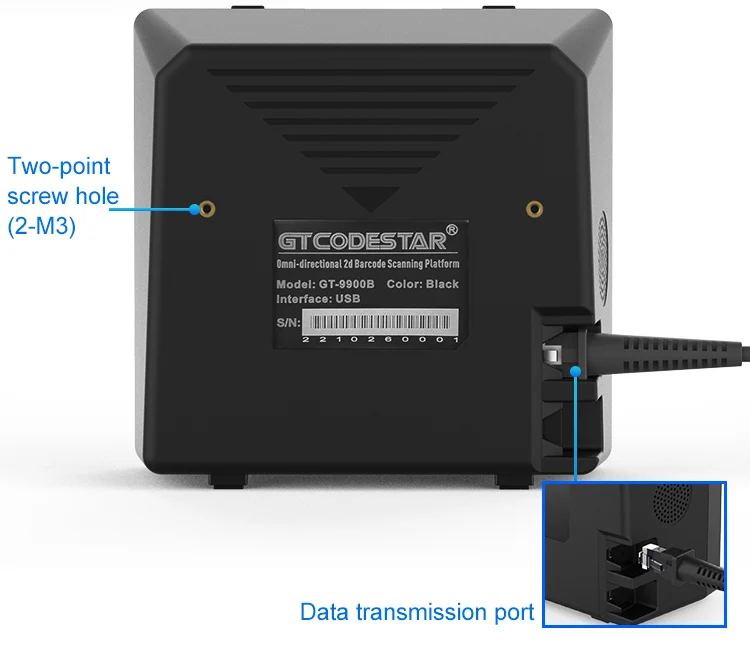

| Interface | USB;USB COM;RS232;TTL232 | ||||||

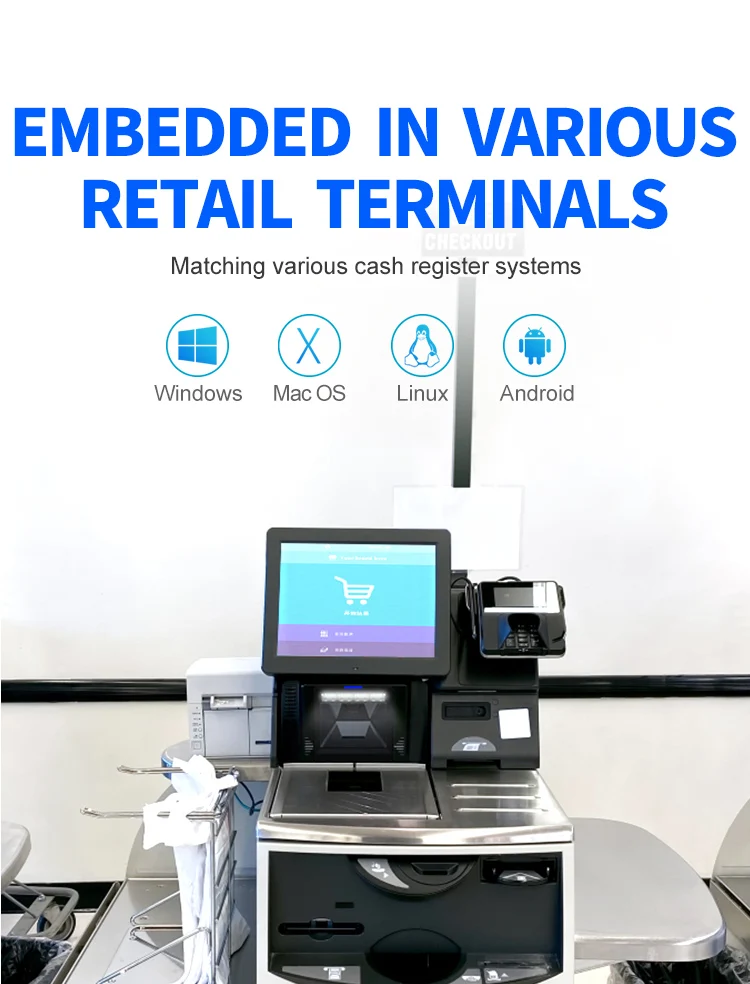

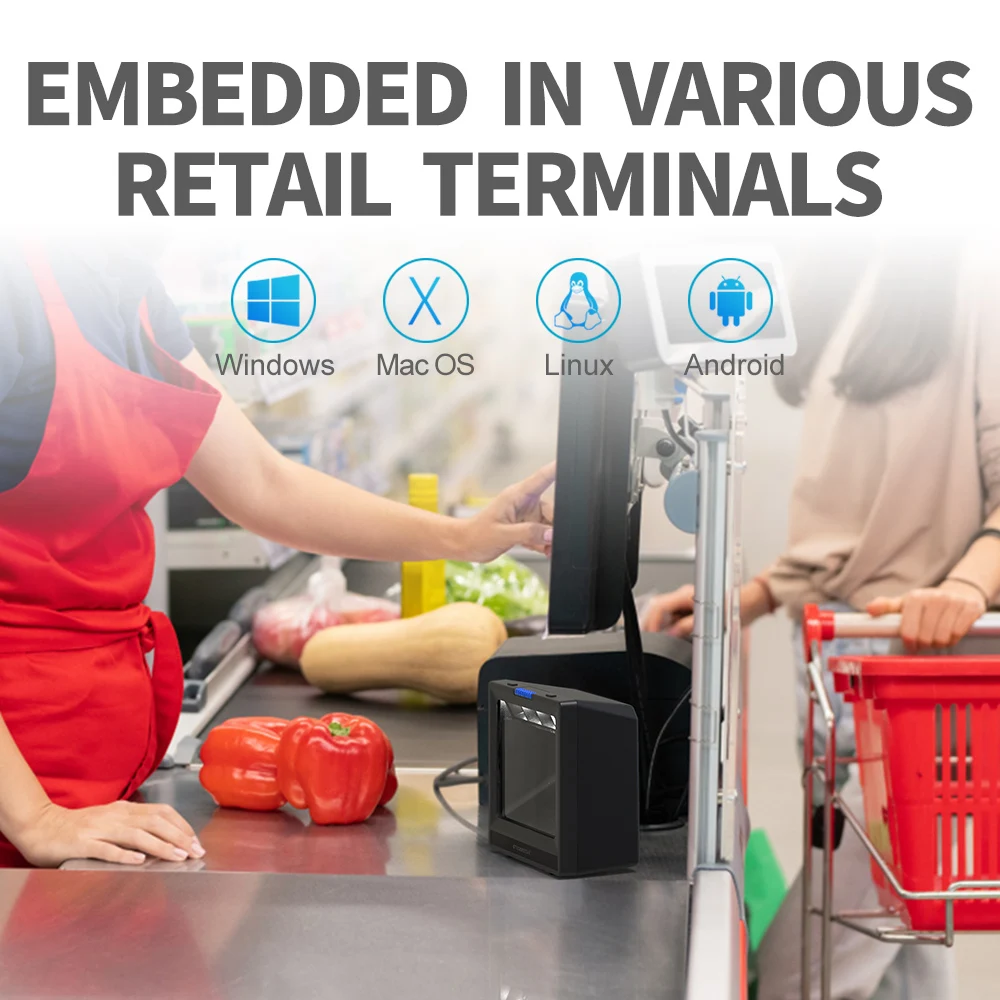

| System Supported | Linux,Android,Windows,MAC | ||||||
| Language Supported | English; German; French; Italian; Russian; Finnish; norwegian; Spanish; Czech; Polish; Portuguese; Türkiye Q; Türkiye F; Greek; Swedish; irish .etc. | ||||||
| Sensor | Global sensors 1280 * 800 | ||||||
| Light source | white LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Decoding speed | 500scan/s | ||||||
| Resolution | 1D:4mil;2D:6mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Imaging Sensor | ||||||

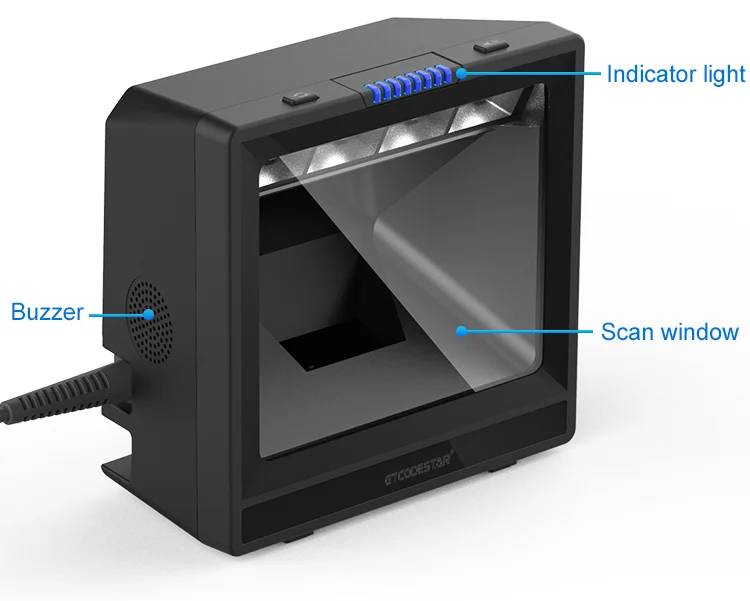

| Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
| Image code | Support | ||||||
| Invoice Function | Support | ||||||

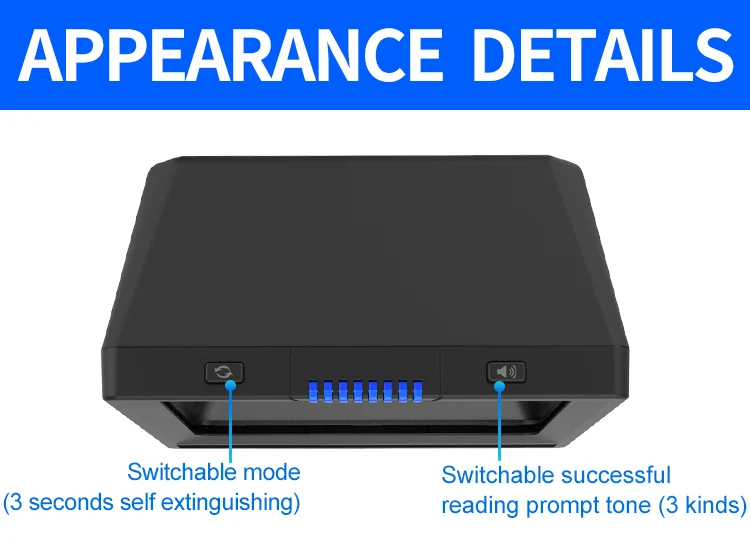

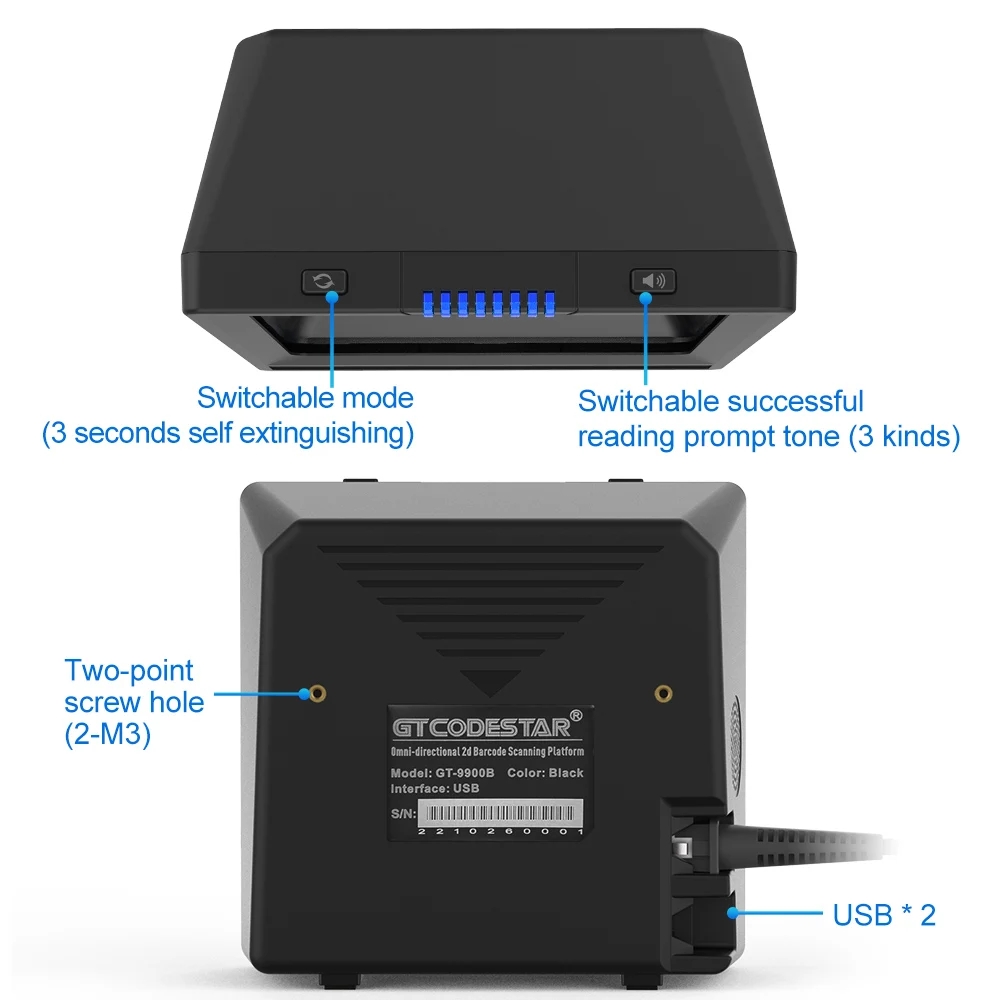

| Button | Switchable mode (3 seconds self extinguishing; Switchable successful reading prompt tone (three kinds) | ||||||
| Print Constrast | ≥25% | ||||||

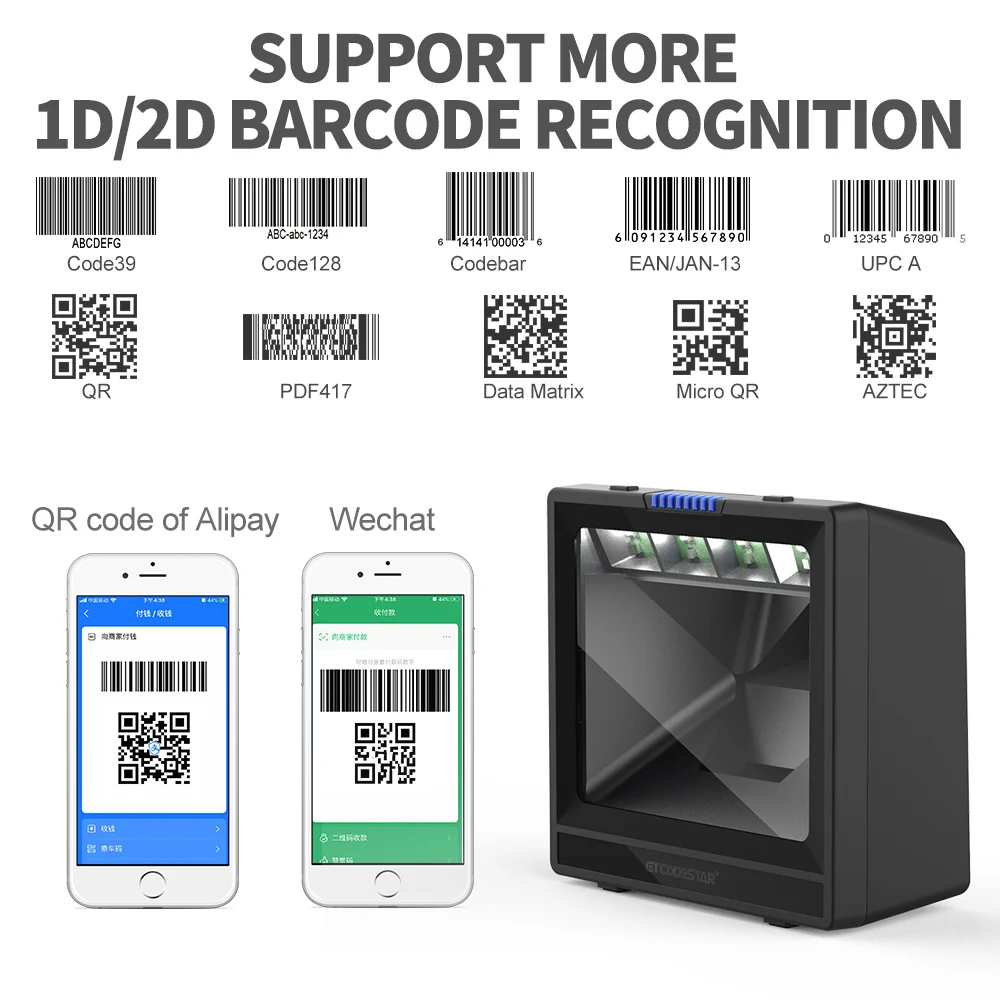

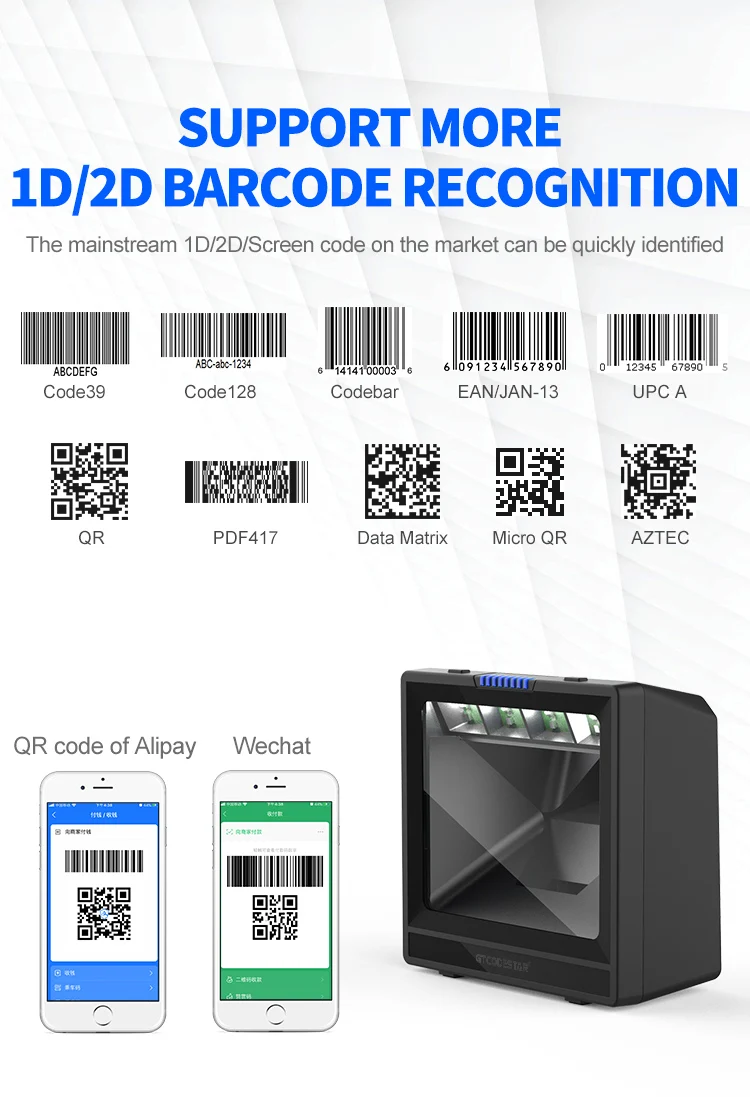

| Decoding Capability | 1D | EAN-13,EAN-8,UPC-A,UPC-E ,ISSN,ISBN,Codabar,Code 128 ,Code 93 ,ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,Matrix 2 of 5,,Code 39,Code11,MSI-Plessey ,UK-Plessey, Pharmacode One-Track ,Telepen ,Trioptic code ,Brazilian bank code ,GS1 Databar ,GS1 Compsite code,GS-128 ,Code32 | |||||
| 2D | QR Code;Mirco QR;Data MartrixPDF 417;Mirco PDF 417;Aztec;Maxicode;Hanxin;Grid Matrix;DOT code | ||||||
| Post Office | Australian;Royal Mail(RM4CSS);Intelligent Mail Bar;Japanese Post ;KIX Post ;Planet code ;USPS Postnet;China post | ||||||
| Scanning Angle | Roll360°,Pitch50°,Yew50° | ||||||
| Scanning Depth | EAN-13(13bit): 10mm -- 250mm Code 39 5mil(5bit): 10mm -- 90mm Code 128 5mil(5bit): 10mm -- 80mm QR(18bit): 10mm -- 400mm Alipay payment code(18bit): 10mm -- 400mm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | -20 to 60℃ | ||||||
| Storage Temp. | -40 to 70℃ | ||||||
| Operating Humidity | 5% to 95%(No condensationc) | ||||||
| Storage Humidity | 5% to 95%(No condensationc) | ||||||
| ESD Protection | 15KV air discharge; 10KV contact discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
Company Information
FAQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
