Product Overview
Description
Product Information

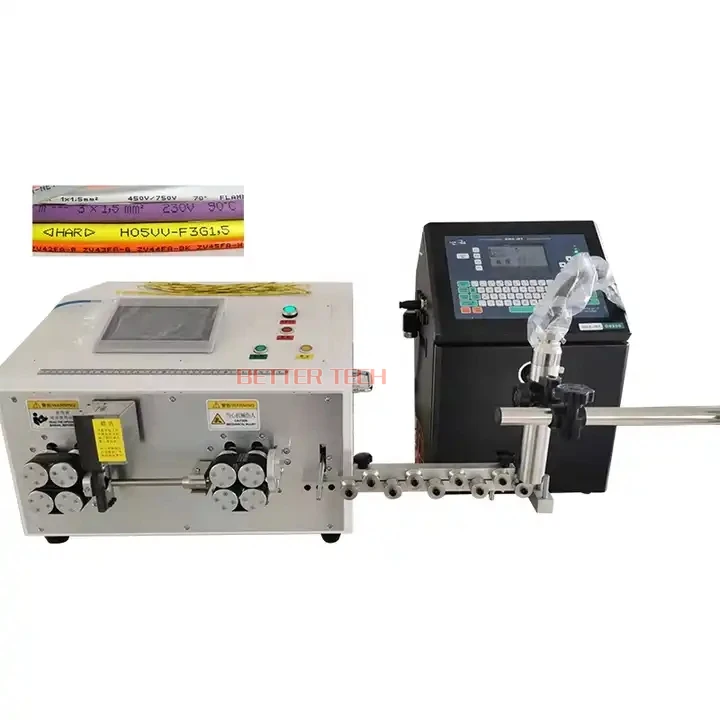

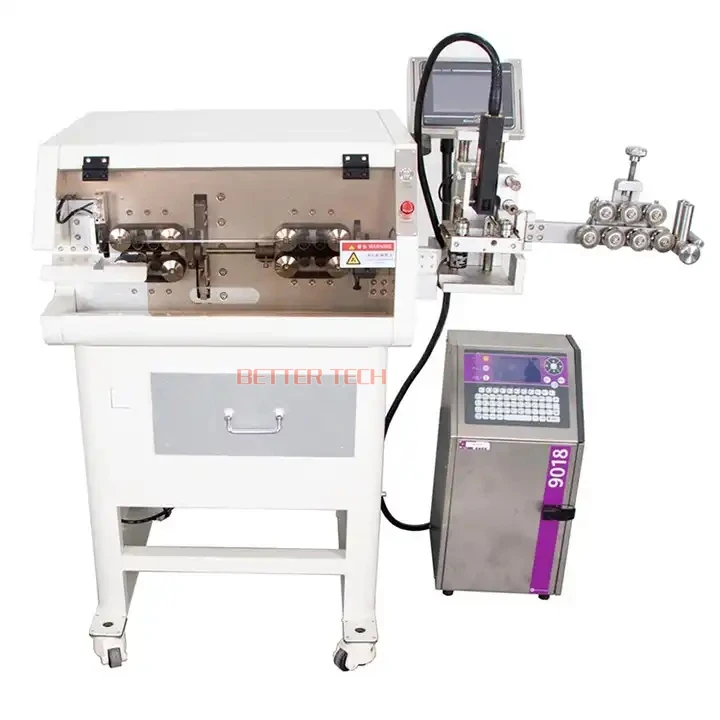

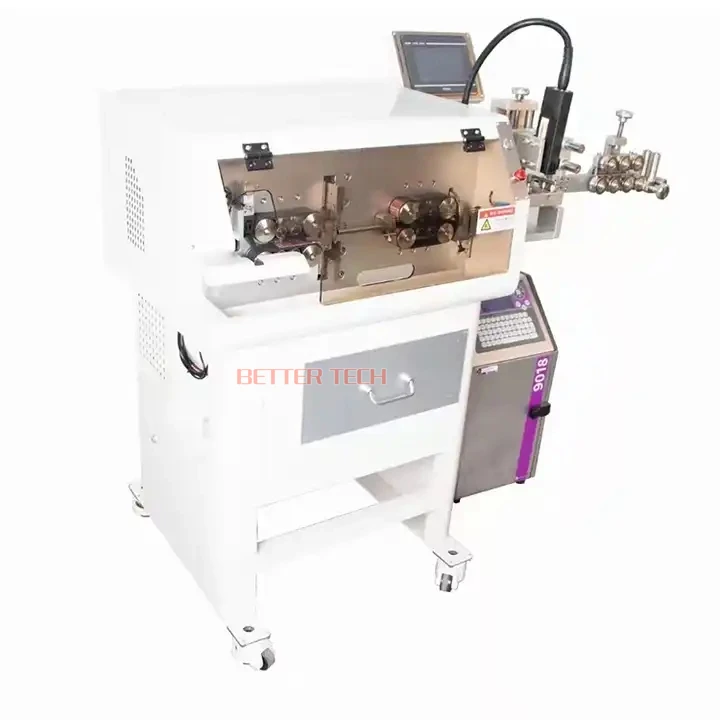

Automatic Wire Stripping Cutting Inkjet Printing Machine:
Display Method: | 7 inches color touch screen+PLC |
Applicable wires: | multi-stranded copper wire,coaxial cable, sheath cable, etc. |
Wire cross-section: | BVR2.5 ~35mm2 (BV35 mm2, sheath cable outer diameter Max.16mm) |
Wire guide pipe diameter: | Max.16mm |
Cutting length: | 0~100m |
Stripping lengh: | head: 0~250mm(head length longer than 500mm, can add pierced device), tail: 0~120mm |
Cutting tolerance: | ±（0.002mm*L）(L= cutting length) |
Memory function: | can store Max. 100 groups of programs |
Drive method: | 12 wheels drive, Synchronous belt feeding |
Blade material: | imported high speed steel |
Power supply: | 220/110V, 50/60hz |
Power rating: | 650w |
Stripping speed: | 1500~2500pcs/H |
Dimension: | 560*520*450mm |
Weight: | about 70kgs |
Features：
1. The machine is driven by 12 wheels, with strong power and high precision. The belt feeding system can ensure no damage to the
surface of wire. It is widely used in the processing of military, medical, communication, power cables, sheathed wires, soft and
hard wires. 2. The pressing force of incoming and outgoing wheels can be set directly in the program, without manual adjustment of
wheel pressure. The outlet wheel also has the function of automatic lifting wheel. When stripping the wire head, the outlet wheel
can automatically lift up to avoid collision. Therefore, the stripping length range of the wire head is greatly increased, and the
lifting height of the outlet wheel can also be directly set in the program. 3. Color touch screen operation interface, parameters
intuitive and easy to understand, only a simple training can quickly operate the machine; the machine also has a three-layer
stripping program, which can be divided into three layers of stripping, or stripping at most three times when the stripping length
is long; 100 groups of program memory function is provided, and the processing parameters of different wires can be stored in
different program numbers. 4. It can be installed with wire dividing tool, pierced tool and inkjet printer.
surface of wire. It is widely used in the processing of military, medical, communication, power cables, sheathed wires, soft and
hard wires. 2. The pressing force of incoming and outgoing wheels can be set directly in the program, without manual adjustment of
wheel pressure. The outlet wheel also has the function of automatic lifting wheel. When stripping the wire head, the outlet wheel
can automatically lift up to avoid collision. Therefore, the stripping length range of the wire head is greatly increased, and the
lifting height of the outlet wheel can also be directly set in the program. 3. Color touch screen operation interface, parameters
intuitive and easy to understand, only a simple training can quickly operate the machine; the machine also has a three-layer
stripping program, which can be divided into three layers of stripping, or stripping at most three times when the stripping length
is long; 100 groups of program memory function is provided, and the processing parameters of different wires can be stored in
different program numbers. 4. It can be installed with wire dividing tool, pierced tool and inkjet printer.
