Golden Dragon medical bus Mobile Dental Bus mobile dental clinic
US $28500-$29500

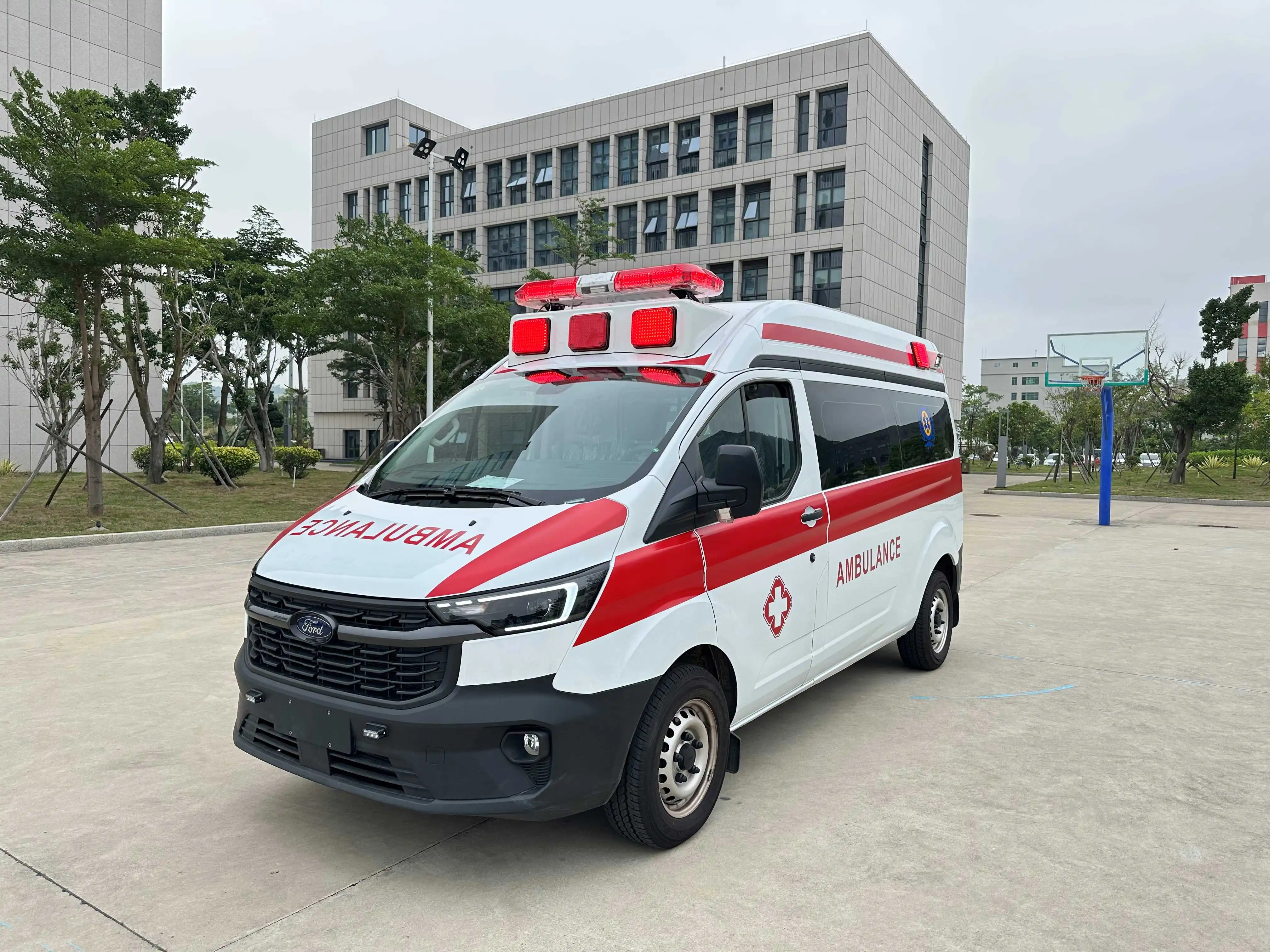

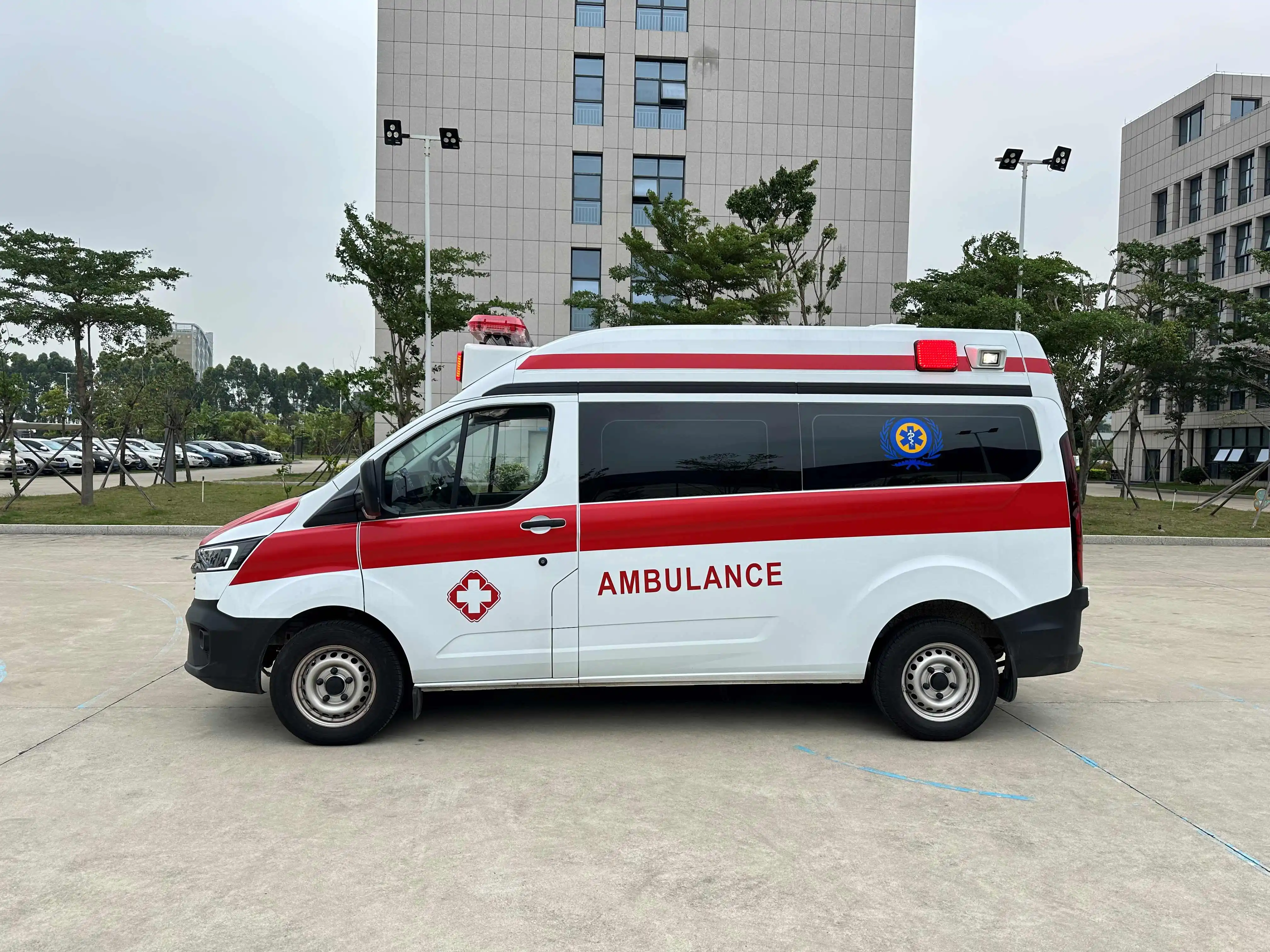

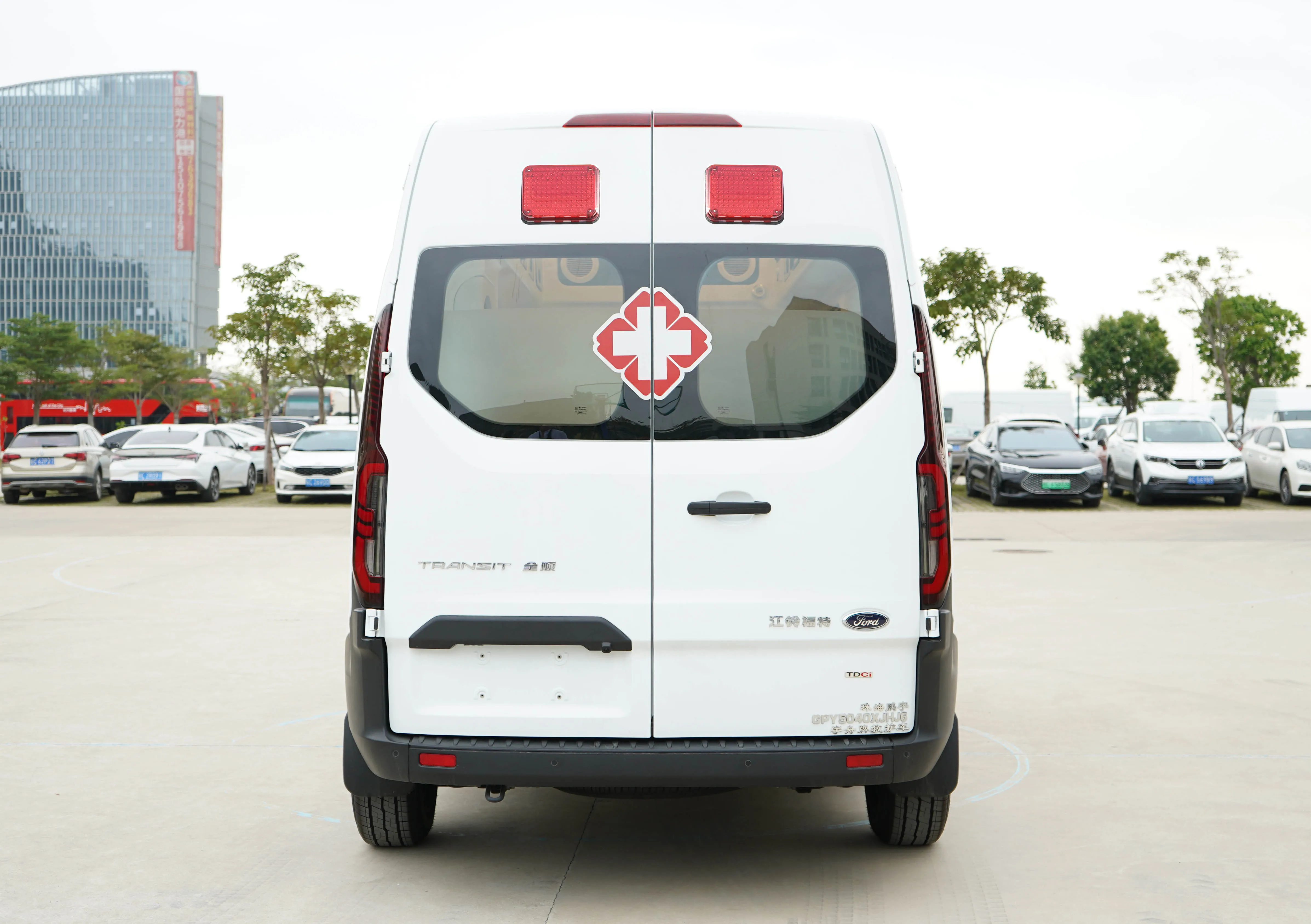

2024 Transit V362 Monitoring Transport Ambulance Vehicle High Quality Hospital Medical ICU Ambulance Rescue Car
- Category: >>>
- Supplier: Zhuhai Pengyu Automobile Co. Ltd.
Share on (1600912710022):
Product Overview
Description
Product Description
Specification
Transit V362 Monitoring Ambulance ABS Interior (Gasoline , MT, Euro6)
Basic Data | ||
Model | GPY5030XJHJ3 | |
Engine type | ECOBOOST4G20E6L | |
Fuel type | Gasoline | |
Displacement (ml) | 1997 | |
Emission standard | Euro VI | |
Curb weight (kg) | 2700 | |
GVW (kg) | 3495 | |
Wheelbase (mm) | 3300 | |
Working way of Engine | In-line 4 cylinder, water-cooled direct injection, inter-cooling, direct injection, compression ignition | |
The dimensions of the Vehicle (mm) | 5341×1986×2420mm (L x W x H) | |
Max power（Kw/rpm） | 162/5500 | |
The maximum torque Nm/rpm | 300/3000 | |
Suspended system | Front: McPherson independent suspension Rear: Leaf spring non independent suspension | |
Braking System | Hydraulic double circuit disc brake | |
Transmission | MT: 5 forward gears,1 reverse gear | |
Top Speed(km/h) | 170 | |
The Capacity of Fuel Tank（L） | 80 | |
Seat | 3-7 | |

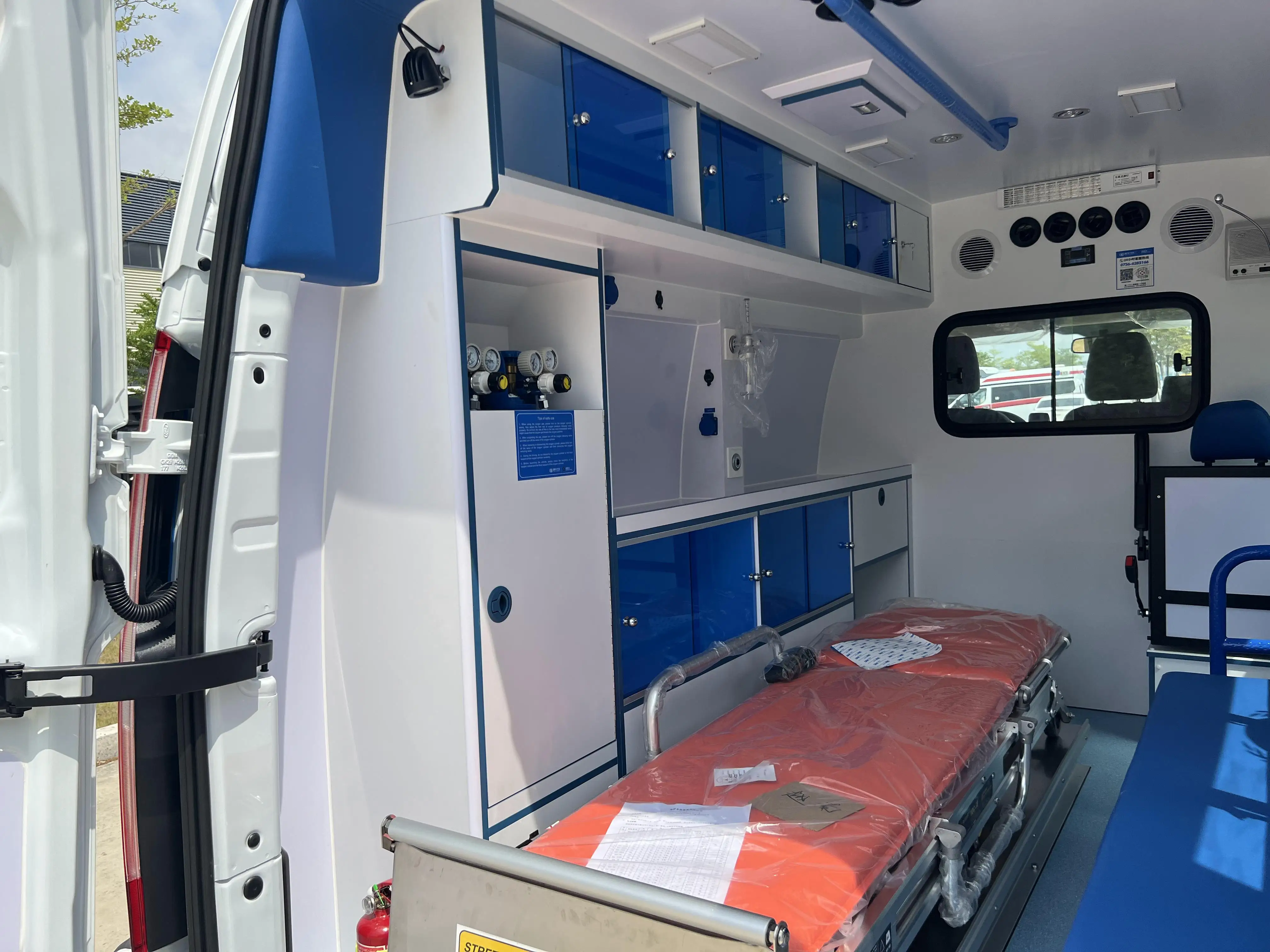

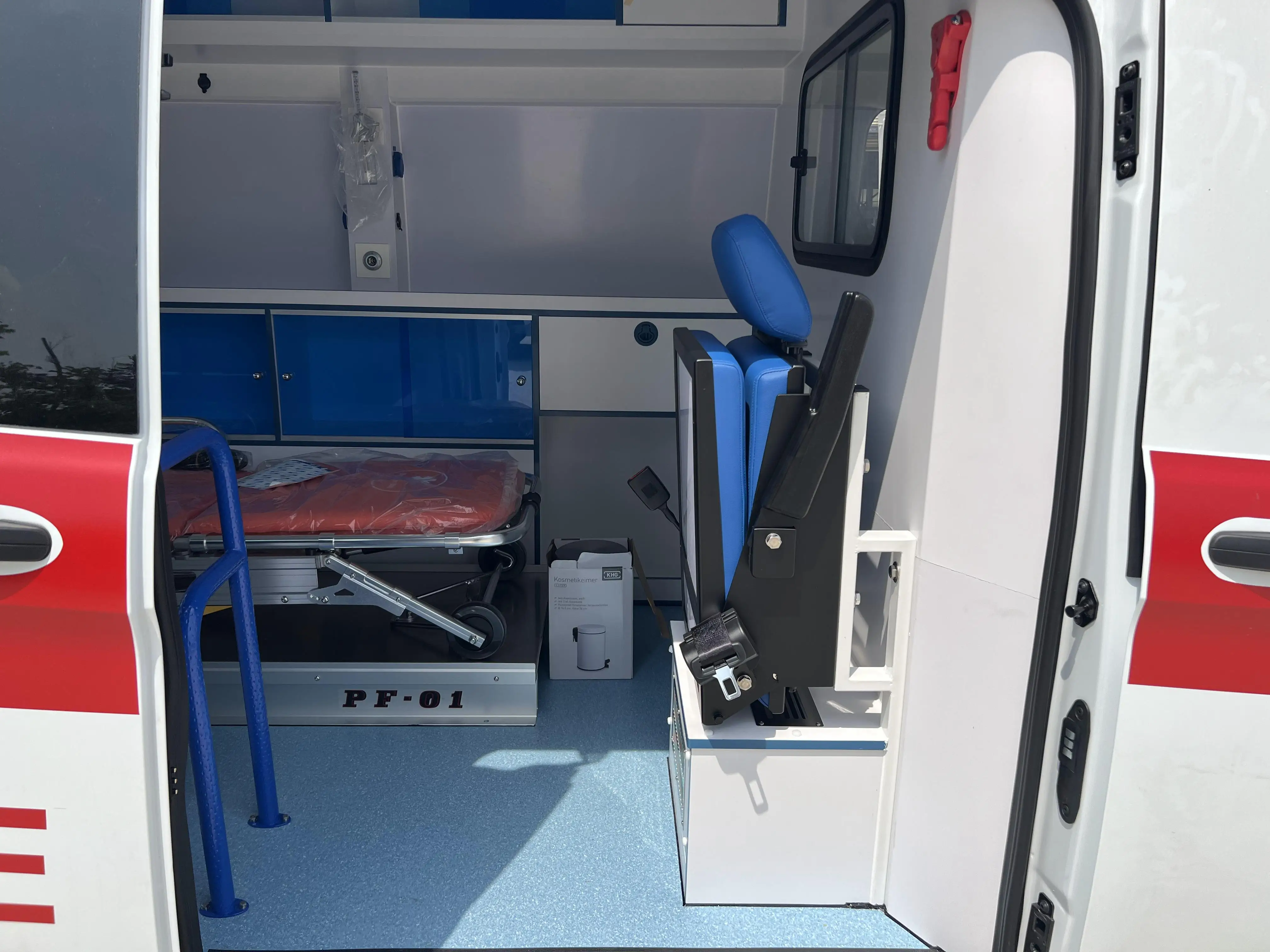

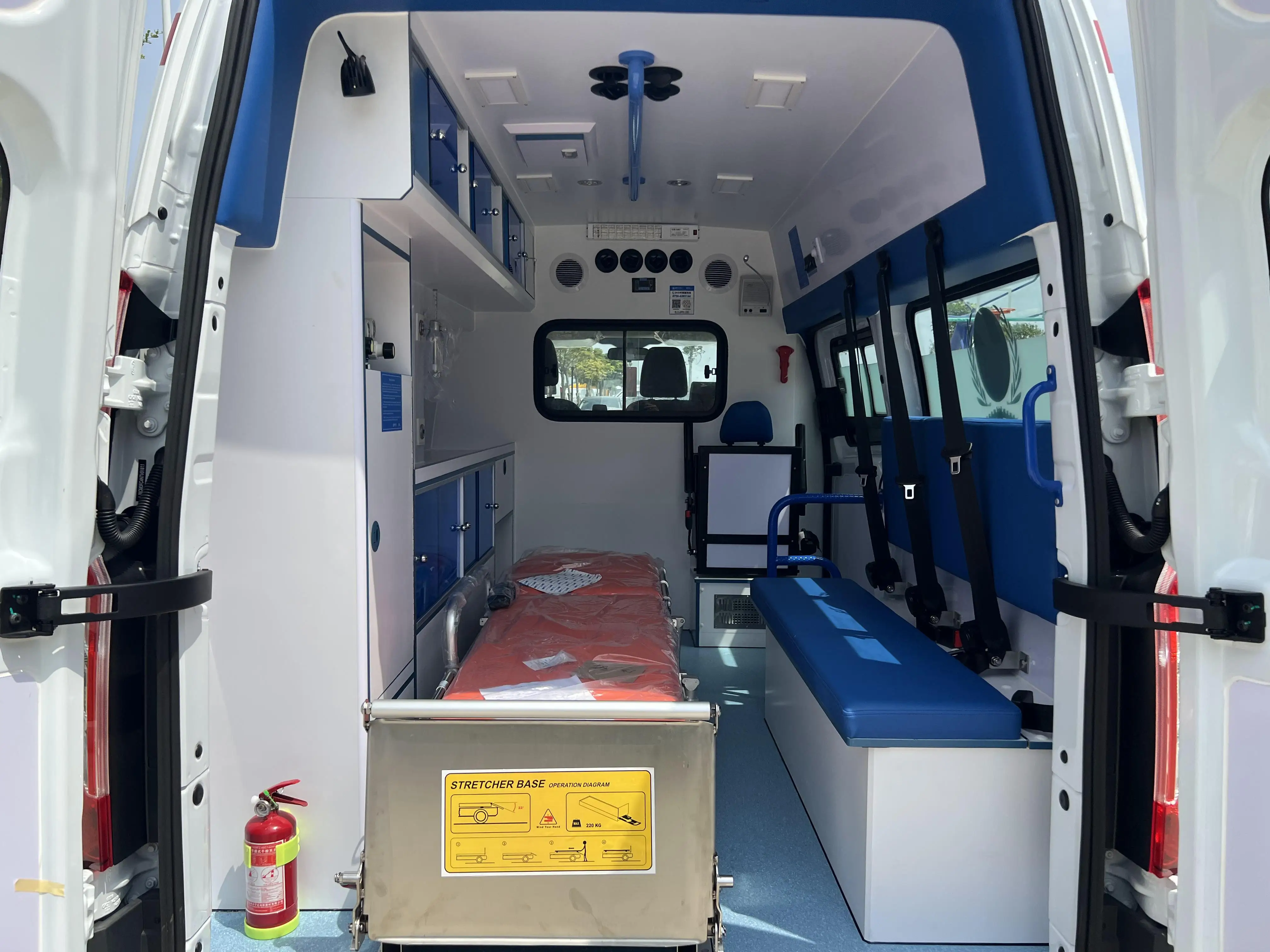

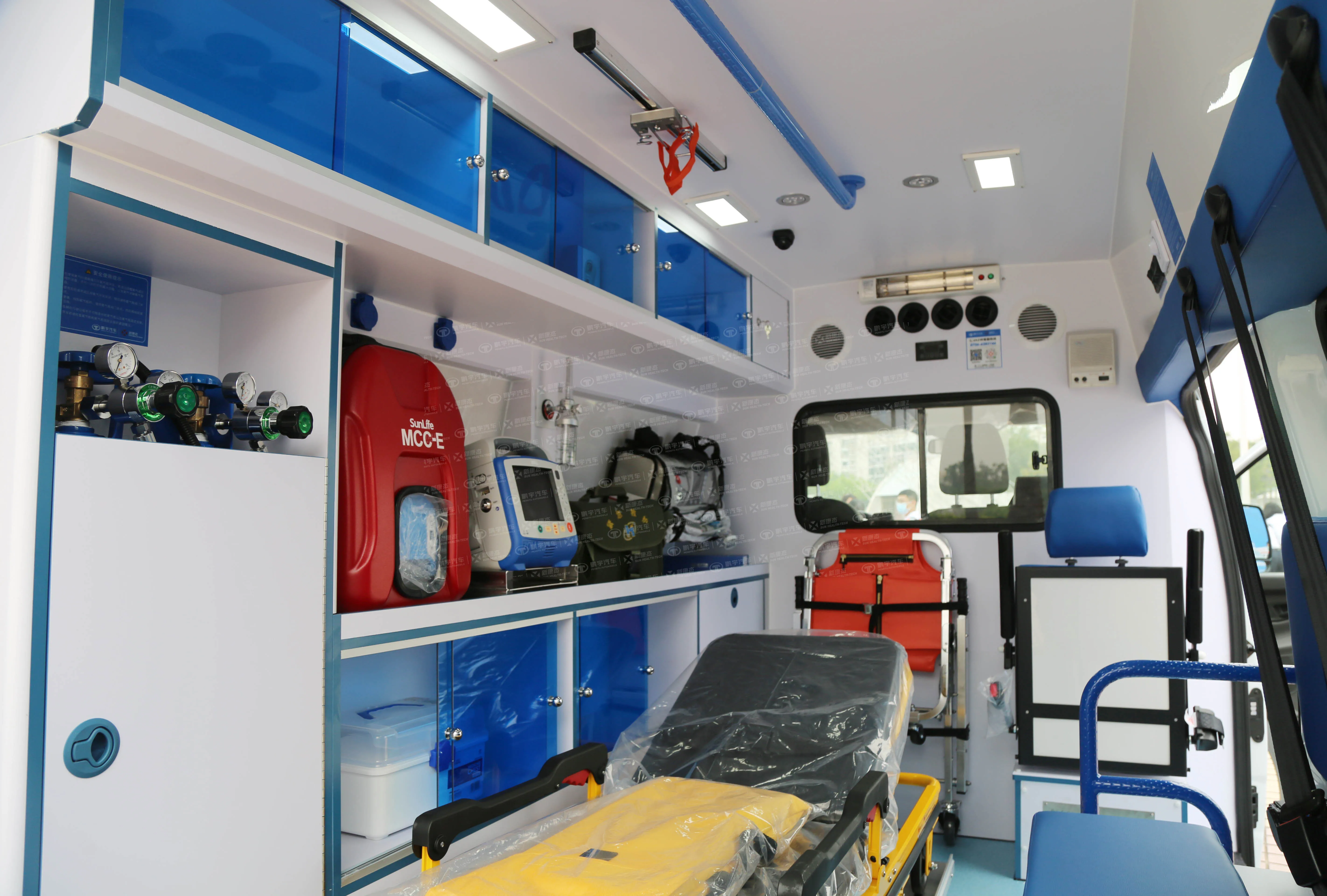

Medical compartment device | ||||
1. | Installation of partition wall with sliding window. | 1 | ||
2. | Installation of a doctor’s folding seat. | 1 | ||
3. | Installation of a middle door safety handrail. | 1 | ||
4. | Installation of bench with seat belt in medical compartment | 1 | ||
5. | Installation of long cabinet of medical wall cabinet on the left side of the medical compartment. | 1 | ||
6. | Installation of medical equipment cabinet on the left side of the top of the medical compartment. | 1 | ||
7. | Installation of oxygen fixing cabinet in medical compartment | 1 | ||
8. | 10L oxygen cylinder with reducer and flow meter. | 1 | ||
9. | Installation of oxygen socket (for ventilator and humidifier). | 1 | ||
10. | Installation of top safety handrail in medical compartment. | 1 | ||
11. | Installation of exhaust fan. | 1 | ||
12. | Installation of infusion hanger. | 1 | ||
13. | Equipped with 1kg fire extinguisher. | 1 | ||
14. | Medical compartment with thermal insulation, sound insulation and thermal insulation layer. | 1 | ||
15. | Medical compartment with environment friendly waterproof, antiskid, anti-static and anti-corrosion plywood floor with floor leather. | 1 | ||
16. | Installation of full set of anti-collision soft bag. | 1 | ||
17. | Installation of front and back intercom system. | 2 | ||
18. | Equipped with loading stretcher and platform (with fixer and safety belt) | 1 | ||
19. | Equipped with 1kg fire extinguisher. | 1 | ||
20. | Equipped with medical dustbin | 1 | ||
21. | Installation of exhaust fan. | 1 | ||
24. | Equipped with loading stretcher and platform (with fixer and safety belt). | 1 | ||
25. | Reflective decal on the vehicle | |||
Pictures for reference only, subject to customer order specification
Company Profile
Company Profile
Zhuhai Pengyu Automobile Co., Ltd. (Pengyu Automobile) is a special vehicle manufacturer who has 12000㎡ of production plant and Guangdong Medical Special Vehicle Engineering Technology Research Center. Main Production: Various medical ambulances, Command communication vehicle, Police car, Refrigerated truck, Water truck, Material Transporter, Special container truck etc. which is a special vehicle manufacturer integrating R & D, production and sales.
Locations
Our Factory
Qualifications And Honors
Visiting customers
Exhibition
2012 Shenzhen Exhibition
2013 Wuhan Exhibition
2014 Shenzhen Exhibition
2015 Shanghai Exhibition
2016 Shanghai Exhibition
2017 Kunming Exhibition
2018 Shanghai Exhibition
2019 Sichuan Exhibition
2021 Shenzhen Exhibition
2022 Macau Exhibition
2023 Shenzhen Exhibition
2024 Shanghai Exhibition
Our Partners
Other Products
Packing and Delivery
FAQ
Q1:Trading company or Factory?
A1:Pengyu Automobile is special vehicle manufacturer integrating R&D, production and sales.
Q2:What's your payment term？
A2:T/T is accepted.
Q3:How long is the delivery time？
A3:It depends on your requirment to the vehicle, we will deliver it within 45 days after we confirm you requirement.
Q4:Can you give warranty?
A4:We will try our best to give you satisfying goods, we are always preparing some parts for free on the vehicle then deliver to you. If you have any problems about the goods please feel free to contract us.
Q5: Can I visit you?
A5:Of course! Welcome you to visit our factory in Zhuhai.
