Price:$25.32 - $50.95

Quantity:


Product Overview

Description

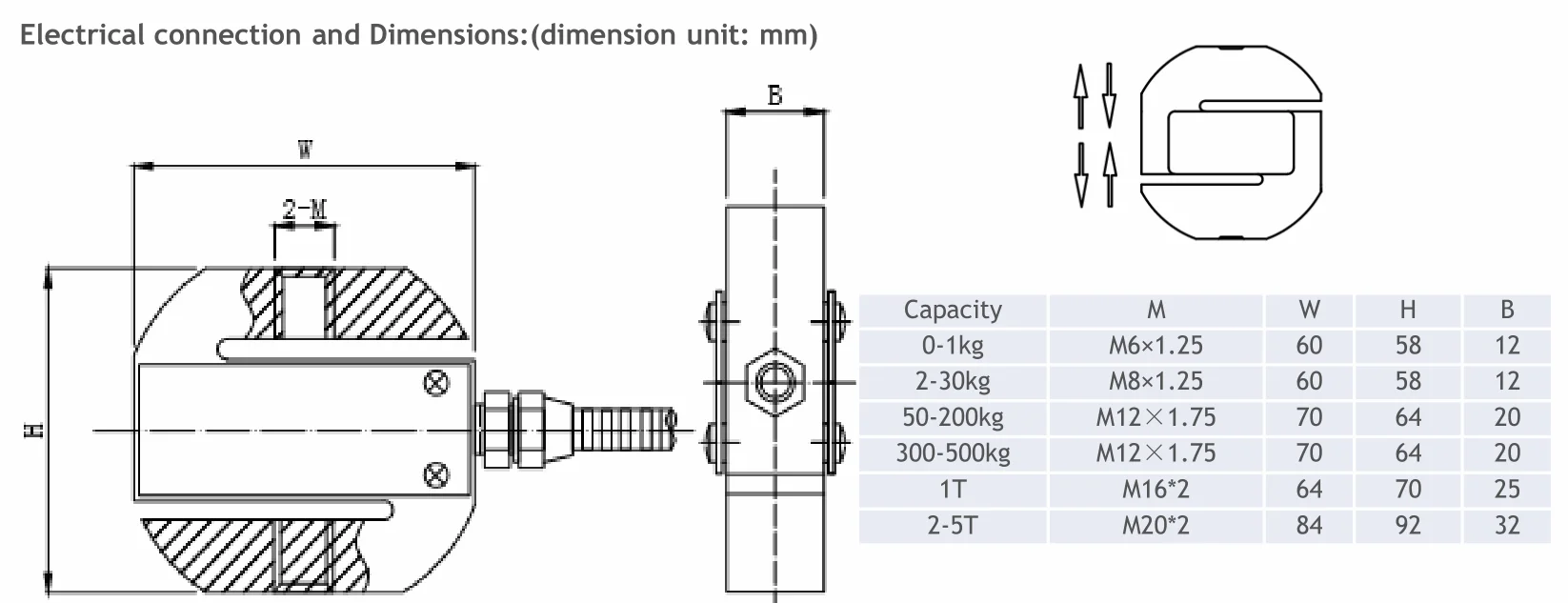

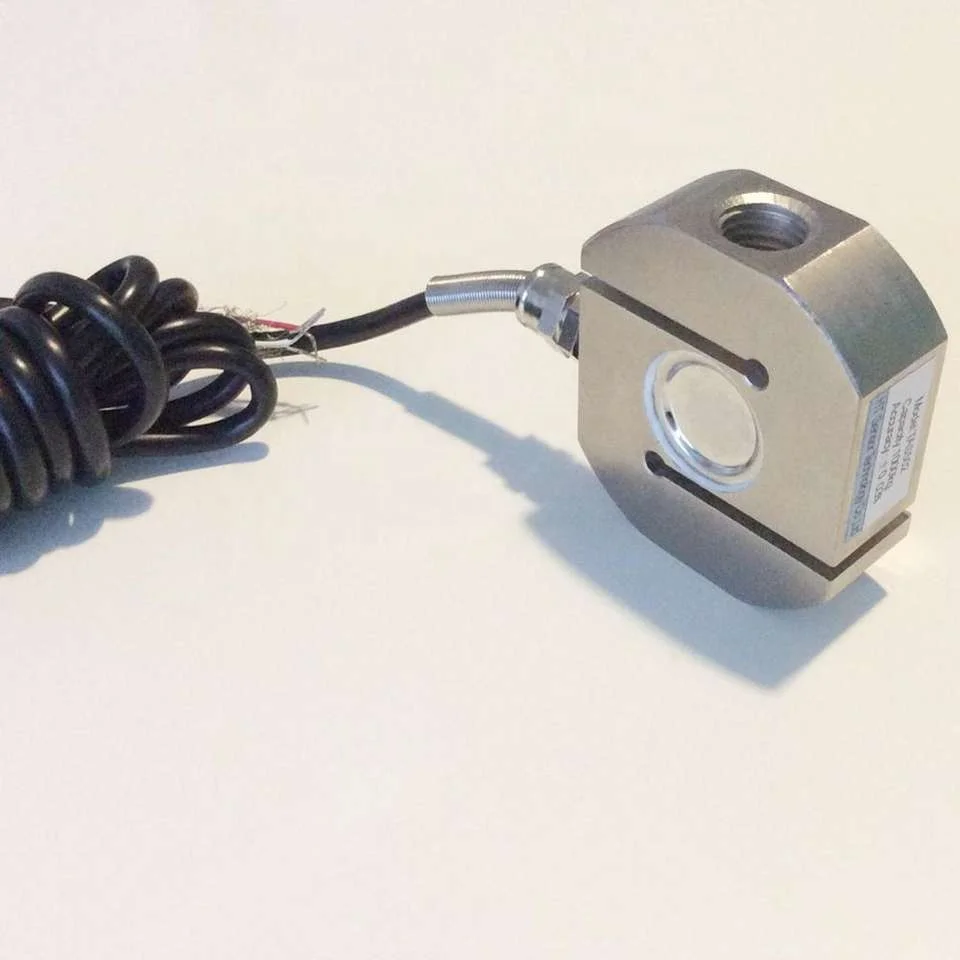

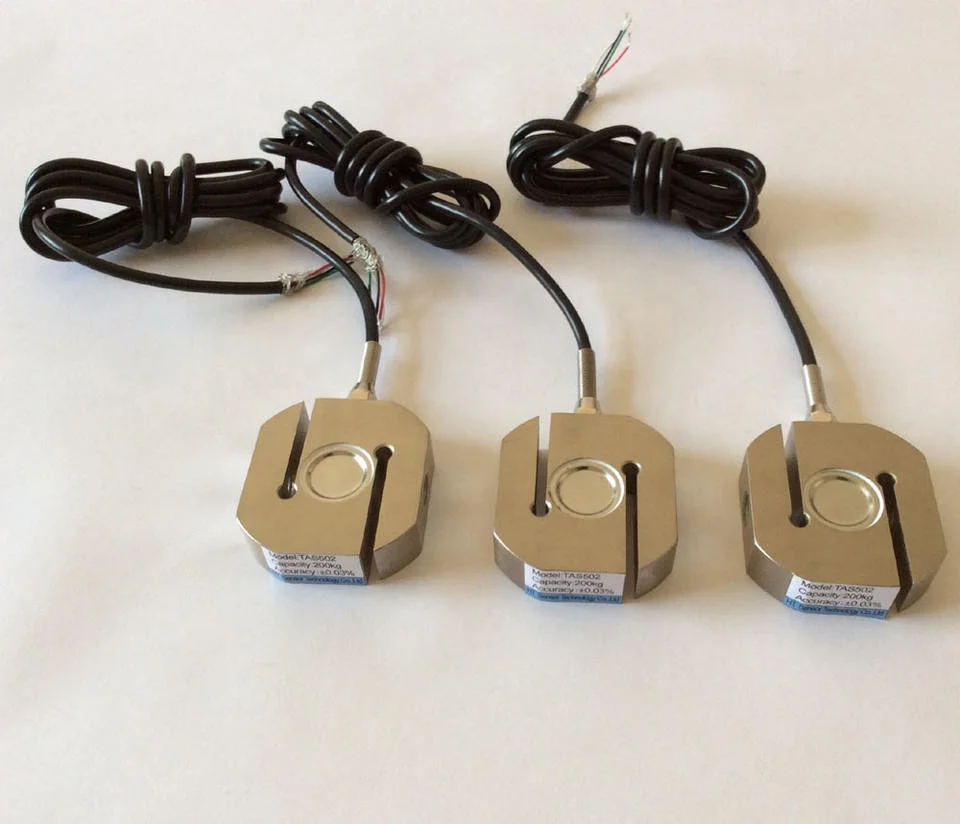

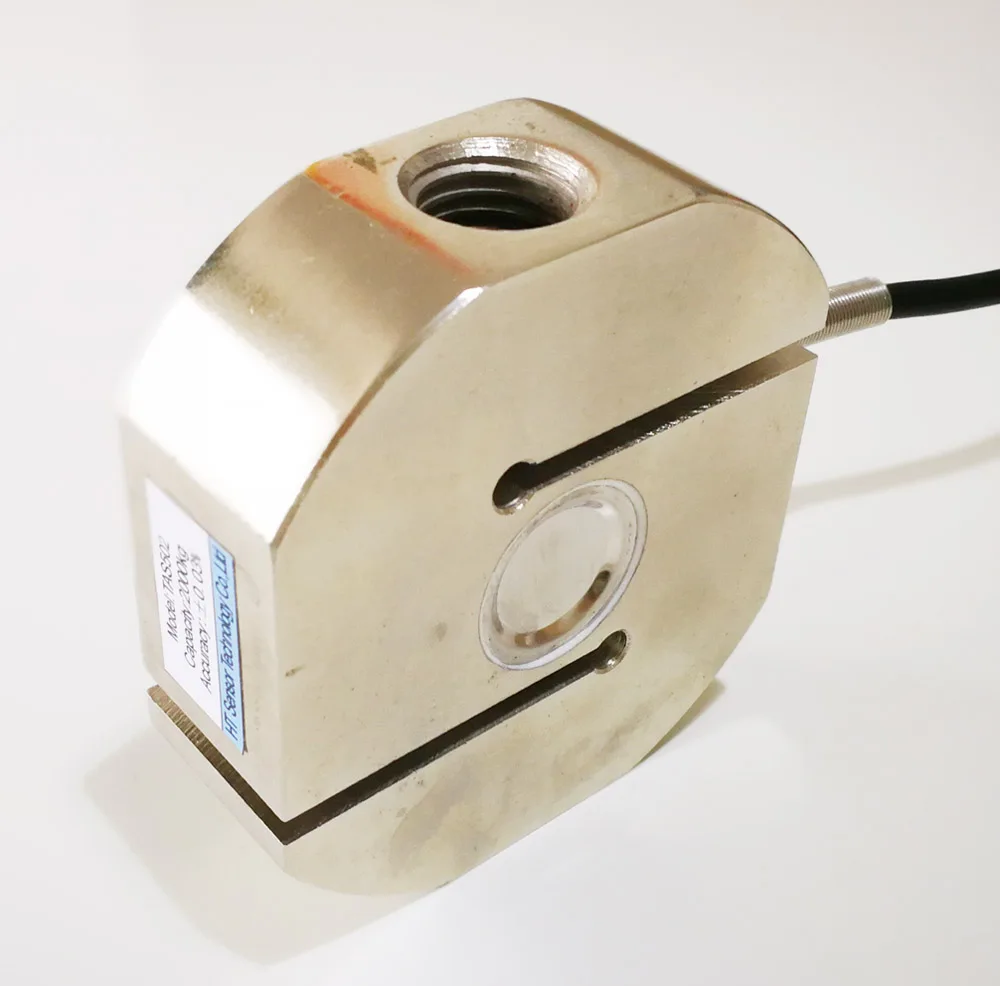

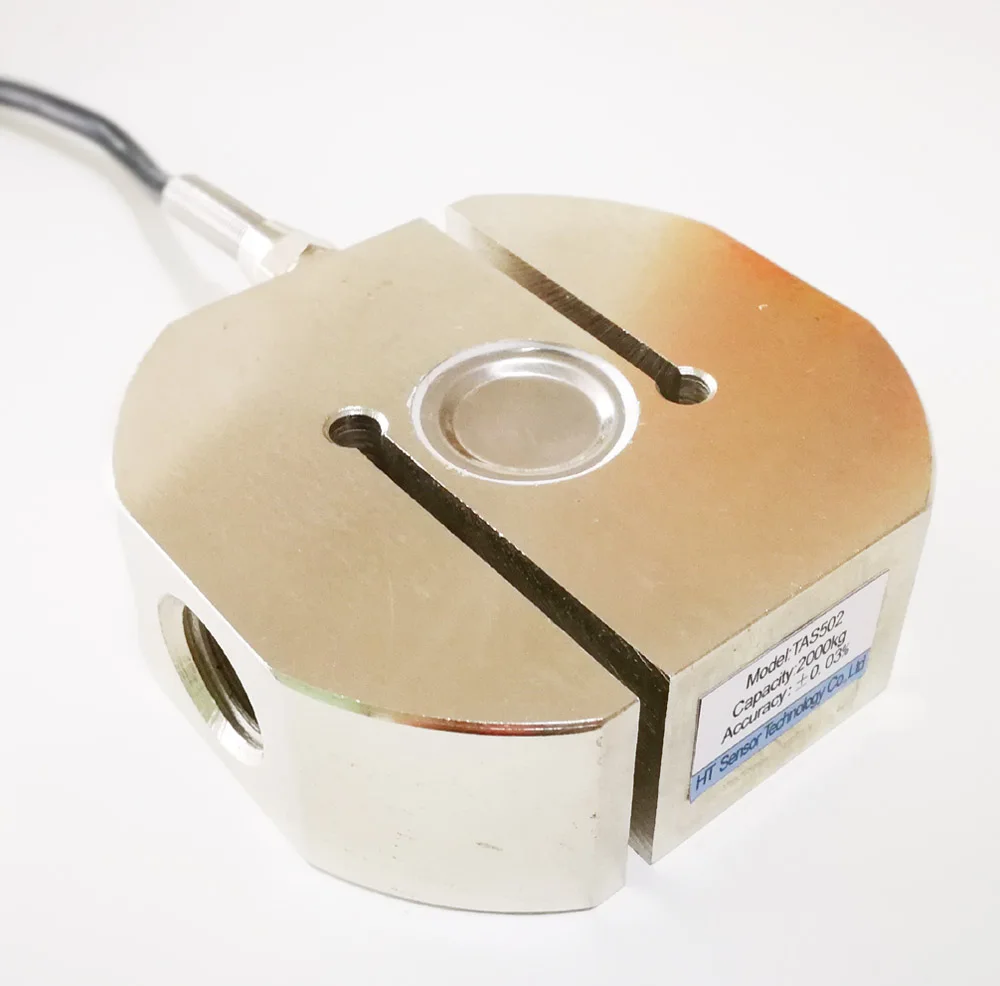

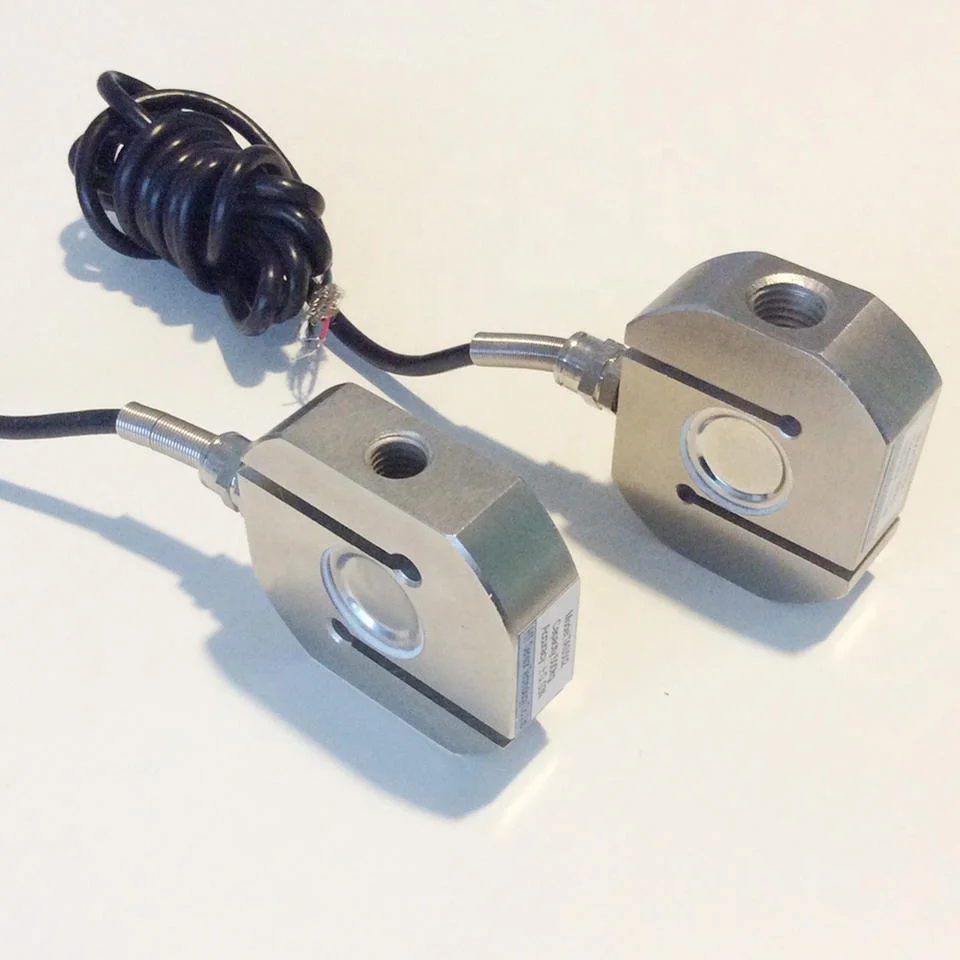

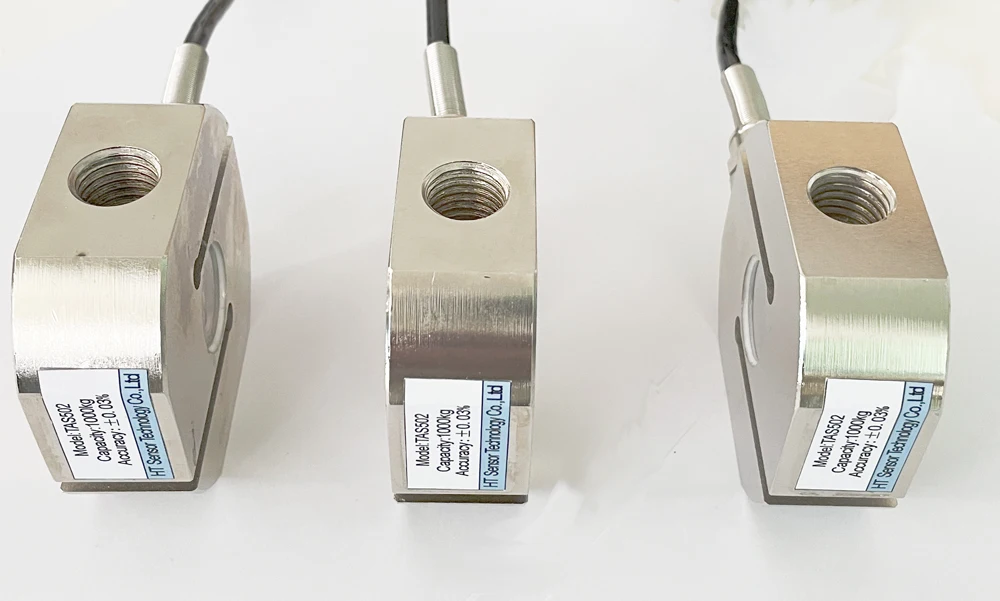

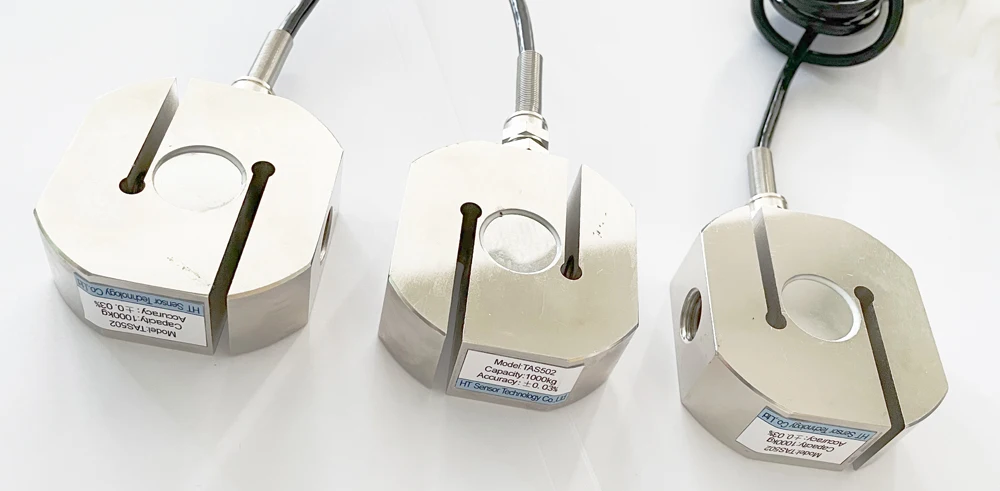

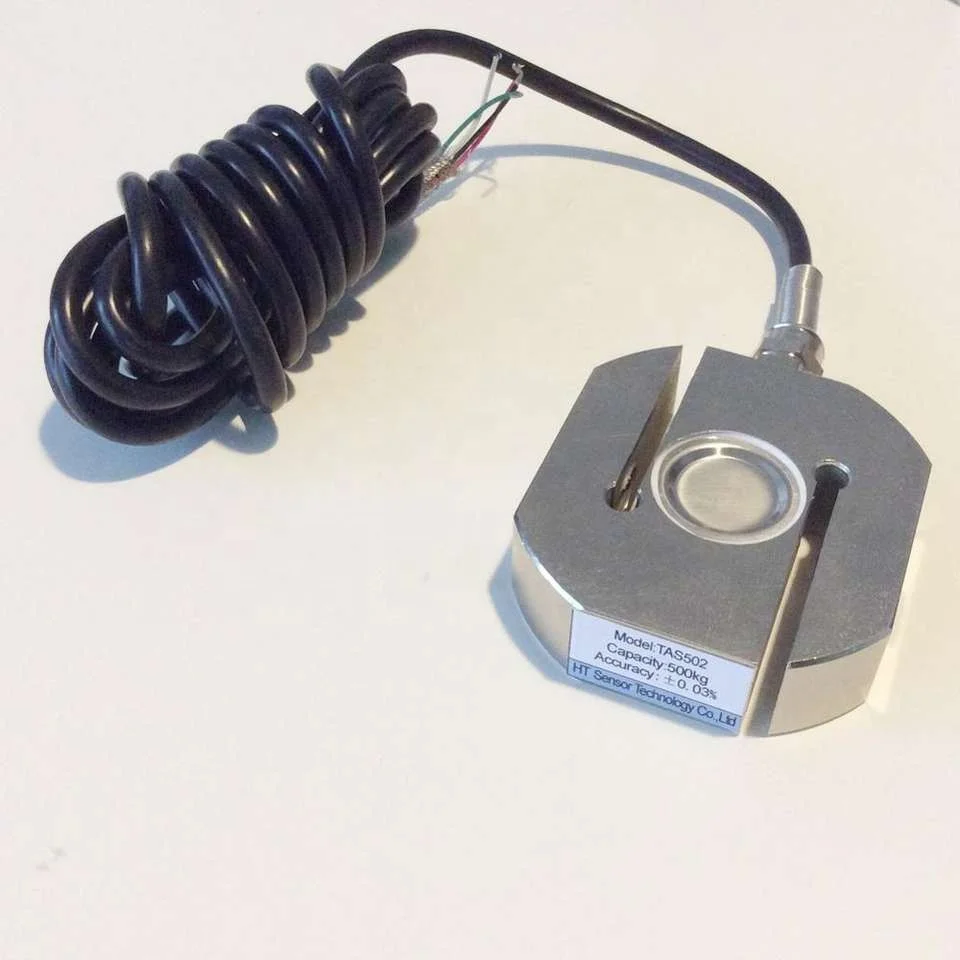

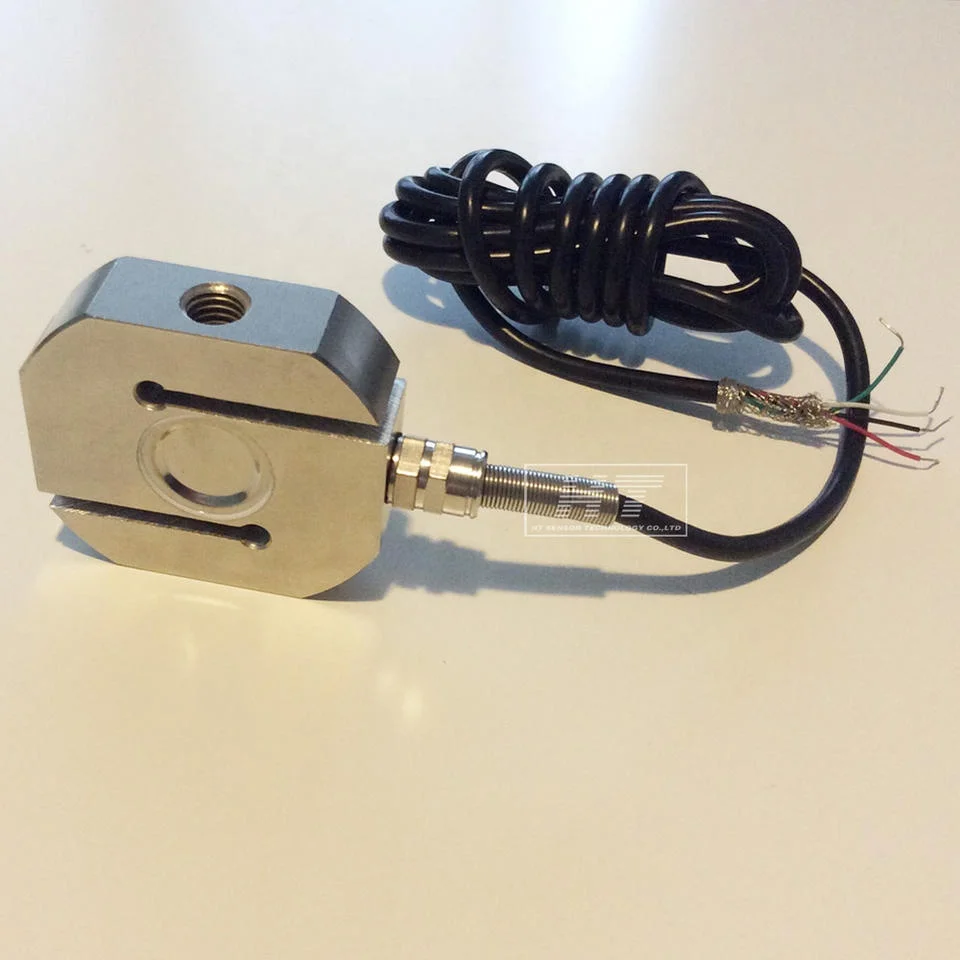

Model No. TAS502
◆Capacity ：1~5000Kg.
◆Material: alloy steel
◆Type: S type
◆Defend grade: IP67.
◆Application: batching scale, electro mechanic scale, crane scale, packing scale, belt scale and other industrial scale.








Specification
Capacity: 5,10,20,30,50,100,200,300,500,1000,3000,5000kg
Safe overload: 150%FS
input resistance: 350Ω ± 20Ω
Ultimate overload: 200%FS
insulation resistance:≥ 5000MΩ @ 50 Vdc
rated output: 1.0-3.0 ± 0.05mV/V
operating temperature range:-20 ~ +50 ℃
excitation voltage: 5~ 15Vdc
compensated temperature range: -10 ~ +40 ℃
combined error: ± 0.03%FS
temperature coefficient of SPAN: ± 0.03%FS/10℃
zero balance: ± 1.0%FS
temperature coefficient of ZERO: ± 0.03%FS/10℃
creep: ± 0.03%FS/30min
Cable:  4 core shielded PVC cable, Ø4.6 × 2m
