Product Overview
Description
Product Description
PLC Control PET PP PS PC plastic transparent sheet extrusion manufacturing machine
Classification of PET sheet extrusion production line:
Feature of equipment
1)Plastic sheet making machine has High capacity.
1. Single screw production line for PET sheet: single screw extrusion production line for APET, PETG and CPET sheet is the most mature project with the most stable production at present. Generally, single extruder production line or twin-extruder production line is adopted and the latest technology to increase the general efficiency by 30%.
2. PET sheet single screw exhaust production line: this machine only needs to crystallize PET, and does not need to dry. Its advantages: low energy consumption, simple process, convenient equipment maintenance, and can ensure the blister 18CM deep cup.
3. The PET sheet twin-screw exhaust line (free from dry and crystallization) : It is launched PET sheet twin-screwexhaust line without drying and crystallization which has the advantages of low energy consumption, high efficiency.This machine is our continuous improvement upgraded products , and its central vacuum system has been upgraded.
The original roots-water ringpump group upgrades to roots - rotary vane pump, which can make the vacuum degree reach 10 pa, or less. Meanwhile by using PET special alloy steel thin-wall roller unit can increase the cooling efficiency, so as to increase output, improve product toughness transparency. Gwell's independently programmed operating system ensures that the device is user-friendly and easy to operate.
Feature of equipment
1)Plastic sheet making machine has High capacity.
2) Energy saving: 20% energy saving than normal machines.
3) Four self-designed major core technology of sheet extruder: extrusion system, die, roller, distributor. They are all invented and designed by ourselves. The core technology has many testing points and adopts electrical integration of double protection.
4) The operation fully reflects the man-machine engineering principle, it can make the function more entirely and the operation more simple.
5)Only the tablet machine independently walking, avoid the interference from other power to influence the stability of the
tabletting sheet.
tabletting sheet.
6) The plasticizing effect of the sheet is very good. After the sheet formed and walking in curved line, it can make sure the stability of the sheet stock.
7) The heating system is controlled by high-grade china heater, stainless heater,inner-storing type single heating pipe and precision temperature-controlling die mould, is exact in controlling temperature, Quickly in heating, good in keeping temperature, long life and save time and energy.
Machine List
Model | Multi layer | Single layer | Highly-efficient |
Highly-efficient | 120/65-1000 | 120-1000 | 150-1500 |
Thickness of the product | 0.20-1.5mm | 0.20-1.5mm | 0.20-1.5mm |
Main motor power | 110kw/45kw | 110kw | 160kw |
Max extrusion capacity | 500kg/h | 450kg/h | 800kg/h |

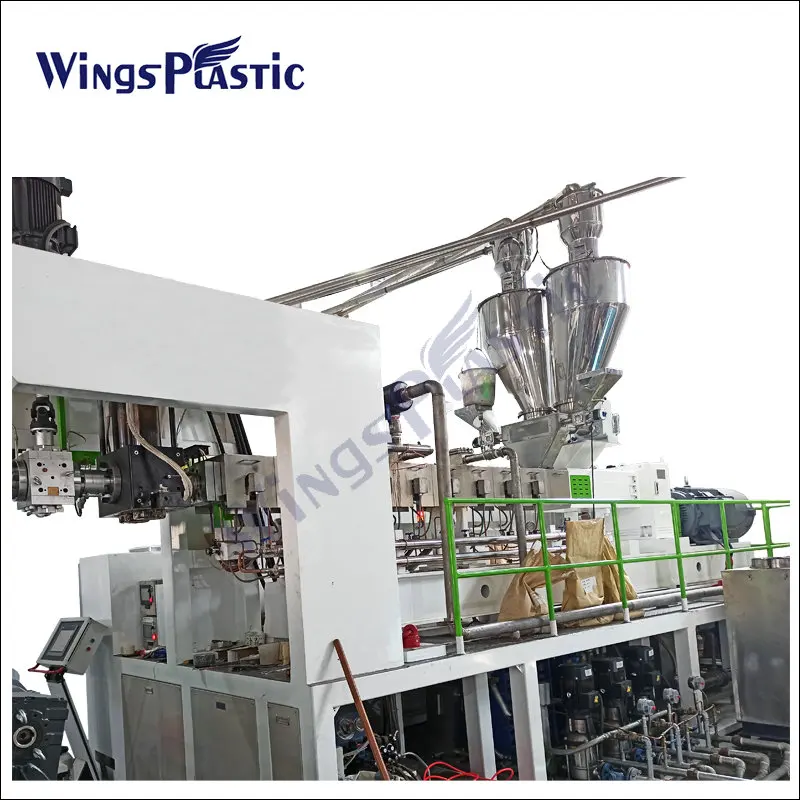

Extruder
It is could be single screw extruder or twin screw extruder according materials.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system.

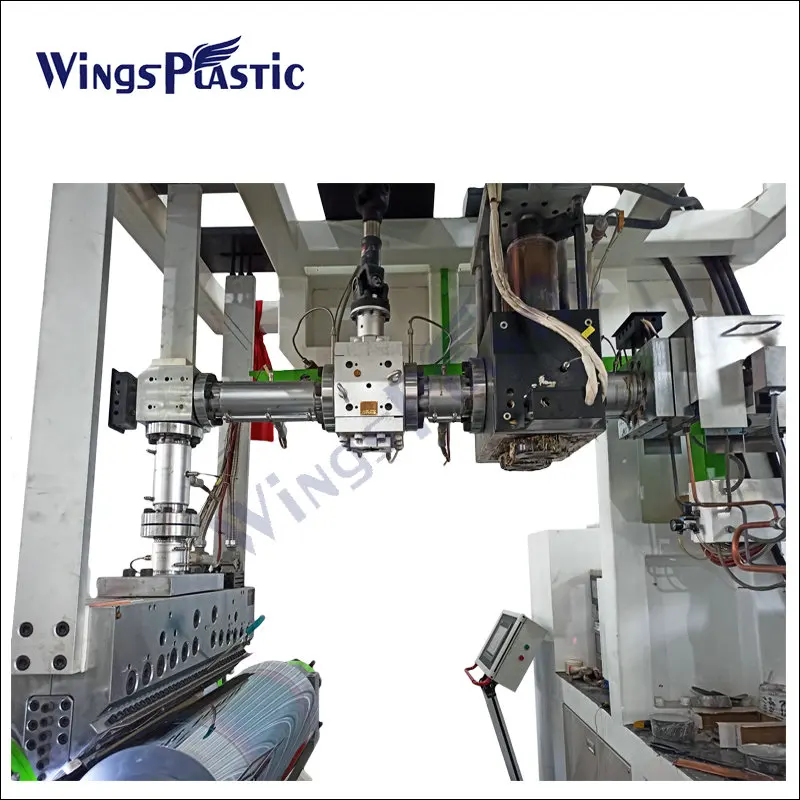

Metering pumb and filter
Metering pumb will control a stable extrusion pressure for whole systemThe filter is double working station, no stop working for the extrusion line

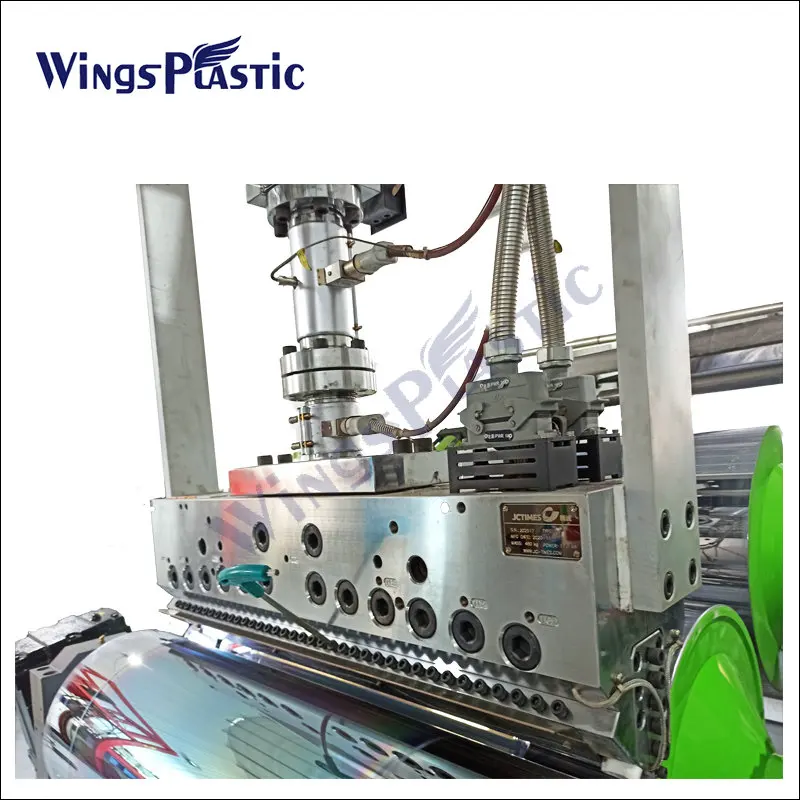

T-Die
Die head is made according customer request width and thickness. Always it is 800-1200mm.The brand will be Chinese top brand like JC Times

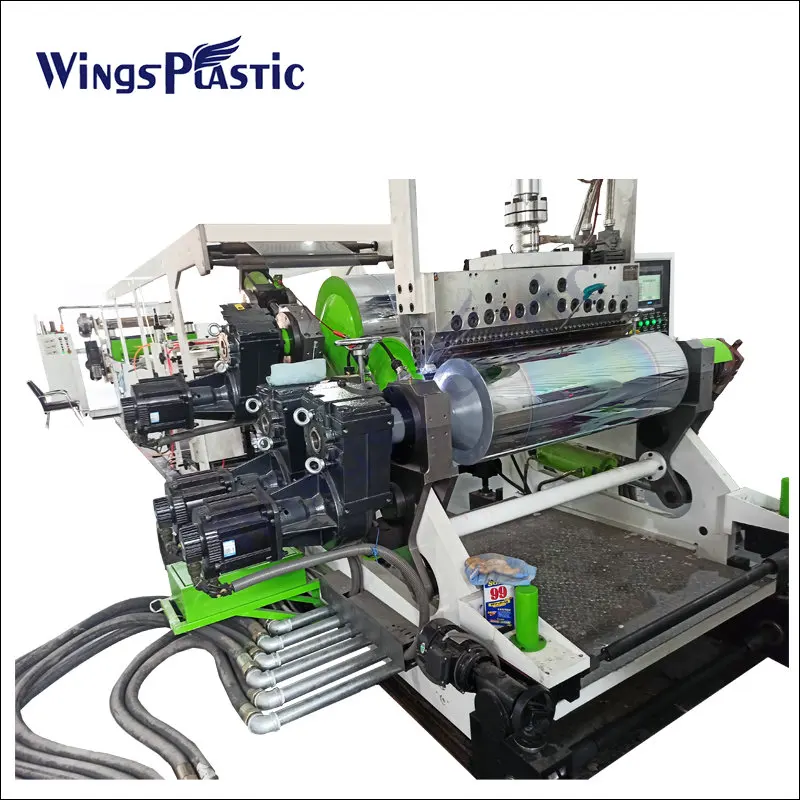

Calender
It is adopted 300-600mm diameters calending rollers, temperature is controlled by water.
The calendar roller driver adopted high quality motor and famous brand reducer. The motor could be servo motor.
The calendar roller driver adopted high quality motor and famous brand reducer. The motor could be servo motor.

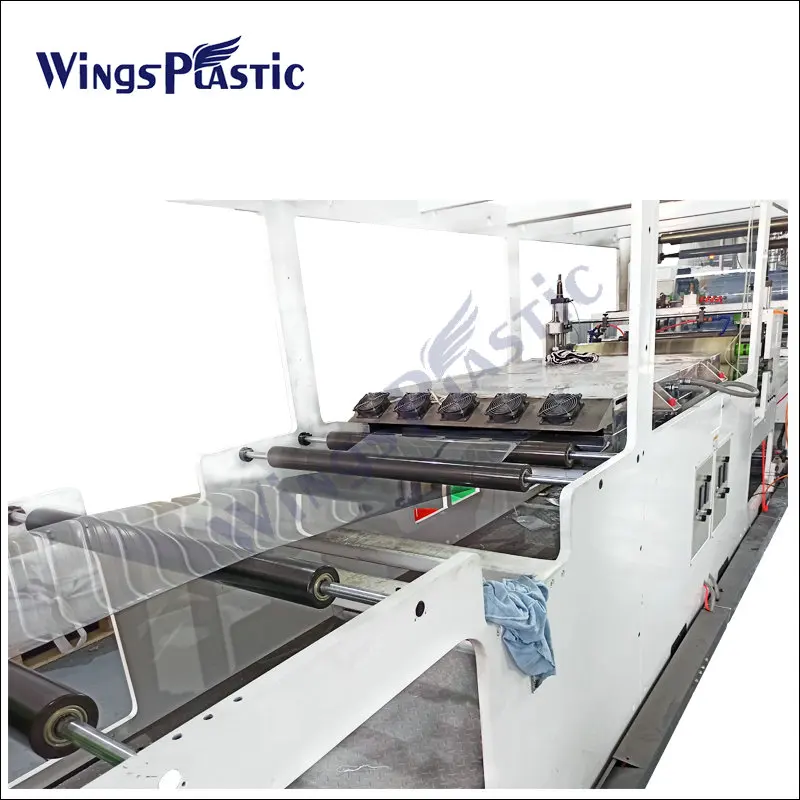

Auxiliary system.
It include the transport rollers,silicone oil coating, oil drying oven machine

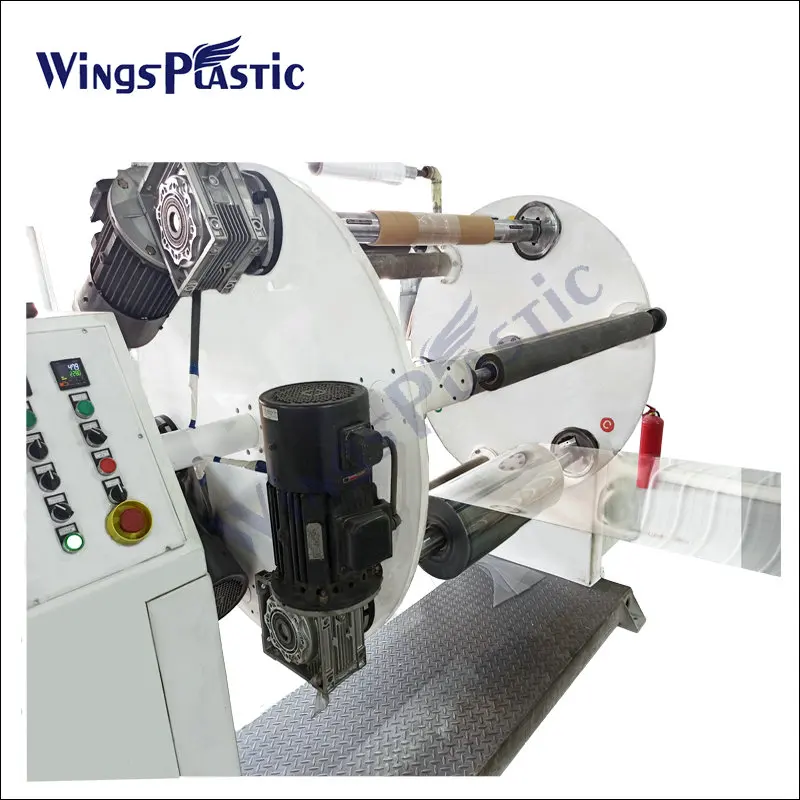

Automatic coiler
No of wheel: two wheel. The final design is made according materials and winding diameters
PLC System
All the PLC system is Siemens Brand
Control cabinet
Contactor and replay: SIEMENS/CHNT
Inverter: ABB or Delta Character
Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability
Inverter: ABB or Delta Character
Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability

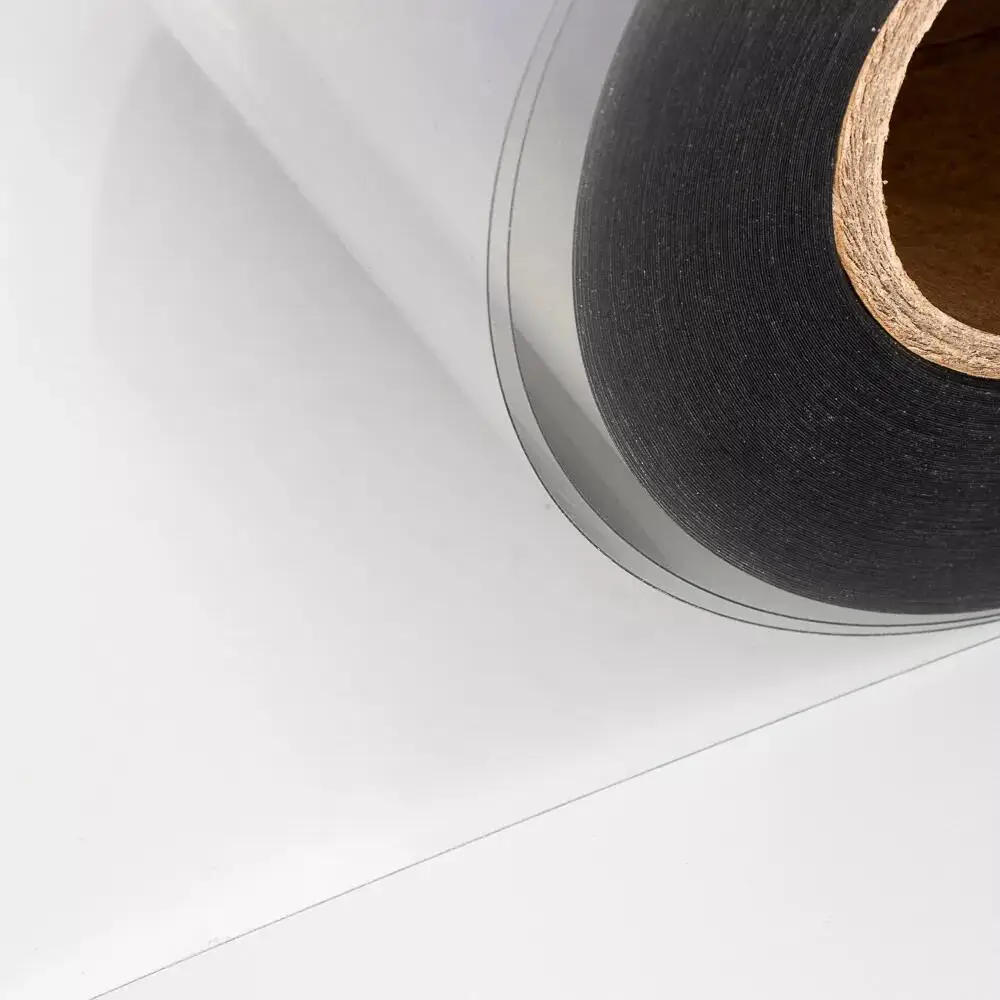

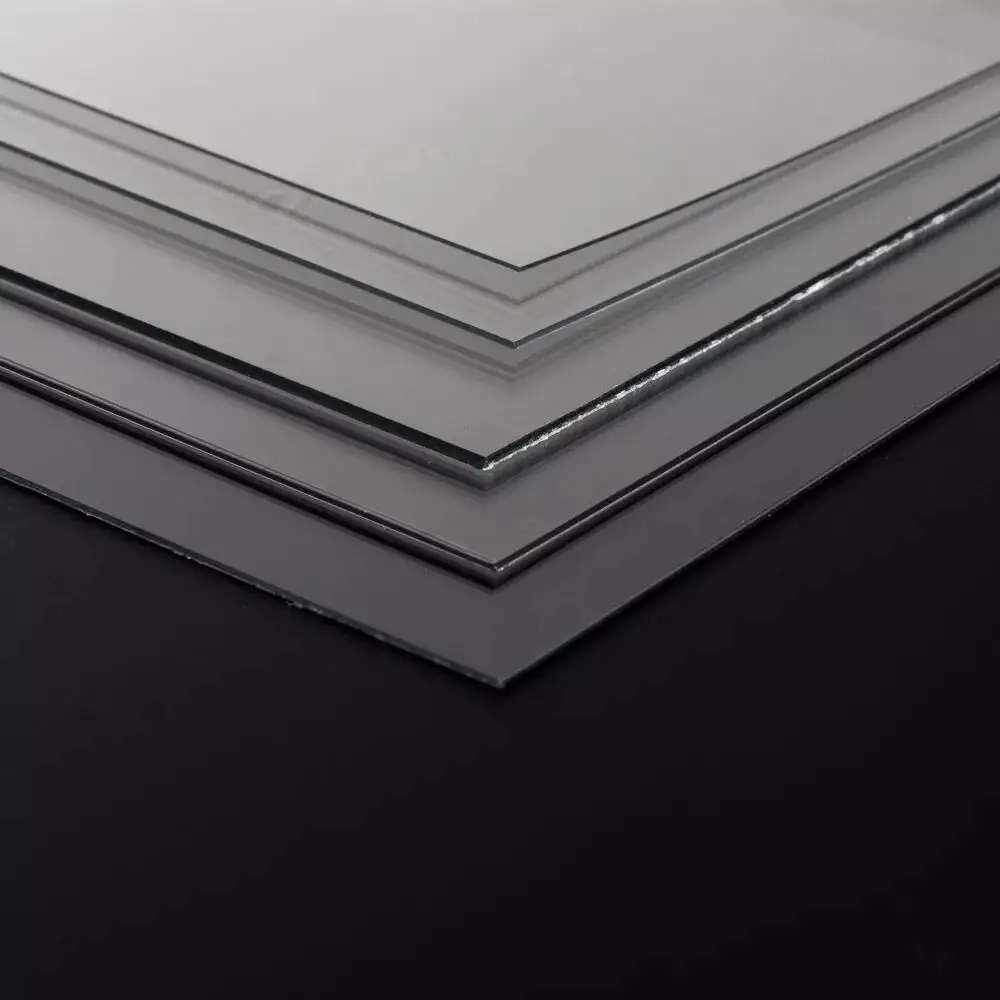

Final Product & Application
Application
1. Widely used for the external packing of different kinds of products because of the good transparent;
2. It can be processed into trays of different shapes by vacuum thermal forming;
3. It can be formed into different kinds od shaped by moulds, which can be made into covers for clothes packing;
4. It can be cut into small pieces and used for packing of shirts or rafts;
5. It can be used for printing, box windows, stationery and so on.
1. Widely used for the external packing of different kinds of products because of the good transparent;
2. It can be processed into trays of different shapes by vacuum thermal forming;
3. It can be formed into different kinds od shaped by moulds, which can be made into covers for clothes packing;
4. It can be cut into small pieces and used for packing of shirts or rafts;
5. It can be used for printing, box windows, stationery and so on.
Company Introduction
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of pet/pp pe strap packing belt band making machine.
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
After-sales service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your
airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan,
installation direction, and manual book in English to Buyer on time. ACEMIEN will provide long-term technical guide.
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your
airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan,
installation direction, and manual book in English to Buyer on time. ACEMIEN will provide long-term technical guide.
FAQ
Q1. Are you a factory or a trading company?
A1: Yes, we are manufacturer with more than 10 years' experience.
Q2. Are there other machine not listed in the catalog?
A2. Wings provides all different types of plastic extrusion solutions.
Q2. Are there other machine not listed in the catalog?
A2. Wings provides all different types of plastic extrusion solutions.
If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3.How long is the warranty period?
A3.All of our products have one year warranty.
Q4.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
A4.If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
Q3.How long is the warranty period?
A3.All of our products have one year warranty.
Q4.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
A4.If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
