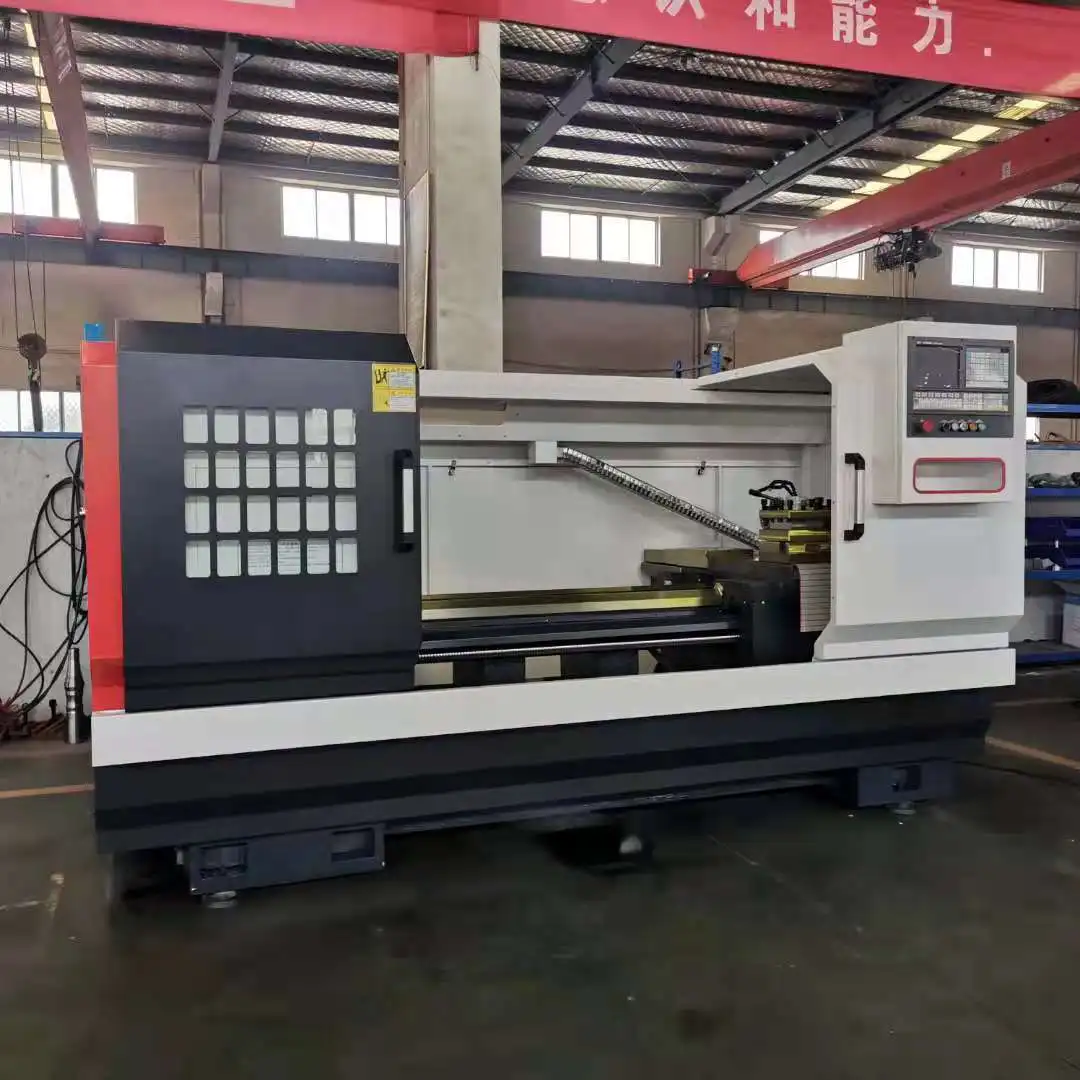

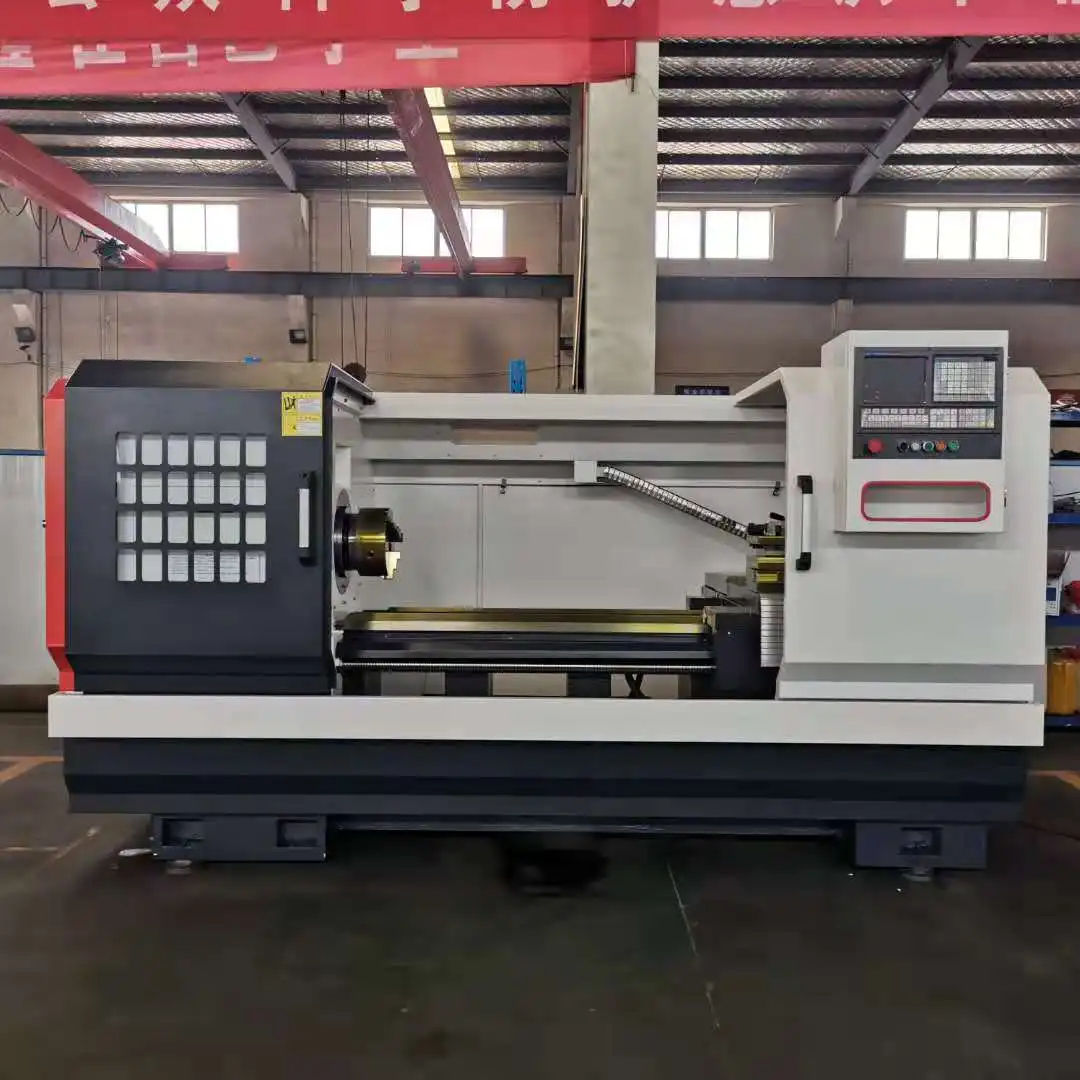

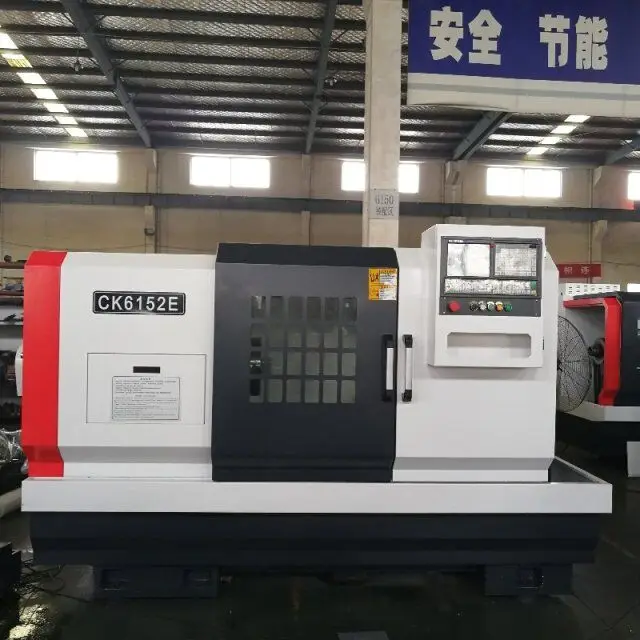

Automatic One piece Casting Bed And Box Way Type CNC lathe CK6152E CNC Lathe Machine
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600913246710):
Product Overview
Description

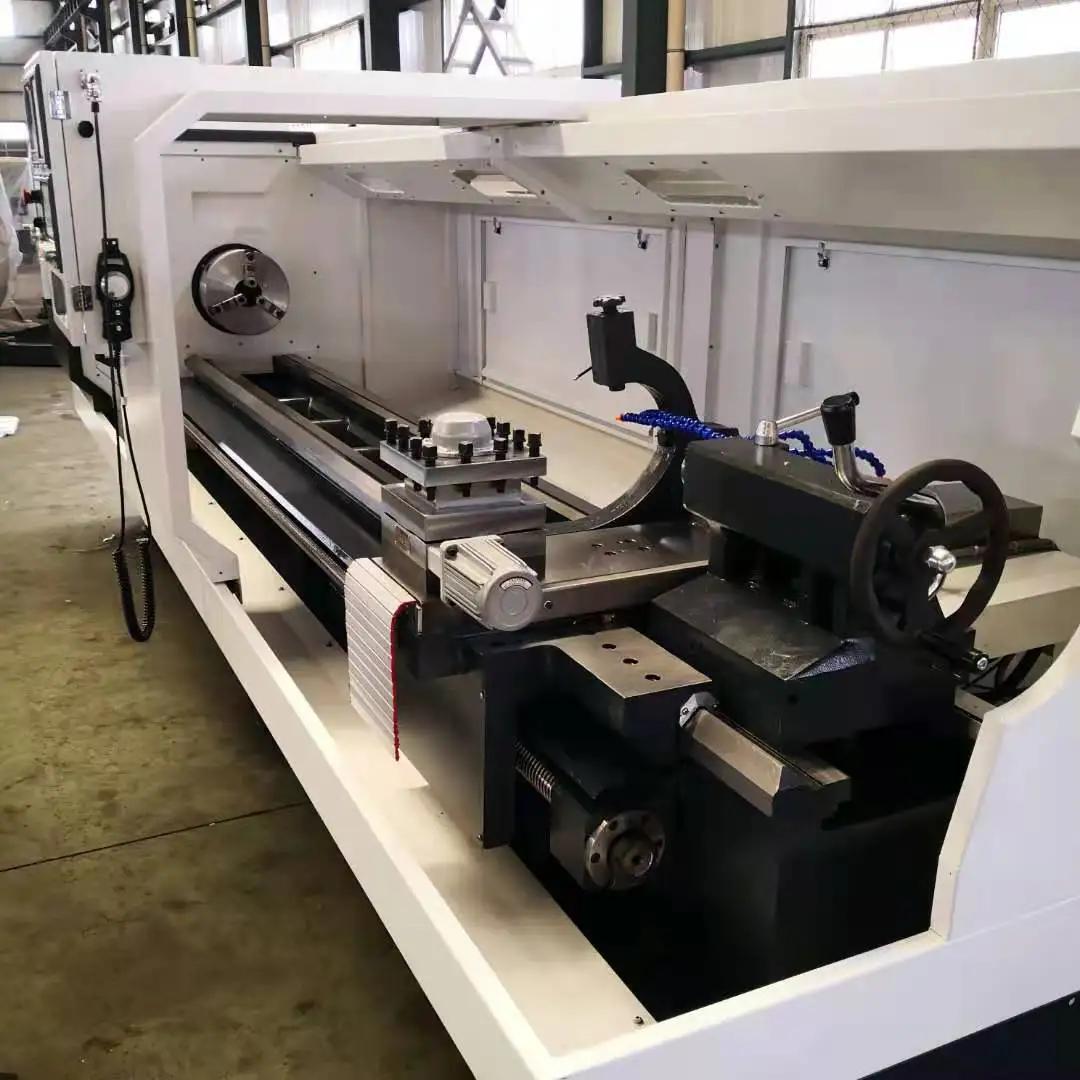

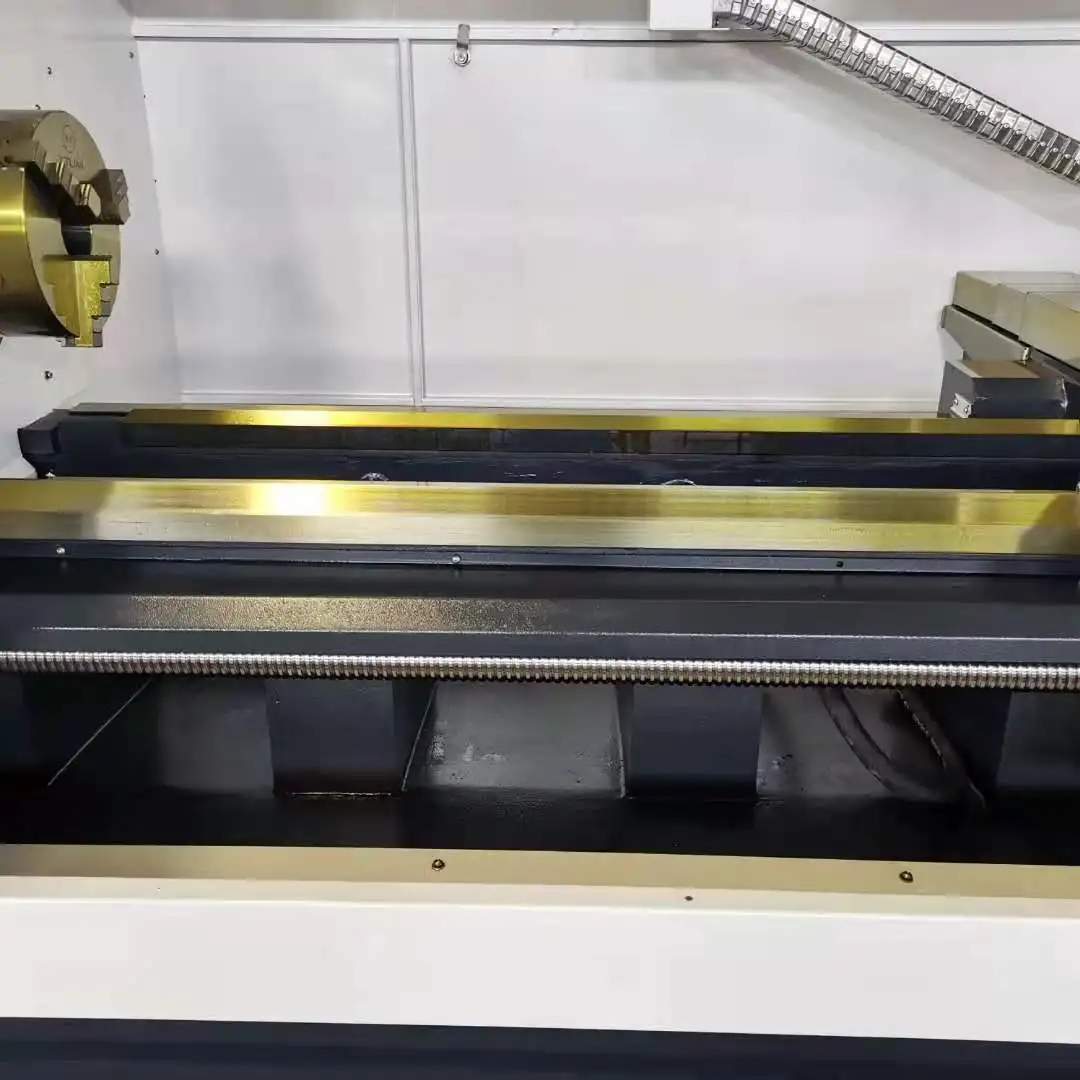

Automatic One-piece Casting Bed And Box Way Type CNC lathe CK6152E CNC Lathe Machine
Product Description
Specification
SPECIFICATIONS | Units | CK6152E |
Max. swing dia. over bed | mm | 530 |
Max. swing dia. over slide | mm | 280 |
Max.turning dia.(disc) | mm | 520 |
Max. work piece length | mm | 1000/1500/2000/3000 |
Max. turning length | mm | 825/1325/1825/2825 |
Spindle nose | A2-8 | |
Spindle bore | mm | 90 |
Spindle taper | mm | metric 100/1:20 |
Spindle speed | mm | 30-150,90-450,315-1600 |
Spindle shift mode | 3-gear spindle speed,step-less in gear | |
Spindle motor | kW | 7.5 |

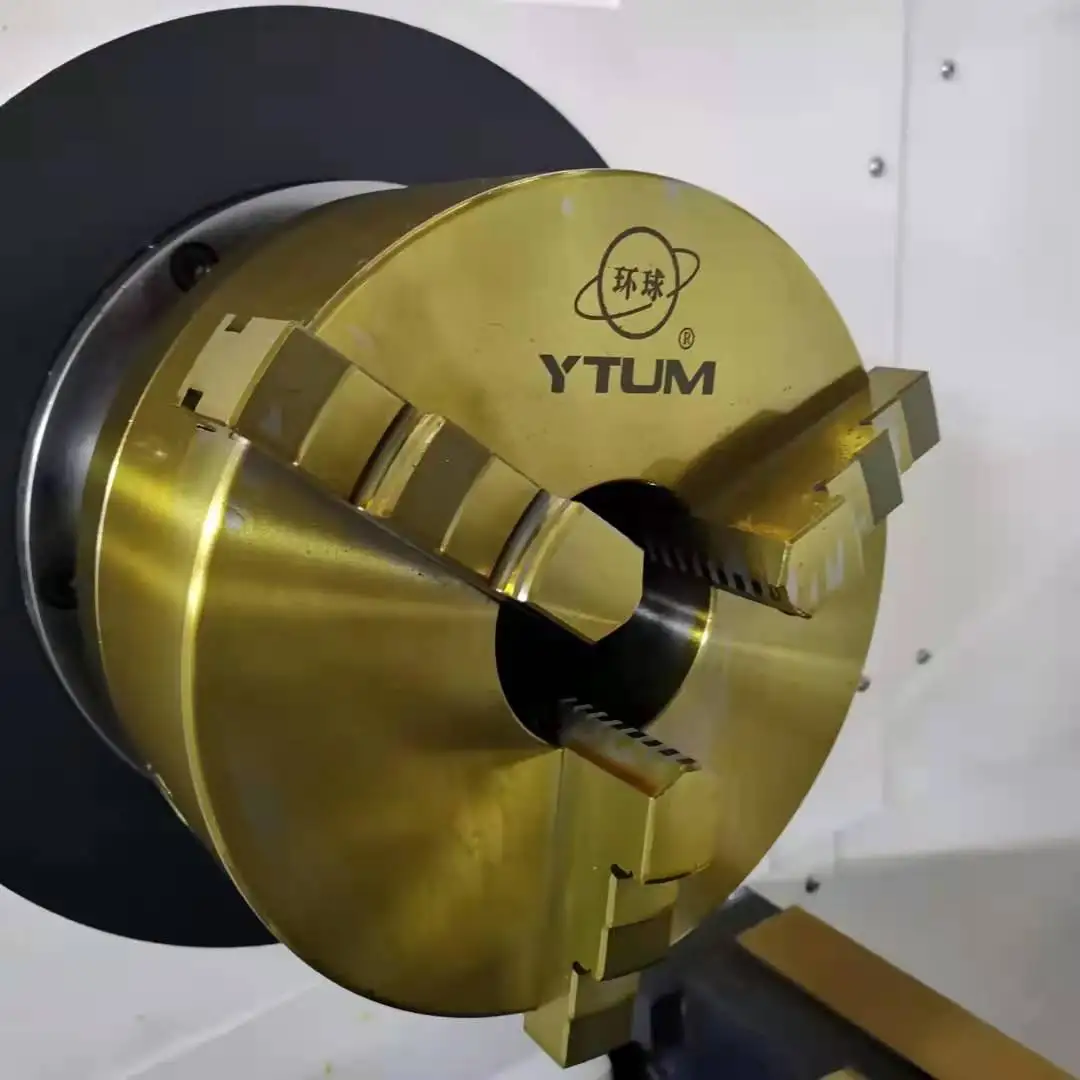

Chuck type | manual chuck | |
Chuck size | mm | 250 |
X/Z axis rapid traverse | m/min | 6/8 |
X axis servo motor torque | N.m | 7.5 |
Z axis servo motor torque | N.m | 10/15/22 |
X axis travel | mm | 300 |
Z axis travel | mm | 1000/1500/2000/3000 |
Guide way type | hard guide way | |

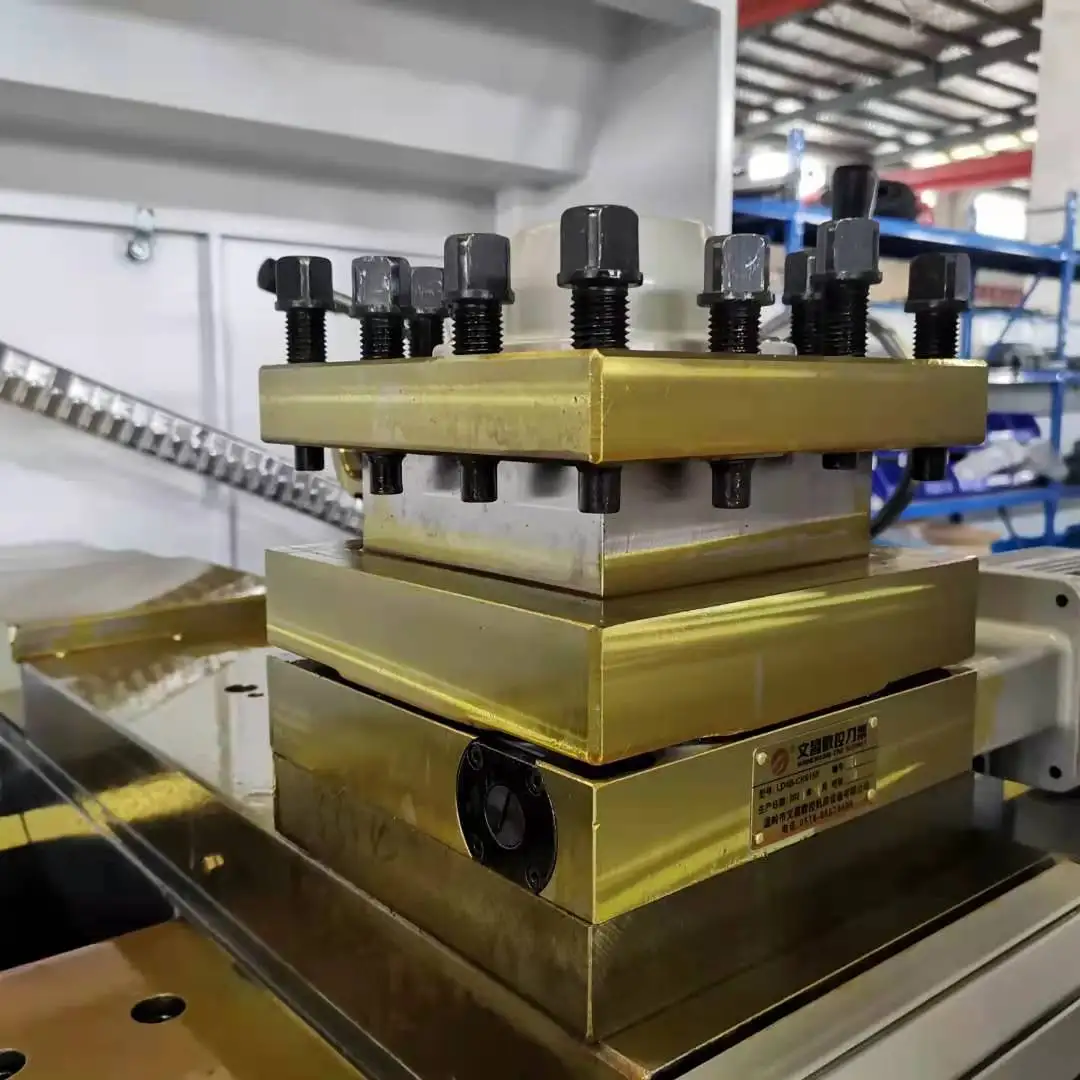

Capacity of tool post | 4 | |
Tool shank size | mm | 25*25 |
Tail stock quill diameter | mm | 75 |
Tail stock quill travel | mm | 150 |
Tail stock quill taper | MT5# | |
Total rated power | kW | 12/12/13 |
Total tared current | A | 26/26/28 |
Machine dimension(L*W*H) | mm | 2600/3150/3600/4800*1600*1670 |
Net. weight | kg | 2900/3150/3500/4300 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
