Factory Price FTTH 1550 edfa catv equipment 1550nm CATV Optical Transmitter EDFA 32 port
- Category: >>>
- Supplier: Shenzhen UT-King Technology Co. Ltd
Share on (1600913270886):
Product Overview
Description

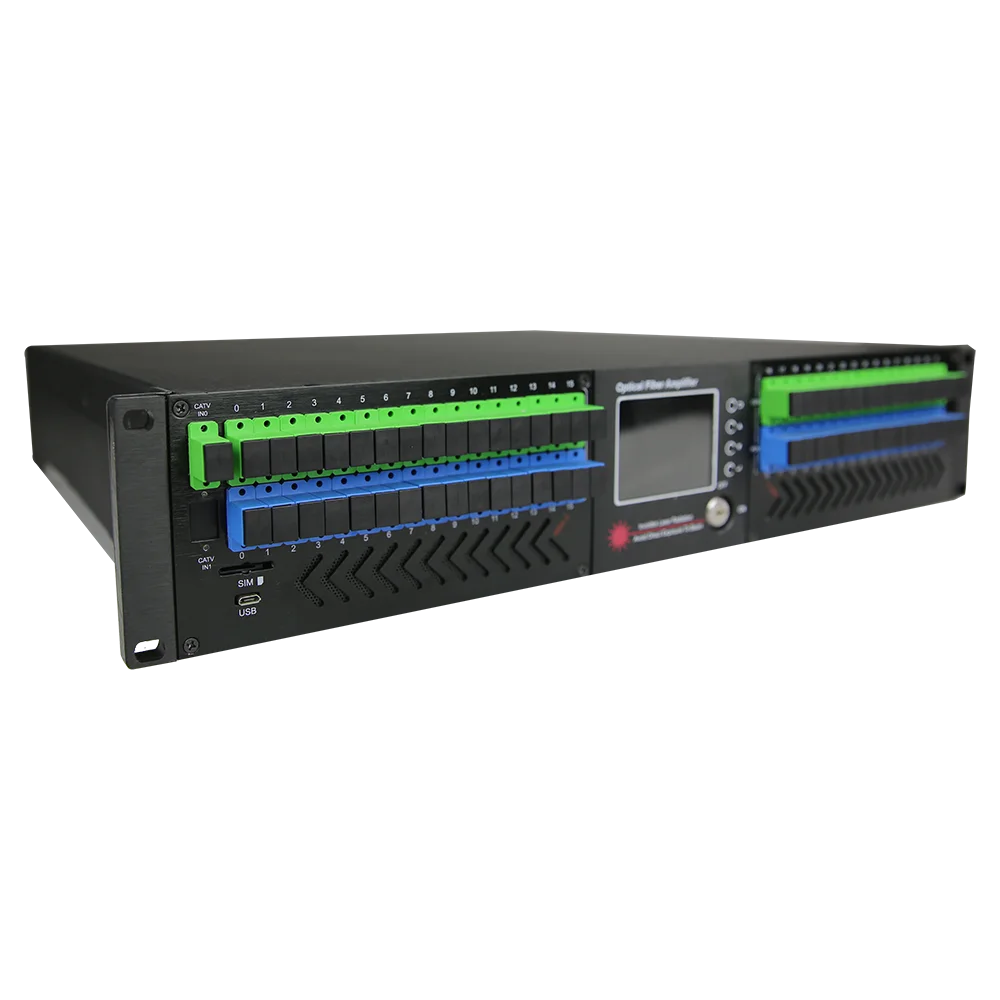

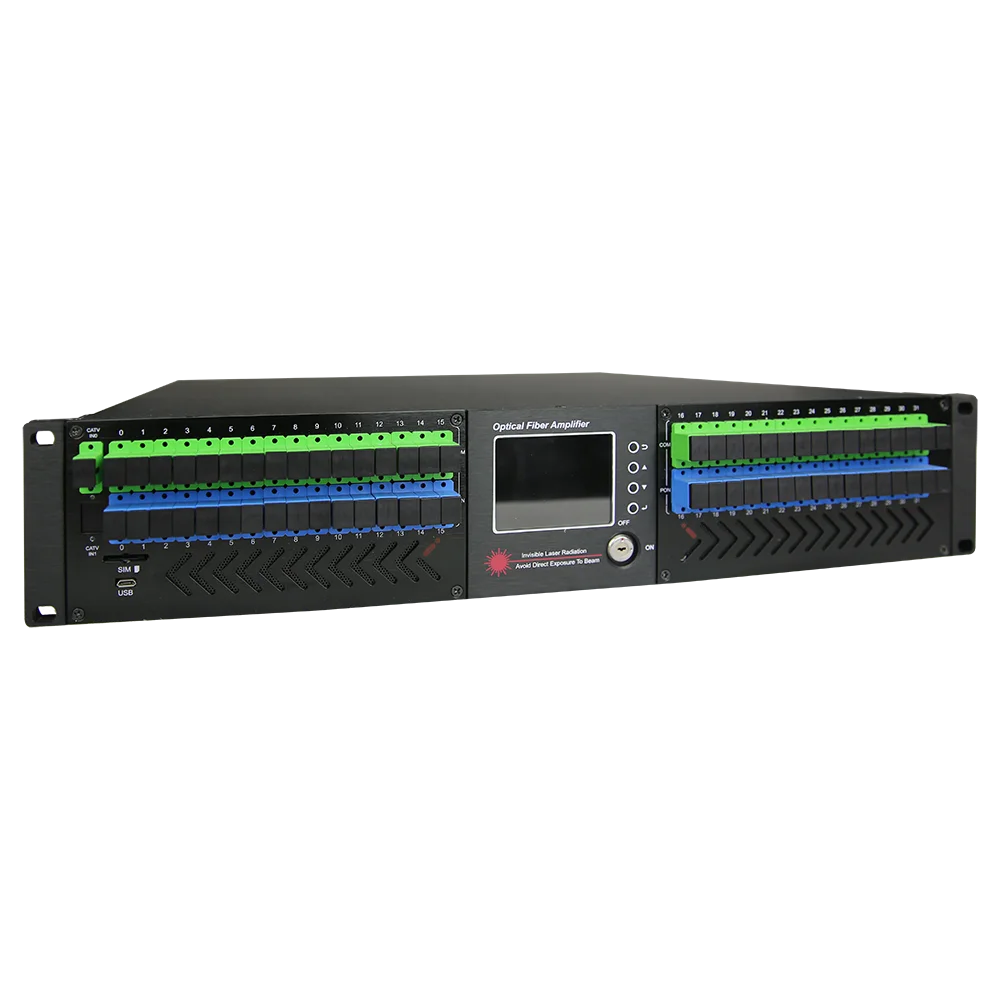

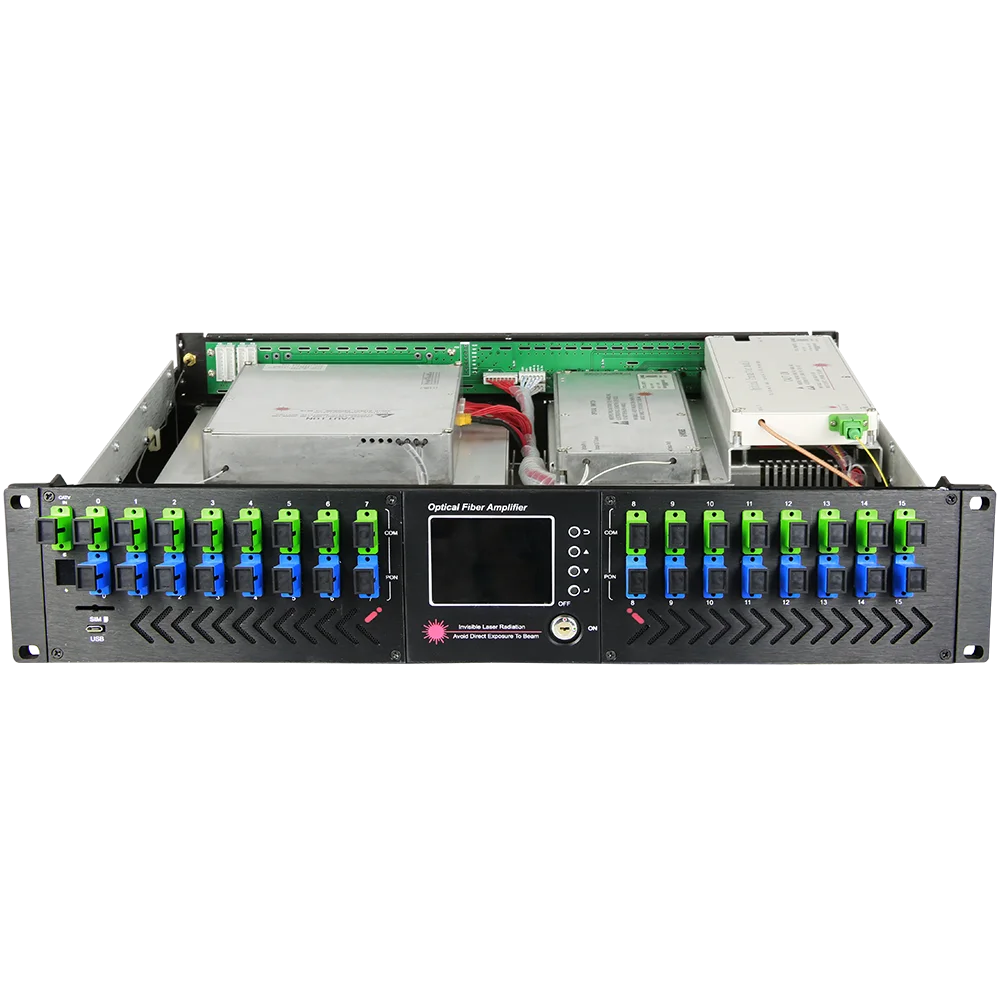

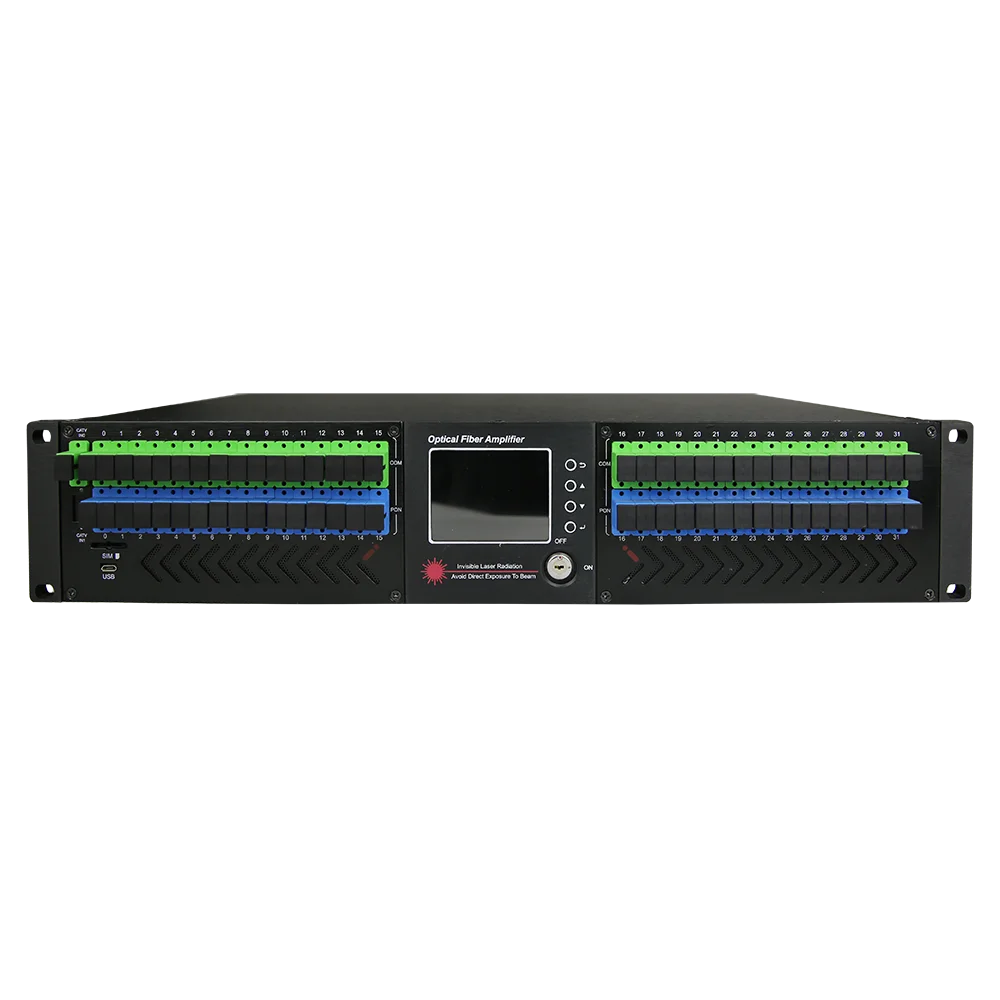

Factory Price FTTH 1550-edfa-catv-equipment 1550nm CATV Optical Transmitter EDFA 32 port
UT-King’s 2U series erbium and ytterbium co-doped high-power fiber amplifier is the latest optical transmission system for CATV FTTH. The optical input number: 1 port of CATV or 2 redundant CATV inputs, 32 ports outputs, of which the total output power range of 1550nm is 28 ~ 39dBm. Multiple output power can be matched according to user demand.
This series product adopts JDSU, Lumentum, Ⅱ-Ⅵ etc multimode high power pump laser as pump source and American OFS closed beam splitter as double-cladding synthesizer. Built-in optical power output stabilization circuit and laser thermoelectric cooler temperature stabilization control circuit ensure the best performance of the EDFA and the long-term stable operation of the laser.
The microprocessor software monitors the working status of the laser, and the working parameters are displayed on the digital panel (LCD). Once the laser's working parameters deviate from the allowable range set by the software, the micro-processing will automatically turn off the laser power, and the red light flashes to alert.

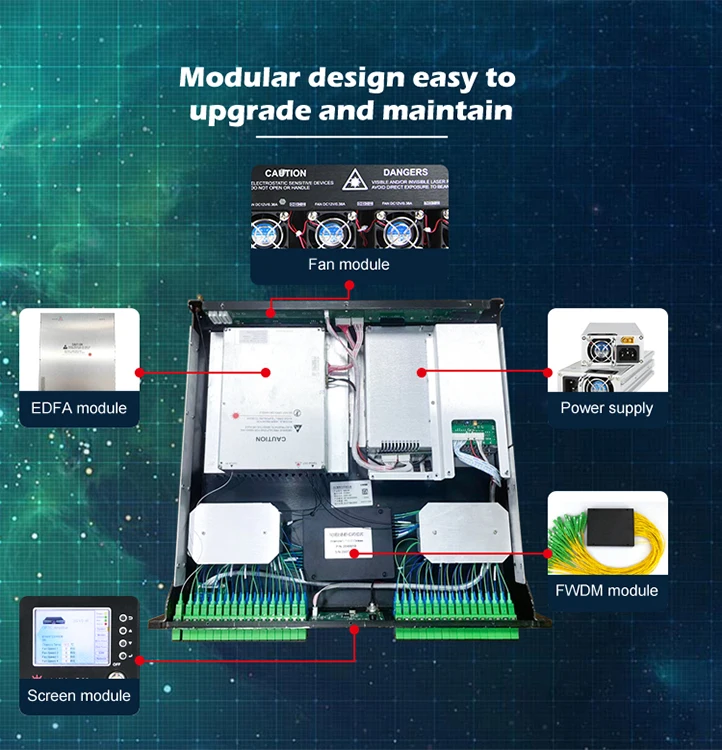

◆ Reliability: Adopt 19" 2U standard chassis, built-in high performance modular switching power supply, can work in AC90 ～ 265V city network voltage. DC 48V hot-swappable power supply option is available as well. Dual hot and reserved power supply with Chassis automatic heat dissipation control.
◆ Intuitive: The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
◆ Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function. The red warning symbol is displayed on the web page, which is convenient for troubleshooting.
◆ Adjustable output optical power: Advanced design enables a large adjustable range of output power, and power can be lowered by 0~ -3dBm.
◆ Built-in optical switch option: There are automatic (prefer) or manual (force) switch mode when CATV signal has main path A and redundant path B optical switch input (OPT SWTTCH). Automatic mode uses the main path A by default, it switches to redundant path B if A input power fails.
This series product adopts JDSU, Lumentum, Ⅱ-Ⅵ etc multimode high power pump laser as pump source and American OFS closed beam splitter as double-cladding synthesizer. Built-in optical power output stabilization circuit and laser thermoelectric cooler temperature stabilization control circuit ensure the best performance of the EDFA and the long-term stable operation of the laser.
The microprocessor software monitors the working status of the laser, and the working parameters are displayed on the digital panel (LCD). Once the laser's working parameters deviate from the allowable range set by the software, the micro-processing will automatically turn off the laser power, and the red light flashes to alert.
Features
◆Top quality: Adopt multi-mode high-power pump laser and the power is optimized through software, which makes the system achieving excellent CNR.◆ Reliability: Adopt 19" 2U standard chassis, built-in high performance modular switching power supply, can work in AC90 ～ 265V city network voltage. DC 48V hot-swappable power supply option is available as well. Dual hot and reserved power supply with Chassis automatic heat dissipation control.
◆ Intuitive: The built-in microprocessor monitors the working status of the pump laser, and the working parameters are displayed on LCD.
◆ Network management Interface: Web transponder is line with the national standard and compatible with the SCTE HMS standard, achieving WEB monitoring function. The red warning symbol is displayed on the web page, which is convenient for troubleshooting.
◆ Adjustable output optical power: Advanced design enables a large adjustable range of output power, and power can be lowered by 0~ -3dBm.
◆ Built-in optical switch option: There are automatic (prefer) or manual (force) switch mode when CATV signal has main path A and redundant path B optical switch input (OPT SWTTCH). Automatic mode uses the main path A by default, it switches to redundant path B if A input power fails.
Technical parameters | 2U Series |
Max wavelength | 1535-1565nm |
Minimum input power | -10dBm |
Max input power | +10dBm |
Limited working temperature | -25℃ ~+70℃ |
Limited working voltage | AC90~265V&DC30~72V&DC30~72V |
Wavelength | 1535-1565nm |
Input power | -5dBm~+10dBm（normal input -2dBm~+5dBm） |
Output power | 33dBm~40dBm（WDM -1dBm） |

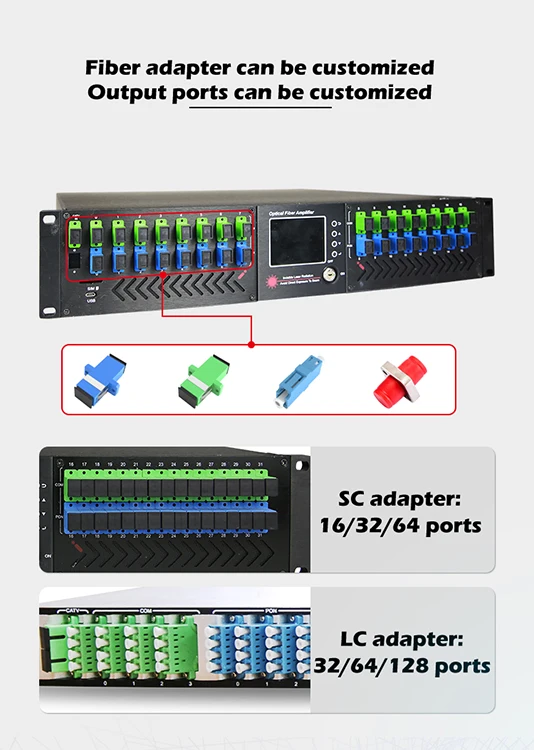

Output port | SC: 16/32/64；LC: 32/64/128 |
Each output power | 10~23dBm or customized |
Noise | ＜ 5.0dB（Pin=0dB） |
Polarization dependence loss (PDL) | ＜ 0.3dB |
Polarization dependence gain (PDG) | ＜ 0.4dB |
Polarization mode dispersion (PMD) | ＜ 0.3dB |
Pump leakage power | ＜ -30dBm |
Echo loss | ≥ 56dB |
Optical connector | SC/APC&SC/UPC&LC/APC&LC/UPC |
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
