VPD-800A High Speed Multi-line Alcohol Pad/Swab Machine(Roller Cylinder)
1. VPD-800 Alcohol Swab Machine uses servo motor to control machine to get intelligent operation.
2. This machine can cut one big roll into 8 rollers automatically or use 8 non-woven rollers.
3. This machine adopts Swiss Gotec Electromagnetic Pump that is high accuracy and strong corrosion resistance.
4. High output, the speed can reach at 800-1200 pcs/min.
5. The non-woven material can be folded in half, three or four.
6. It can cut the right and round angle alcohol swabs/pads, no waste.
Product Application
Bag Type: Four-Side Seal
Power: 8.8KW
Product Size: (45-55) *(45-55) mm(L*M)

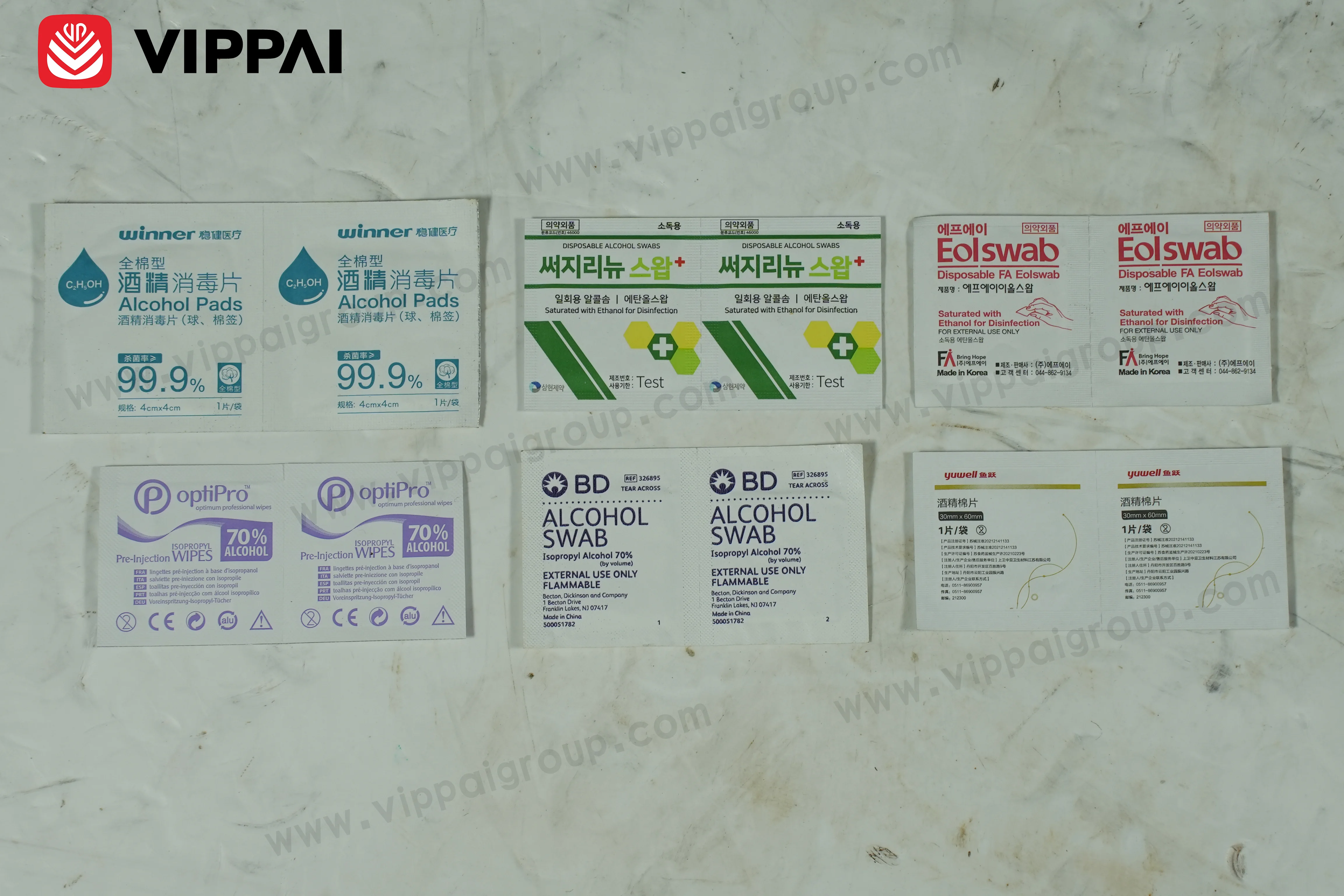

VPD-800 Alcohol Pad Swab Making Machine can output up to 8 pieces alcohol wipes at one time. It adopts four-side heat seal for better sealing. The biggest bright spot of this alcohol pad machine is high production and fast speed. It is widely used in Medical, Household Goods and Medical Industry. US BD, UK Medisave, Indian Poly Medicure, Russian Unicorn Med, Indonesian Arista, Chinese Yuwell, Chinese PurCotton and so on.
Model | VPD-800A | ||||||
Packing Form | Alcohol Swab Pad Wipes | ||||||
Packing Material | Compound film, PAPER/PP/PET/PE/ALUMINUM etc. Max Film Roll Width800mm,Max roll diameter 350mm | ||||||
Packing Size | Width: 45-55mm, Length: 45-55mm(normal one) Width: 45-90mm, Length: 45-100mm(customized one) | ||||||
Packing Speed | 800-1200 Bags/min （According to product size and liquid amount） | ||||||
Liquid Adding Range | Suggest 0~9ml Alcohol(depends on the material and product) | ||||||
Power Supply | 3 Phase 380V 50/60Hz | ||||||
Total Power | 8.8 KW | ||||||
Overall Dimension | 4370*1700*1700 MM | ||||||
Weight | 1200 KG | ||||||

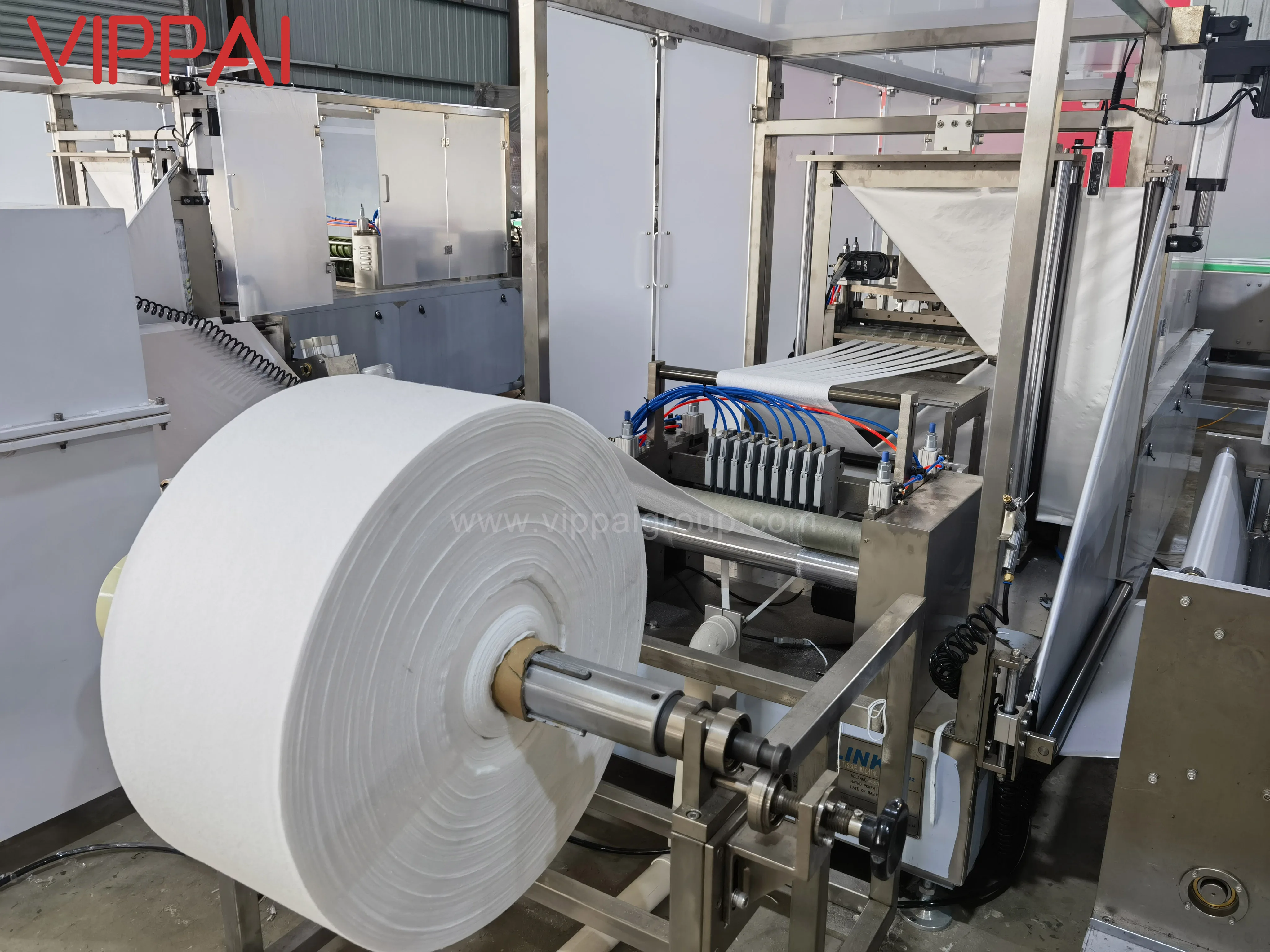

Manufacturers can choose put 8 small rolls to make alcohol pad.Or put one big roll, the roll will be cut into 8 rolls.

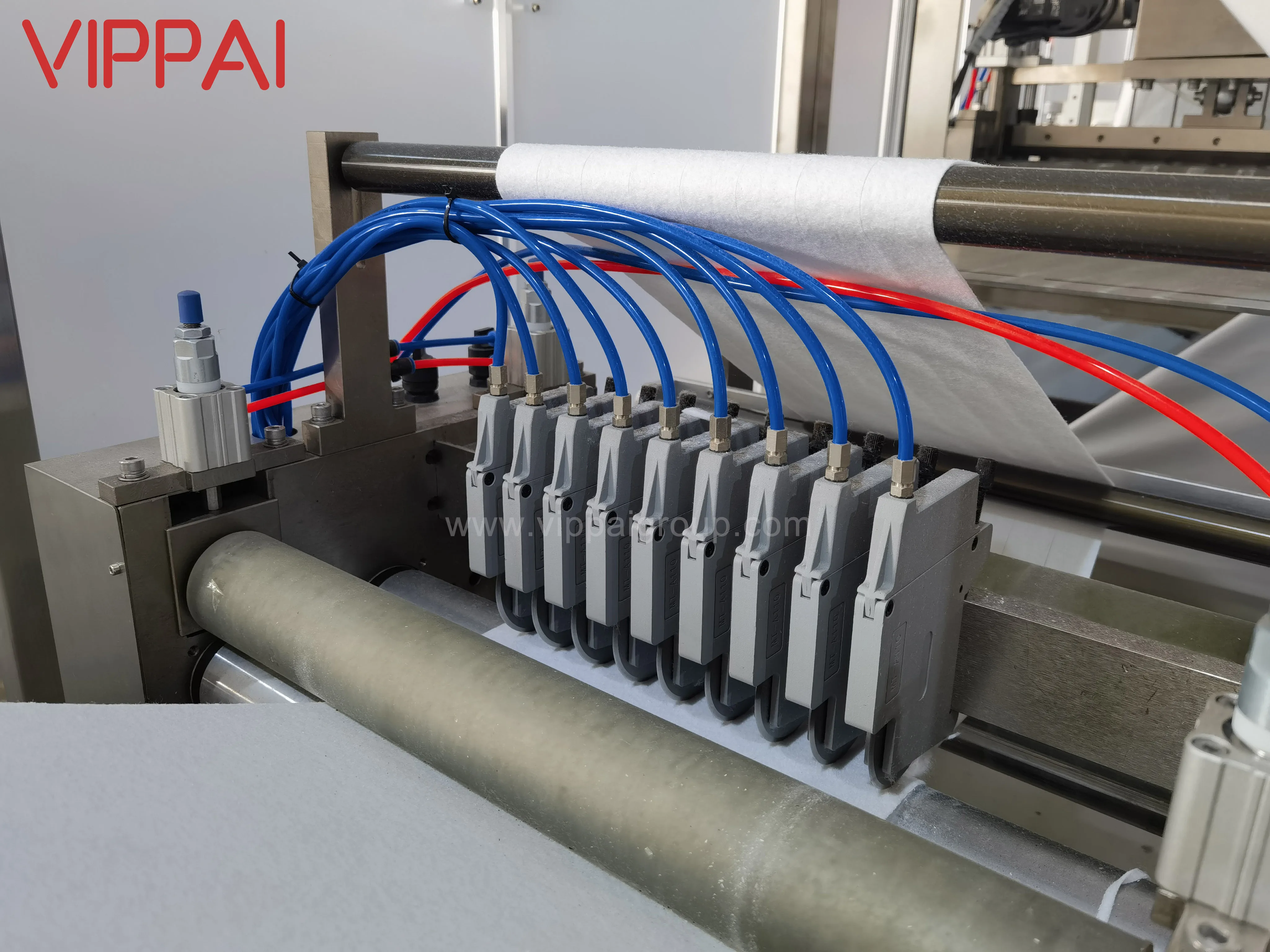

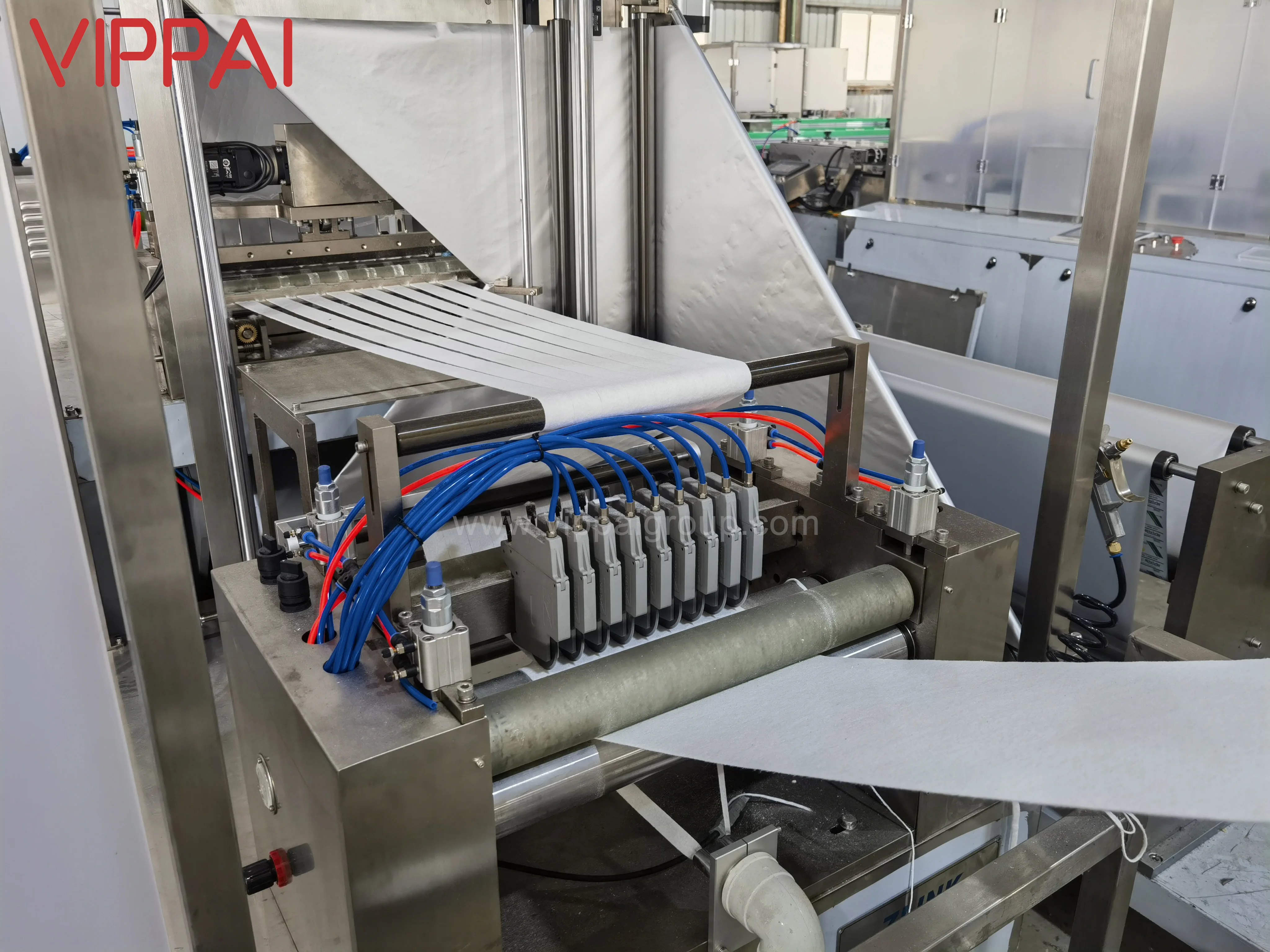

This part will automatically cut one big roll of non-woven fabric into 8 rolls.
Brand: Japan Panasonic

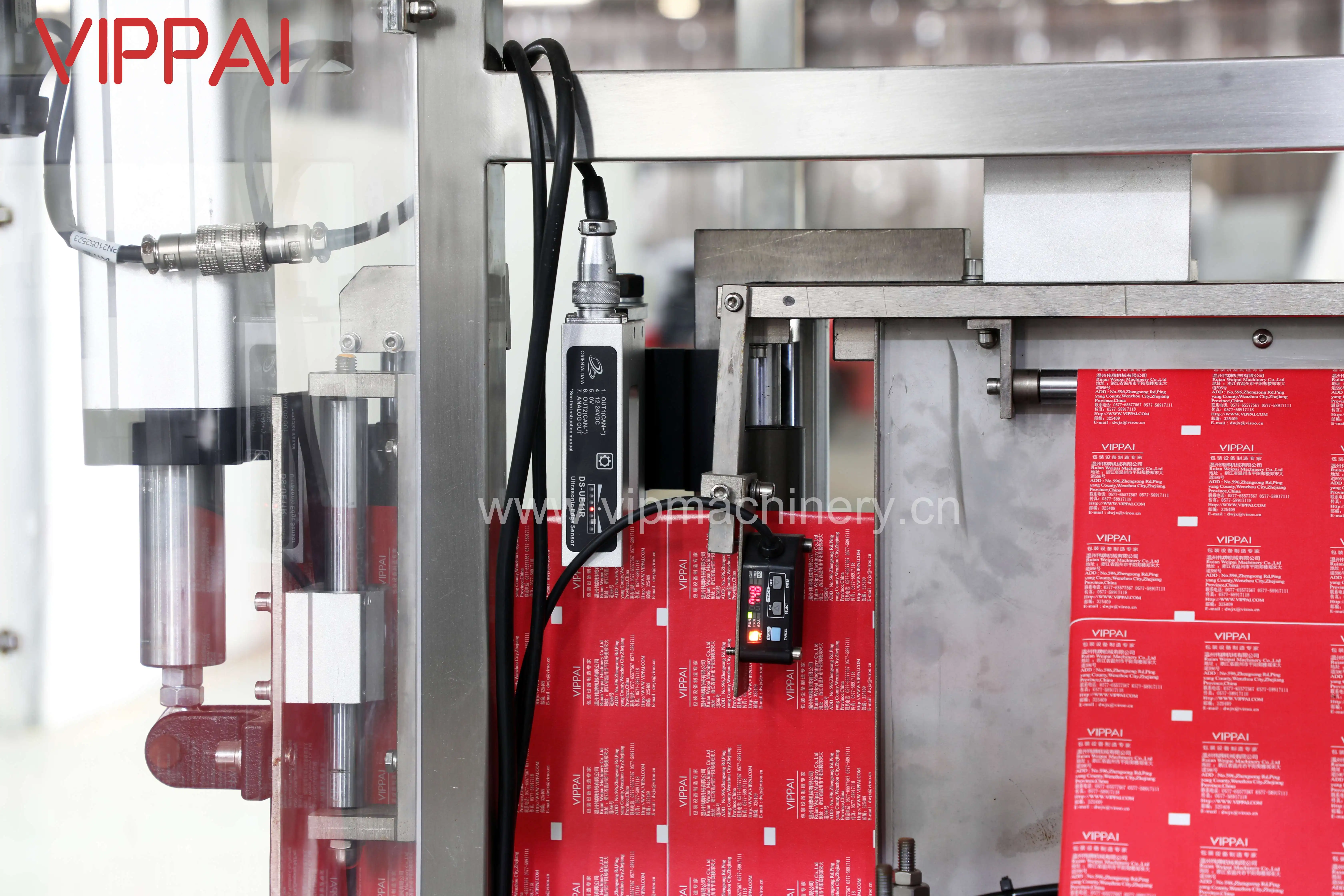

Using Japan's Panasonic photoelectric eye detection, the front and back of the packaging film is more accurate.

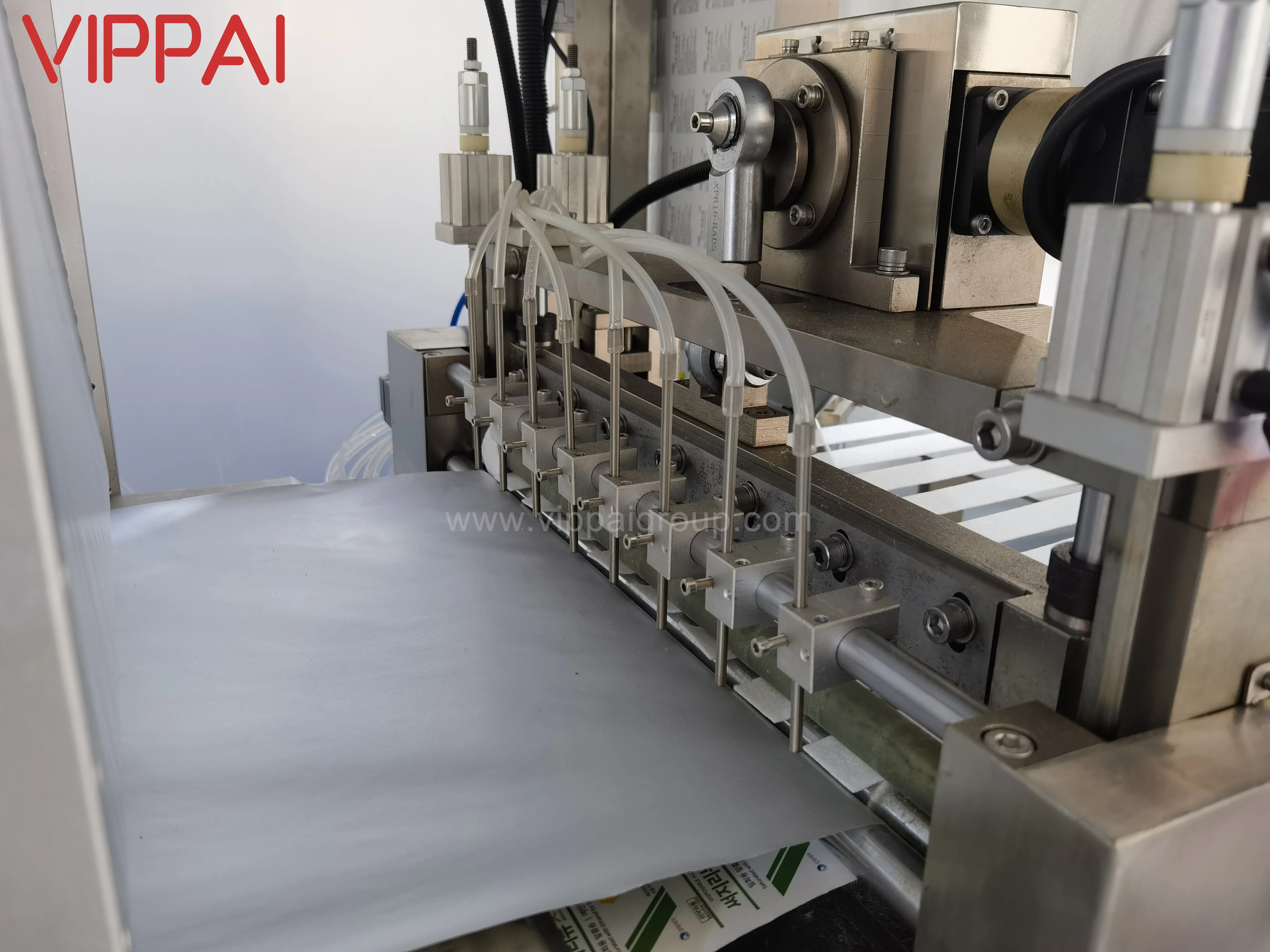

It adopts Swiss Gotec Electromagnetic Pump, it is corrosion resistant when adding alcohol essence. And also its high precision, can accurately control the liquid volume.
Part Name: Four-side Sealing
Four-side heat seal to make sure the precision heat sealing.

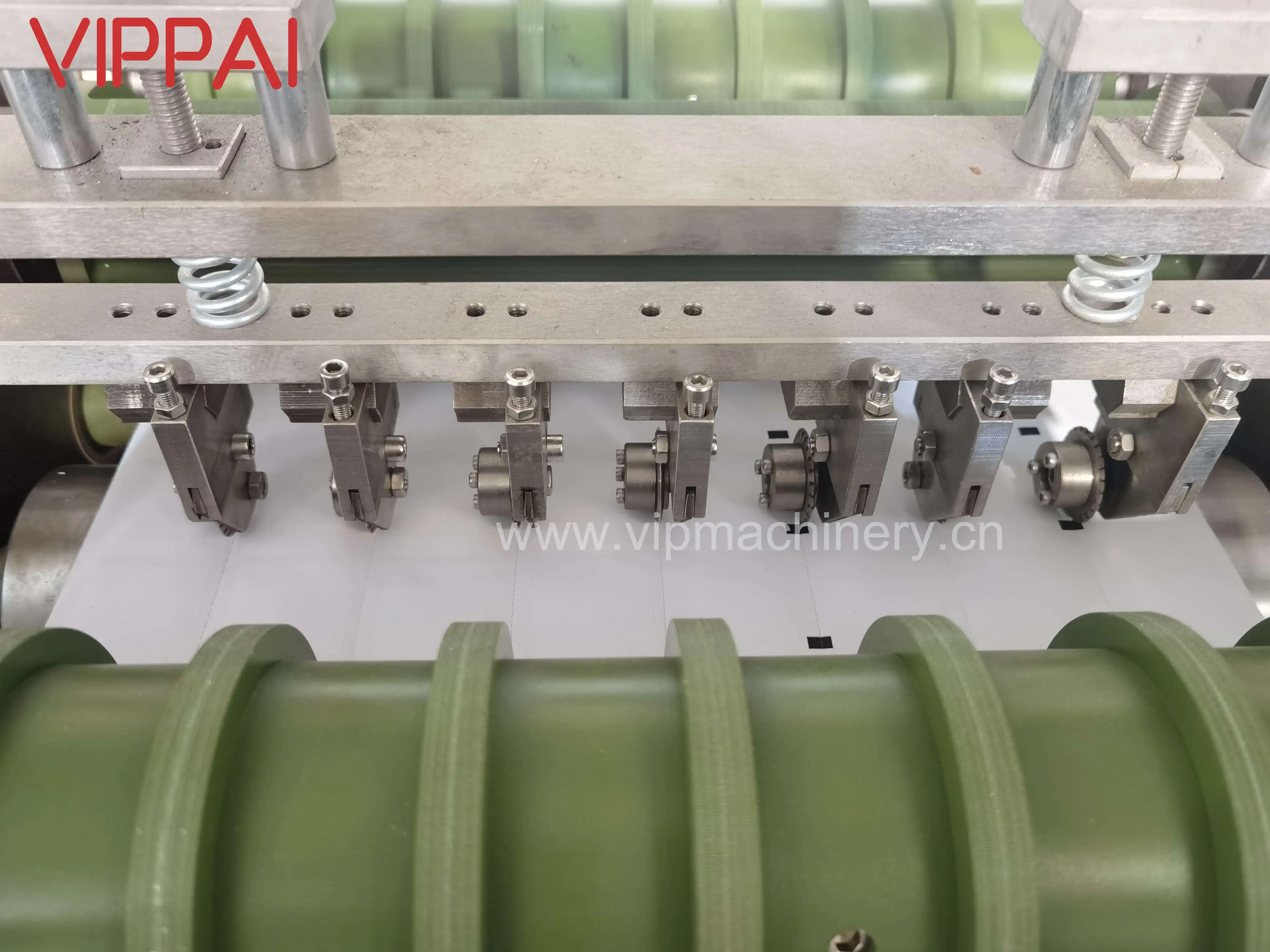

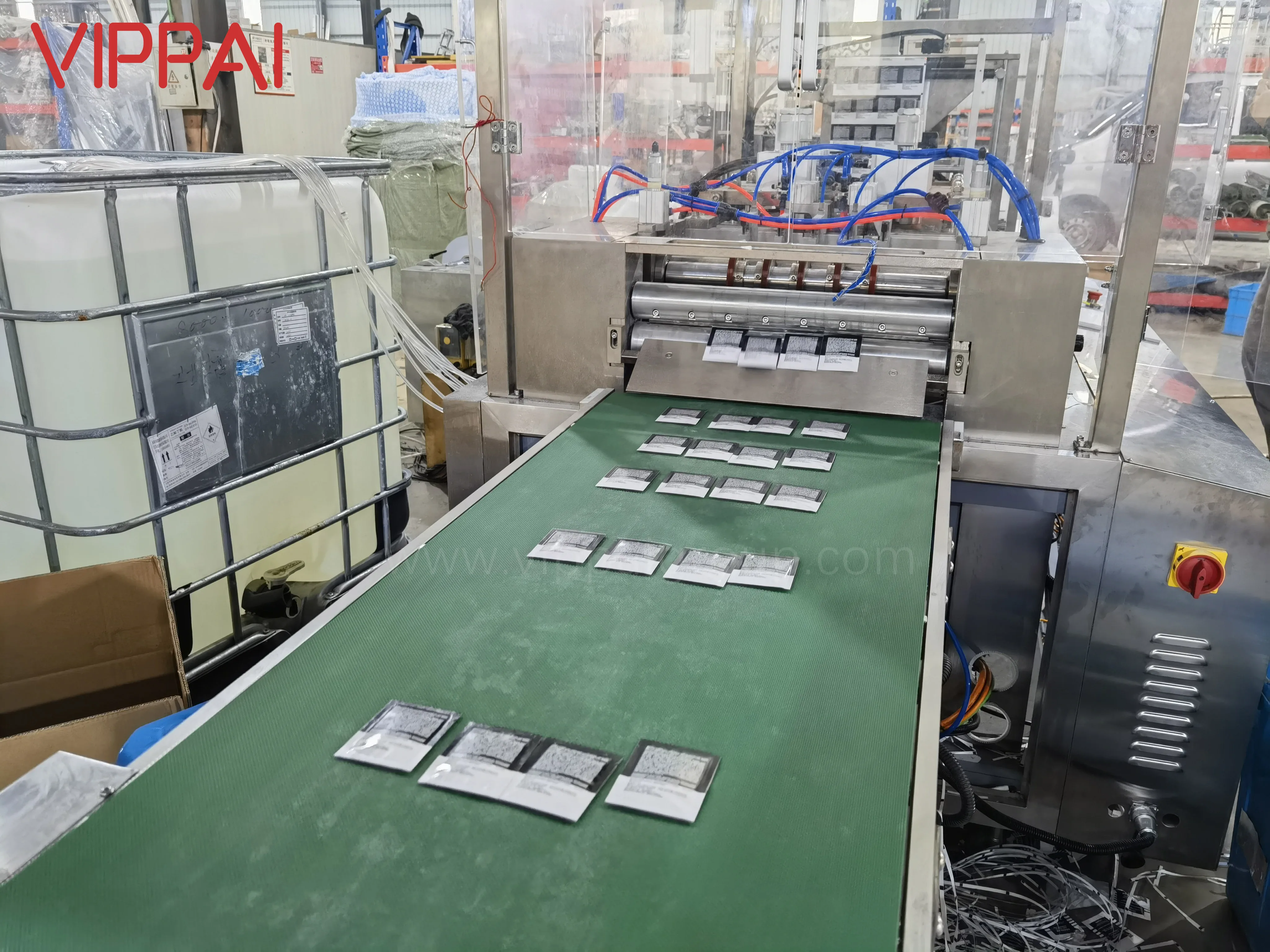

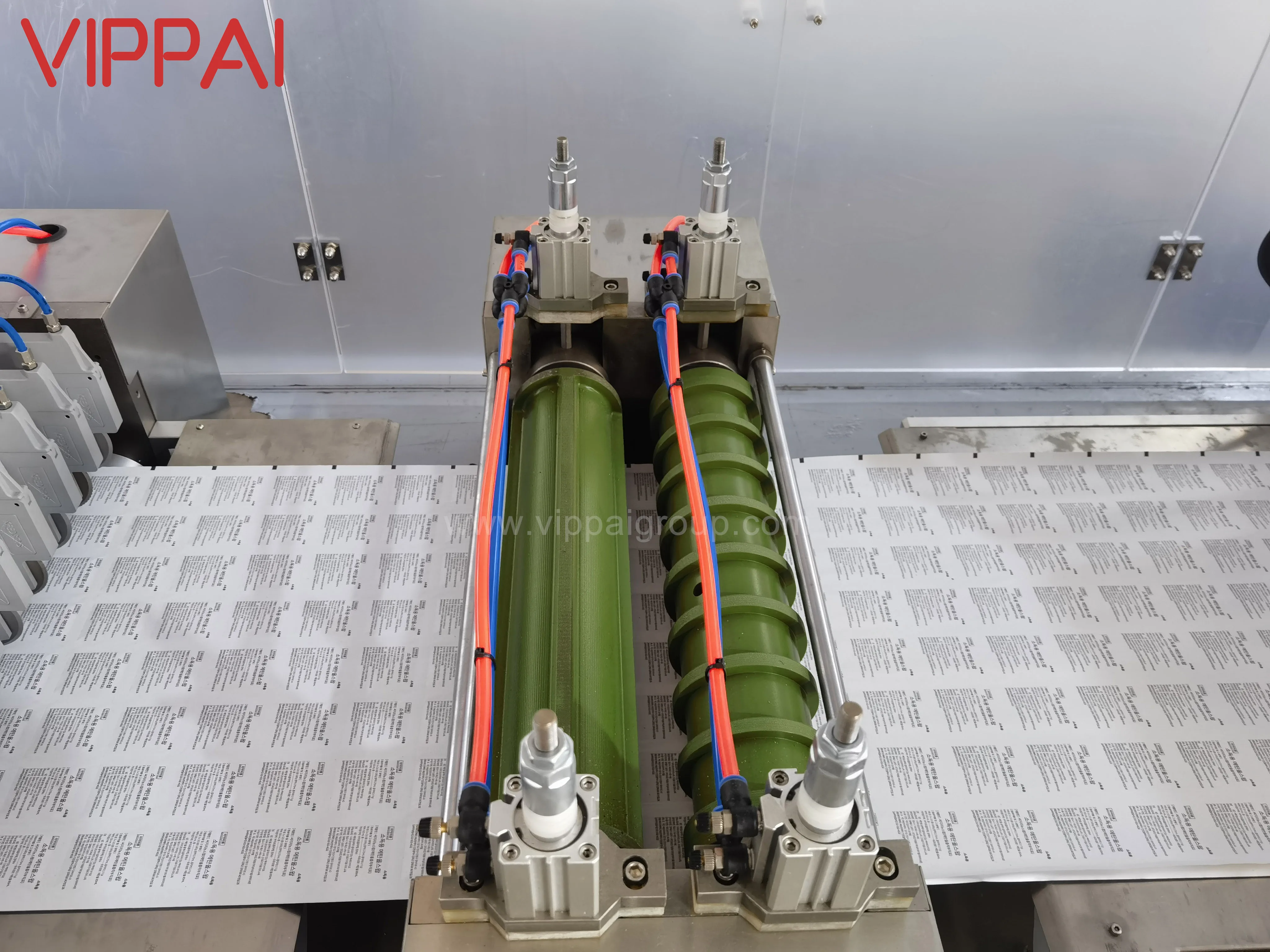

It cuts alcohol swab into 8 pieces.
