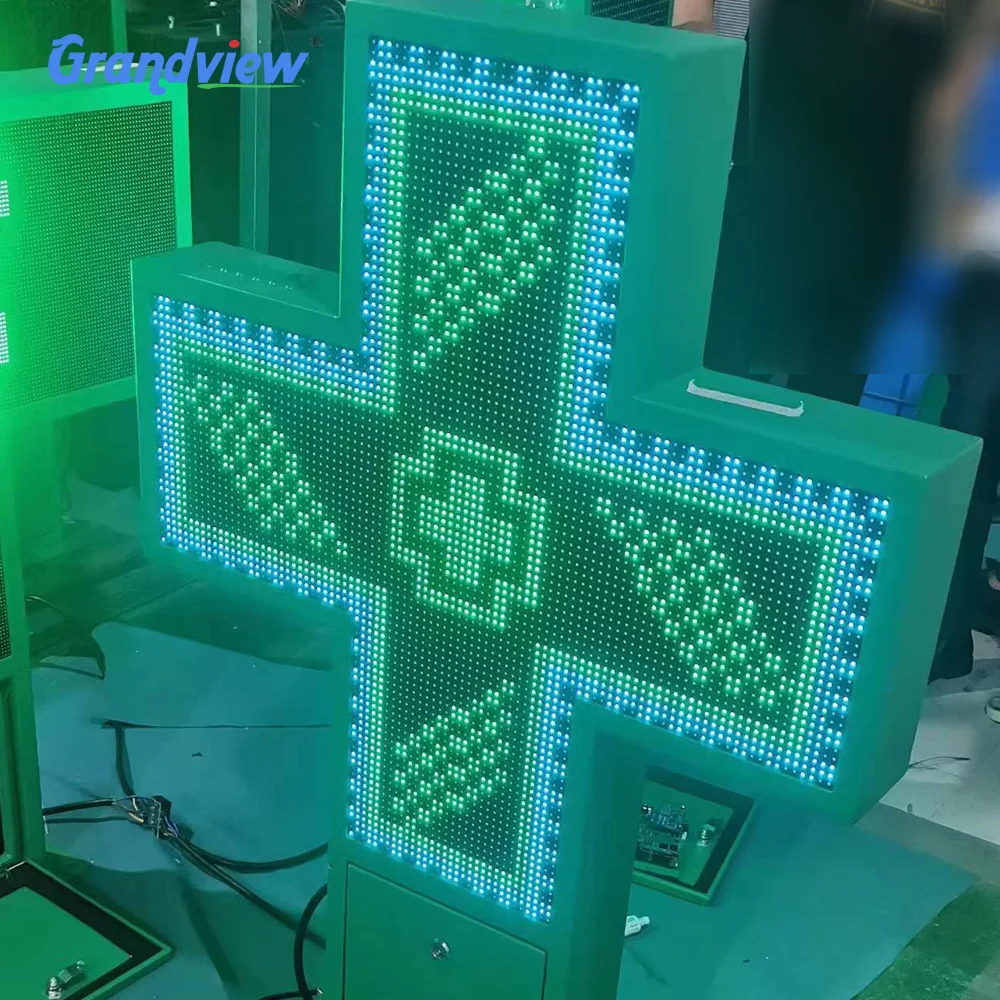

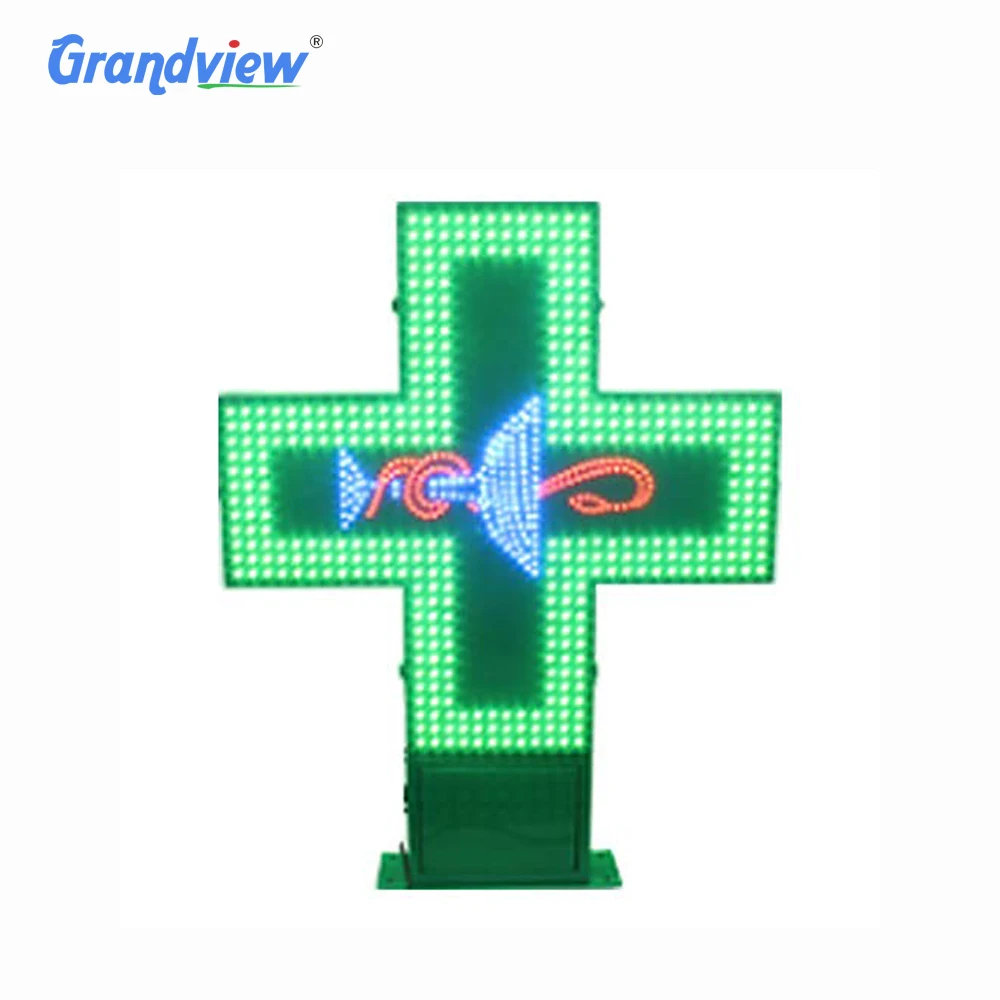

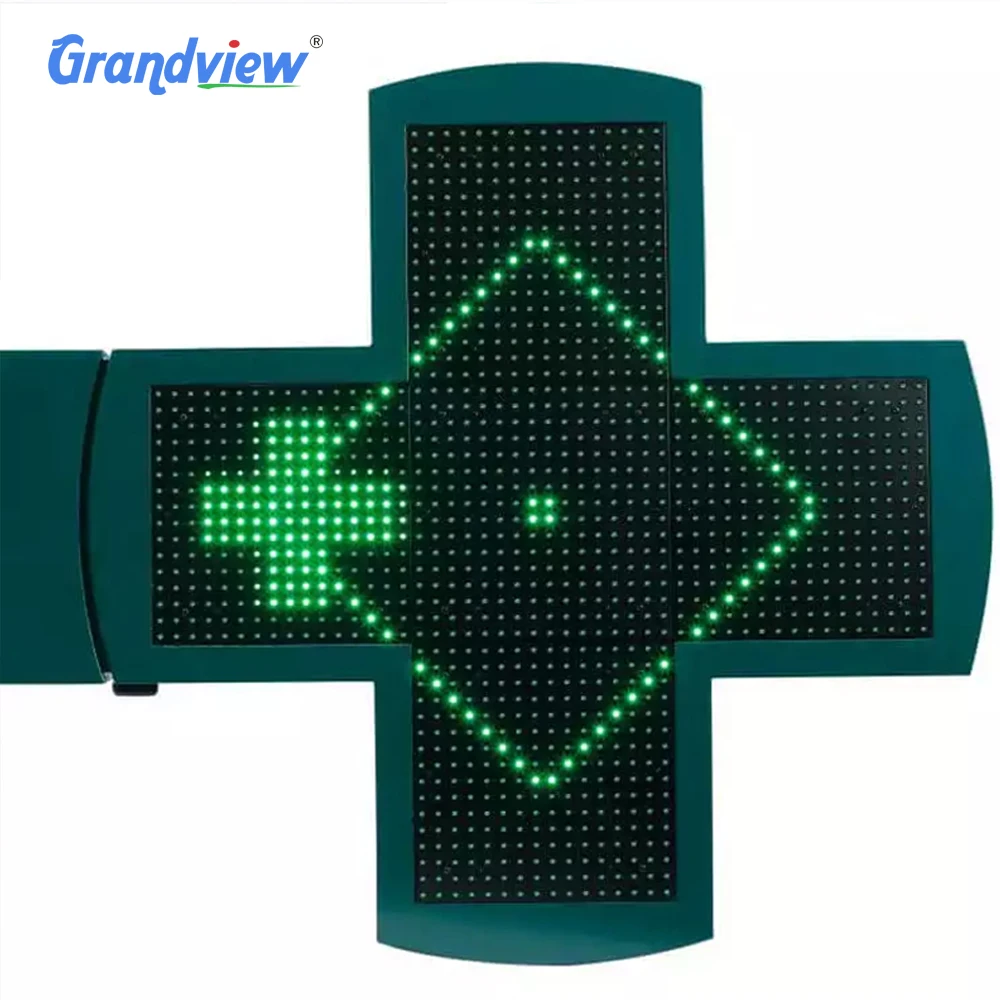

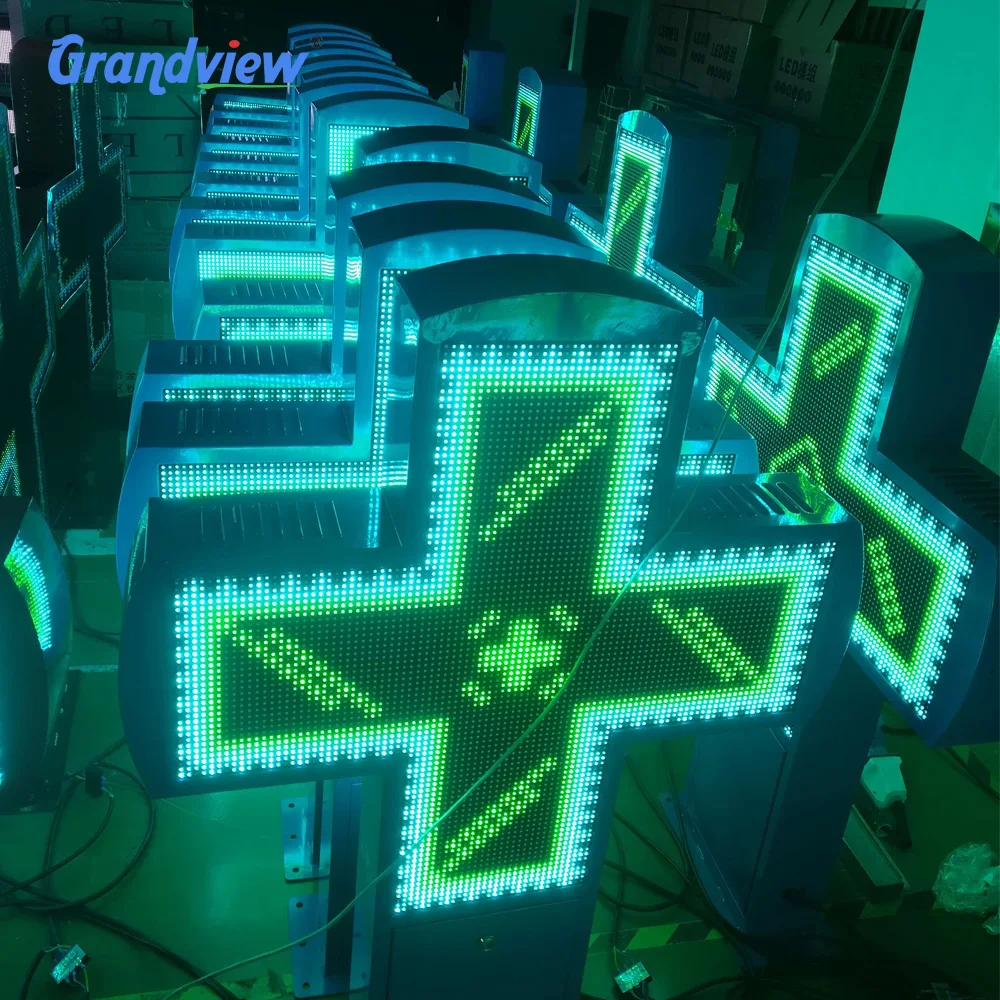

led pharmacy cross sign display/pharmacy green cross led sign/3d led pharmacy cross sign
- Category: >>>
- Supplier: Guangzhou Grandview Manufacturer Limited
Share on (1600913354572):
Product Overview
Description

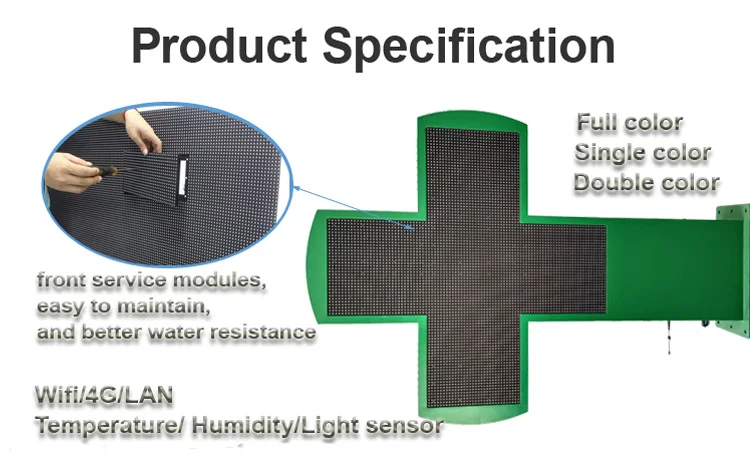

Products Description

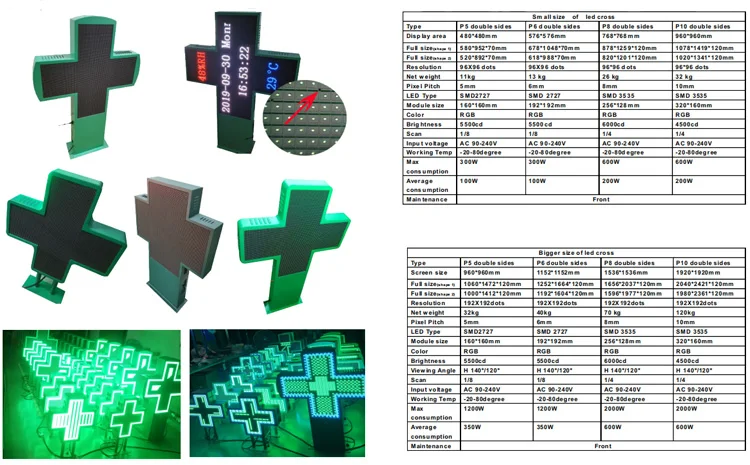

Type： | P5 double sides | P6 double sides | P8 double sides | P10 double sides | |||
Screen size： | 640*640mm | 768*768mm | 1024*1024mm | 1280*1280mm | |||
Full size： | 752*1162*120mm | 880*1290*120mm | 1136*1546*120mm | 1392*1802*120mm | |||
Resolution： | 128 x128 dots | 128 x128 dots | 128 x128 dots | 128 x128 dots | |||
Net weight： | 22kg | 28kg | 34kg | 42kg | |||
Piexl pitch： | 5mm | 6mm | 8mm | 10mm | |||
LED type： | SMD2727 | SMD2727 | SMD3535 | SMD3535 | |||
Module size： | 160*160mm | 192*192mm | 256*128mm | 320*160mm | |||
Color： | RGB | RGB | RGB | RGB | |||
Brightness： | 5500cd | 5500cd | 6000cd | 4500cd | |||
Viewing angle： | H 140°/120° | H 140°/120° | H 140°/120° | H 140°/120° | |||
Scan： | 1/8 | 1/8 | 1/4 | 1/4 | |||
Input voltage： | AC 90-240V | AC 90-240V | AC 90-240V | AC 90-240V | |||
Working temp： | -20 -80 degree | -20 -80 degree | -20 -80 degree | -20 -80 degree | |||
Max consumption： | 900w | 900w | 1500w | 1500w | |||
Average consumption： | 300w | 300w | 450w | 400w | |||
Maintenance： | Front | ||||||

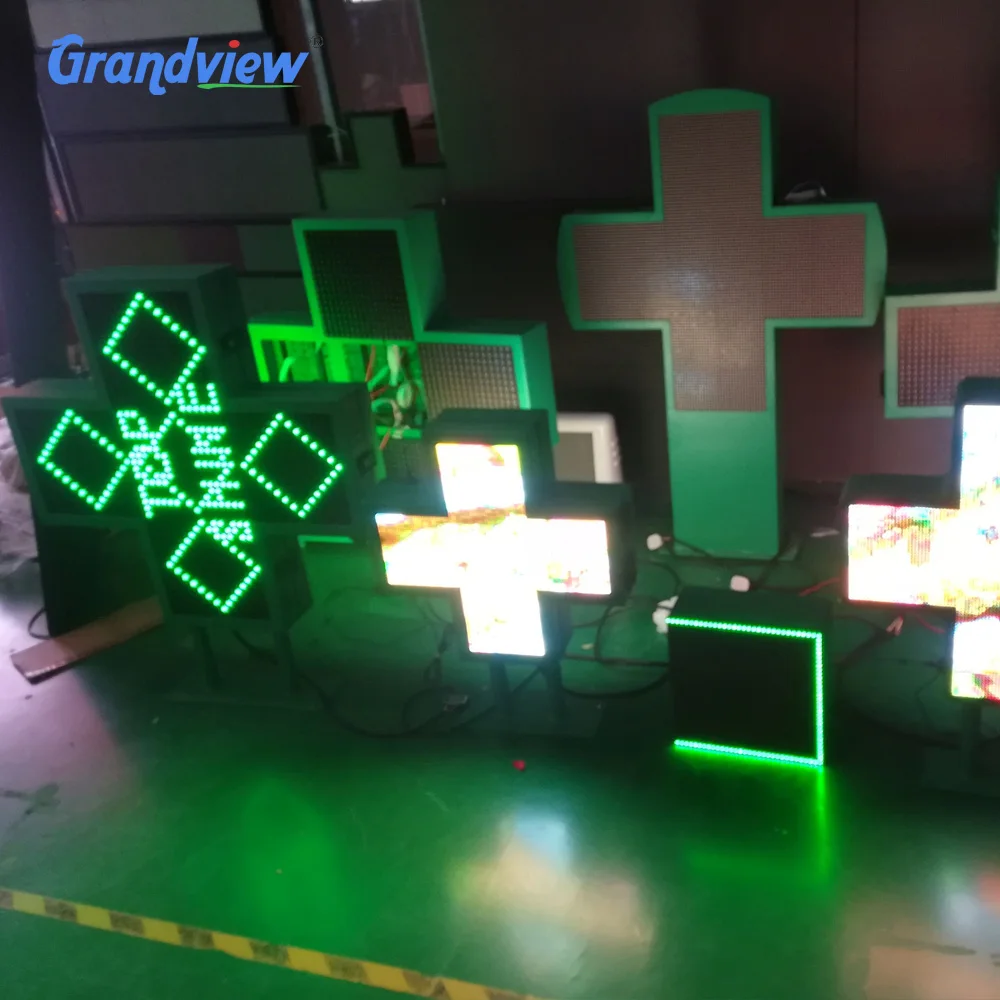

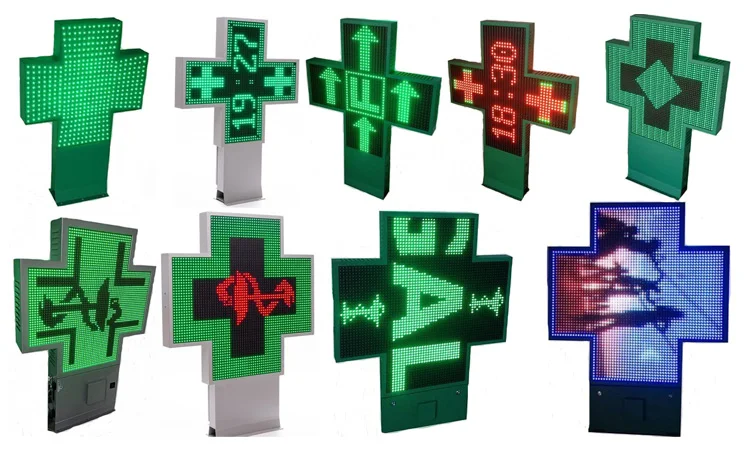

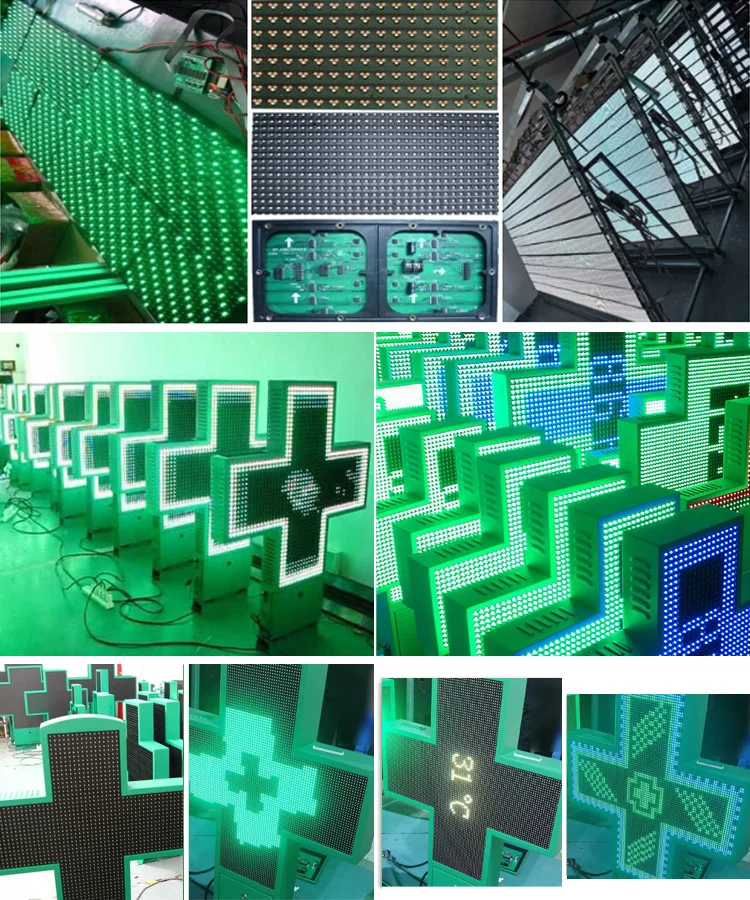

Detail Images

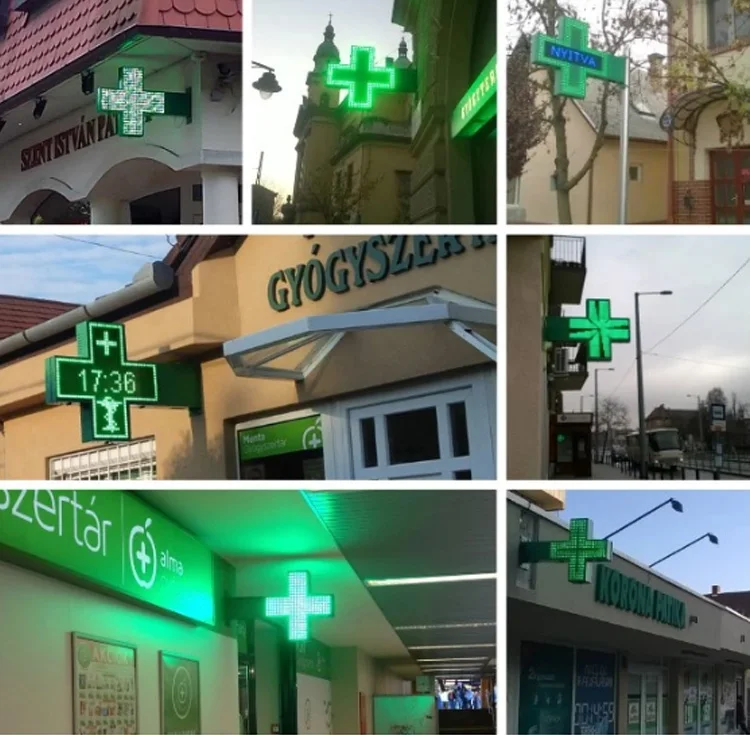

Application

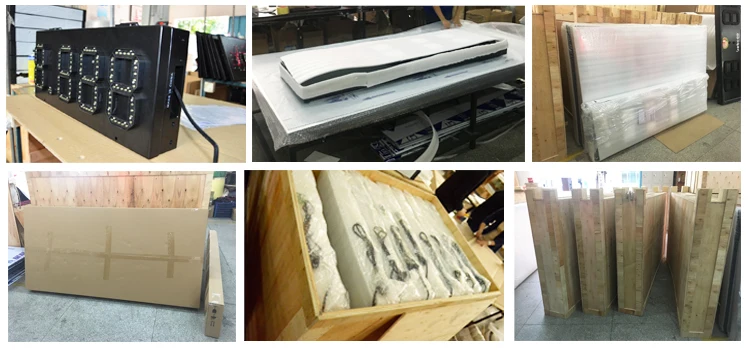

Packing
Certificate
Our Company
FAQ
Question 1：Led digits sign can not work well, some led modules can not be lighting.
Answer :
A.Please check the connecting cables of drive card whether it is loose or not,and connect them again.
B.LED module is broken, please replace the new module to the led sign.
C.Please check drive card’s 2pin ports,and connect to other 2pin ports or change led number.
Question 2：All the led digits are not lighting.Some led signs are controlled together, but only the sign which has control (main) card can work, the other signs can not work.
Answer :
A. Please use the multi-meter to check power supply whether it is on or off.
B. And please connect the power supply cables again.
C. Please check power supply whether it is 12V.
Question 3：Some led signs are controlled together, but only the sign which has control (main) card can work normally, the other signs can not work well.
Answer :
A. Please check the cables of control card and connect them again.
B. Please use the RF remote controller to set the numbers again.
C. Please check the connecting cable of control card and drive card.
D. Please check IN and OUT port. Please connect them again. E. Please check control card’s signal light is on.
Answer :
A.Please check the connecting cables of drive card whether it is loose or not,and connect them again.
B.LED module is broken, please replace the new module to the led sign.
C.Please check drive card’s 2pin ports,and connect to other 2pin ports or change led number.
Question 2：All the led digits are not lighting.Some led signs are controlled together, but only the sign which has control (main) card can work, the other signs can not work.
Answer :
A. Please use the multi-meter to check power supply whether it is on or off.
B. And please connect the power supply cables again.
C. Please check power supply whether it is 12V.
Question 3：Some led signs are controlled together, but only the sign which has control (main) card can work normally, the other signs can not work well.
Answer :
A. Please check the cables of control card and connect them again.
B. Please use the RF remote controller to set the numbers again.
C. Please check the connecting cable of control card and drive card.
D. Please check IN and OUT port. Please connect them again. E. Please check control card’s signal light is on.
