1.Including YBP pneumatic lubrication pump, quantitative distributor, oil-air mixer, electromagnetic valve, pneumatic frequency generator and air source processing unit.
2.Pneumatic frequency generator controls the YBP pneumatic lubrication pump and quantitative distributor to send the quantitative lubricant oil to oil-air mixed area in certain frequency. And then controlled by the electromagnetic valve, the compressed air is blown into subtle oil and gas to the lubrication point.
3.Cooperate with corresponding quantitative distributor can satisfy the oil demand of different lubrication parts.
4.When the lubricant is insufficient, the level switch will give a signal.
5.Air source processing unit is able to adjust air source pressure, filter impurities and moisture of the compressed air, and improve the reliability of system work.
6.High lubricant utilization, low fuel consumption, accurate oil supply, environmental protection, well air cooling performance.
7.A positive pressure sealed chamber is formed at the lubrication portion to prevent entry of harmful substances such as dust from the outside.
8.Lubricant viscosity: 5~250cSt
9.Suitable for lubrications of high-speed rolling bearings and various lathes, milling machines, sawing machines, shearing machines and other mechanical equipment.

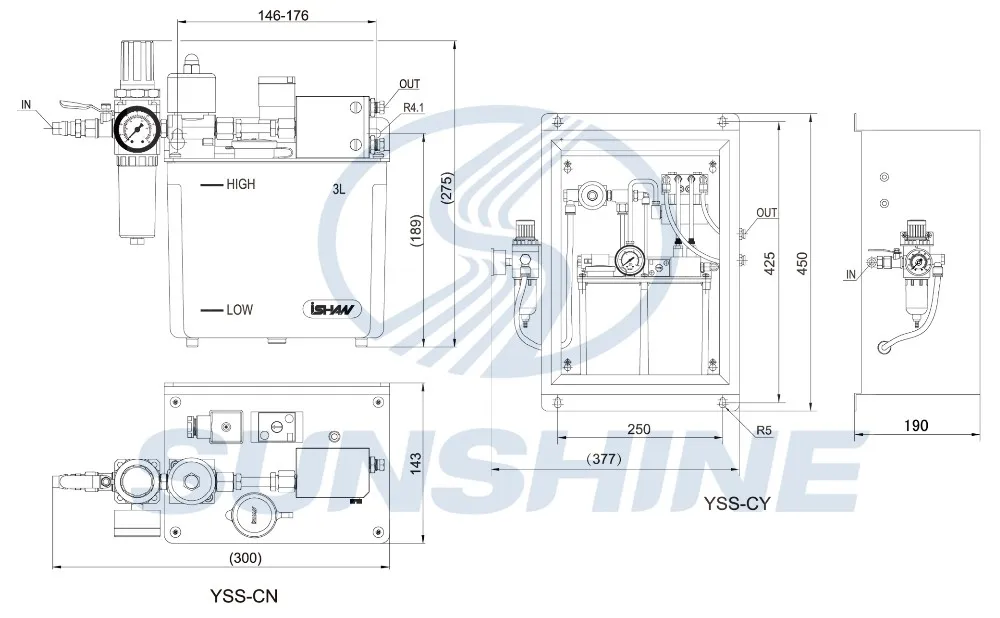

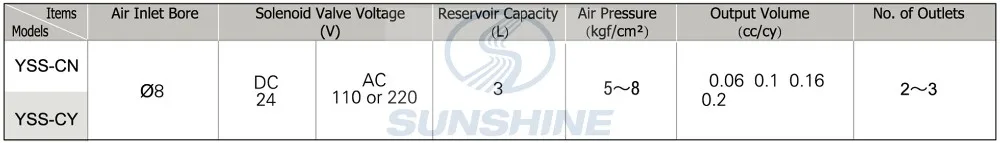

Physical Dimension & Parameter Diagram
