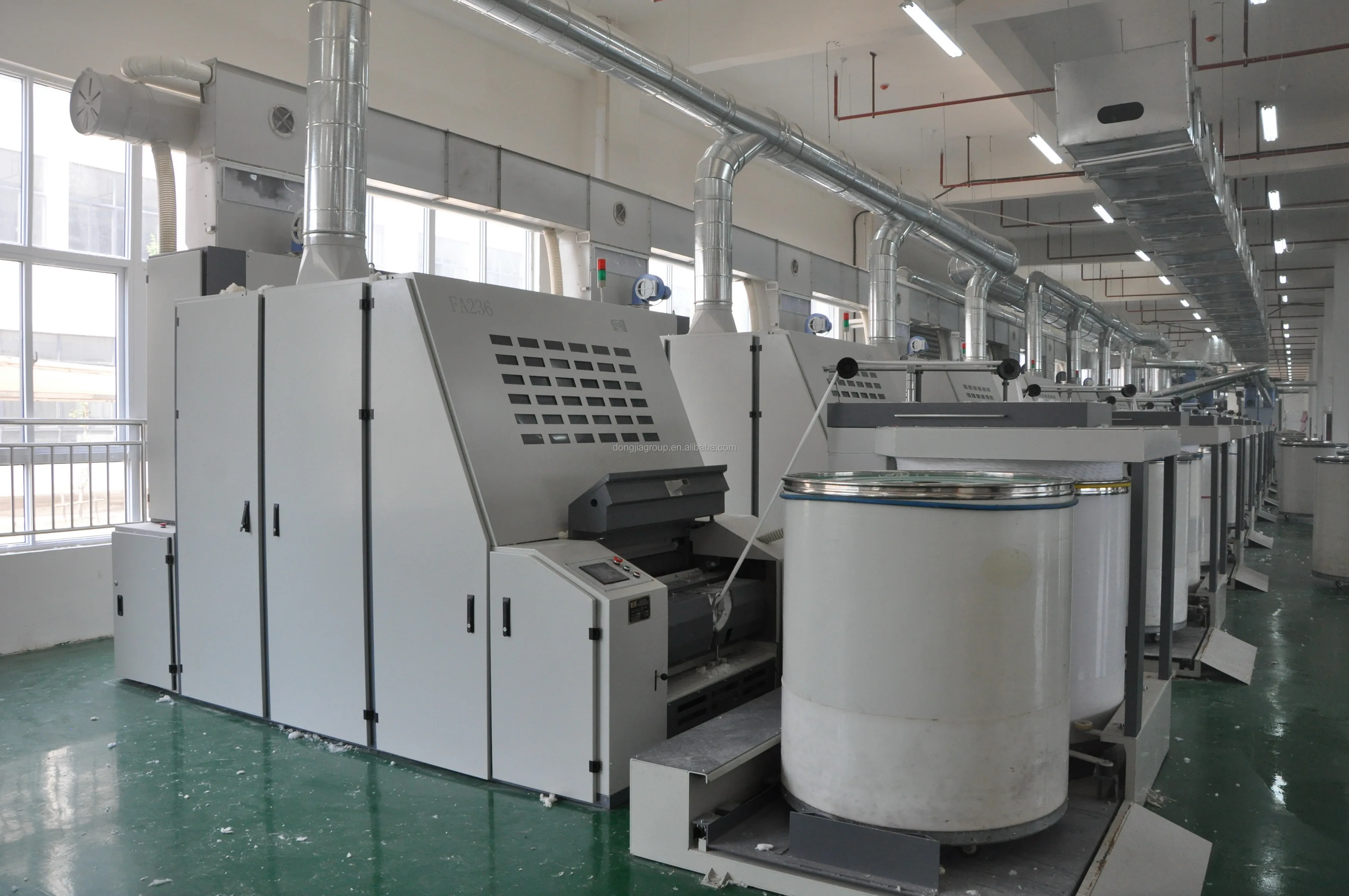

DONGJIA FA237 Carding Machine For Cotton Yarn of Spinning Product Line
- Category: >>>
- Supplier: Qingdao Dongjia Textile Machinery Group Co. Ltd.
Share on (1600913369263):
Product Overview
Description
Product Description

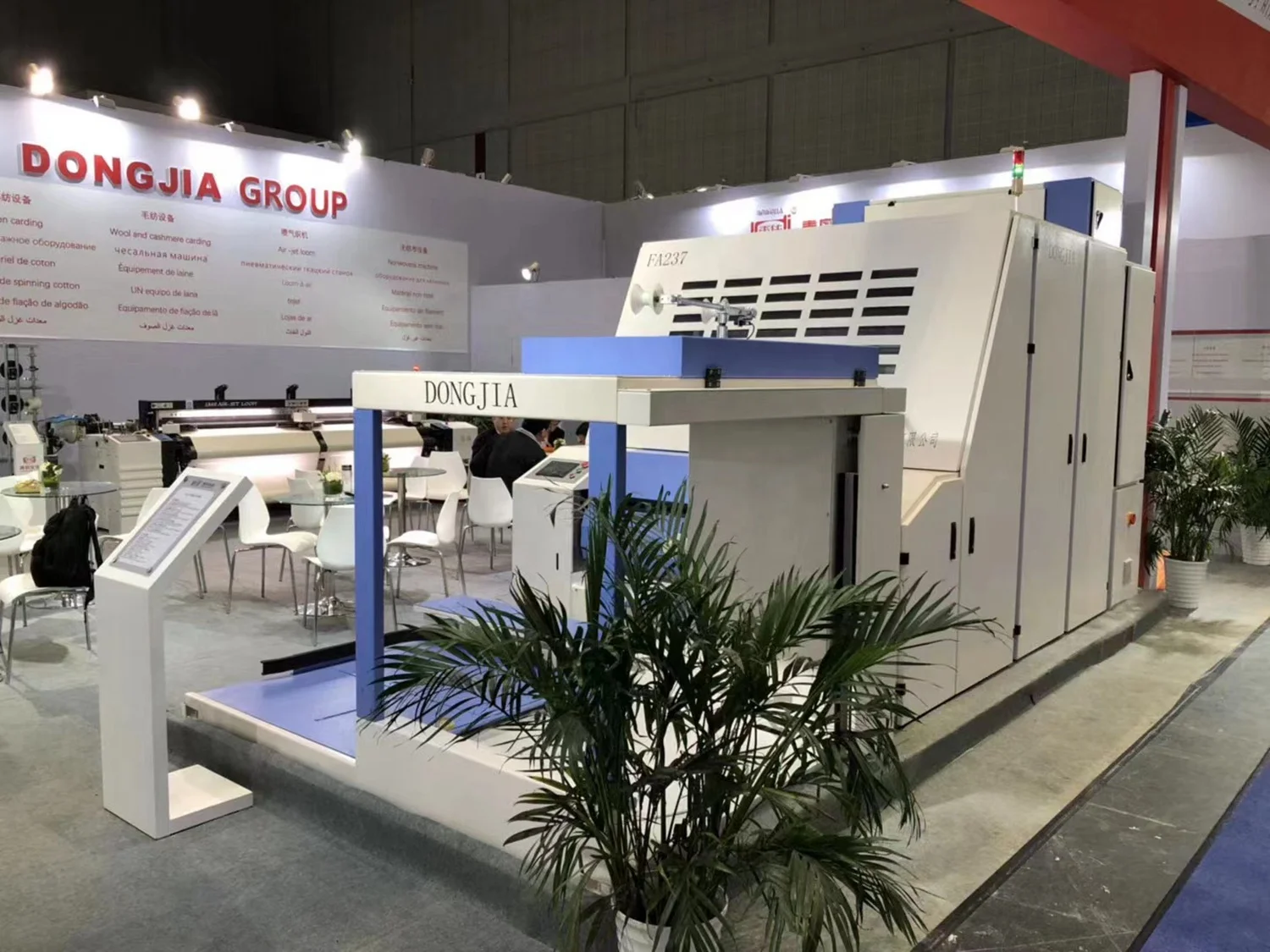

FA237 CARDING MACHINE
This machine is used to card, clean and blend loose fibers opened by the blow room system, condense them into uniform slivers after eliminating most cotton neps,impurities and short fibers from them. and then coil them regularly in sliver can for the next process use
Specification

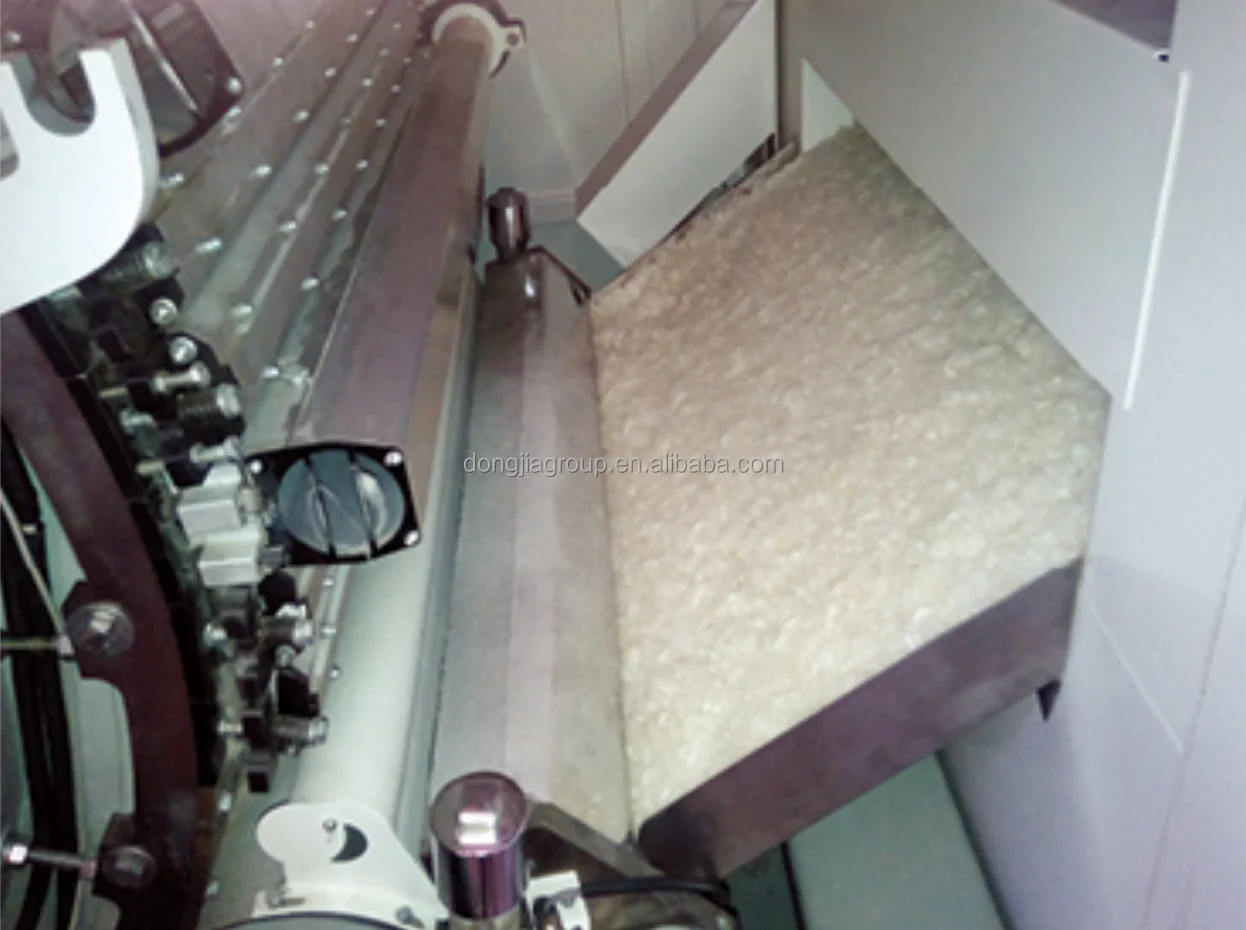

1.Design brand new upper tvpe feed plate and tapered reticular tvpe feed roller, to effectively hold fibers so as to reduce fiber
damage. Unique single licker-in carding segment mechanism, and there are two mote knives and carding segment fixed around the
licker-in to effectively remove short fibers and impurities.
damage. Unique single licker-in carding segment mechanism, and there are two mote knives and carding segment fixed around the
licker-in to effectively remove short fibers and impurities.

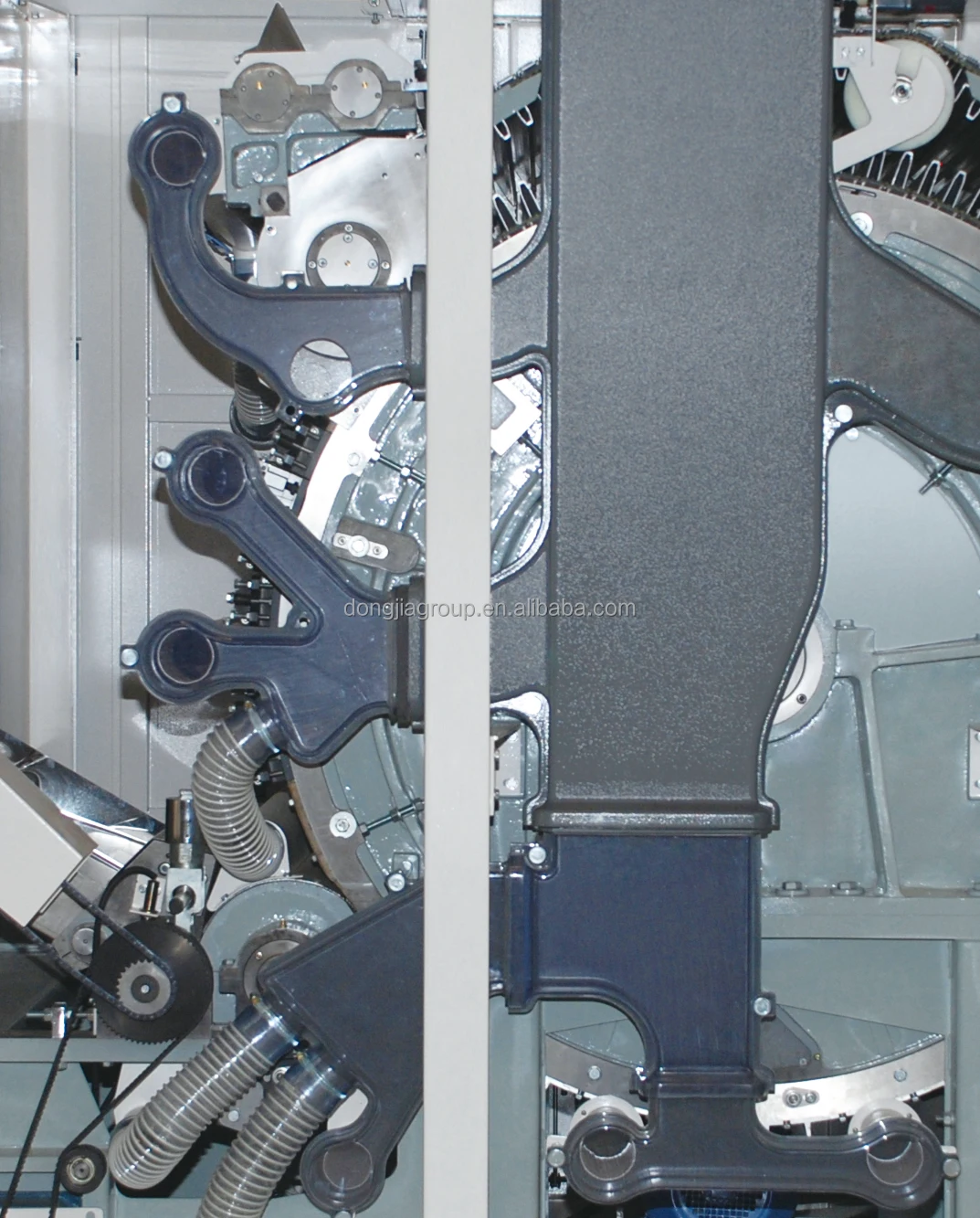

simple structure and special processing technology, ensure the accuracy of gauge and the stablity of the whole machine
design of stationary flats and housing plate, which can be flexibly combined and configured according to the requirements of the
process

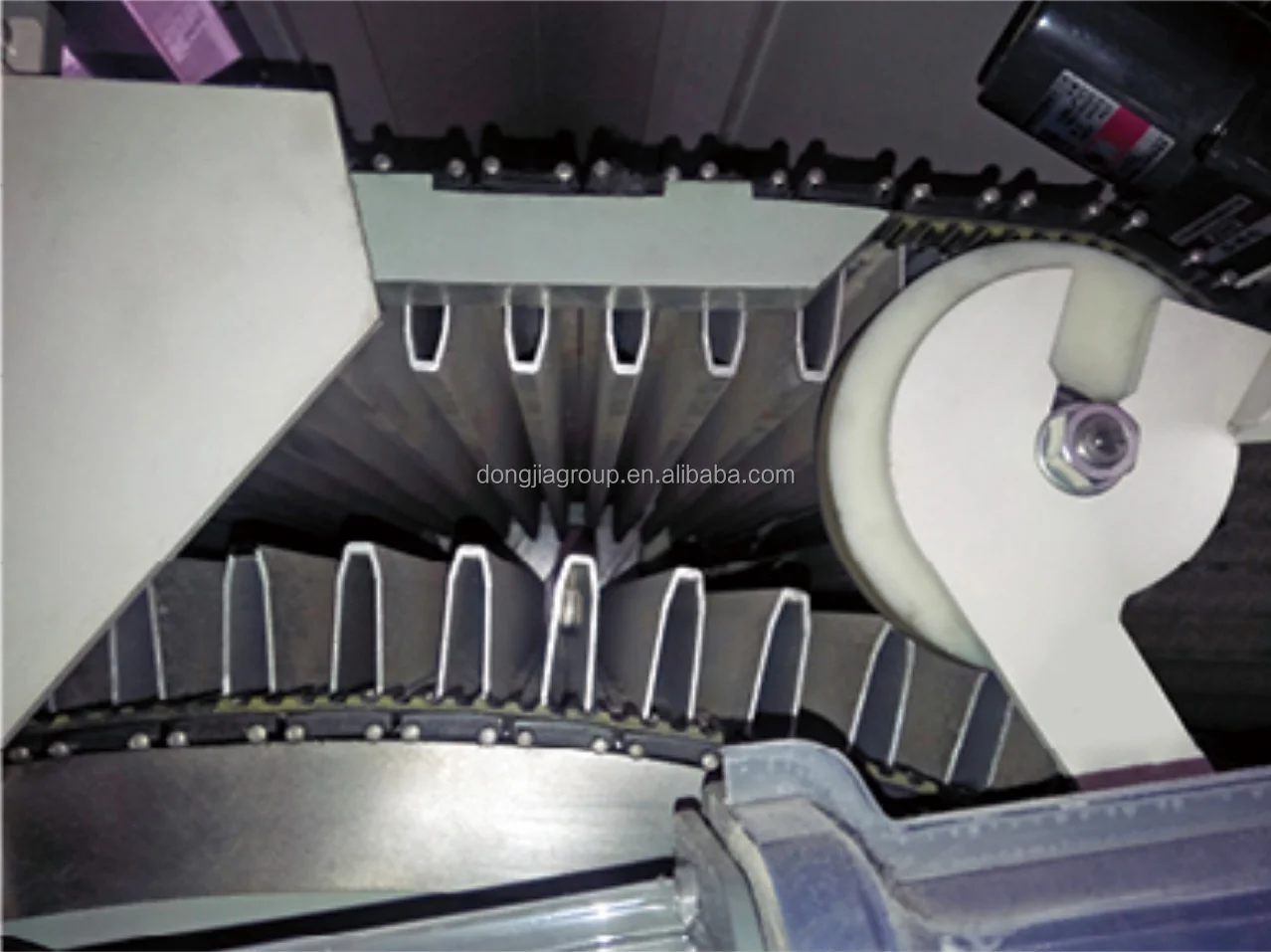

4.Equipped with 84pcs high-strength aluminium alloy movable flats, synchronous toothed belt drive, light weight, simple structure,
easy and convenient maintance

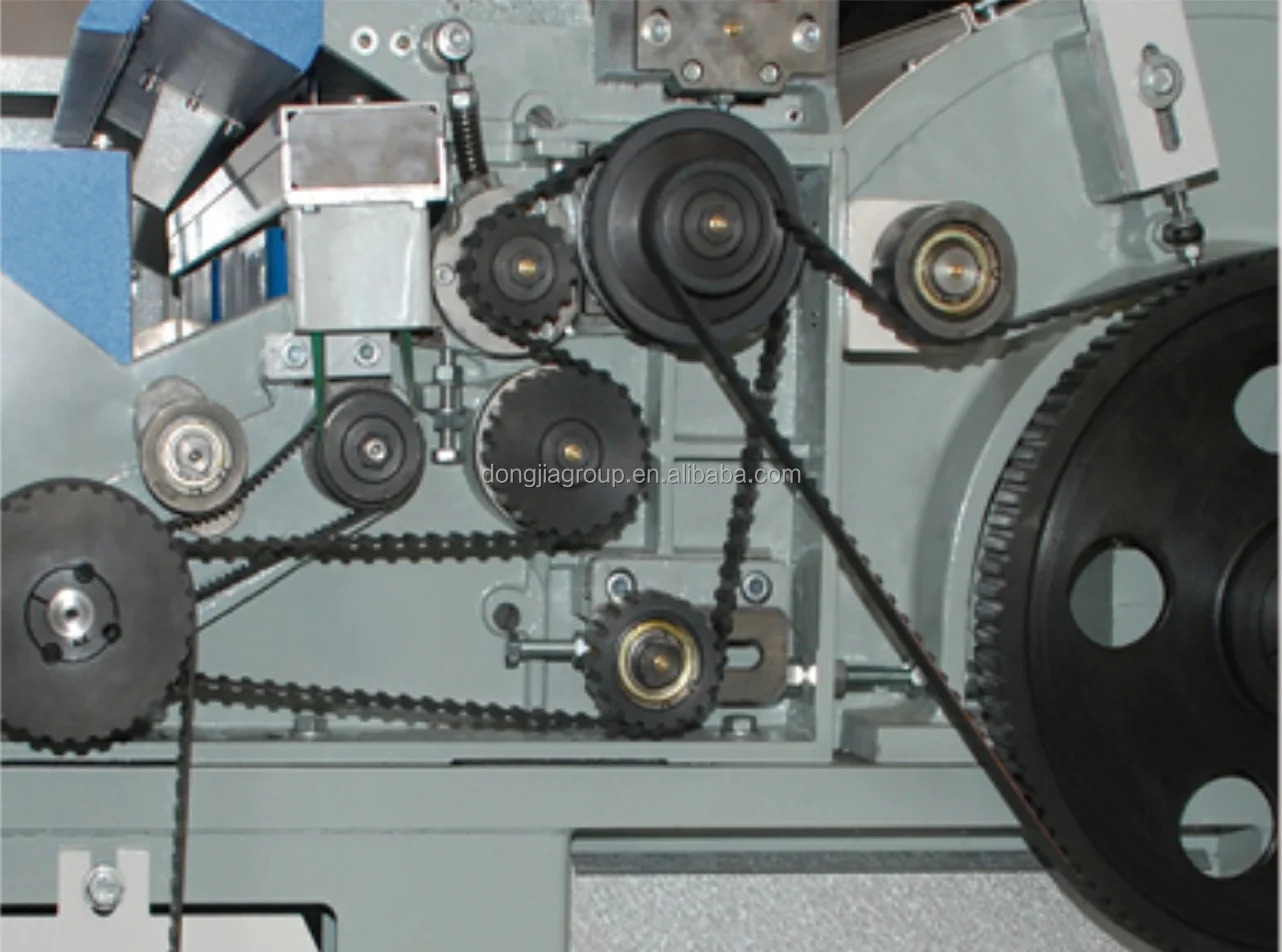

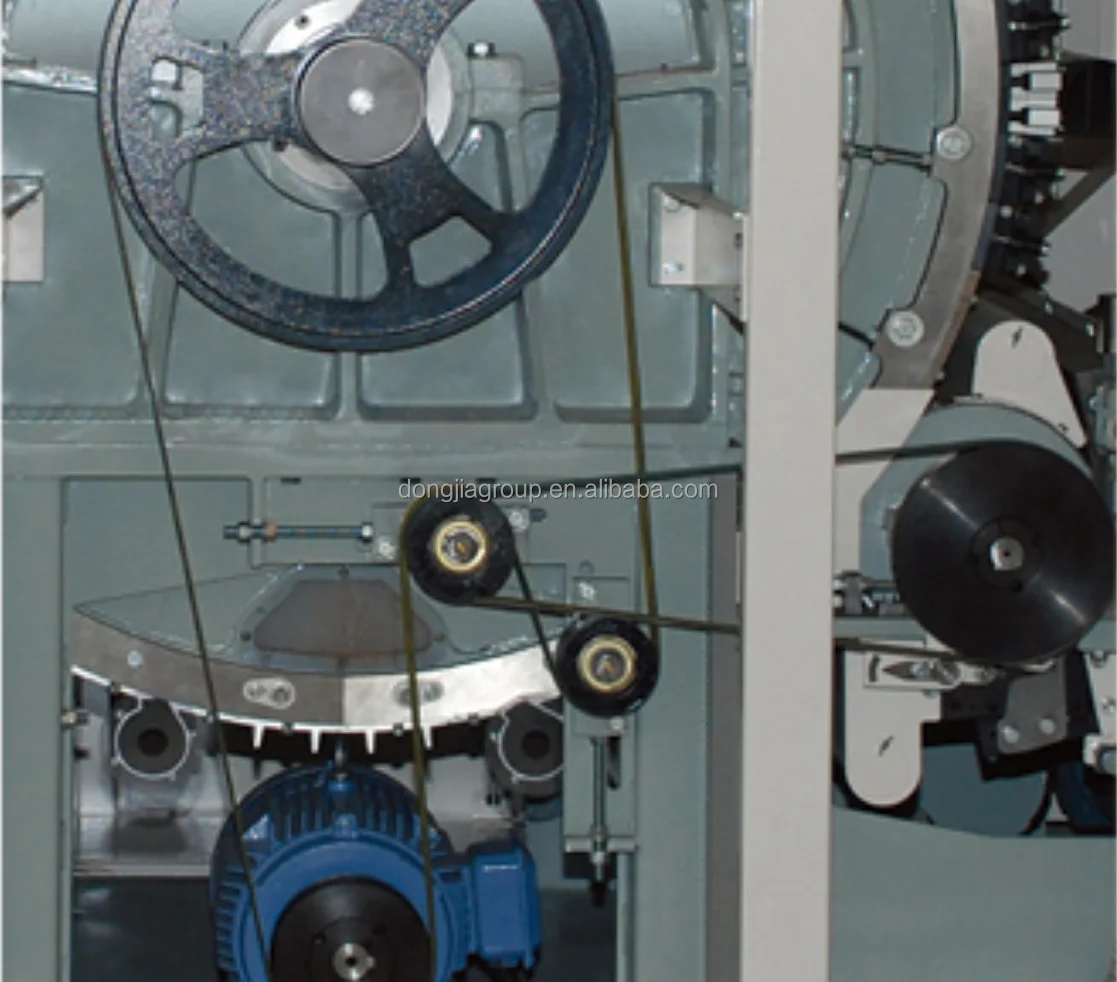

5.Optimized transmission combination, and most widely used synchronous toothed belt drive,improve the stablity of power transmission
and reduce the noise of equipments
and reduce the noise of equipments

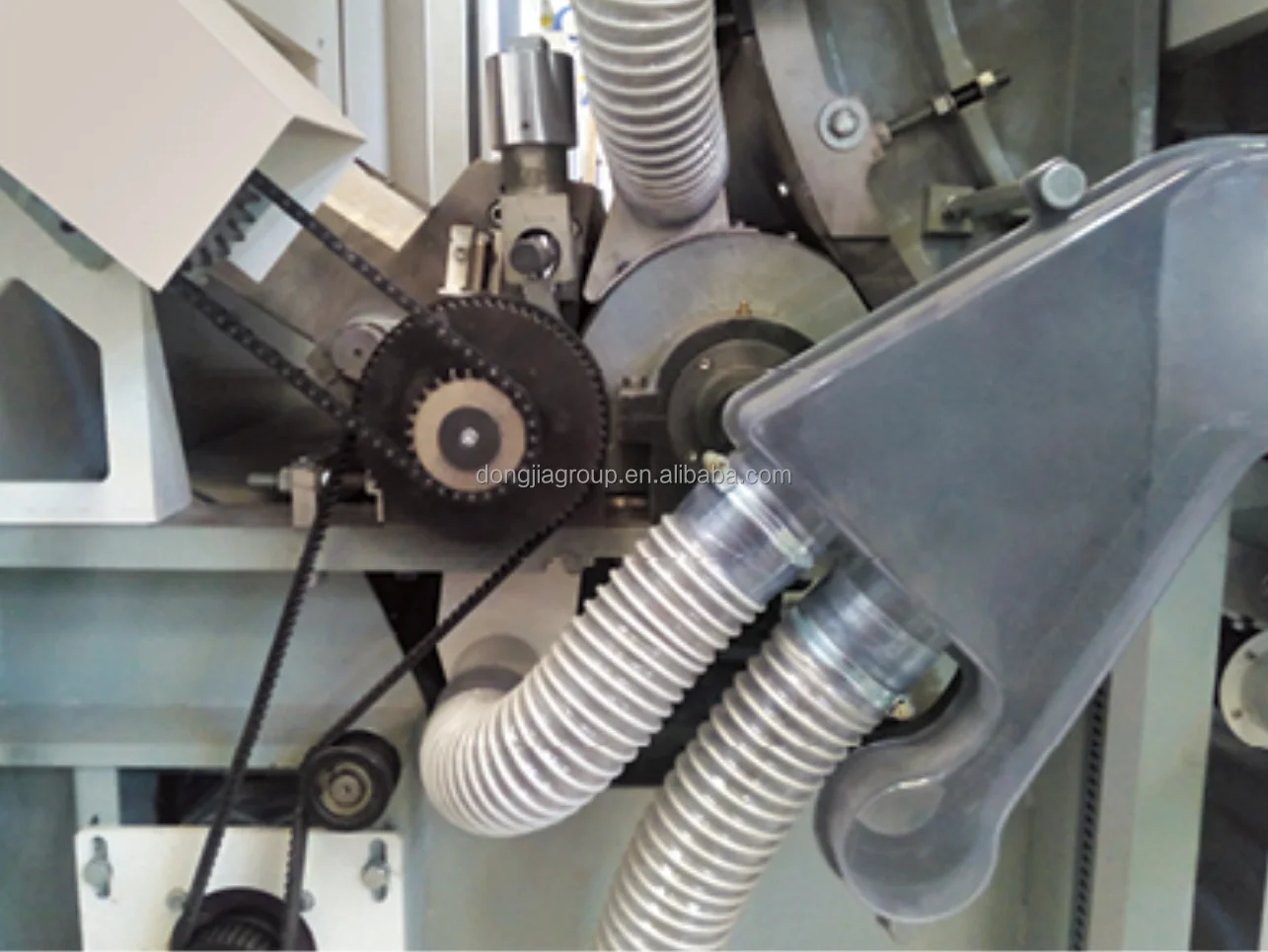

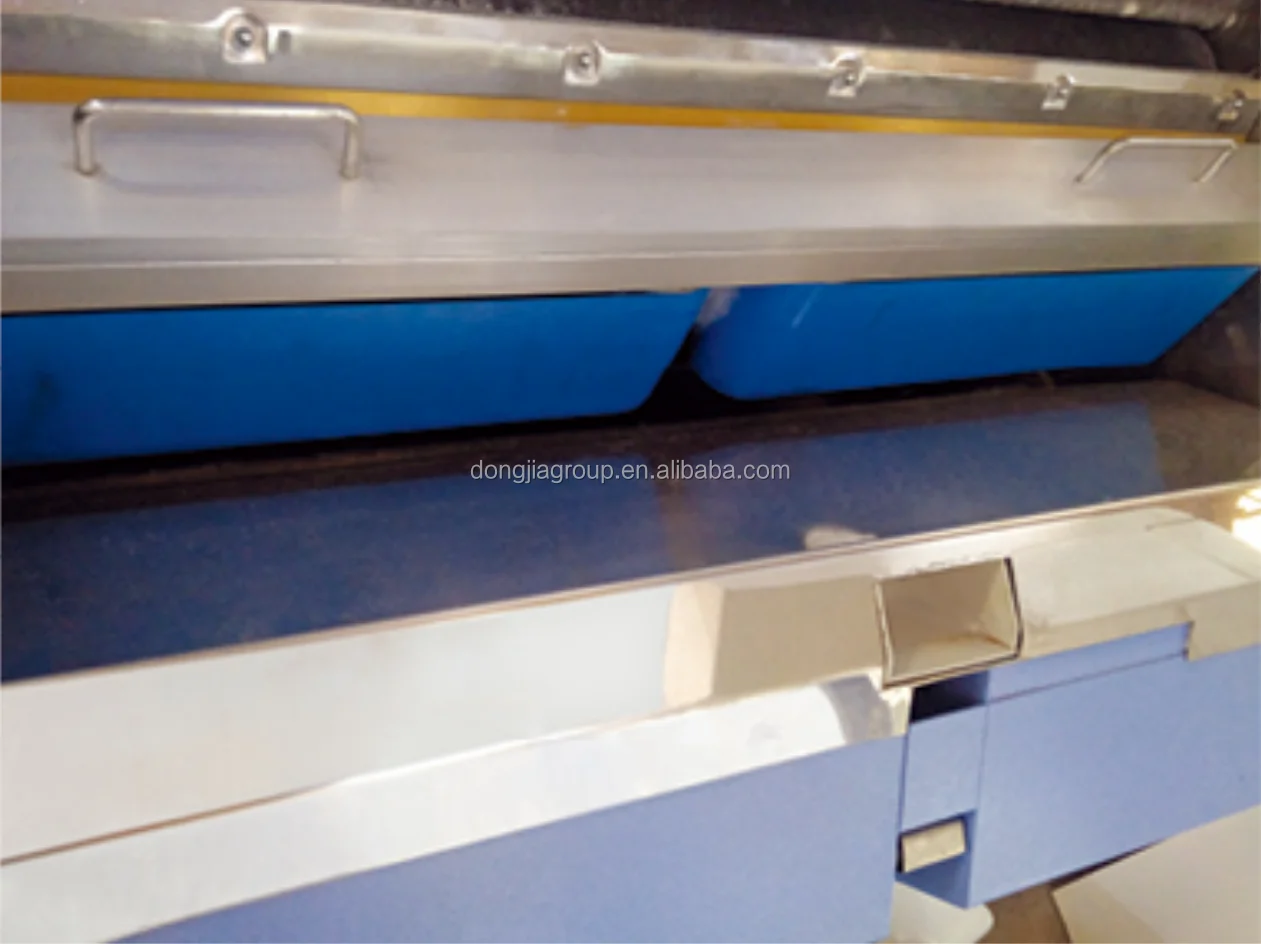

6.At the bottom of cylinder and doffer, the full sealed aluminium alloy housing plate plus positive dust suction pipes, and the high
precision aluminium components with super smooth surface making the cylinder surface airflow distribution more uniform,
effectively reducing airflow interference, and ensuring the smooth passage of fibers.
precision aluminium components with super smooth surface making the cylinder surface airflow distribution more uniform,
effectively reducing airflow interference, and ensuring the smooth passage of fibers.

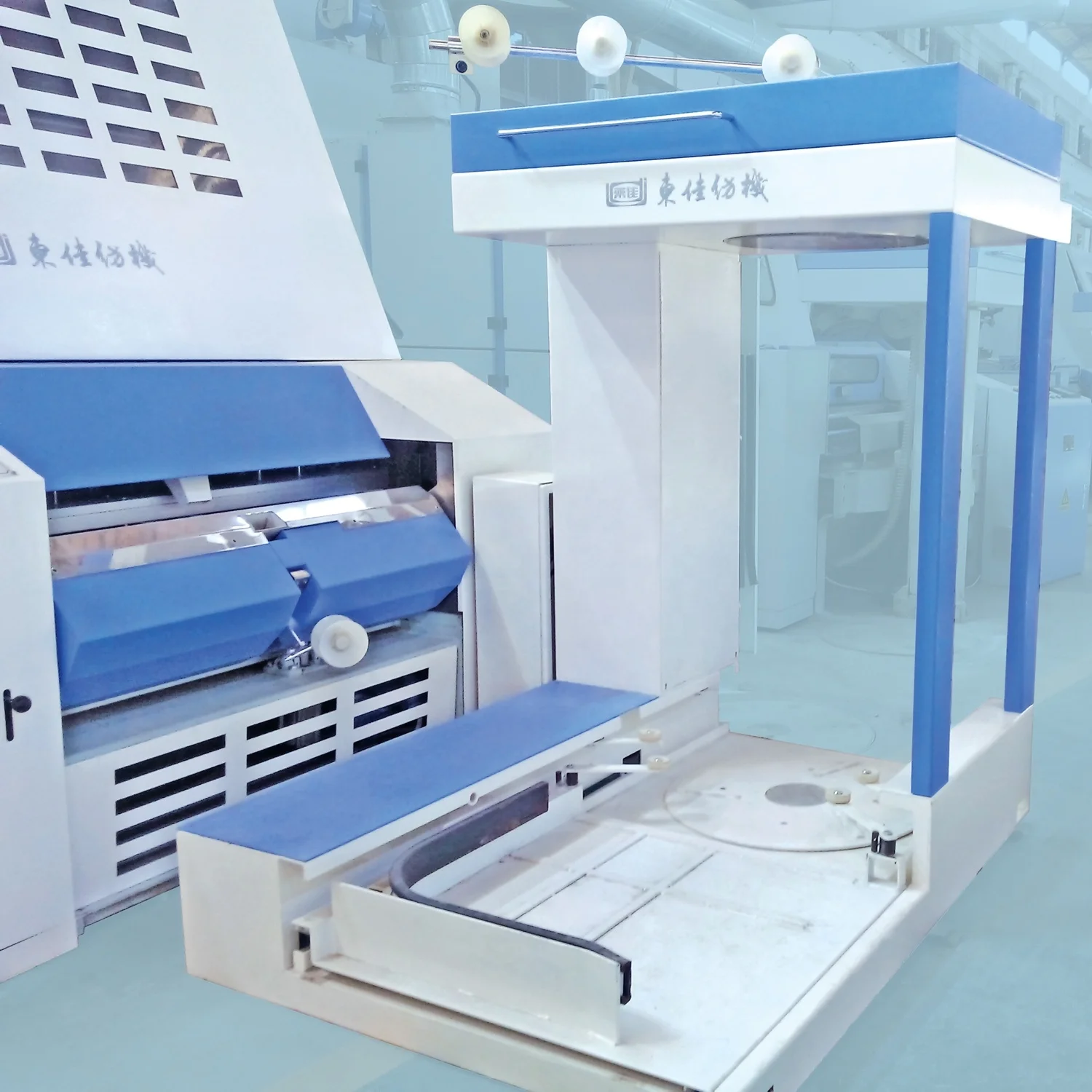

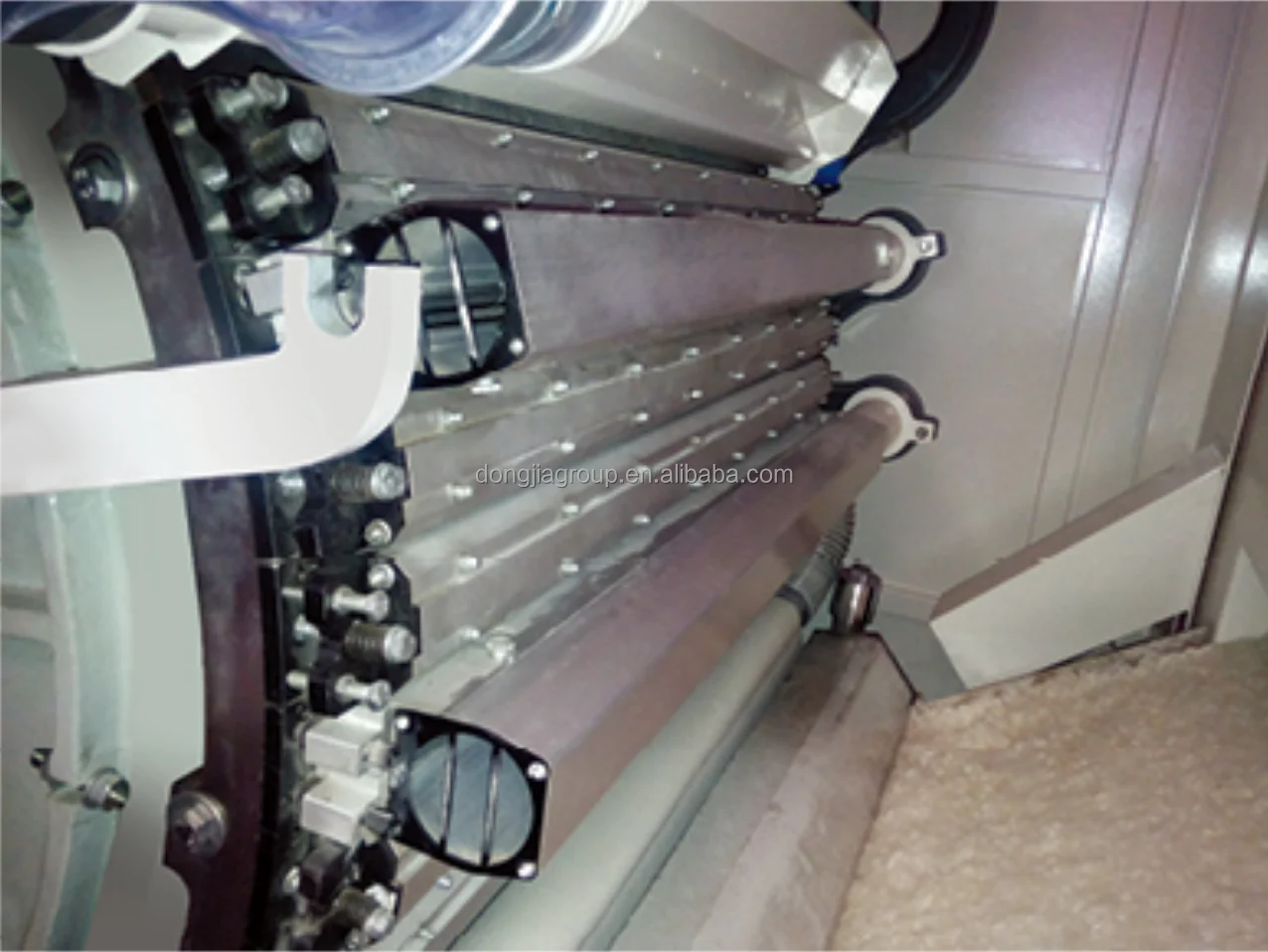

7.Inclined type three-roller stripping device. cross apron web-collecting device and pneumatic turning type condenser are combined for application together.
requirements.

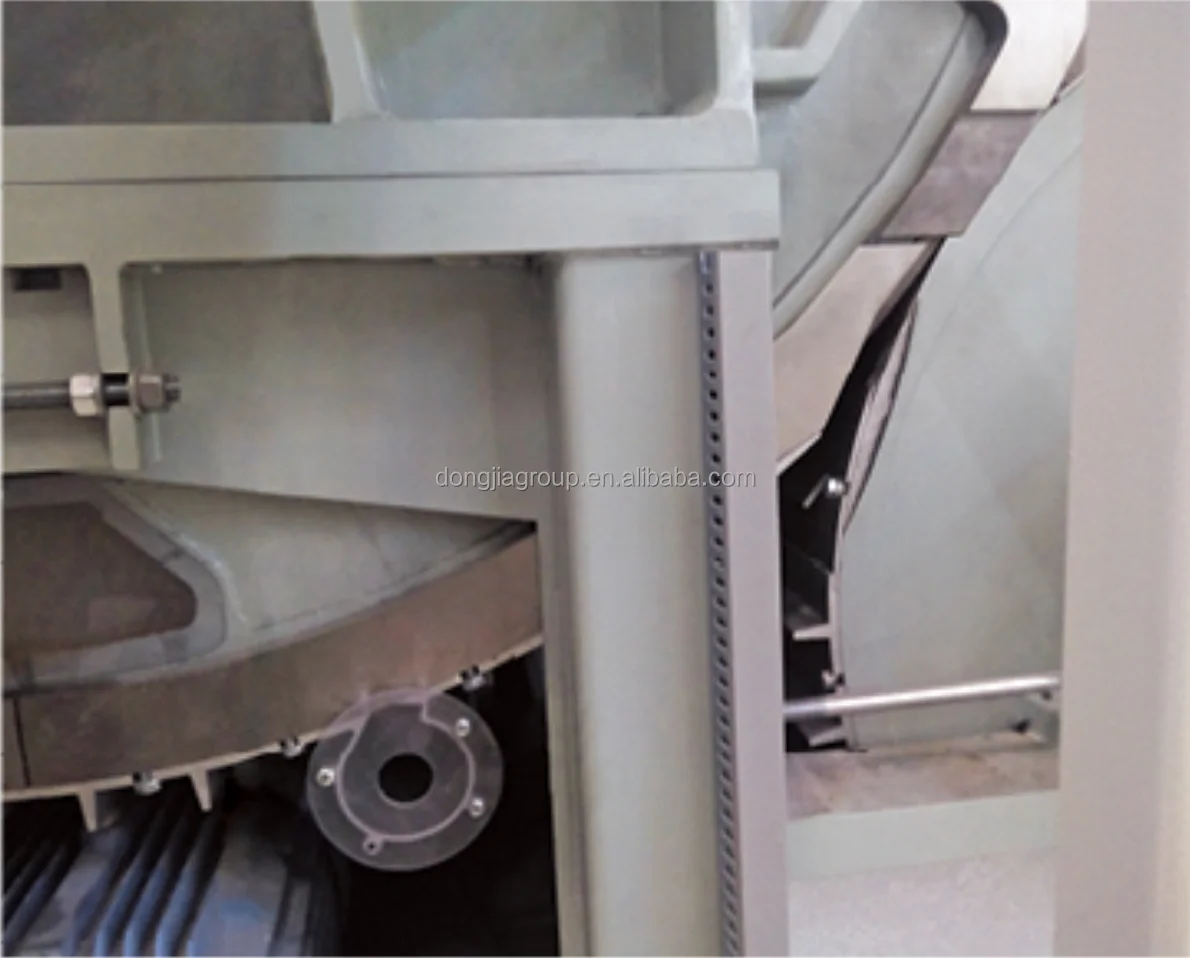

9.Steel plate roll system for cylinder and doffer, with uniform wall thickness, good balance, nodeformation, light weight, small inertia and easy starting and stopping.
Can be equipped with mixed loop auto leveler,making slivers more uniform.
item | value |
Applicable Industries | Manufacturing Plant, Textile Industry, Textile Industry |
Showroom Location | India, Russia, Bangladesh, Uzbekistan, Mongolia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2022 |
Warranty of core components | 1.5 years |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear |
Condition | New |
Application | textile cashmere, camel, yak, sheep wool, wool |
Type | Spinning Production Line |
Production Capacity | 50KG/H |
Place of Origin | China |
Shandong | |
Brand Name | DONGJIA |
Spinning Method | Rotor Spinning |
Automatic | Yes |
Weight | 5500KG |
Warranty | 1.5 years |
