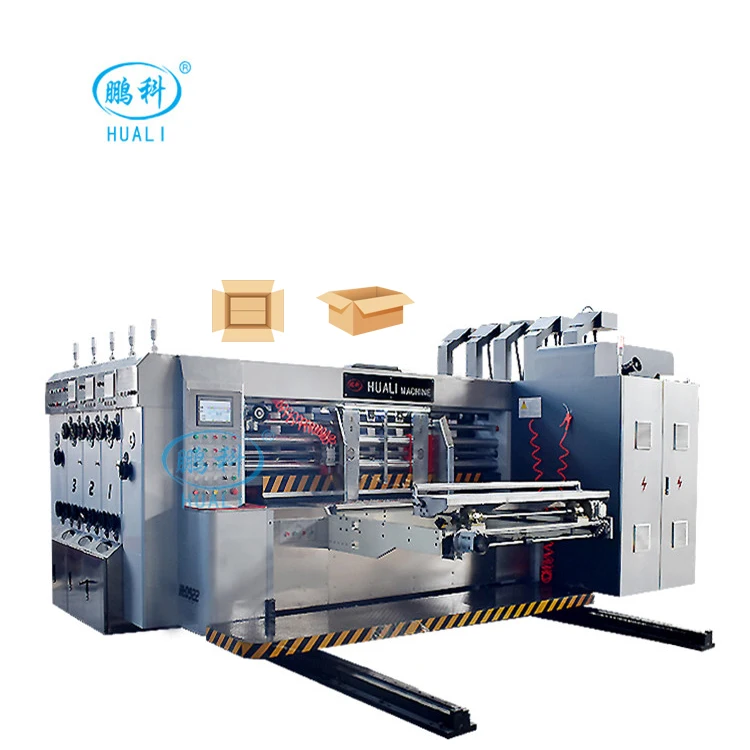

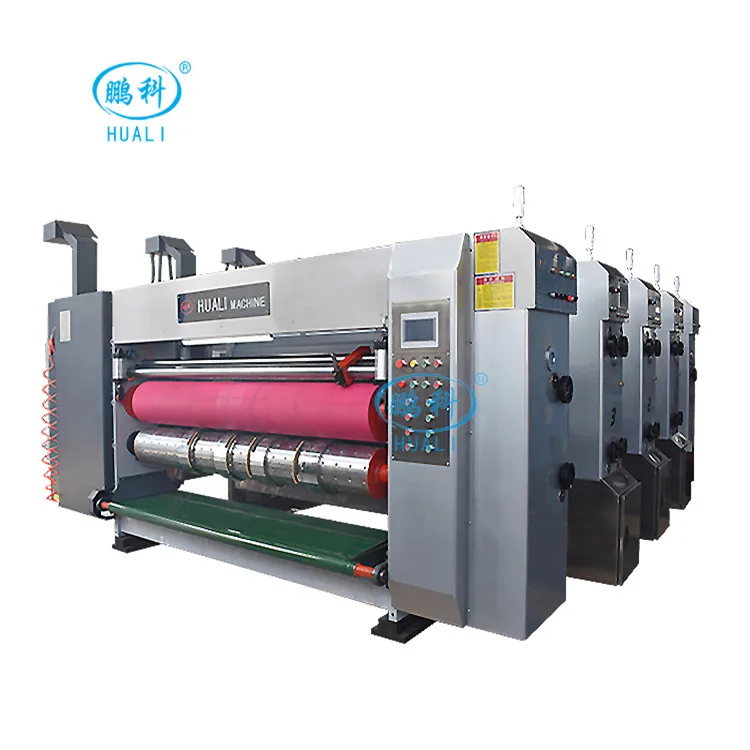

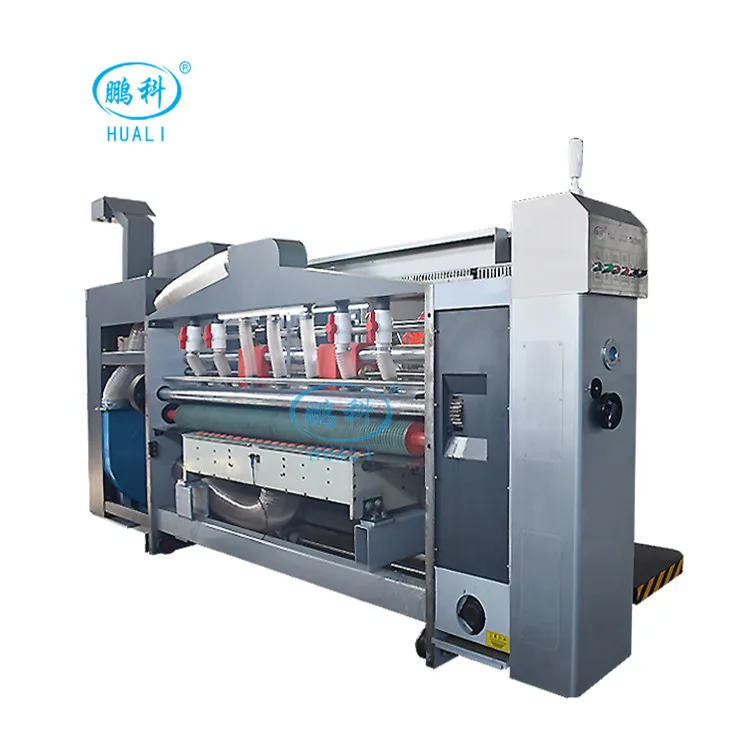

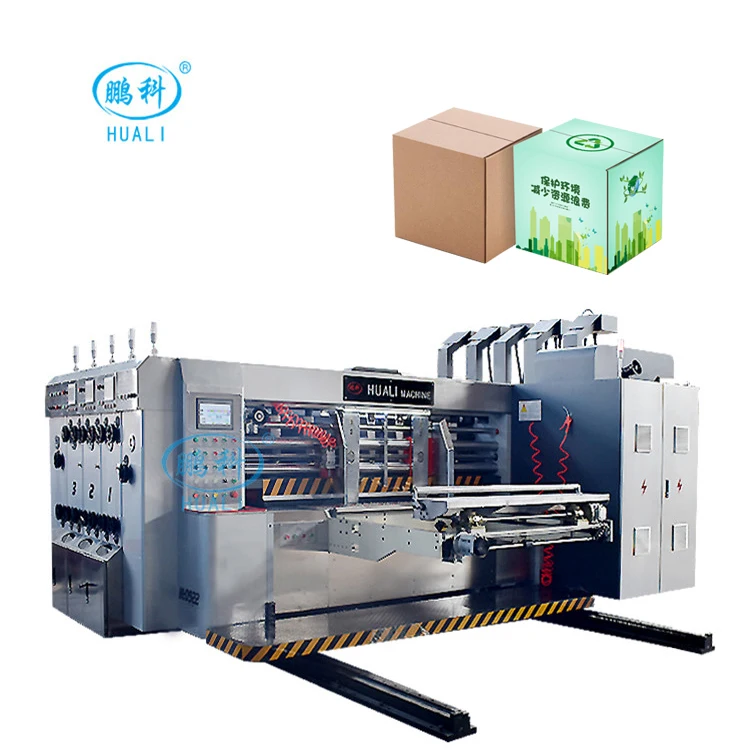

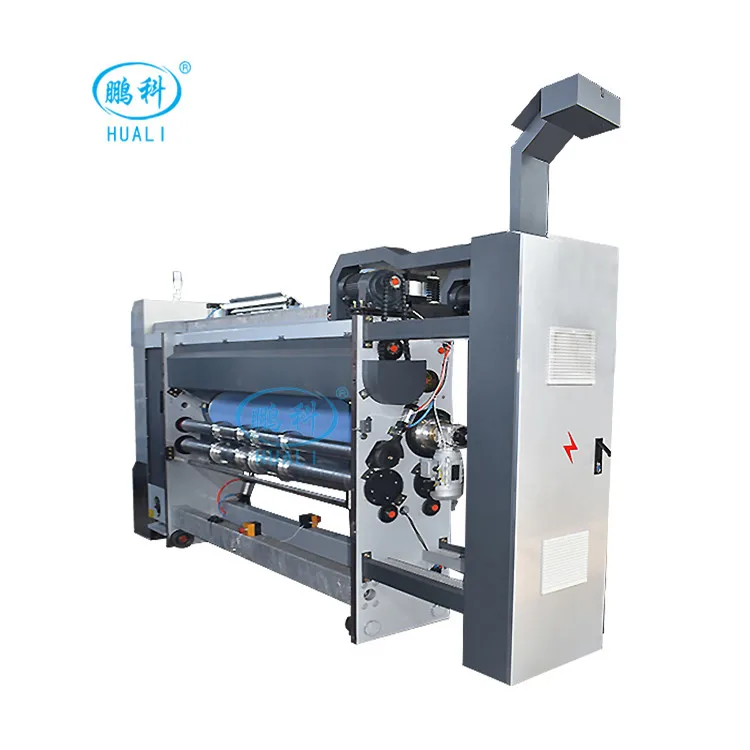

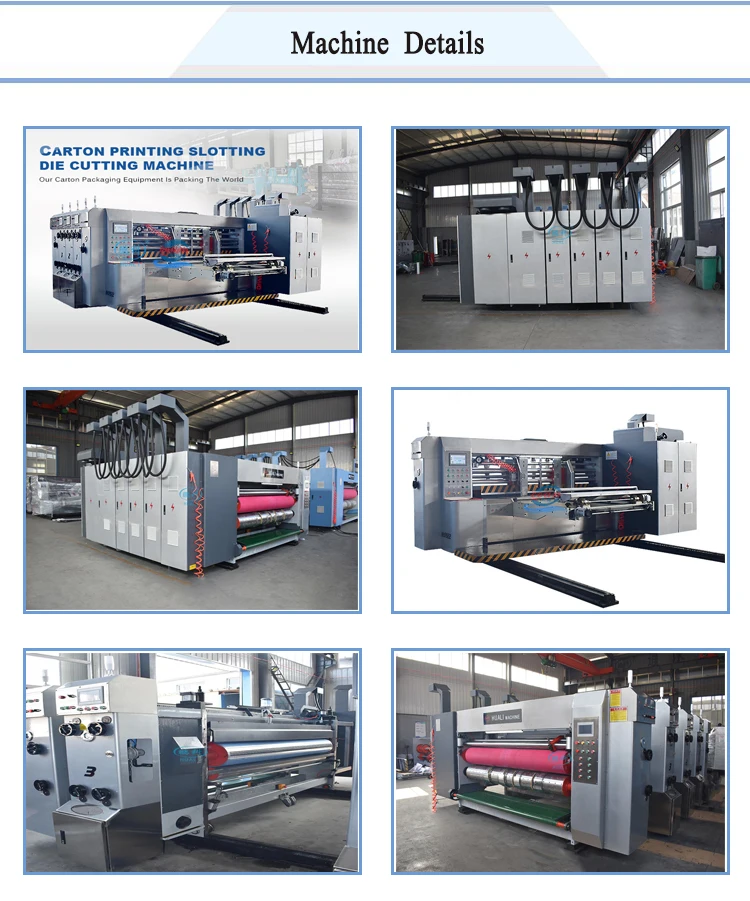

Auto Flexo Printing Slotting Die Cutting Machine Carton Box Manufacturing Machine

Product Overview

Description

Auto Flexo Printing Slotting Die Cutting Machine Carton Box Manufacturing Machine



1.  The whole machine is adopted international famous brand appliances “Siemens, Schneider”.The quality is stable and reliable.

2. The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

3. The engine drive gear is adopted 40Cr, the shaving machining nitrogen treatment, tinted with high precision.



Moldel	920	1224	1426	1628
Max speed (pcs/min)	300	250	180	160
Feeding precision(mm)	±1
Min sheet size(mm)	300*600	420*600	450*600	450*600
Max sheet size(mm)	860*2100	1150*2500	1350*2700	1500*2900
Skip sheet size|(mm)	1200*2100	1500*2500	1800*2700	2000*2900
Max printing area(mm)	900*2000	1200*2400	1400*2600	1600*2800
Printing precision(mm)	±0.5
Plate thickness(mm)	7.2
positive  knife Min slotting distance                                                                     negative knife	130*130*130*130	140*140*140*140	150*150*150*150
	230*65*230*65	230*70*230*70	240*75*240*75
Max slot depth	230	300	360	400
	increase the blade, increase  the slot depth
Slotting precision(mm)	±1
Die cutting precision(mm)	±1
