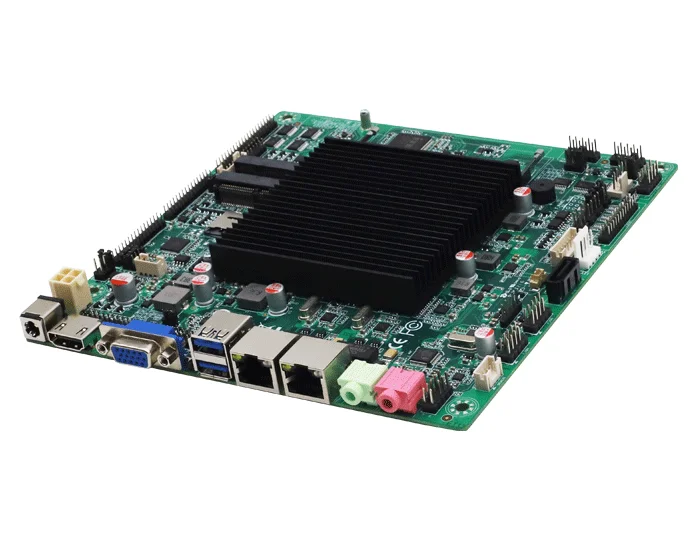

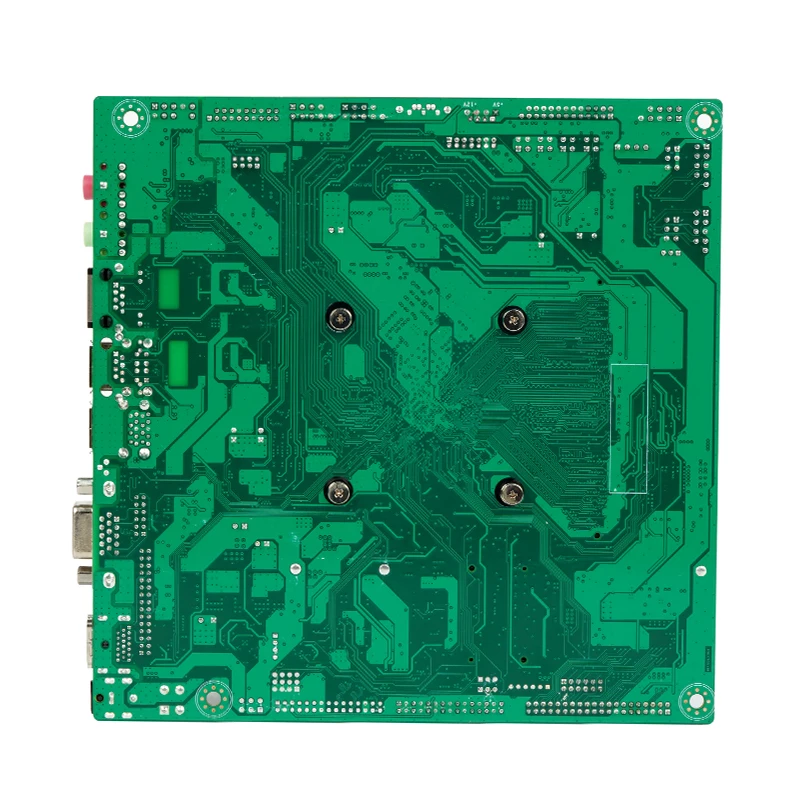

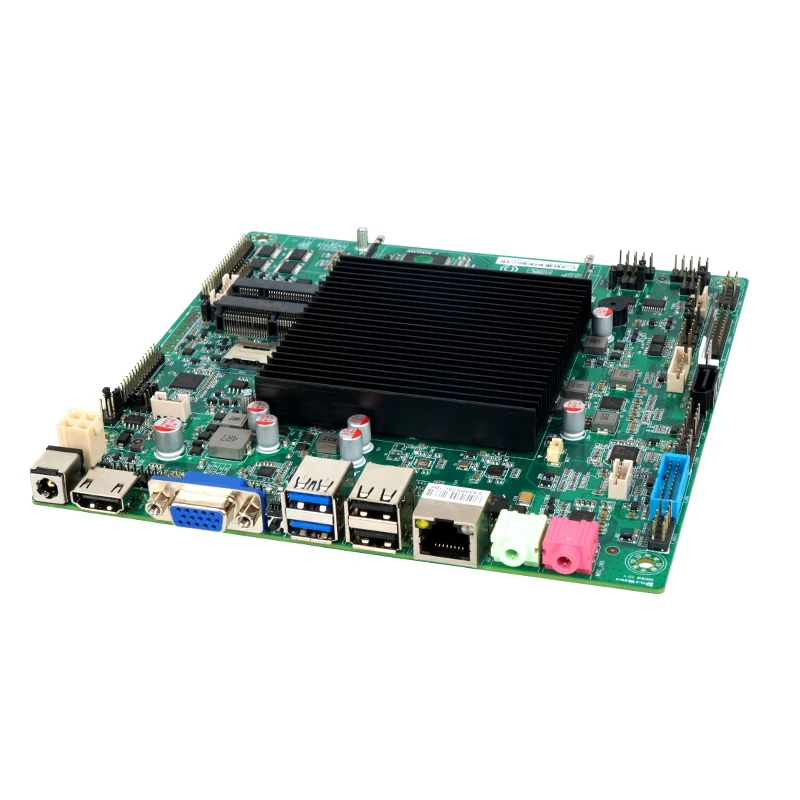

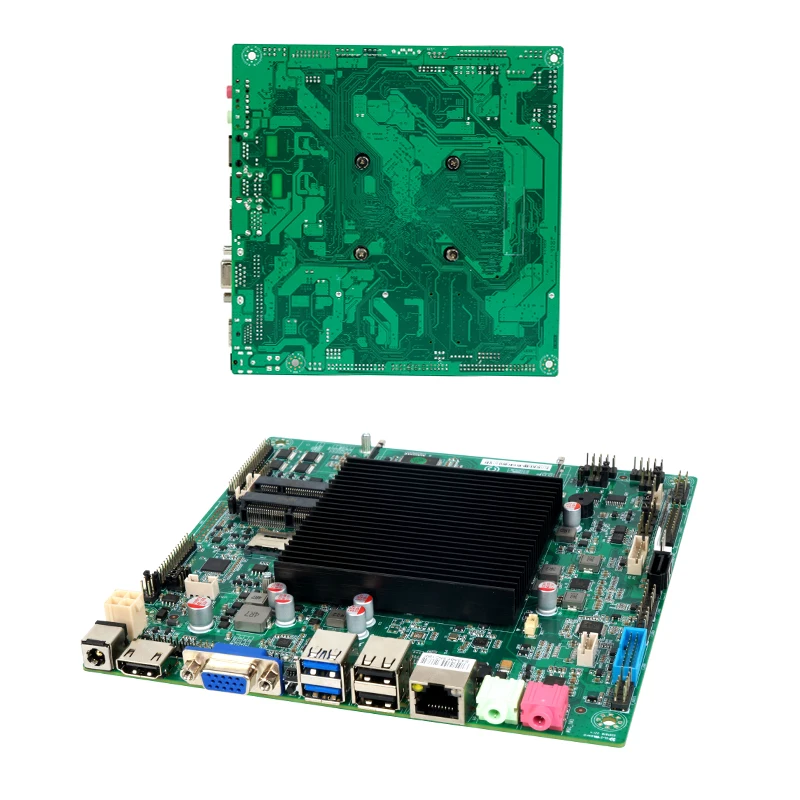

Zeroone In-Tel Cerelon J4125 Cpu Fanless Mini-Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard
Zeroone In-Tel Cerelon J4125 Cpu Fanless Mini-Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard
Zeroone In-Tel Cerelon J4125 Cpu Fanless Mini-Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard
Zeroone In-Tel Cerelon J4125 Cpu Fanless Mini-Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard
Zeroone In-Tel Cerelon J4125 Cpu Fanless Mini-Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard
Zeroone In-Tel Cerelon J4125 Cpu Fanless Mini-Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard

Zeroone In Tel Cerelon J4125 Cpu Fanless Mini Itx Motherboard Vga Lvds/Edp Low Power Consumption Rohs Motherboard

Share on (1600913461573):


Price:$55.00 - $63.00

Quantity:


Product Overview

Description



Product Description


Model
ZO-J4125TC-6C1L
CPU
Support Intel® Gemini lake J4125 Processor
GPU
Intel UHD Graphics 600
Chipset
Gemini lake
Display output
VGA+HD-MI/EDP2+LVDS/EDP1 Triple Display(synchrony/asynchrony)
Memory
1*SO-DIMM DDR4 2400MHz Max8GB
Network
Onboard 1*Realtek RTL8106 100M (Options: 2*LAN、Gigabit LAN）
Audio
Onboard audio decoder controller
Built-in Amplifier out3W@4Ω 1.7W@8Ω max
Storage
1*SATA 3.0   1*mSATA
Expansion Slot
*Mini_PCIe( Support WIFI&BT/4G)
USB
2*USB3.0+7*USB2.0
COM
6*COM232, Option: COM2 support 485 (Option: 2COM)

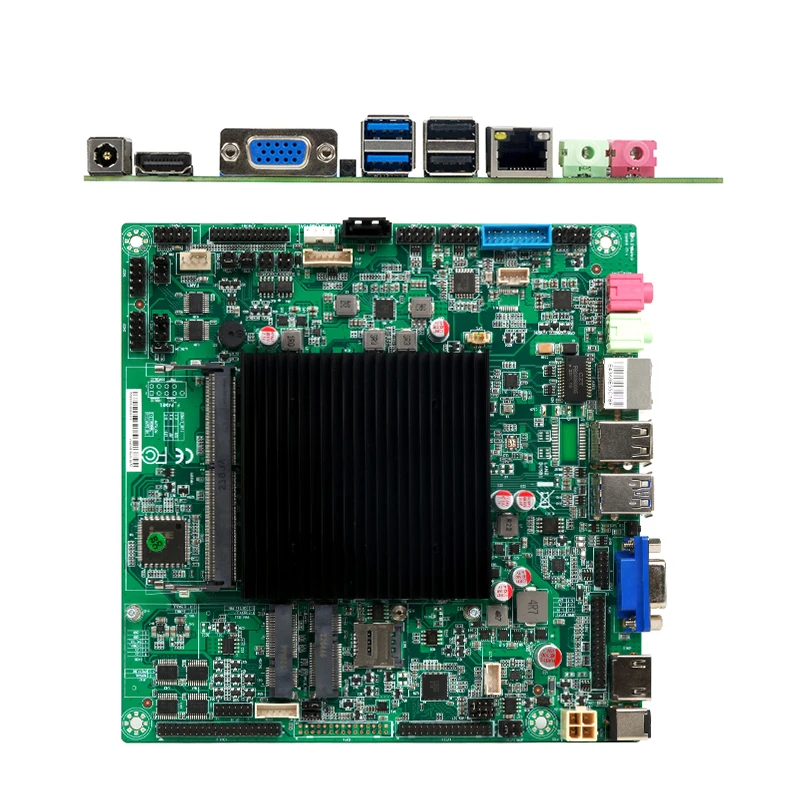

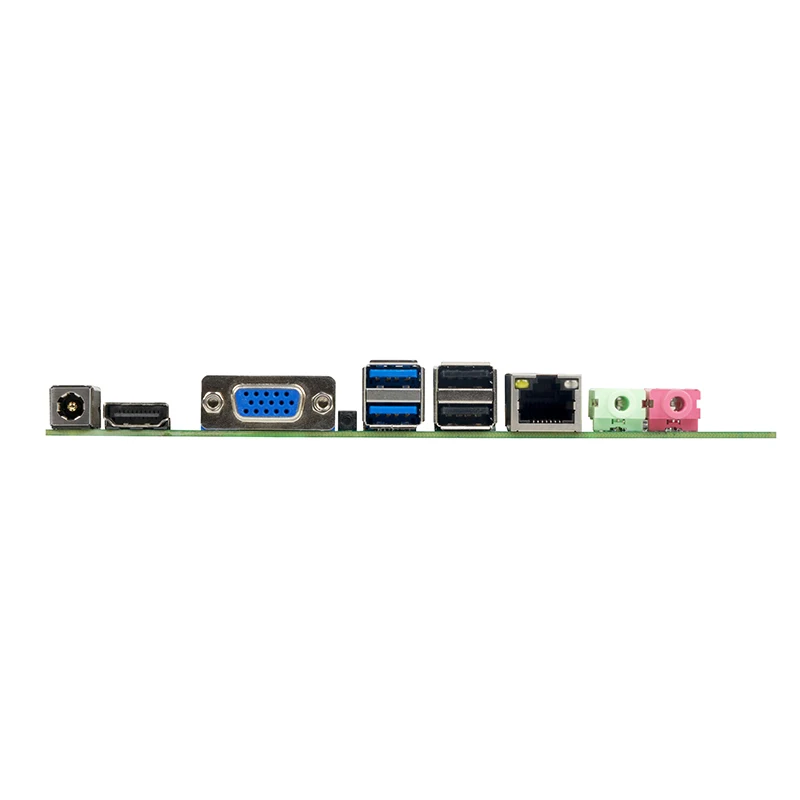

Rear I/O
1*DC（φ5.5&2.5mm DC Jack）

1*HD-MI   1*VGA   2*USB3.0   1*CMOS

2*USB2.0 （LAN2 or 2*USB2.0 ）

1*HP_OUT    1*MIC_IN
Internal I/O
1*EDP2 PIN（This pin has no function by default, if you want to use it, we need to update the BIOS firmware）

1*VGA_H PIN  1*F-AUDIO PIN     1*SPEAKER PIN

3*F_USB2.0 PIN（can be extended to 7*USB2.0）

1*SATA PIN    1*SATA_PWR PIN   1*JPS2 PIN

1*J_PRINT PIN  1*F_PANEL PIN   1*INVERT PIN

2*COM232 PIN（ Support 1*RS485，COM1 and COM2 support DCD/5V/12V） 1*COM_CON PIN（4*COM232）

 1*GPIO PIN   1*LVDS PIN/1*EDP1 PIN   1*SIM Slot 1*ATX PIN

BIOS
AMI  BIOS
Power
DC+4PIN ATX  12V
Cooling System
FANLESS
Operating Humidity
0~60℃；-20% ~ 95% Relative Humidity,Non-condensing
Form Factor
170X170MM Thin MINI-ITX


  • Product Characteristics

  • -Support Intel® Gemini lake J4125 Processor Quad core Quad
    Threads 2.0 GHz~2.7 GHz；Intel® UHD Graphics 600
    -1*SO-DIMM DDR4 2133/2400MHz Max8GB
    Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display
    -Support HDMI2.0 4K 60Hz Output
    -Onboard 1*RTL8106 100M（Options: 1000M、2*LAN）
    -Support 2*USB3.0+7*USB2.0
    -Support 6*COM232，(Option: COM2 can Support 485)
    -Support 1*SATA3.0、1*mSATA Support SATA SSD
    -Onboard 1*MiniPCIe，Support Wifi+BT /4G Module
    -DC12V Power Supply

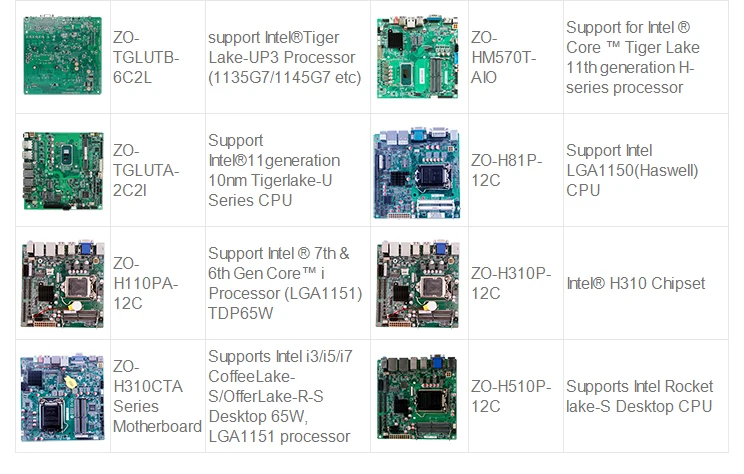

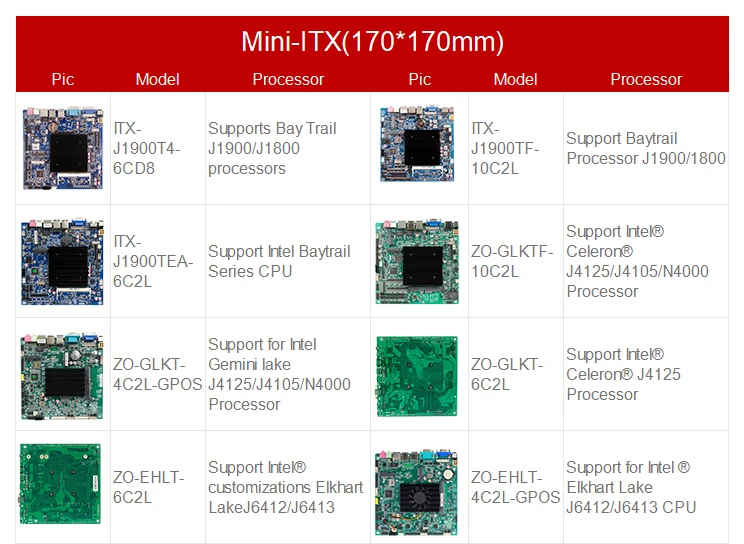

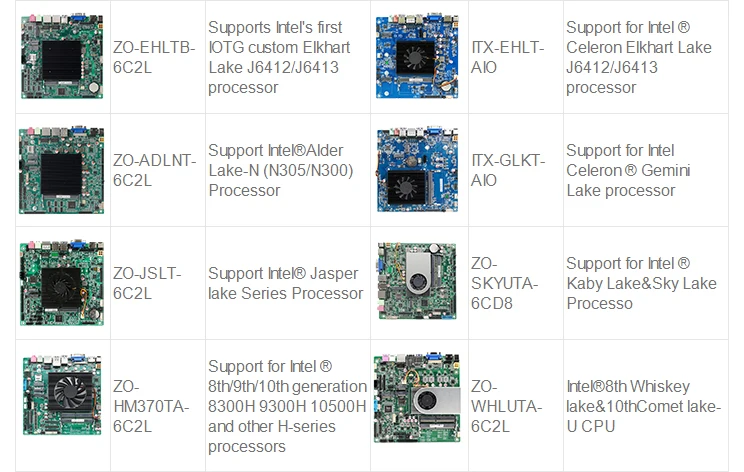

Recommend Products
