Product Overview
Description
flexible welding fume extraction arm with hood,LB-JYB wall mounted gas and exhaust extractor suction arm

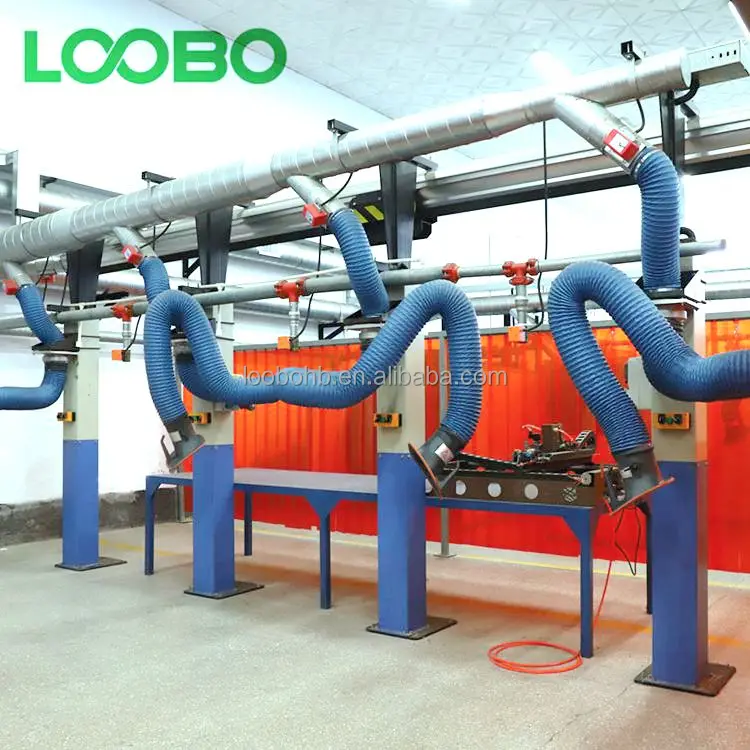

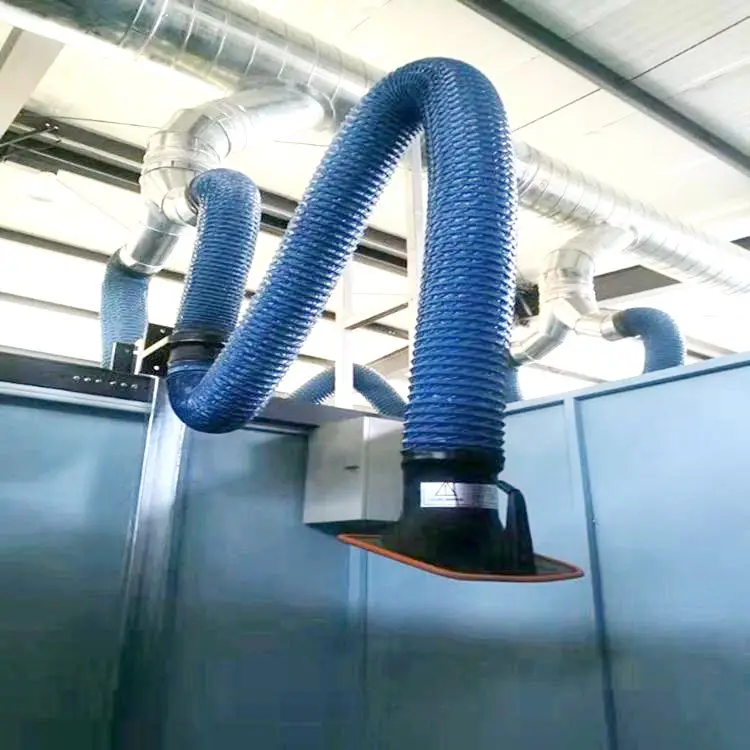

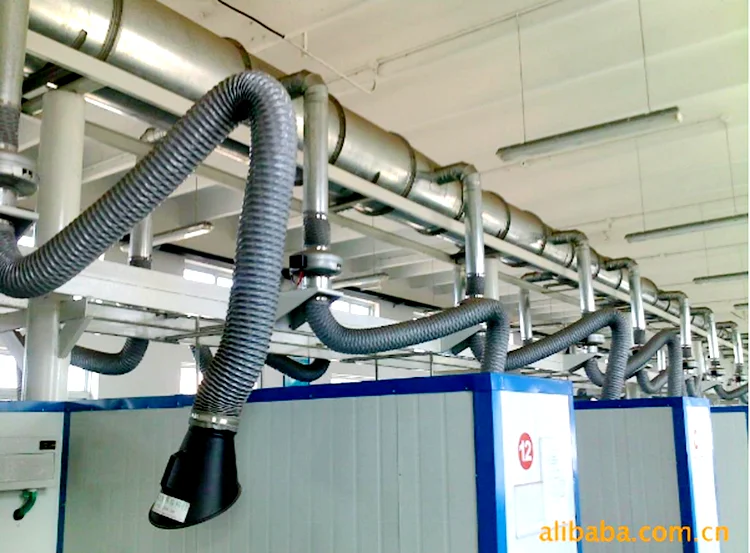

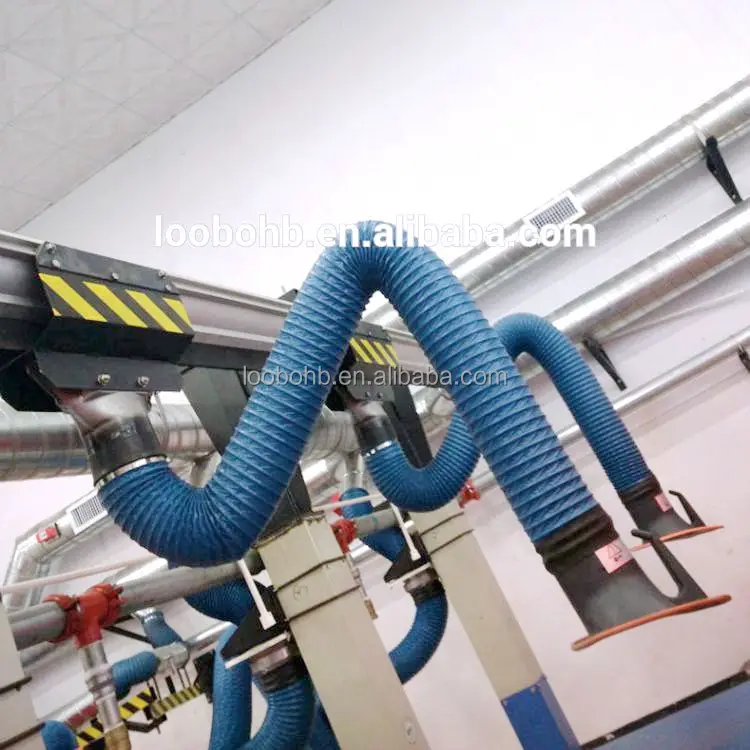

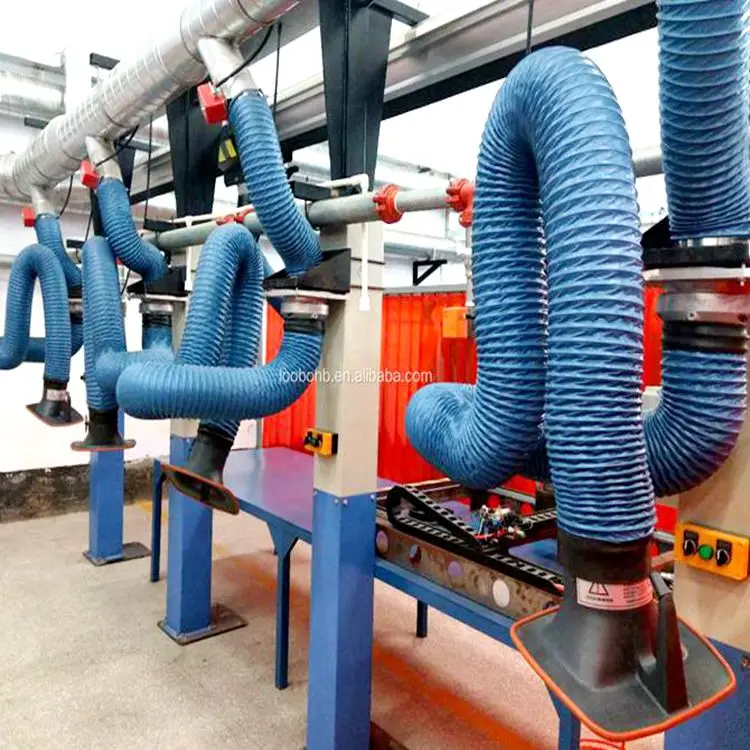

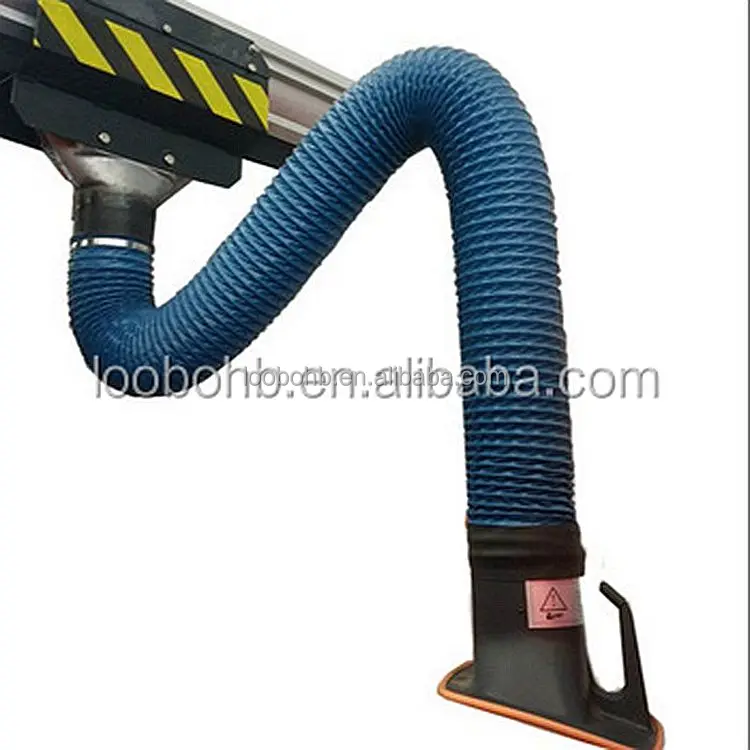

LB-JYB Wall-mounted flexible suction arm
Connection mode:Fixed bracket connection (sealed by elastic rubber ring)
Cover pattern:Tapered suction port (A), horseshoe suction port (L), plate suction port (T), hat suction port (H) and other forms of cover ports can be customized. The cover is equipped with air volume control valve.
Equipment length:2m, 3m, 4m (more than 4m needs to be equipped with extended support arms, the length can reach 10m)
Pipe diameter of equipment:Other specifications need to be customized.
Outer tube material:Imported PVC steel wire air duct, corrosion resistant, temperature resistant 1400 c .
Skeleton material:Except spring steel galvanized, other metal components and fasteners are 304# stainless steel.
LB-JYB flexible suction arm is made of imported PVC hose with acid and alkali resistance and 140℃ high temperature resistance. Its internal components and cover bracket are all made of stainless steel, which can hover freely at 360 degrees with suction port air volume control valve.Its good stretching and hovering characteristics can not only be matched with various types of welding smoke purifiers and dust removers, but also be directly installed on walls or systems to be matched with pipelines for smoke and dust gas emission.
The inner wall and bracket of all stainless steel hood will never rust. It is corrosion resistant, acid, alkali and salt resistant, high temperature resistant, light in weight, high in strength, with power assisting device, labor saving in operation and easy to hover. The suction arm is widely used in industries such as metal processing, welding dust, workpiece polishing, hot processing oil mist treatment, odor removal, dust removal, etc.
Optional accessories: cover fire net; Working spotlights; Light, smoke and temperature sensors.
Lubo can customize a variety of suction arm series products that meet your working conditions according to different requirements of users.

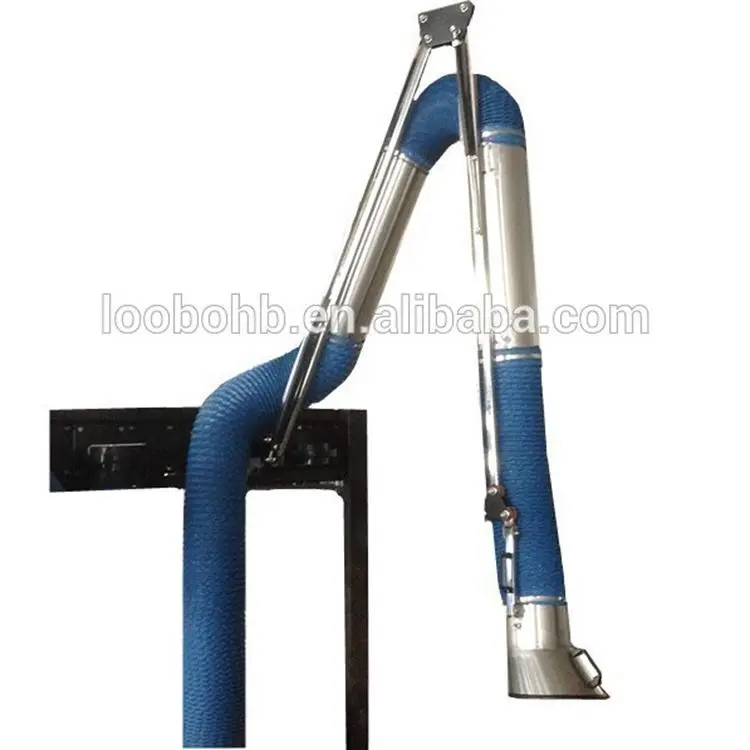

LB-JYC skeleton external suction arm
Equipment length:2m,3m,4m
Pipe diameter of equipment:150mm,160mm,200mm(Other specifications need to be customized).
Outer tube material:Imported PVC steel wire air duct, corrosion resistant, acid and alkali resistant, 140 degree temperature resistant .
Skeleton material:Except spring steel galvanized, other metal components and fasteners are 304# stainless steel.
The company is committed to continuously updating its products and can provide various types of suction arms according to different needs of users.

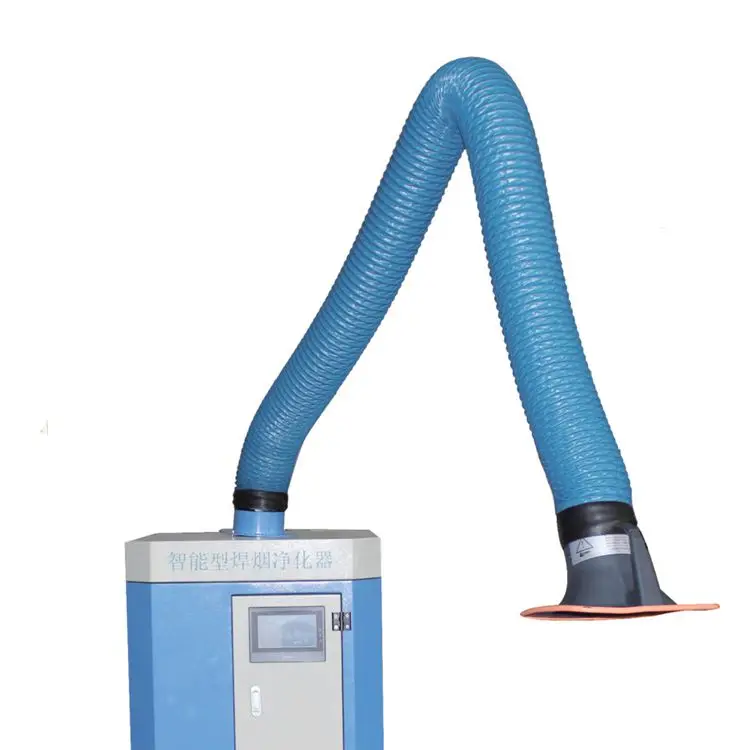

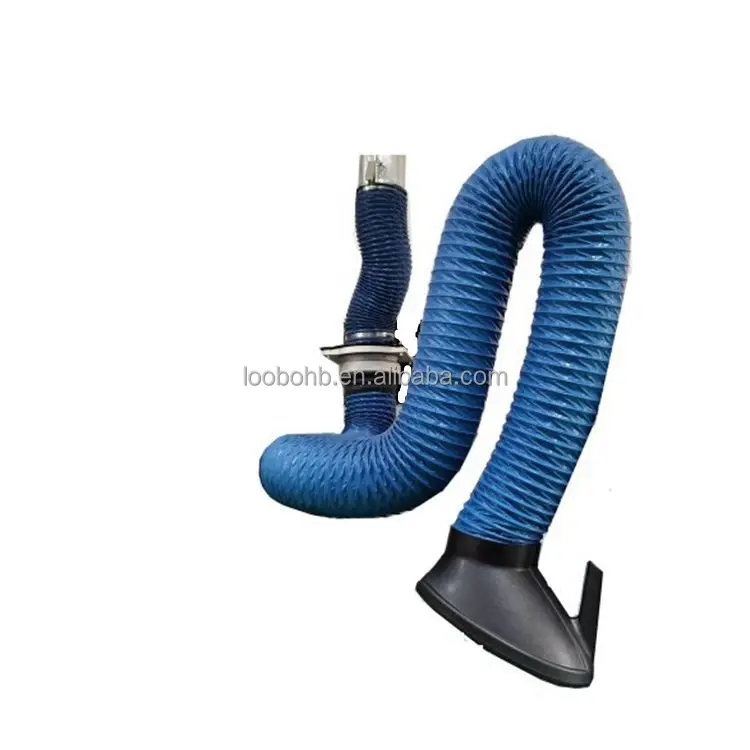

LB-JYSB Flexible suction arm for equipment
Name of equipment: equipment-mounted flexible suction arm
Connection mode: fixed flange connection (sealed by elastic rubber ring)
Cover pattern:Tapered suction port (A), horseshoe suction port (L), plate suction port (T), hat suction port (H) and other forms of cover ports can be customized. The cover is equipped with air volume control valve.
Equipment length:2m,3m,4m
Pipe diameter of equipment:150mm,160mm,200mm(Other specifications need to be customized).
Outer tube material:Imported PVC steel wire air duct, corrosion resistant, temperature resistant 1400 c .
Skeleton material:Except spring steel galvanized, other metal components and fasteners are 304# stainless steel.
Optional accessories: cover fire net, working spotlights, light, smoke and temperature sensors

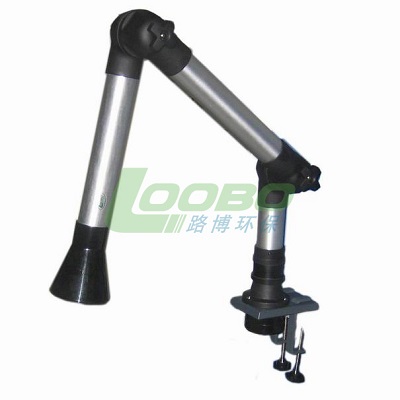

LB-JYX Multi-joint suction arm
1. This suction arm frame is made of all-aluminum alloy, which is never rusted, corrosion-resistant, acid, alkali and salt-resistant, high temperature resistant, light in weight, high in strength, with power assisting device, labor-saving in operation, and easy to hover.
2. Each link adopts fluid design to reduce the gas resistance.
3. The invention has wide application range, can be matched with various types of welding smoke purifiers and dust removers, can be directly installed on a wall or a system and is matched with pipelines for discharging smoke and dust gas, and has high collection efficiency for the smoke and dust gas.
4. The link rods of the equipment are made of our company's standard materials and can be customized according to the actual usage.

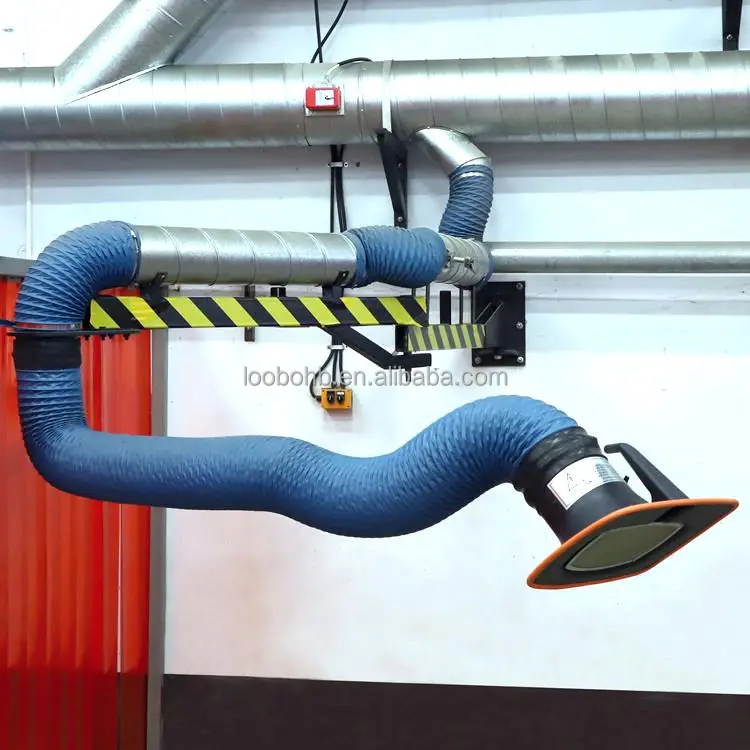

LB-JC Extended suction arm
The lengthened extension suction arm is supported by a rotary bearing, an extension bracket installed on a wall is used in combination with a conventional suction arm, and is suspended and installed by a wall bracket with a rotating shaft, and a connecting head is arranged in the middle, so that the lengthened extension suction arm can flexibly rotate in all directions and achieve a larger working range. The lengthened extension arm can be connected with a fan or an air suction pipe of a central purification system, and other equipment, a coil unit, an air suction pipe, an air suction cover opening and the like can be installed on the lengthened extension arm according to field conditions.
When large air volume is required, the working range is relatively large, and the medium temperature is higher than the normal temperature, Lubo is specially designed for working environment with large amount of flue gas, steam or non-explosive dust.
Typical application sites include metal manufacturing industry or other industries requiring large air volume exhaust, and can also be used for welding, laser or manual particle cutting, metal spraying, grinding or other technological processes requiring excellent balance performance and easy positioning of movable arms.
LB-JYD Miniature suction arm
The new suction arm occupies a small space, can stretch up and down, left and right, and can stay at any position in a three-dimensional space, and is suitable for occasions with relatively narrow working environment. In addition, there is no built-in framework inside, thus reducing wind pressure loss. Can be connected with other purification equipment to increase the length and use range of the suction arm.
It is suitable for the absorption of welding fume, waste gas, lampblack and other waste gas and dust produced by various industries such as machinery, food, pharmacy, chemical industry, electronics, laboratory, etc.It Can be continuously used in a high temperature environment of 100℃.
Length: 1.0m
Diameter: 50mm

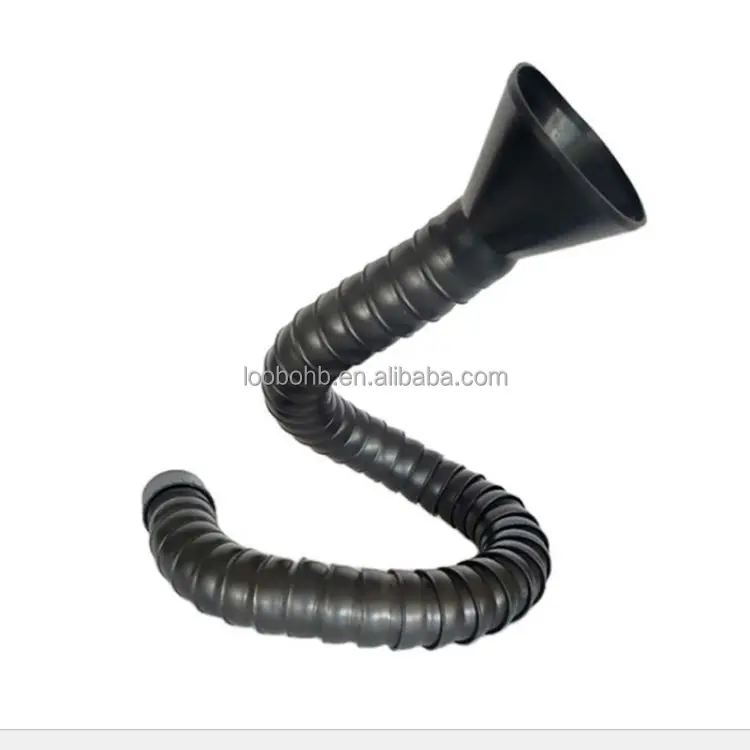

LB-QXB Suction arm
One end of the suction arm can be connected with a main air pipe or other dust suction equipment, and has good hovering performance, can be bent at will, and can stay in any space according to working conditions.
The suction arm is formed by butt joint of PP joints with a length of 40mm and a diameter of 70 mm. It is light in weight and can be arbitrarily lengthened and shortened according to the site conditions. The length does not affect the hovering of the suction arm.
Loobo company :
FAQ
FAQ
Q : Do you have after-sale service?
A : yes, we have perfect after-sale service for the products' all life.
Q : Where is your factory?
A: We are in Qingdao city,Shandong province,China.
Q: Are you a manufacturer or a trading company
A: We are manufacturer.
Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
Q:How long is the warranty?
A:The warranty is one year (except wearing spare parts )
Q:Whether your company can supply installation?
A:Yes,no problem.
