Easy To Operate Corrugated Cardboard Box Packing Slotter Automatic Partition Slotting Machine
- Category: >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.
Share on (1600913717982):
Product Overview
Description
Product Description

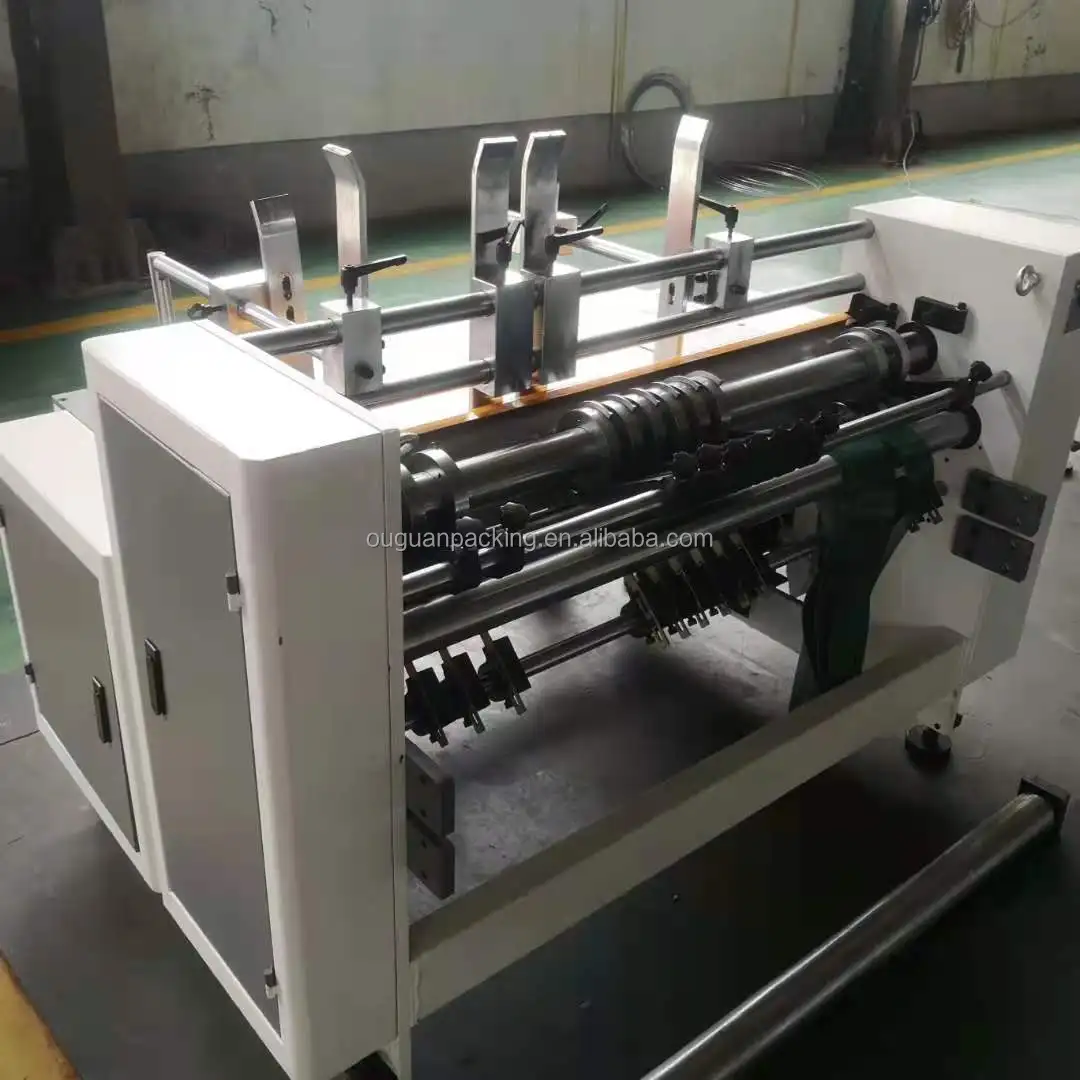

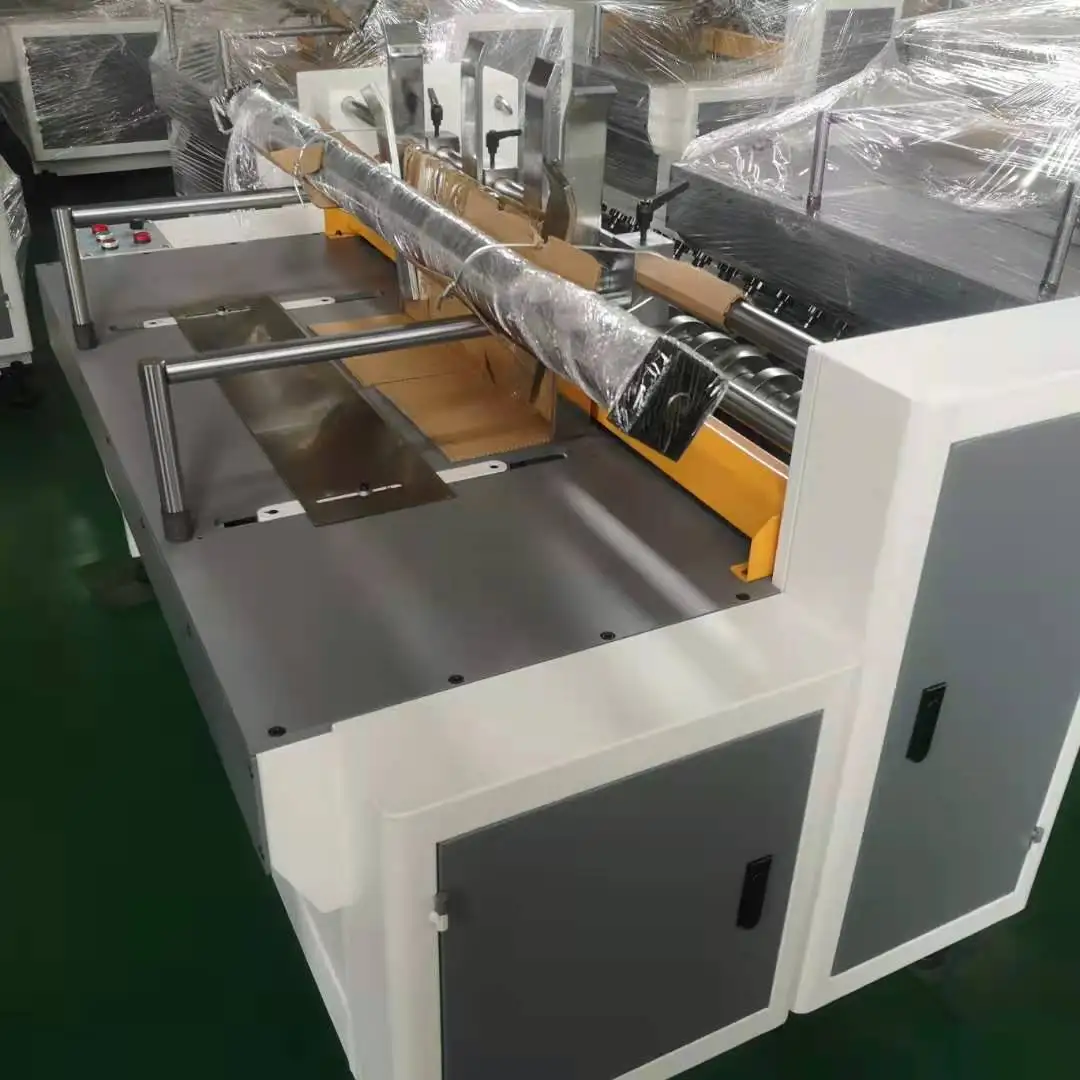

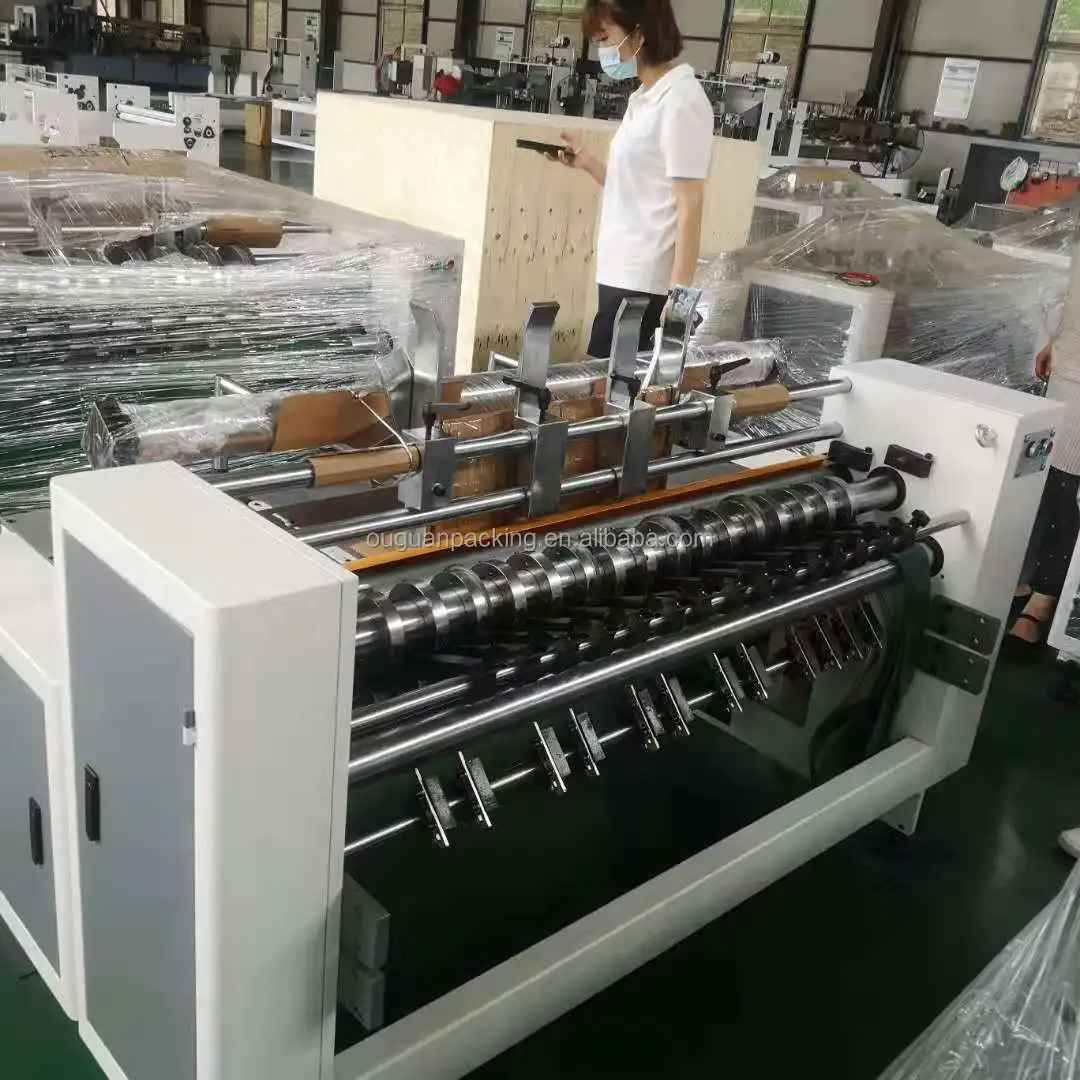

This machine adopts the manual feeding method, suction and push-plate feeding system. It has the function of slotting corrugated cardboard at one time. The machine and the slotting depth are adjusted manually. The slotting phase adjustment mechanism is a planetary gear structure. It adopts manual 360-degree adjustment. The upper and lower slotting cutters can be moved left and right manually. It is convenient to use and maintain. It is small and exquisite. It is a professional equipment for slotting and forming of partitions.
Machine characteristics

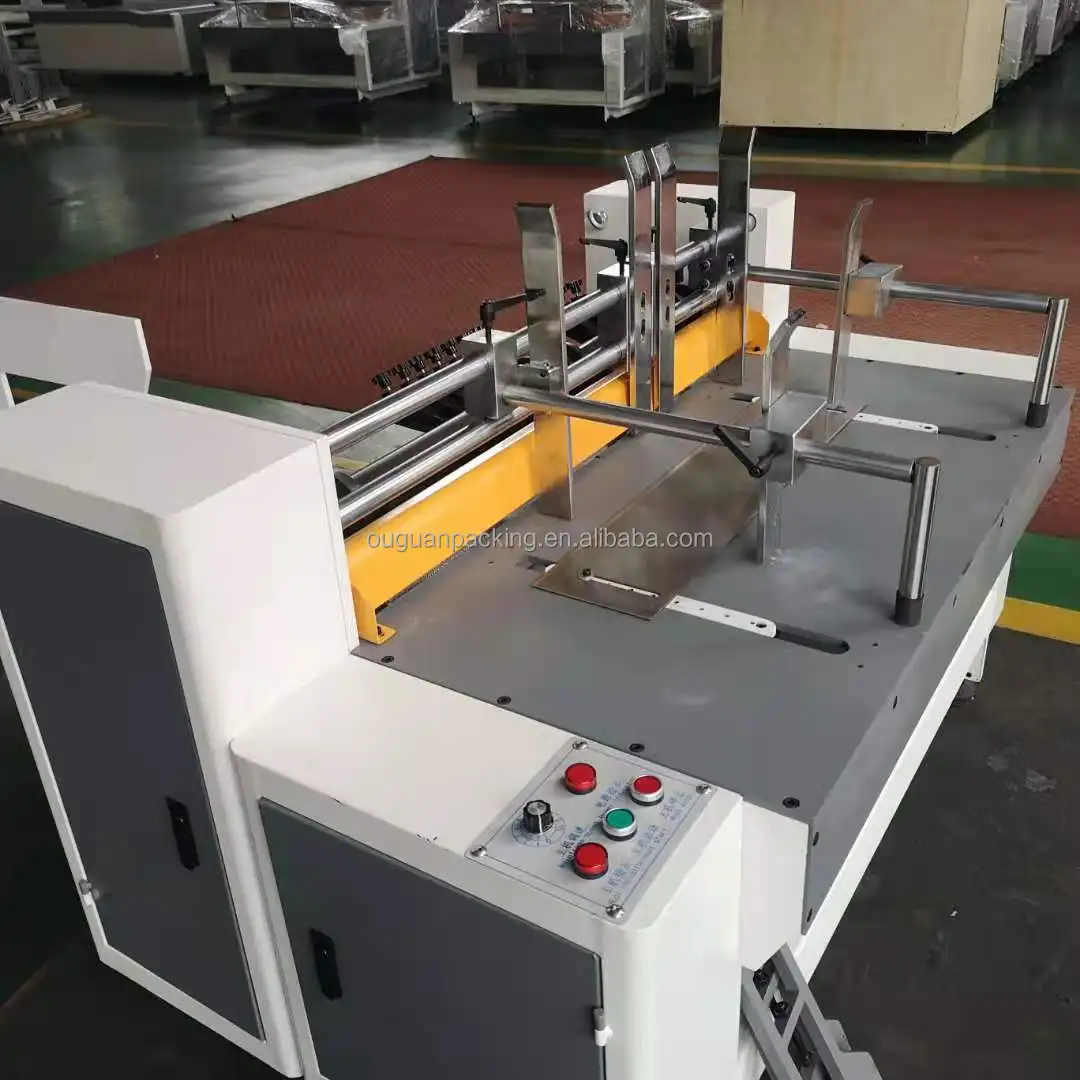

1.The paper feeding shaft adopts a patterned roller, and the pressure adjustment of the paper feeding shaft adopts an eccentric wheel adjustment. The left and right eccentric wheels can independently adjust the pressure2.The paper feeding and pushing plate adopts a double-side baffle and a rear baffle to stabilize the cardboard, so that the previous cardboard can be misplaced during the paper feeding process of the pushing plate, resulting in slotting errors. It can better adapt to various quality cardboards, and the paper feeding is stable and accurate.

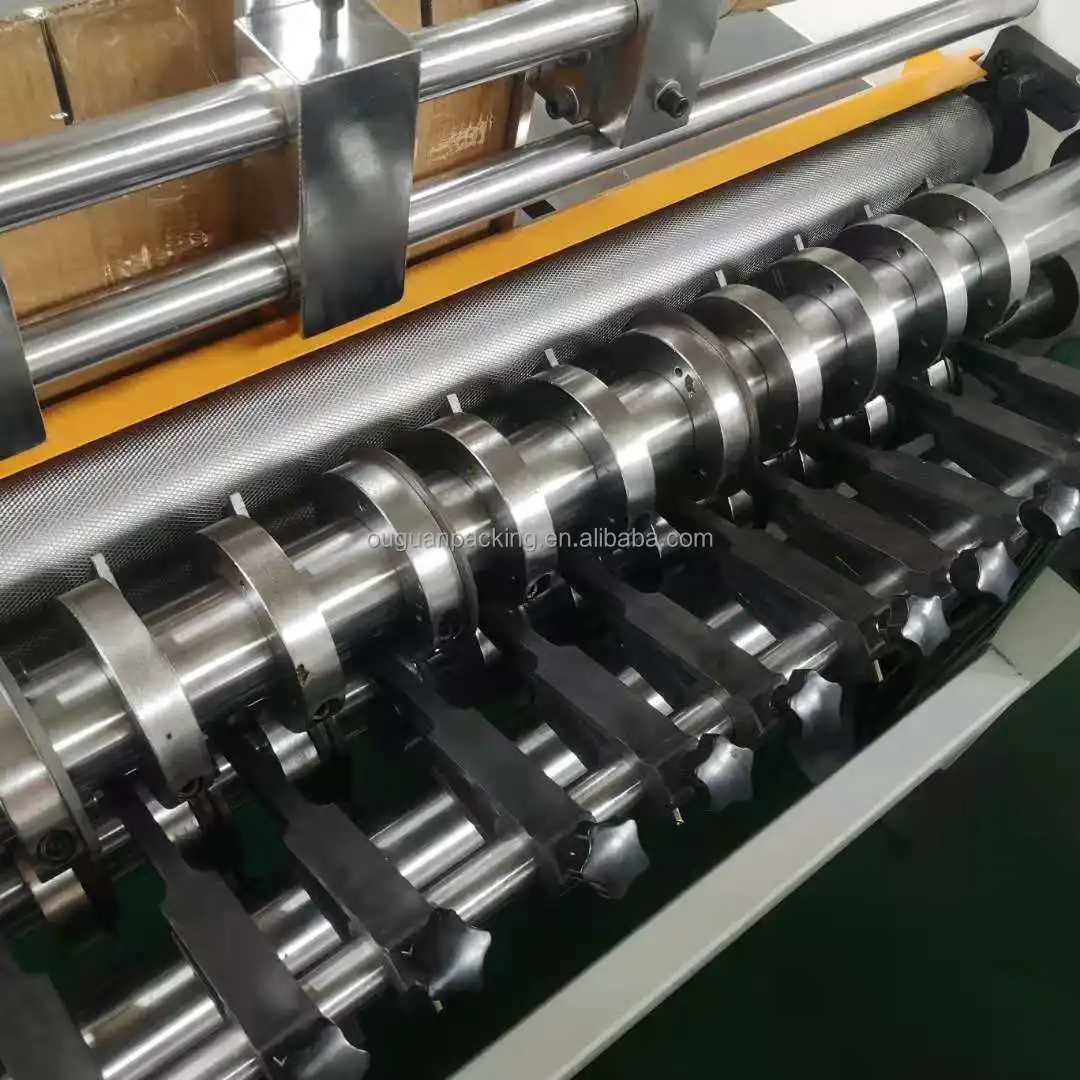

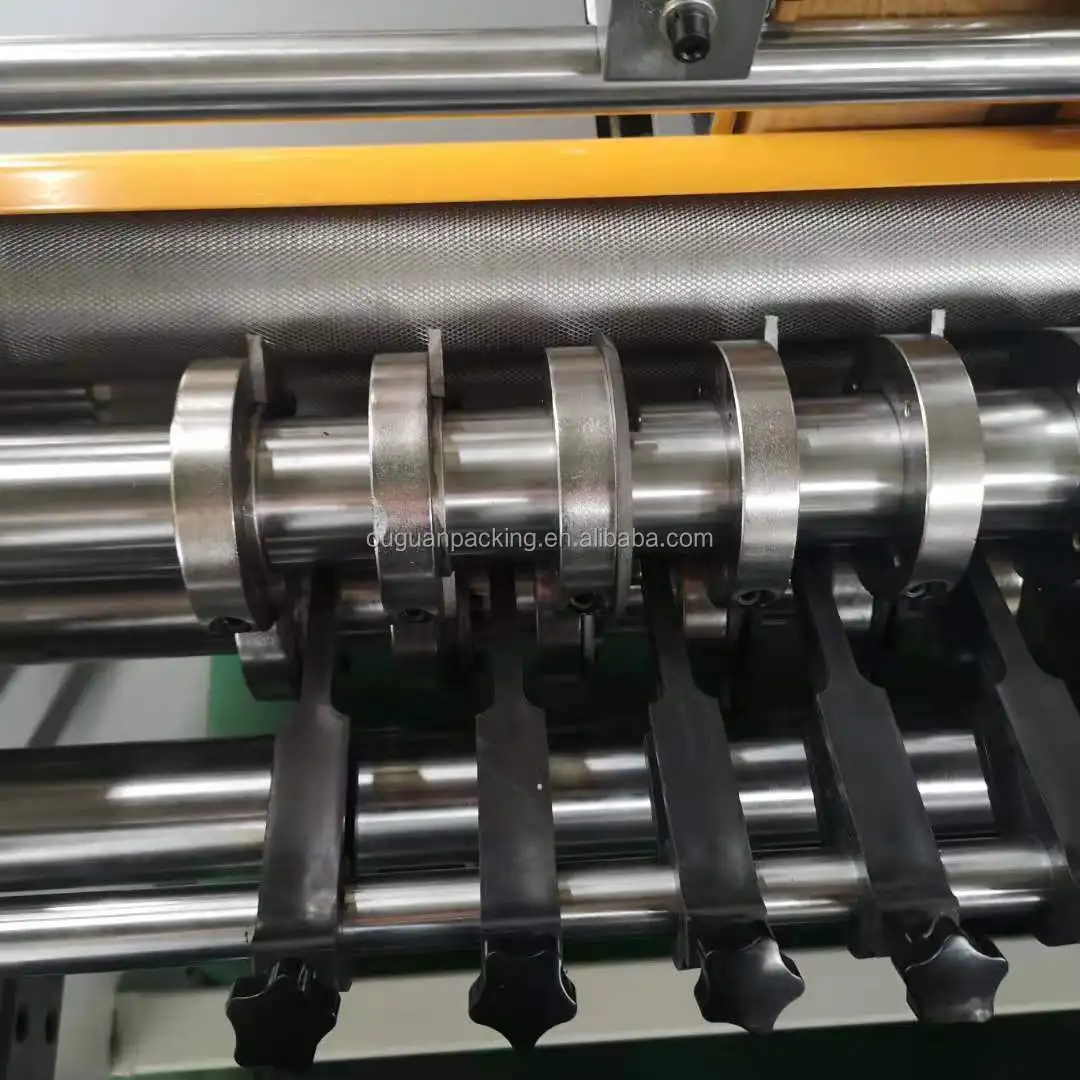

3.The slotting cutter head is made of aging castings, and the slotting knife uses a serrated arc semicircular knife to slot and remove chips. After slotting, the cardboard enters the conveyor belt for output.
4.The machine's power frequency conversion speed regulation, speed regulation function can be adjusted according to customer needs
5.After the cardboard is slotted, it is conveyed by the four conveying belts of the paper output part of the equipment, and loaded into the cardboard stacking tray, and the conveying is stable and the stacking is neat.
6.The machine adjusts the cardboard size by manual planetary gear phase adjustment
Cardboard feeding method | Automatic push plate feeding method |
Maximum range of processing cardboard | width1150 × height 600mm |
Minimum range of processing cardboard | width 200 × height 140mm |
Slotting spacing | 55mm |
Number of slots | 12 sets of slotting knives |
Slotting width | 5mm |
Working speed | 80- 100pcs/min |
Motor | 380V 4.5KW |
Dimensions | 1700mm×1500mm×1250mm |
Other Products
Customer Feedback
Company Profile
Why Choose Us
FAQ
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
