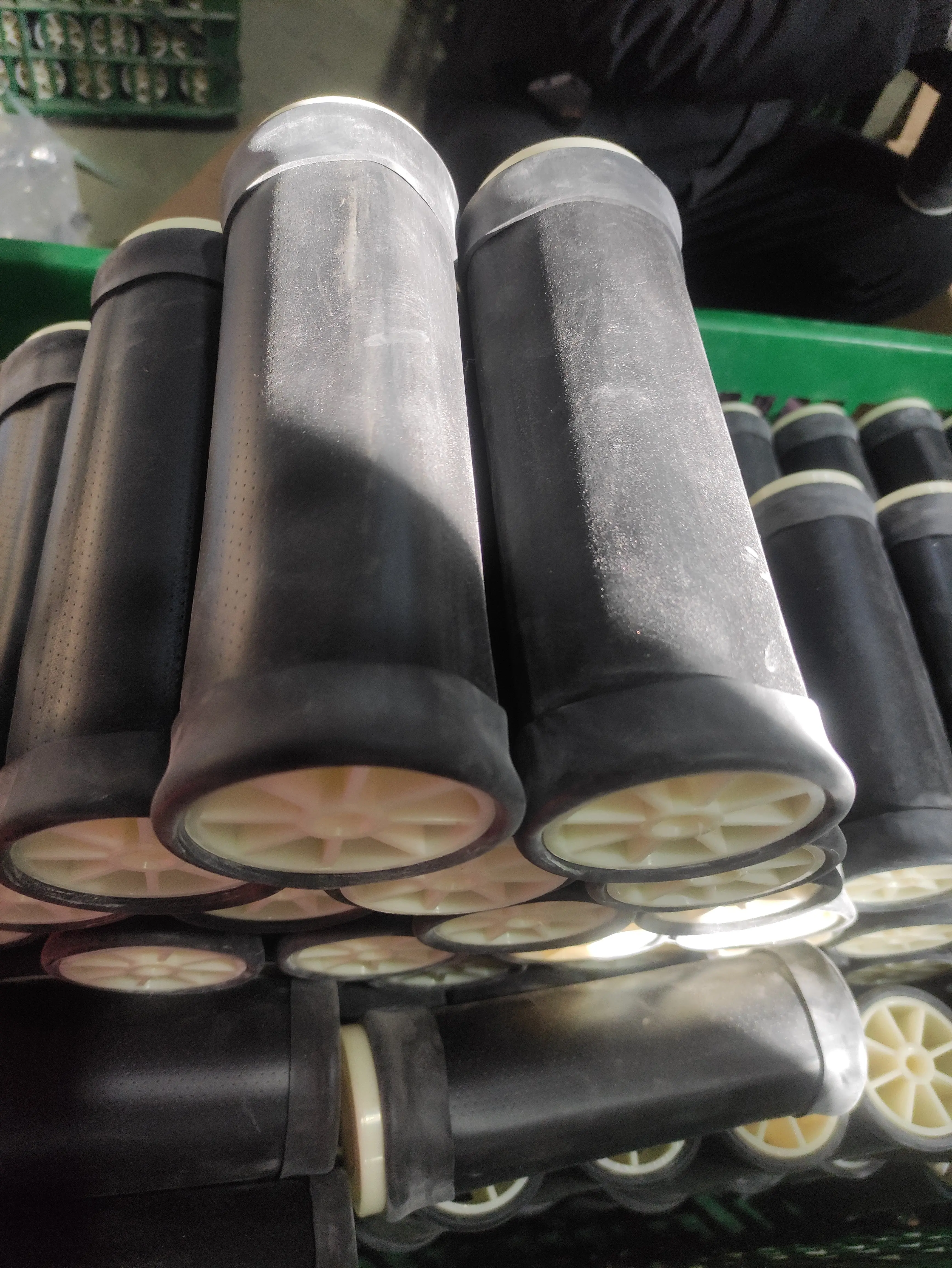

Factory Supply EPDM/Silicone Micropore Aerated Tube Micro Bubble Diffuser Tube Tubular Diffuser
- Category: >>>
- Supplier: Qiankun Environmental Protection Joint Stock Co. Ltd.
Share on (1600913728779):
Product Overview
Description

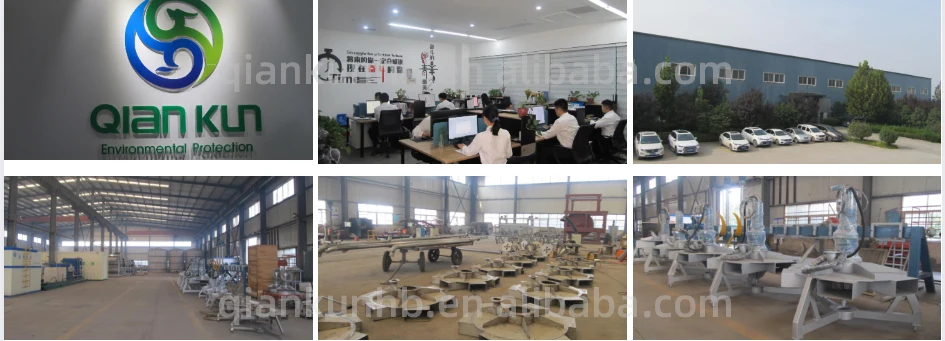

Company Profile
Located in Xin Xiang city, China, 18 years of forging ahead, combining with advanced technology from China and abroad, owns abundant practical experience and high-tech research team, launch a whole chain industrial enterprise, which offers a one-stop service for all kinds of waste water treatment project and has accumulated hundreds of references in pulp&paper, printing&dyeing, chemical fiber, chemicals, leather, breeding etc. various kinds of industries and municipal sewage treatment projects.
Business scope covers: Designing, equipment manufacturing, installation, commissioning, and after-sale service for WWTPs;
Global sales network: India, Egypt, Nigeria, Philippines, Thailand , Malaysia, Vietnam, Ethiopia, Russia etc.
Global sales network: India, Egypt, Nigeria, Philippines, Thailand , Malaysia, Vietnam, Ethiopia, Russia etc.
Product Description
tube microporous diffuser
Tube diffusers are best solution for long and narrow aeration tanks.

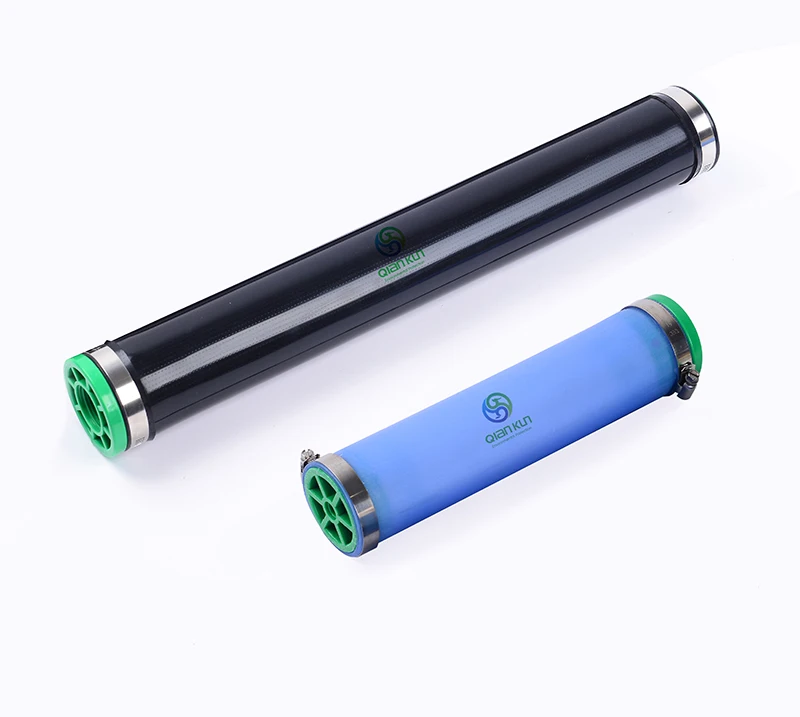

QK-TD tube diffuser:
Opportunity to choose different material, connection method, and size makes QK-TD tube diffusers fit to any type of waste water.
The air pipe is made of engineering plastic ABS, which is hollow and water-filled, which greatly reduces the buoyancy of the
aeration system in the water.
aeration system in the water.
Mainly used for the oxygenation of urban sewage and industrial wastewater treatment system.
Specification

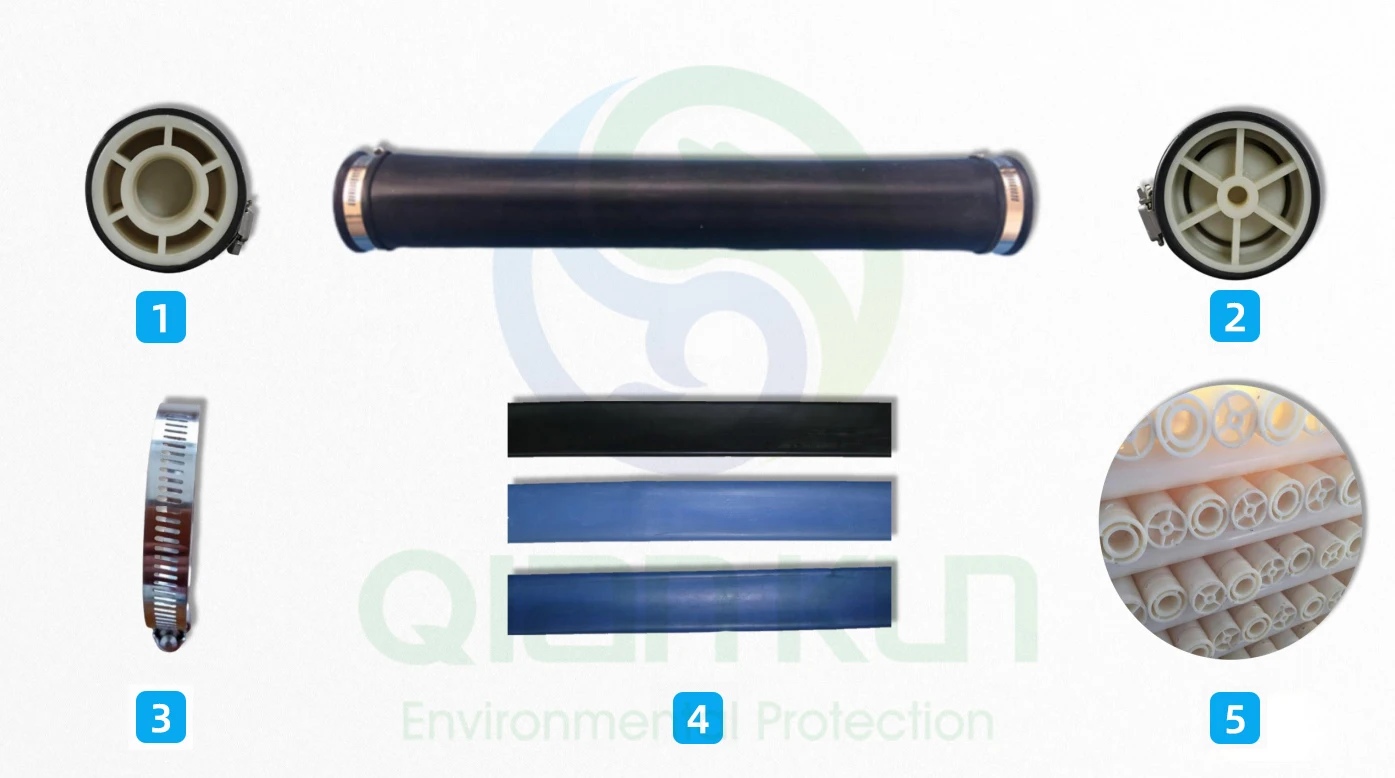

1. Big port 2. Small port 3. SS304 hoop 4. Silicone/Rubber mebrane 5. ABS pipe
Parameter
Product Parameter | Technical Parameter | |||
Model | QK-TD S | Service area: 0.8 - 1.2m2/m Hole diameter: 80-100/μm Air flow: 5 - 10m3/h.m Oxygen utilization: 18.4 - 27.7% Oxygenation capacity: 0.112-0.185kgO₂ /m³h Stomatal density: 8000-12000 pieces/m Drag loss: ≤2800pa | ||
Size | φ65mm φ75mm | Air flow: 5 - 10m3/h.m Oxygen utilization: 18.4 - 27.7% | ||
Installation | Saddle plan | |||
Material | Silicon+ABS | |||
Model | QK-TD R | Service area: 0.8 - 1.2m2/m Hole diameter: 80-100/μm Air flow: 5 - 10m3/h.m Oxygen utilization: 18.4 - 27.7% Oxygenation capacity: 0.112-0.185kgO₂ /m³h Stomatal density: 8000-12000 pieces/m Drag loss: ≤2800pa | ||
Size | φ65mm φ75mm | |||
Installation | Saddle plan | |||
Material | Rubber +ABS | |||

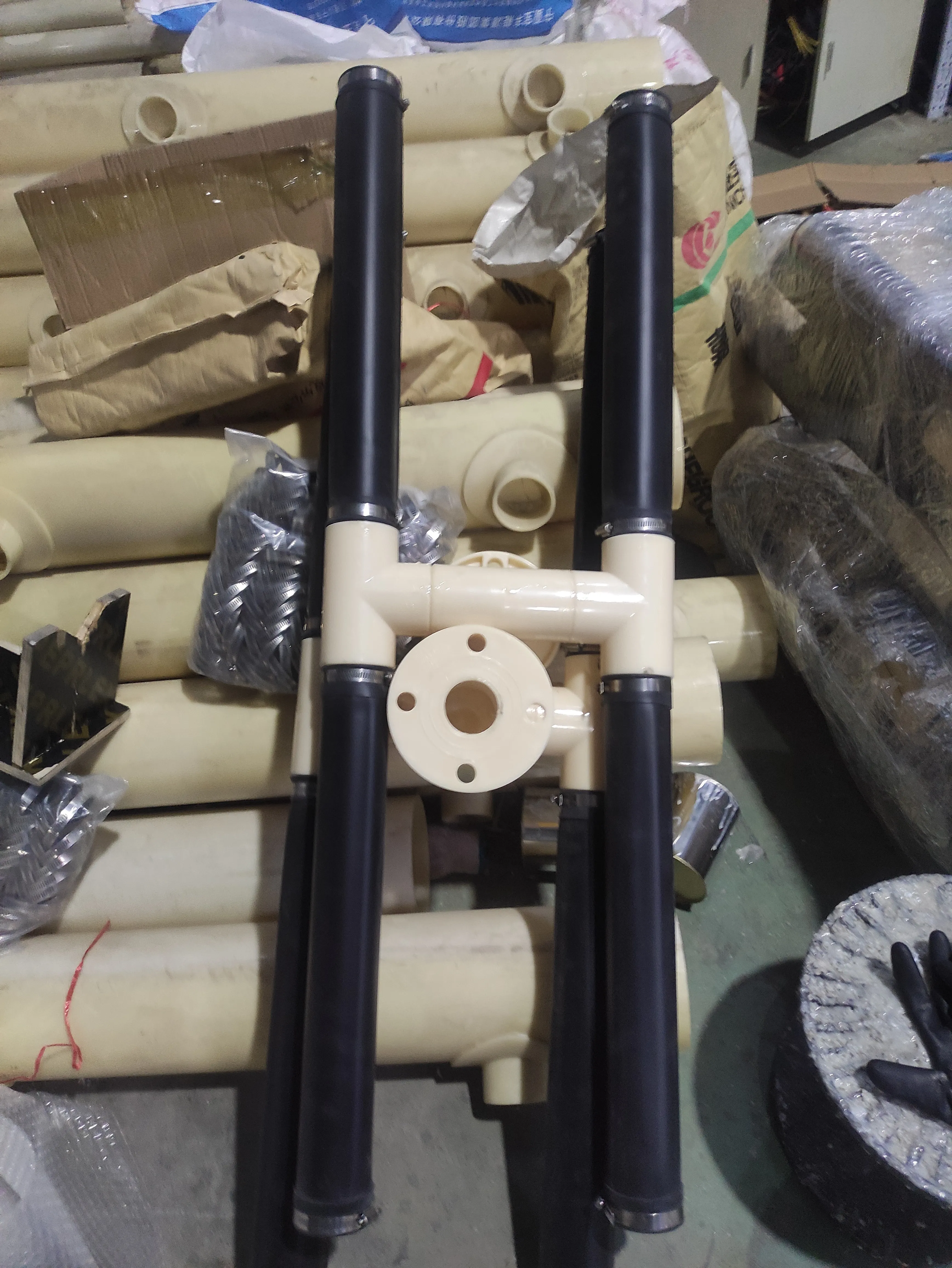

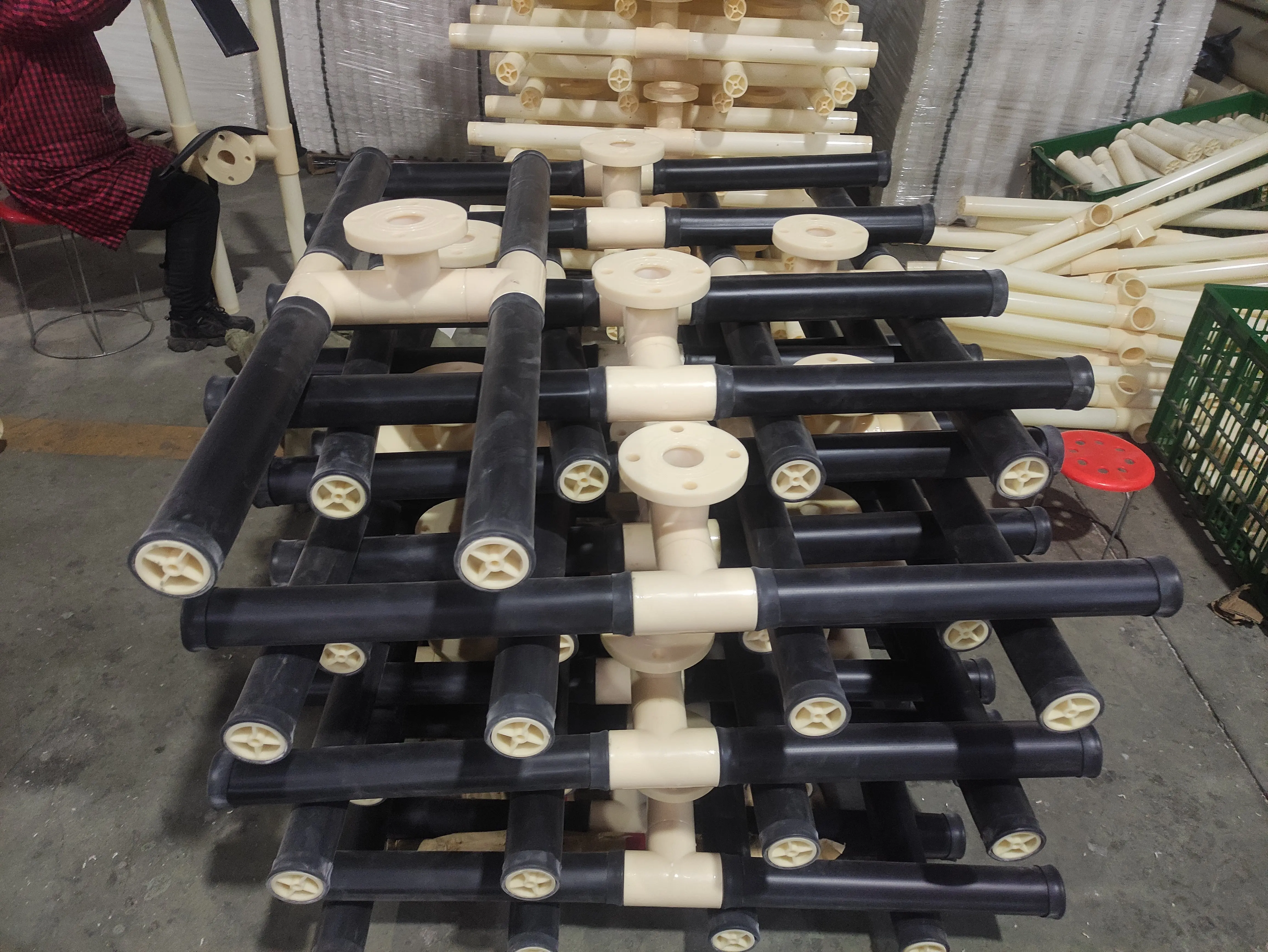

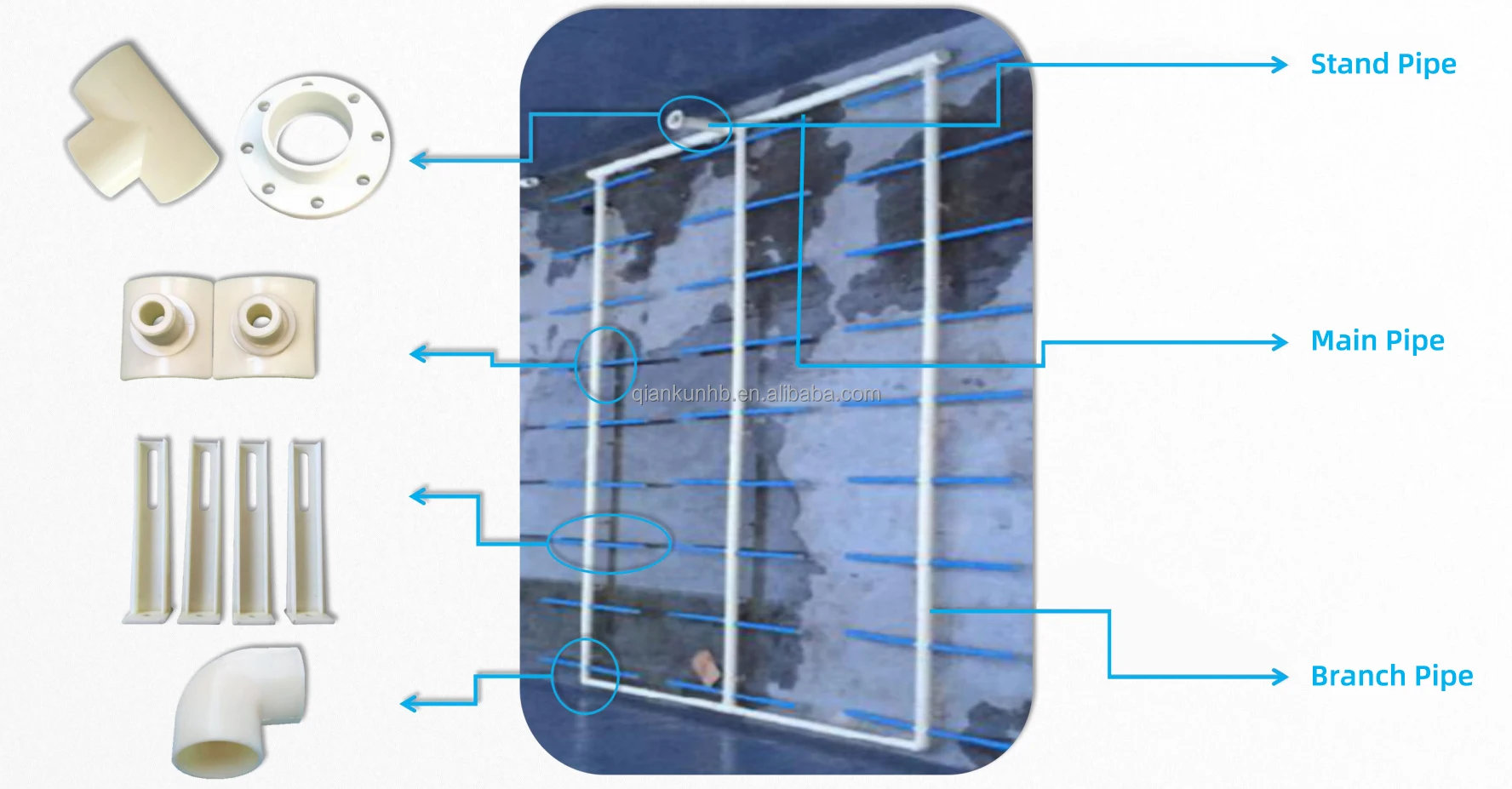

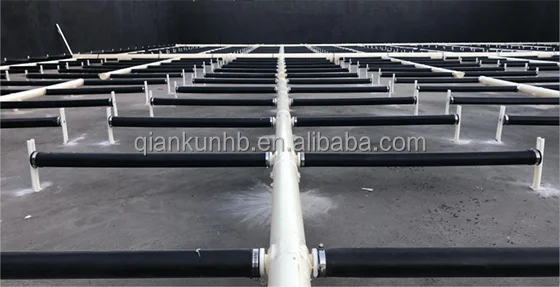

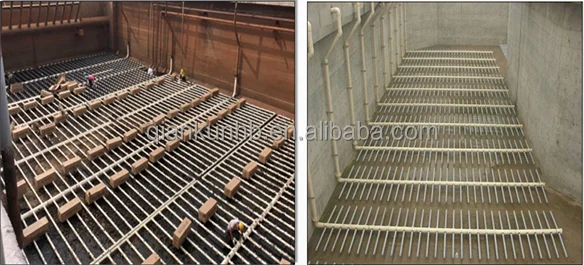

Installation Plan
For more Installation plan, please find us.

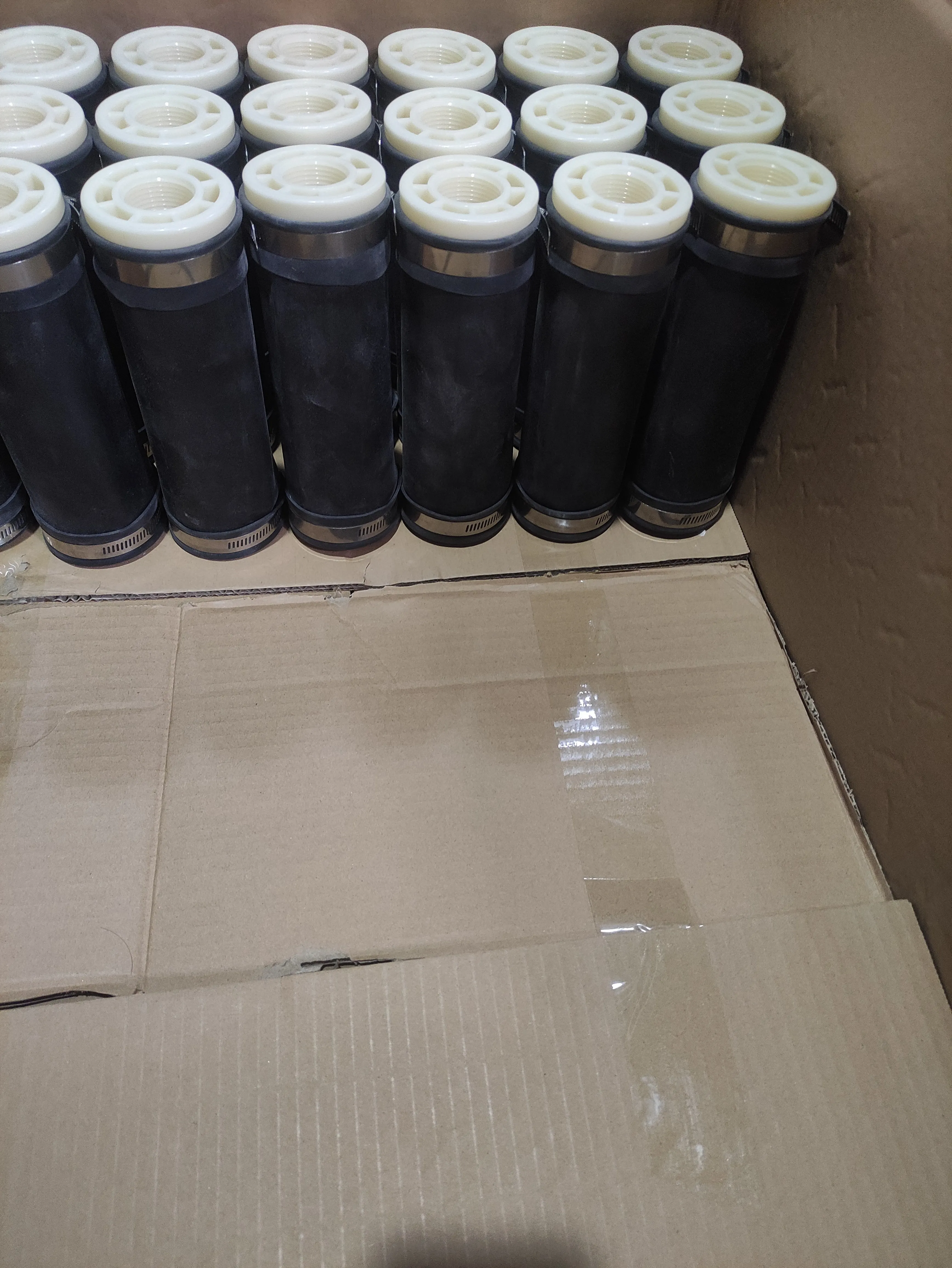

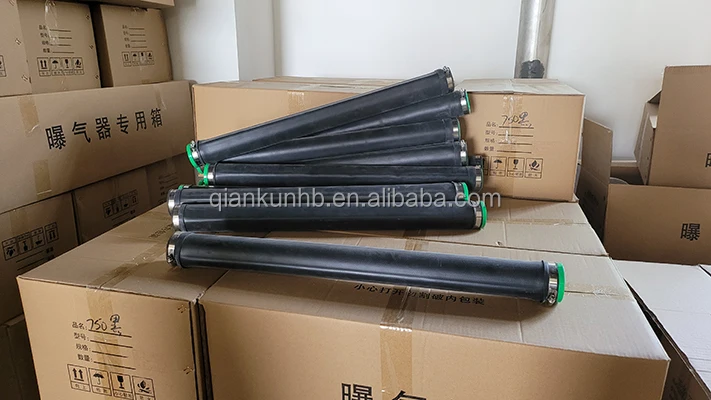

Packaging & Shipping
