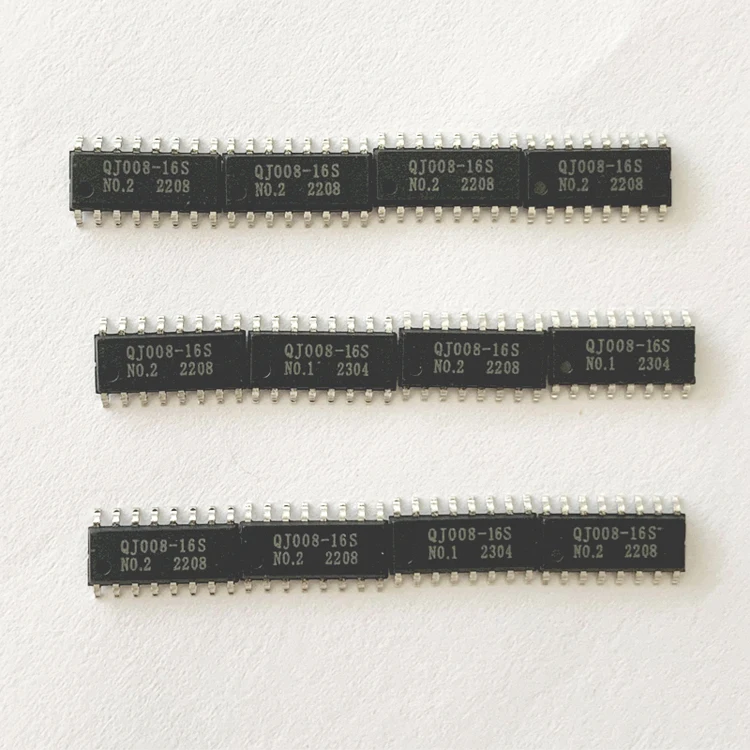

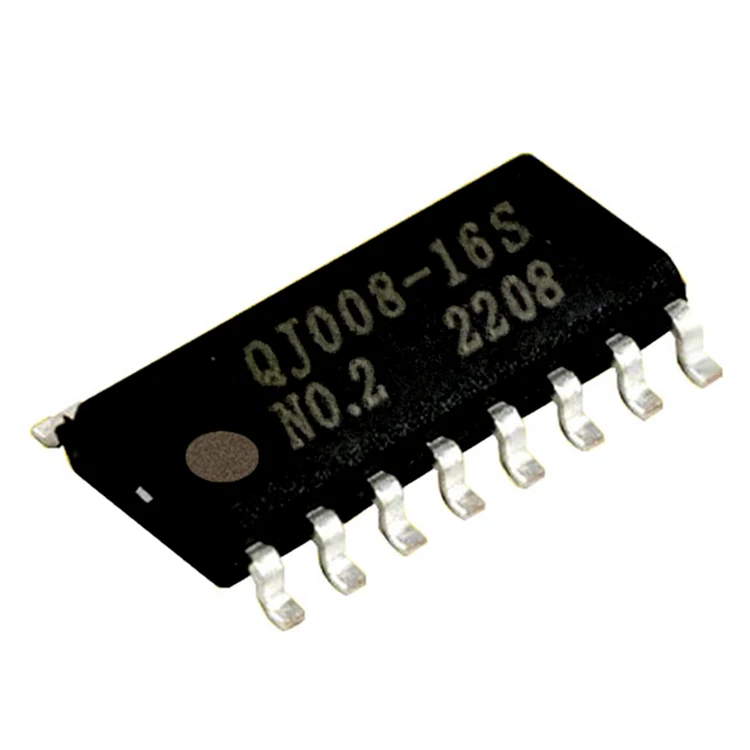

Serial Port Control Customizable Music IC MP3 Decode Sound Chip

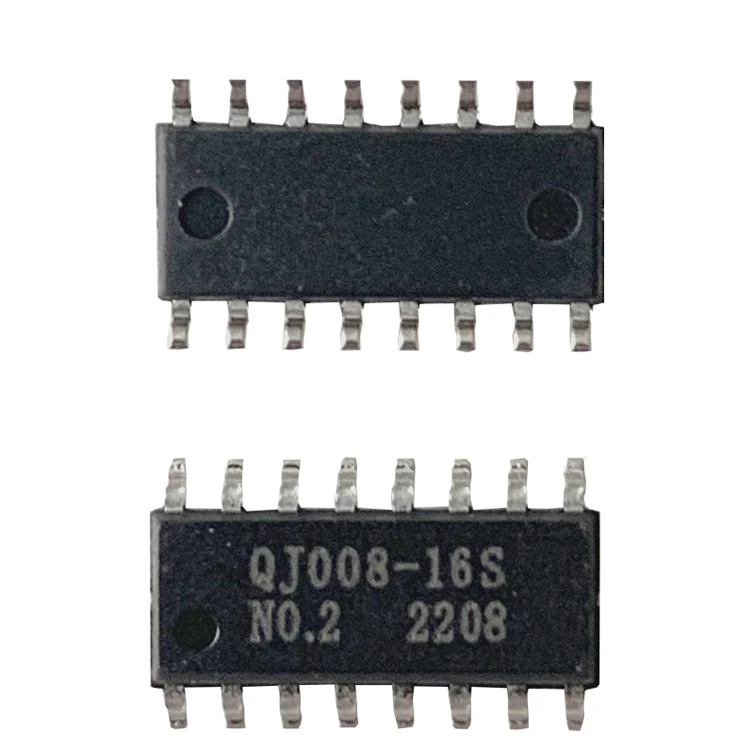

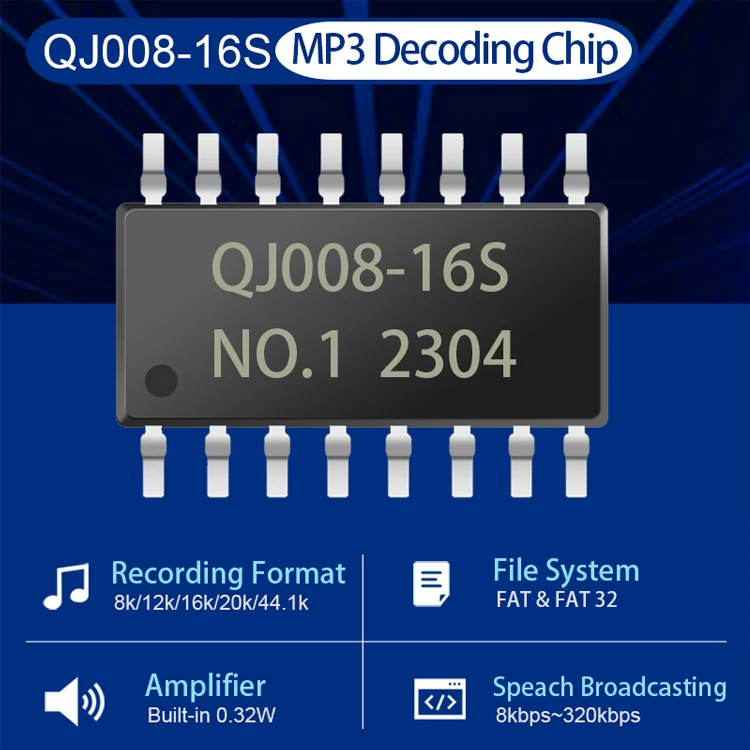

  QJ008 is an MP3 chip with a serial port, perfect integration of MP3, and WAV hard decoding. Meanwhile, it supports USB / FLASH drive, and FAT16, FAT32 file system. Simple serial port instructions can complete the specified music, as well as how to play music and other functions, without complicated low-level operations. Besides, This chip can directly play USB/FLASH internal songs, or download to FLASH by USB. Simple operation and stability are its advantages.
In addition, the chip also supports a variety of customization, which is designed to provide lower-cost solutions for the development of USB card readers and fixed voice playback.

Functions

1. Support sample rate(KHz): 8/11 .025 / 12/16 / 22 .025 / 32/44 .1.

2. 24-bit DAC output, dynamic range support 90dB, SNR support 85 dB.

3. Fully support FAT16, FAT32 file system, maximum support 128M FLASH, 32G U disk.

4. Multiple control modes, serial mode.

5. Radio language insertion function, you can pause the background music that is playing.

6. Audio data is sorted by folder, up to 255 folders are supported, and each folder can be assigned 1000 songs.

7. There are 30 volumes to adjust, level 5 EQ adjustable, Connected computers can display drive letters for update and download.

8. You can control and play the specified music through the MCU serial port.

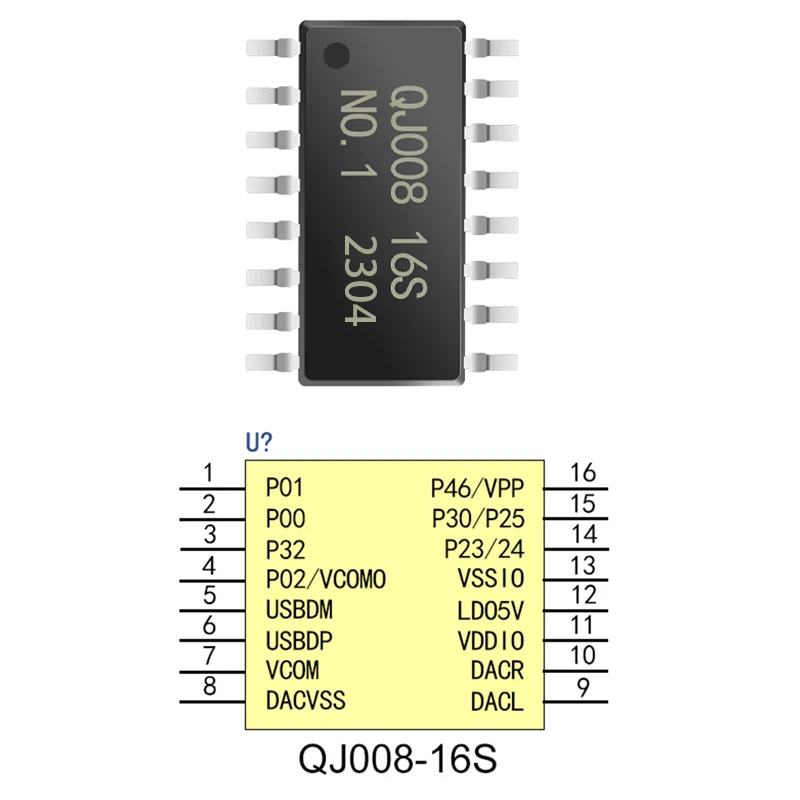

Hardware parameters

Simple command

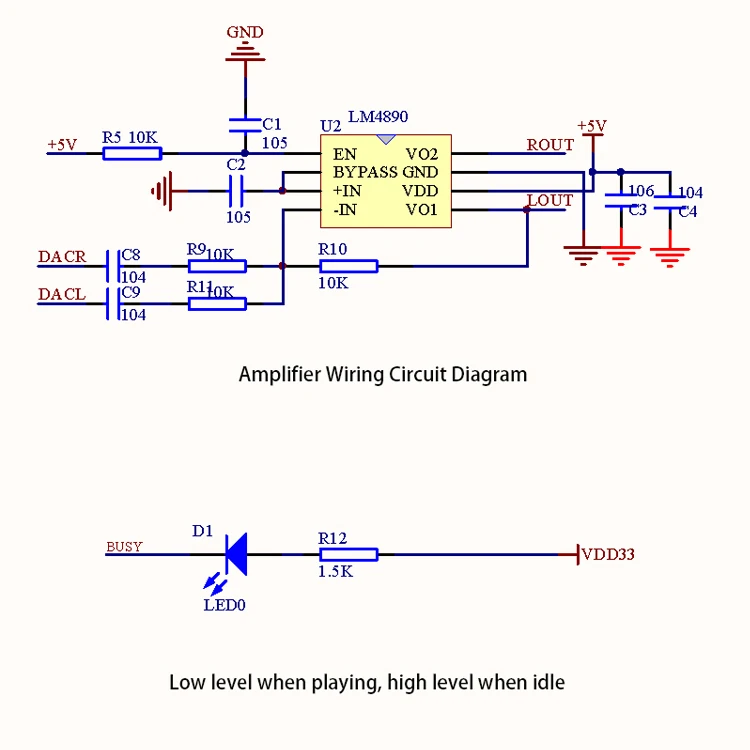

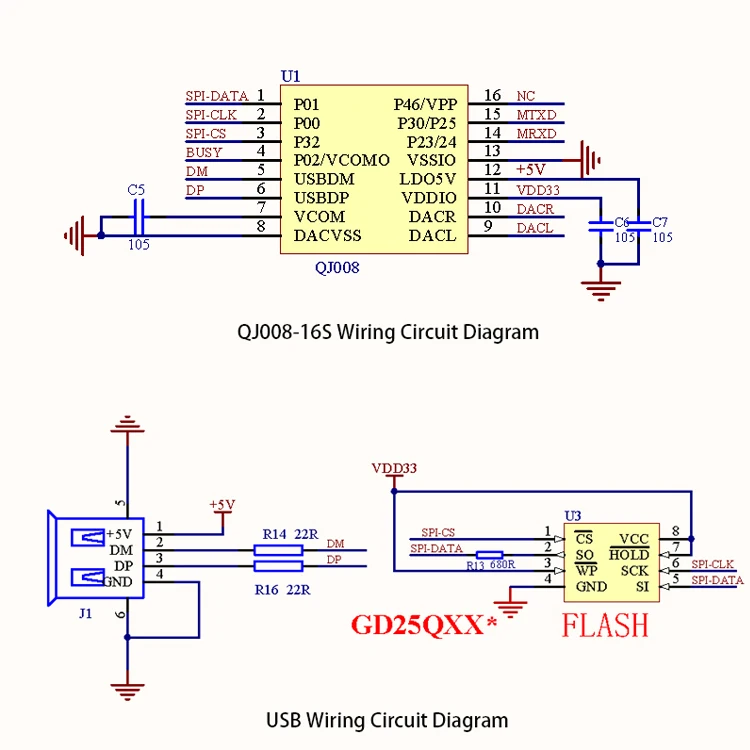

Application circuits
