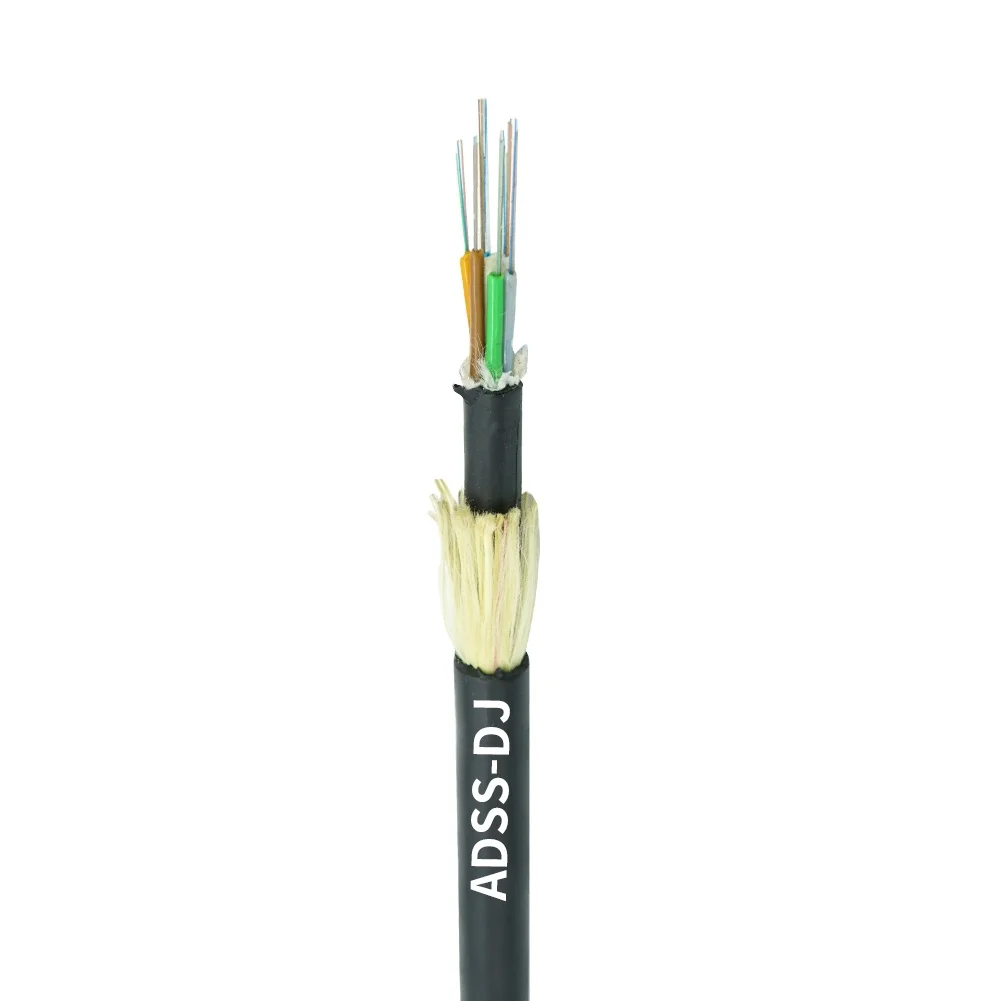

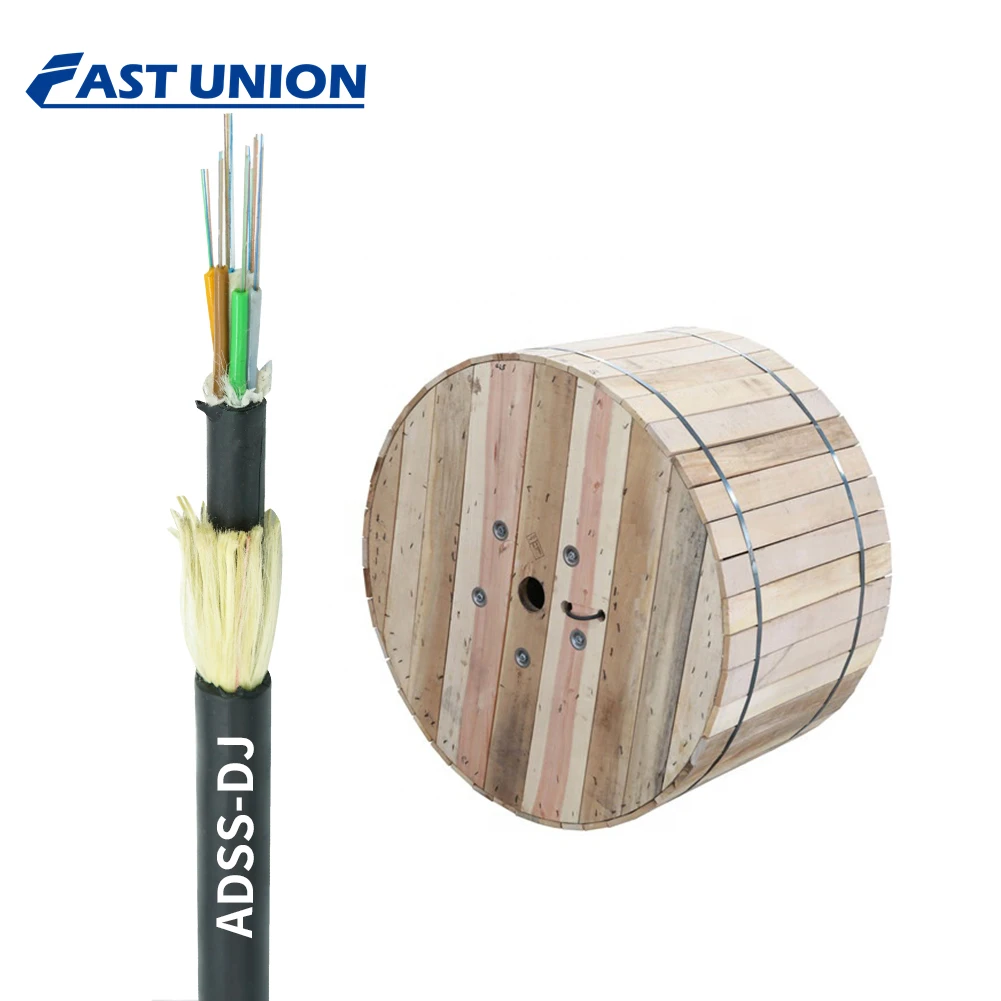

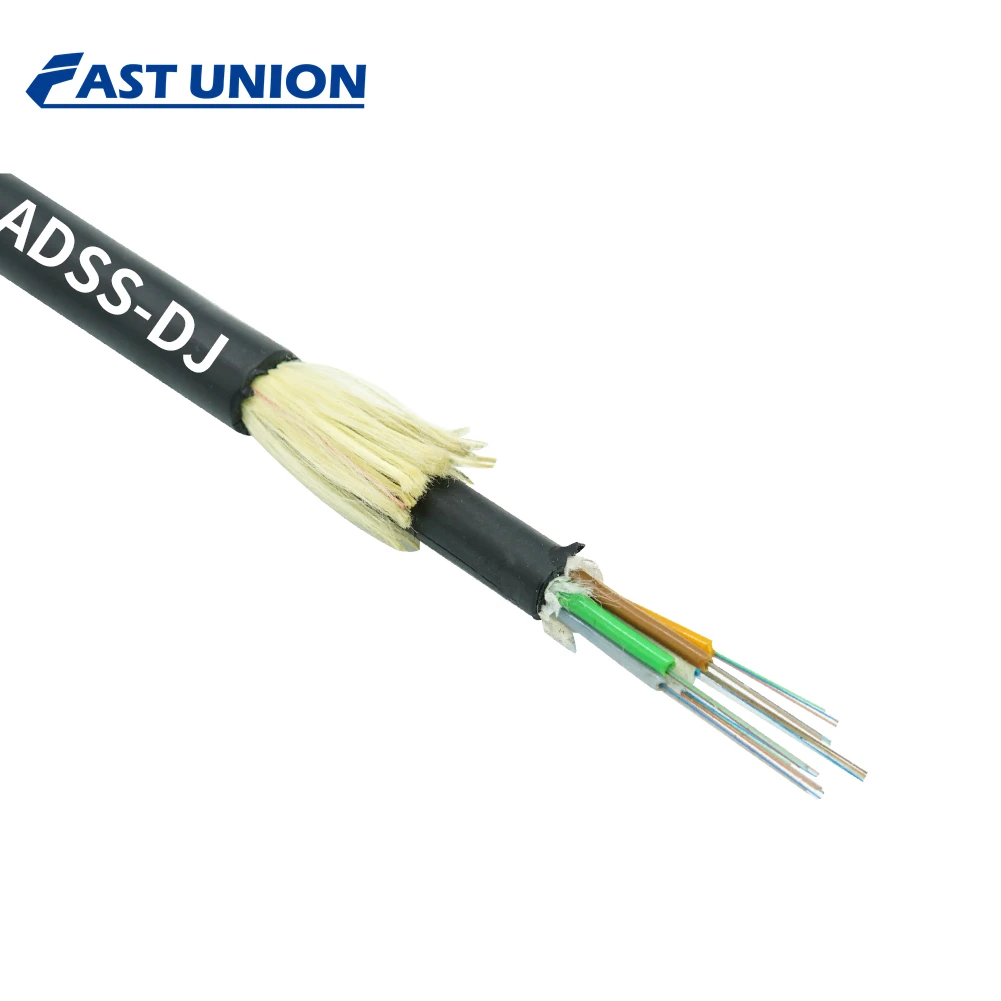

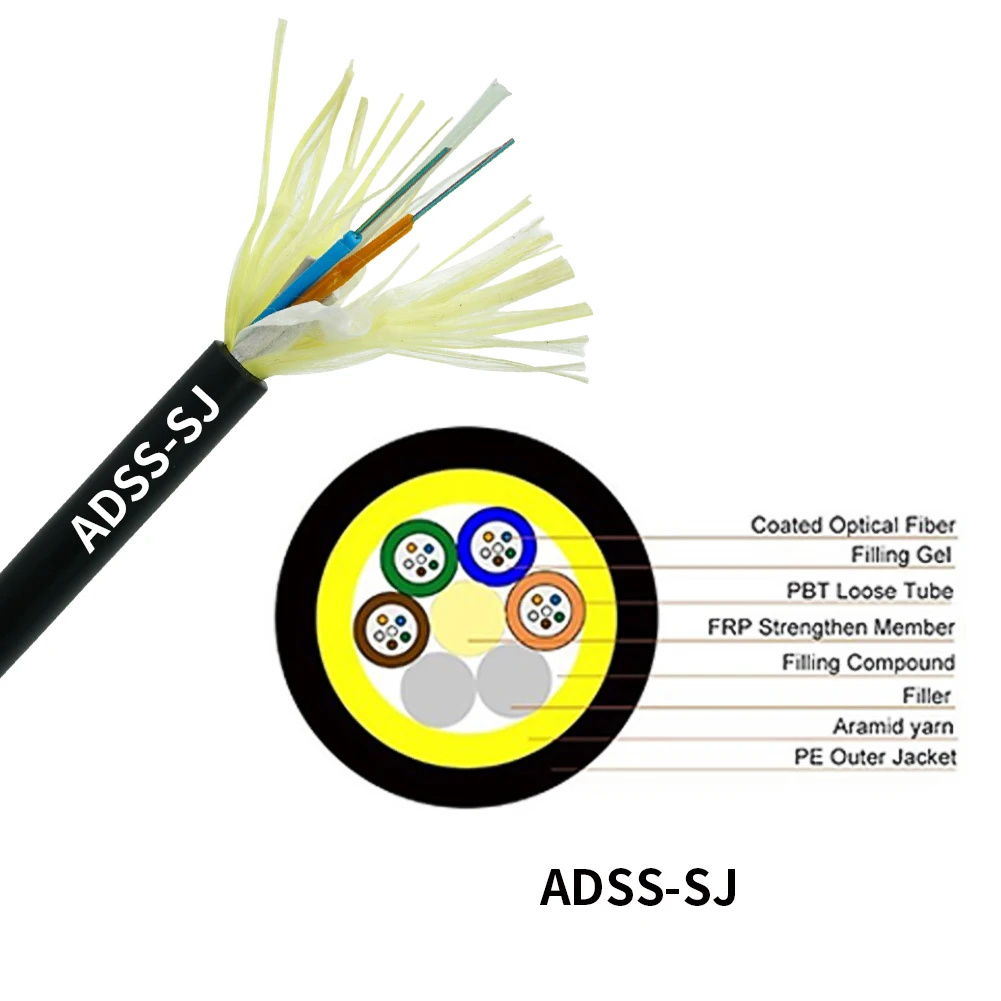

ADSS Optic Fiber Cable 9.5mm 9.8mm 10.8mm Diameter FRP 2.2mm 6 8 12 24 36 48 72 96 Fiber 50 100 Span FTTH ADSS Fiber Optic Cable
- Category: >>>
- Supplier: Guangzhou Qiton Electronics Technology Co. Ltd.
Share on (1600913917830):
Product Overview
Description

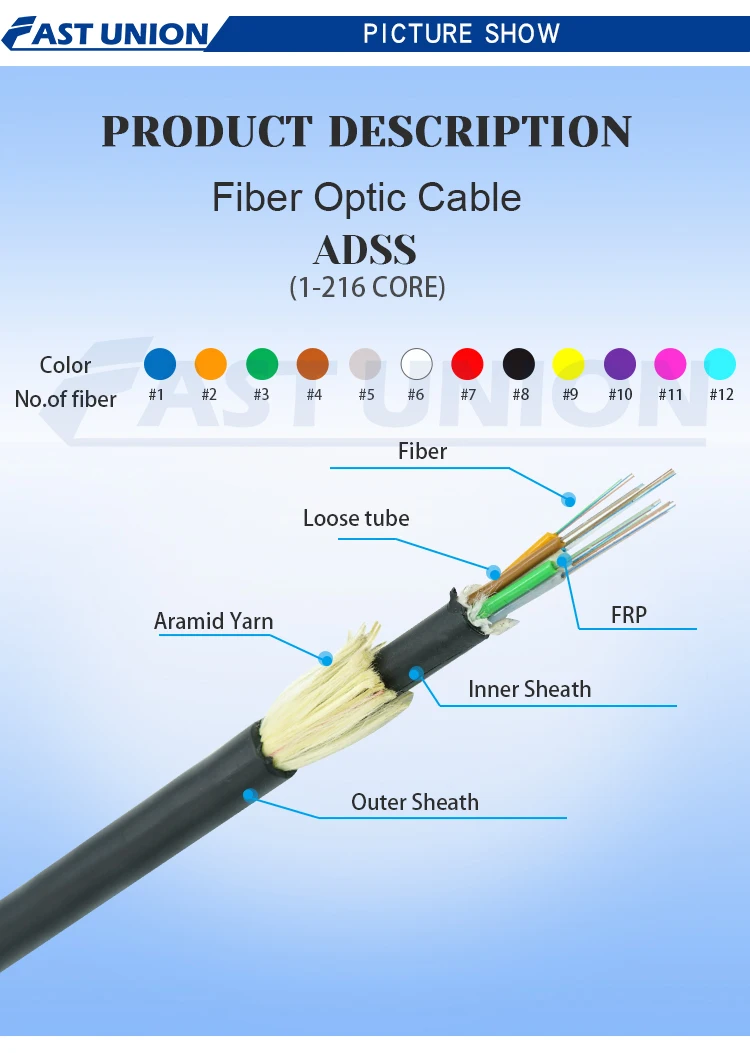

Product Description

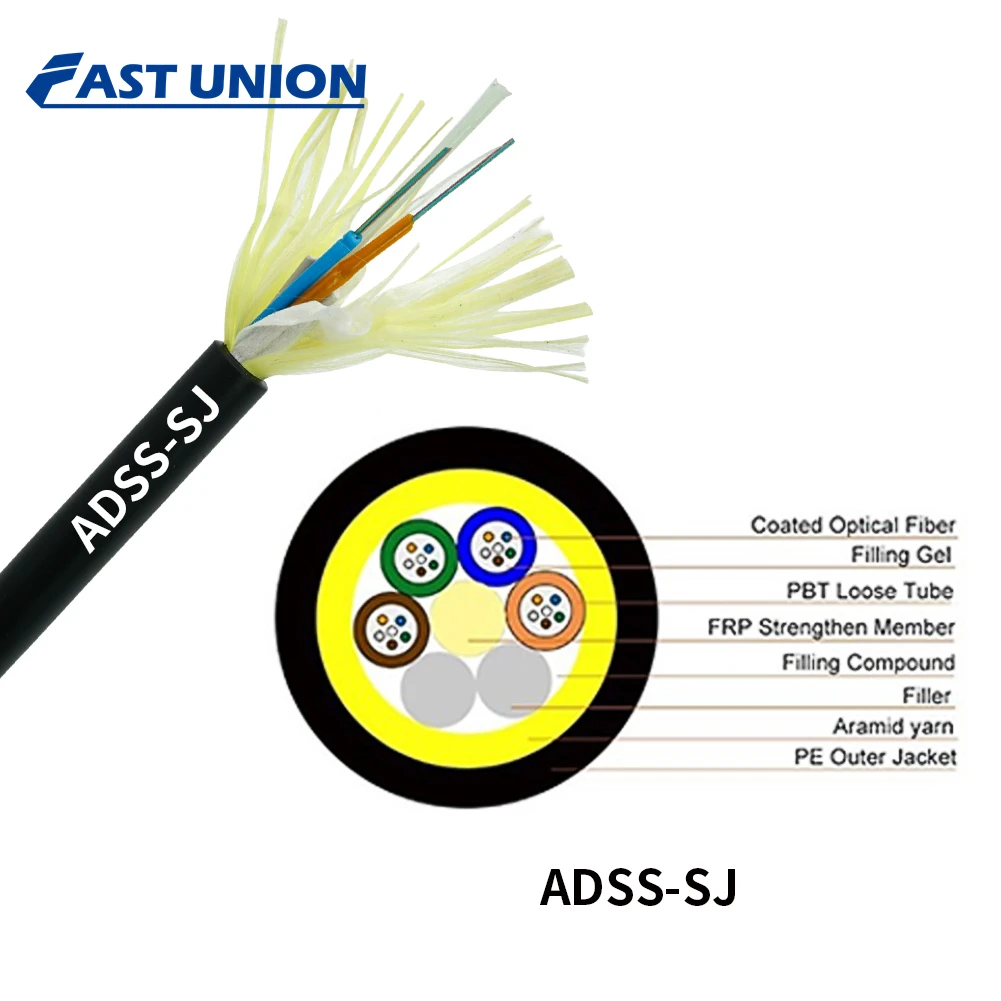

ADSS Optic Fiber Cable 9.5mm 9.8mm 10.8mm Diameter FRP 2.2mm 6 8 12 24 36 48 72 96 Fiber 50 100 Span FTTH ADSS Fiber Optic Cable
| Ref. Outer | Ref. Weight | Rec. Daily Max. | Max Allowable | Break | Strength | Modulus of | Heat | Suitable Span | ||||
| Diameter | (kg/km) | Working Tension | Working Tension | Strength | Member | Elasticity | Expansion | (NESC Standard,m) | ||||
| (mm) | (kN) | (kN) | (kN) | CSA | CSA | Coefficient | ||||||
| PE Jacket | AT Jacket | (mm2) | (kN/mm2) | (x10- 6/K) | A | B | C | D | ||||
| 11 | 110 | 120 | 1 | 2.5 | 8 | 3 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
| Ref. Outer | Ref. Weight | Rec. Daily Max. | Max Allowable | Break | Strength | Modulus of | Heat | Suitable Span | ||||
| Diameter | (kg/km) | Working Tension | Working Tension | Strength | Member | Elasticity | Expansion | (NESC Standard,m) | ||||
| (mm) | (kN) | (kN) | (kN) | CSA | CSA | Coefficient | ||||||
| PE Jacket | AT Jacket | (mm2) | (kN/mm2) | (x10- 6/K) | A | B | C | D | ||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Accessories
The hot sale model FTTH Accessories

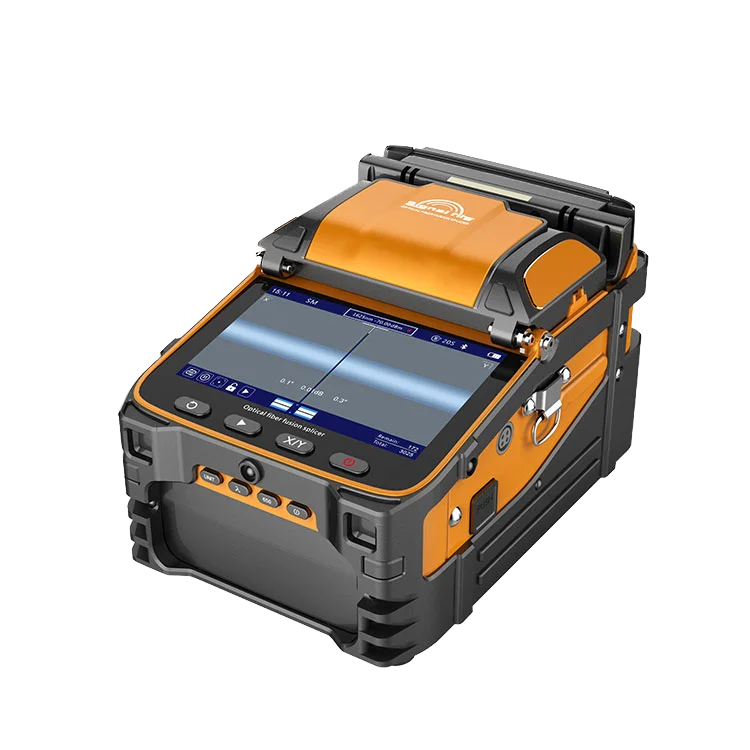

1. AI-9 Fiber Optic Fusion Splicer

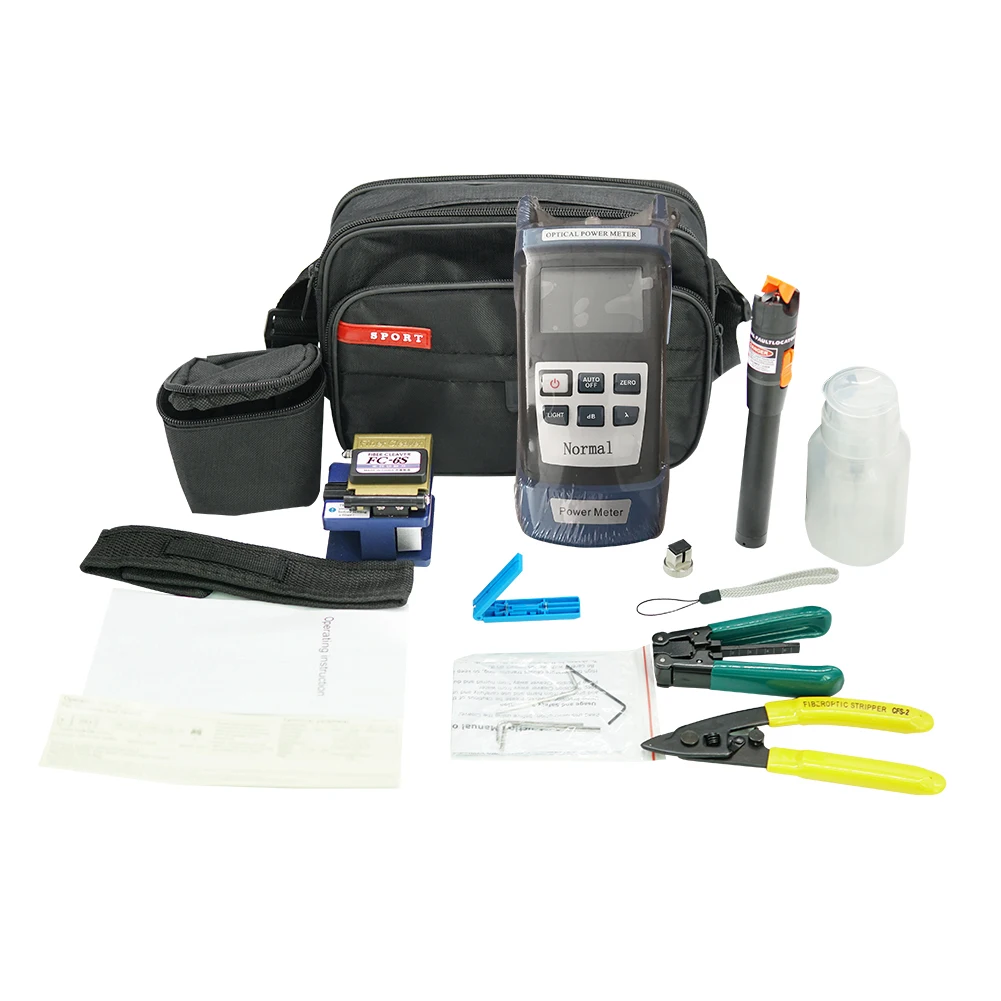

2.FTTH Fiber Optic Tool Kit Bag

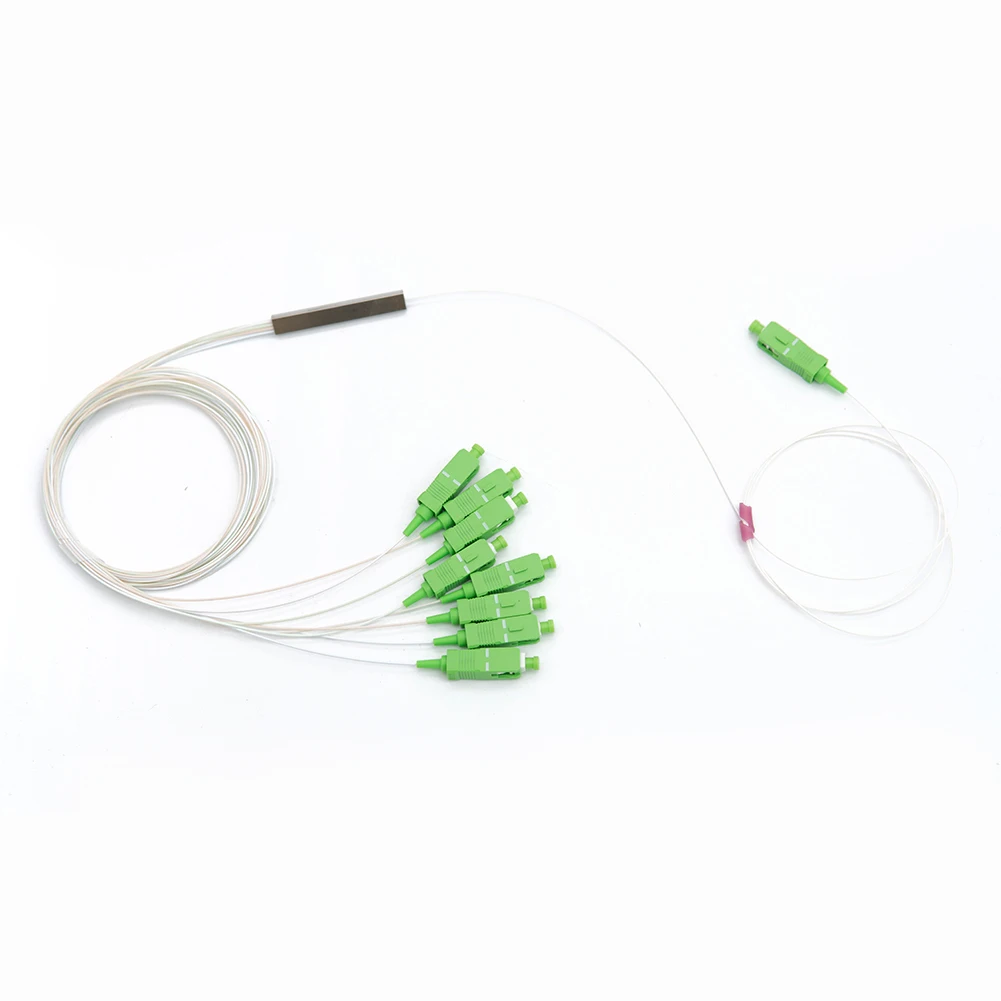

3. Mini PLC Splitter Fiber Optic

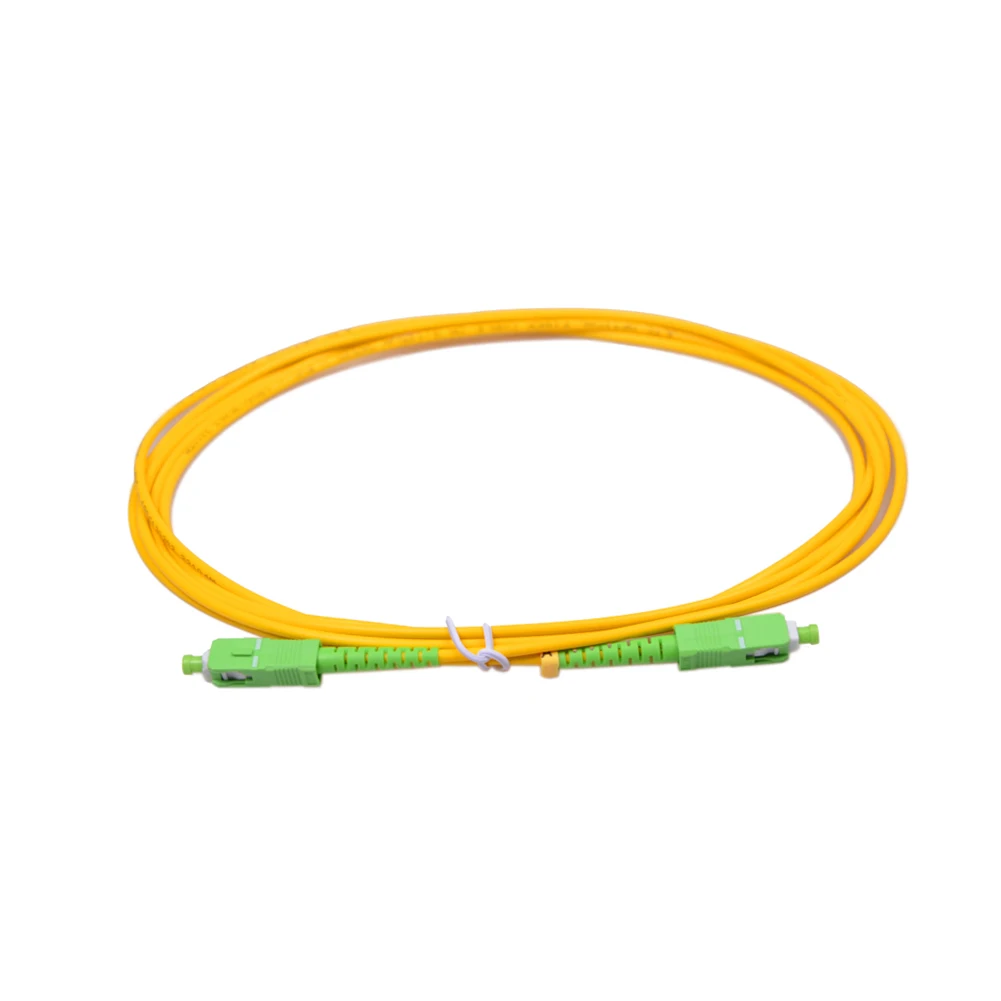

4. SM Jumper Cable Network Fiber Patch Cord

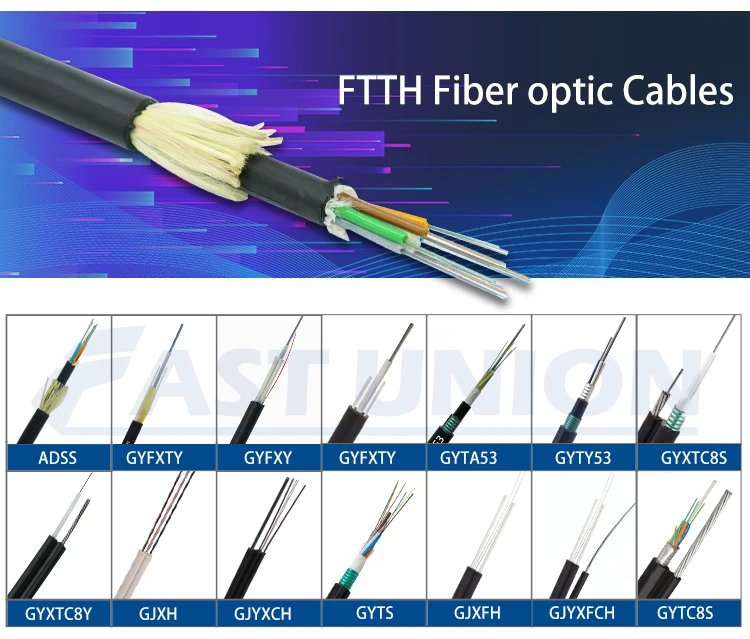

5. Optical Fiber ADSS Cable
Company Information

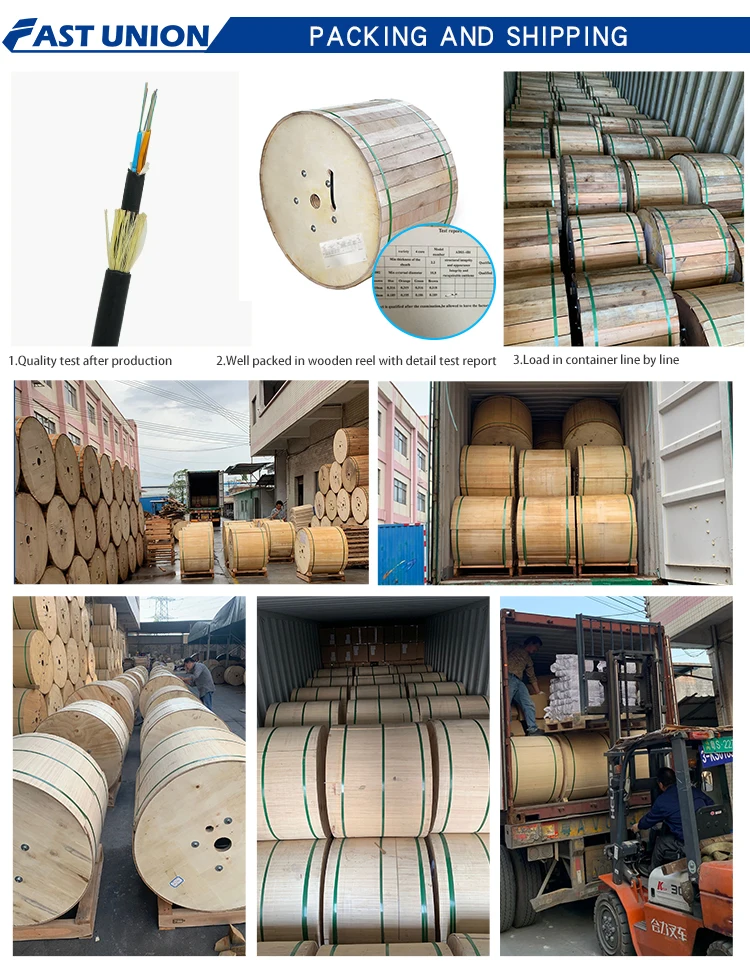

Packaging & Shipping

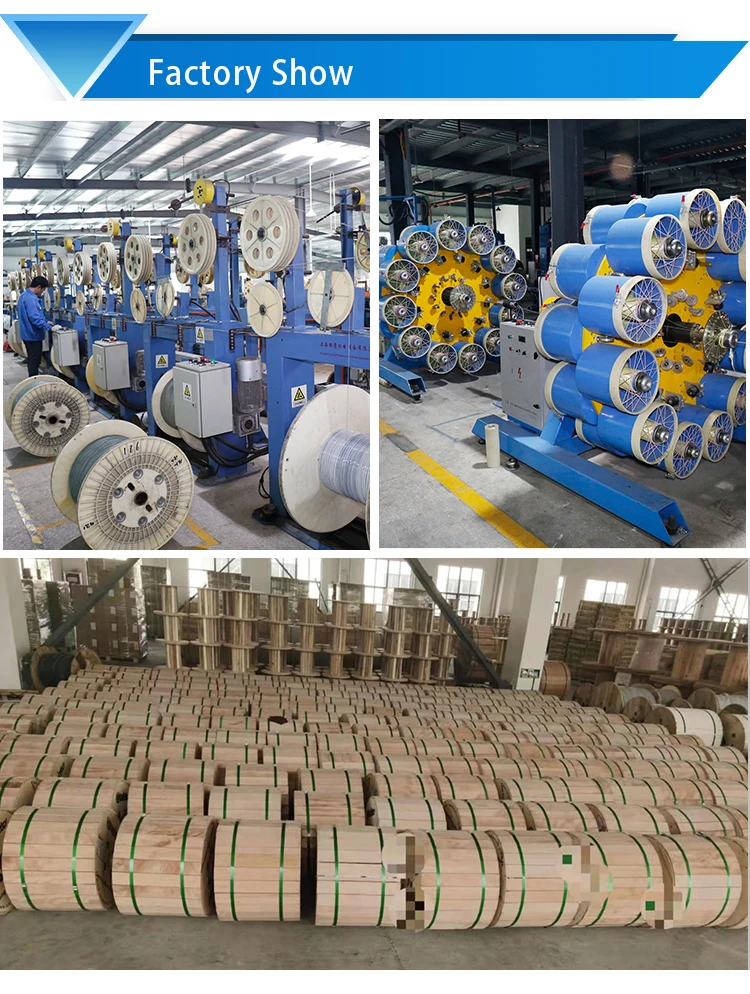

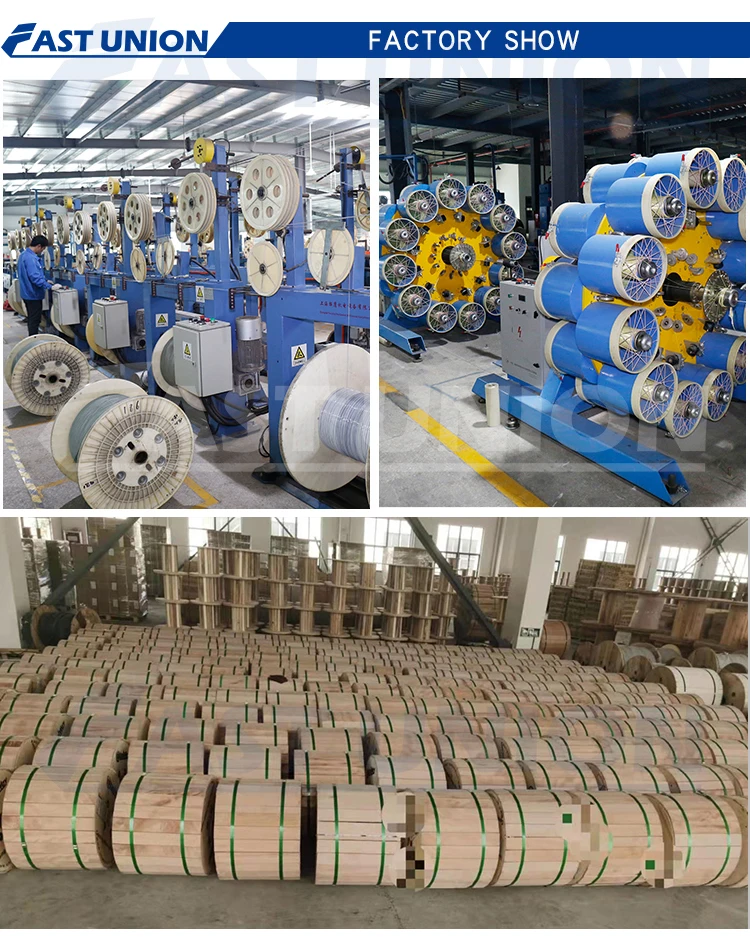

factory
