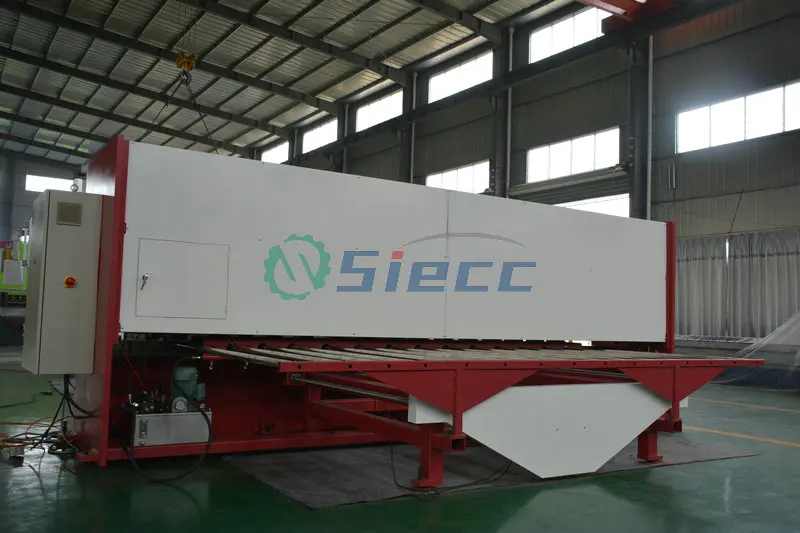

SIECC High Precision vertical slotting machine cnc aluminum shaped groove machine cut machine price
- Category: >>>
- Supplier: Shining Industrial Enterprise (china) Co. Ltd.
Share on (1600913970132):
Product Overview
Description
Product Overview
SIECC MACHINE @EDWARDS PEARSON GROUP
✔ A famous and leading manufactory for sheet metal fabrications machines
✔ With 20 years industry-area experiences specially in shearing machine,press brake,rolling ,lathe,milling,laser and plasma
cutting machines
✔ A mass of far-flung agents and partners globally
✔ CE ,UKCA ,Saudi Arabia,Russia certification and also Edwards Pearson European quality standard.
✔ 70 Years history brand Edwards Pearson European Brand
✔ The best timely and responsible service company in machinery area
✔ A team of professional technician team in China and oversea
✔ Reliable technicial guidance
✔ High technology self-design and structure update with innovation
✔ Edwards Pearson and SIECC ,strongly-recommended brand and partners by the worldwide clients and agents.
✔ Customer-oriented design ,OEM and service
✔ Dramatical achievement cooperation and collaboration
✔ With 20 years industry-area experiences specially in shearing machine,press brake,rolling ,lathe,milling,laser and plasma
cutting machines
✔ A mass of far-flung agents and partners globally
✔ CE ,UKCA ,Saudi Arabia,Russia certification and also Edwards Pearson European quality standard.
✔ 70 Years history brand Edwards Pearson European Brand
✔ The best timely and responsible service company in machinery area
✔ A team of professional technician team in China and oversea
✔ Reliable technicial guidance
✔ High technology self-design and structure update with innovation
✔ Edwards Pearson and SIECC ,strongly-recommended brand and partners by the worldwide clients and agents.
✔ Customer-oriented design ,OEM and service
✔ Dramatical achievement cooperation and collaboration
FEATURES AT A GLANCE
SIECC GROOVE MACHINE
✔ X/Y/A three axis precision control
✔ Three servo motor in different direction movement control
✔ High precision and strong boby welded.
✔ Two sets of blade holder or one set of blade holder optional
✔ Totally CNC control system
✔ Automatic feeding
✔ Alloy or white steel blade with long time endurance
✔ ±0.01MM precision in X/Y/A axis
✔ Alloy or white steel blade with long time endurance
✔ 4000MM line guide for A axis working
✔ Automatic lubrication system
✔ 4000MM line guide for A axis working
✔ Water cooling system，cooling blades，reduced wear，increase usinglife.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Grooving thickness－stainless steel plate | 0.3-4MM |
2 | Grooving length | 100-3200MM |
3 | Grooving width | 8-1500MM |
4 | Pressurized device | 12PCS |
5 | Clamping | 11PCS |
6 | Max stroke---X axis | 150MM |
7 | Servo motor power---X axis | 1.0KW |
8 | Max speed---X axis | 7.5M/MIN |
9 | Max stroke---A axis | 3200MM |
10 | Servo motor power---A axis | 5.9KW |
11 | Max speed---A axis | 100M/MIN |
12 | Max stroke（tool rest up and down）---Z axis | 40MM |
13 | Servo motor power---Z axis | 0.4KW |
14 | Max speed---Z axis | 3.5M/MIN |
15 | The height of worktable | 800MM |
16 | Oil tank | 40L |
17 | Weight（Approx.） | 9000KGS |
18 | Overall dimensions（L*W*H） | 5200×3000×2000MM |

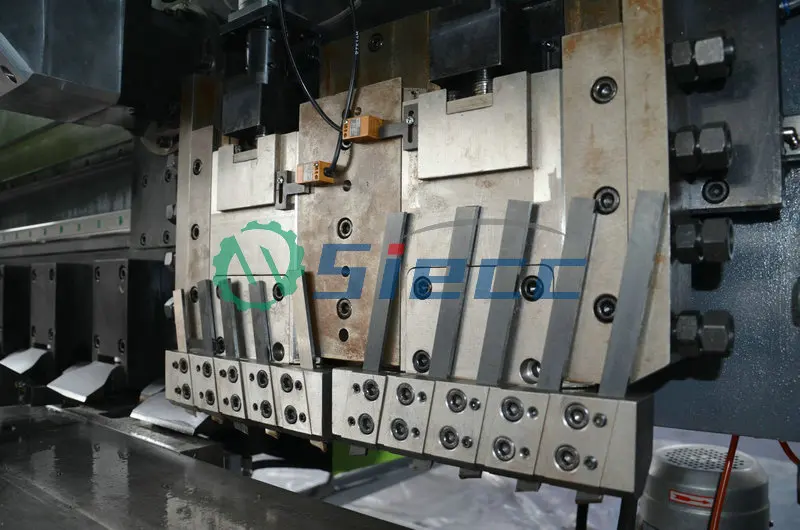

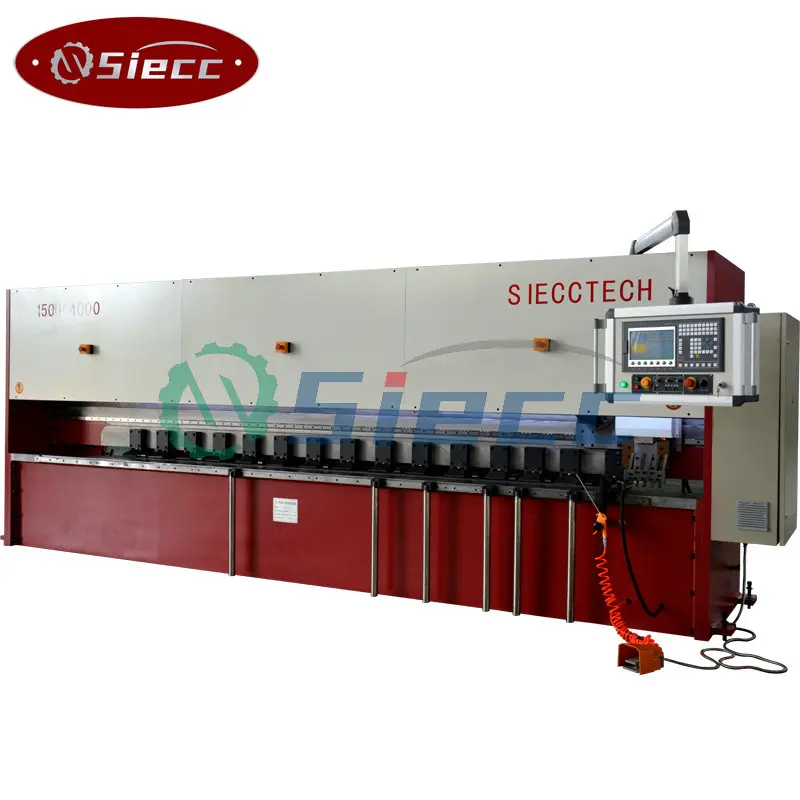

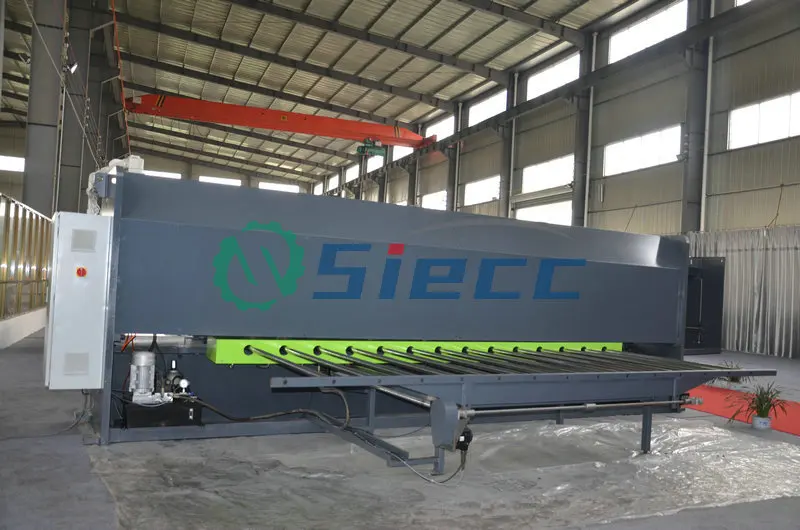

VERTICAL TYPE WITH TWO SETS OF BLADES OR ONE SET OF BLADES OPTIONAL

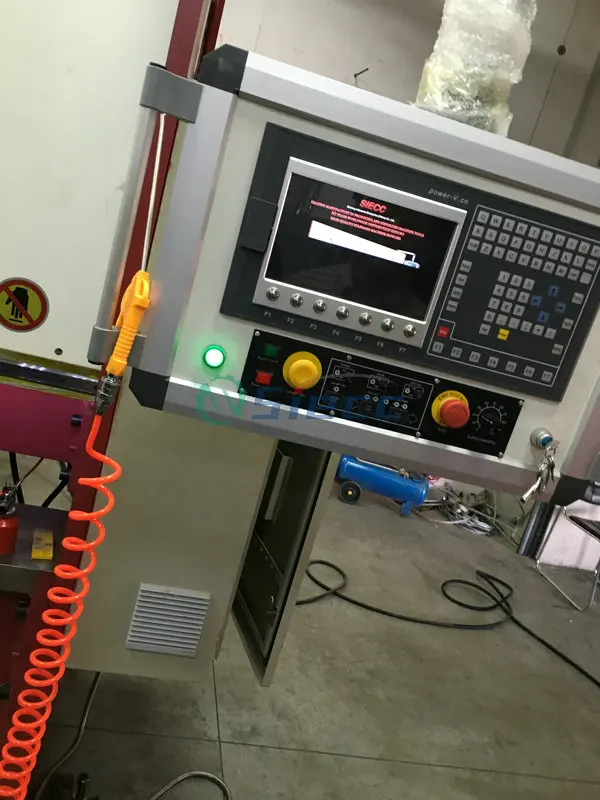

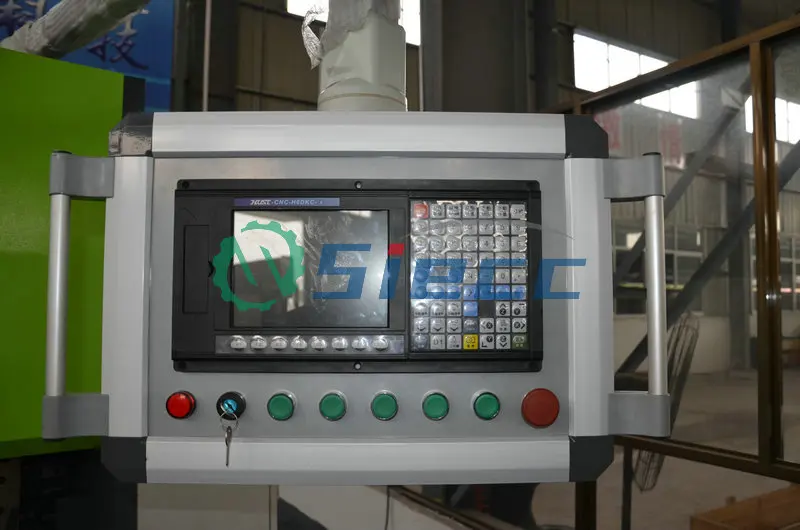

CNC CONTROL SYSTEM

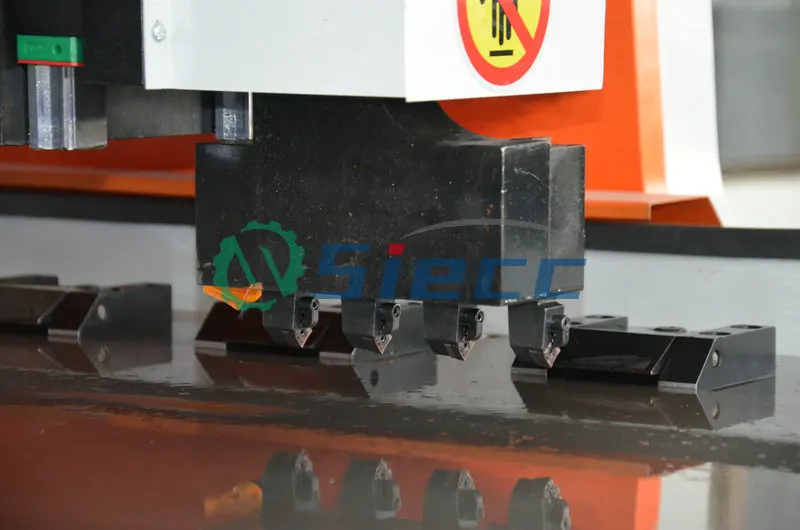

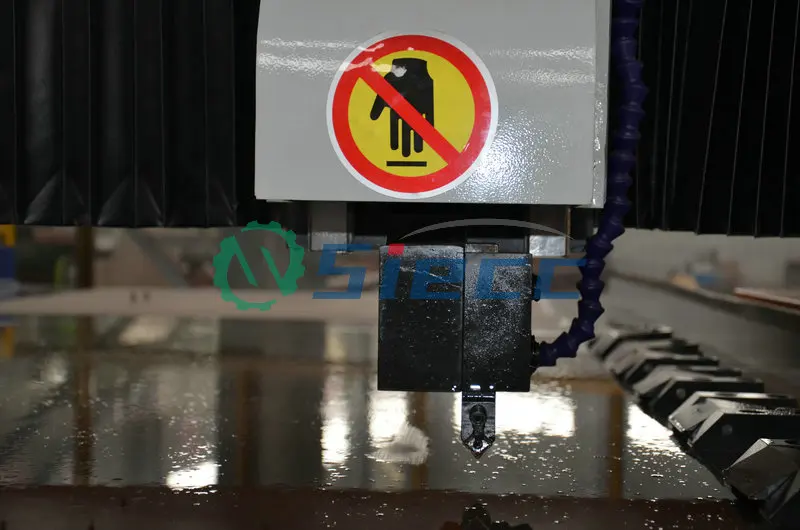

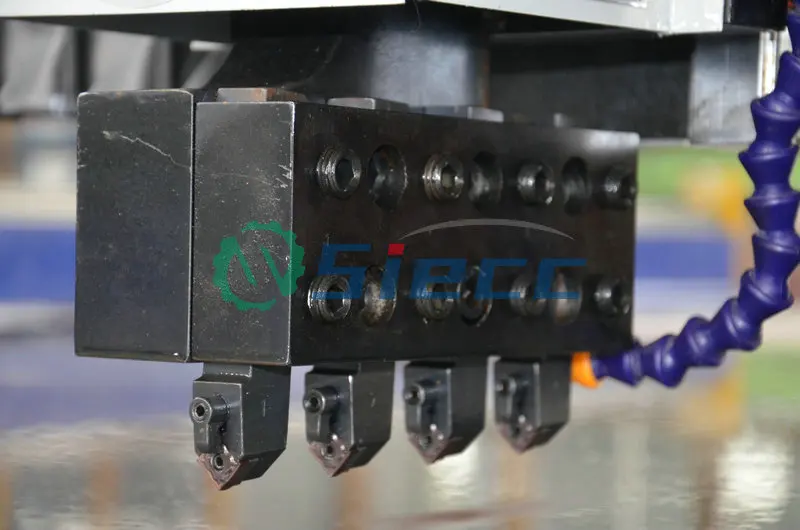

TWO SETS BLADE HOLDER /ONE SET FOUR KNIVES/WHITE STEEL BLADE IMPORTED

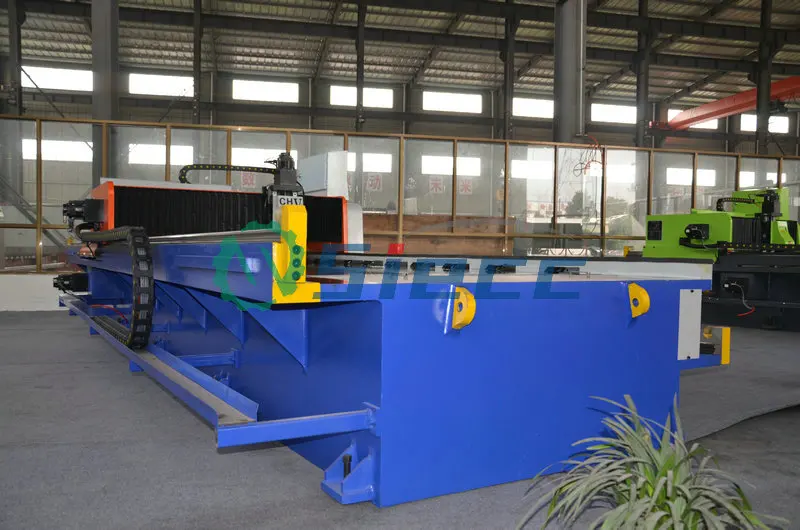

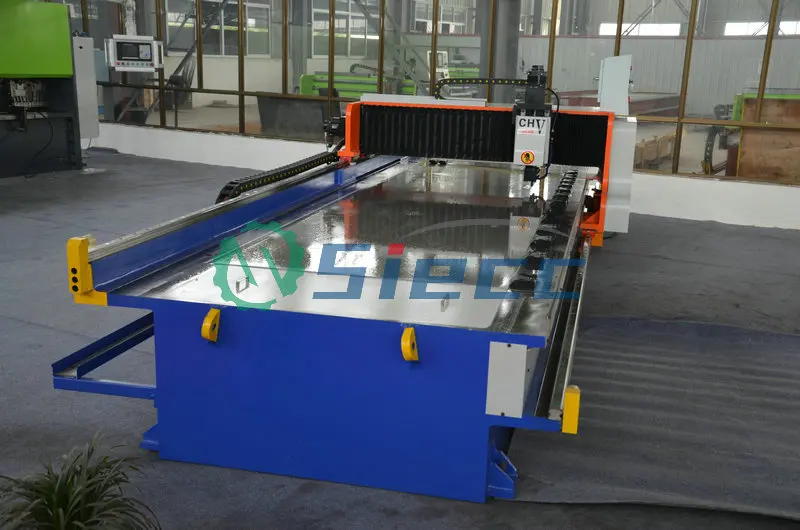

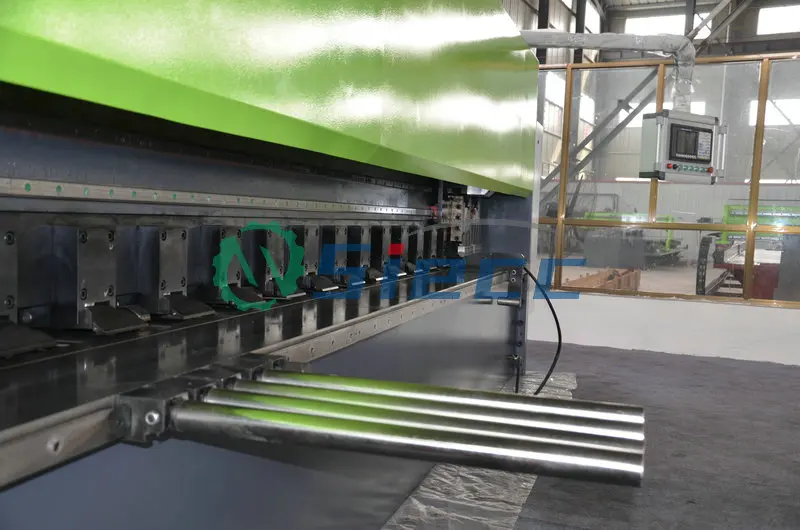

HORIZONTAL TABLE TYPE
