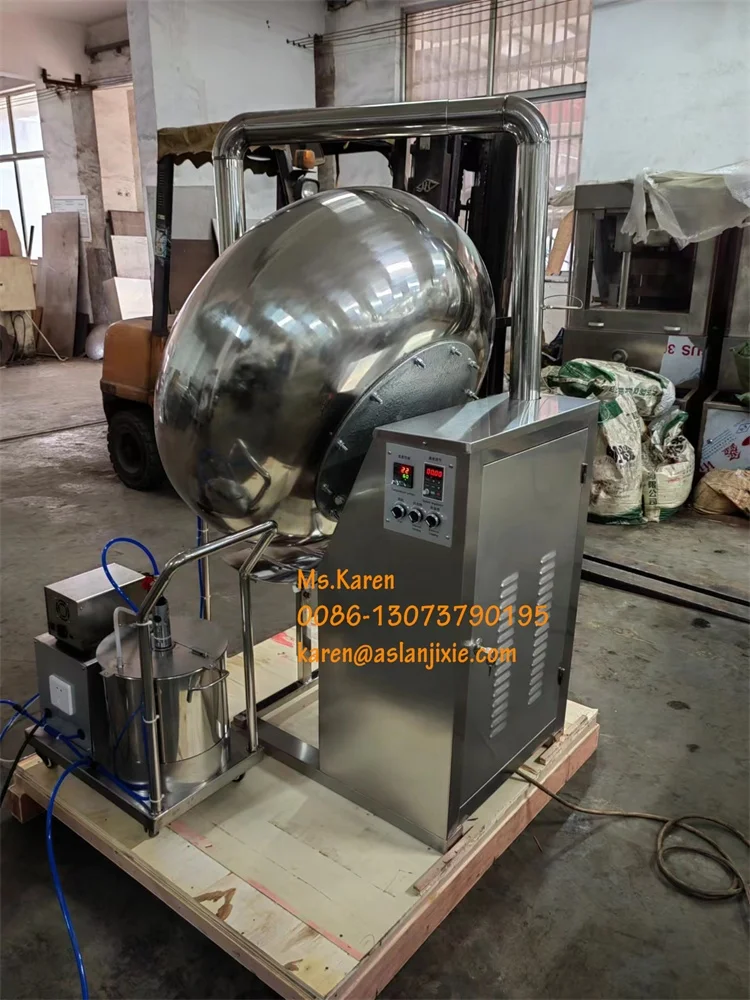

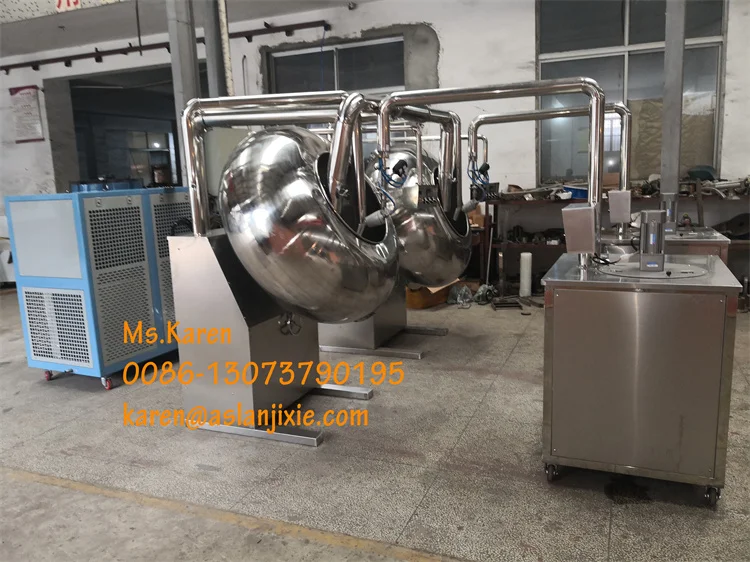

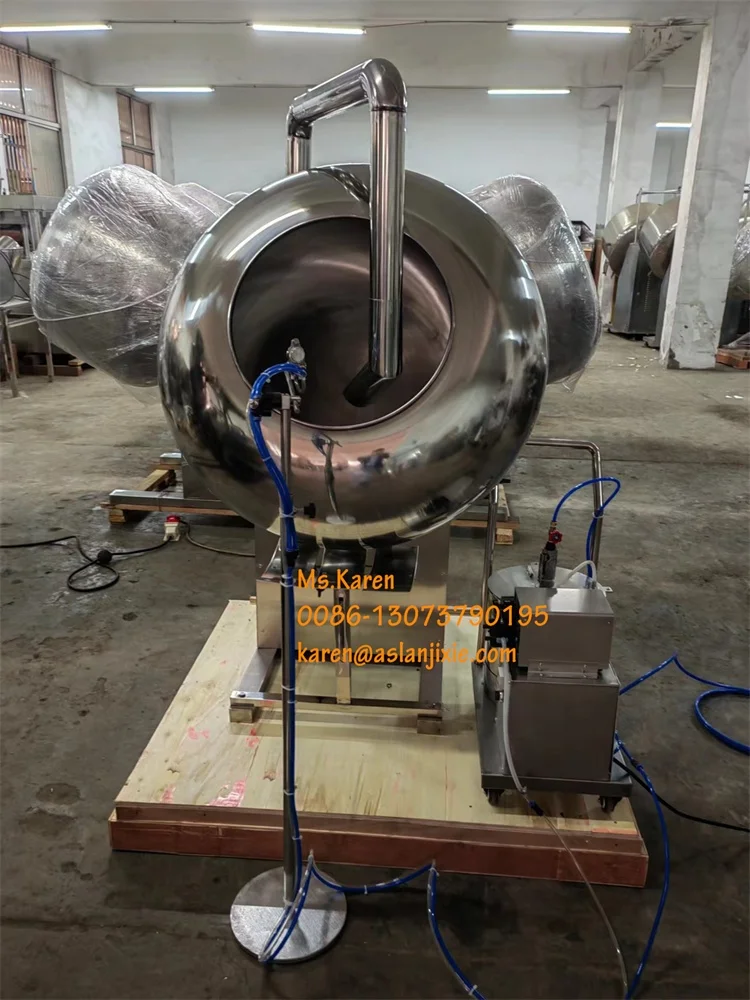

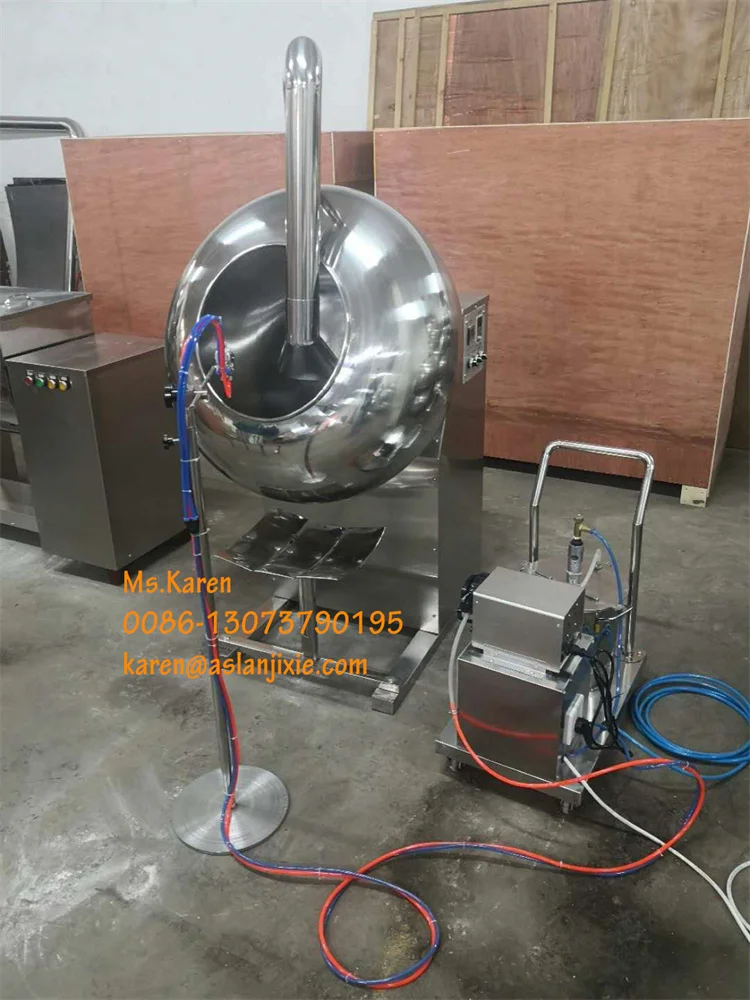

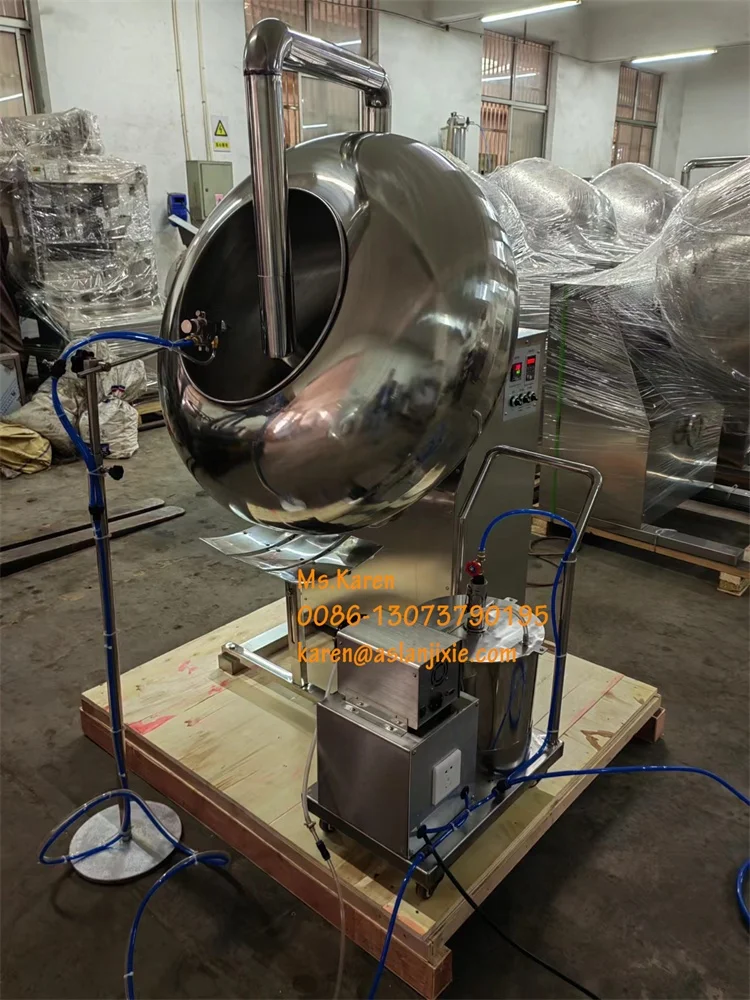

Automatic Tablet Film Coating Machine Snacks Chocolate Spraying Coating Machine

Share on (1600914020168):


Price:$2,300.00 - $2,700.00

Quantity:


Product Overview

Description



Machine Introduction & Application




*The machine is mainly applied in the sugar-coated production for tablets , and can also be used for the rolling, mixing and polishing of the spherical or particulate products in the food, light industry, and chemical industries.

*For example: chocolate polishing, wrapping peanuts, sugar coating, seasoning, pearl powder balls, rolling desiccant, production of chemical fillers, aluminum hydroxide balls, alumina balls, porcelain balls, molecular sieves, catalysts, etc.

*The machine has the feature of the tilt angle of the sugar-coated pot is adjustable. The pot body can be heated by a rotating electric stove or gas under the pot. A separate electric blower is equipped with the machine. The air outlet pipe can be used deep into the pot for heating or cooling, and the heat energy can also be adjusted.

*The coated and polished sugar-coated tablets, beans or granules have a bright surface, which can prevent oxidation, moisture or volatilization, and also can cover the uncomfortable taste. Which can make the medicine easy to identify and ease the dissolving effect in the human stomach and intestines.


Machine Working Principle






Different coating material will be spray into the coating pot according to the suitable device, tablets, candy , cholocates , their processing system a little different, which product you need , please contact us , we will send the suitable device to you according to your needs.


Through the clockwise rotation of the pot body, the sugar-coated tablets are rolled, slid and rubbed in the pot, so that the sugar-coated powder is evenly distributed on all tablets or foods. The electric heating blower, the air outlet pipe extends into the pot for heating, and at the same time the blower passes hot air to the inner layer of the pot to remove the moisture from the surface of the tablets, thereby obtaining a good sugar-coated tablet.

This machine is an excellent pot body provided for the sugar coating process, with a stable linear speed to ensure that the tablets form a good logistics curve in the pot, in order to meet the process requirements of uniform thickness of the sugar coating layer, bright color, and no pitting.




Machine Feature


1.High-quality 304 stainless steel, thickened all-in-one pot, no welding port, bright inner and outer walls without dead ends.The machines are equipped with adjustment mechanisms, which can be used by users to adjust the tilt angle of the sugar-coated pot according to the amount of tablets and the material exchange performance.
2.Air supply pipe: The blower provides hot air to the pot to remove the moisture from the surface of the tablet, thereby obtaining qualified sugar-coated tablets (it can also be used to clean the pot body after chocolate spraying).
3.The bottom of the pot body is equipped with an external heating device, which is used to
heat the outside of the pot body. The height of the heating plate can be adjusted to move forward or back.




Technical Specifications


Model
Pot dia.(mm)
Capacity
(kg/batch)
Rotary speed
(r/min)
Motor
(kw)
Air fan
(kw)
Electric heating (kw)
Dimension
(m)
Weight
(kg)
BY-600
600
15
36
0.75
0.06
2
0.8*0.6*0.9
85
BY-800
800
30-50
36
1.5
0.12
2
1*0.8*1.43
205
BY-1000
1000
50-70
32
1.5
0.18
3
1.1*1*1.56
220
BY-1250
1250
80-150
28
3
0.18
5
1.23*1.2*1.82
350

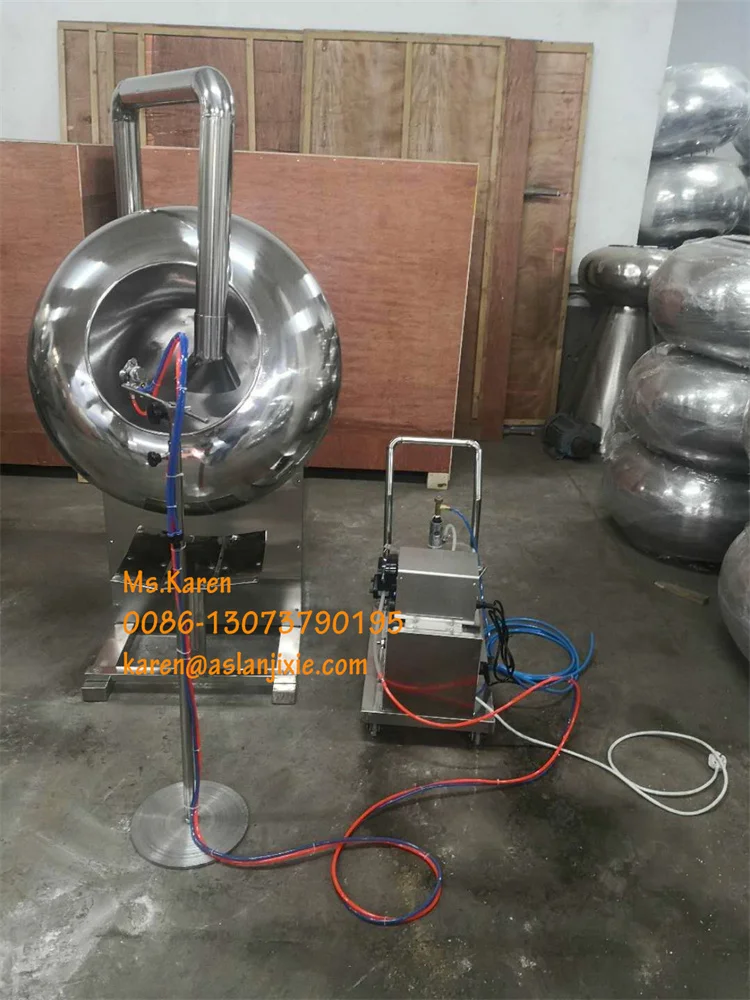

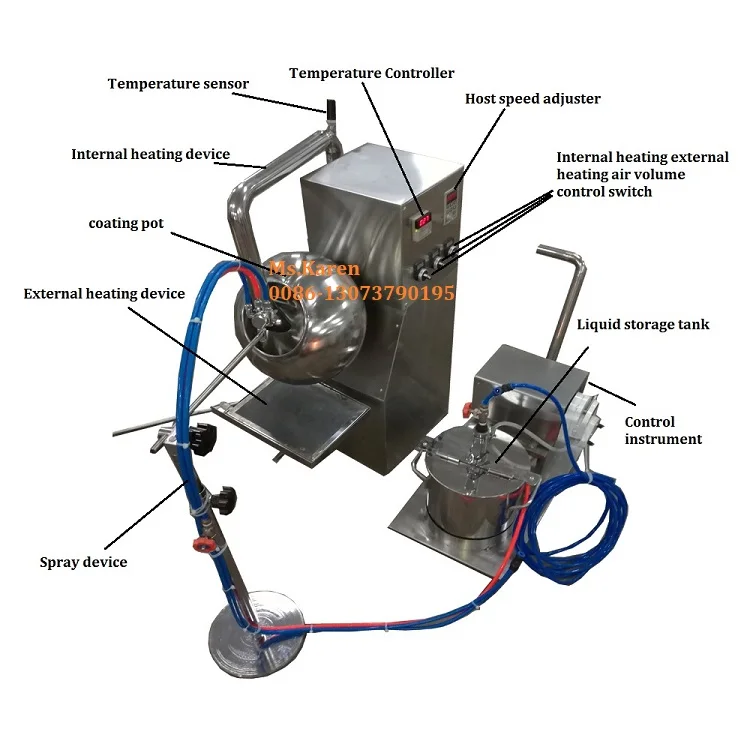

Machine Deisgn For Pills

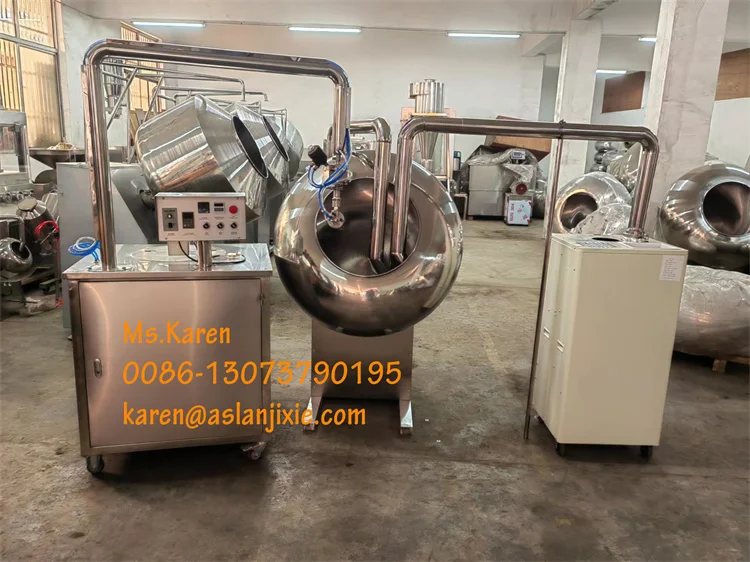

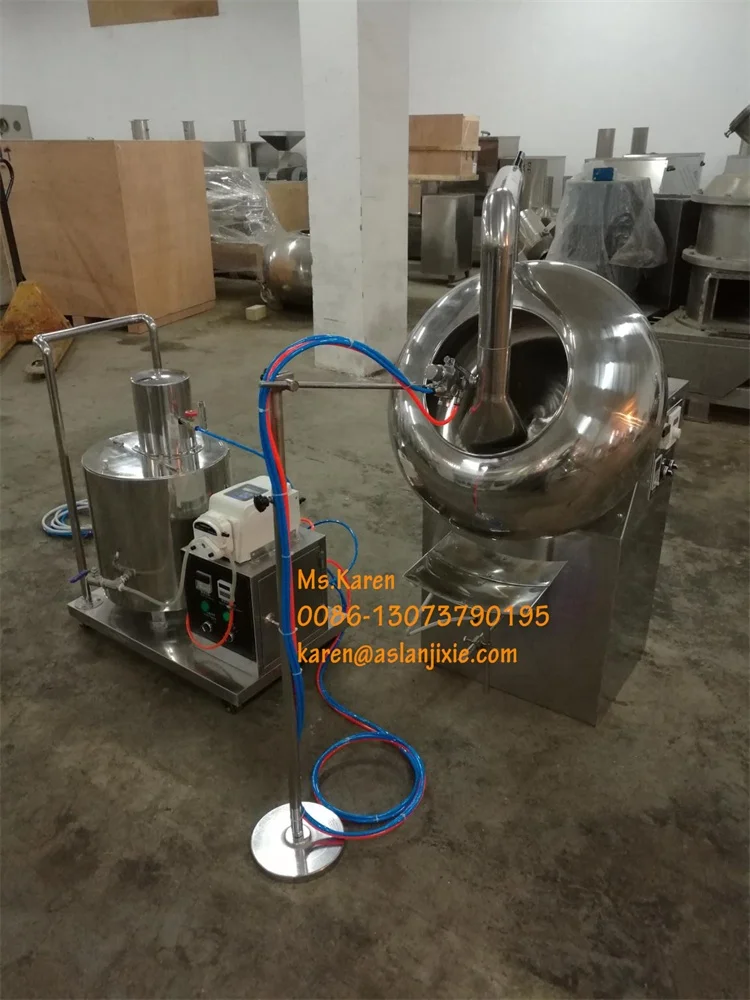

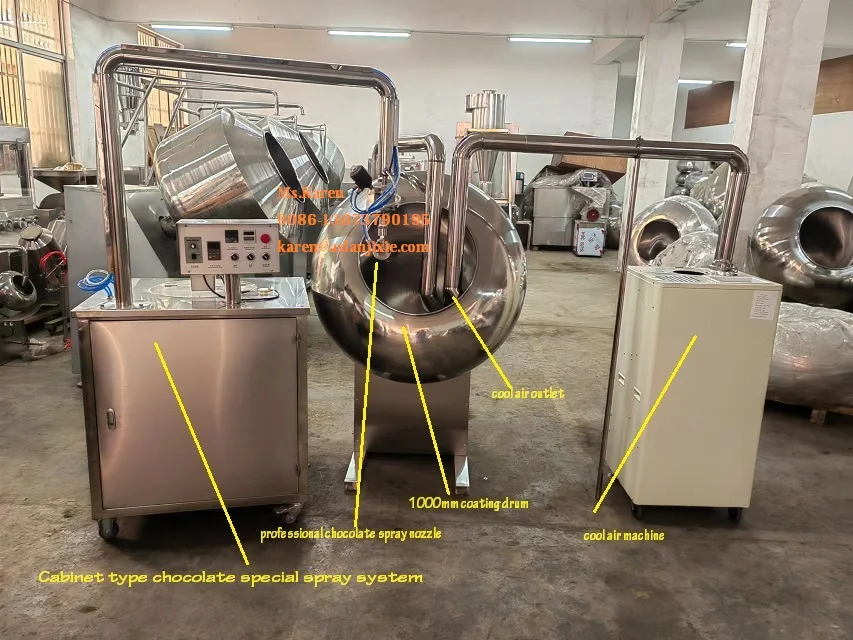

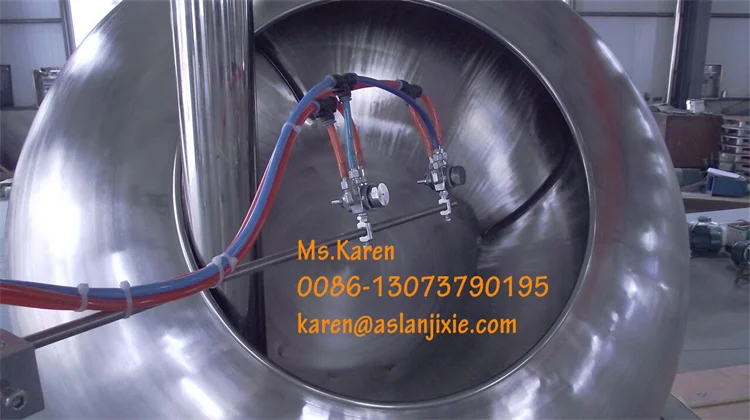

Machine Design For Chocolate Coating






Package&Delivery

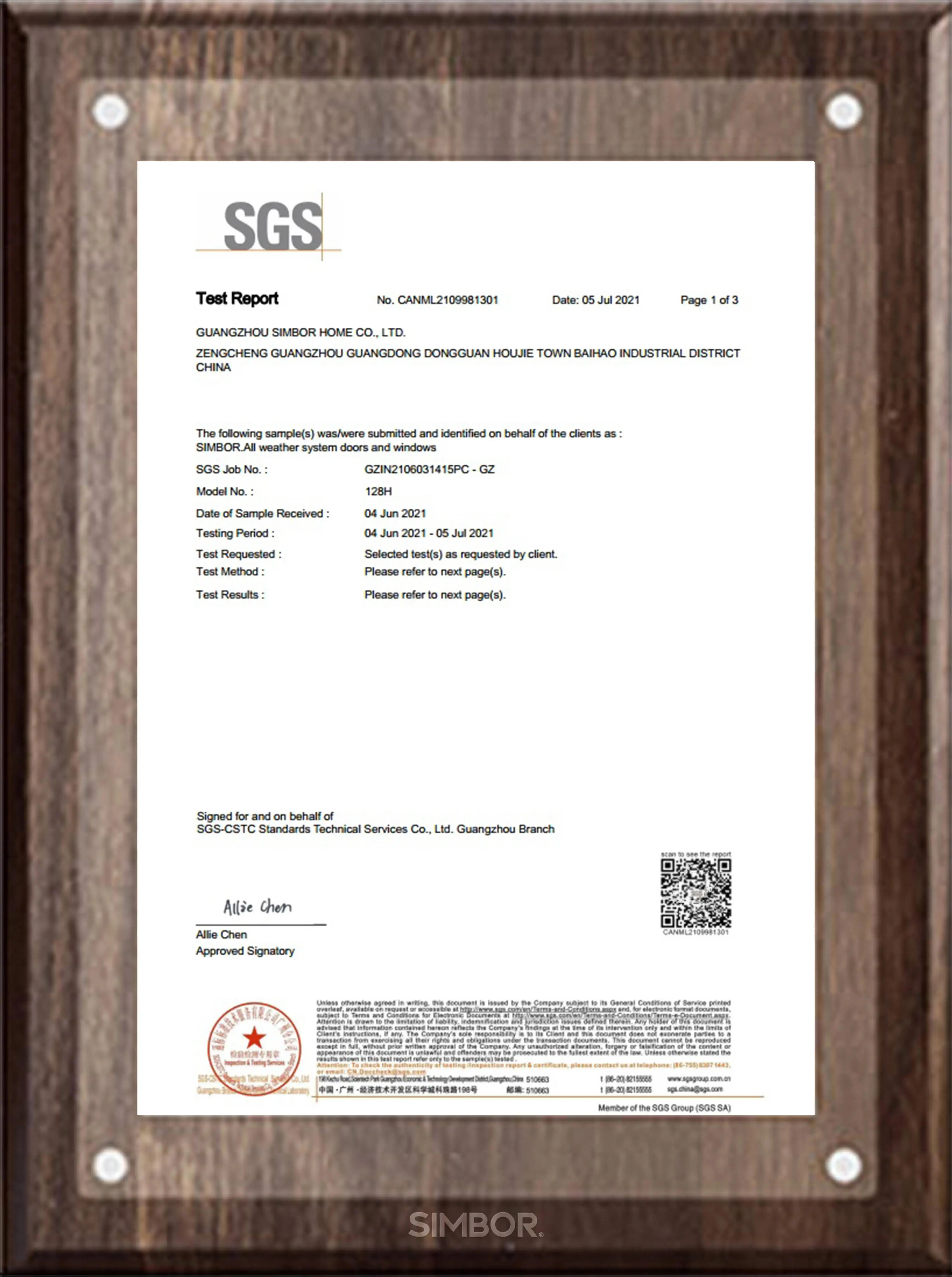

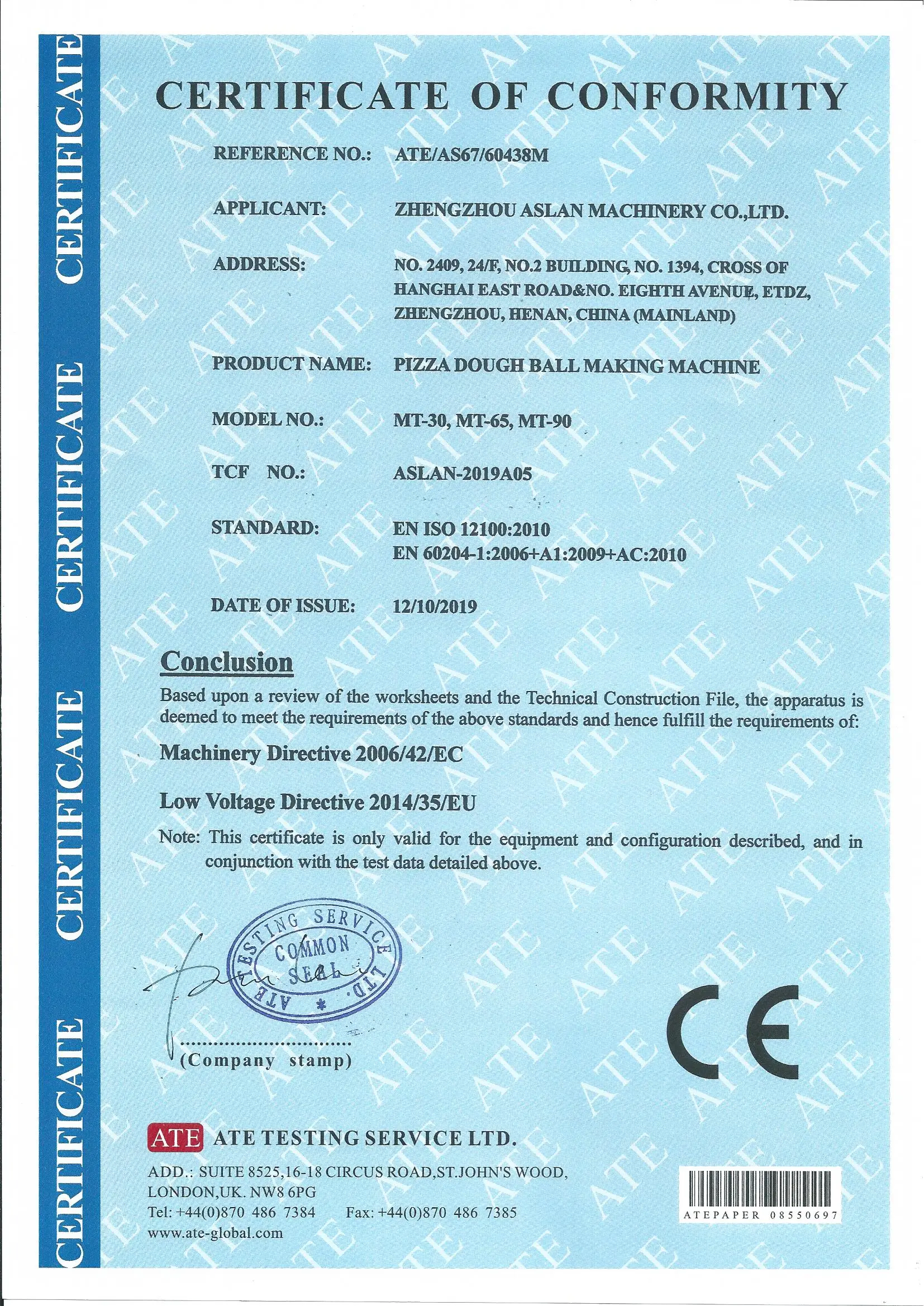

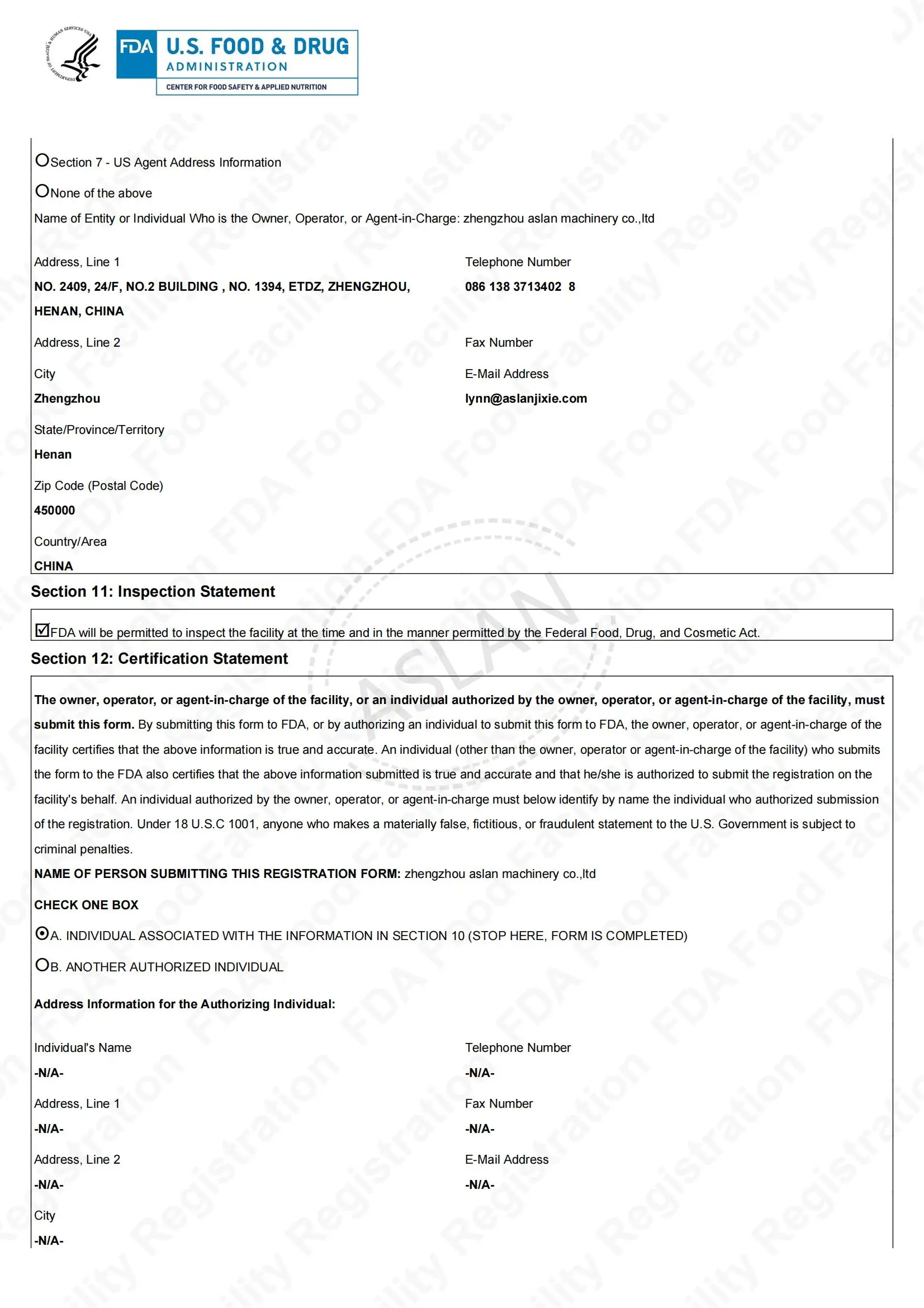

Certifications




Comapny Services


ONLINE SERVICES
24 hours online to solve any problem. Your email will be reply within 12 hours. Your satisfy is our pursuit. Sincerely hope our cooperation .

GOODS SHIPPING
We have long time working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need, we can help you do custom clearance.

PAYMENT TERMS
Currently, in order to protect you and us rights. Both us in safe, hope we can do business in safe way . L/C(>20000USD), Western Union, T/T(bank transfer), Escrow which one is you want, we can discuss it. Also can choose Alibaba Trade Assurance.

GUARANTEE
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and
quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

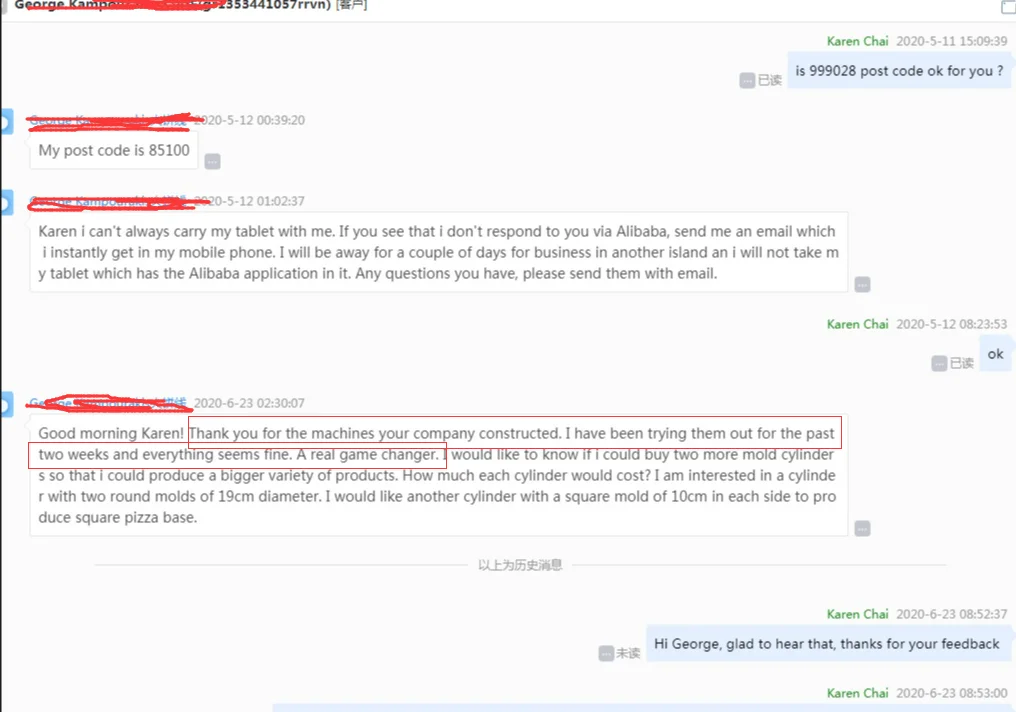

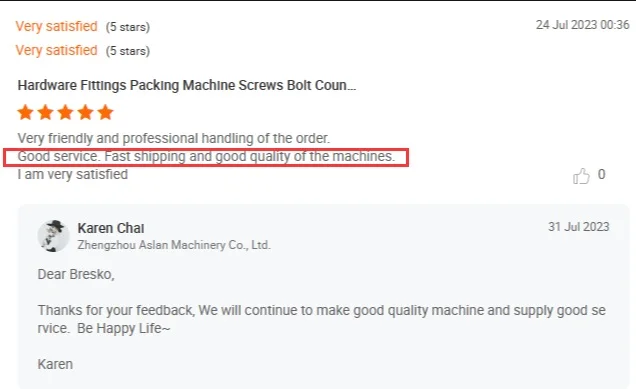

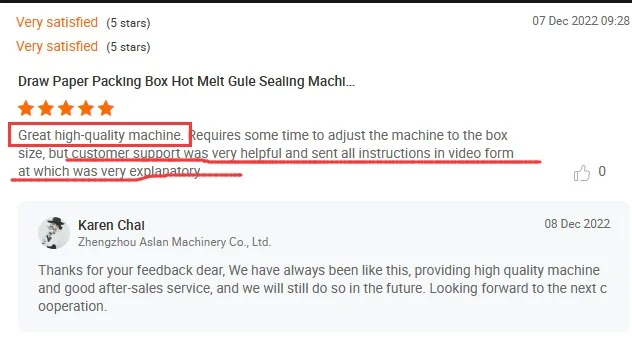

Customer Feedback
