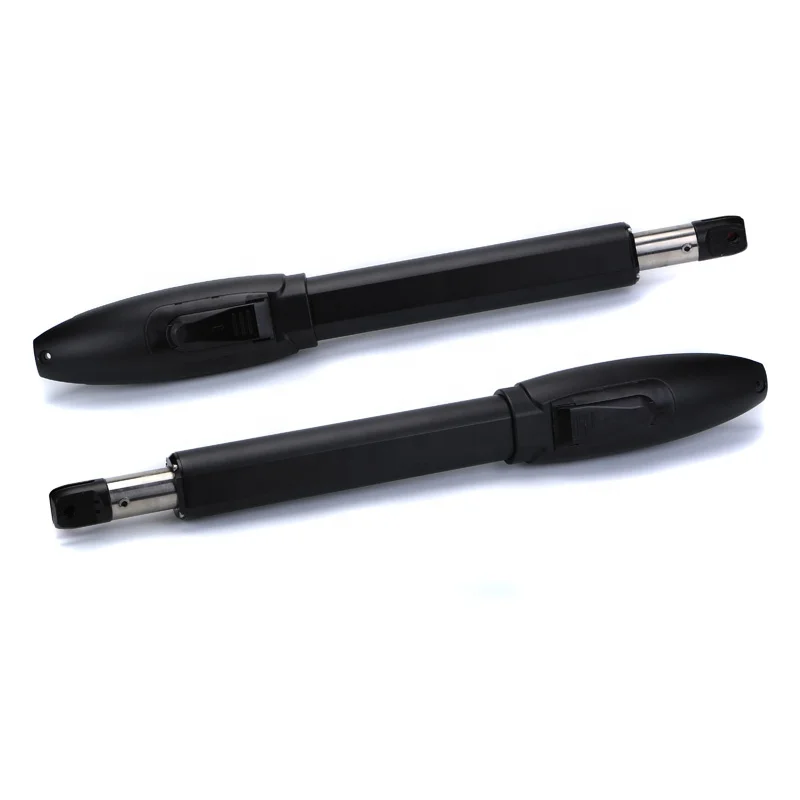

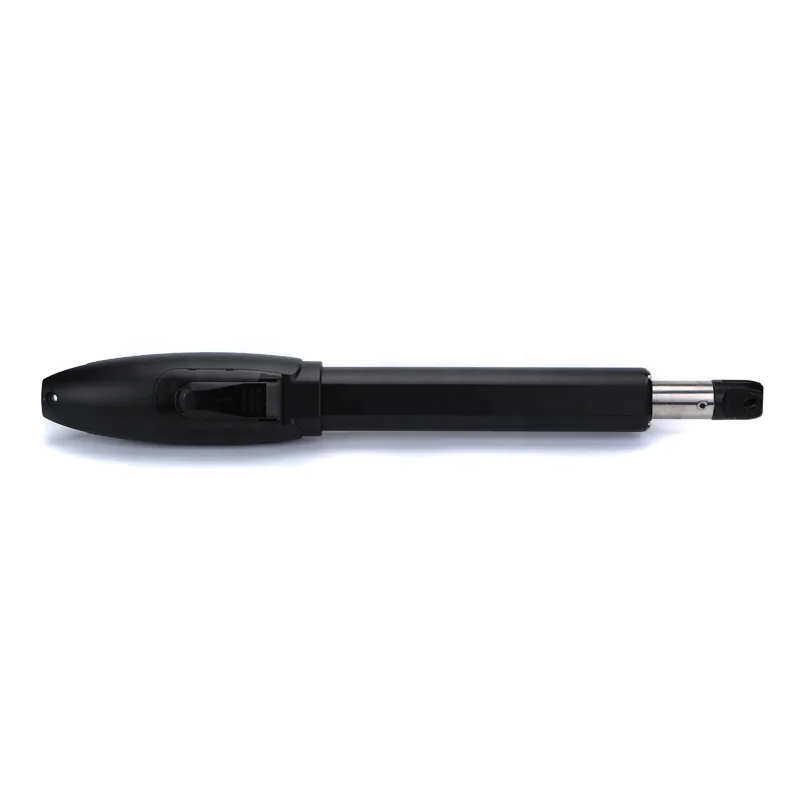

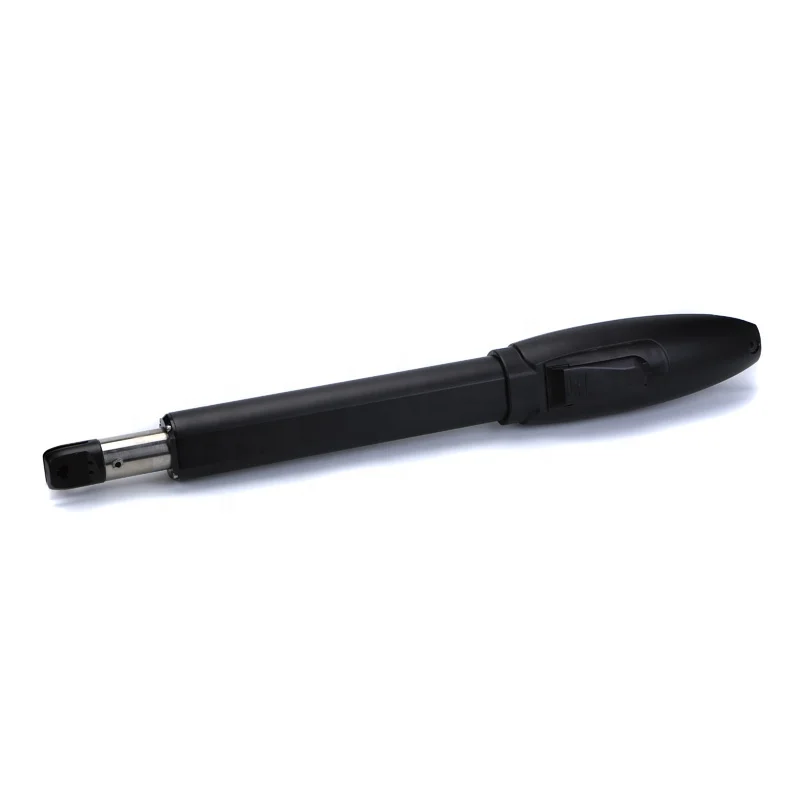

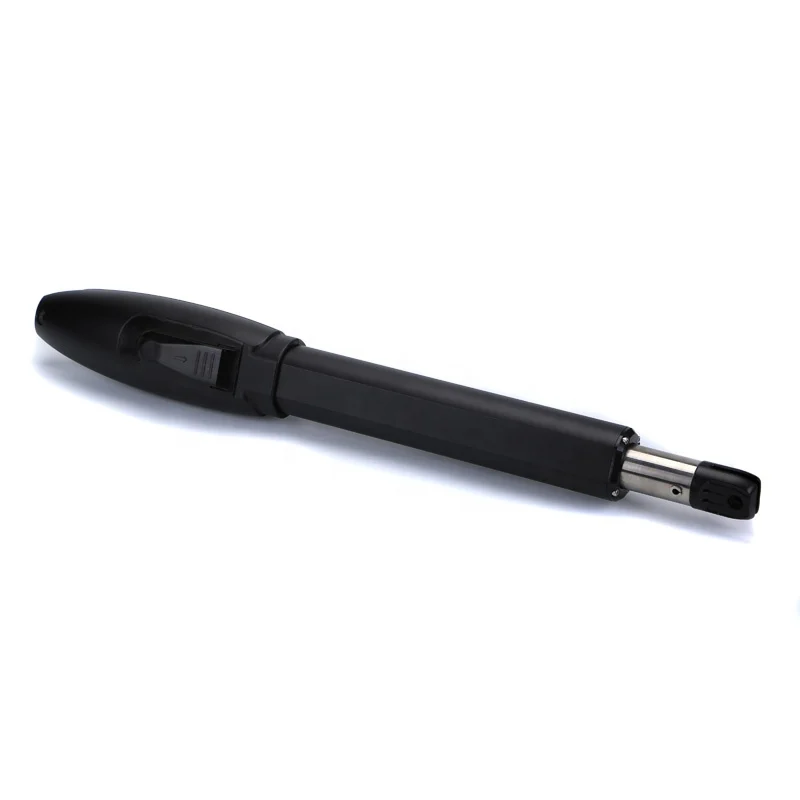

Factory price 24V DC 300kg Wifi automatic gate opener double swing solar auto electric gates automatic swing gate opener

DC motor, backup battery DC24V(4.5AH/9.0AH) is optional

Optional  single/double  gate  mode.

No limit switch, stop in obstacle ,need gate block.

Automatic  closing  function  with  adjustable  time(0~99s).

Slow start and stop, smooth operation,  no  inertia.

Manual  release design for emergency  purpose.

Alarm  lamp,  photo  beam&safety  beam  interface.

Support  access  control  system  to  realize  automatic  identification

and access control.

Unit Model: SW300DC

Power Supply: AC220V/50Hz;AC110V/60Hz

Maximum Loading Weight: 300KG/Leaf

Motor Power: DC24V/50W

Driving Method: screw driven piston type

Limit Switch: electromechanical limit switch/hall sensor

Max.Single-Leaf Length: 3.0m

Gate Moving Speed: 2.5 cm/sec.

Remote Control Range: > 30m

Recording of Up Remotes: 32

Remote Frequency: 433.92MHz

Work Duty: S2 30 min

Working Temperature: -20℃~70℃

Standard Configuration: 2 motor, 1 control box with board, 2 remote transmitters, 1 release bar

Optional Accessories: Photocell, alarm wall lamp(20V/220V/110V), wireless keypad, wireless wall button, 20W solar panel, 9AH battery box with solar charger
