Product Overview
Description
1. Product introduction

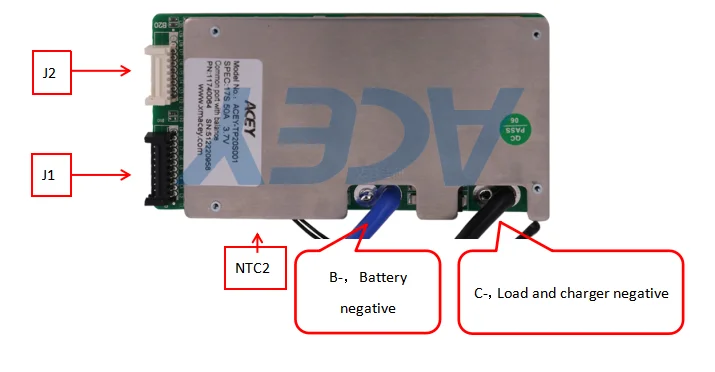

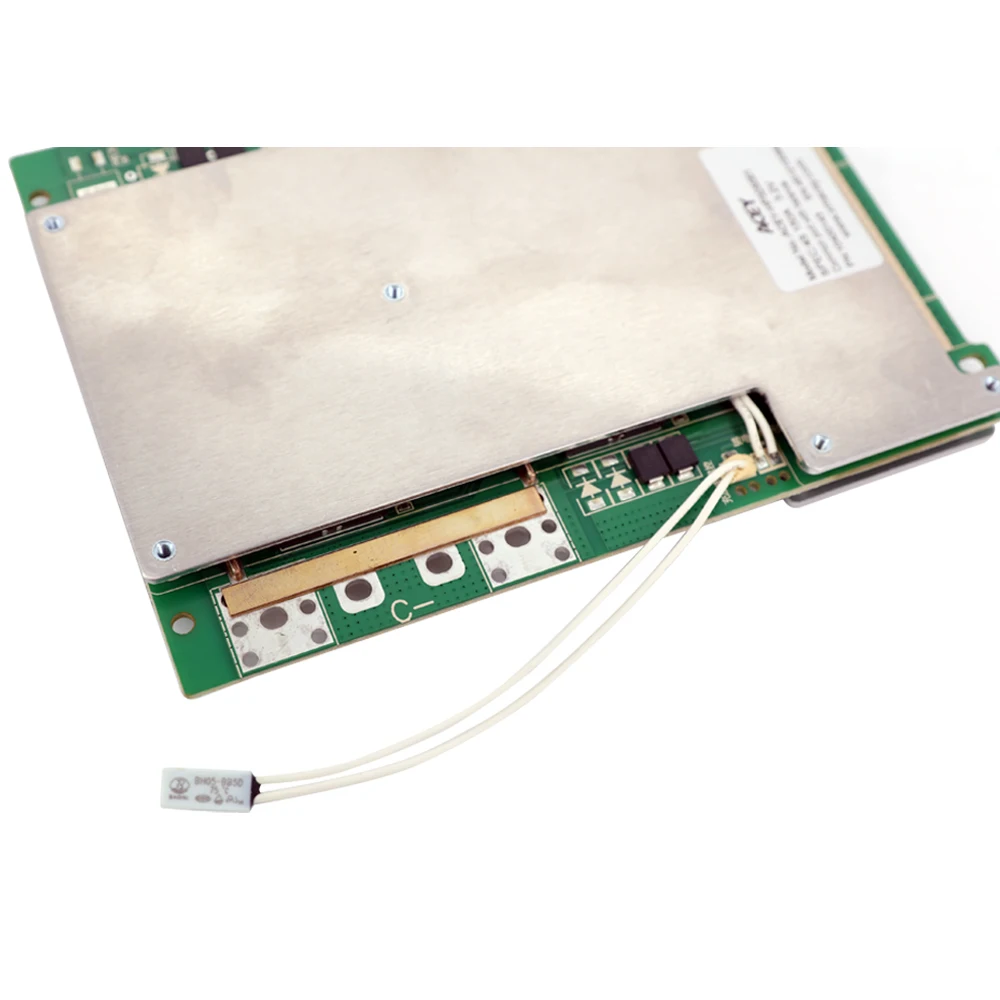

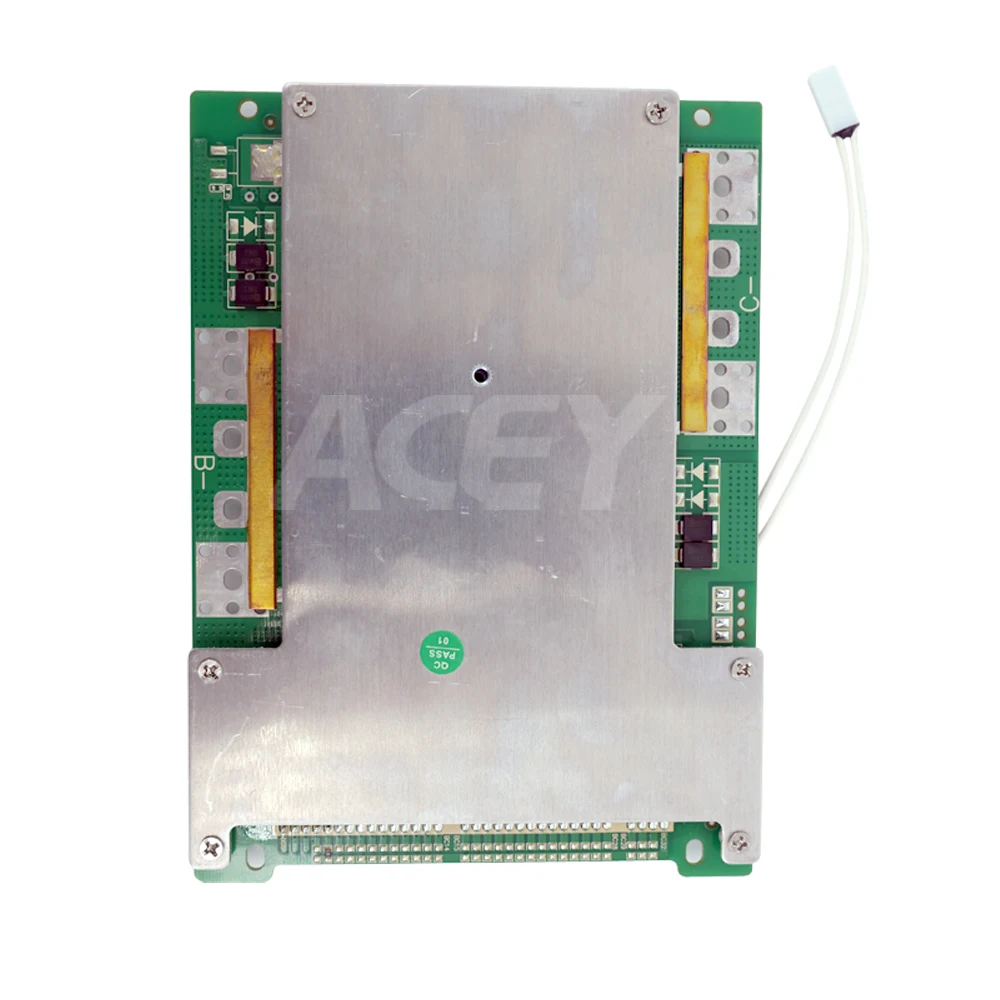

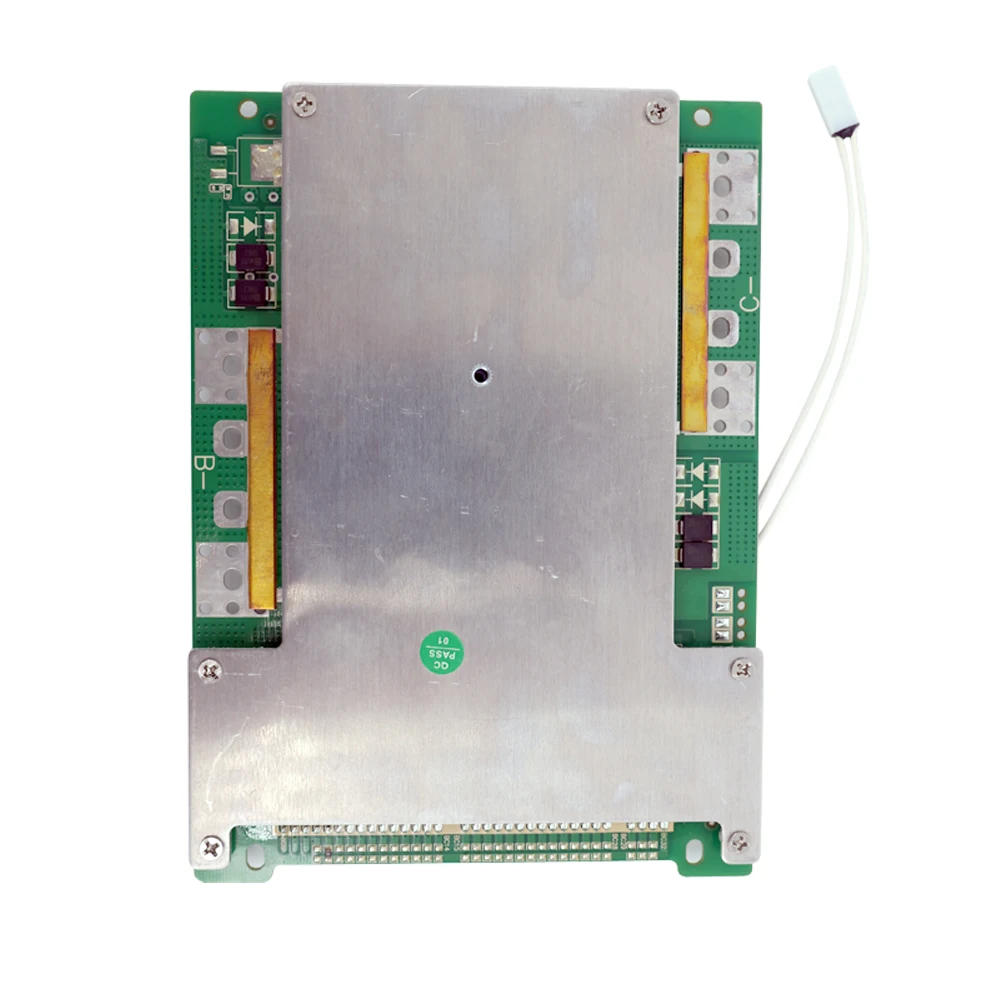

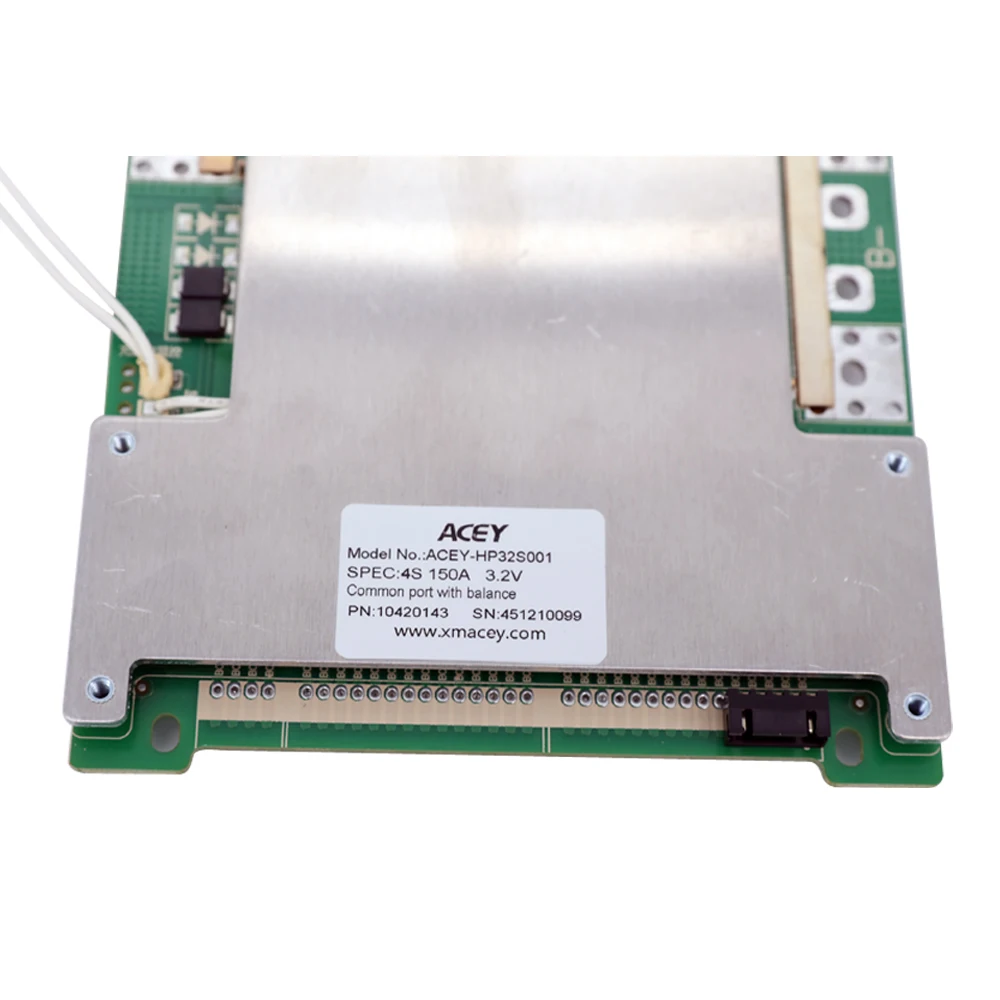

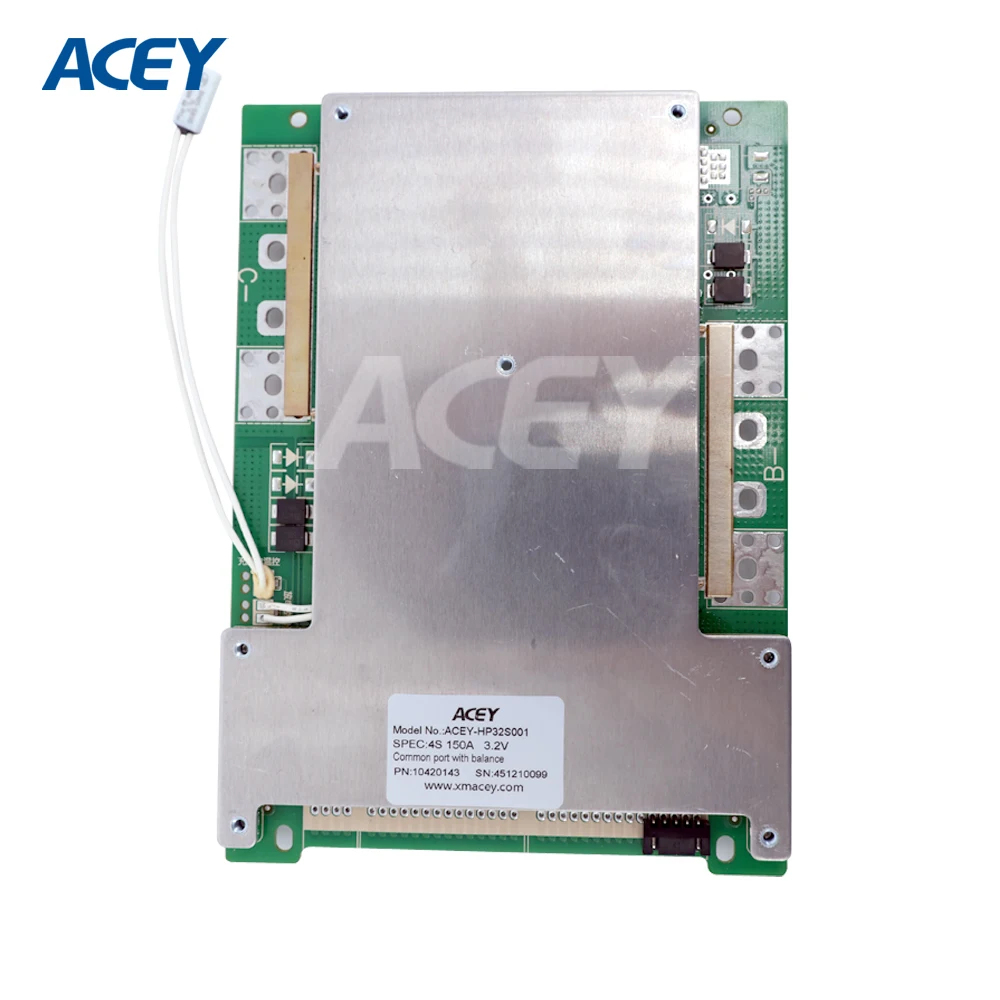

ACEY-HP32S001 is a protection board solution specially designed by Xiamen Acey New Energy Technology Co., Ltd for the battery packs of electric tricycles, electric four-wheelers and other products; it can be applied to lithium batteries with different chemical properties, such as lithium ion, lithium polymer, Lithium iron phosphate, etc. The protection board has strong loading capacity, and the maximum continuous discharge current can reach 100A.
3~32 battery-saving core series protection
Various protection functions for charging and discharging
Hardware discharge overcurrent, short circuit protection function processing
Reserved discharge control switch and discharge temperature protection position
Very low quiescent current consumption
2. Configuration
| Function | Test items | Specification | unit | ||
| Minimum | Typical value | Max | |||
| Operating Voltage | voltage range | 63 | 112.5 | V | |
| Working current | Charging current (continuous) | - | 100 | A | |
| Discharge current (continuous) | - | 100 | A | ||
| Charging protection | Charger voltage (CC-CV) | 112.5 | V | ||
| Overcharge protection voltage | 3.7 | 3.75 | 3.8 | V | |
| Overcharge protection delay time | 500 | 1000 | 1500 | mS | |
| Overcharge protection recovery voltage | 3.55 | 3.6 | 3.65 | V | |
| Discharge protection | Over discharge protection voltage | 2 | 2.1 | 2.2 | V |
| Over-discharge protection delay time | 100 | 1000 | mS | ||
| Over-discharge protection recovery voltage | 2.2 | 2.3 | 2.4 | V | |
| Overdischarge protection recovery conditions | Charge recovery | ||||
| Overcurrent protection | Charging overcurrent protection value | / | A | ||
| Charge overcurrent delay | / | mS | |||
| Charge overcurrent release condition | / | ||||
| Discharge overcurrent 1 protection current value | 400 | 600 | A | ||
| Discharge overcurrent 1 protection delay | 100 | 1000 | mS | ||
| Discharge overcurrent protection recovery conditions | / | ||||
| Short circuit protection | Short circuit protection delay time | 80 | 100 | 200 | uS |
| Short circuit protection recovery | Disconnect load | ||||
| Balance function | Balanced opening voltage | 3.55 | 3.6 | 3.65 | V |
| Balance current | 20 | 35 | mA | ||
| Discharge temperature protection | Discharge temperature protection value | 70 | 75 | 80 | °C |
| Temperature protection release value | 43 | 53 | 63 | °C | |
| Internal resistance | Internal resistance of discharge circuit | / | 10 | 20 | mR |
| Self-consumption | Operating mode | / | 50 | 100 | uA |
| Operating temperature | Normal working range | -20 | 70 | °C | |
| storage temperature | The humidity is below 90%, | -40 | 85 | °C | |
| Protection board size | length Width Height | 130±2*180±2*18±2 | mm | ||
3. Function Description
3.1. Overcharge protection and recovery
When the voltage of any cell is higher than the set value of the cell overcharge voltage, and the duration reaches the cell overcharge delay, the system enters the overcharge protection state, the charging MOS is turned off, and the battery cannot be charged.
After the cell overcharge protection, when the voltage of all cells drops below the cell overcharge recovery value, the overcharge protection state is released. It can also be released by discharge.
3.2. Over-discharge protection and recovery
When the minimum cell voltage is lower than the set value of the over-discharge voltage of the cell, and the duration reaches the over-discharge delay of the cell, the system enters the over-discharge protection state, turns off the discharge MOS, and cannot discharge the battery.
After the cell over-discharge protection occurs, charging the battery pack can release the over-discharge protection state.
3.3. Discharge overcurrent protection and recovery
When the discharge current exceeds the discharge overcurrent protection current and the duration reaches the overcurrent detection delay time, the system enters the discharge overcurrent protection state and turns off the discharge MOS. Delayed automatic recovery after discharge overcurrent occurs, and the corresponding release time can be set longer if automatic recovery is required. Charging can also release the discharge overcurrent condition. Discharge has two-level overcurrent protection function, which has different response speeds for different current values, and protects the battery more reliably.
