Potable Medical Manual Hand Operated Suction Pump Unit Rescue Pump

Product Overview

Description

[Product Name]

manual vacuum pump

[lntended Use]

Extraction of hematocele and hydrops in conventional medical rescue.

Extraction of foreign bodies and sputum sample liquid in the trachea.  Subcutaneous blood,venom extraction.

Negative pressure device .

[Special Features]

MALH suction unit is a light portable suction unit,which can be one-hand operation,and let the other hand free to perform other important tasks of the first-aid.

Parameters:

Vacuum after 1 minute at 20kPa vacuum:    ≥ 15kPa

Vacuum after 6 times suction:                      ≥ 20kPa

Vacuum (max):                                             74kPa(550mmHG)

Free airflow:                                                 Peak ≥20L/Min

Disposable container volume:                      300ml

External diameter of cap (suction port):       17mm

External diameter of catheter connection:   17mm and 9mm

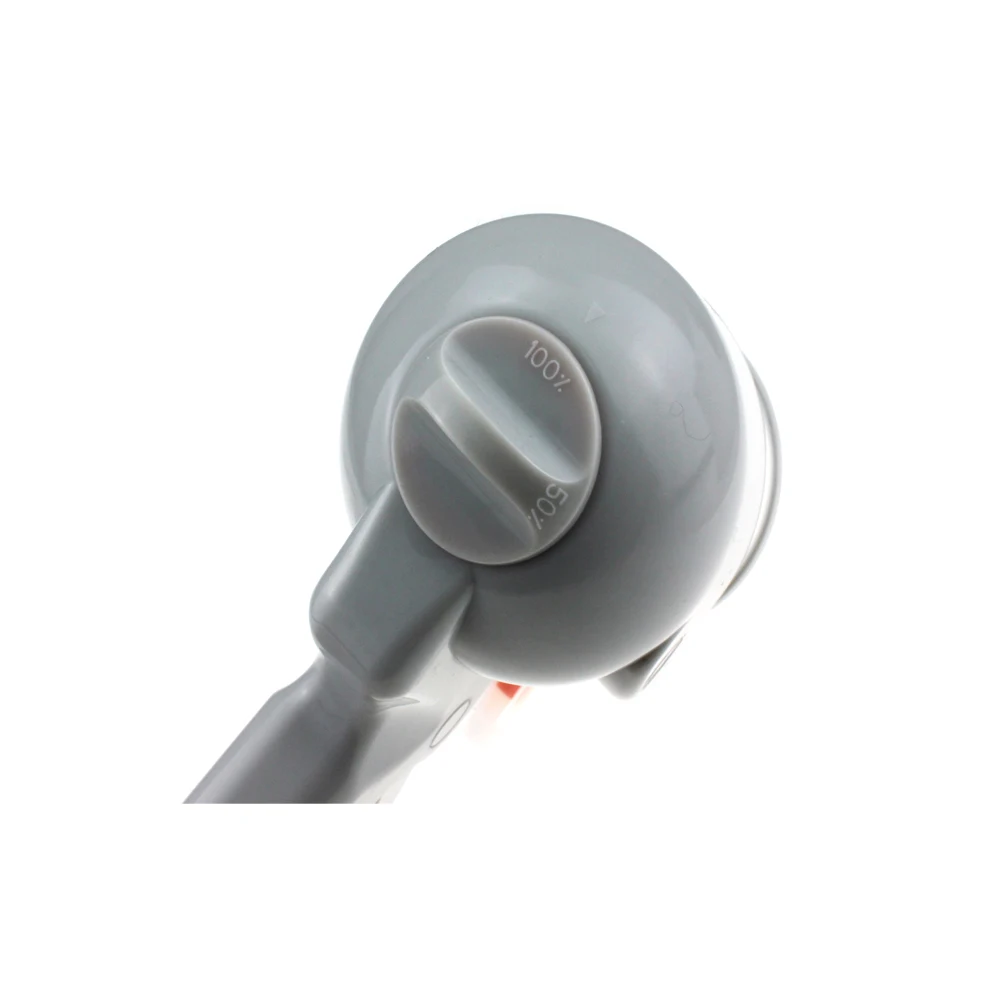

Adjustment:                                                  Turn to  50%  or 100%.

Operating environmental temperature:         -20℃ to + 50℃

Storage environmental temperature:            -40℃ to + 60℃

Height of container and external diameter of bottom:  130mm and 70mm

Net Weight:            230grams

[Ordering Information]

Ordering Code	Specification	Description	Sets/Box	Boxes/Carton
MH-D101	RS	1handle+1container+1adult catheter+1child catheter	1	25
MH-D102	R	1handle+1container+1adult catheter	1	25
MH-D103	S	1handle+1container+1child catheter	1	25
MH-D104	Other	Special Parts	1	25





Maslech is located in China Medical City which is China’s first national medical high-tech zone.  The registered capital of Maslech is RMB30,000,000 and the credit grade is AAA . Maslech is a high-tech enterprise which has basic research, application development and achievement transformation. She specializes in R&D and production of laparoscopic surgery,endoscopic,anesthesia,emergency,gynecology,medical films and other mid-and-high-end medical device products. Maslech has 8,000m2 production and office base including 5000m2 GMP standard workshop, full facilities laboratory, clinical research base and all kinds of advanced production equipments and scientific instruments.

We have achieved ISO13485 quality management system certificate for medical device and most products are certificated by CE.

Maslech has done international business for more than 10 years. We implement ERP system control process and produce in ISO7 standard purification workshop. We won the advanced enterprise honor of safety production work in China Medical City. Relying on the huge sales network and flexible sales system, we has covered the whole county and exported to more than 40 countries and regions in Middle East, Far East, Southeast Asia, Europe, America, Africa and Oceania. Maslech has good reputations from both the insiders and the terminal users .



1. Q: Are you trading company or manufacturer ?

A:   We are factory.



2. Q: Do you accept OEM/ODM?

A :  Yes.



3. Q: Do you have certificates?

A:  Yes,we have CE/ISO/FSC.



4. Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 7-21 days if the goods are not in stock, it is according to quantity.



5. Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but you have to pay the cost of freight.



6. Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%-50% T/T in advance ,balance before shippment.
