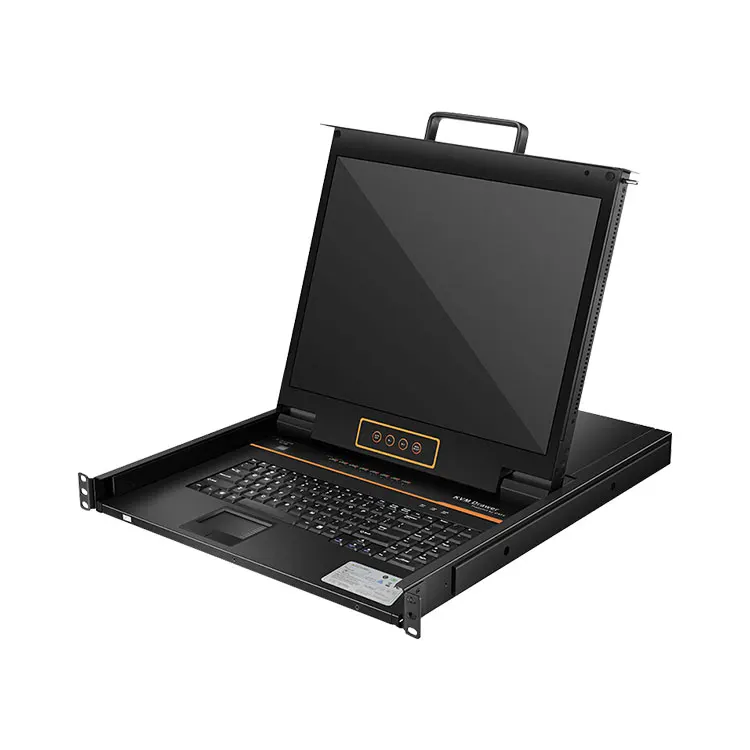

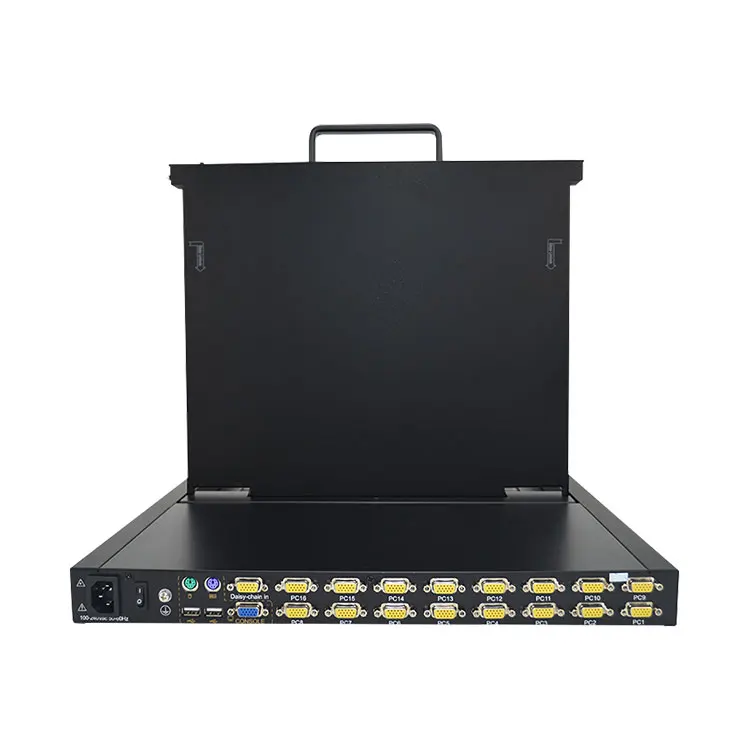

Top quality 17 19 Inch 8 16 port gigabit poe fiber optic switch lcd kvm console kvm switches
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600914070530):
Product Overview
Description
Product Introduction
Product characteristic:

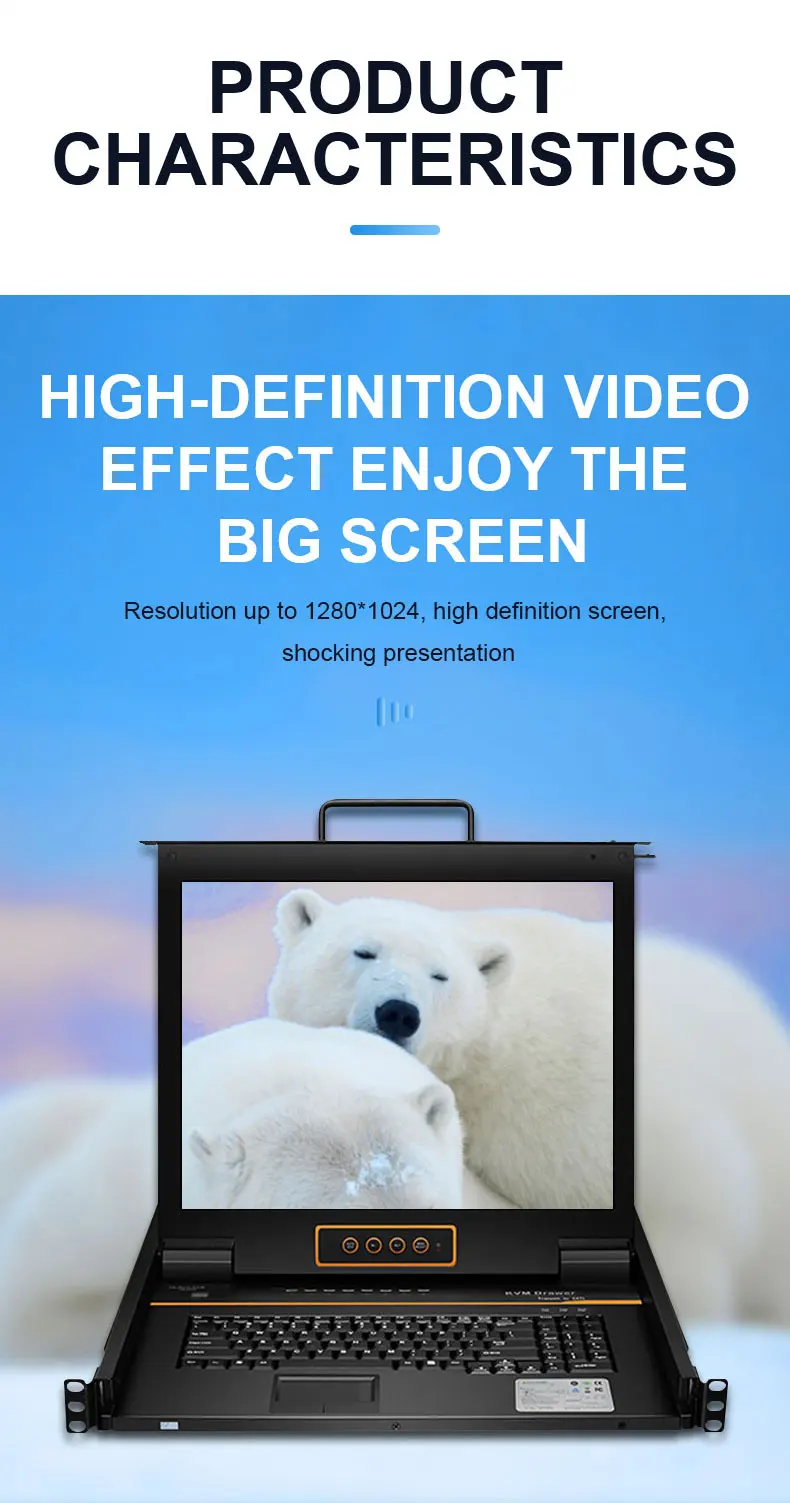

1.High-definition visual effects to enjoy the large screen, resolution up to 1280 * 1024, high-definition screen, shocking presentation.

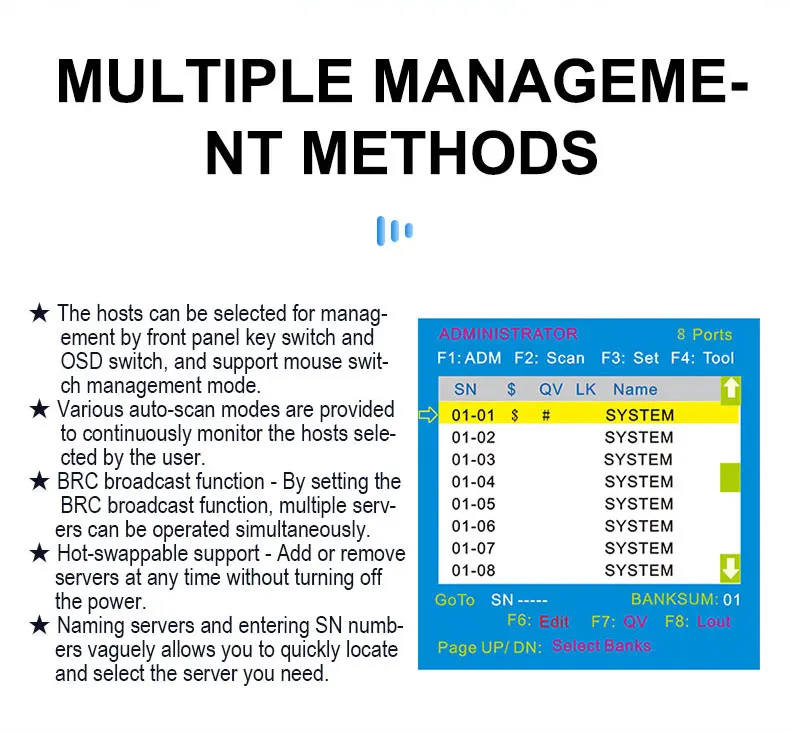

2. Can switch through the front panel button, OSD switch selected management host, support mouse switch management mode.
3. Provide a variety of automatic scanning mode, can continuously monitor the host selected by the user.
4. BRC broadcast function, by setting the BRC broadcast function, you can achieve simultaneous operation of multiple servers.
5. Support hot-swapping, you can add or remove servers at any time without turning off the power.
3. Provide a variety of automatic scanning mode, can continuously monitor the host selected by the user.
4. BRC broadcast function, by setting the BRC broadcast function, you can achieve simultaneous operation of multiple servers.
5. Support hot-swapping, you can add or remove servers at any time without turning off the power.
Product Specifications
Model | YK-UD1708 | YK-UD1908 | YK-UD1716 | YK-UD1916 | ||||||||
Number of host connections | Number of direct connections | Number of direct connections | 8 | 8 | 16 | 16 | ||||||

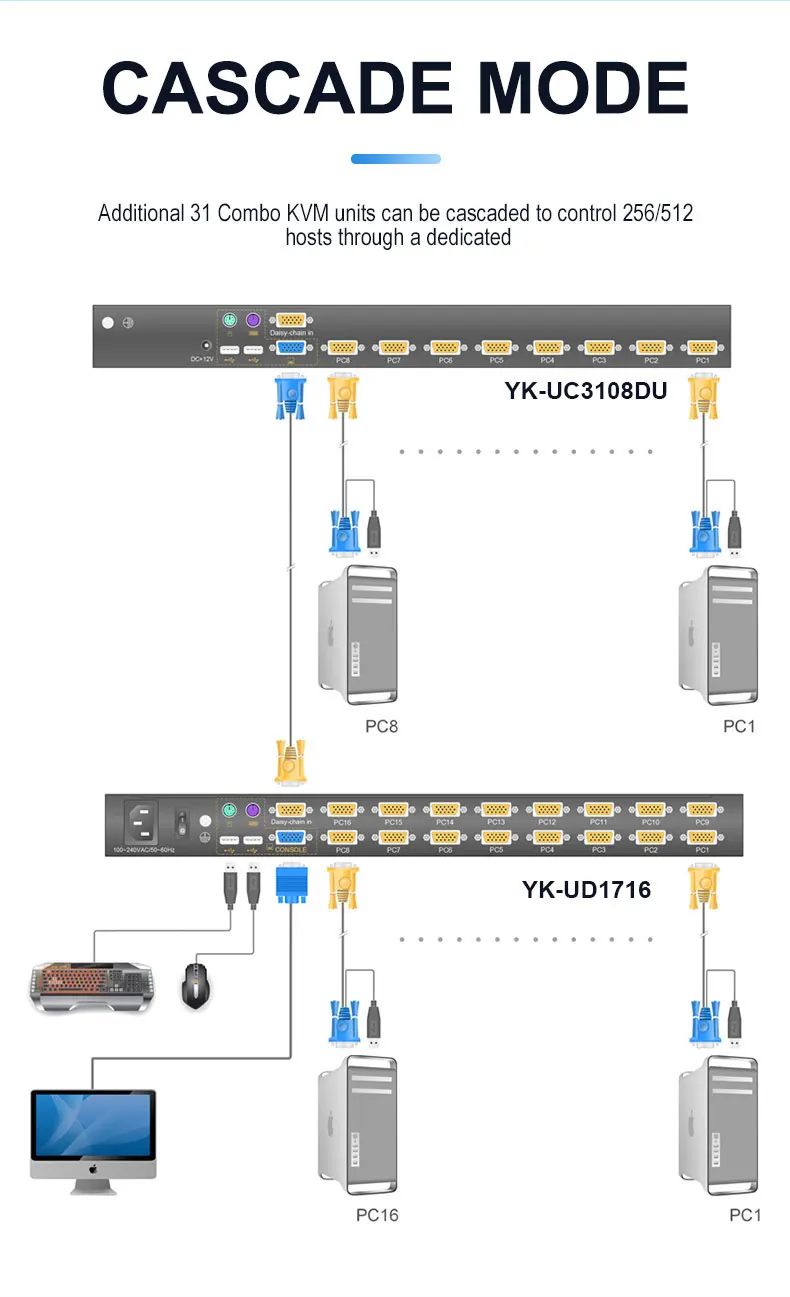

Maximum number of cascade connections | 256 | 256 | 512 | 512 | ||||||||

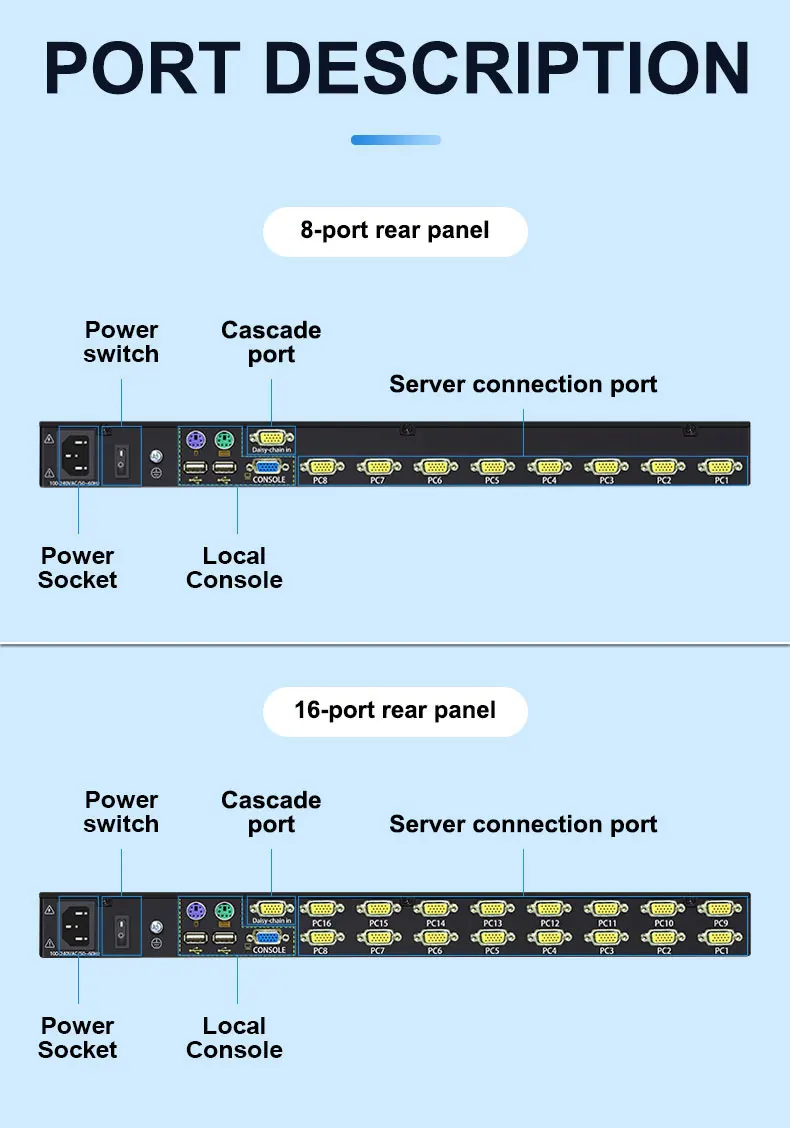

Connection Port | Console | Keyboard | 1×USB.1×6P Mini-DIN F(Purple) | |||||||||
Mouse | 1×USB.1×6P Mini-DIN F(Green) | |||||||||||
Monitors | 1×HDB-15 Female(Blue) | |||||||||||
Server Connection Side | 8×HDB-15 Female(Yellow) | 16×HDB-15 Female(Yellow) | ||||||||||
Power supply | 1×3-Prong AC socket | |||||||||||
I/R value | 100V~ 240Vac , 50~60Hz ,＜1.5A | |||||||||||
Power consumption | 17W | 23W | ||||||||||
Monitors | Display Type | SXGA TFT | ||||||||||
Visible Area | 17 inch | 19 inch | ||||||||||
Best resolution | 1280 × 1024 @ 60Hz | |||||||||||
Environmental requirements | Operating temperature | 0-50℃ | ||||||||||
Storage temperature | -20-60℃ | |||||||||||
Humidity | 0-80%RH, Non-condensing | |||||||||||

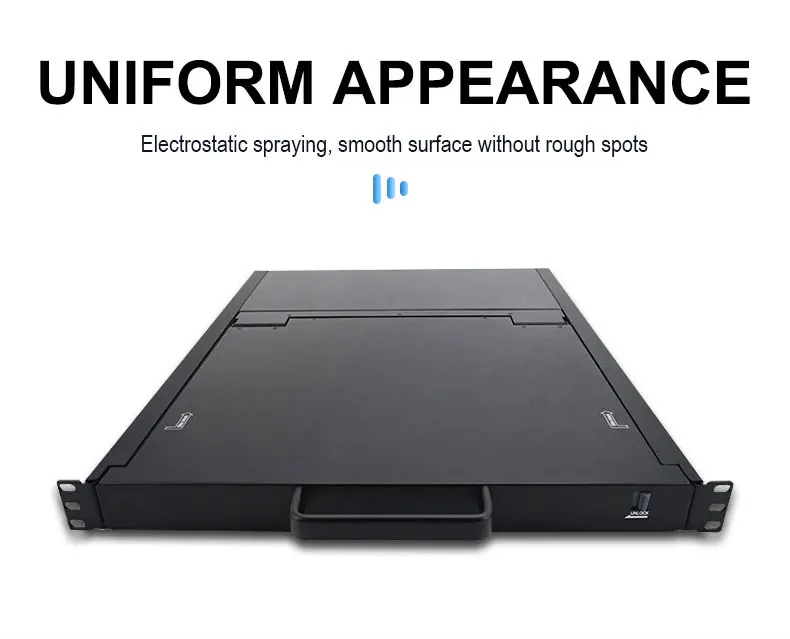

Physical Characteristics | Material | Metal | ||||||||||
Weight | 13.3kg | 13.7kg | ||||||||||

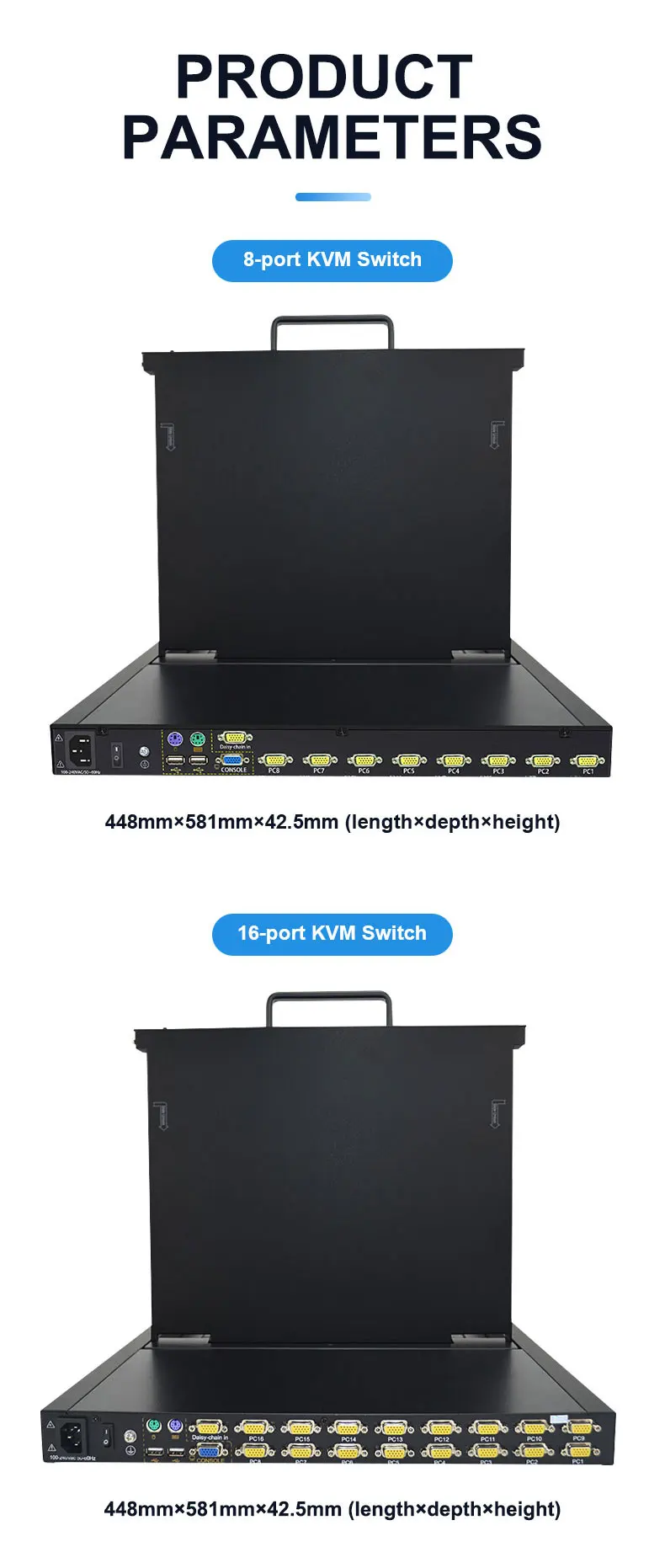

Size | 448mm×581mm×42.5mm | |||||||||||
Port Selection | Switching method | Pushbuttons, hotkeys, OSD menus | ||||||||||

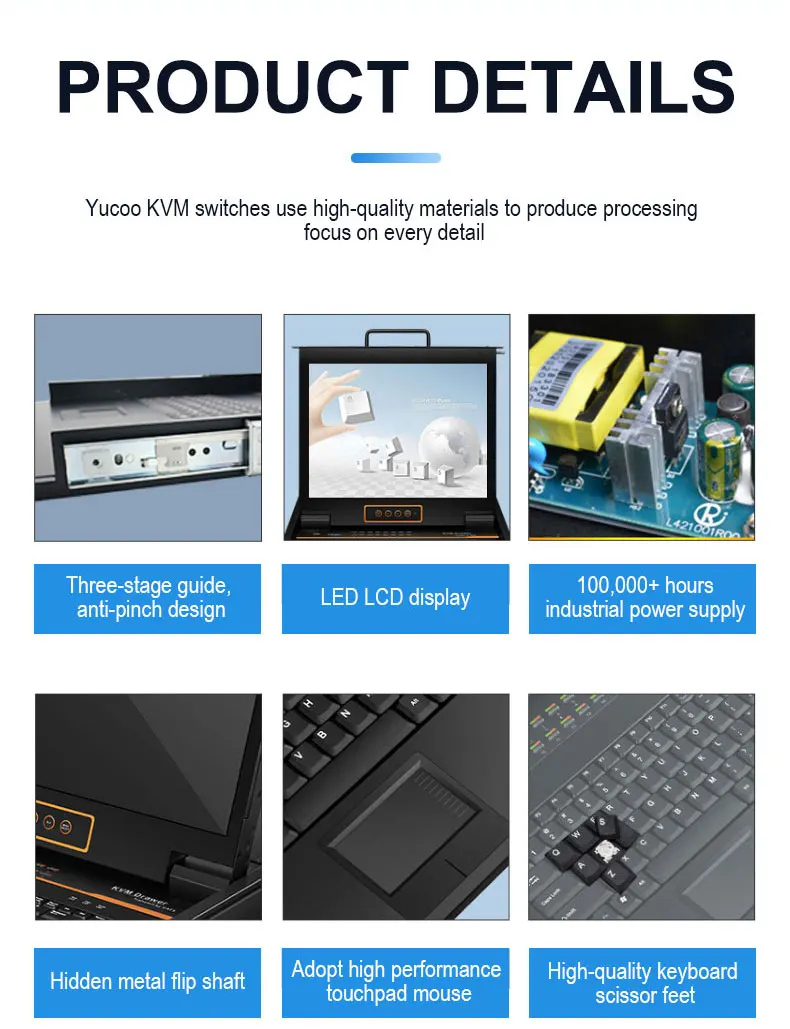

Product Details
