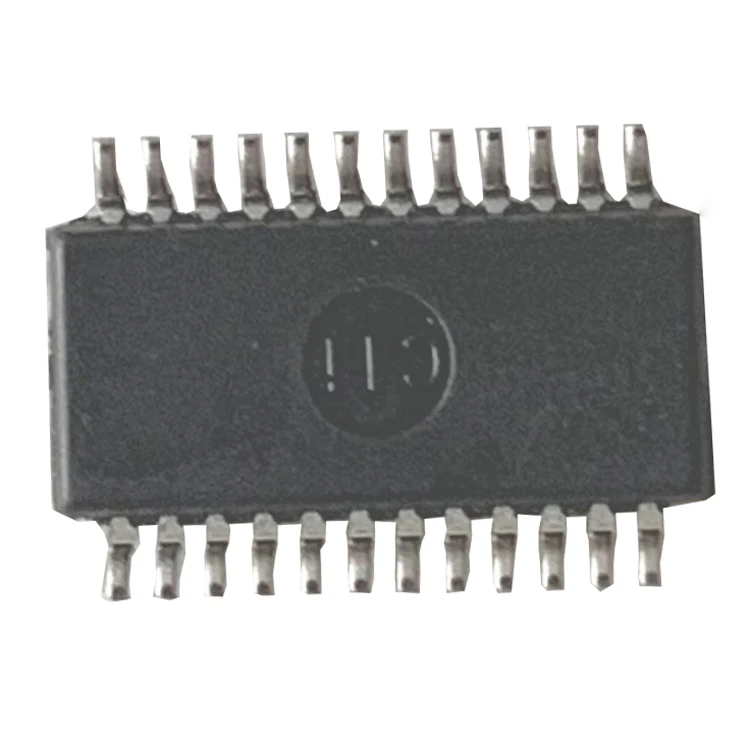

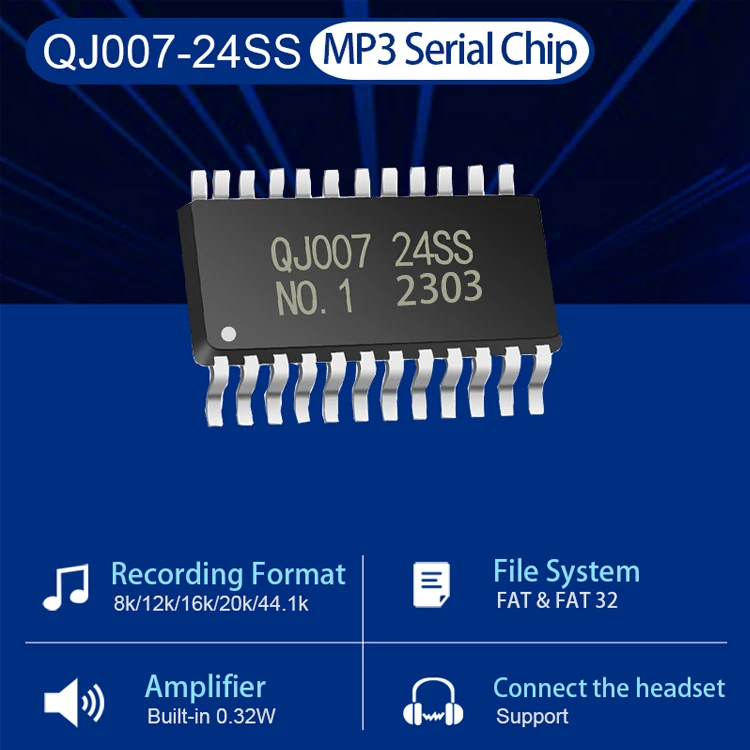

UART I/O Electronic Decoding Circuit Sound Toy Music IC Chip
- Category: >>>
- Supplier: Foshan Jinhengyuan Electronic Technology Co. Ltd.
Share on (1600914078713):
Product Overview
Description
Product Description
QJ007 is an MP3 chip with a serial port for MP3 and MAV decoding which supports USB / SD/TF FLASH drive, FAT16, and FAT32 file system. We can playback the specified music with simple serial command, and simply switch audio playback mode, no need for the cumbersome bottom operation. Besides, it can directly play USB / SD/TF FLASH internal songs or download, easy and convenient.
Its stability and simple operation are the biggest advantages of this chip, is widely used for fixed voice playback field development at a low cost. It would be your optimal choice for the engineer working with various audio files.
Features
1. Support sample rate(KHz): 8/11 .025 / 12/16 / 22 .025 / 32/44 .1 / 48.
2. 24-bit DAC output, dynamic range support 90dB, SNR support 85 dB.
3. Fully support FAT16, FAT32 file system, maximum support128Mbit FLASH, 32G TF/SD, 32G U disk.
4. 7 control modes, parallel port control, 9600 baud rate UART control.
5. Updating voice files by micro USB interface, without installing any software. Supports XP and Windows 7 systems.
6. 7 IO corresponding to one-to-one voice playback, up to 10 channels can be formed (support customization which can make more than 30 channels).
7. Chip DAC output can be directly connected to headphones or an external power amplifier, power amplifier unlimited.
8. Support song selection, folder loop, random play, combination play, song insertion and so on.
9. Supports 3.3-5V input.
Hardware parameters
| Name | Parameters | ||||
| File Format | 1. Support to play WAV files | ||||
| 2. Support to play MP3 files | |||||
| 3. Support Normal, Jazz, Class, Pop, Rock and so on | |||||
| USB Interface | 2.0 Standard | ||||
| Input voltage | DC 3.3 V-5 V Best 4.2 V | ||||
| Dormant current | 15uA | ||||
| Amplifier power | An external power amplifier or headphones | ||||
| Size | 0.8 * 1CM | ||||
| Working temperature | -20 ~ 70 degrees | ||||
| Humidity | 5 % ~ 95 % | ||||
Product Details

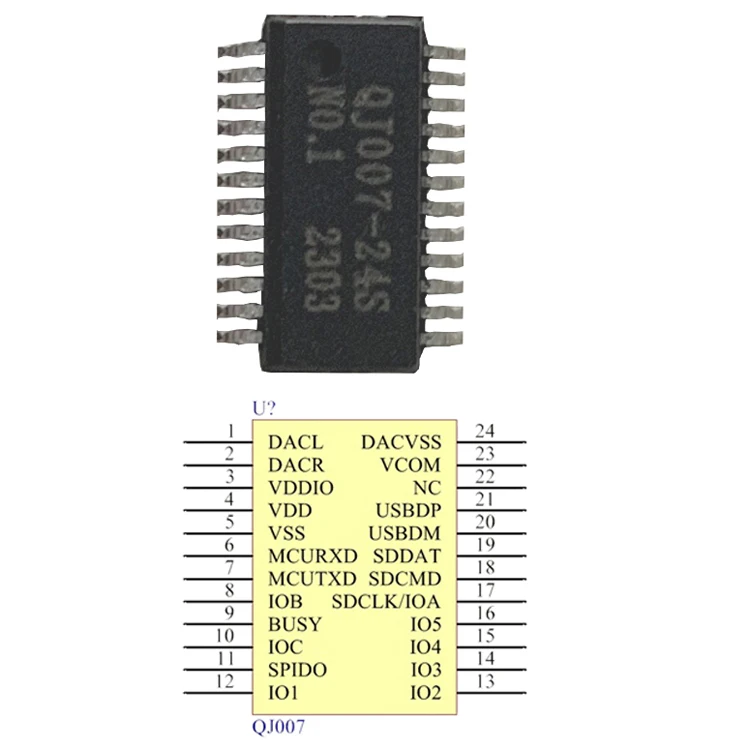

| PIN Number | PIN Name | Type | Function Description | ||
| 1 | DACL | AO | Module sound source left channel output-external amplifier | ||
| 2 | DACR | AO | Module sound source right channel output-external amplifier | ||
| 3 | VDDIO | IO | LDO Output 3.3 V -- This voltage is the internal voltage of the chip and can not be supplied to MCU and other devices | ||
| 4 | VDD | IO | Power input voltage positive pole | ||
| 5 | VSS | IO | GND | ||
| 6 | TXD | IO | External MCU TXD level is 3.3 V attention match | ||
| 7 | RXD | - | External MCU RXD level is 3.3 V attention match | ||
| 8 | NC | - | - | ||
| 9 | SPICS | IO | FLASH--CS | ||
| 10 | DAT | - | - | ||
| 11 | SPIDO | IO | FLASH--DAT | ||
| 12 | SPISCK | POWER | FLASH--CLK | ||
| 13 | NC | - | - | ||
| 14 | NC | - | - | ||
| 15 | NC | - | - | ||
| 16 | BUSY | - | When BUSY plays, it's low, usually high. | ||
| 17 | SDCLK | TF/SD --CLK | |||
| 18 | SDCMD | TF/SD---CS | |||
| 19 | SDDAT | TF/SD---DAT | |||
| 20 | USBDM | IO | USB Data Line DM | ||
| 21 | USBDP | IO | USB Data Line DP | ||
| 22 | NC | - | - | ||
| 23 | VCOM | - | - | ||
| 24 | DACVSS | SGND | SGND | ||

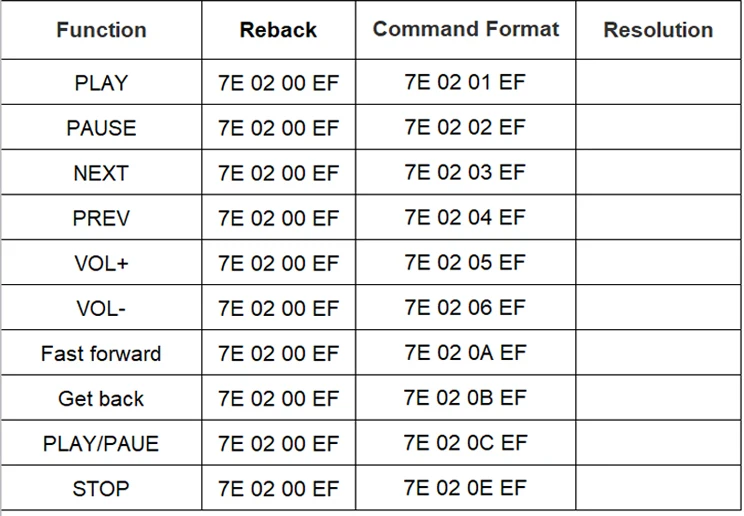

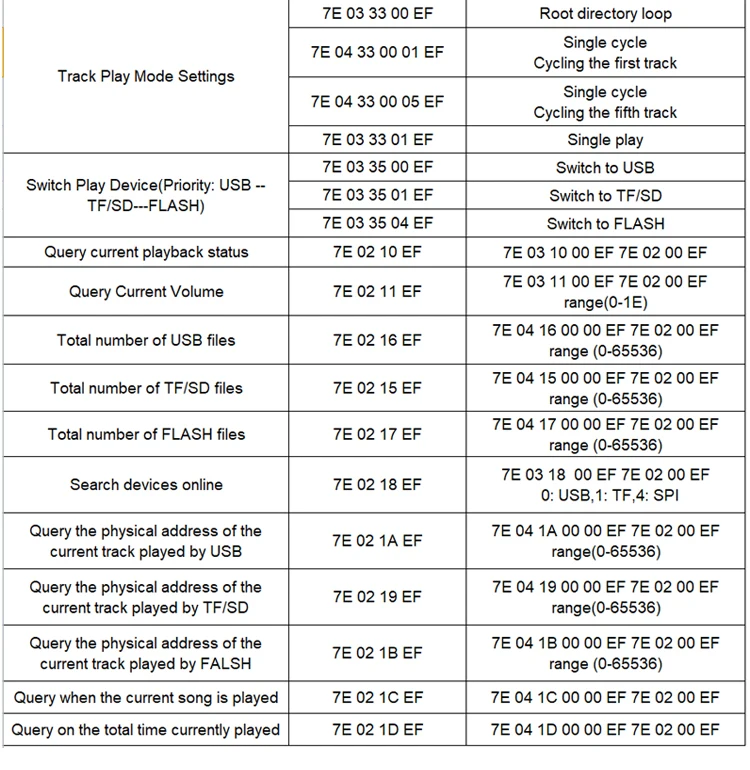

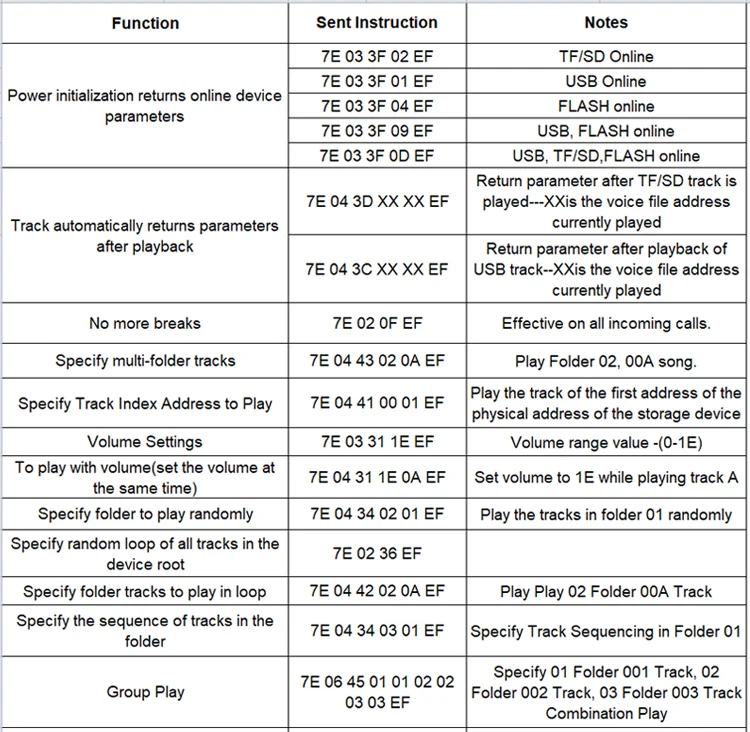

Comnand

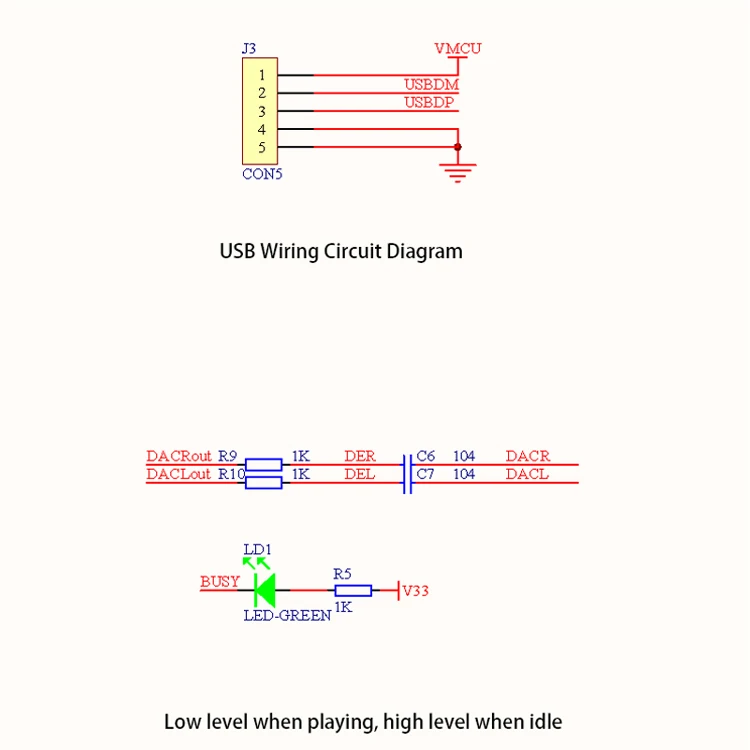

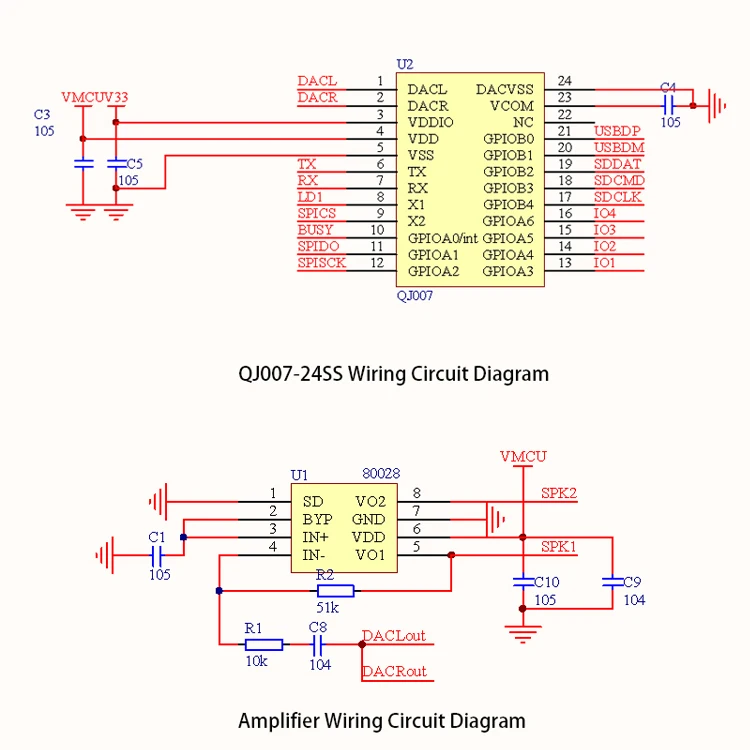

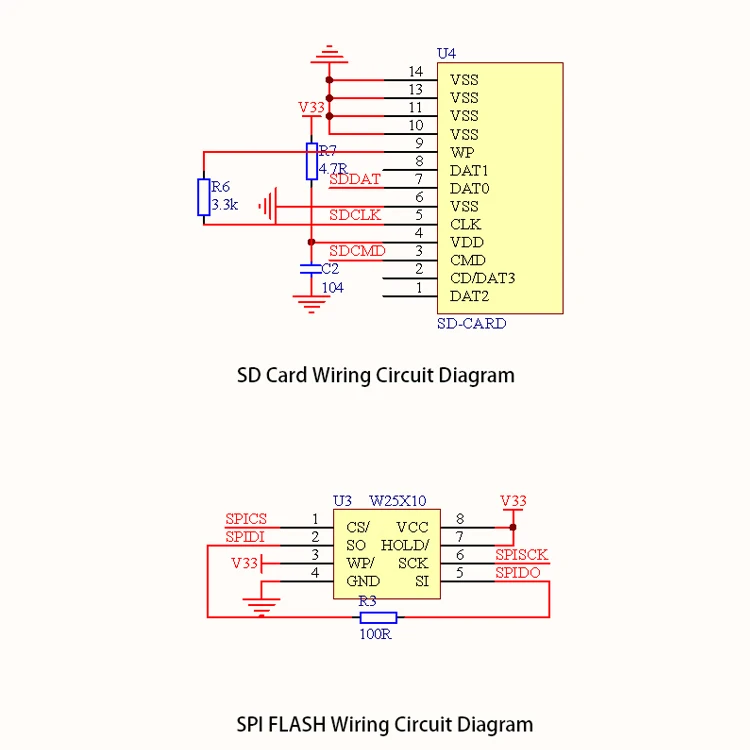

Application circuits
