MONADRIVE MONA200 MRL Permanent Magnet Synchronous Gearless Traction Machine Elevator Motor
- Category: >>>
- Supplier: Suzhou Dazen Electromechanical Technology Co. Ltd.
Share on (1600914180992):
Product Overview
Description
Product Description
Model | MONA200 |
Voltage | 220V/380V |
Roping | 1:1 / 2:1 |
EIv.L oad | (320~630)kg |
Sheave diam | 200mm/240mm/320mm |
Elv.Speed | (0.4~1.5)m/s |
Weight | 510kg |
Duty | S5-40% |
IP Code | IP41 |
Max. Static Load | 2500kg |
Weight | 210kg |
Ins.Class | F |
Guarantee | 1 year |
Delivery Time | 15 working days |
Features

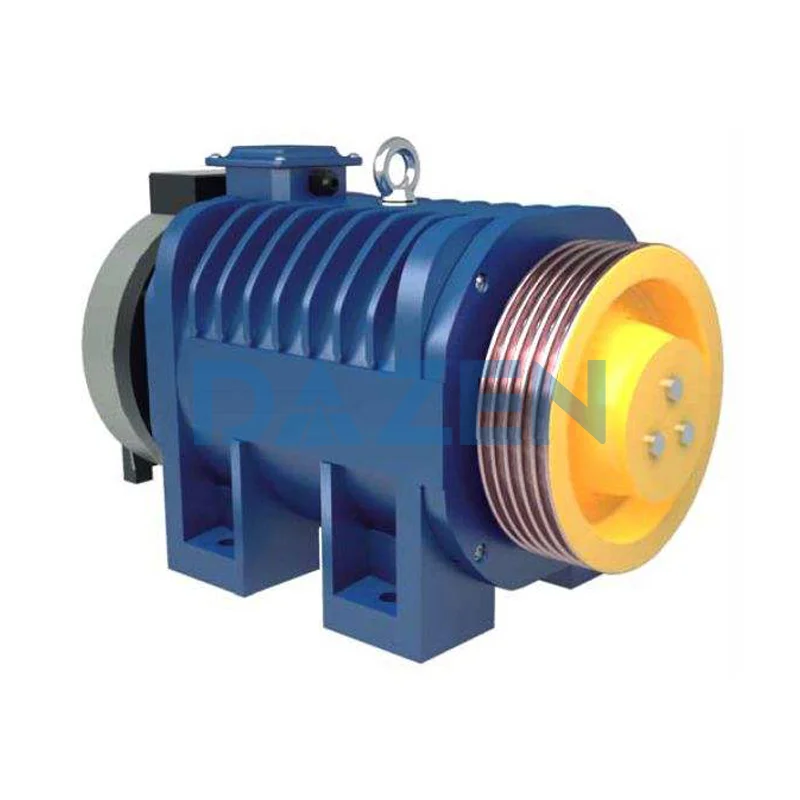

MONADRIVE elevator traction machine MONA200, Permanent magnet synchronous gearless traction machine.
The machine can also be used for machine roomless, The above is recommended value of cut angle,it's optional according to
practical condition.
The machine can also be used for machine roomless, The above is recommended value of cut angle,it's optional according to
practical condition.
Company Profile
Exhibition
Project cases
Packing & Delivery
Certifications
FAQ
1.Which Motor you Use?
We use Italian Brand motor with best quality and 3 years free guarantee.
2. Is The Elevator/Escalator Stable and Safe?
We have been produce elevator and escalator many years. Currently we are working with Otis,Kone,Thyssenkrupp,and customers from than 50countries customers.Our Product are Qualified with ISO9001,CE/EN81,EAC,KC.All the main parts which we use is international famous brand,make our elevator comes premium level.
3.How To Install and Maintain After U Get The Elevator//Escalator?
We have been cooperate with elevator//Escalator installation company more than 20countries,we never stop finding installation partner in other country everyday.To ensure our customer can enjoy both good quality and after service.
4. Will The Elevator Drop Down or Clamp People Suddenly?
Our elevator got 6 line protection ,In Machineroom,Elevator Door,Bottom of shaft. It will be enter into the protection system
automaticly if there is any issue .The elevator will not have such kind of accident if the after service is going on well.This is
why we have so many parters all over the world.
5. Do You Have Any Cerifications ?
We are qualified with CE/EN81,EAC/CU-TR,KC,TUV Certificates.quality is full protected.
2. Is The Elevator/Escalator Stable and Safe?
We have been produce elevator and escalator many years. Currently we are working with Otis,Kone,Thyssenkrupp,and customers from than 50countries customers.Our Product are Qualified with ISO9001,CE/EN81,EAC,KC.All the main parts which we use is international famous brand,make our elevator comes premium level.
3.How To Install and Maintain After U Get The Elevator//Escalator?
We have been cooperate with elevator//Escalator installation company more than 20countries,we never stop finding installation partner in other country everyday.To ensure our customer can enjoy both good quality and after service.
4. Will The Elevator Drop Down or Clamp People Suddenly?
Our elevator got 6 line protection ,In Machineroom,Elevator Door,Bottom of shaft. It will be enter into the protection system
automaticly if there is any issue .The elevator will not have such kind of accident if the after service is going on well.This is
why we have so many parters all over the world.
5. Do You Have Any Cerifications ?
We are qualified with CE/EN81,EAC/CU-TR,KC,TUV Certificates.quality is full protected.
