300W Boosting Bicycle Hydrogen Fuel Cell
$1,034.00

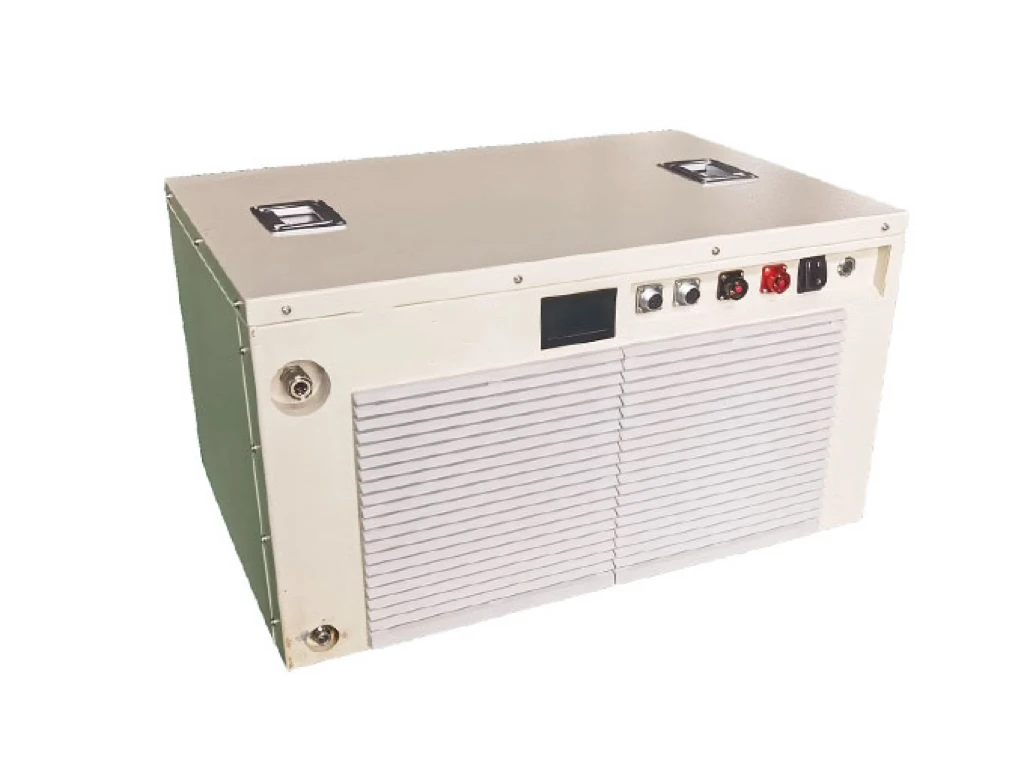

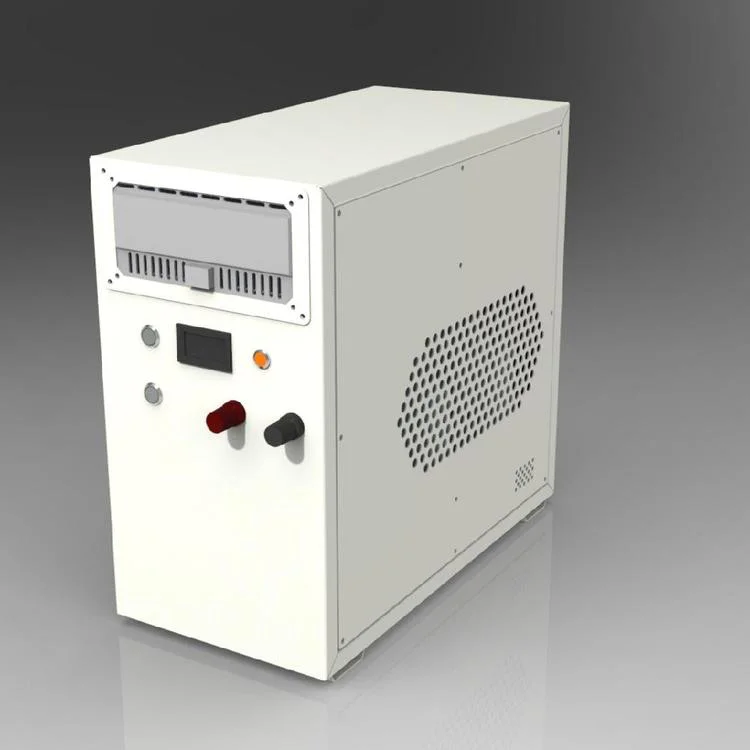

50W 1kwh portable DMFC Direct methanol fuel cell for exploration emergency rescue power supply
- Category: >>>
- Supplier: Wuxi Daze New Energy Development Co. Ltd.
Share on (1600914183371):
Product Overview
Description
Product Description
Methanol is oxidized to form carbon dioxide with action of anode catalyst, and electrons and protons are released. The protons are transferred to the cathode through electrolyte membrane, while the electrons working through the external circuit are transferred to the cathode region. The electrochemical reduction reaction occurs with protons and oxygen reaching the cathode catalytic layer under the action of the cathode electrocatalyst to produce water. Under standard conditions, the specific energy of methanol fuel is 600Wh/kg.
Basic parameters:
Rated continuous output power: 50W (supporting short-term excess output)
Rated output voltage: 12V
Plug standard: M16 aviation plug (2-core, 6-core)
Weight: approximately 8kg
Standard energy configuration: 1kWh
Rated continuous output power: 50W (supporting short-term excess output)
Rated output voltage: 12V
Plug standard: M16 aviation plug (2-core, 6-core)
Weight: approximately 8kg
Standard energy configuration: 1kWh
Product advantages:
1. High energy density:
Methanol consumption rate: 1kWh/L/0.79kg;
L Ultra long battery life to meet long-term portable use;
Can accurately match energy based on load task energy consumption;
2. High reliability:
Electrochemical power generation with fewer moving components and low failure rate;
Compact design, easy to carry, sturdy and durable;
Low maintenance design, only requiring regular methanol replenishment;
3. Strong environmental adaptability:
Natural cold tolerance genes, with no attenuation of wide temperature adaptation;
Born for extreme environments;
4. Environmentally friendly:
No harmful gas emissions;
Low temperature bottom noise, no electromagnetic interference.
Application scenario:
Power supply for field special missions
Emergency rescue power supply
Field survey power supply
Technical Data | Cartridge Data | ||
Model | 50W | Standard fuel | M1 |
Daily power output | 2880Wh | Volume | 3000ml |
Voltage | 12V/24V | Type | Methanol |
Size | 446*166*289mm | Fuel Consumption | 0.9L/kwh |
Application scenarios
Company Profile
Wuxi Daze New Energy Development Co., Ltd..
is a state-recognized high-tech enterprise, a small and medium-sized enterprise of science and technology, with 37 authorized patents, the company has a strong technical team, and a number of universities, research institutions committed to hydrogen energy, solar energy, energy storage and other renewable energy technology research and development, innovation, production and sales and after-sales service. The company is positioned as a provider of clean renewable energy products and overall solutions
Our Company's main hydrogen production chain of various products and project plan, including but not limited to, hydrogen production, hydrogen storage, transportation, hydrogenation and filling station project design, the hydrogen fuel cells and application direction system, hydrogen fuel cell application products (including passenger cars, hydrogen fuel cell bus, Hydrogen vessels, industrial hydrogen forklifts, heavy trucks, sanitation vehicles, hydrogen fuel drones, hydrogen bicycles, etc.), hydrogen fuel cell backup power supply, 100kw-10MW hydrogen fuel cell power station, wind large-scale hydrogen energy storage project, etc.
2, our company's main direction : solar photovoltaic modules, photovoltaic system solutions, photovoltaic application products, BIPV and applications
3, while we focus on new energy batteries, energy storage batteries and energy storage systems and energy storage solutions
Hydrogen Energy Whole Industry Supermarket Click here!!!
