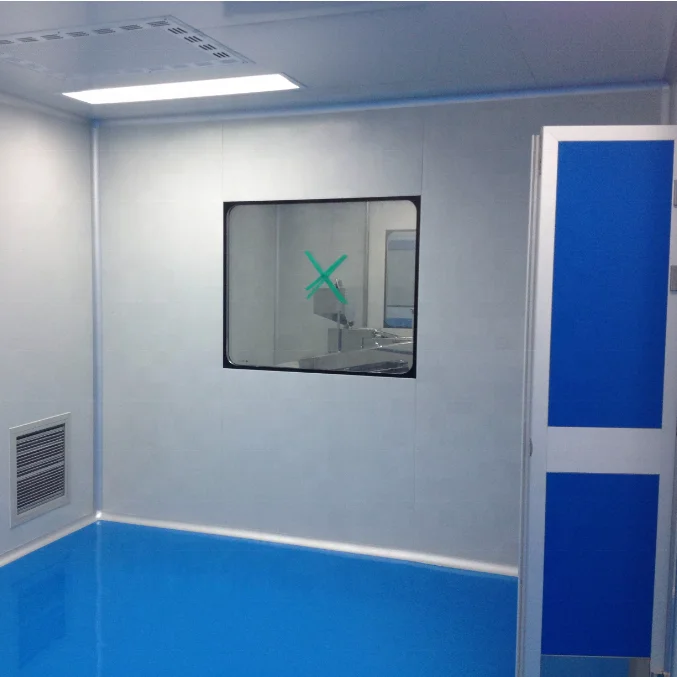

Professional high quality Iso 7 8 9 Modular Factory Partition wall Panel Dust Free Portable Clean Room
- Category: >>>
- Supplier: Dongguan Yichang Refrigeration Technology Limited
Share on (1600914198645):
Product Overview
Description
Product Description
Professional high quality Iso 7 8 9 Modular Factory Partition wall Panel Dust Free Portable Clean Room
GMP requires a cleanroom or clean area for manufacturing. Within the GMP there are further standards for the materials used in the construction of a cleanroom or area compliant with GMP. All materials must be able to withstand frequent cleaning and disinfection. Additionally, materials must be free of cracks, smooth and level, and able to interlock seamlessly.Particulate materials may not be used due to the risk of contamination. Aside from GMP compliance, other factors such as durability, ease of installation, and cost come into consideration when designing a cleanroom. At YICHANG PURIFICATION TECHNOLOGY LIMITED we will guide you through the design process step by step to ensure that both GMP standards, your needs, and your budget are all satisfied.
What we can do for your cleanroom | ||
Cleanliness class | Available from Class 100 to Class 100,000 | |
Clean Room Drawing | Available | |
Clean Room Construction | 1. Structure: Wall panel, ceiling filtering system, windows, doors, various fittings etc. | |
2. Electric: Lighting, swithch, cables, wires, control box etc. | ||
3. Clean air conditioner and air exhaust: Available | ||
Cleanroom floor | Self-leveling expoxy or according | |
Cleanroom equiopmemt& accessories | Air shower, pass box, dispensing booth, FFU, clean bench,changing room, HEPA box etc. | |
Modular clean room is mainly composed of wall panels, roof, doors, Windows, connectors, ground and other accessories. Such as air shower, changing room, pass box, cargo air shower, FFU, hepa box, clean air conditioner, dispensing room, clean bench, cleanroom floor etc.
Cleanroom window
Cleanoom window adopts integrated structure design, which is perfect combination with clean wall panel, it is not only in
good sealing performance and simple installation, but also easy to clean.
Cleanoom window adopts integrated structure design, which is perfect combination with clean wall panel, it is not only in
good sealing performance and simple installation, but also easy to clean.

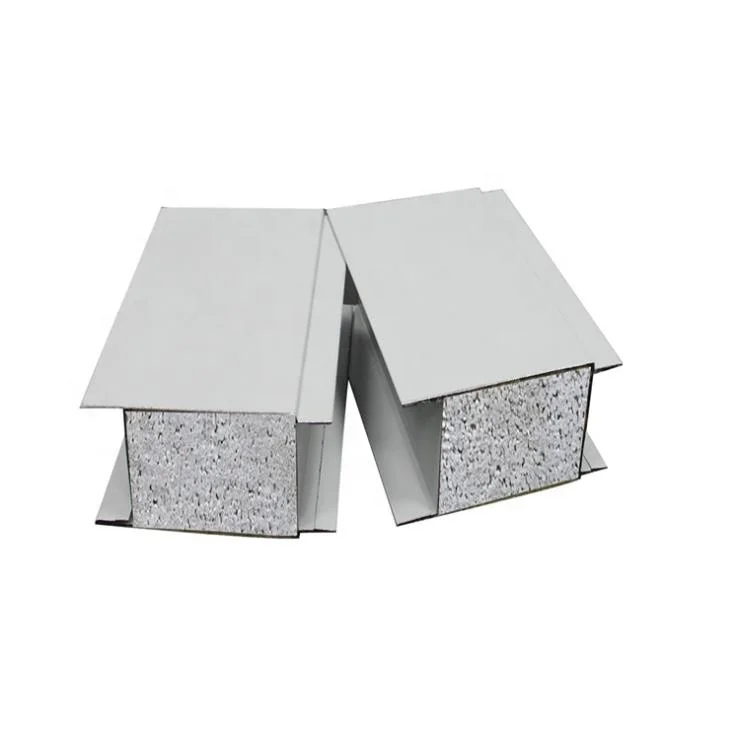

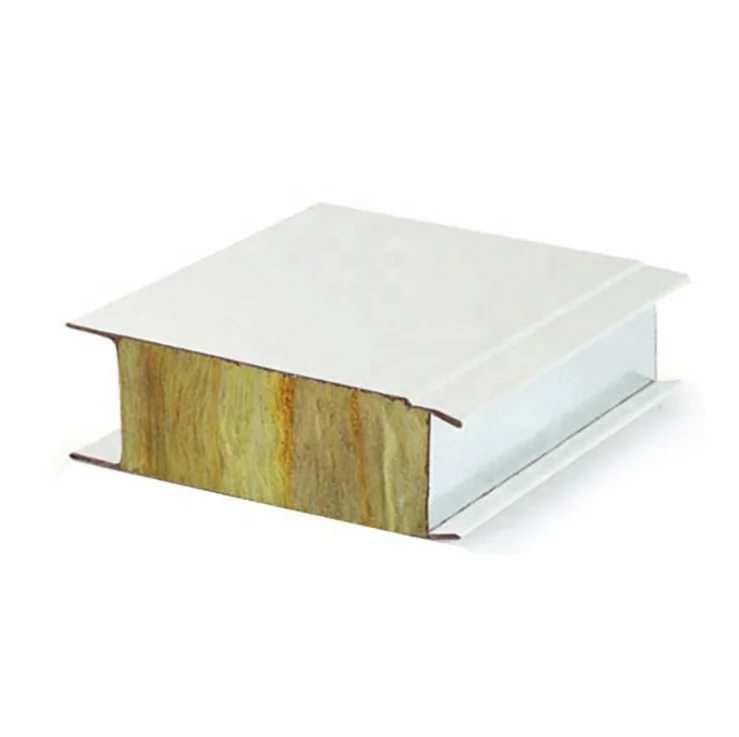

Cleanroom ceiling and partition wall panels
Modular clean room board adopts special color steel plate, color aluminum plate and other metal plate as the panel, lined with rock wool, aluminum honeycomb, glass magnesium plate and other core materials. Cleanroom has excellent performance which is suitable for many indoor environmental requirements of the purification room union.
The panel thickness is 50mm. Of course, the panel size can be customized according to your need.
The panel thickness is 50mm. Of course, the panel size can be customized according to your need.
sandwich panel | double side steel +silicon rock filler | double side steel +rock wool filler | double sidec steel+EPS filler | double side steel+magnesium oxide board | |||
fire proofing grade | A | A | B | A | |||
Function | Wall and Ceiling panel | ||||||
Size | 1150mm width, height customized | ||||||
Thickness | 12mm, 50mm, 75mm, 100mm | ||||||
Installation | 1. we send engineer to customer side 2. constract out to construction team 3. customer send technicistto our company for free studying | ||||||

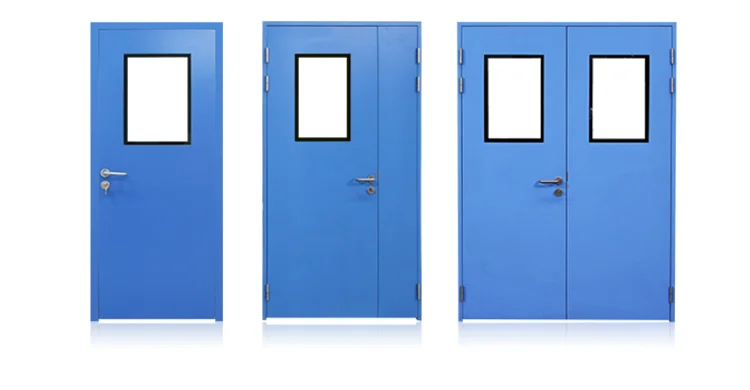

cleanroom door
There are four kinds of material for cleanroom door. They are Color steel door, steel door, and stainless steel door. Of course, electronic interlocking, window, door lock, emergency push rod, magnetic lock, automatic door closer and hinge are available according to clients' need.

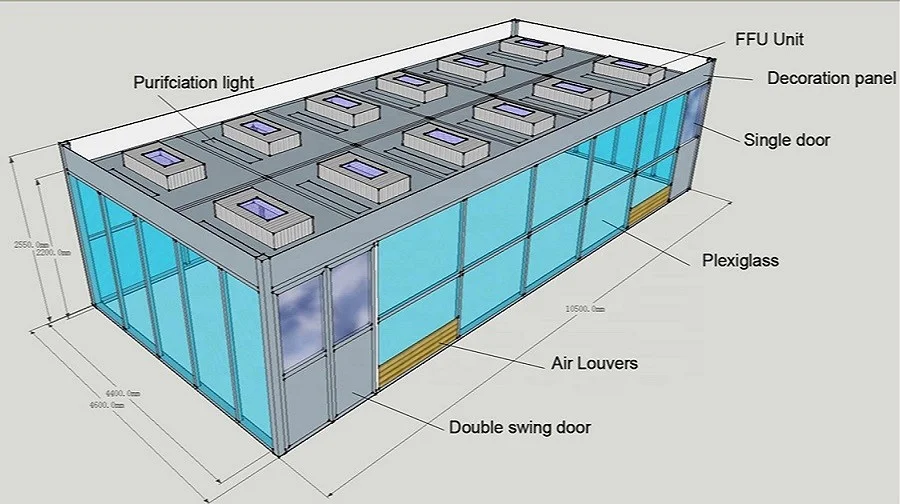

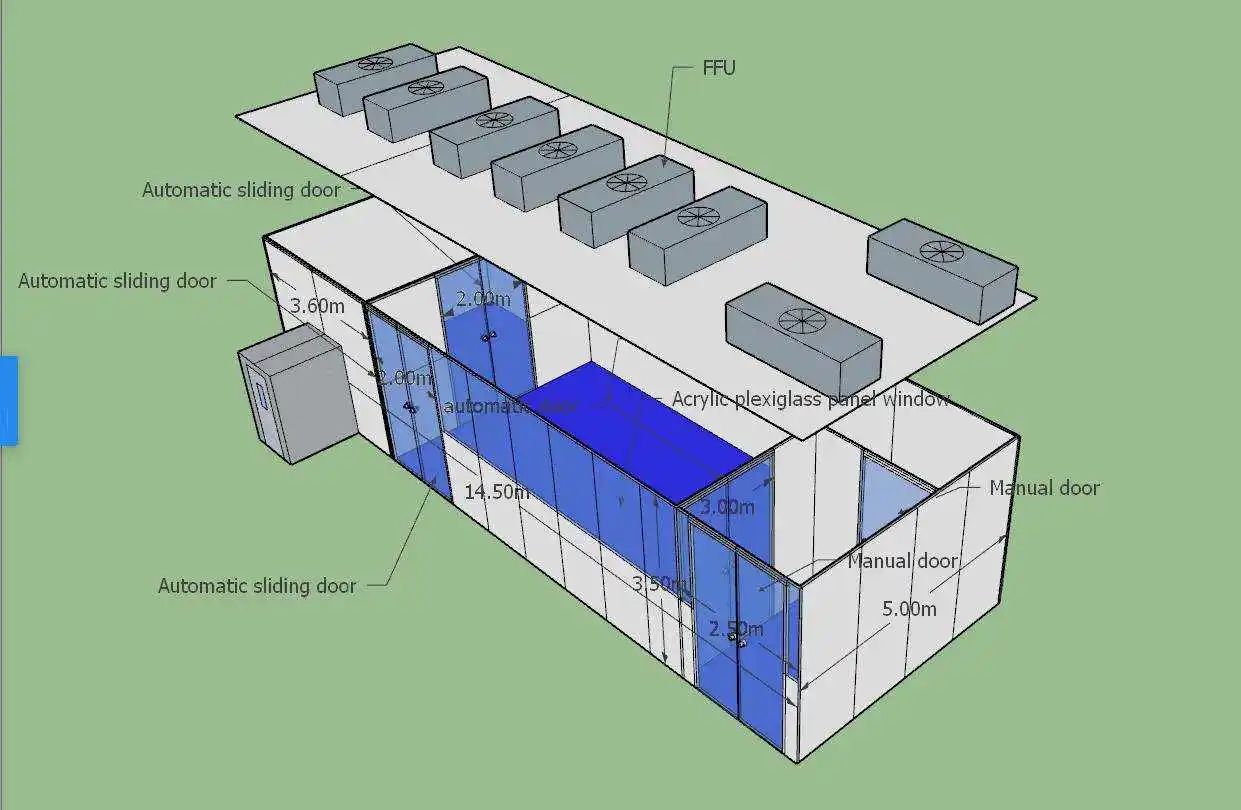

Some drawing of cleanroom

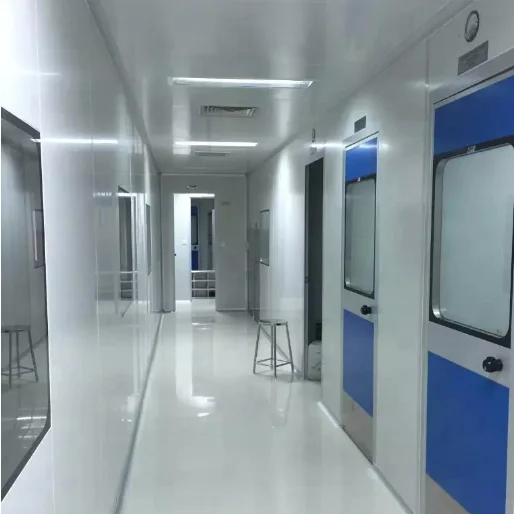

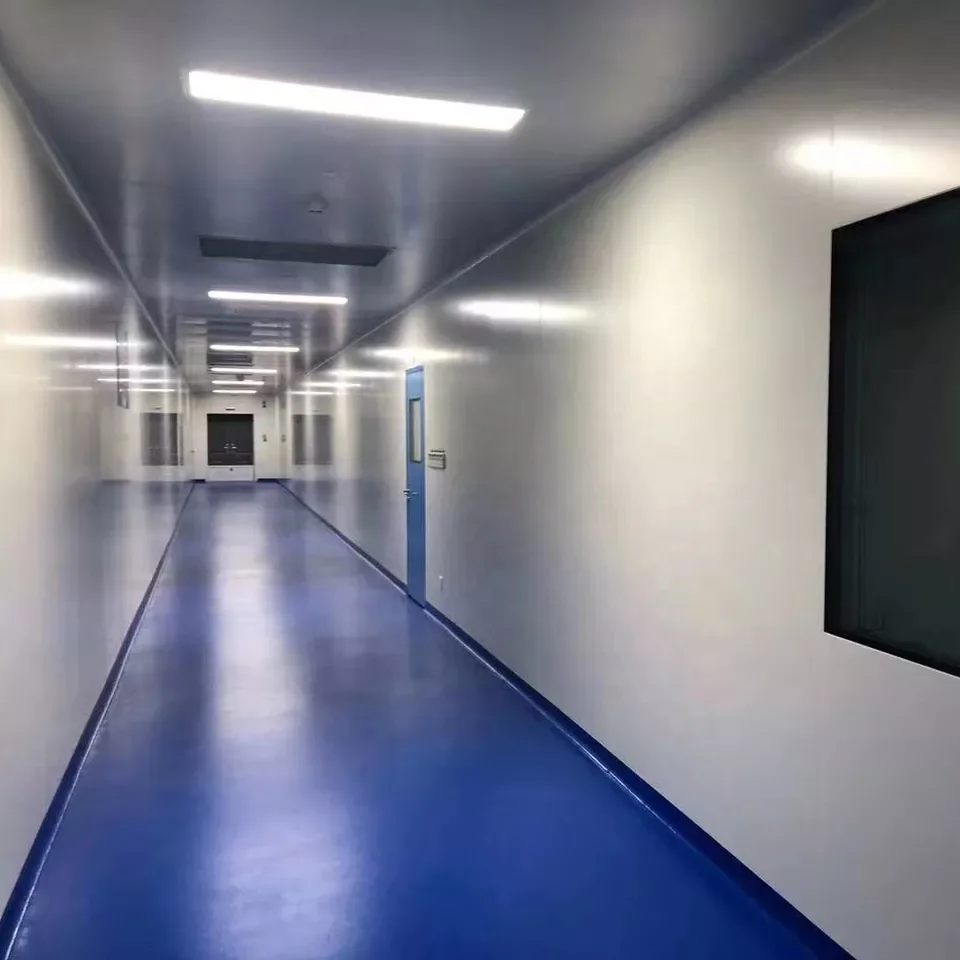

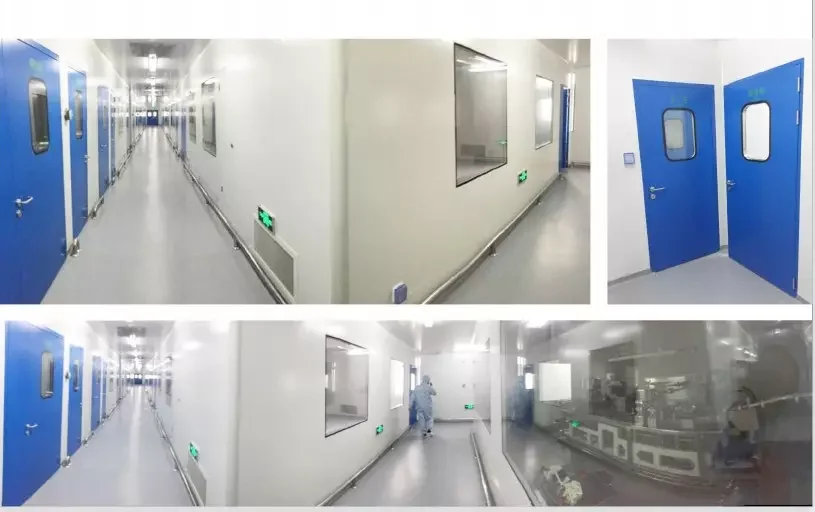

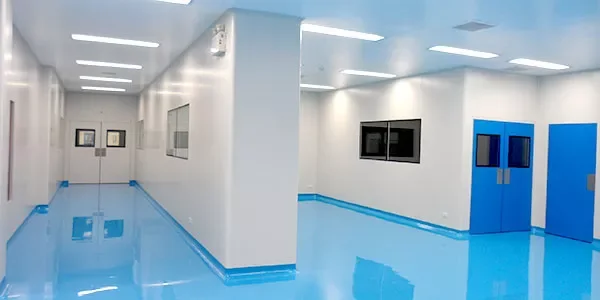

Project image
