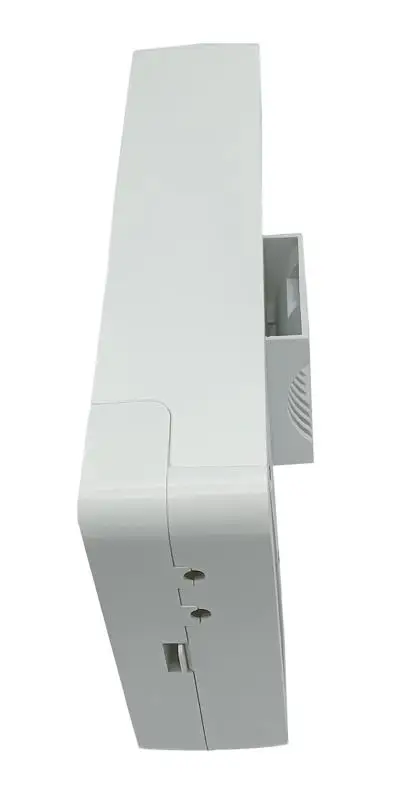

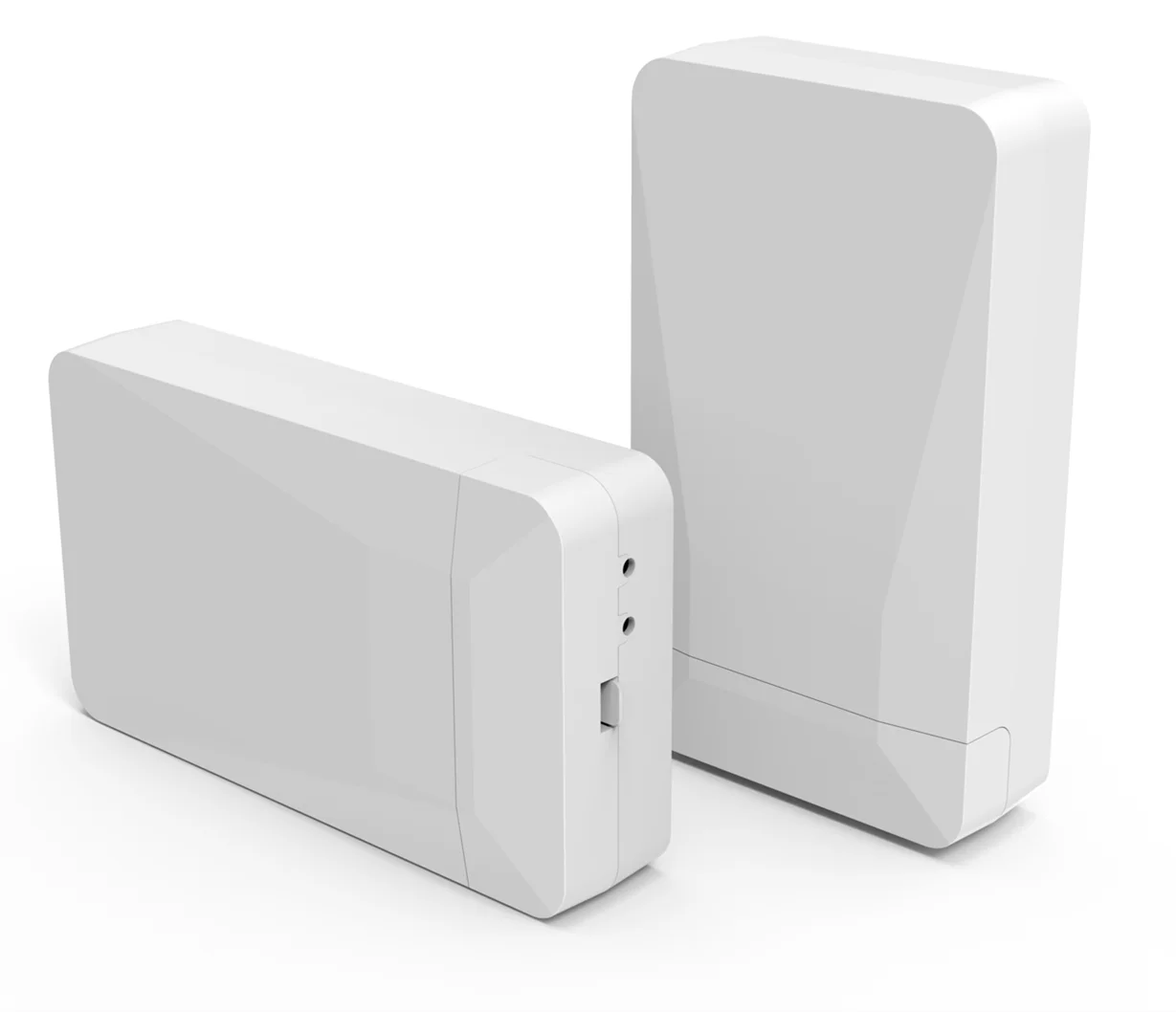

IP66 high gain antenna outdoor wifi Router use RM520 Module 5G CPE wireless router modem with sim card slot
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600914211459):
Product Overview
Description
Product Description
13KM long signal access antenna 5G NR band Outdoor CPE with 2.5 Gigabit port IP66 waterproof level
overview
EX-LINK HOR205 Cellular outdoor router is a wireless communication product developed based on 3G/4G LTE/5G etwork requirements. Supports 3G/4G LTE/5G NR global frequency bands. Supports 3G/4G LTE/5G internet high speed access. Support 5G NSA. Up to 3.4Gbps (DL)/600Mbps (UL) of NSA mode. .It supports one 2.5Gigabit Ethernet port.Optional support for GPS/GNSS function.
Product Name | 5G Long Signal access router /cpe |
Material | PCB+ Plastic |
Function | Signal access and transmit |
Accessory | POE & mount ring |
Function

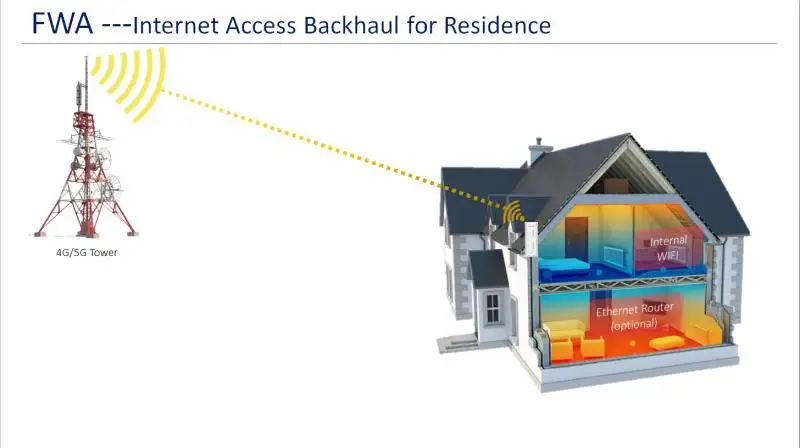

Catch long distance signal from tower then transfer to 2.5Gbps LAN port , to transmit to your terminal such as IP camera, computer ,or other terminal device
5G NA/NSA network outdoor CPE
• 4G LTE /5G data transmission;
• 4* 4 5g MIMO antenna; 10DBi high gain
• POE power supply input.
• 4* 4 5g MIMO antenna; 10DBi high gain
• POE power supply input.
• Waterproof,dustproof,lightning protection. Protection level, IP66
System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
◆ Supports Multiple VPN tunnels for data encryption .
◆ Industrial design for harsh environment.
◆ Supports Multiple VPN tunnels for data encryption .
◆ Industrial design for harsh environment.
5G CPE with fast speed
2.5Gbps LAN port

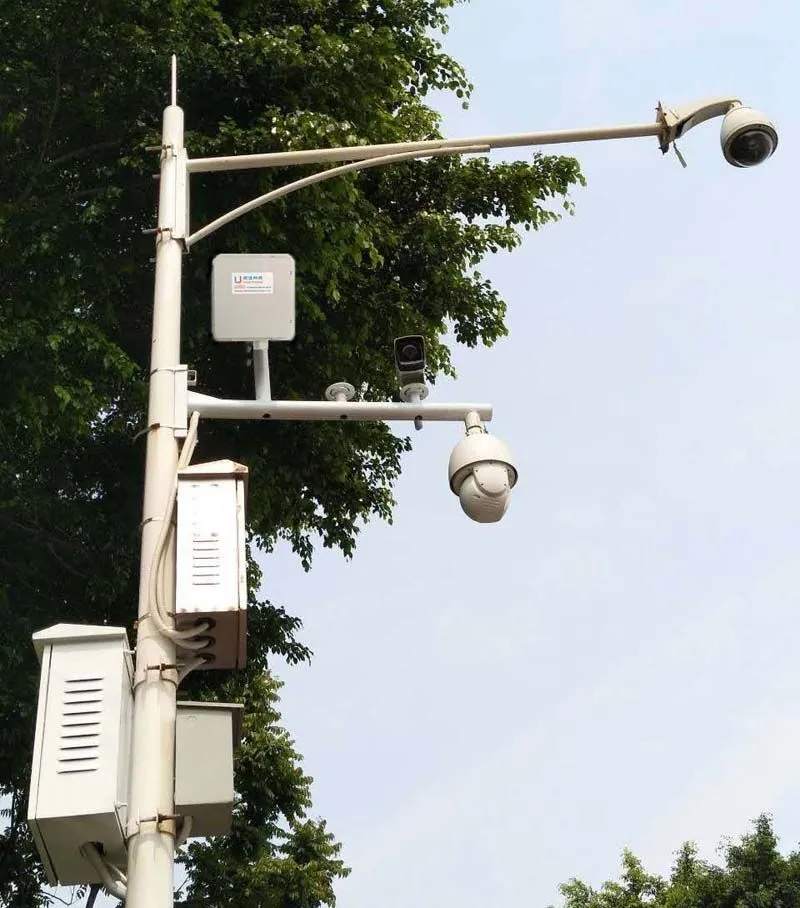

Application
Products Specifications
Frequency bands
Version E
5G NR:
5G NSA：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79
5G SA：n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79
LTE FDD：B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32
LTE-TDD：B38/B39/B40/B41/B42/B43/B46*/B48
WCDMA: B1/B5/B8
3G/4G/5G
Frequency bands
• Version A
5G NR:
5G NSA：n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79
5G SA：n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79
LTE FDD：B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD：B38/B41/B42/B43/B46*/B48
WCDMA: B1/B2/B4/B5
Remarks. More frquency bands or requirements please contact with us.
5G NR:
5G NSA：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79
5G SA：n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79
LTE FDD：B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32
LTE-TDD：B38/B39/B40/B41/B42/B43/B46*/B48
WCDMA: B1/B5/B8
3G/4G/5G
Frequency bands
• Version A
5G NR:
5G NSA：n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79
5G SA：n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79
LTE FDD：B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD：B38/B41/B42/B43/B46*/B48
WCDMA: B1/B2/B4/B5
Remarks. More frquency bands or requirements please contact with us.
CPU | Qualcomm SDX62, ARM Cortex-A7, 1.8GHz |
3G/4G/5G Data rates | ◆ 5G SA. Max 2.4Gbps (DL)/1Gbps (UL) ◆ LTE. Max 1.6Gbps (DL)/200Mbps (UL) ◆ HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL) ◆ WCDMA Max 384Kbps (DL)/384Kbps (UL) |
SIM card. ( Optional ) | Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional ) |
GNSS features | ◆ Supports GPS, GLONASS, BDS, Galileo and QZSS ◆ Protocol: NMEA 0183 ◆ Data update rate: 1 Hz |
5G NR features | ◆ 3GPP Release 16 ◆ Supported modulations: - Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM - Downlink: QPSK, 16QAM, 64QAM and 256QAM ◆ Supported SCS: 15 kHz 2 and 30 kHz 2 ◆ SA 3 and NSA 3 operation modes supported on all the 5G band ◆ Option 3x, 3a, 3 and Option 2 ◆ Maximum transmission data rates 4: - NSA: 3.4 Gbps (DL)/ 550 Mbps (UL) - SA: 2.4 Gbps (DL)/ 900 Mbps (UL) |
Antennas | 4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance. SIM card feature |
Hardware interface | 1* LAN 2.5G Ethernet port. 1*USB3.1 port |
Working Temperature | Operating Temperature -30 ºC ~+70ºC, Storage Temperature -35 ºC ~+75ºC |
Installations | Wall or pole mounted. |
demension | 250mm * 145mm * 67.5mm |

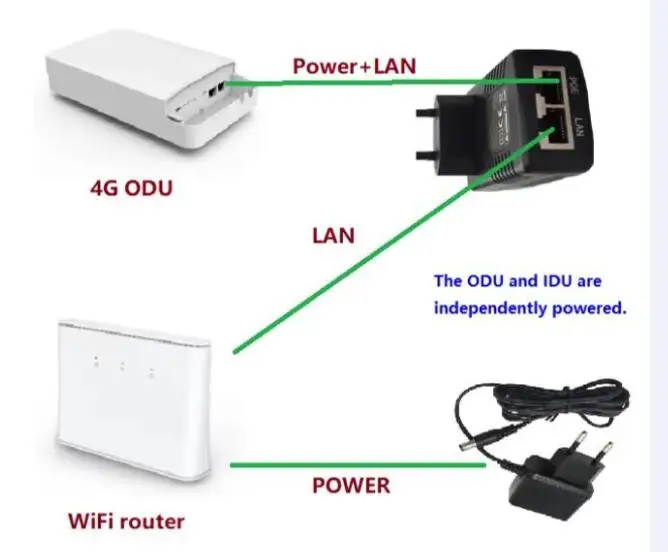

option: you may connect with our indoor cpe wifi to get 802.11ac standard WIFI
Software specification : | |
Protocol | Supports PPTP, L2TP ,IPSEC VPN, TCP, UDP, DHCP, HTTP, DDNS, TR-069, HTTPS, SSH etc protocols. |
Bridge | Supports 4G/5G bridge mode feature. Multiple APN Supports multiple APN access network. |
System Assurance | Supports system automatic detection mechanism, automatic recovery of system abnormality or crash |
Firewall | Support flexible access control of TCP, UDP, ICMP packets. Supports port Mapping, NAT etc feature. |
Firewall Embedded system | OpenWRT 19.07 |
Application development | Supports secondary development of application functions based on our device motherboard software. |
Details Images

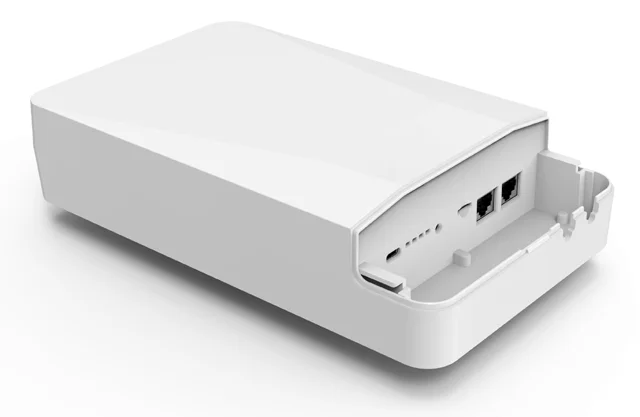

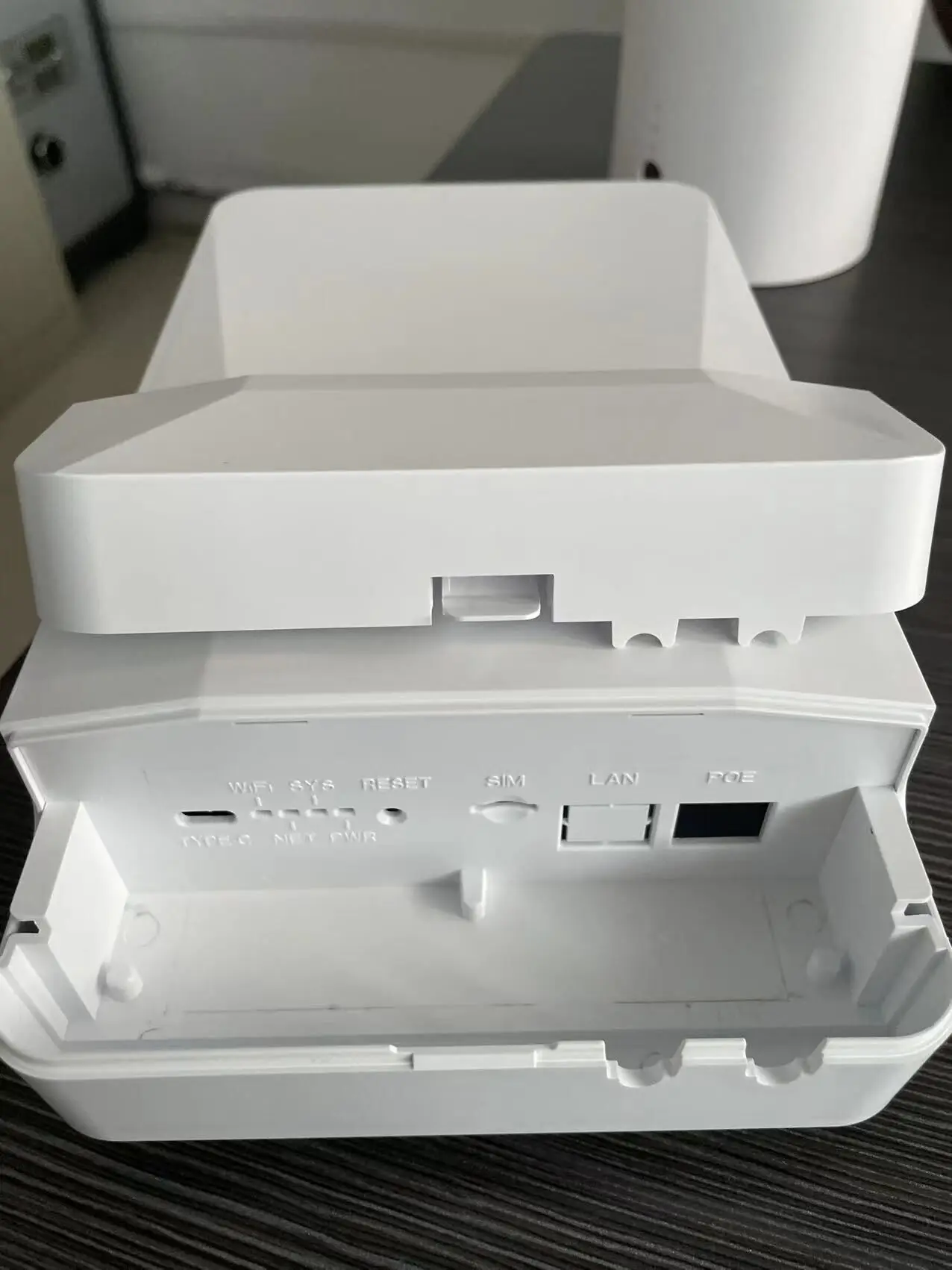

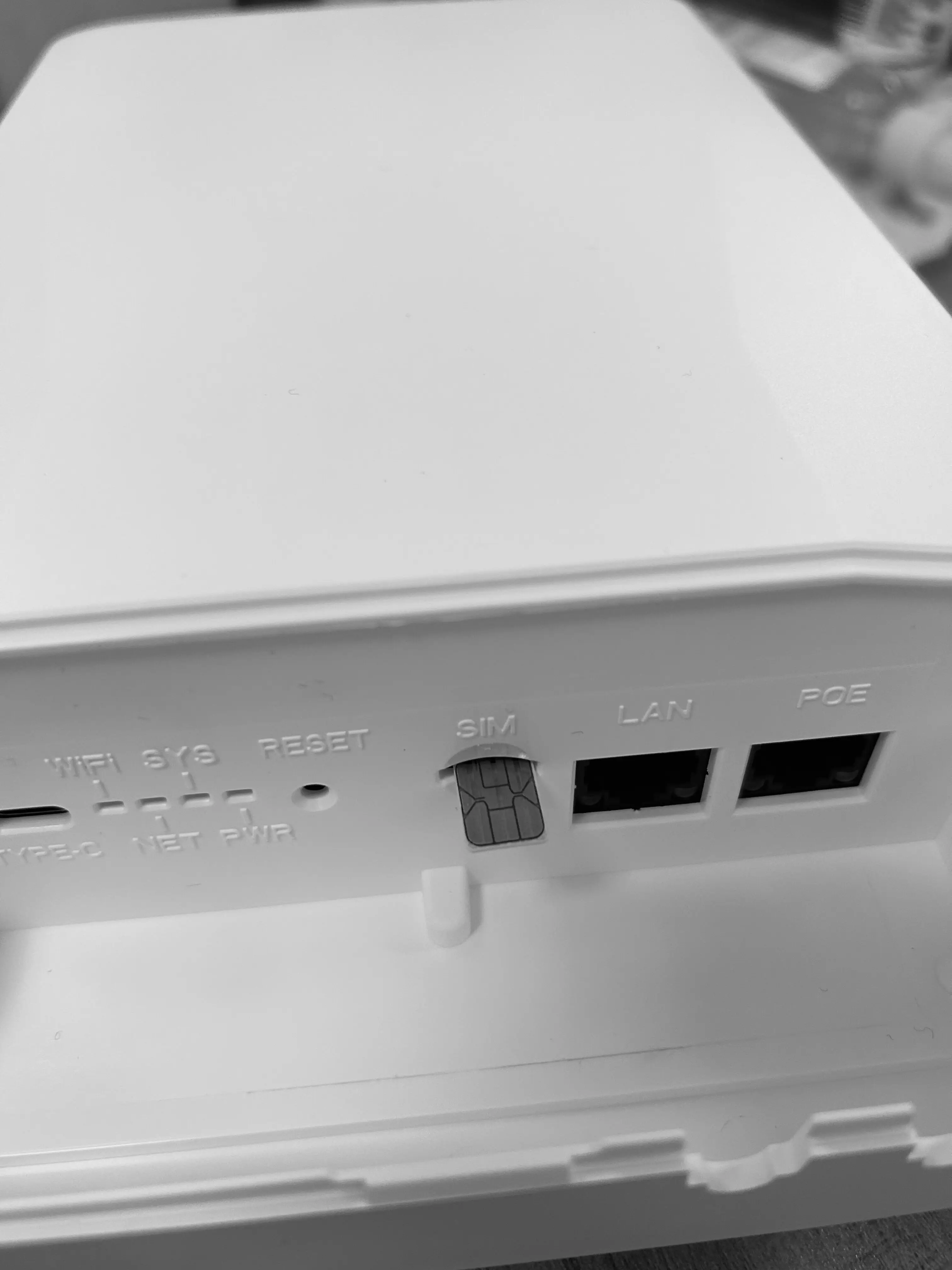

small sim slot and 2 Gigabit ports

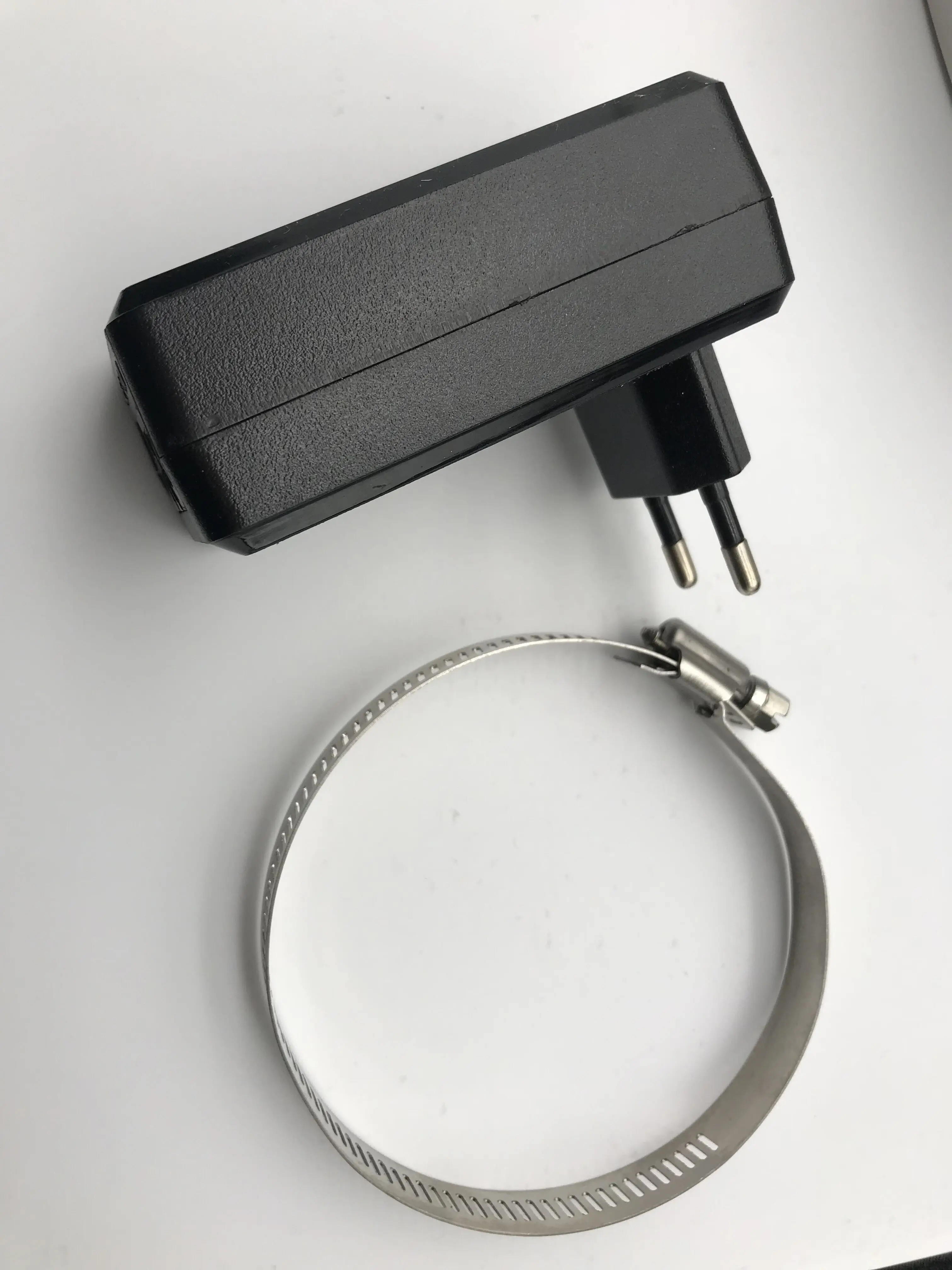

with POE and mount

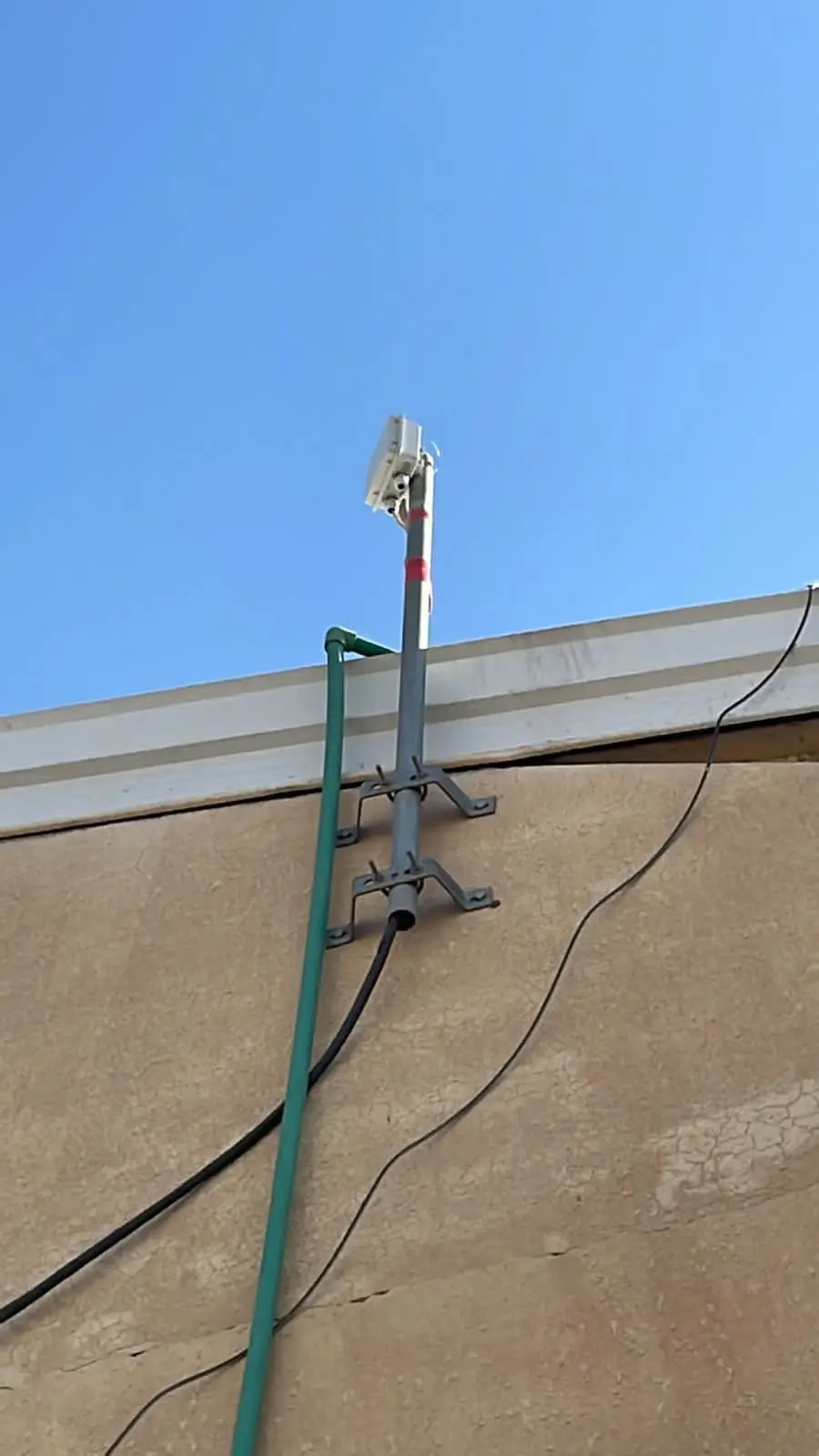

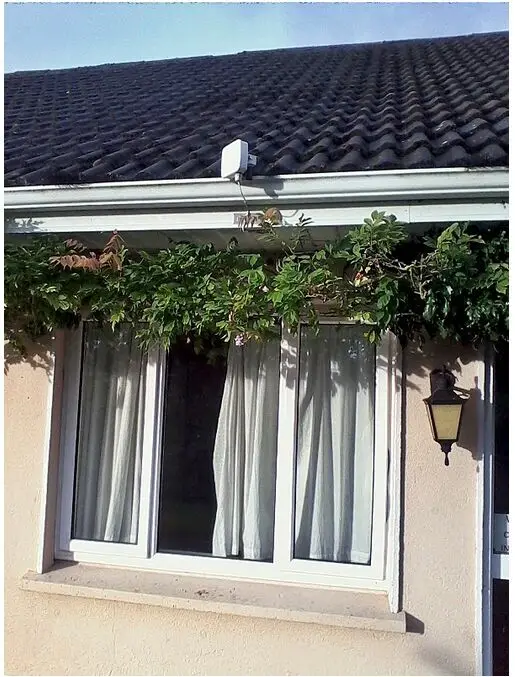

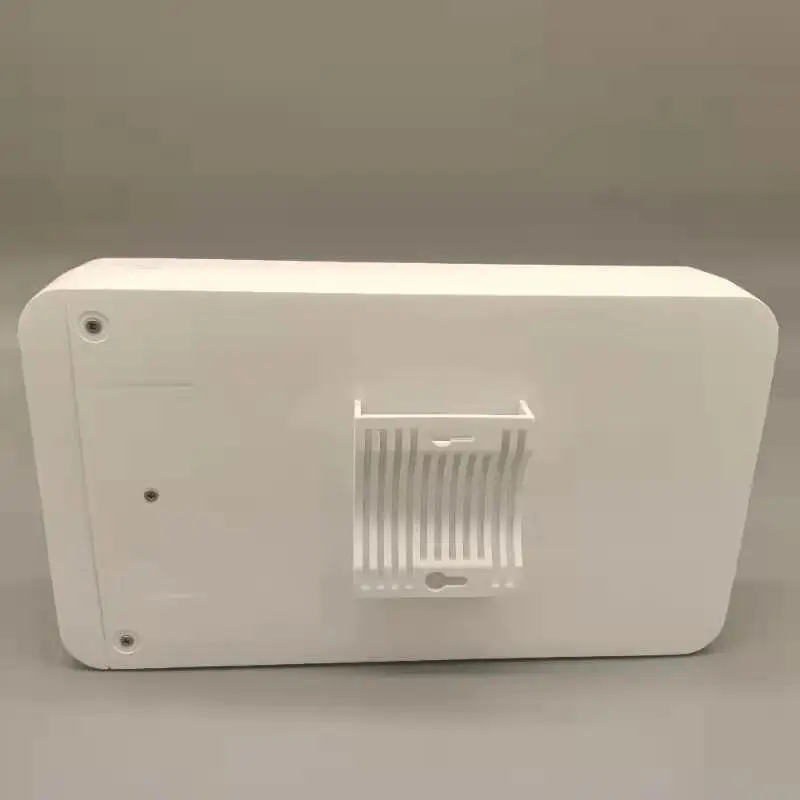

can install on wall and pole
Product Usage
Related Products
Company Introduction

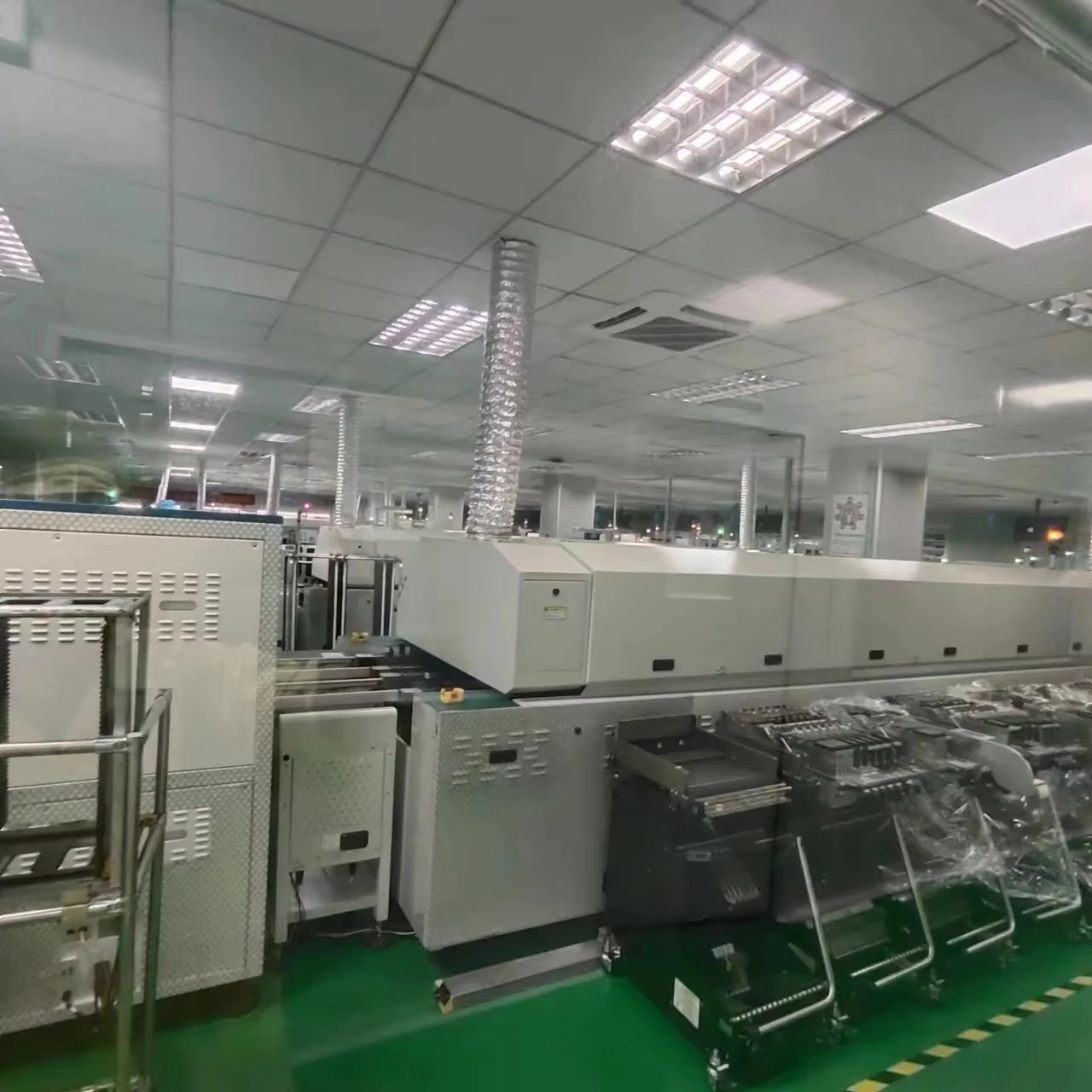

Shenzhen Ex_link Technology Co., Ltd. was established in 2011. It is a team of senior experts who have been engaged in the wireless communication industry for many years. They have many years of implementation experience in broadband, IOT, and in-vehicle product development and application. The company focuses on R&D and sales of 3G/4G/5G/WIFI industrial routers, 4G LTE/5G CPE, 4G/5G edge gateway, 4G DTU, LORA/433M/BT/WIFI collector, 4G/CAT 1 tracker, 4G , driving recorder and other terminals.
FAQ
1. Are you trading company or factory ?
We are factory with our own hardware and software engineer , due to direct sell, we provide
our customer best factory price . and quick engineer service after sell .
2. Do you provide customer's Logo and package design?
Yes, we can provide customized logo and design .
3.What is the difference between CAT6 and CAT12 ?
They are same in appearance and accessory , but inner module type is different . so the supported frequency bands and internet speed are different. CAT12 with faster speed and support more bands.
4.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
5.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
our customer best factory price . and quick engineer service after sell .
2. Do you provide customer's Logo and package design?
Yes, we can provide customized logo and design .
3.What is the difference between CAT6 and CAT12 ?
They are same in appearance and accessory , but inner module type is different . so the supported frequency bands and internet speed are different. CAT12 with faster speed and support more bands.
4.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
5.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
