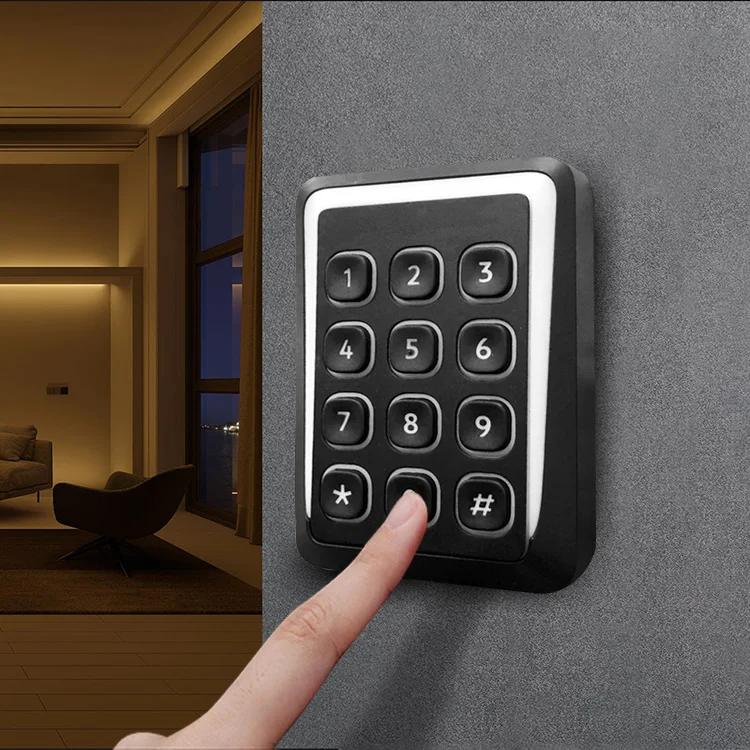

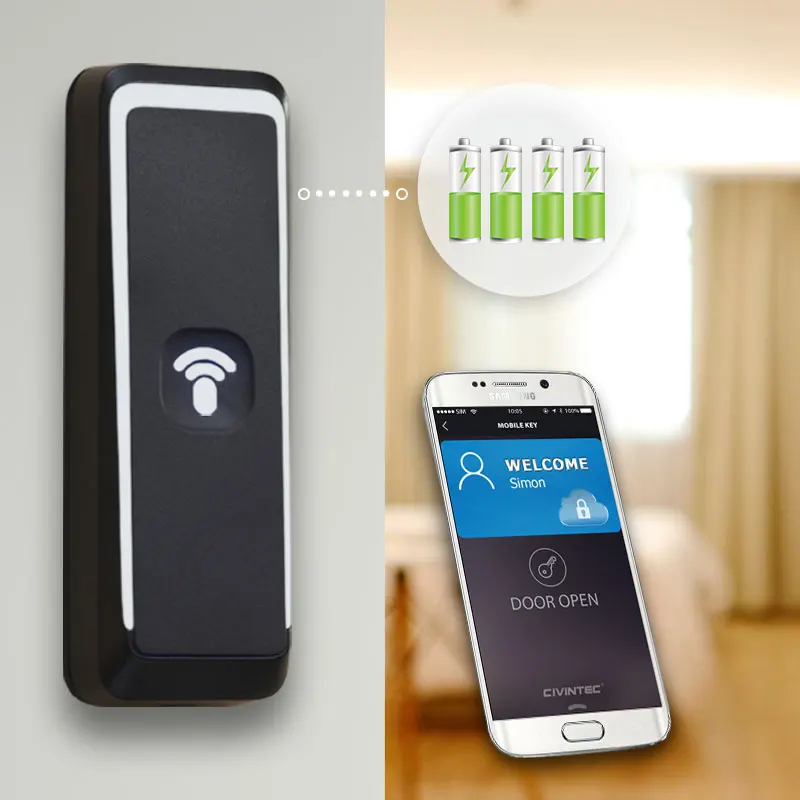

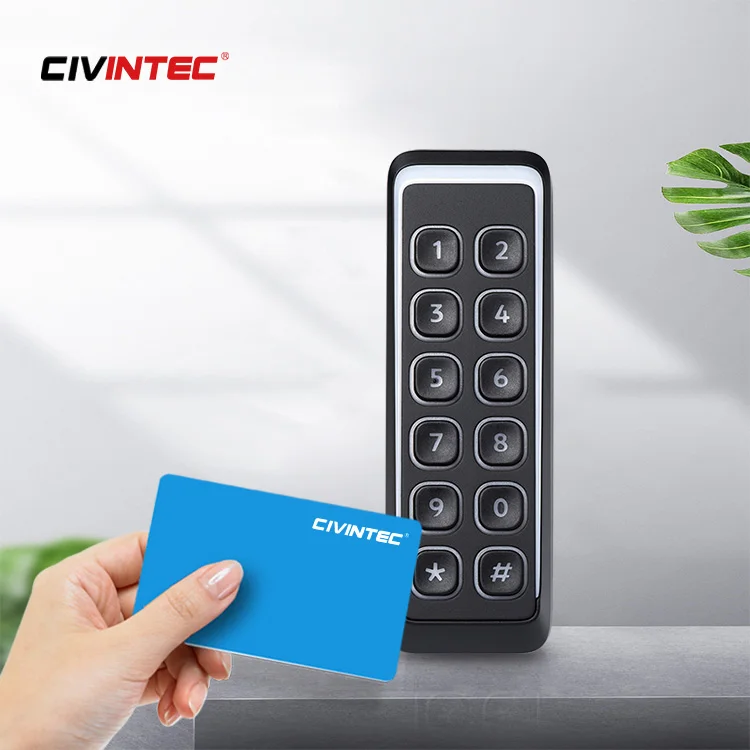

RFID DESFire iCLASS QR Code multi technologies access control reader for ticketing platform integration
- Category: >>>
- Supplier: CiVinTec Intelligence & Technology Co. Ltd.
Share on (1600914229121):
Product Overview
Description
Design & Dimension
Product Overview

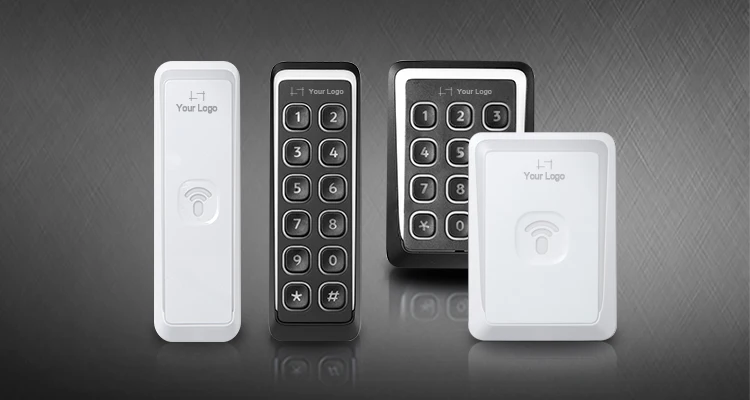

The Cidron access control reader’s compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor - and outdoor installations in all kinds of physical access control applications
Operating Frequency | 125kHz & 13,56MHz | ||||||
Contactless ISO Standard | ISO14443A/B, ISO18092 NFC | ||||||
Contactless Cards | - EM Prox, EM4100, EM4200 - MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1 - ISO18092 NFC tags | ||||||
Mobile ID | ISO18092 NFC, BLE | ||||||
Secure Access Module | MIFARE SAM AV2, SAM card connection slot | ||||||
Communication Interface | Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE 4.0 | ||||||

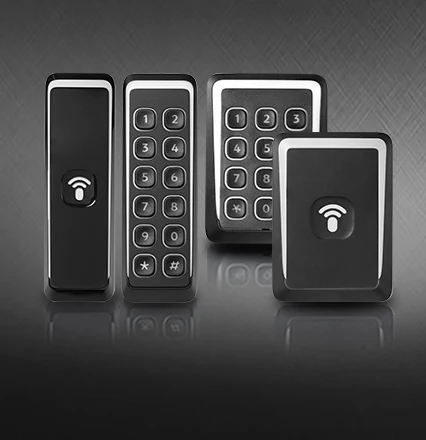

Keypad | 12 digit keypad | ||||||
Indicators | - LED bar with red, green and Amber - Buzzer | ||||||
Tamper Alarm | yes | ||||||
Operating Temperature | -40° ~ +70°C | ||||||
Operating Humidity | 0 ~ 95% RHNC (Relative Humidity No Condensation) | ||||||

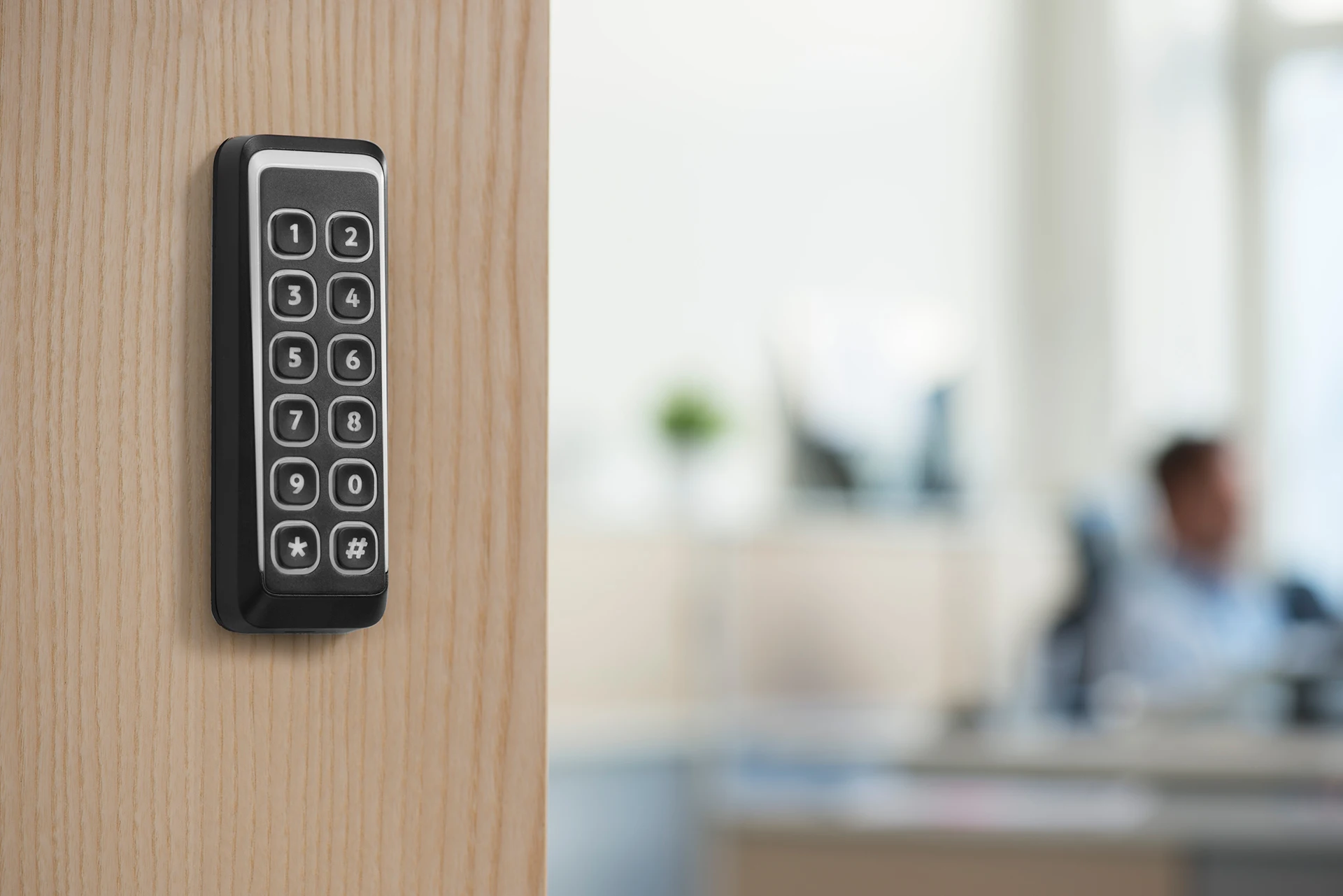

Housing Dimensions | SlimLine: L=141mm, H=25mm, W=48mm Standard: L=109mm, H=25mm, W=79mm | ||||||
Product Features

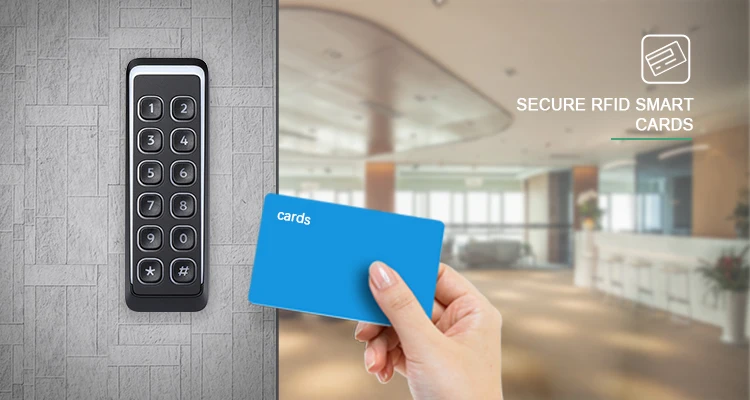

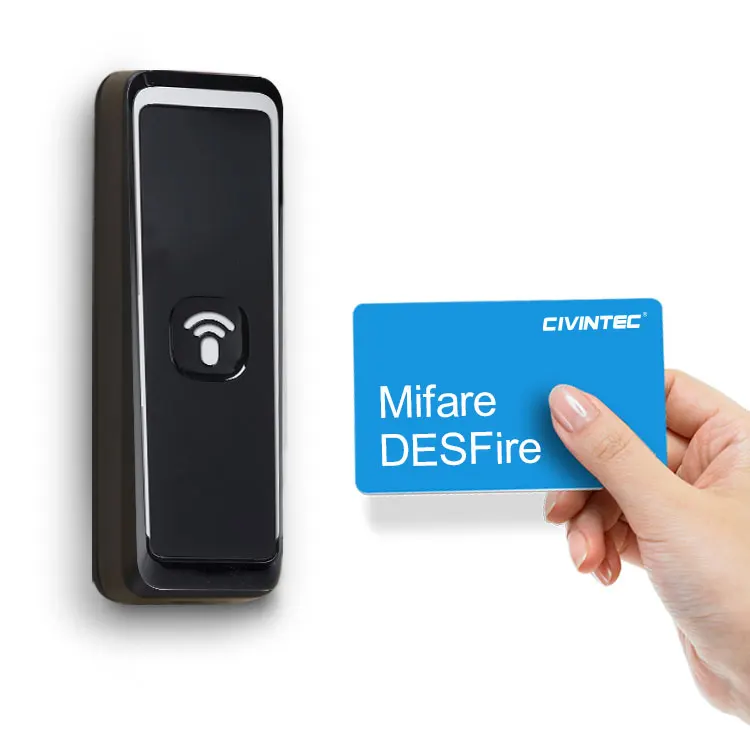

RFID Smart Card Identification
Cidron family is a reader operating on both 125KHz and 13,56MHz which makes it ideal to use where several card populations with different RFID-technologies and/or frequencies should be used at the same time. Cidron family supports reading of 13,56MHz technologies, for instance, MIFARE Classic, MIFARE Plus sector and MIFARE DESFire EV1/EV2 application combined with 125KHz technologies such as Electromarine and Proximity

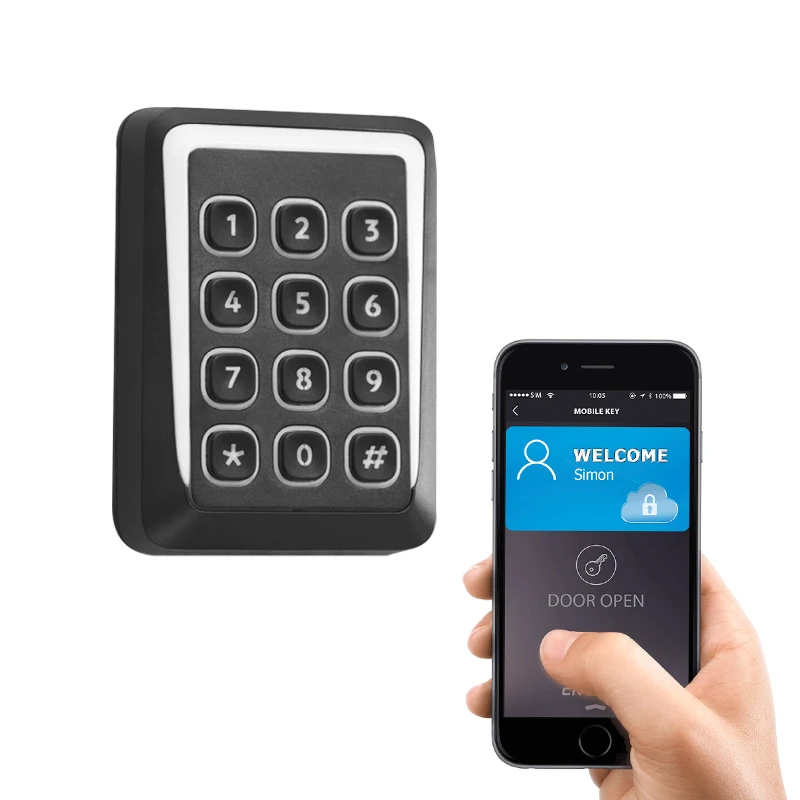

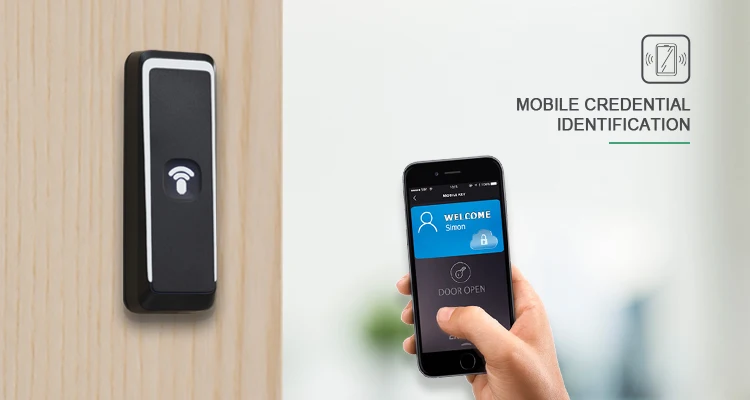

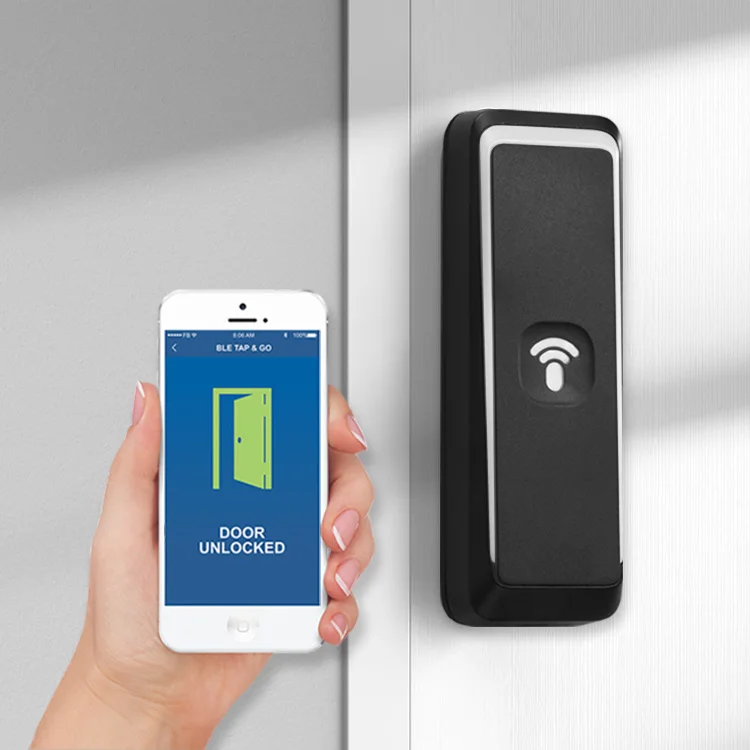

Mobile Credential Identification
NO TOUCH access control solution by using personal mobile phone as access credential via BLE, NFC for touchless access control.

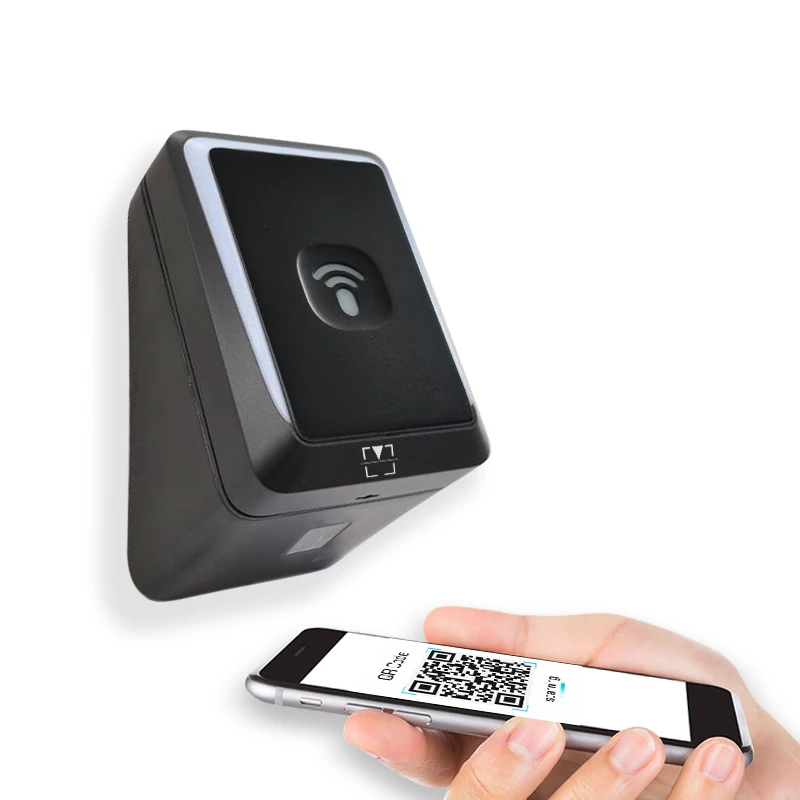

QR Code Identification
With assembled scanner Cidron is equipped to support multi format QR codes 1D & 2D codes, QR & Micro QR codes, Barcode and QR codes used in paper or mobile phone. No TOUCH access control solution for visitor management.
QR Code
QR Code

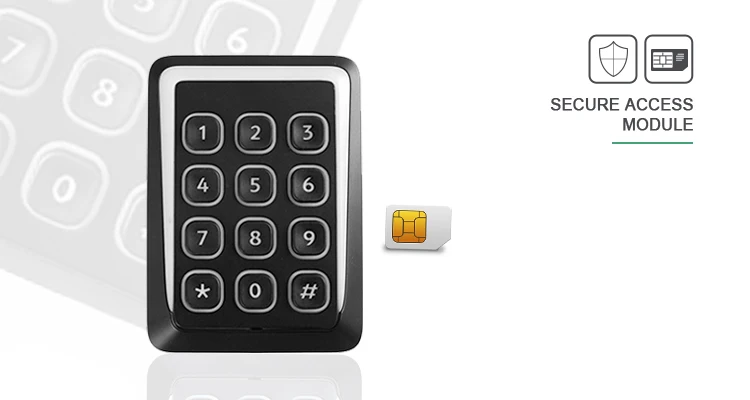

Secure Access Module Protection
Cidron family features a contact card socket which is designed to read Secure Access Module's (SAM's) embedded on a SIM-card sized contact chip. Cidron family is compatible with MIFARE SAM AV2 which gives the possibility to further increase the security of storing encryption keys and also allows for diversification of encryption keys.

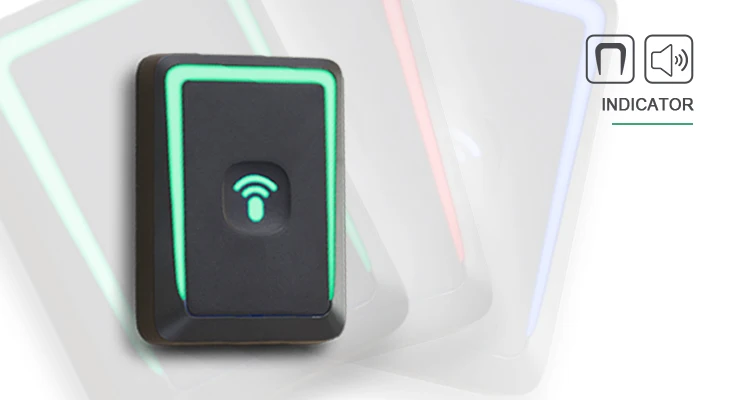

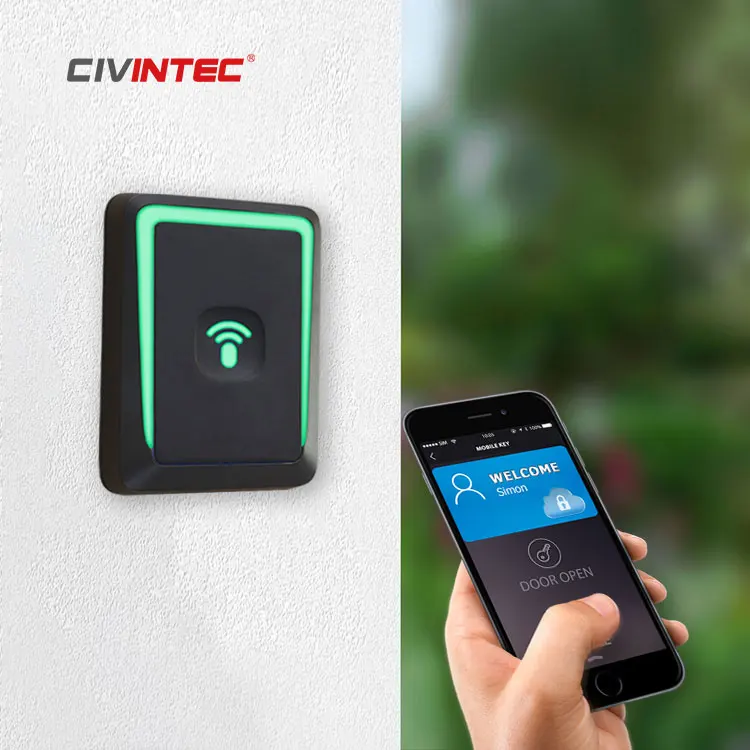

Controllable LED & Buzzer Indication
The substantial LED frame provides visual indications to the user, the LED frame can indicate green, red or yellow. There is also an embedded buzzer that can be used for audible indications. The LED frame, backlight and buzzer can all be configured to indicate different operations and events using sound or light to communicate with the user. The indications can also be activated by external controls by using GPIO's.

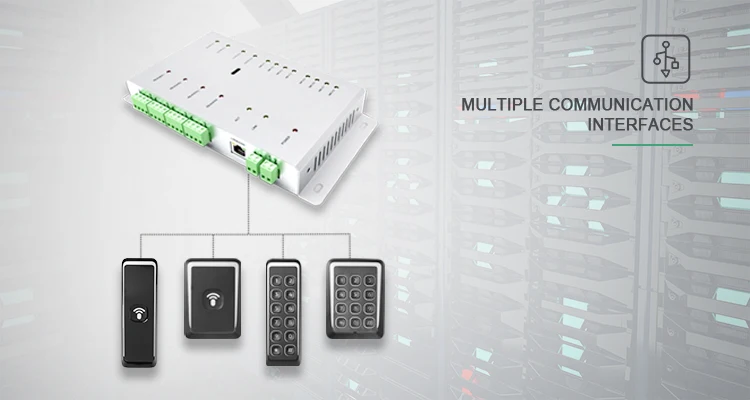

Wiegand & RS485 Communication Interface
Cidron family readers has been well tested and work with the most brands of controllers on the market via wiegand, Clock/Data, RS485 OSDP1, OSDP 2 including secure channel. Offer Universal compatibility to work with the third party access controller.

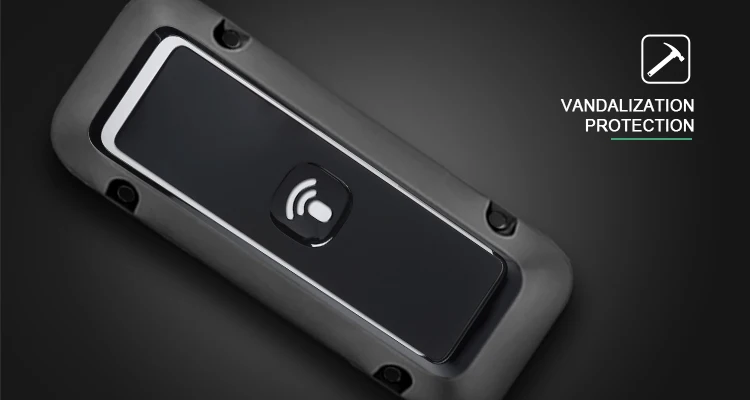

Vandalization Protection
Vandalization protection is an optional accessory that shields the reader and helps it withstand violence by absorbing and redirecting external forces away from the reader. The sloping sides also make it harder to climb on the reader.
Reader Configuration & Development

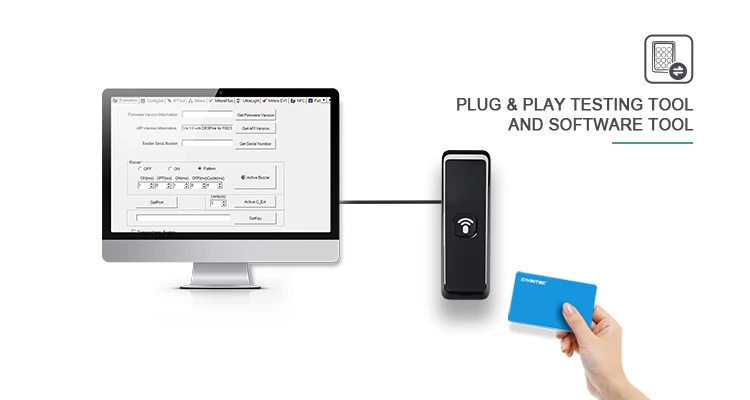

Easy Configuration
CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.

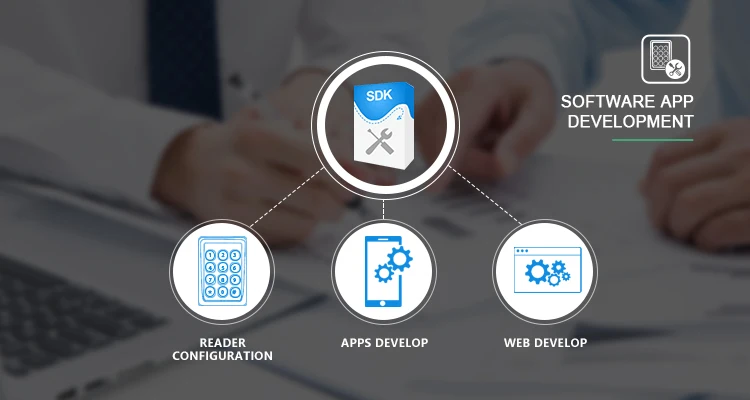

Software APP Development
Cidron offer Software development kit for developer to customize his own smart phone APP software.
Our Service
Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
