Product Overview
Description
Global footprint
We are committed to providing high-quality full scenario distributed energy solutions for global household and business users. Our business covers over 180 countries and regions worldwide, and our products are widely praised by customers for their excellent performance and stable performance.
Product Description
Datasheet | SPF3500ES | SPF5000ES | ||
Battery Voltage | 48VDC | |||
Battery Type | Lithium/Lead-acid | |||
INVERTER OUTPUT | ||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | ||
Parallel Capability | Yes, 6 units | |||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||
Surge Power | 7000VA | 10000VA | ||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10ms typical, 20ms Max | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 120VDC ~ 430VDC | |||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |||
Maximum PV Array Open Circuit Voltage | 170-280 VAC (For Personal Computers) ;90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
PHYSICAL | ||||
Protection Degree | IP20 | |||
Dimension (W/H/D) | 330/485/135mm | |||
Net Weight | 11.5kgs | 12kgs | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Altitude | ＜2000m | |||
Operating Temperature | 0℃~55℃ | |||
Storage Temperature | -15℃~60℃ | |||
Features
>Rated power 3.5KW to 5KW, power factor 1
>MPPT ranges 120V~430V, 450Voc
>High frequency inverter with small size and light weight
>Pure sine wave AC output

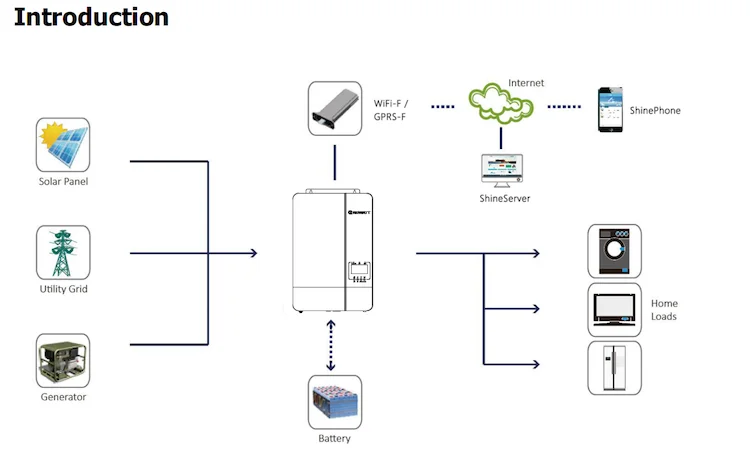

>Solar and utility grid can power loads at the same time
>With CAN/RS485 for BMS communication
>With the ability to work without battery
>Parallel operation up to 6 unit (only with battery connected)
>WIFI/ GPRS remote monitoring (optional)
>Solar and utility grid can power loads at the same time
>With CAN/RS485 for BMS communication
>With the ability to work without battery
>Parallel operation up to 6 unit (only with battery connected)
>WIFI/ GPRS remote monitoring (optional)
Parallel Operation in Single Phase

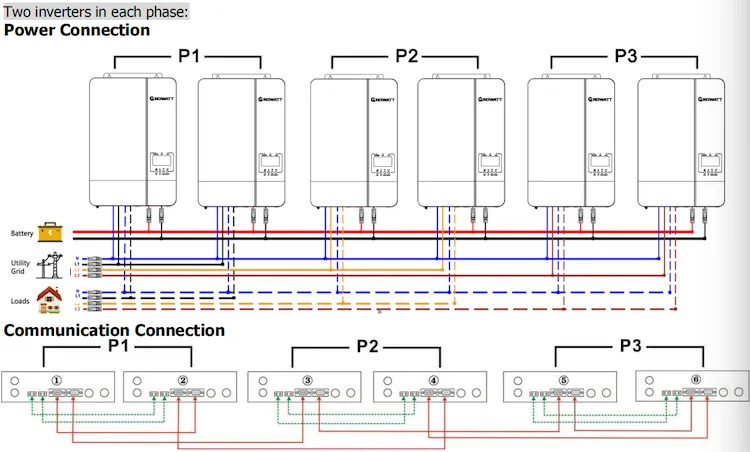

Parallel Operation in Three Phase

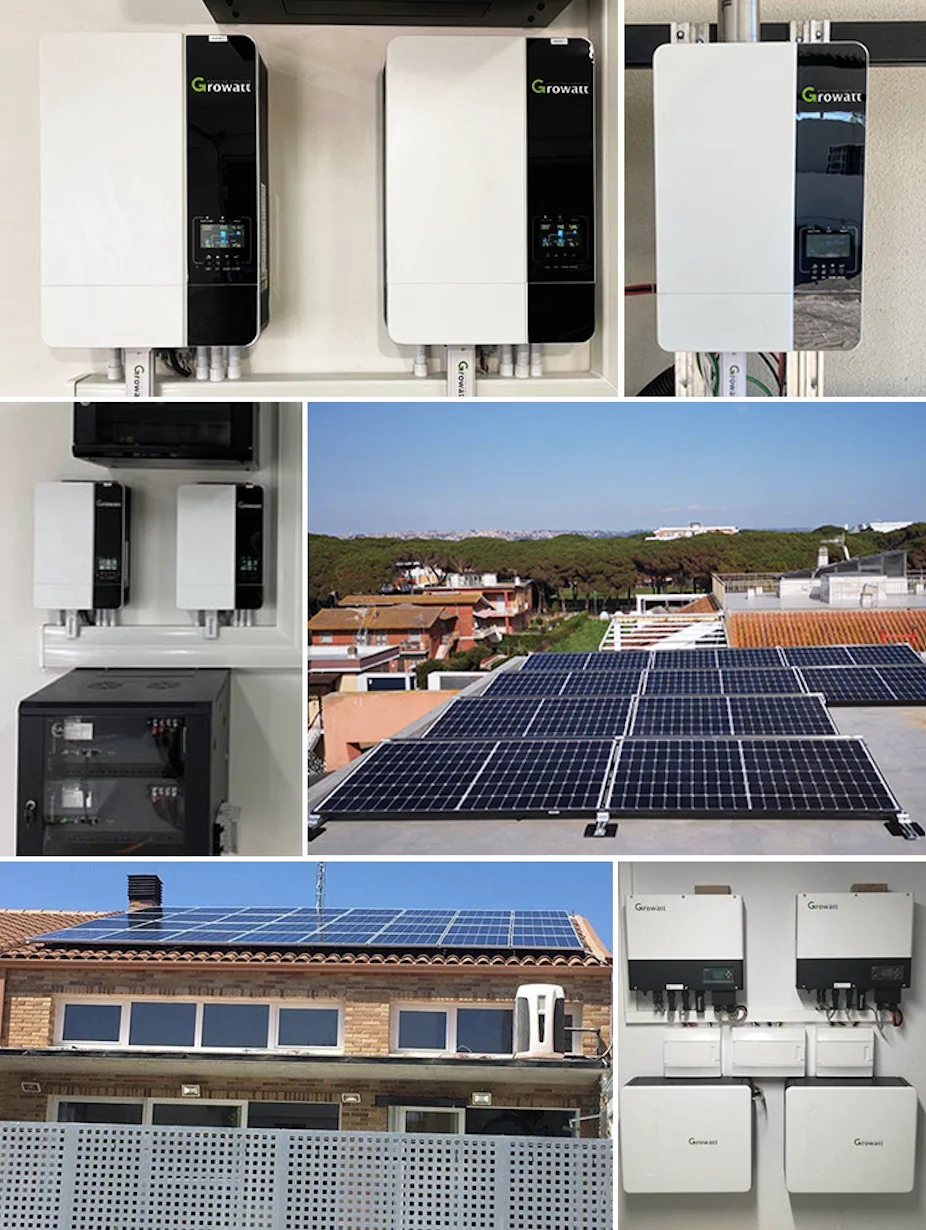

Projects
Packing & Delivery
Package Details: In carton on pallet or wooden box.
Delivery Details: 7-15 working days.
