Solplanet ASW3K LT G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter

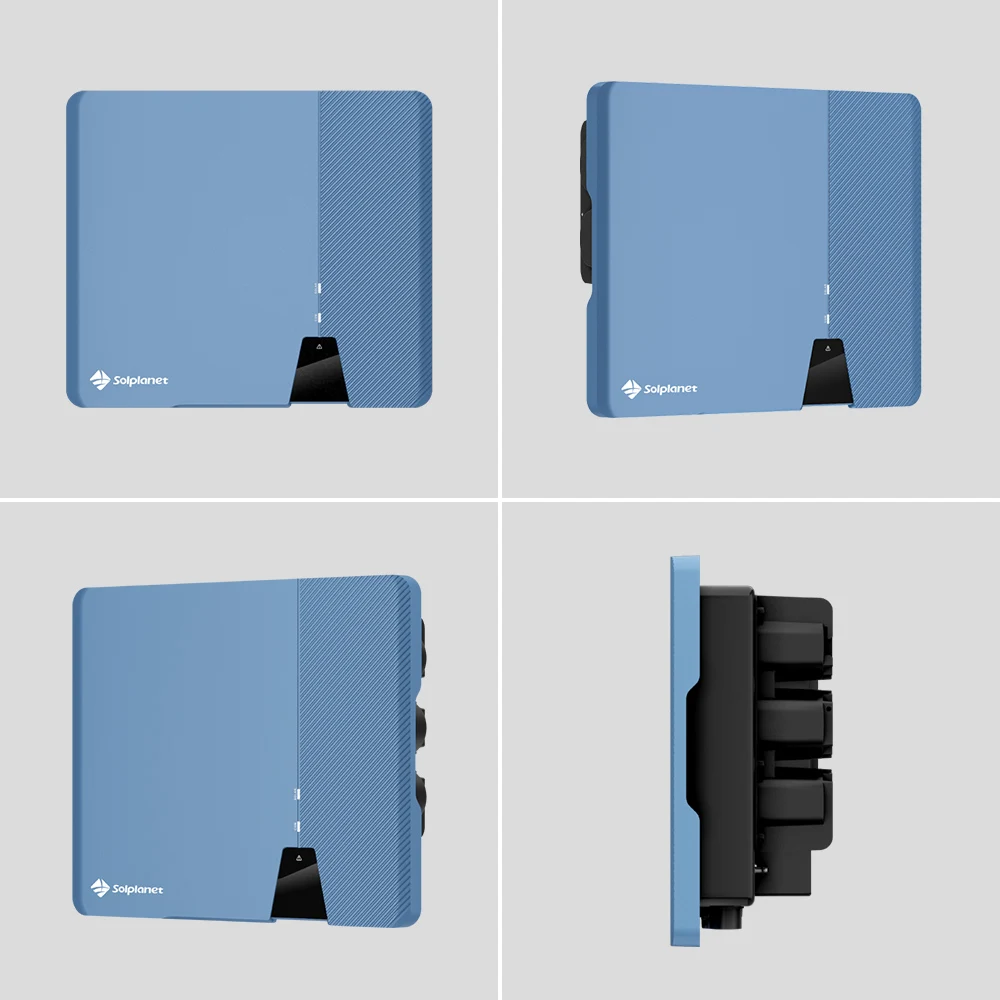

Solplanet ASW3K-LT-G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter
Solplanet ASW3K-LT-G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter
Solplanet ASW3K-LT-G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter
Solplanet ASW3K-LT-G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter
Solplanet ASW3K-LT-G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter
Solplanet ASW3K-LT-G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter

Solplanet ASW3K LT G2 Pro On Grid Inverter 3Kw 4Kw 5Kw Sales China Factory Price Solplanet Solar Inverter

Share on (1600914335668):


Price:$299.00 - $789.00

Quantity:


Product Overview

Description





Products Description




Model
3K-LT-G2 Pro
4K-LT-G2 Pro
5K-LT-G2 Pro
6K-LT-G2 Pro
8K-LT-G2 Pro
10K-LT-G2 Pro
Max. PV array power
4500 Wp
6000 Wp
7500 Wp
9000 Wp
12000 Wp
15000 Wp
Max. input voltage
1100 V
MPP voltage range / rated input voltage
150 V to 1000 V / 630 V
Min. input voltage
125 V
Initial. feed-in voltage
180 V
Max. operating input current
16 A / 16 A
20A / 16 A
Max. short circuit current
25 A / 25 A
30 A / 25 A
No. of independent MPPT inputs / strings per MPPT input
2 / A :1 ; B : 1
Rated active power
3000 W
4000 W
5000 W
6000 W
8000 W
10000 W
Rated apparent power
3000 VA
4000 VA
5000 VA
6000 VA
8000 VA
10000 VA
Max. apparent power
3300 VA3&4
4400 VA3&4
5500 VA3&4
6600 VA3&4
8800 VA3&4
11000 VA3&4

AC nominal voltage
220 V / 380 V
230 V / 400 V
240 V / 415 V
AC voltage range
160 V to 300 V

AC grid frequency / range
50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current
4.8A
6.4 A
8.0 A
9.6 A
12.8 A
16 A
Adjustable power factor range
0.8 leading to 0.8 lagging
Feed-in phases
3 / 3-N-PE
Harmonic distortion (THD) at rated output
< 3%
Max. efficiency / European efficiency
98.3 % / 97.9 %
98.6% / 98.2 %
DC Switch
YES
Ground fault monitoring / grid monitoring
YES / YES
DC reverse polarity protection / AC short circuit protection
YES/ YES
All-pole-sensitive residual-current monitoring unit
YES
Anti-Islanding protection
YES
Surge protection
YES/ Type II
Protection class (according to IEC 62109-1) /
overvoltage category (according to IEC 62109-1)


I / AC : III ; DC : II
Dimensions (W / H / D)
503 / 435 / 183 mm
Weight
< 15 kg
17.3 kg
Operating temperature range
-25°C … +60°C
Self-consumption (at night)
< 1 W
Topology
Non-isolated
Cooling concept
Natural Convection
Degree of protection (according to IEC 60529)
IP66
Climatic category (according to IEC 60721-3-4)
4K4H
Max. permissible value for relative humidity (non-condensing)
100 %
Max. operating altitude
3000 m
DC connection
Plug-in connector
AC connection
Plug-in connector
Mounting type
Wall-mount bracket
LED indicators (Status / Fault / Communication)
YES

Communication interface1&2
YES
(RS485 /Wi-Fi/ LAN /4G)
Country of Manufacture
China

Certificates and approvals (more available on request)
CE, EN50549, G98/99, VDE-AR-N4105, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068,
IEC61000, NB/T 32004


Model
12K-LT-G2 Pro
13K-LT-G2 Pro
15K-LT-G2 Pro
17K-LT-G2 Pro
20K-LT-G2 Pro
Max. PV array power
18000 Wp
19500Wp
22500 Wp
25500 Wp
30000 Wp
Max. input voltage
1100 V
MPP voltage range / rated input voltage
150 V to 1000 V / 630 V
Min. input voltage
125 V
Initial. feed-in voltage
180 V
Max. operating input current
32 A / 20 A
32 A / 20 A
32 A / 20 A
32 A / 32 A
32 A / 32 A
Max. short circuit current
48 A / 30 A
48 A / 30A
48 A / 30 A
48 A / 48 A
48 A / 48 A
No. of independent MPPT inputs /
strings per MPPT input

2 / A:2;B:1

2 / A:2;B:1

2/A:2;B:1

2 / A:2;B:2

2 / A:2;B:2
Rated active power
12000 W
13000 W
15000 W
17000 W
20000 W
Rated apparent power
12000 VA
13000 VA
15000 VA
17000 VA
20000 VA
Max. apparent power
13200VA3&4
14300VA3
16500VA3&4
18700VA3&4
22000VA3&4

AC nominal voltage
220 V / 380 V
230 V / 400 V
240 V / 415 V
AC voltage range
160 V to 300 V

AC grid frequency / range
50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max. output current
19.1 A
20.7 A
24 A
27.1 A
31.9 A
Adjustable power factor range
0.8 leading to 0.8 lagging
Feed-in phases
3 / 3-N-PE
Harmonic distortion (THD) at rated output
< 3 %
Max. efficiency / European efficiency
98.6% / 98.2 %
DC Switch
YES
Ground fault monitoring / grid monitoring
YES/ YES
DC reverse polarity protection / AC short circuit protection
YES/YES
All-pole-sensitive residual-current monitoring unit
YES
Anti-Islanding protection
YES
Surge protection
YES/ Type II
Protection class (according to IEC 62109-1) /
overvoltage category (according to IEC 62109-1)


I/AC: III; DC :ll
Dimensions (W / H / D)
503 / 435 / 183 mm
Weight
17.3 kg
17.3 kg
17.3 kg
18.6 kg
18.6 kg
Operating temperature range
-25°C … +60°C
Self-consumption (at night)
< 1 W
Topology
Non-isolated
Cooling concept
Active cooling
Degree of protection (according to IEC 60529)
IP66
Climatic category (according to IEC 60721-3-4)
4K4H
Max. permissible value for relative humidity (non-condensing)
100%
Max. operating altitude
3000 m
DC connection
Plug-in connector
AC connection
Plug-in connector
Mounting type
Wall-mount bracket
LED indicators (Status / Fault / Communication)
YES

Communication interface1&2
YES
(RS485 /Wi-Fi/ LAN /4G)
Country of manufacture
China
Certificates and approvals (more available on request)
CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11


Smart Monitoring System

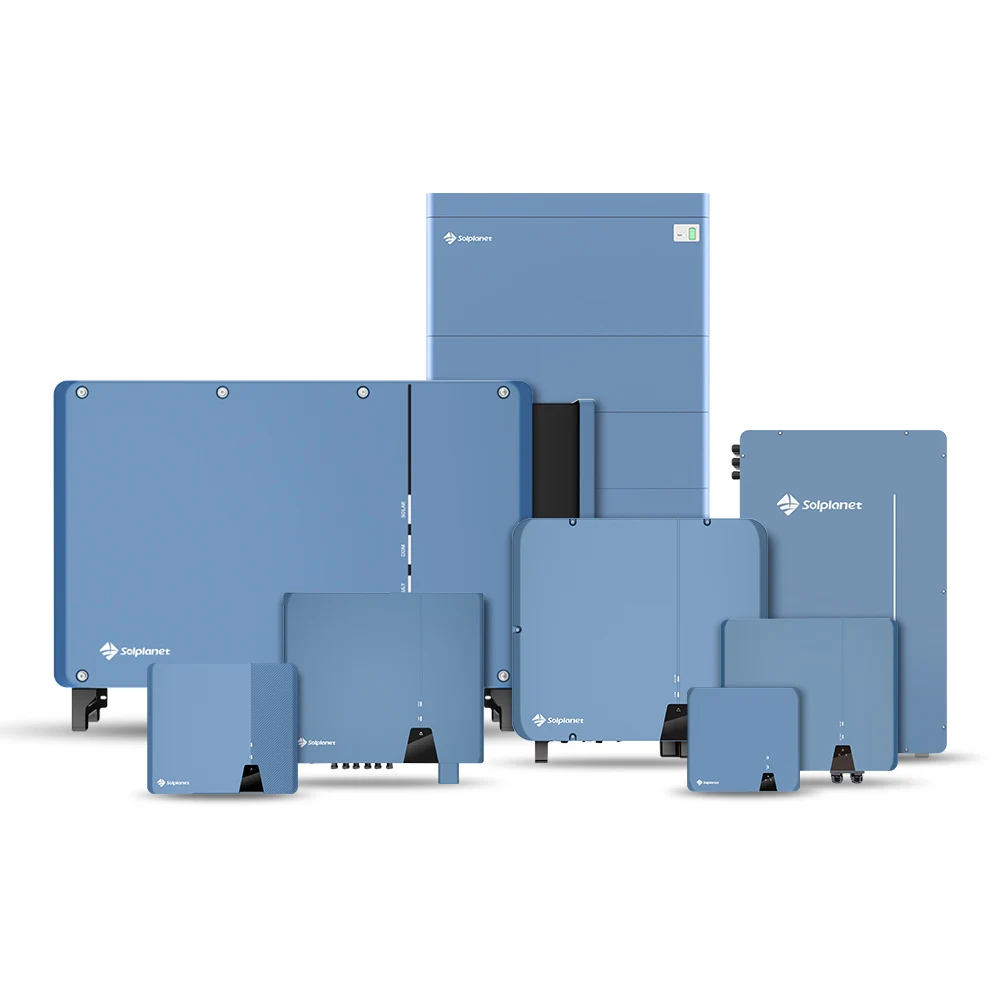

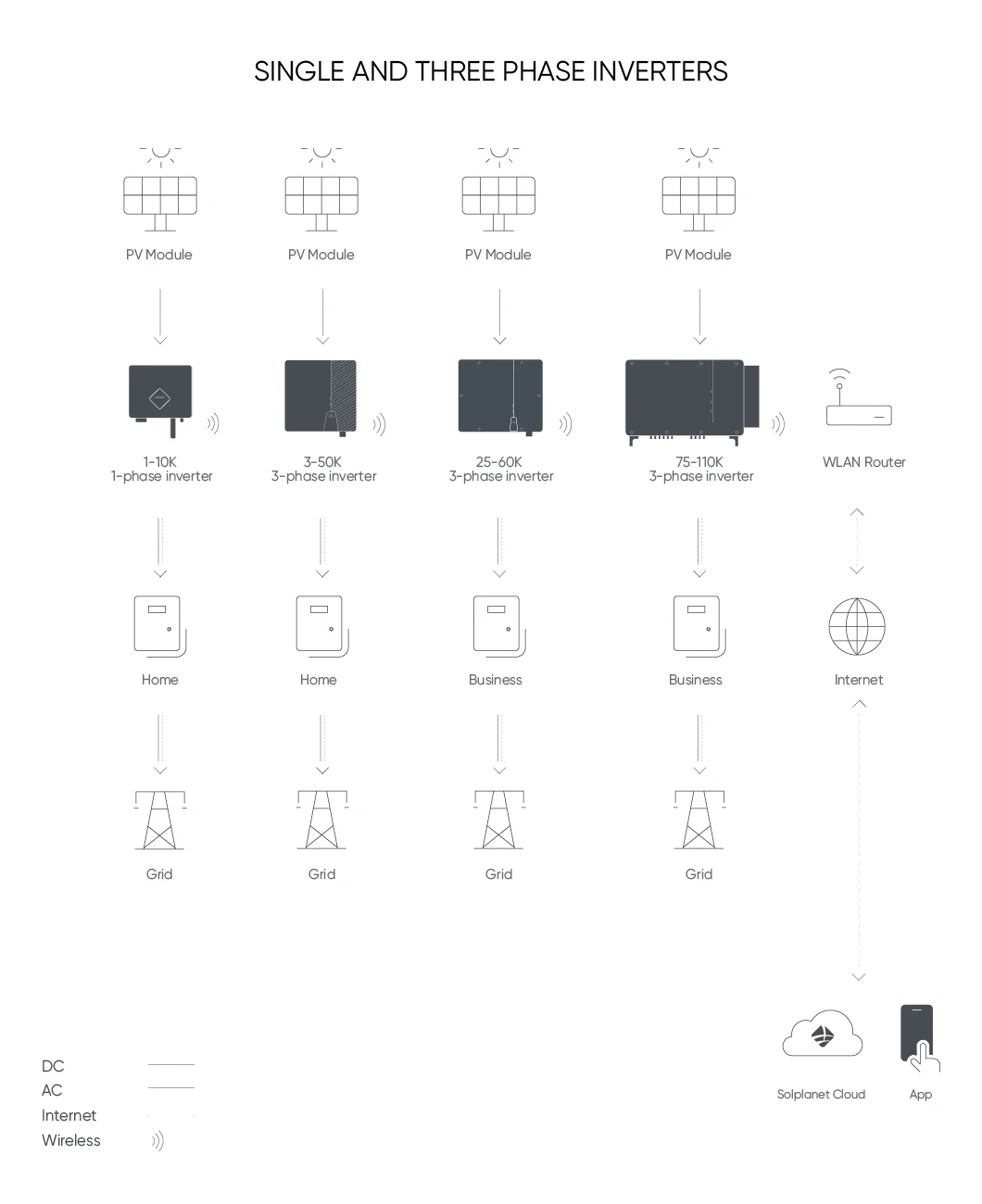

Product Series

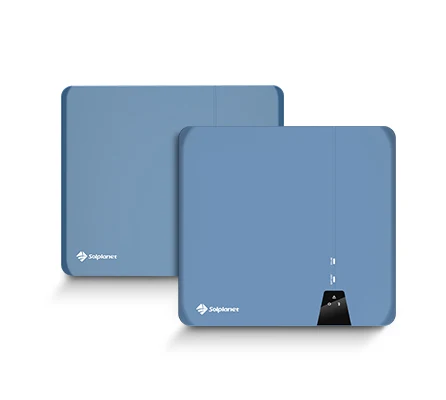

Single Phase Inverters
Rated active power: 1-10KW
MPP voltage range: 80 - 550V
AC voltage range: 220 V / 230 V / 240 V
AC grid frequency: 50 / 60 Hz

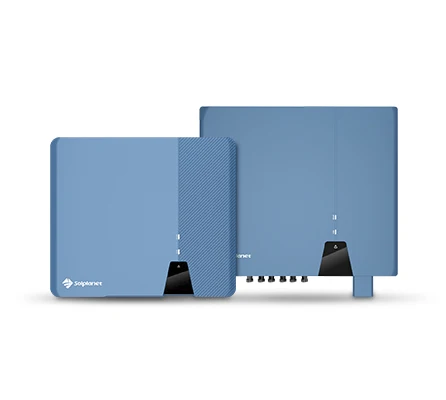

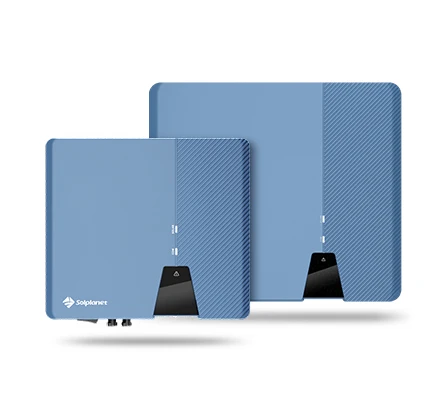

Three Phase Inverters
Rated active power: 3 - 110KW
MPP voltage range: 150 - 1000V
AC voltage range: 220V/380V 230V/400 V
AC grid frequency: 50 / 60 Hz




Energy Storage Inverters
Rated active power: 3 - 12KW
MPP voltage range: 40 - 530V
AC voltage range: 220 V / 380 V 230 V / 400 V
AC grid frequency: 50 / 60 Hz

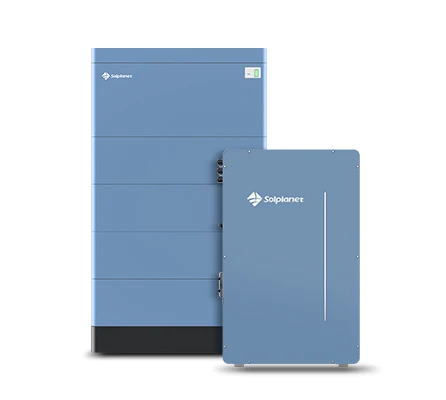

Lithium Batteries
Battery voltage range: 51.2 V / 153.6-512V
Nominal energy: 5-25KWH
Life cycle: 6000 times
Max. charging / discharging current: 100A

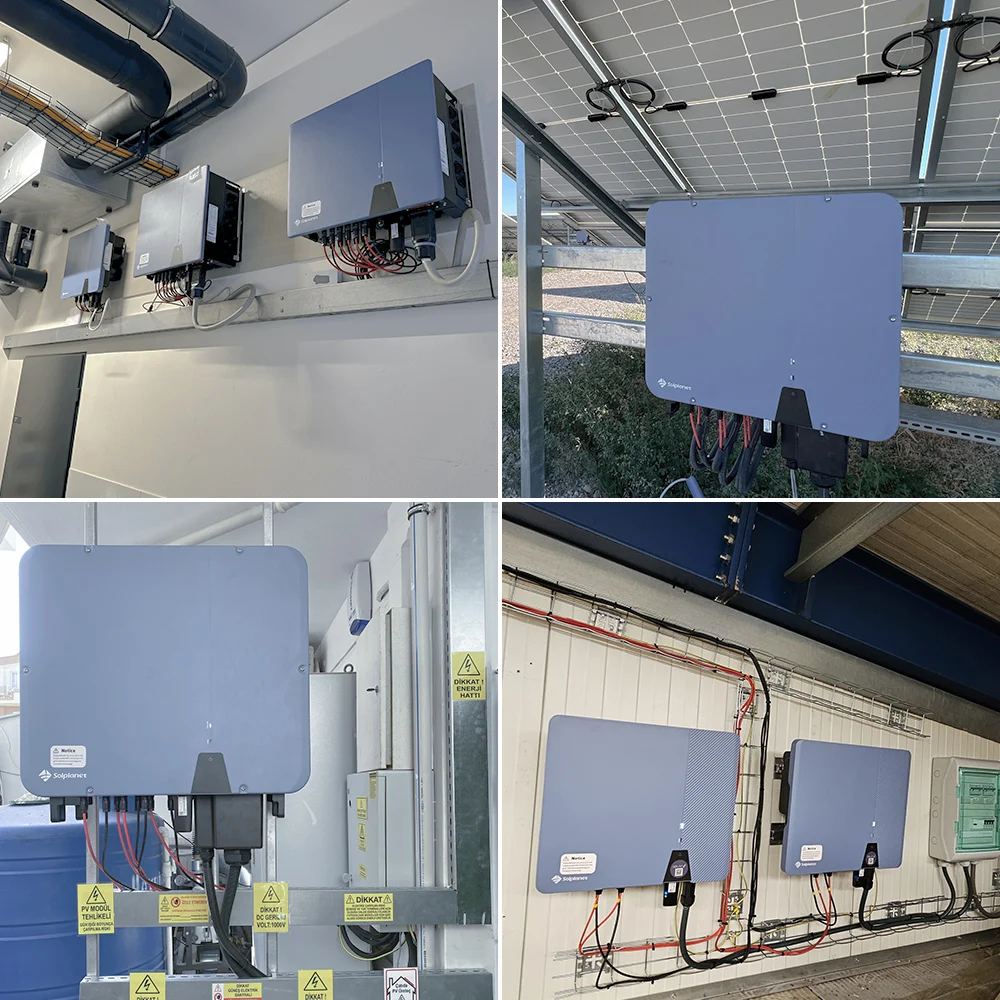

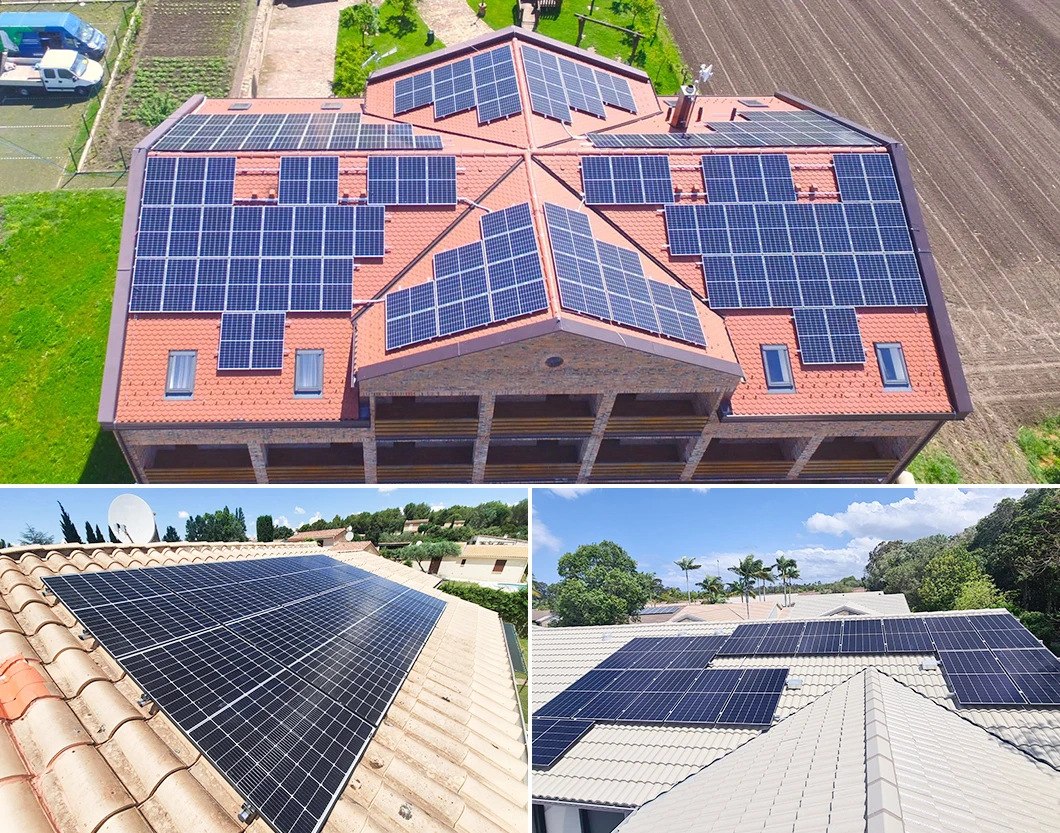

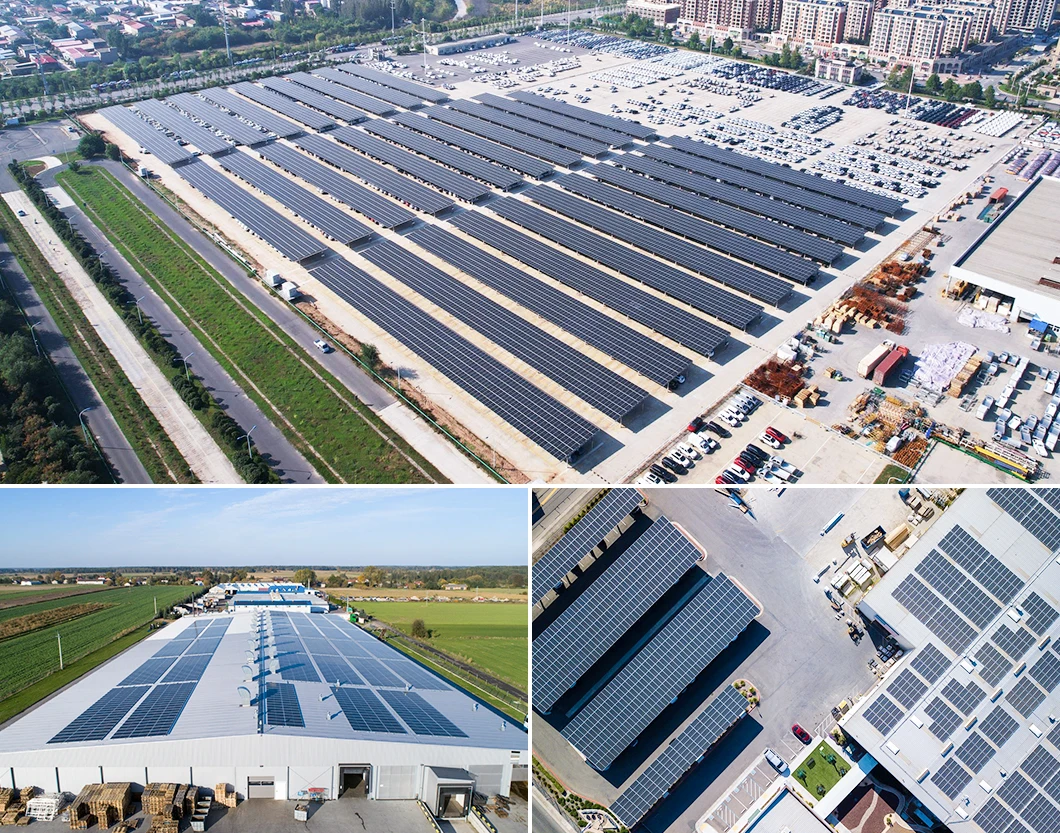

Sunpal Project Case
