Product Overview
Description
Product Description
Wavelength1310nm, 1550nm
APC/UPC for optional
SC and FC connector both provided for exchanging
SC and FC connector both provided for exchanging
Test range 90km
ATO-B1 OTDR is used in the installation and maintenance of fiber optic cables. This OTDR has the advantage of
high precision test capabilities, fast response time and easy to learn to operate. The ATO-B1 Series offers accurate
and fast results and creates a report automatically.
Features

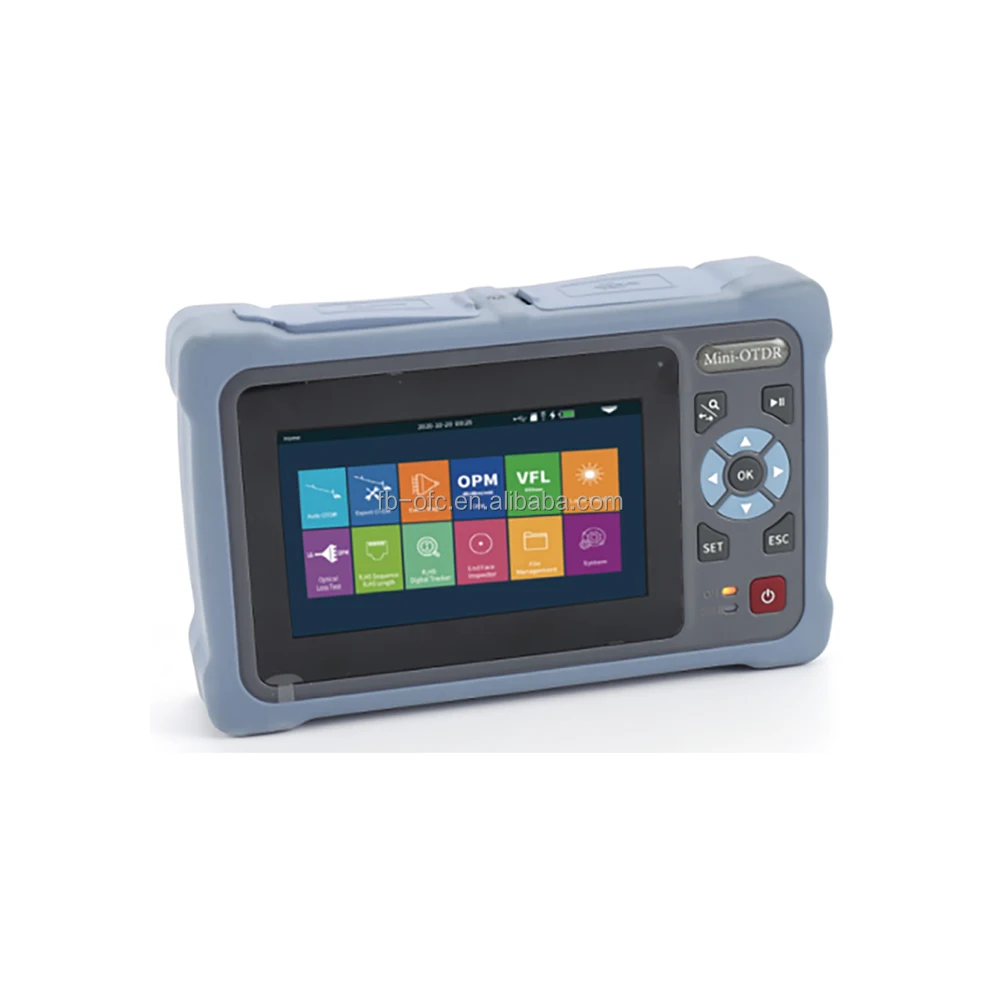

1. 4.3-inch HD touch screen
2. Measure distance as short as 2 meters
3. Event Dead Zone: 2.5m; Attenuation Dead Zone: 8m
4. 1 m resolution for accurate mapping of event
5. Support multi-result analysis
* fiber attenuation by least square method
* fiber attenuation by two point method
* results corresponding to segments
* interface screen shot for any display
2. Measure distance as short as 2 meters
3. Event Dead Zone: 2.5m; Attenuation Dead Zone: 8m
4. 1 m resolution for accurate mapping of event
5. Support multi-result analysis
* fiber attenuation by least square method
* fiber attenuation by two point method
* results corresponding to segments
* interface screen shot for any display
6. Cover full range of user interface
* USB A Type
* Micro-USB,
* SanDisk
* USB A Type
* Micro-USB,
* SanDisk
7. Ultra-High Capacity Battery that enables continuous use in the wild and support charge with portable power bank
8. Support peripherals like mouse and keyboard ( For simultaneous use, please expand with USB HUB)
9. Support both horizontal and vertical displays
10. Support RJ45 cable test
8. Support peripherals like mouse and keyboard ( For simultaneous use, please expand with USB HUB)
9. Support both horizontal and vertical displays
10. Support RJ45 cable test

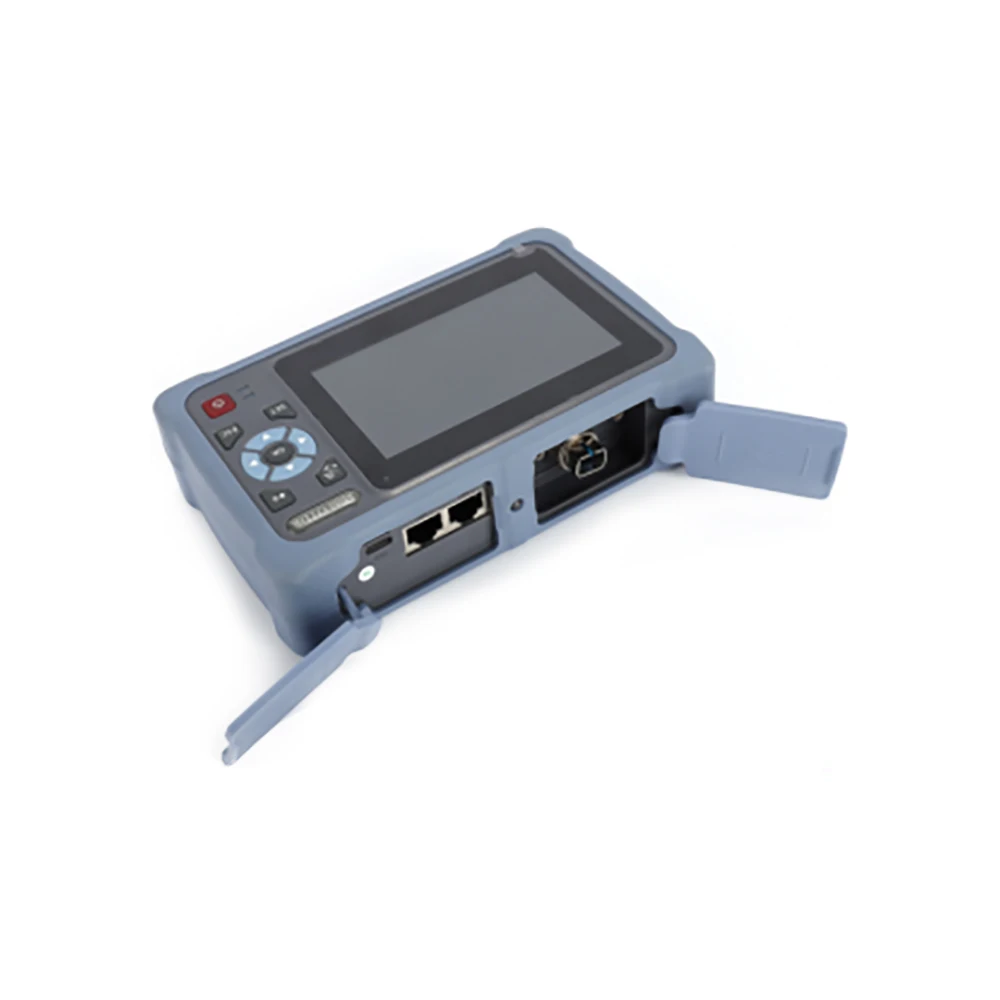

Detailed Images
Specifications
Display | 4.3 inch HD (touch screen) |
Battery | 3.7 V/4000mAh X 1 lithium battery Continuously test: > 8 hours (back light off) Charging time: 3 hours with adapter; 10 hours with USB |
Data Storage | 20,000 groups of curves |
Interface | USB Type C×1, 8GB SanDisk |
Working Temp | -10℃~+50℃ |
Storage Temp | -20℃~+70℃ |
Humidity | ≤95% (non-condensation) |

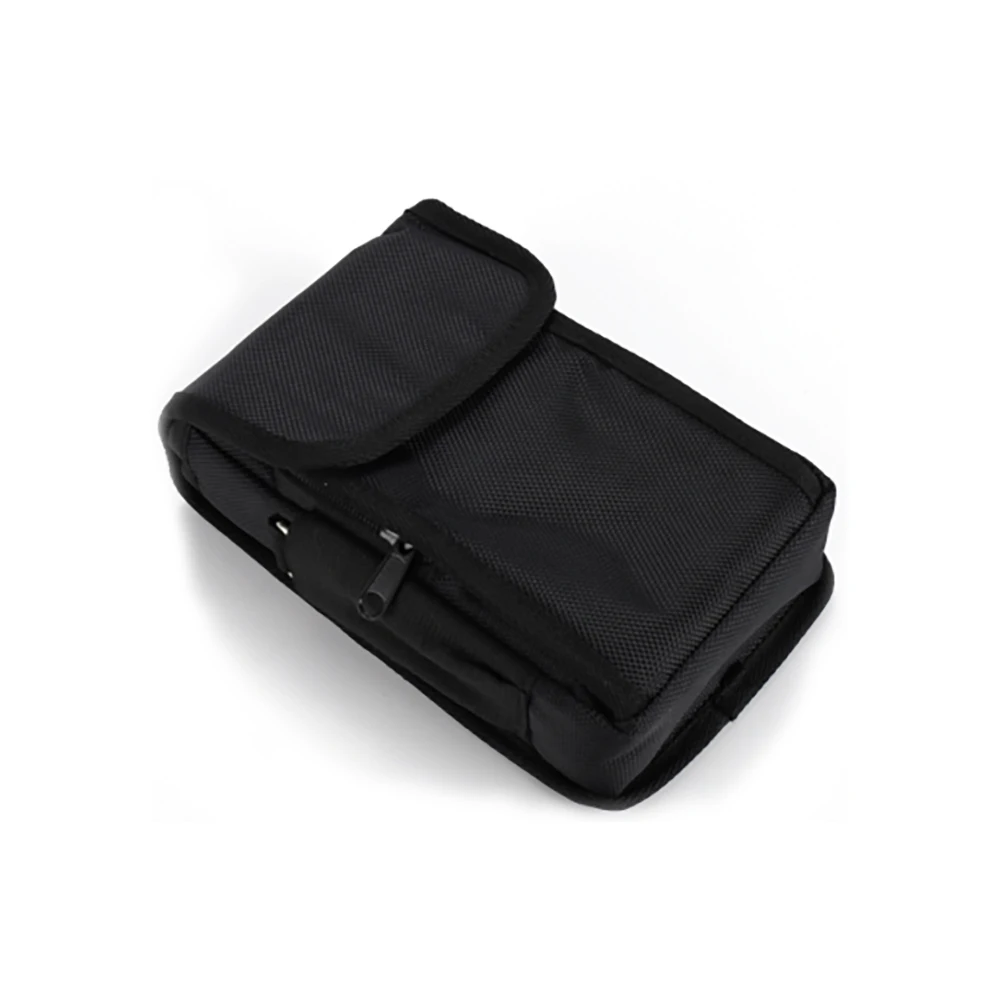

Accessories | Main unit, 12V power adapter, Lithium battery, FC adapter, USB cord, User guide, RJ45 Cable Tracker, carrying case, wrist belt, |
Dimension | 5.8× 3.8×1.6 inches/ 1.1 pounds (battery included) 173×110×46 mm/ 0.5 kg (battery included) |
Test Paremeter
Wavelength & Dynamic Range | Model | Dynamic Range and Wavelength | Event Dead Zone | Attenuation Dead Zone | |||
ATO-B1-S24 | 24 dB @1550nm | 2.5 | 8 | ||||
ATO-B1-S26F | 26 dB @1310nm Suitable for Live test @ 1490/1550nm (Power ≤-5dBm) | 2.5 | 8 | ||||
ATO-B1-S24F | 24 dB @1550nm Suitable for Live test @ 1310/1490nm (power ≤-5dBm) | 2.5 | 8 | ||||
ATO-B1-D26 | 26/24 dB @1310/1550nm | 2.5 | 8 | ||||
Testing Distance | 90km (Depends on cable layout) | ||||||
Sampling Resolution | Minimum 0.05 m | ||||||
Sampling Point | Maximum 64,000 points | ||||||
Linearity | ≤0.05dB/dB | ||||||
Loss Threshold | 0.2dB | ||||||
Loss Resolution | 0.001dB | ||||||
Distance Resolution | 0.01m | ||||||
Distance Accuracy | ±(1m+measuring distance×5×10-5+sampling resolution) (excluding IOR uncertainty) | ||||||
Refraction Setting | 1.2000~2.0000, 0.0001 step | ||||||
List of Optional Modules
Modules | Parameter | Note |
VFL Module | Optional between 1-20mW | Default: 10mW |
OPM Module | Type A：+10dBm~-70dBm; | |
Type B：+26dBm~-50dBm | ||
Output：-5dBm±2dB | ||
Output Mode：CW/270Hz/1KHz/2KHz | ||

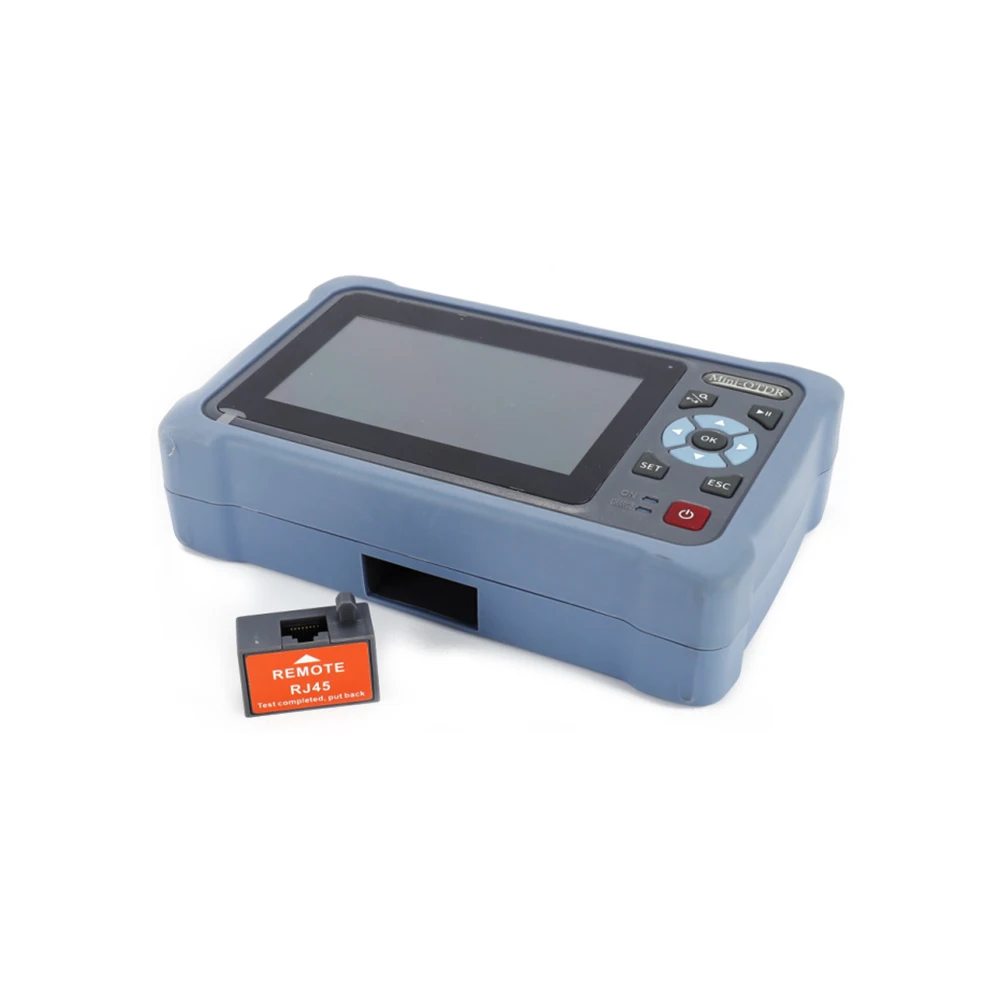

RJ45 Cable Tracker | Digital tracking≥300m |
