New ROHS CE and REACH certificate 2.2v 3v 6v 12v linear dc motor 10mm travel distance for mini electric valve and electric lock
- Category: >>>
- Supplier: Shenzhen Bobet Technology Co. Ltd.
Share on (1600914407162):
Product Overview
Description
Welcome to Bobet!
Hello dear, welcome to Bobet :), the most professional,reliable and warm Group with factory who make industrial Electric gear motors for years. Due to time difference we might not response to your inquiry in time but we won't keep you waiting so long,thank you!:)
How to choose a suitable electric motor for your application? | voltage | |||||||
First check the voltage(V) of power supply for the motor,speed(rpm) and torque(N.m or kg.cm) needed ,they are basic performance need to know, to decide any gearbox is necessary or not.then we also need to consider the size(or mounting space),shape of the motor. then we need to consider the other factors,such as speed control,positioning function, motion accurate are required or not, cost down,Energy saving,gear self-lock, machine noise,structure and other performance...you may contact us to get more help,we are glad to :). | ||||||||
Brush DC motor | Brushless DC Motor | Stepper Motor | Servo Motor(AC/DC) | AC induction Motor | ||||
Cheap/easy speed regulated/no need driver if no need speed control | Maintenance-free/Long life time and high efficiency,need driver | Precision positioning/1.8°per step need driver | Excellent dynamic performance/High speed and precision control need driver(controller) | Simply structure,AC input/no need driver if no need speed control | ||||
Gearbox is necessary when big torque and slow speed is needed. Gearbox Output speed = motor speed / ratio of gearbox Gearbox output torque = motor torque * ratio of gearbox * efficiency | ||||||||
Encoders and Electromagnetic brake are optional for these motors,as well the shaft (axis,axle)shape,length are Customizable to meet special application. | ||||||||
Products Description
New ROHS CE and REACH certificate 2.2v 3v 6v 12v linear dc motor 10mm travel distance for mini electric valve and electric lock Plumbing valve
Mainly used in electric valve. Industry, agriculture, transportation, rail, transportation, automation, automobiles, mines, forest farms, fisheries,house/Office Supplies,industrial machine,cars,door,fishing machine,Kitchen equipment,Waste treatment machine,grinder...
Linear motion motor dc
Motor type: PM DC brush motor linear motion parts
Gear type: spur gearboxes
Motor: 2v,2.2v,3v,5v,6v,9v,12v,14v,18v,24v
Gear shaft speed: 3-3000 rpm/0.5mm/s-25mm/s
Output torque: 2kgf.cm
Can be customized
Title1:
New ROHS CE and REACH certificate 2.2v 3v 6v 12v linear dc motor 10mm travel distance for mini electric valve and electric lock Pushrod motor

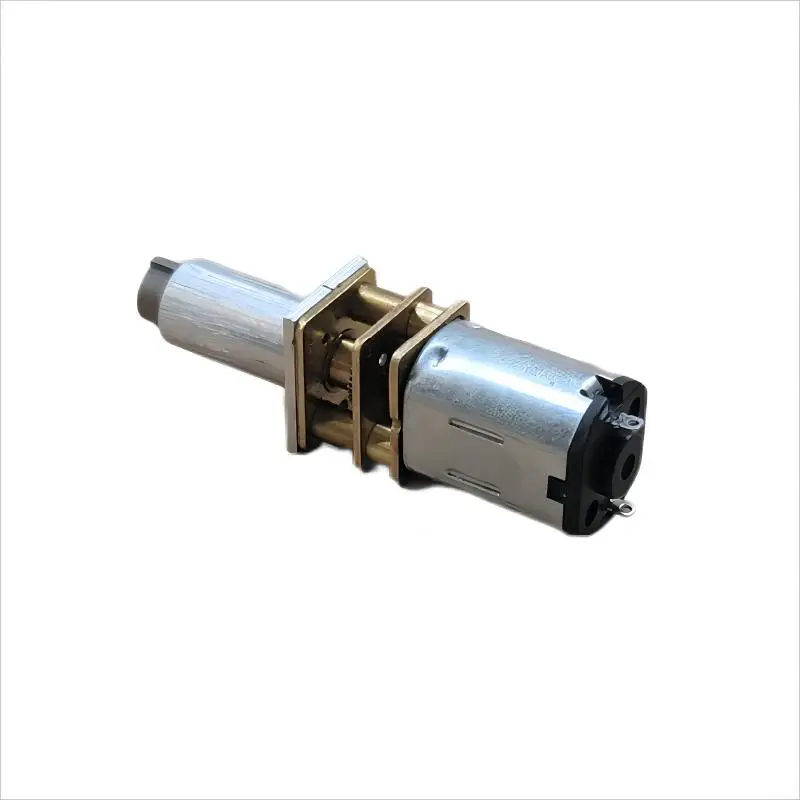

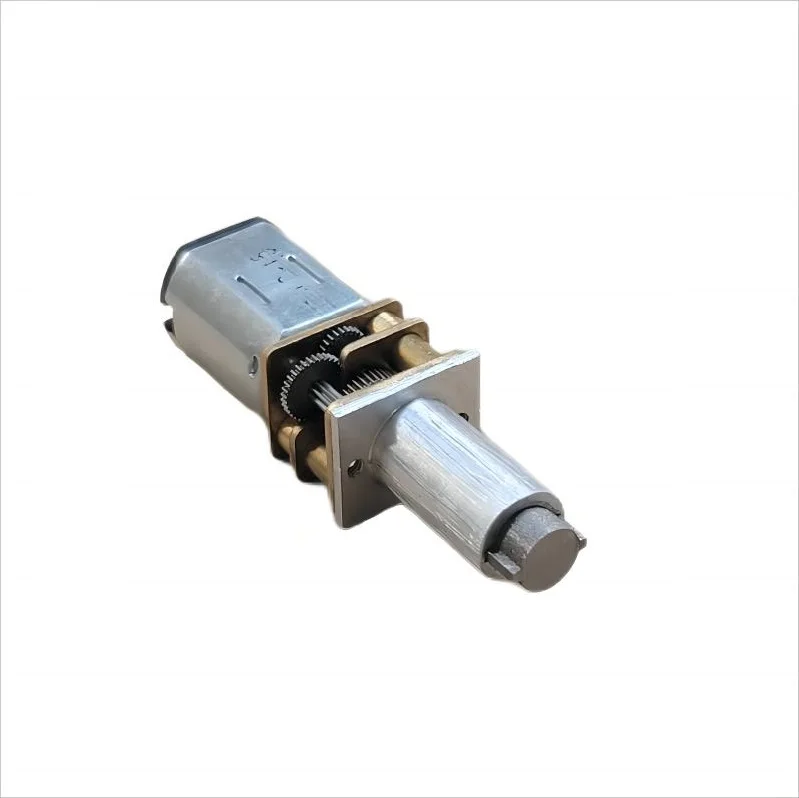

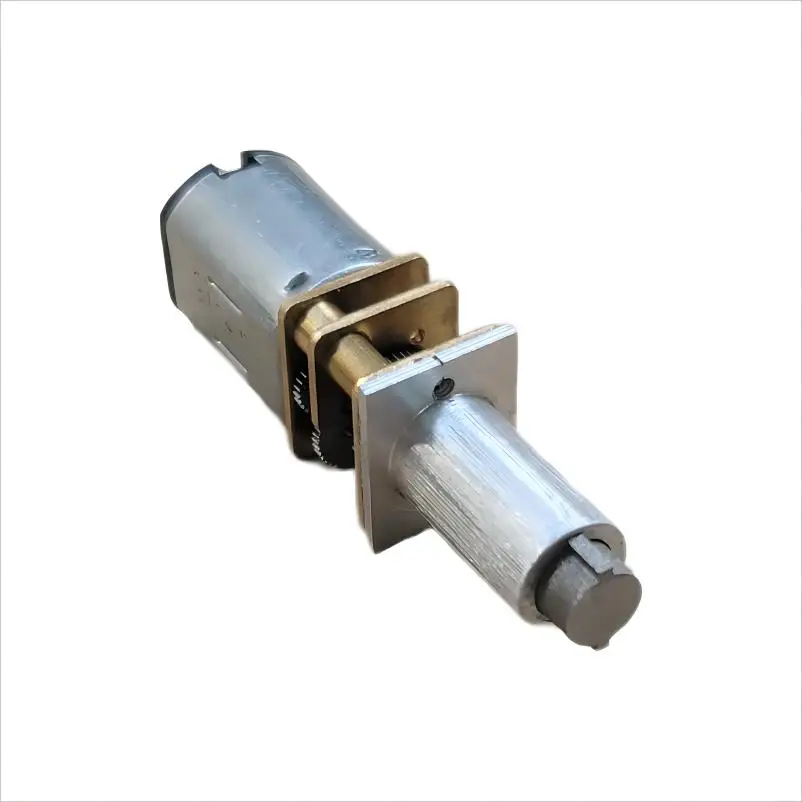

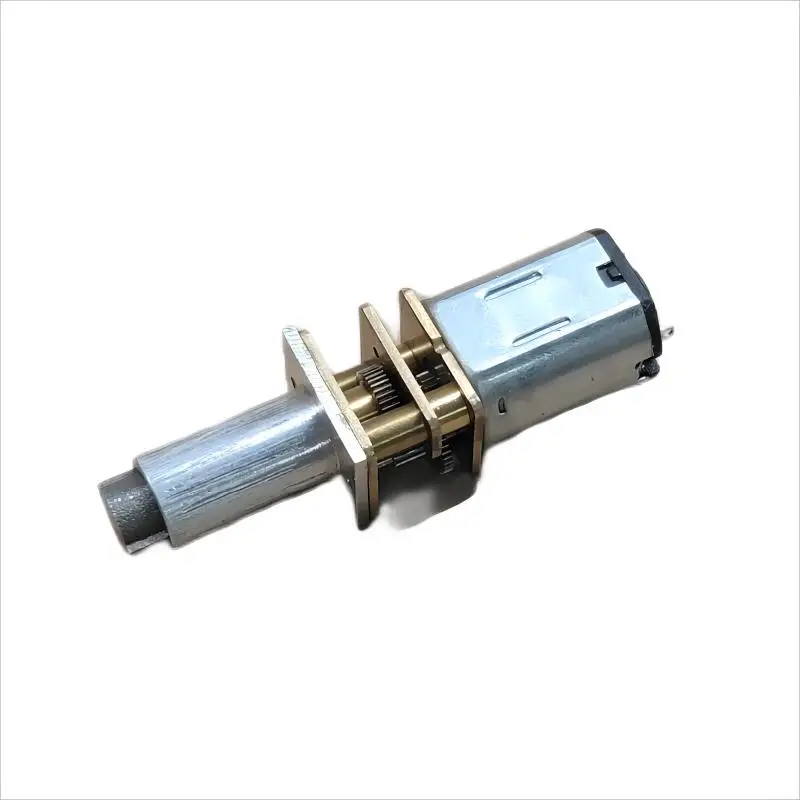

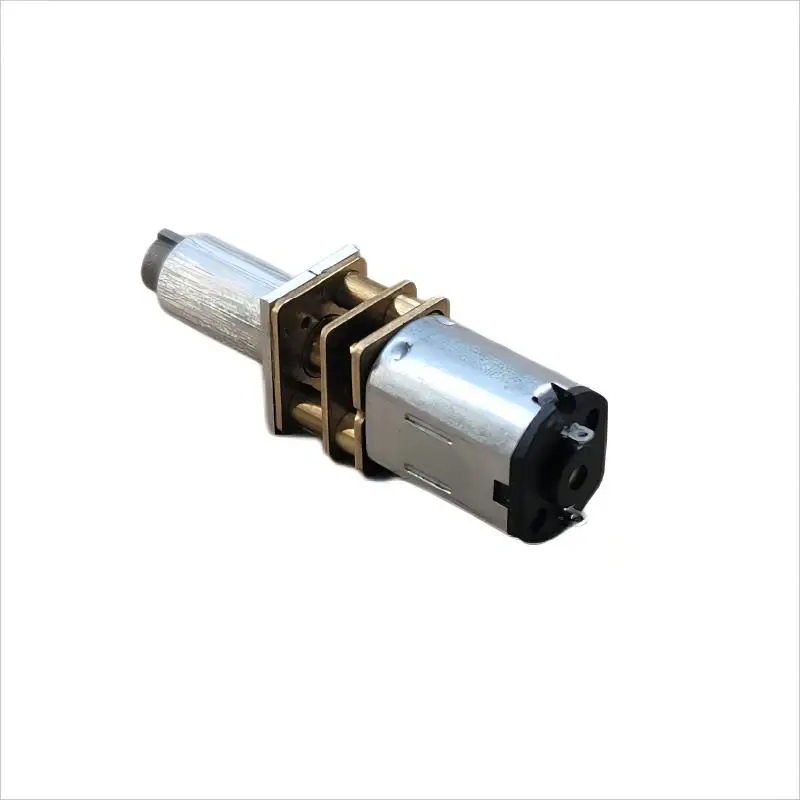

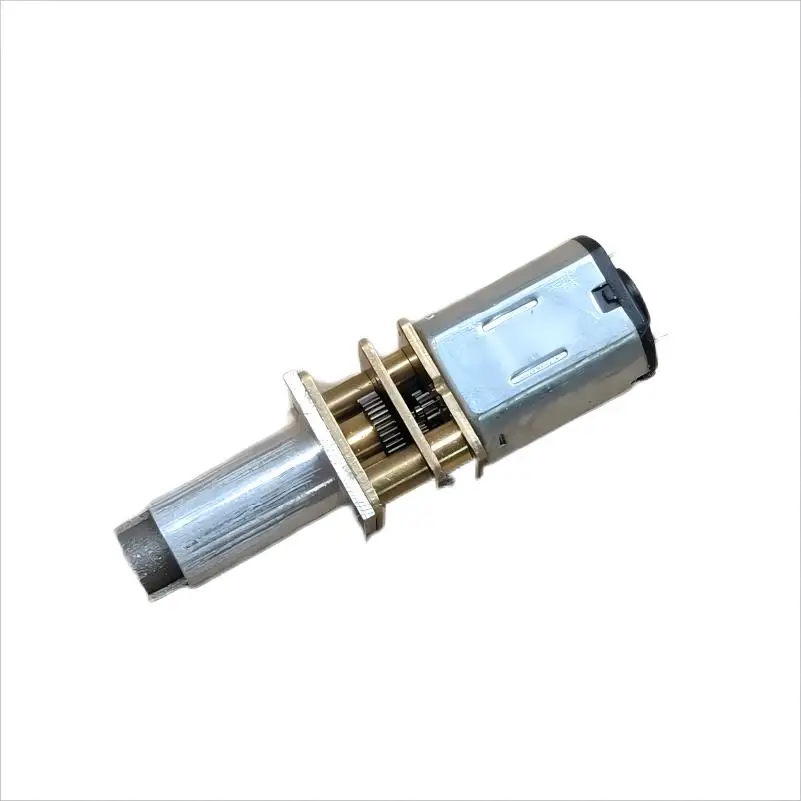

Product pictures
Performance¶meters
Model No. | Rated voltage (V) | No load Speed (MM/S) | No load Current (mA) | Rated Speed (MM/S) | Travel distance (mm) | Rated Current (mA) | Max push force (N) | Stall Current (mA) | Ratio(I) |
BGM12N20L-100 | 3/6/12/24 | 1 | - | 0.8 | 50 | - | 100 | - | 100:1 |
BGM12N20L-5 | 3/6/12/24 | 20 | - | 16 | 50 | - | 100 | - | 5:1 |

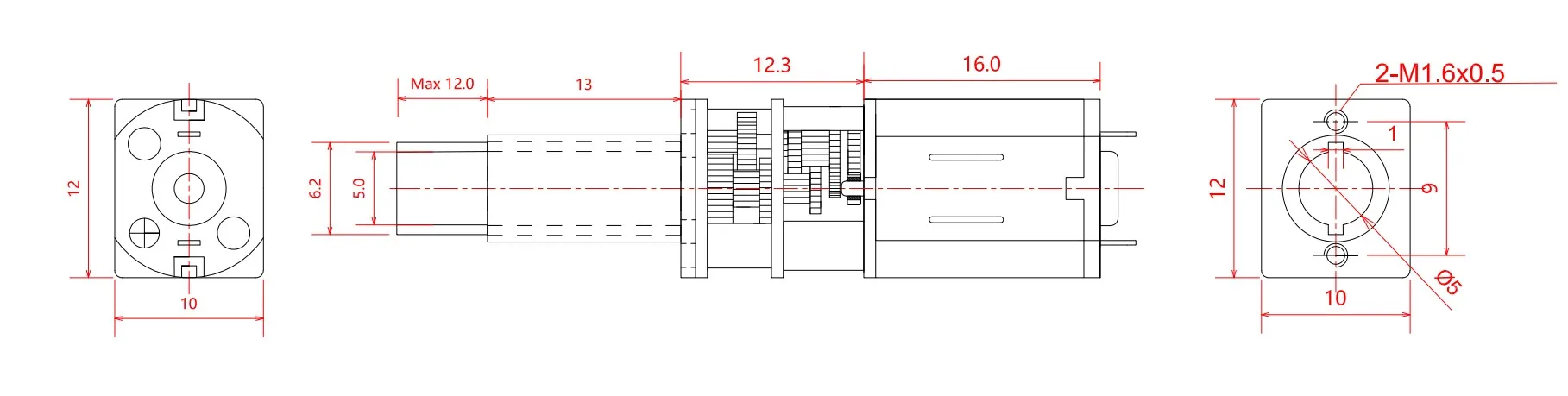

Shape and dimensions
CAD 2D drawings and 3D drawings for such motors are available,pls contact us to get them if need.
New ROHS CE and REACH certificate 760W 48v Brushless Dc Electric Motor for van automatic car reversible battery power 48V motor
for Aerospace. Industry, agriculture, transportation, rail, transportation, automation, automobiles, mines, forest farms,
fisheries
for Aerospace. Industry, agriculture, transportation, rail, transportation, automation, automobiles, mines, forest farms,
fisheries
Related products
Title2:New CE 200W Power Output Gear Feature 12v Brush Dc Electric Motor for fishing machine reversible Marine battery 12v gear motor
To use these motors you might also need below productsDC Power supply ,controllers and drivers
Battery,charger,power,wires,connectors whole fit
we can provide battery for such electric smart machine,such as electric valve,door lock,meters,pocket machine,handheld
machine,whole solution and all related parts.
Brush DC motor drive called controller or speed regulator.
Brush dc motor could run when connected to Drive, using which we can regulate the speed ,direction,start/stop the motor,we can easy regulate the speed of motor from 0 speed to max speed designed,and include all protection function such as over-current,over heat,stall ...
Similar products
other type of dc motor ,dc gear motor,close size or solutions optional
BWM60Z63
Small dc gear motor,diameter of motor is 63mm(49mm is also available),up to 80w. same shape and worm gearbox.
RV30-Z90
Bigger gearbox and bigger motor,diameter of motor is 90mm,gearbox is NMRV30, up to 300watt.
Certifications
Our company qualifications and certificates
ISO,Quality and Process control system.
RoHS and REACH certification of motors and drivers
our popular products(dc gear motor and drivers) have passed CE-EMC,RoHS ,REACH certification ,meet the EU directives about material safe condition.
Above video shows our motors and drivers are been testing,to ensure the quality,get exact performance and data ,such as the speed-torque curve diagram.
Our Advantages
Factory machine
Precision parts,such as the shaft,bearing are been making.
Motor winding
motors are been winding by automatic winding machine.
QC and Testing
Stuff are testing the performance of the motors.
Company Profile
our values
Innovation, sharing and growth is our company's cultural foundation. we want to be the most popular, intelligent and charity group
based on our culture ,products and service..We are glad to provide the suitable products and perfect solutions according to customers’ actual needs,for both benefit.
based on our culture ,products and service..We are glad to provide the suitable products and perfect solutions according to customers’ actual needs,for both benefit.
our strength
More than 12 Years of R & D, manufacturing for electric motors and gearboxes,
$38,500,000 value of sales last year!
Customers come from more than 16 countries and regions!
22+ processes production and 12 processes test.
$38,500,000 value of sales last year!
Customers come from more than 16 countries and regions!
22+ processes production and 12 processes test.
our idea.
We are professional in reliable,smart and special motors design and manufacture.
You could enjoy our professional service, fast response,high-quality and reliable products ,reasonable price and fast delivery.
Recommend Products
Other similar hot sale gear motors
Title3:New ROHS CE and REACH certificate 2.2v 3v 6v 12v linear dc motor 10mm travel distance for mini electric valve and electric lock
FAQ
_______________________________________________________________________________________________________________________
Q1: Do we provide free sample?A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need purchase materials and parts for proofing, it costs,so we will charge a certain fee.
Q2: How to order?
A2: Contact us to order online (by alibaba online Credit Trade Assurance service) or Bank T/T.
we accept online order by alibaba or offline order. we have export business license, and our bank can accept any payment from any
countries, our logistics agent and us will ship goods to your hand if you want.
Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
Q3: How to choose a suitable electric motor for your application?
A3: First check the voltage(V) of power supply for the motor,speed(rpm) and torque(N.m or kg.cm) needed ,they are basic
performance need to know, to decide any gearbox is necessary or not.then we also need to consider the size(or mounting
space),shape of the motor. then we need to consider the other factors,such as speed control,positioning function, motion accurate
are required or not, cost down,Energy saving,gear self-lock, machine noise,structure and other performance...you may contact us to get more support.
