plastic agglomerator blades
- Category: >>>
- Supplier: Zhangjiagang Weiquan Machinery Co. Ltd.
Share on (1600914528662):
Product Overview
Description
Product Description

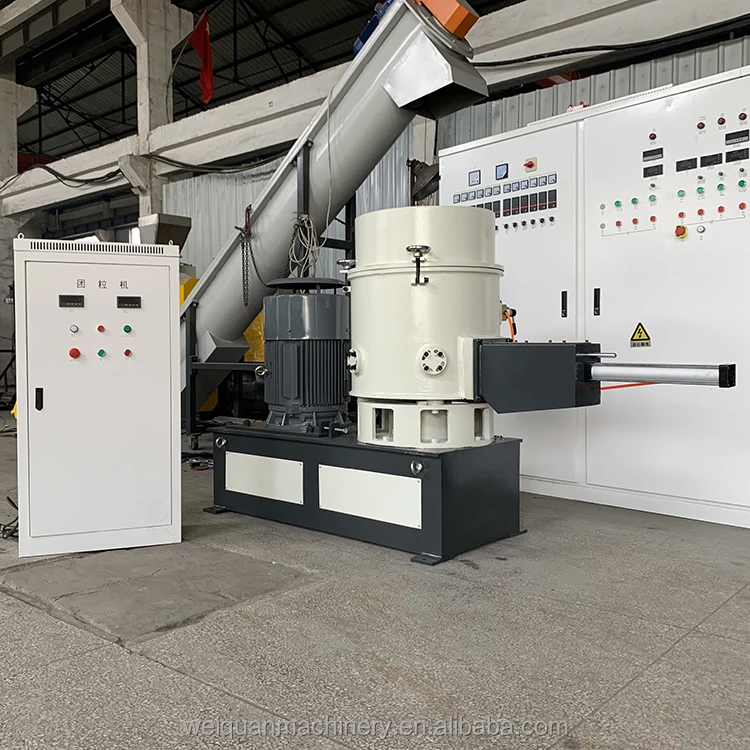

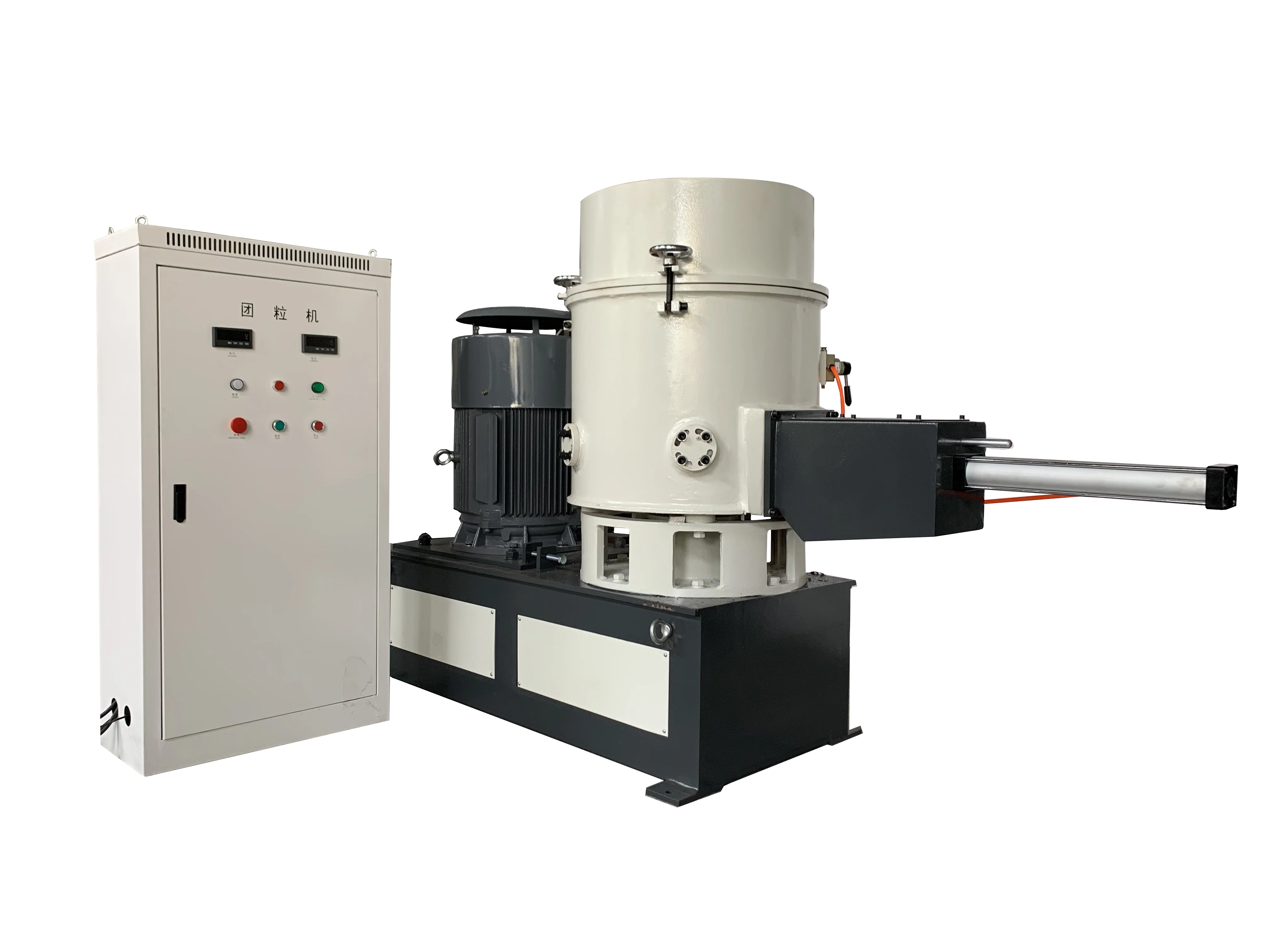

The plastic agglomerator/densifier /compactor / agglomerating machine is used to granulate the thermal plastic films, plastic bag, PET fibers, woven bag, non-woven plastic whose thickness is less than 2 mm into small granules & pellets directly. It is a necessary and economical machine for the plastic pelleting pro line.
Features:
1. Its working theory is different from ordinary extrusion pelletizer, no need electric heating, and can work whenever

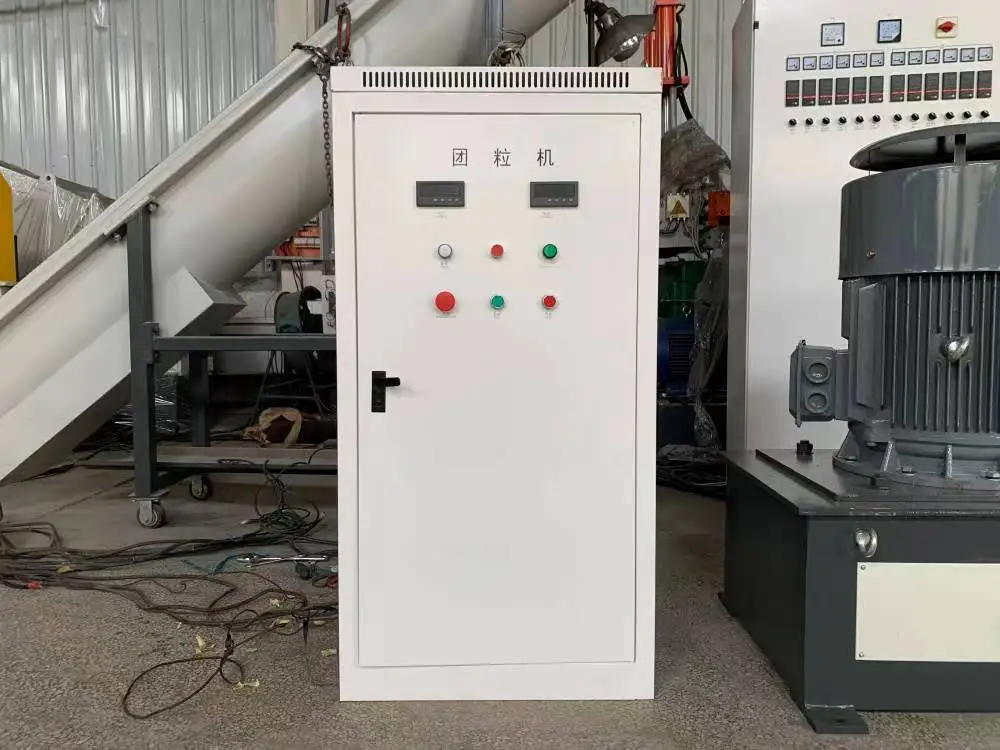

and wherever possible. It is jointly intelligent controlled by PLC& Computer, easy and stable for operations, and can save more electric power and manpower than common extrusion pelletizer.
2. Strong design of double bearing for holding the main shaft, high performance blades, water flushing automatically.
3. Used for changing PE, PP film/bags into agglomeration granules. Plastic Agglomerator will be recycling a waste of the plastic film and wall thickness of less than 2 millimeters products direct granulation equipment.
and wherever possible. It is jointly intelligent controlled by PLC& Computer, easy and stable for operations, and can save more electric power and manpower than common extrusion pelletizer.
2. Strong design of double bearing for holding the main shaft, high performance blades, water flushing automatically.
3. Used for changing PE, PP film/bags into agglomeration granules. Plastic Agglomerator will be recycling a waste of the plastic film and wall thickness of less than 2 millimeters products direct granulation equipment.
PRODUCT SPECIFICATIONS
Model | WQ-100 | WQ-200 | WQ-300 | WQ-500 | WQ-600 | WQ-800 |
Total Volume (L) | 100 | 200 | 300 | 500 | 600 | 800 |
Effective Volume (L) | 75 | 150 | 225 | 375 | 450 | 600 |
Motor power (kw) | 22 | 45 | 55 | 75 | 90 | 110 |
Capacity (kg/hr) | 60-100 | 100-150 | 150-250 | 300-400 | 300-400 | 400-500 |
Product Overview

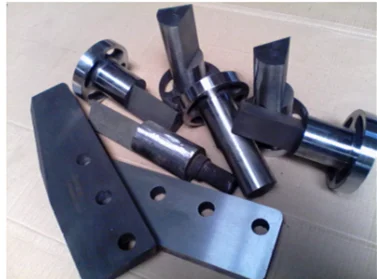

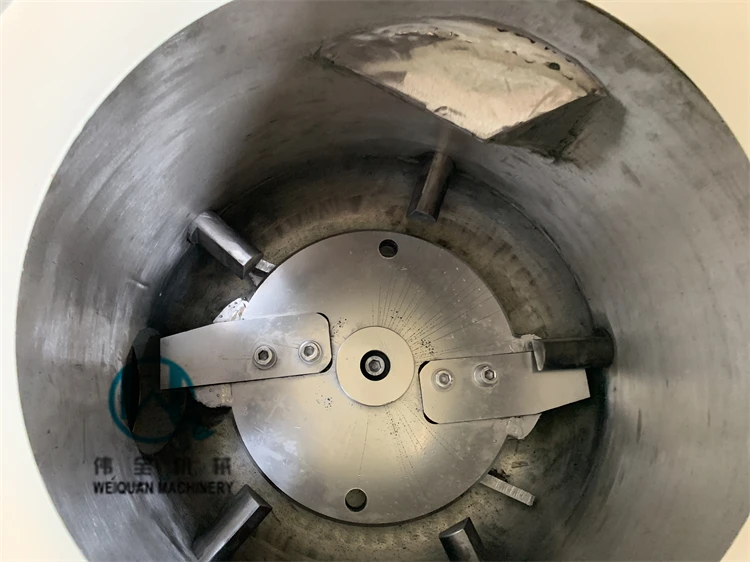

Rotor Blade
Fixed Blade

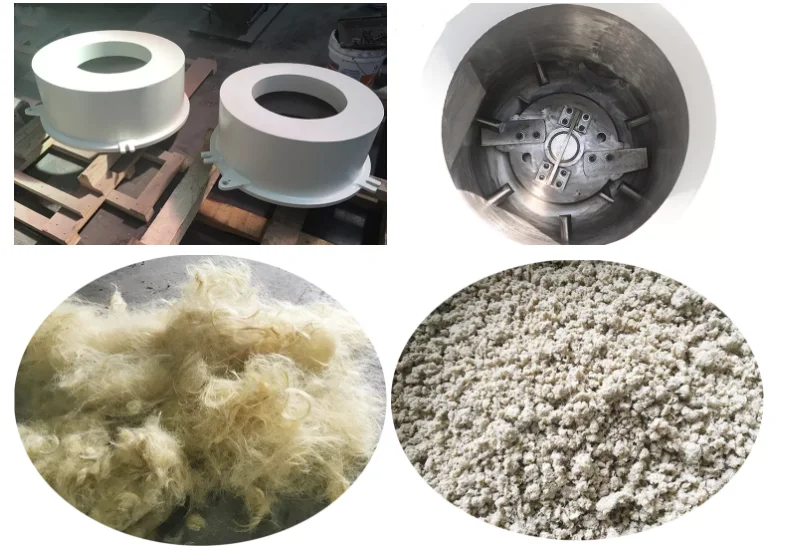

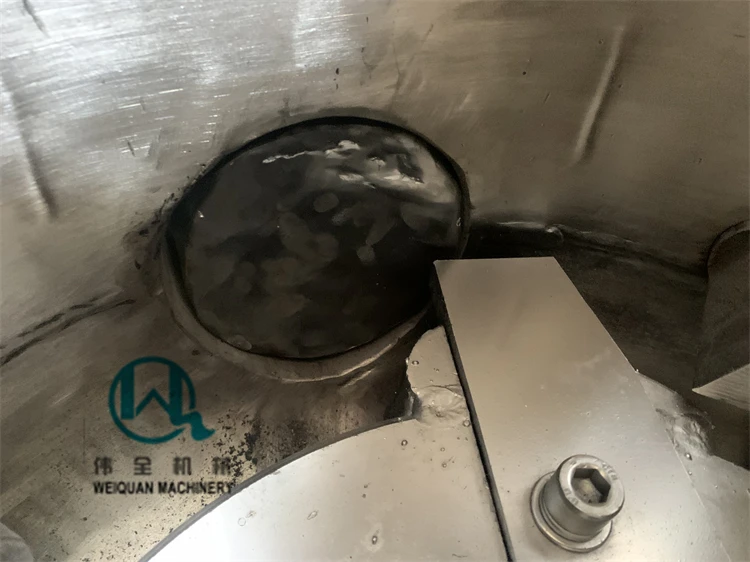

Connection To The machine bodywith cylinder
this is our special design
this design can connection the machine as a circle. so that avoid the material stock together
this design can connection the machine as a circle. so that avoid the material stock together

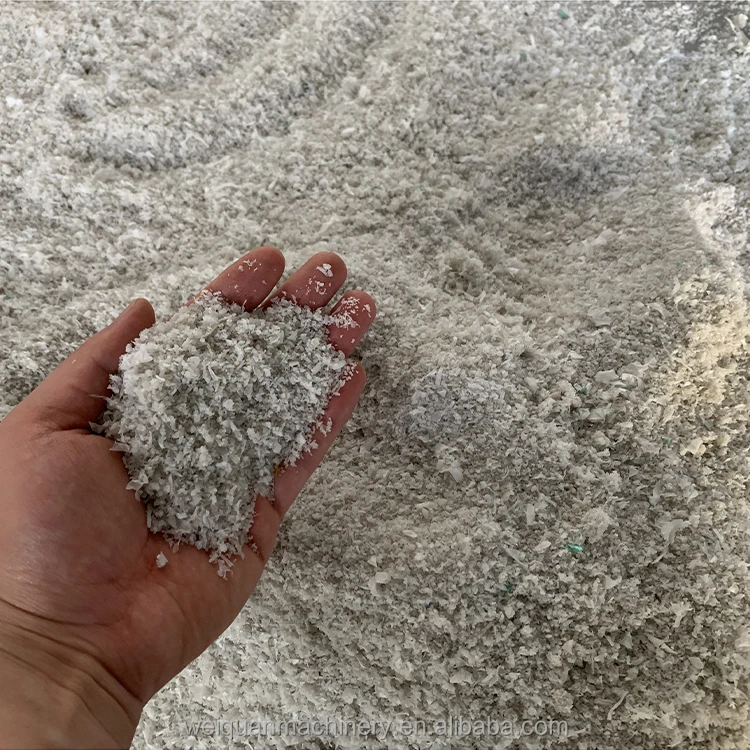

Final production
Title goes here.
Company Profile
Exhibition
Package & Shipment
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory and can provide customized services.
Q2: What services will you provide?
A2: We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
Except one year quality guarantee, we will provide after-sell service for all the life.
Q3: What can i buy from you?
A3: Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic
Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
Q4: Why should i buy from you not from other suppliers?
A4: We have more than 10 years experience in fabricating the machine, we can fabricating the machine according to customer request.
Q5: What basic terms can you accept?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
Q2: What services will you provide?
A2: We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
Except one year quality guarantee, we will provide after-sell service for all the life.
Q3: What can i buy from you?
A3: Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic
Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
Q4: Why should i buy from you not from other suppliers?
A4: We have more than 10 years experience in fabricating the machine, we can fabricating the machine according to customer request.
Q5: What basic terms can you accept?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
