Horizontal Installation Filter Cartridge Dust Collector System for CNC Laser Cutting Machine
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (1600914536802):
Product Overview
Description

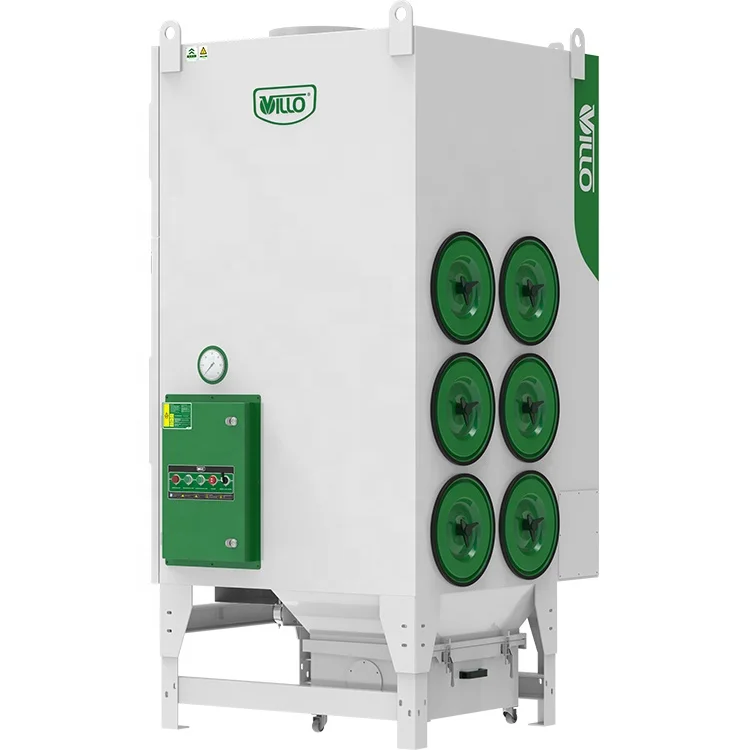

VN Series Separator Built-in Type Industrial Dust Collector
Product description
VN series is an industrial dust collector focusing on the sheet metal laser cutting industry. It has the characteristics of large air volume, pulse jet cleaning, stable and reliable design.
Applications
An effective solution for machine processes such as sheet metal laser cutting, grinding, sandblasting and other operations.
Features
* PTFE coated filter cartridge
The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Easy installation of horizontal type filter, can reduce the time to replace the filter.
* Spoiler installed at the air inlet let the dust particles to fall directly in to the dust collector. This avoids to install an additional cyclone separator.
Technology Parameters
Model | VN-4500 | VN-6500 | VN-8500 | |||
Voltage (V/HZ) | 380 / 50 | |||||
Power (Kw)/ (HP) | 5.5 / 7.5 | 7.5 / 10 | 11 / 15 | |||
Starting current (A) | 90 | 110 | 130 | |||
Rated current (A) | 10.5 | 14.1 | 20.5 | |||
Max air flow (m³/h)/ (CFM) | 4500 / 2650 | 6500 / 3825 | 8500 / 5000 | |||
Filter area (m²)/ ( sq.ft ) | 76/818 | 114/1226 | 114/1226 | |||
Dia. air inlet (mm) / (in) | Ø 250 / 10 | Ø 300 / 12 | Ø 300 / 12 | |||
Noise dB (A) | 75±2 | 76±2 | 77±2 | |||
Filter efficiency | 99% | |||||
Filter cleaning method | Pulse jet | |||||
Dimension [L*W*H] (mm) / (in) | 1400*1250*2290 / 55.1*49.2*90.2 | 1600*1500*3185/63.0*59.1*125.4 | 1495*1565*3060 / 58.9*61.7*120.5 | |||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||
Product Configuration
PTFE coated filter cartridge
Air pulse jet cleaning device
Built-in Separator
Optional Configuration
Siemens Inverter
Multi Tower Light
Soft Starter

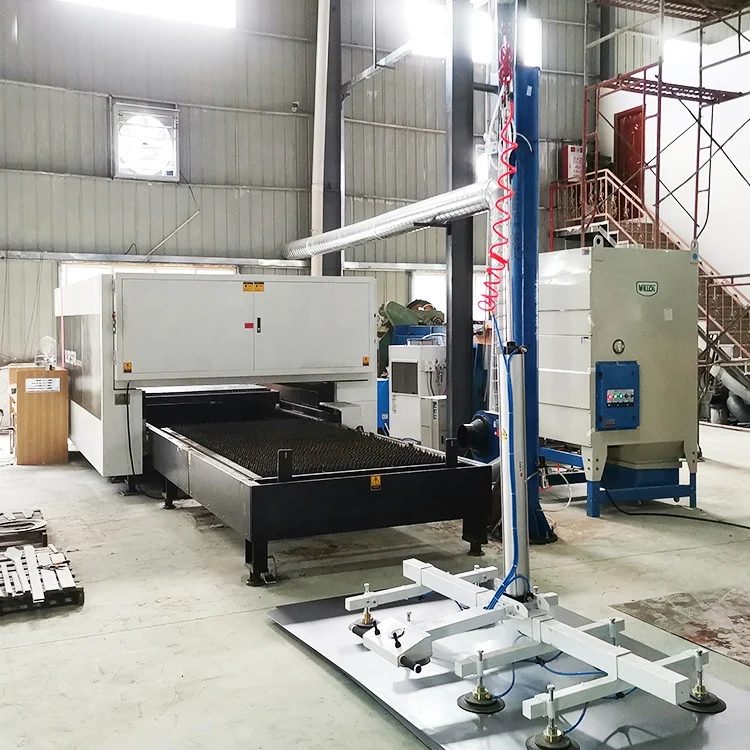

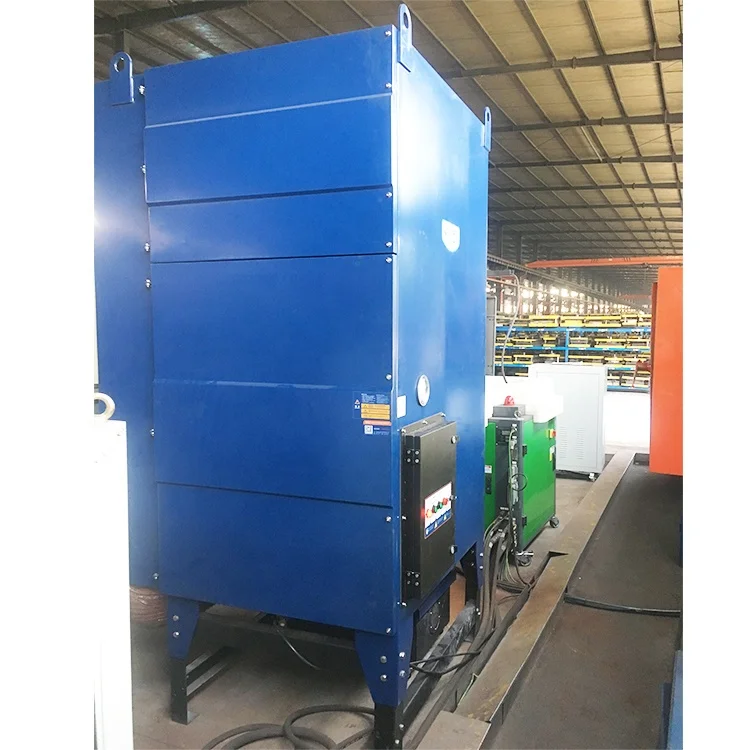

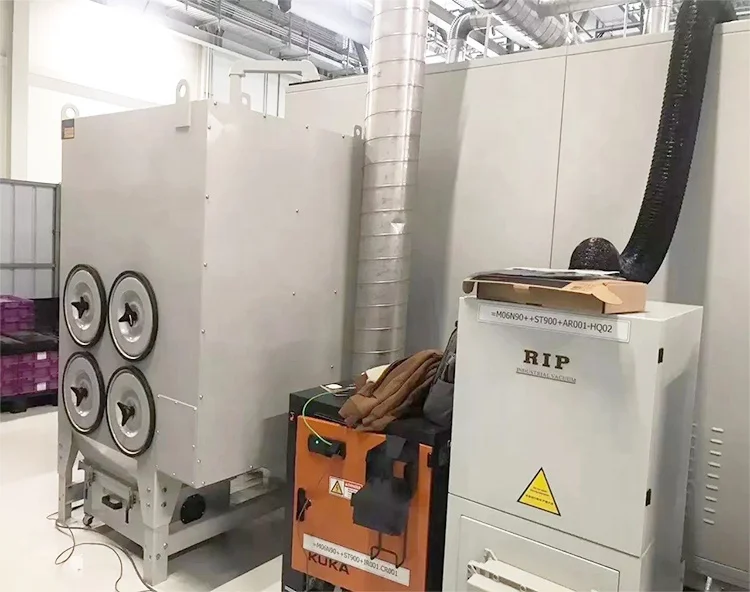

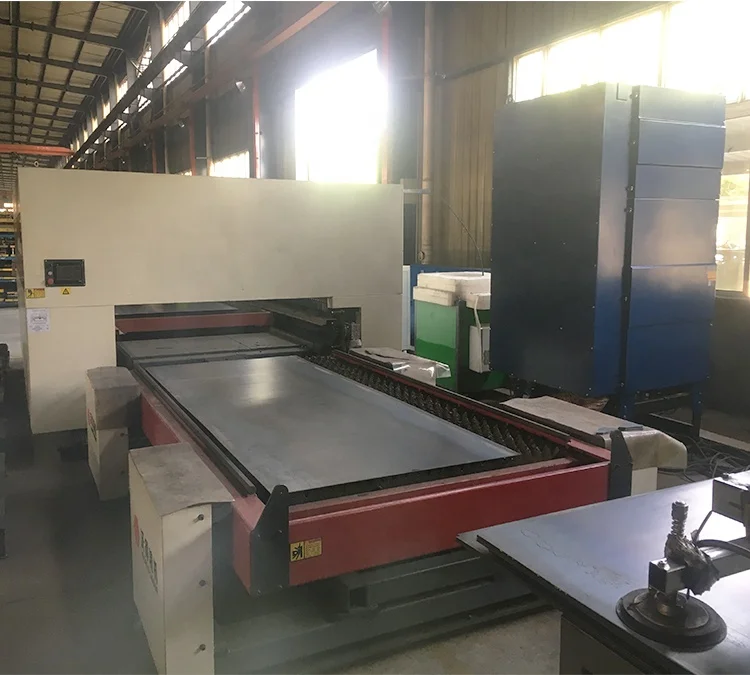

Successful Project
