CNC Medium sized aluminum profile End milling machine for Window and Door Making Machine Aluminum UPVC PVC Profile Cutting Saw
- Category: >>>
- Supplier: Changshu CJ Equipment Co. Ltd.
Share on (1600914577650):
Product Overview
Description
Product Description

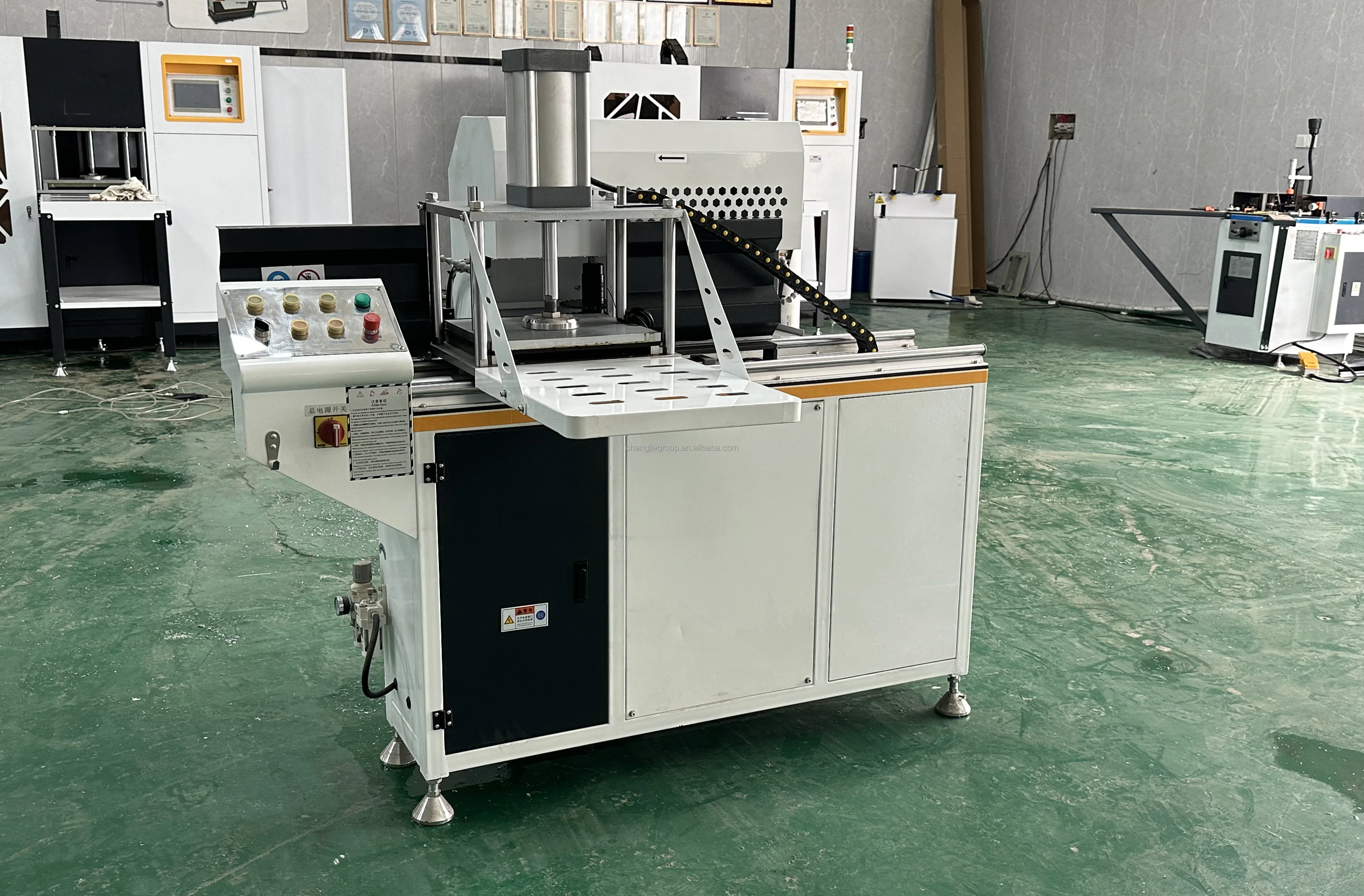

Medium sized End milling machine for aluminum profile
1.It is suitable for milling the end face of aluminum profile, so as to meet the matching between center stile and frame material.
It can mill multiple profiles at one time with high efficiency.

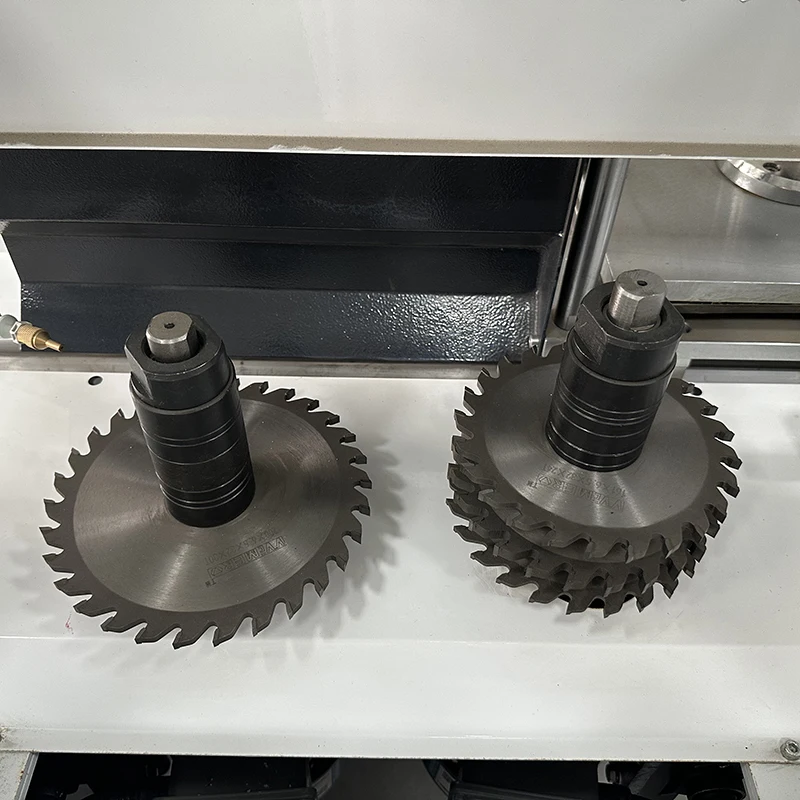

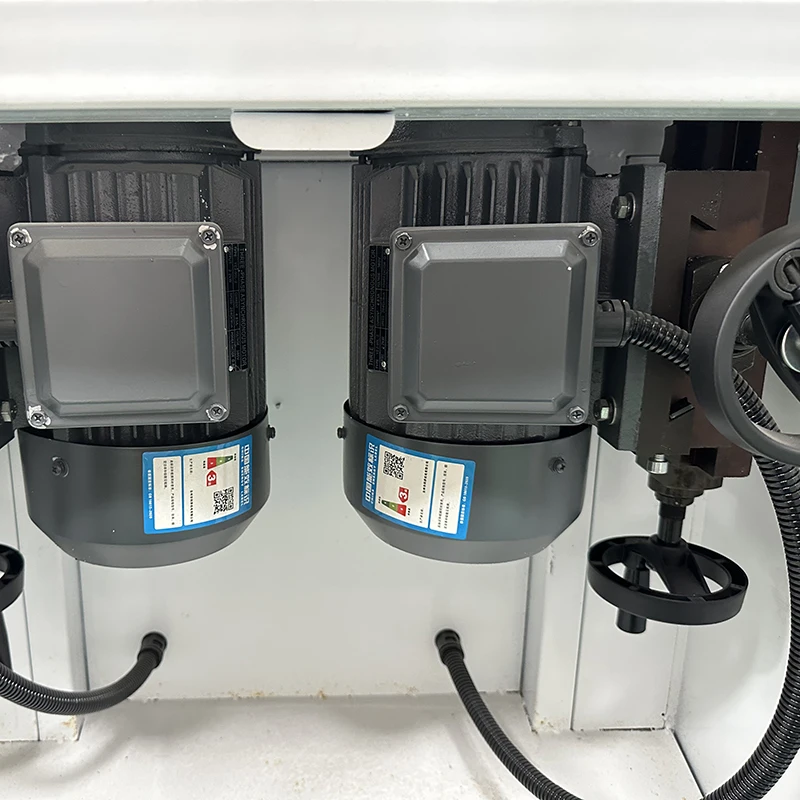

2.Three-axis two motors can simultaneously carry 4- 6 cutters.
3.Cutting tools can be adjusted up and down and left and right to adapt to machining with different shapes and sizes.
4.The cutting tool is adjustable, and it is unnecessary to customize the cutting tool when processing different profiles, thus
shortening the production preparation, cycle and reducing the cost.
It can mill multiple profiles at one time with high efficiency.
2.Three-axis two motors can simultaneously carry 4- 6 cutters.
3.Cutting tools can be adjusted up and down and left and right to adapt to machining with different shapes and sizes.
4.The cutting tool is adjustable, and it is unnecessary to customize the cutting tool when processing different profiles, thus
shortening the production preparation, cycle and reducing the cost.
Item NO. | Item Name | Description |
1 | Air pressure | 0.6-0.8Mpa |
2 | Total power | 4.4kw |
3 | Motor speed | 2800r/min |
4 | Motor shaft diameter | 32mm |
5 | Milling cutter diameter | 250mm |
6 | Worktable feed stroke | 0~1360mm |
7 | Open tenon | 40mm |
8 | Worktable dimension | 330×320mm |
9 | Power supply | 380v 50Hz |
10 | Overall dimension | 2240×1020×1670mm |
11 | Weight | 500kgs |
Features:
It can mill multiple profiles at one time with high efficiency.
2.Three-axis two motors can simultaneously carry 4- 6 cutters.
3.Cutting tools can be adjusted up and down and left and right to adapt to machining with different shapes and sizes.
4.The cutting tool is adjustable, and it is unnecessary to customize the cutting tool when processing different profiles, thus
shortening the production preparation, cycle and reducing the cost.
5.The motor phase sequence protector is installed in the circuit system, which improves the safety of the system.
6.Gas-liquid damping device is adopted in the working progress system, which is stable and reliable
1.It is suitable for milling the end face of aluminum profile, so as to meet the matching between center stile and frame material.
It can mill multiple profiles at one time with high efficiency.
2.Three-axis two motors can simultaneously carry 4- 6 cutters.
3.Cutting tools can be adjusted up and down and left and right to adapt to machining with different shapes and sizes.
4.The cutting tool is adjustable, and it is unnecessary to customize the cutting tool when processing different profiles, thus
shortening the production preparation, cycle and reducing the cost.
5.The motor phase sequence protector is installed in the circuit system, which improves the safety of the system.
6.Gas-liquid damping device is adopted in the working progress system, which is stable and reliable
Company Profile
ABOUT US

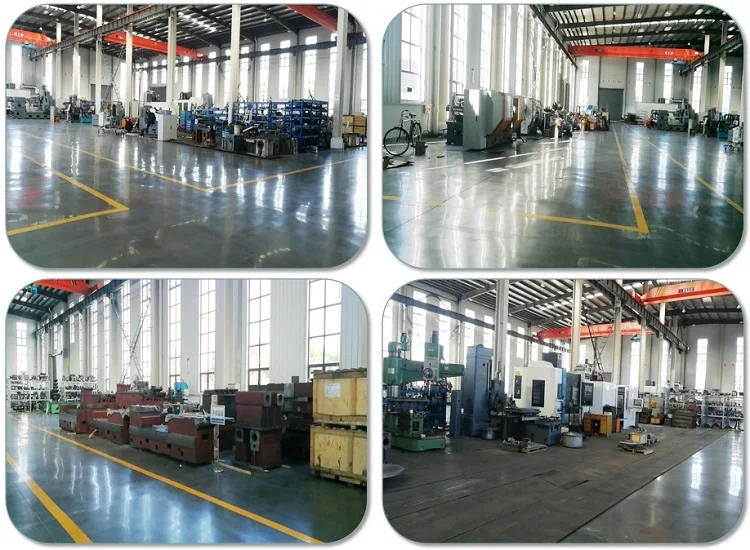

CJ INDUSTRY GROUP is a renowned supplier of high-quality Metal Process Machinery since 2000, specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment
