Портативный Тип легкий вес 230 кг мини электрический Канатный подъемник с крюком
- Category: >>>
- Supplier: Nantong Allman Industry Co. Ltd.
Share on (1600914649877):
Product Overview
Description

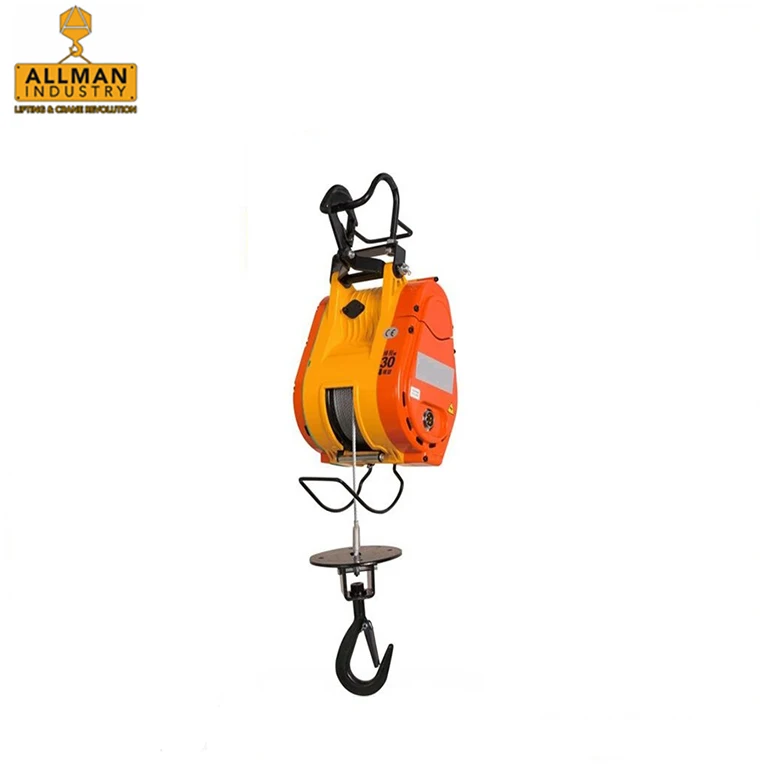

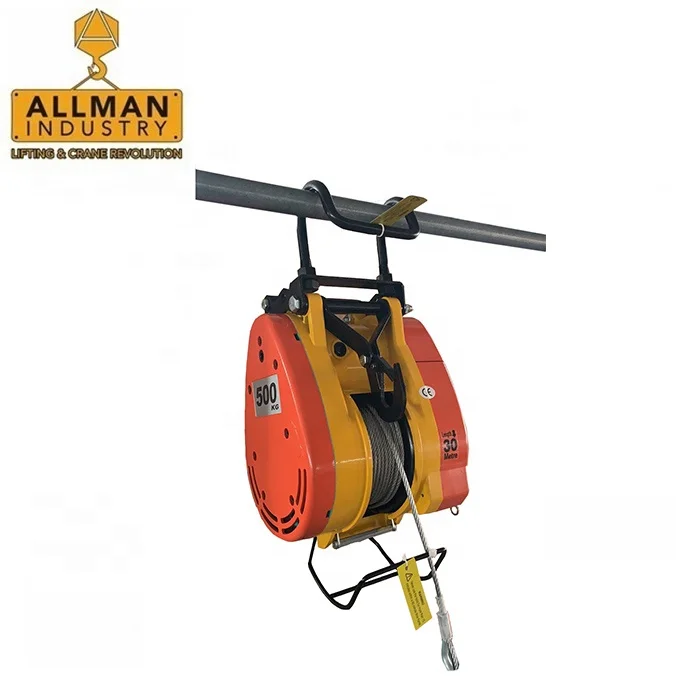

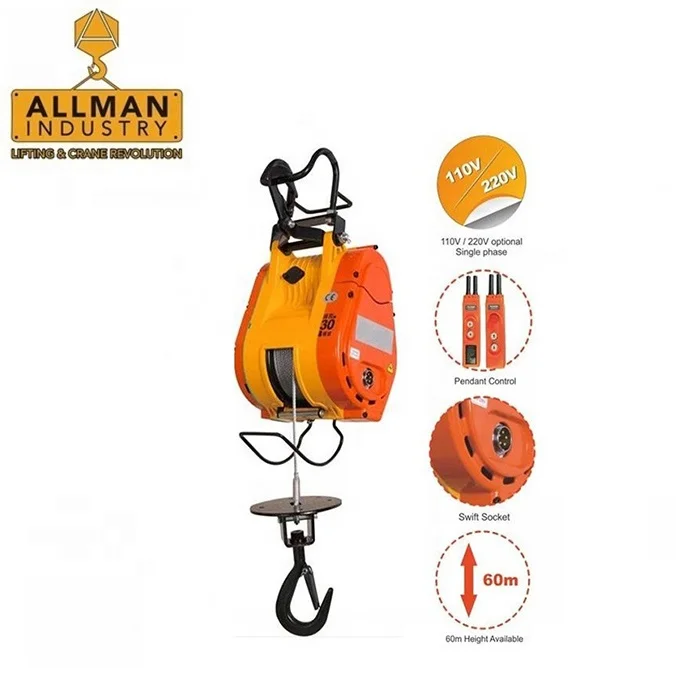

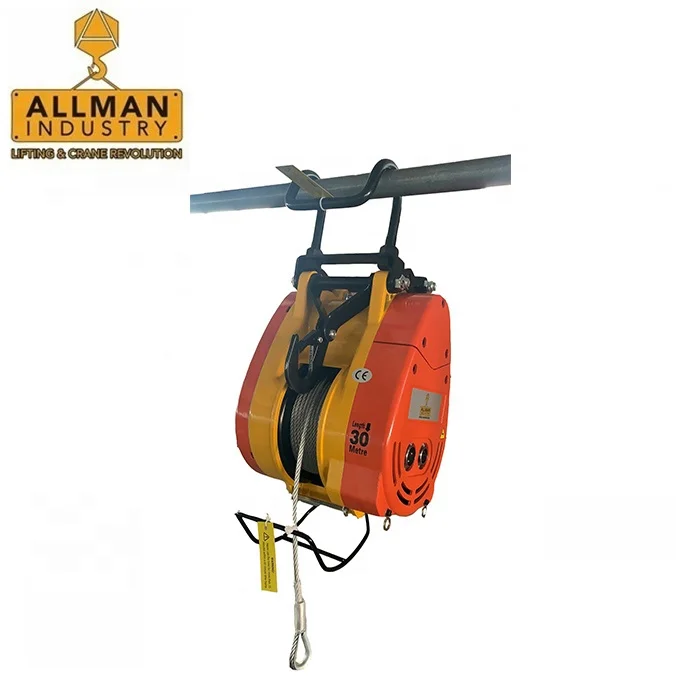

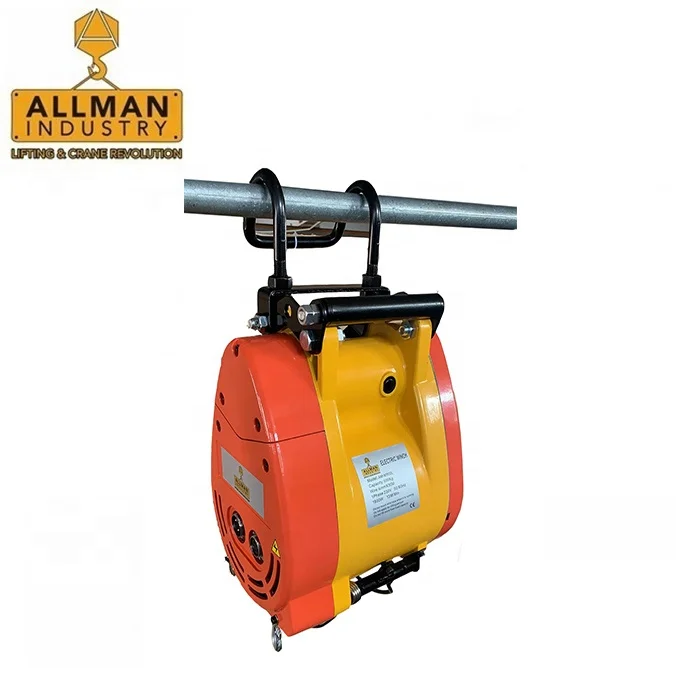

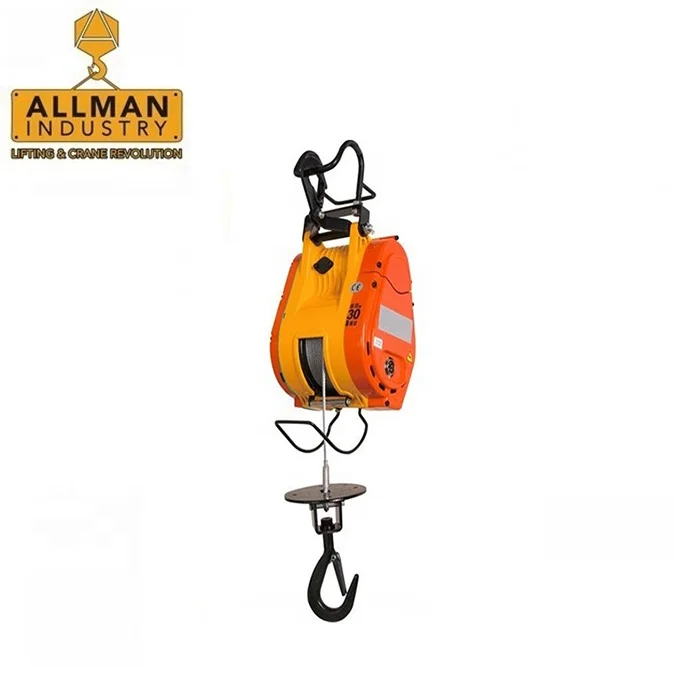

light weight 230 kg mini electric wire rope hoist with hook
ALLMAN Industry Co, Ltd,, as a professional supplier of lifting and material handing equipment , can provide electric hoist , electric wire rope hoist , cranes , manual chain hoist , lever hoist and various kinds of lifting products for different industries .
Electric hoist capacity range from 100 kg to 50 ton . When capacity less than 1000 kg , maybe mini electric hoist is a good option for you . While capacity from 500 kg to 5 ton , we suggest you our ALLMAN electric chain hoist . And Electric wire rope hoist is very suitable for capacity over 5 ton . We always do our very best to meet the your demands by supplying only the very best quality industrial Electric Hoists considering different site situation .
Mini electric hoists ( also called mini cable hoists , mirco electric rope hoists ) , which are used in single-line and double-line lifting applications , capacity range from 100 kg to 1000 kg , Cable length is 36 ft. when used as a single-line , 18 ft. when used as a double-line, including electric motor and push button controls. Mini hoist can be very easy installed on round pipe bracket or square tubing.
Electric hoist capacity range from 100 kg to 50 ton . When capacity less than 1000 kg , maybe mini electric hoist is a good option for you . While capacity from 500 kg to 5 ton , we suggest you our ALLMAN electric chain hoist . And Electric wire rope hoist is very suitable for capacity over 5 ton . We always do our very best to meet the your demands by supplying only the very best quality industrial Electric Hoists considering different site situation .
Mini electric hoists ( also called mini cable hoists , mirco electric rope hoists ) , which are used in single-line and double-line lifting applications , capacity range from 100 kg to 1000 kg , Cable length is 36 ft. when used as a single-line , 18 ft. when used as a double-line, including electric motor and push button controls. Mini hoist can be very easy installed on round pipe bracket or square tubing.
Features
1. with urgent stop switch .
2. Reinforced breaking switch with position limit .
3. Upper & Down limit device .
4. Protection class up to IP54.
5. Thermal protection device .
6. Spring buffer unit .
7. Handle protection connection cable .
8. Duty cycle : S3 20%-10min .
2. Reinforced breaking switch with position limit .
3. Upper & Down limit device .
4. Protection class up to IP54.
5. Thermal protection device .
6. Spring buffer unit .
7. Handle protection connection cable .
8. Duty cycle : S3 20%-10min .
Technical Paramenters
Model | AM-XG400 | AM-XG500 | AM-XG600 | AM-XG800 | |||||||||||
Usage | Single Rope | Double Rope | Single Rope | Double Rope | Single Rope | Double Rope | Single Rope | Double Rope | |||||||
Rated Volt(V) | AC 220V / 230V, 50Hz, 1 P or 220V / 380V , 50/60Hz, 3 P | ||||||||||||||
Input Power（W) | 1000 | 1000 | 1050 | 1300 | |||||||||||
Rated Capacity(kg) | 200 | 400 | 250 | 500 | 300 | 600 | 400 | 800 | |||||||
Lifting Speed (m/min) | 8 | 4 | 8 | 4 | 8 | 4 | 8 | 4 | |||||||
Lifting Height(m) | 40 | 20 | 40 | 20 | 38 | 19 | 34 | 17 | |||||||

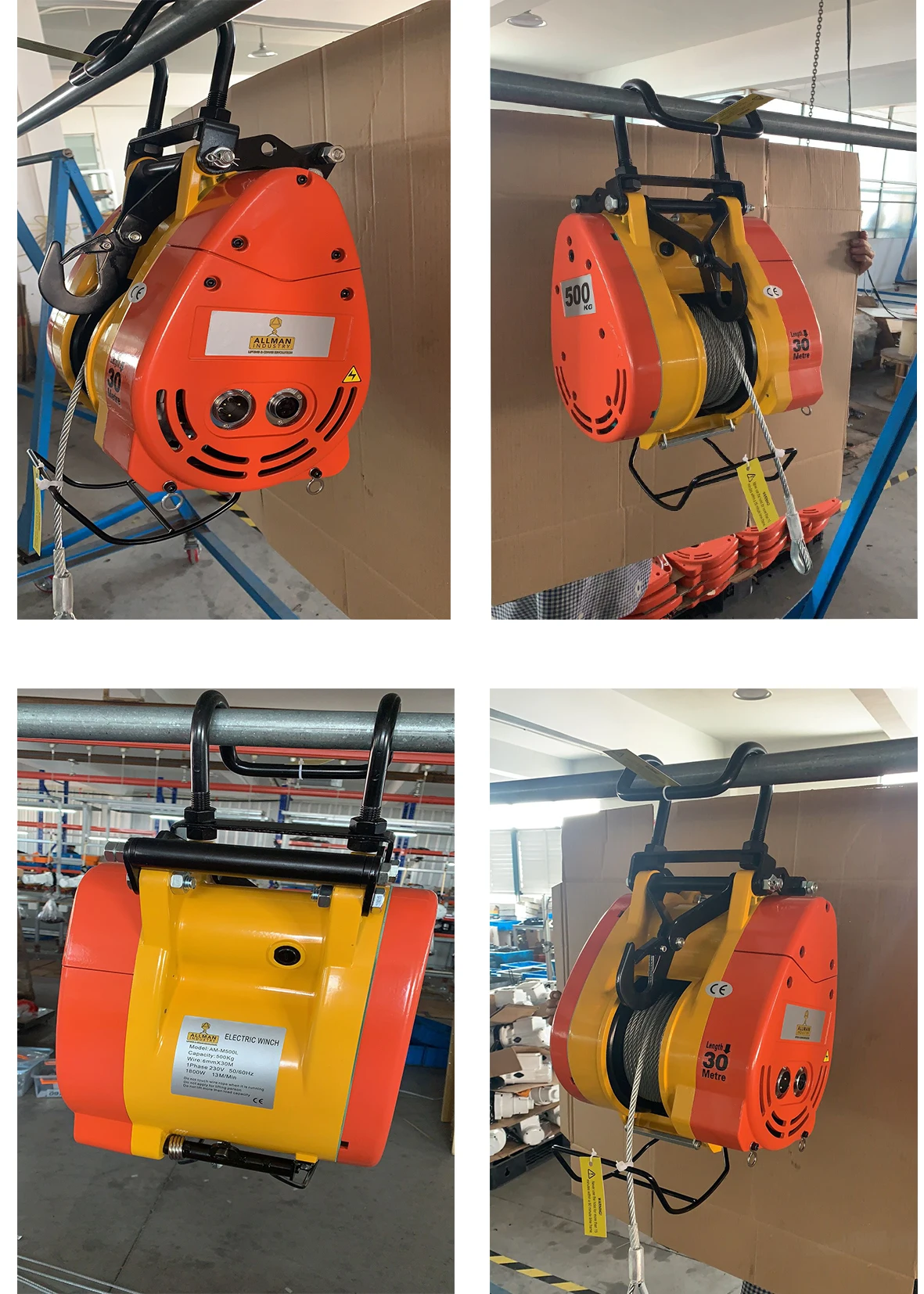

Details Images
Package
Company Profile
Nantong Allman Industry Co., Ltd is a leading exporter of lifting hoist and winch machine in China . For electric chain hoist , we have the biggest factory , can output over 5000units electric chain hoist per month . As for the electric winch , we are One of the Only two manufacturers of heavy duty electric winch , quality is the No.1 in China . Our engineers are still keeping developing more electric lifting winches like multipurpose electric winch , small electric winch to fit for different use situation. Moreover , ALLMAN is also a trustworthy supplier of other hand operated lifting tools like chain block , lever hoist , magnetic lifter, lifting clamps , girder trolley , hand pallet truck , steel wire ropes ,Aluminum and fiberglass ladders and so on .
After years of effort , we have established worldwide sales net , have many agents and distributors , products are well recognized by the market in different countries like Europe , USA , Latin America , UAE , the cooperation between our customers are keeping growing every year .
After years of effort , we have established worldwide sales net , have many agents and distributors , products are well recognized by the market in different countries like Europe , USA , Latin America , UAE , the cooperation between our customers are keeping growing every year .
CERTIFICATIONS
Exhibition
FAQ
1, Q: Are you manufacturer or trade company?
A : We are a professional manufacturer of electric hoist and electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our products have CE certificate , all the products are designed and manufactured according to the international standard . Different products meet different quality standard . All the products will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
5, Q: How long is the lead time ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
6, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
7, Q: What advantages we have?
A: Rich experience: We have over 10 years experience in exporting hoisting and lifting equipment , all of our sales have been in lifting industry over 8 years , some over 10 years .
We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement .
We have our own factory , so that , no matter the electric hoist and electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All will be re-tested again in our factory .
8, Q:How about the after sale service?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your
questions you are asking will be solved by our sales and engineers .
A : We are a professional manufacturer of electric hoist and electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our products have CE certificate , all the products are designed and manufactured according to the international standard . Different products meet different quality standard . All the products will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
5, Q: How long is the lead time ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
6, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
7, Q: What advantages we have?
A: Rich experience: We have over 10 years experience in exporting hoisting and lifting equipment , all of our sales have been in lifting industry over 8 years , some over 10 years .
We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement .
We have our own factory , so that , no matter the electric hoist and electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All will be re-tested again in our factory .
8, Q:How about the after sale service?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your
questions you are asking will be solved by our sales and engineers .
