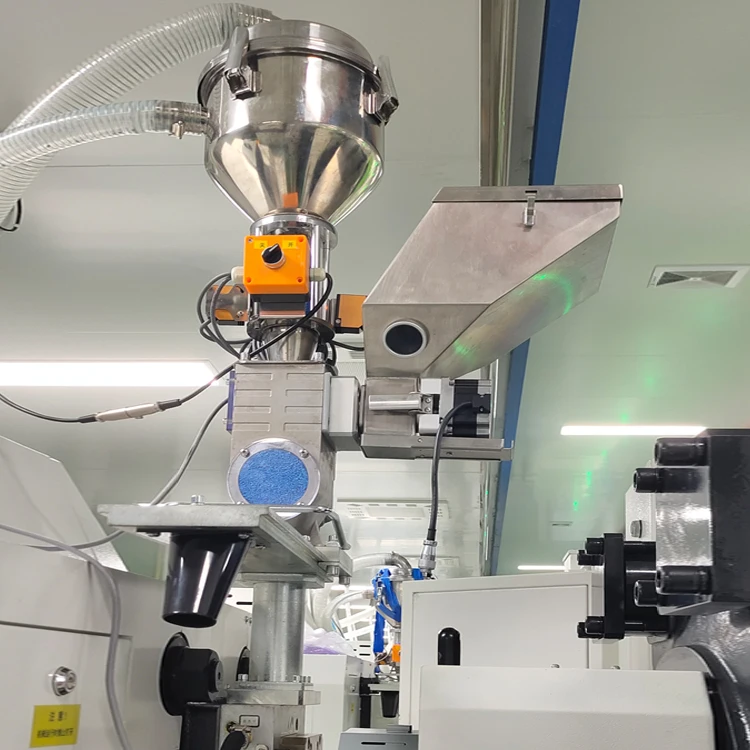

Industrial PLC controller masterbatch plastic double volumetric doser plastic granules color mixer machine
- Category: >>>
- Supplier: Guangdong Xiaojuren Machinery Co. Ltd.
Share on (1600914733752):
Product Overview
Description
Model | HSD-08 | HSD-12 | HSD-16 | HSD-20 | HSD-24 |
Motor Power(W) | 30 | 30 | 30 | 30 | 30 |
Rotating Speed(rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
Mixing Motor(W) | 90 | 90 | 90 | 90 | 90 |
Screw Dia.(mm) | 8 | 12 | 16 | 20 | 24 |
Output Capacity(L/h) | 0.1-1.5 | 0.1-3.0 | 0.3-10.0 | 0.4-20.0 | 0.8*38 |
Storage Capacity(L) | 12 | 12 | 12 | 12 | 12 |
Reduction Ratio | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
Dimension(mm) | 420*550*295 | 420*550*295 | 420*550*295 | 420*550*295 | 420*550*295 |
Net Weight(kg) | 17 | 17 | 17 | 17 | 17 |

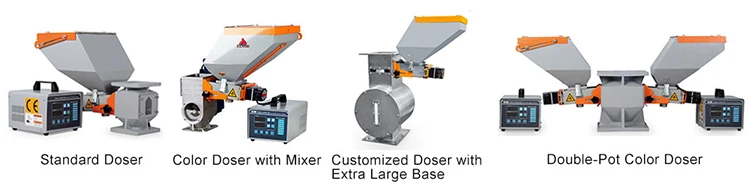

Volumetric doser
Volumetric dosers are designed for auto-proportional mixing of 1 new material and 1-4 kinds of masterbatch / additives for the injection, extrusion and blow-molding production. They can accurately calculate the proportion of the masterbatch and additives.

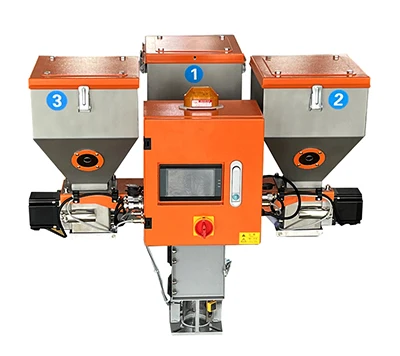

Three-pot color doser
It is suitable for automatic proportional mixing of new materials, secondary materials, color masterbatches or additives, etc. It has automatic weighing calibration, automatic monitoring of the addition of color masterbatches or additives, and has a color difference compensation function to meet production accuracy requirements.

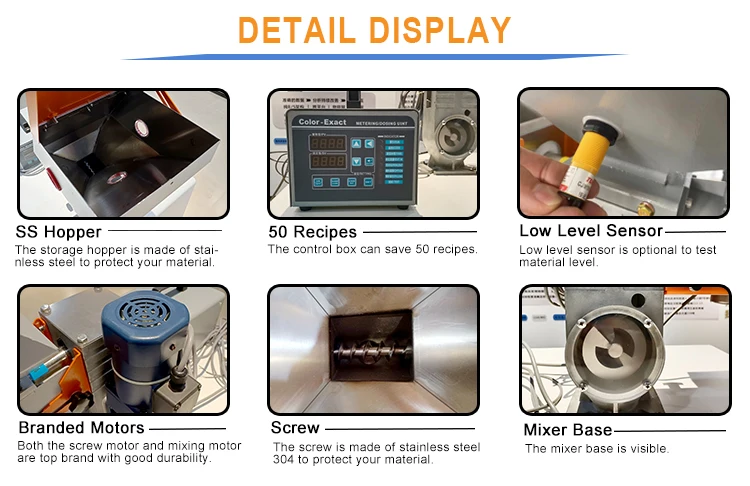

Features:
1.Use brushless DC motor and free from maintenance.

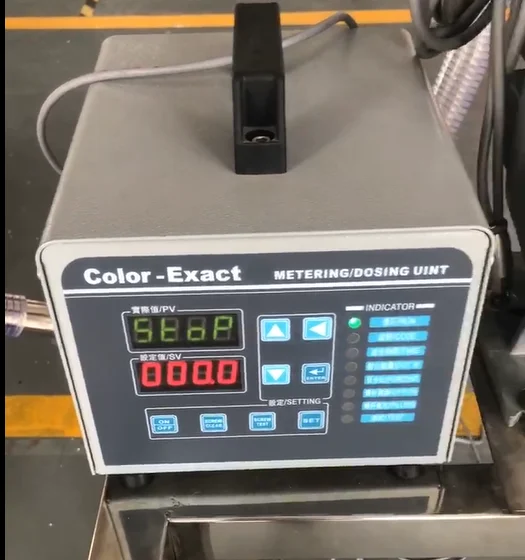

2.With the permanent memory and storage function of 50 sets of data, multilevel password protection realize the secret function of formulas.
3.Microprocessor control, intelligent and accurate in calculation.
4.External signals can be directly interfaced with control box.
5.Dosing screws are chrome plated for durability.
6.Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.
7.Using advanced control algorithm, self-optimized adjustment and compensation, ensures that the measurement of additives is always accurate and the consistency of product color and quality is ensured.
8.Precise measurement and automatic control reduce manual intervention and errors and reduce production costs.
9.Quickly and accurately mix pigments and plastic materials, which improves production efficiency and shortens production cycle.
2.With the permanent memory and storage function of 50 sets of data, multilevel password protection realize the secret function of formulas.
3.Microprocessor control, intelligent and accurate in calculation.
4.External signals can be directly interfaced with control box.
5.Dosing screws are chrome plated for durability.
6.Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.
7.Using advanced control algorithm, self-optimized adjustment and compensation, ensures that the measurement of additives is always accurate and the consistency of product color and quality is ensured.
8.Precise measurement and automatic control reduce manual intervention and errors and reduce production costs.
9.Quickly and accurately mix pigments and plastic materials, which improves production efficiency and shortens production cycle.

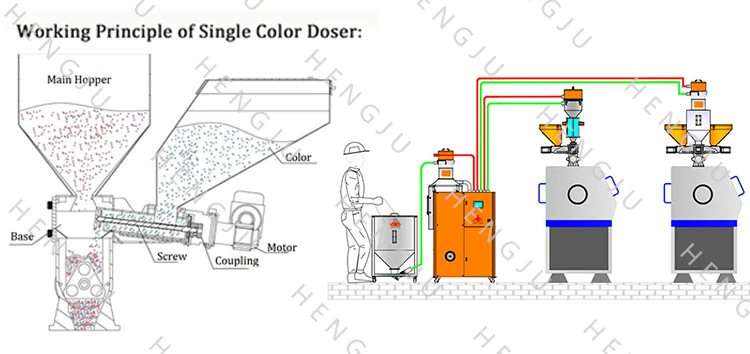

Working principle:
The signal from the control box is transmitted to the motor, and the motor starts to rotate, which drives the screw to rotate through the coupling. The color masterbatch in the hopper falls into the falling rod, is squeezed by the screw, and is conveyed to the base by the screw, so as to achieve the purpose of accurately metering and conveying the color masterbatch.
Company introduction:
Since its establishment, Hengju has been focusing on the research and development of dehumidifying & drying, dosing & mixing and central conveying systems to make products closer to customer’s demand and customize complete automation solutions for customers.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Relying on strong professional technology and stable quality, we have won high comments from customers at home and abroad.Covering industries include auto parts, chemical industry,pelletizing, new energy, new materials, etc., and excellent performance in bio-degradable plastics such as PLA, PBAT, and pipe/sheet/ cable extrusion and other fields!
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Relying on strong professional technology and stable quality, we have won high comments from customers at home and abroad.Covering industries include auto parts, chemical industry,pelletizing, new energy, new materials, etc., and excellent performance in bio-degradable plastics such as PLA, PBAT, and pipe/sheet/ cable extrusion and other fields!
